Used- Vertical Wiped Film Evaporator

Stock# 10151206

DOWNLOAD ALL PHOTOS FOR THIS ITEM

Stock # 10151206

ITEM SOLD!

View All 6 available items

HAVE A SIMILAR MACHINE FOR SALE?

Surplus Equipment for Sale?
We make this quick and easy!

Scan QR Code with your phone
Enter Contact Info
Upload Pics and Specs
Submit

More Info

DESCRIPTION

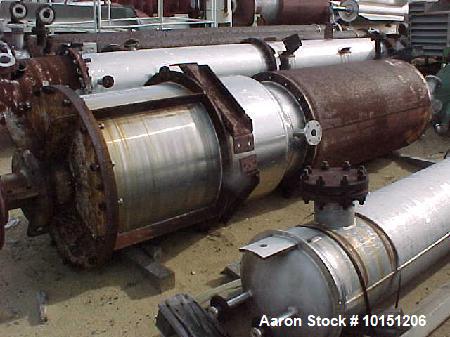

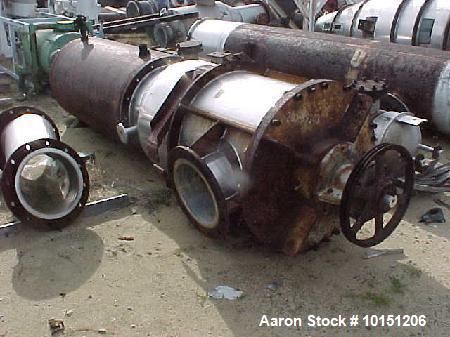

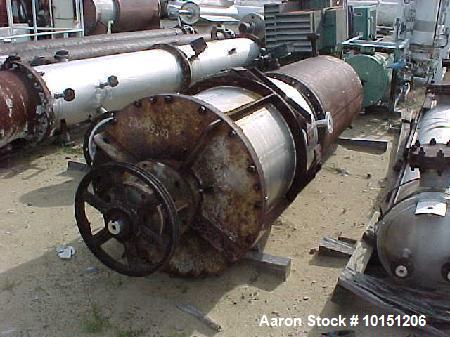

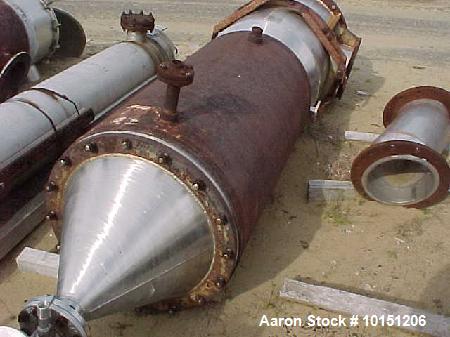

Used- Vertical Wiped Film Evaporator. Approximately 40 square foot area. Main chamber 2' diameter x approximately 5.5' straight height with bolted cone bottom. Steel jacket. V-belt drive, takes 7-1/2 hp motor. 30" Diameter x 4' high stainless steel pot welded to top, with bolted flat cover. Includes approximately 400 square foot vertical condenser rated full vacuum on T-316 stainless steel and 60 psi tube side, multi-pass, with steel heads. Polished finish internally. Looks like a Rodney-Hunt/Chemetron. Top vapor section 36" diameter x 48" high plus 12" transition section to jacketed area. 28" Shell diameter x 60" high plus 18" deep cone bottom. 4" Outlet in center bottom.
