Used BRODR. HETLAND HIFS 6 Pilot Falling Film Vacuum Evaporator – 316L Stainless Steel Protein Processing System

Manufacturer: BRODR. HETLAND A/S
Model: HIFS 6
Type: 1-Effect Falling Film Vacuum Evaporator
Condition: Used

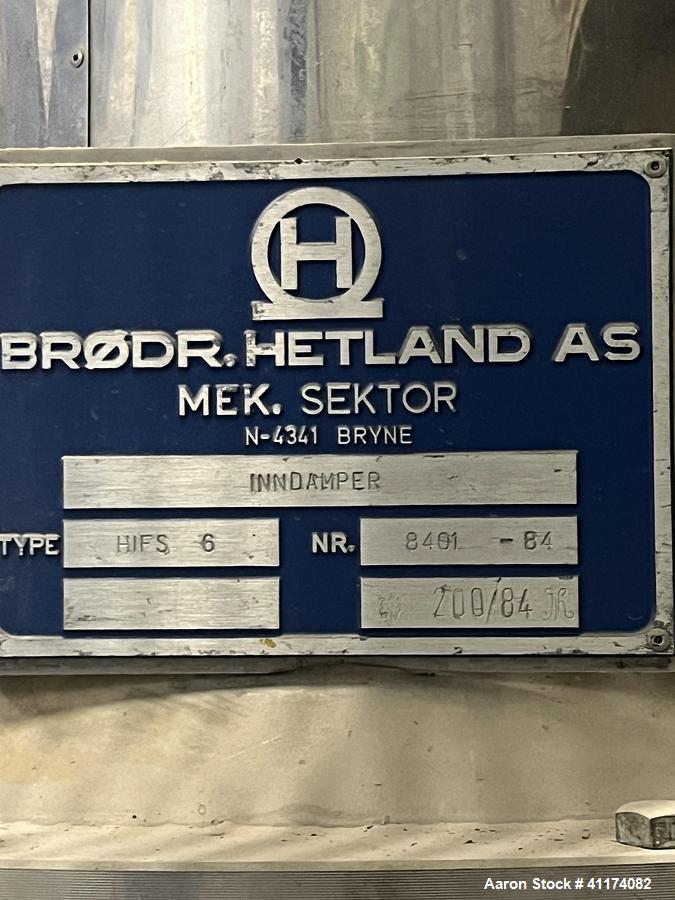

Serial Number: 8401-B4

Description

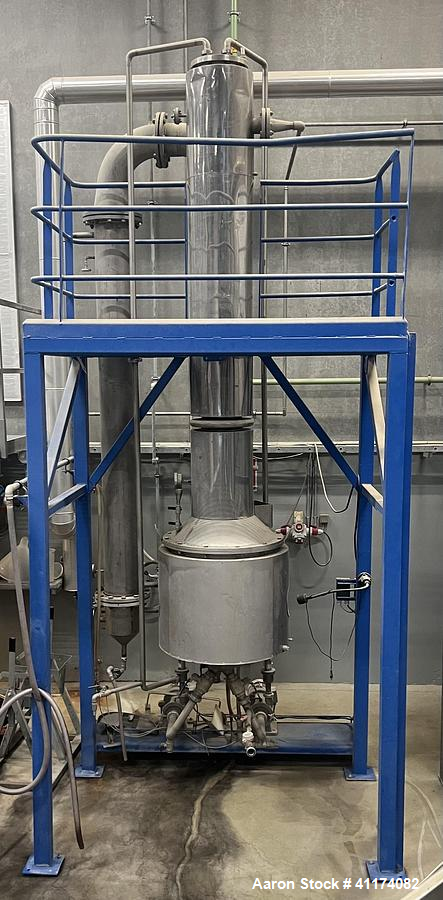

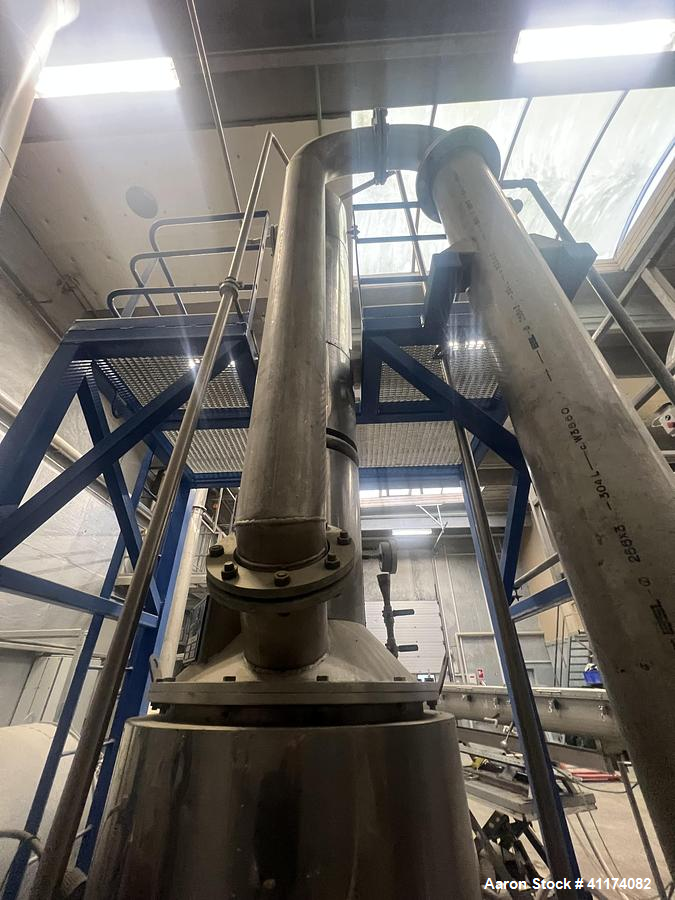

Used BRODR. HETLAND HIFS 6 Pilot Falling Film Vacuum Evaporator, designed for efficient concentration of liquids under vacuum conditions, particularly suited for heat-sensitive products such as proteins and food ingredients.

Constructed from 316L stainless steel, this system offers excellent corrosion resistance and hygienic processing standards. With a 6 m² (64.58 sq ft) heating surface, the unit is capable of evaporating approximately 100 kg/hr (220 lbs/hr) of water, concentrating product streams up to 35% dry solids (DS).

The evaporator features a falling film design, ensuring short residence times and minimal thermal degradation. Complete with piping, pumps, sensors, and supporting infrastructure, this pilot unit is ideal for R&D, pilot plant trials, and small-scale production.

Previously used in a protein application, this system is well suited for food, biotech, and specialty chemical industries.

Freight specialists are available to assist with customs documentation, ensuring smooth global delivery.

Specifications

• Manufacturer: BRODR. HETLAND A/S
• Model: HIFS 6
• Machine Type: Falling Film Vacuum Evaporator
• Effect Type: Single Effect (1-Effect)
• Construction: 316L Stainless Steel
• Serial Number: 8401-B4

Performance

• Heating Surface Area: 64.58 sq ft (6 m²)
• Evaporation Capacity:
  • 100 kg/hr (220 lbs/hr) water removal
• Product Concentration: Up to 35% dry solids (DS)

Heat Exchange System

• Number of Tubes: 20
• Tube Diameter: 1.3" (33.7 mm)
• Tube Length: 3000 mm (9’8”)

System Features

• Falling film evaporation technology
• Vacuum operation for low-temperature processing

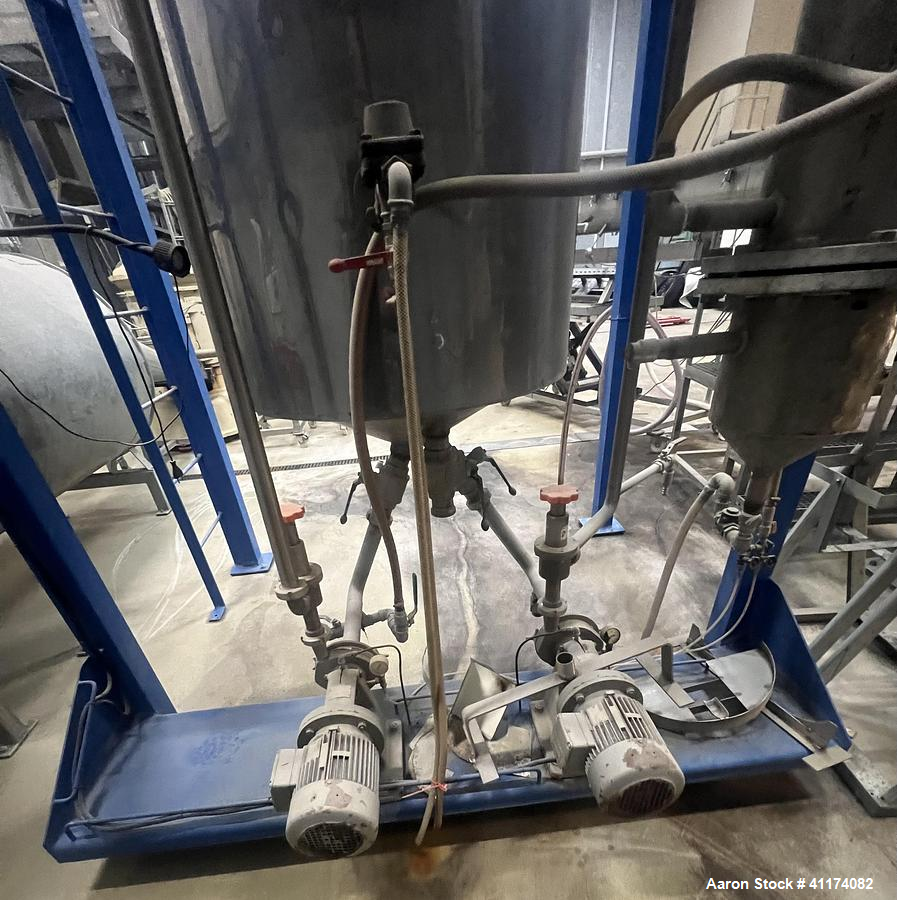

• Complete with piping, pumps, sensors
• Additional infrastructure included

Applications

• Protein concentration
• Dairy processing
• Food ingredient concentration
• Juice concentration
• Pharmaceutical solutions
• Chemical concentration
• Waste stream volume reduction
• Heat-sensitive liquid processing
• Biotech processing
• Pilot plant evaporation trials

What might this be used for

• Concentrating protein solutions
• Removing water from liquid streams
• Processing heat-sensitive materials under vacuum
• Developing evaporation processes
• Reducing product volume for storage or transport
• Increasing product solids content
• Pilot testing for scale-up
• Processing specialty food or biotech products
• Enhancing product stability
• Continuous evaporation in pilot systems

Products this machine would be used for

• Protein concentrates
• Dairy liquids
• Food extracts
• Juice concentrates
• Pharmaceutical liquids
• Chemical solutions
• Nutraceutical liquids
• Fermentation broths
• Biotech solutions
• Specialty liquid products
