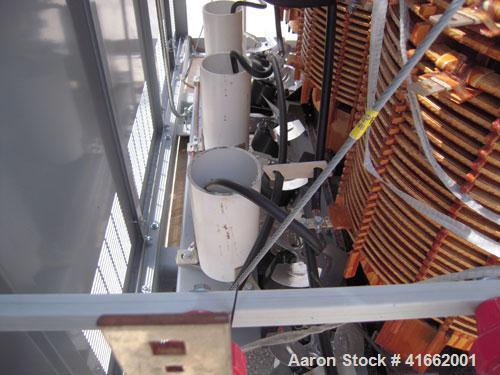

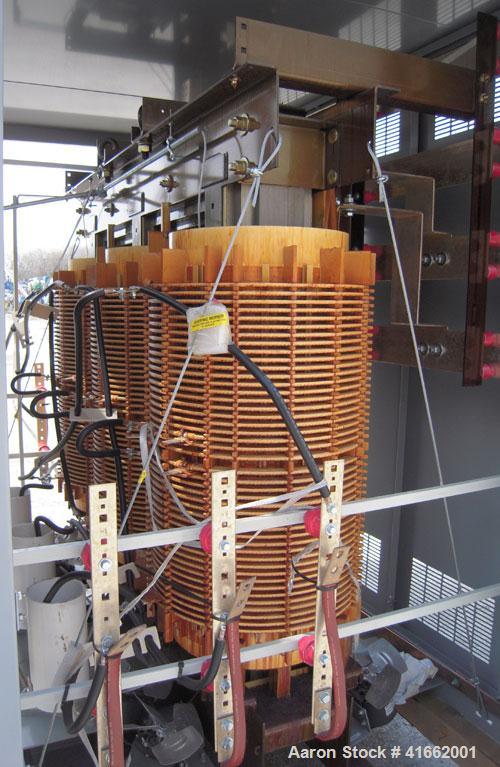

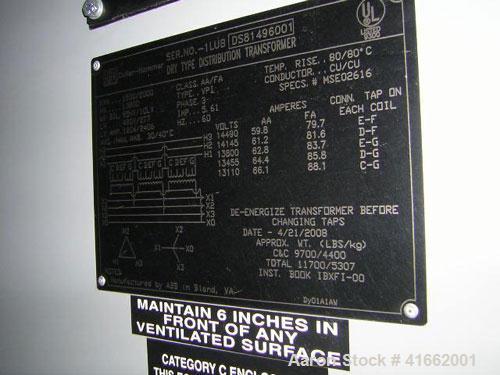

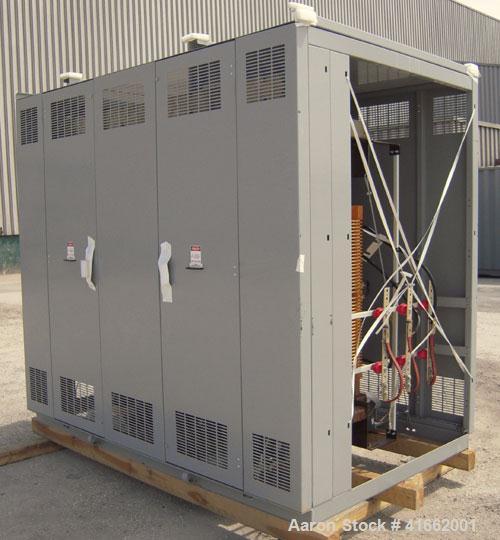

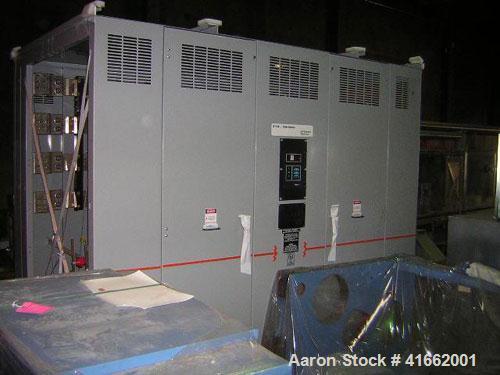

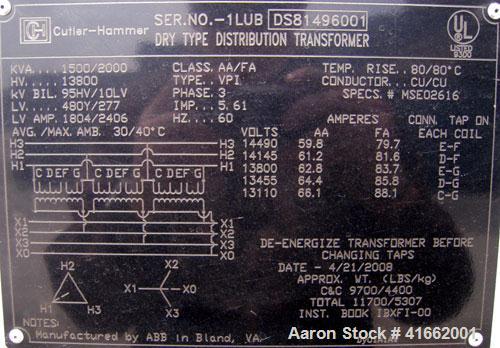

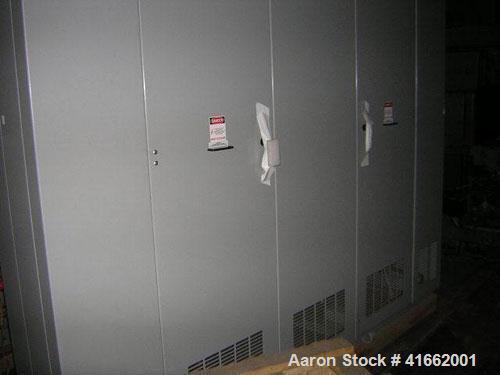

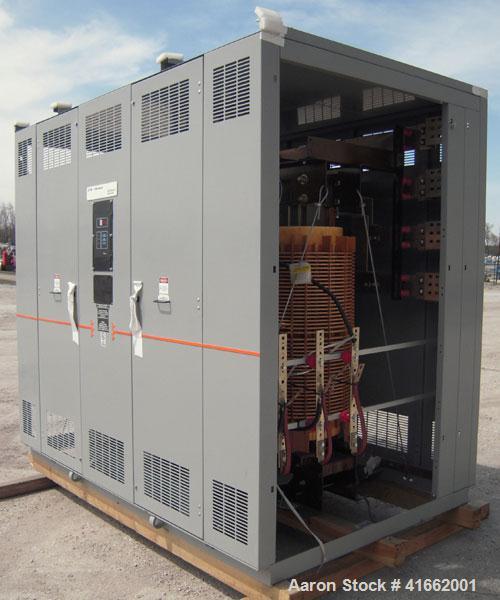

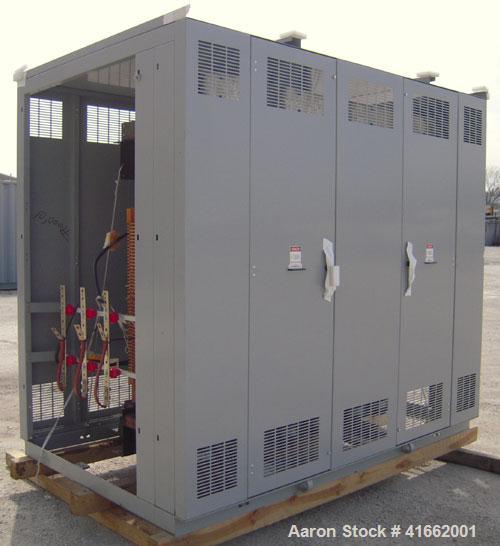

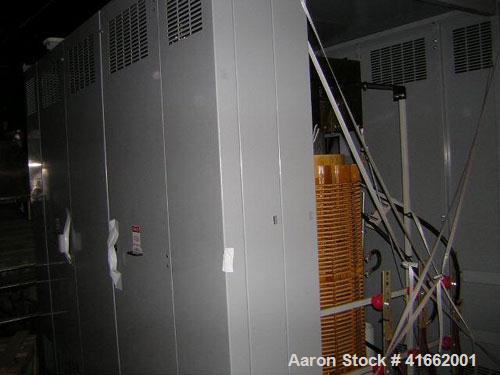

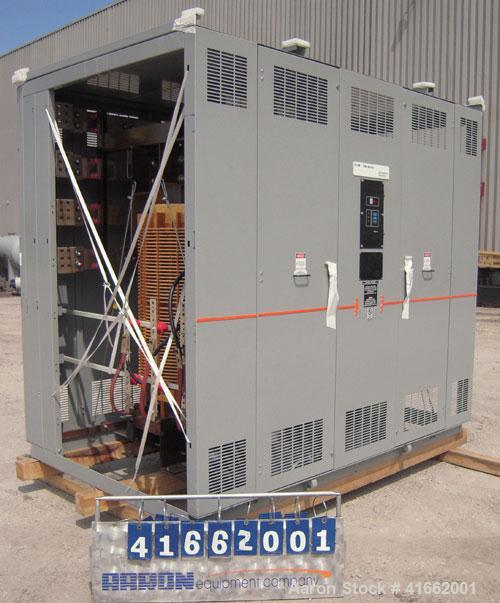

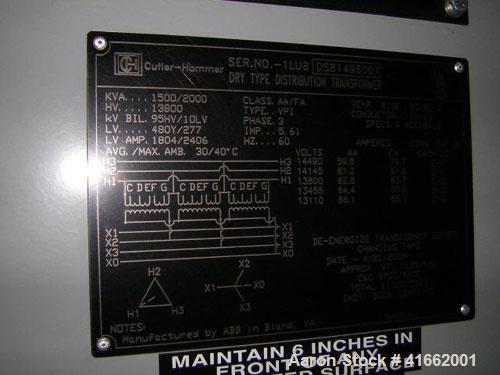

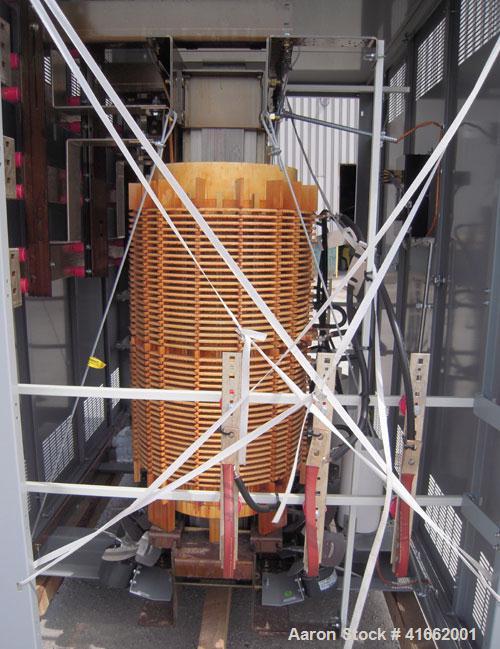

Unused- Cutler Hammer/ABB Transformer. Built 2008. 1500/2000 kva dry type. HV 13,800 Delta Primary to 480Y/277 Secondary. kV BIL 95 HV, 10 LV, LV amp 1804/2406, Class AA/FA, type VP1, average max amp 30/40 degree C, copper windings. NEMA 1 enclosure . Volts AA FA 14400 59.8 78.7 14145 61.2 81.6 13800 62.8 83.7 13445 64.4 85.8 13110 66.1 88.1 Copper windings, core and coil 9700 lbs, SN: 1LUB D581496001, MFD-2008
Unused- Cutler Hammer/ABB Transformer. Built 2008. 1500/2000 kva dry type. HV 13,800 Delta Primary to 480Y/277 Secondary. kV BIL 95 HV, 10 LV, LV amp 1804/2406, Class AA/FA, type VP1, average max amp 30/40 degree C, copper windings. NEMA 1 enclosure . Volts AA FA 14400 59.8 78.7 14145 61.2 81.6 13800 62.8 83.7 13445 64.4 85.8 13110 66.1 88.1 Copper windings, core and coil 9700 lbs, SN: 1LUB D581496001, MFD-2008
