Used Dry Type Transformers

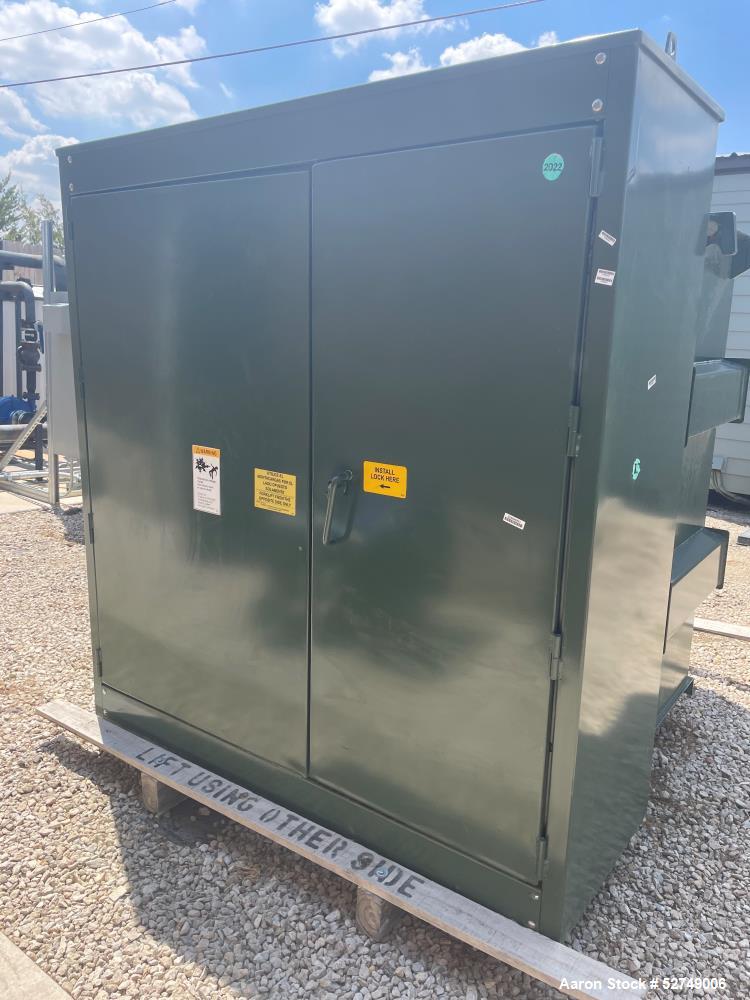

Stock# 52749006

Unused - 1500 KVA 3 Ph Padmount Transformer 1500 KVA Primary Voltage: 24940 Delta Secondary Voltage: 415Y/240 Taps: 2.5% Above & Below HV: 150 BIL 60Hz Dead Front, Loop Feed, Six HV Bushings, Stagger LV with Radiators Minimum Dims, 20 Inch deep Cabinet, Temp Rise: 65C Bolts: Pentahead Paint Finish: Munsell 7GY 3.29/1.5 Padmount Green DOE 2016 Standard Compliant Design. Operation: Step-Down Liquid Level Guag Handhole 8" x 19" 6) 200 Amp HV Bushing well removable stud 35 KV 4) 1 Stud Type with 10 Holes blade 2200 A - LV Bushing 1 - Standard Pressure Relief Valve 1 - Thermometer VIAT 1 - Vacuum Pressure Gauge VIAT 1 - 1 inch Drain Valve with 3/8 inch sampler in LV 6 - 150 kV BIL insert - 200 Amp (35 kV) - Grounded 1 - Warning Decal Per Nema fig. 1 2 - Danger Decal Per Nema fig. 2 1 - Standard Nameplate 4 - Plastic GRD Connector Plug 0.08 - Nitrogen Blanket 2 - Jacking facilities 1 - Supported LV 1 - Munsell 7GY 3.29/1.5 Padmount Green (standard) 1 - Schrader Valve

Stock# 52749007

Unused - 1500 KVA 3 Ph Padmount Transformer 1500 KVA Primary Voltage: 24940 Delta Secondary Voltage: 415Y/240 Taps: 2.5% Above & Below HV: 150 BIL 60Hz Dead Front, Loop Feed, Six HV Bushings, Stagger LV with Radiators Minimum Dims, 20 Inch deep Cabinet, Temp Rise: 65C Bolts: Pentahead Paint Finish: Munsell 7GY 3.29/1.5 Padmount Green DOE 2016 Standard Compliant Design. Operation: Step-Down Liquid Level Guag Handhole 8" x 19" 6) 200 Amp HV Bushing well removable stud 35 KV 4) 1 Stud Type with 10 Holes blade 2200 A - LV Bushing 1 - Standard Pressure Relief Valve 1 - Thermometer VIAT 1 - Vacuum Pressure Gauge VIAT 1 - 1 inch Drain Valve with 3/8 inch sampler in LV 6 - 150 kV BIL insert - 200 Amp (35 kV) - Grounded 1 - Warning Decal Per Nema fig. 1 2 - Danger Decal Per Nema fig. 2 1 - Standard Nameplate 4 - Plastic GRD Connector Plug 0.08 - Nitrogen Blanket 2 - Jacking facilities 1 - Supported LV 1 - Munsell 7GY 3.29/1.5 Padmount Green (standard) 1 - Schrader Valve
