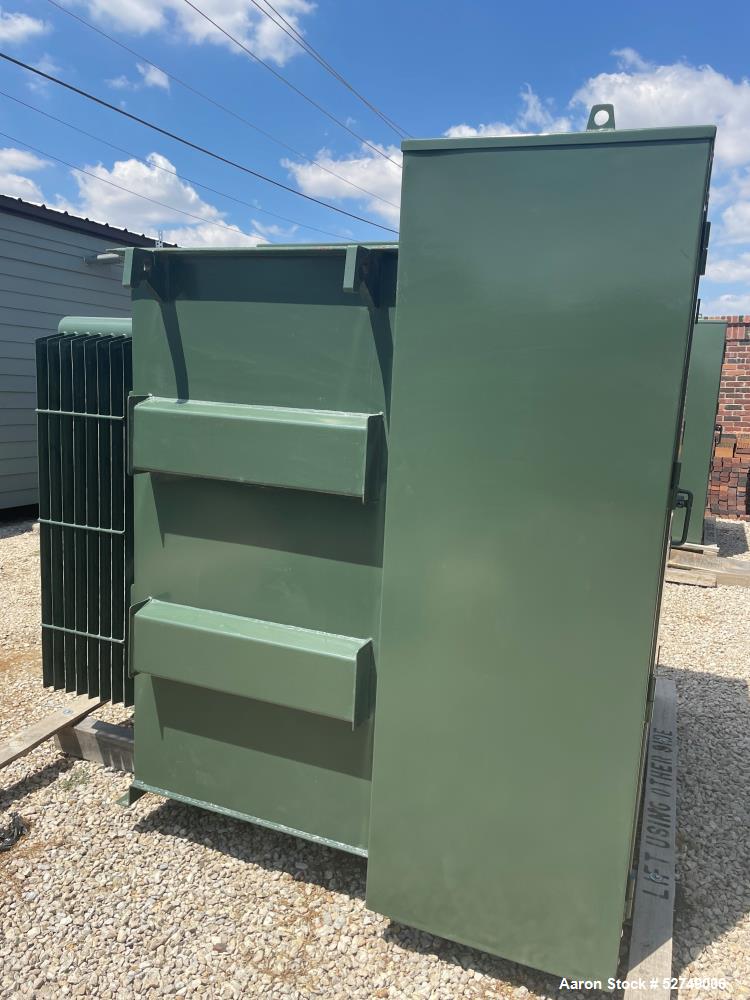

Unused - 1500 KVA 3 Ph Padmount Transformer
1500 KVA 3 Ph Padmount Transformer 1500 KVA-Unused Primary Voltage: 24940 Delta Secondary Voltage: 415Y/240 Taps: 2.5% Above & Below HV: 150 BIL 60Hz Dead Front, Loop Feed, Six HV Bushings, Stagger LV with Radiators Minimum Dims, 20 Inch deep Cabinet, Temp Rise: 65C Bolts: Pentahead Paint Finish: Munsell 7GY 3.29/1.5 Padmount Green DOE 2016 Standard Compliant Design. Operation: Step-Down Liquid Level Guag Handhole 8" x 19" 6) 200 Amp HV Bushing well removable stud 35 KV 4) 1 Stud Type with 10 Holes blade 2200 A - LV Bushing 1 - Standard Pressure Relief Valve 1 - Thermometer VIAT 1 - Vacuum Pressure Gauge VIAT 1 - 1 inch Drain Valve with 3/8 inch sampler in LV 6 - 150 kV BIL insert - 200 Amp (35 kV) - Grounded 1 - Warning Decal Per Nema fig. 1 2 - Danger Decal Per Nema fig. 2 1 - Standard Nameplate 4 - Plastic GRD Connector Plug 0.08 - Nitrogen Blanket 2 - Jacking facilities 1 - Supported LV 1 - Munsell 7GY 3.29/1.5 Padmount Green (standard) 1 - Schrader Valve
Manufacturer Information
- Capacity: 1500 KVA
- Condition: Unused
Description
The 1500 KVA 3-Phase Padmount Transformer is a high-efficiency step-down transformer, designed for commercial and industrial applications. It features a primary voltage of 24,940 Delta and a secondary voltage of 415Y/240, making it ideal for power distribution systems.
This DOE 2016 Standard Compliant Design transformer includes dead front, loop feed configuration with six HV bushings and staggered LV with radiators for effective cooling. It has taps at 2.5% above & below for voltage adjustments and operates at 60Hz.
The unit features a 65°C temperature rise, a pentahead bolt design for security, and a Munsell 7GY 3.29/1.5 padmount green finish for durability. Additional features include a liquid level gauge, an 8” x 19” handhole, and removable stud-type HV bushings rated at 35 kV.
Specifications
- Power Rating: 1500 KVA
- Operation: Step-Down Transformer
- Primary Voltage: 24,940 Delta
- Secondary Voltage: 415Y/240
- Taps: 2.5% Above & Below
- BIL Rating: 150 BIL
- Frequency: 60Hz
- Configuration: Dead Front, Loop Feed
- Bushings:
- (6) HV Bushings
- (6) 200 Amp HV Bushing Well Removable Stud (35 kV)
- (4) 1 Stud Type with 10...

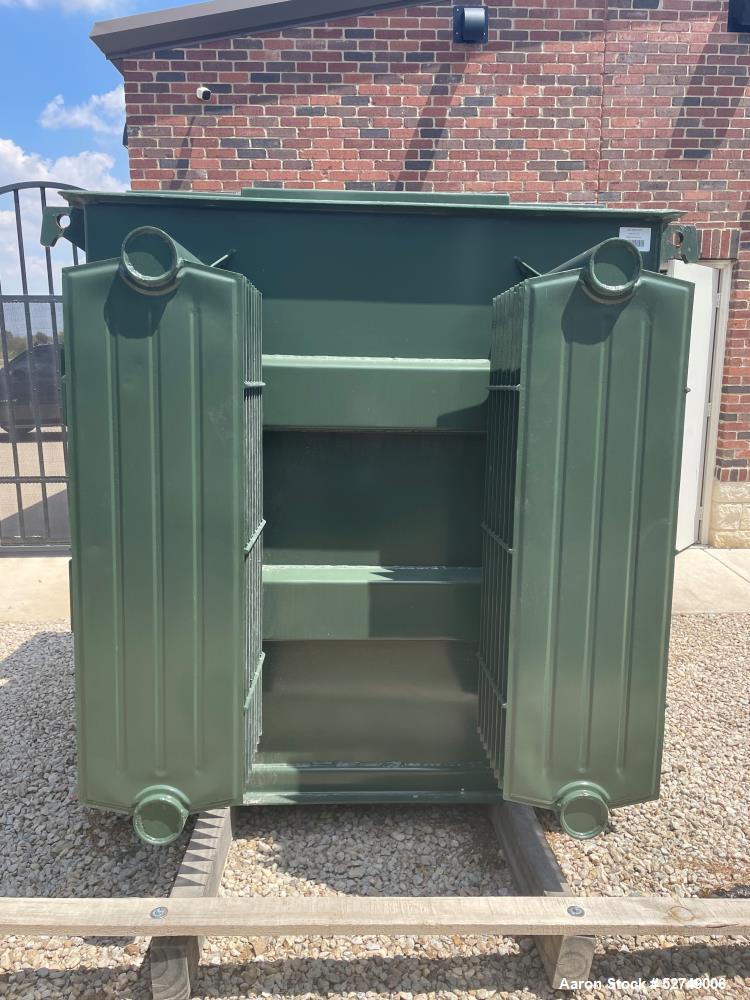

- Cooling System: Staggered LV with Radiators
- Cabinet Dimensions: Minimum 20” Depth
- Temperature Rise: 65°C
- Security Features: Pentahead Bolts
- Paint Finish: Munsell 7GY 3.29/1.5 Padmount Green
- Compliance: DOE 2016 Standard
Applications
This 1500 KVA Padmount Transformer is ideal for power distribution in various industries, including:
- Commercial Buildings – Powering office buildings, retail stores, and business complexes
- Industrial Facilities – Electrical distribution for manufacturing plants and processing units
- Utility & Grid Systems – Enhancing regional power distribution networks
- Renewable Energy Projects – Integrating solar and wind power systems
- Municipal & Government Infrastructure – Supplying power to city grids and public facilities
- Data Centers & IT Hubs – Ensuring stable electrical supply for critical operations
Electric Utility Company, Electrical Transformer, Electronics, Energy
- Unused 1500 KVA padmount transformer
- 3-phase step-down transformer
- 24,940 Delta primary voltage
- 415Y/240 secondary voltage transformer
- DOE 2016 compliant power transformer
- 150 BIL rating padmount transformer
- 60Hz loop feed transformer with HV bushings
- Staggered LV with radiators for cooling
- Pentahead bolt security transformer
- Munsell 7GY 3.29/1.5 padmount green finish
1500 KVA 3 Ph Padmount Transformer 1500 KVA-Unused Primary Voltage: 24940 Delta Secondary Voltage: 415Y/240 Taps: 2.5% Above & Below HV: 150 BIL 60Hz Dead Front, Loop Feed, Six HV Bushings, Stagger LV with Radiators Minimum Dims, 20 Inch deep Cabinet, Temp Rise: 65C Bolts: Pentahead Paint Finish: Munsell 7GY 3.29/1.5 Padmount Green DOE 2016 Standard Compliant Design. Operation: Step-Down Liquid Level Guag Handhole 8" x 19" 6) 200 Amp HV Bushing well removable stud 35 KV 4) 1 Stud Type with 10 Holes blade 2200 A - LV Bushing 1 - Standard Pressure Relief Valve 1 - Thermometer VIAT 1 - Vacuum Pressure Gauge VIAT 1 - 1 inch Drain Valve with 3/8 inch sampler in LV 6 - 150 kV BIL insert - 200 Amp (35 kV) - Grounded 1 - Warning Decal Per Nema fig. 1 2 - Danger Decal Per Nema fig. 2 1 - Standard Nameplate 4 - Plastic GRD Connector Plug 0.08 - Nitrogen Blanket 2 - Jacking facilities 1 - Supported LV 1 - Munsell 7GY 3.29/1.5 Padmount Green (standard) 1 - Schrader Valve
