Used-2864 Square Foot Seneca Pulse Jet Dust Collector, Bag House Model 304-IM-8. 2864 square feet of filter area. Manufactur...

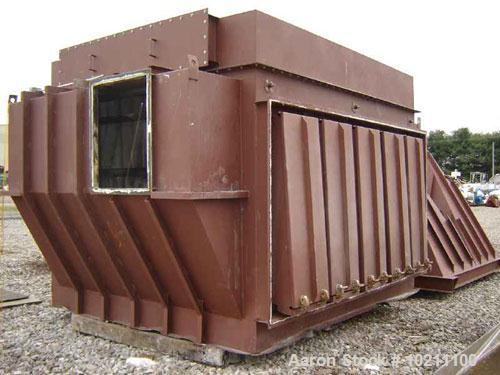

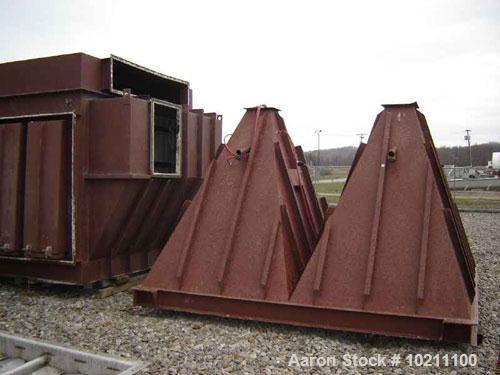

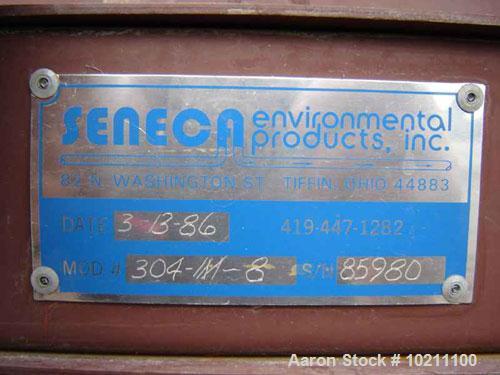

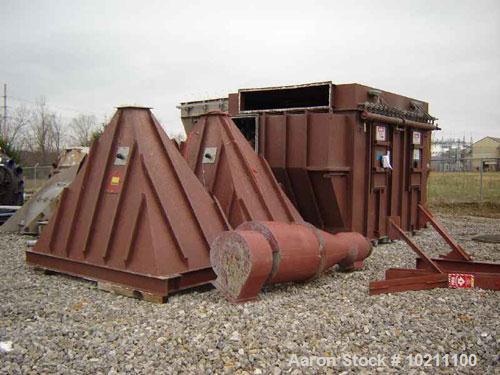

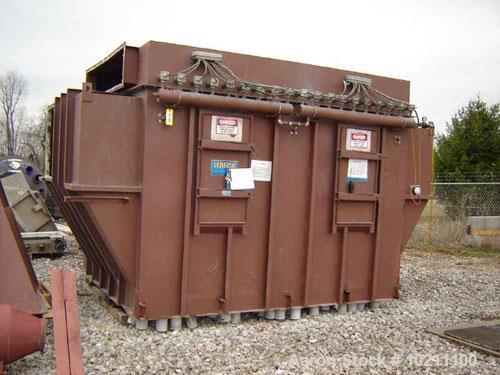

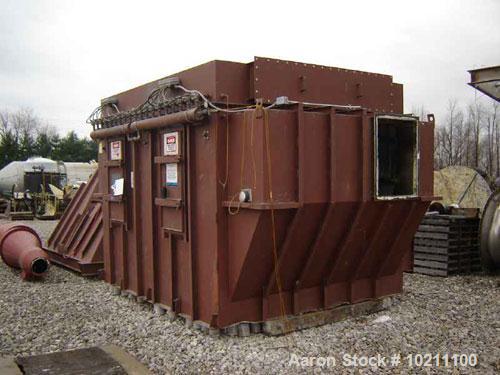

Used-2864 Square Foot Seneca Pulse Jet Dust Collector, Bag House Model 304-IM-8. 2864 square feet of filter area. Manufactured by Seneca Environmental Products Inc, Tifton OH. Date of manufacture 3/13/1986. Collector has 19 blowpipe headers, 16 bags per row, for a total of 304 bags. Side removal design. Bags are 4.5" diameter X 8' tall. Bags are still installed in collector. Previous application was acrylic scrap fiber and dust filtration. Some cages are bent, some cages are missing, approximately 12 to 14. Collector appears to be Mikropul bag side removal design with aluminum venturi. Collector appears to have 16 X 19 bags. Collector has five explosion relief doors approximately 20" X 60' with Brixon latches. Collector also appears to be fitted for future sprinkler pipes. Unit has two dirty air inlets, one on each end that are 26" X 34" openings. Clean air outlet is approximately 16" X 84". Unit comes complete with double hopper outlet design, structural steel legs, considerable maintenance access platform structure is also available. Unit was used indoors and is primer painted only. Collector was removed from the building in April 2008. Collector is approximately 185" overall length X 9'-6" front to back X 22'-0" overall height with 46" clearance under airlock. All structural steel and access platforms are with this collector. Airlocks and fans are available at extra cost.
