Stock No.: 53083002
Used CPE Filters Inc Cartridge Filter Receiver / Dust Collector – Model 24-CFR-009-C, 400 ACFM

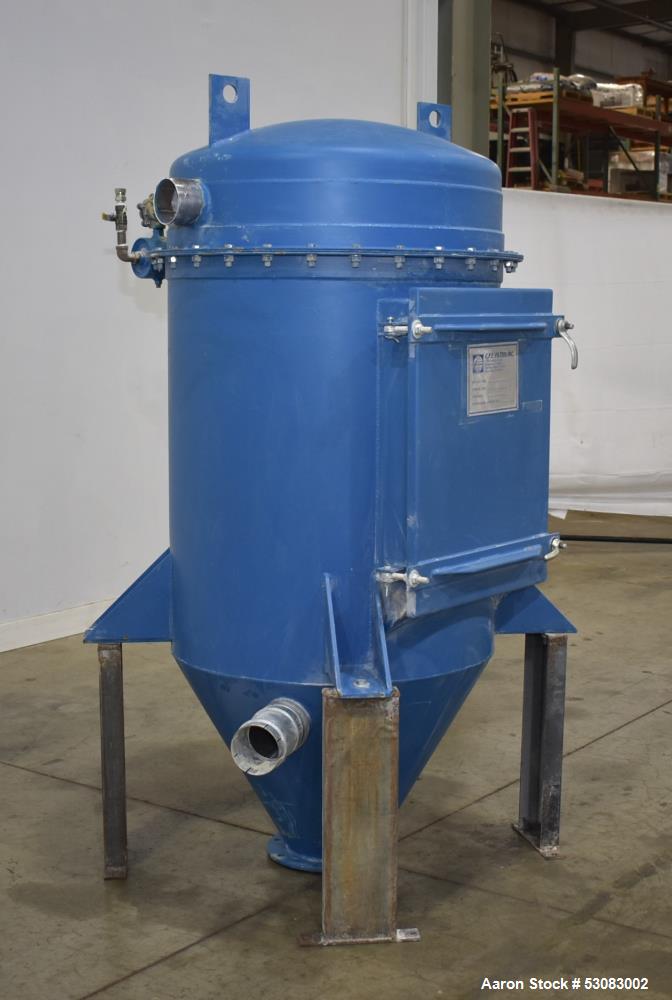

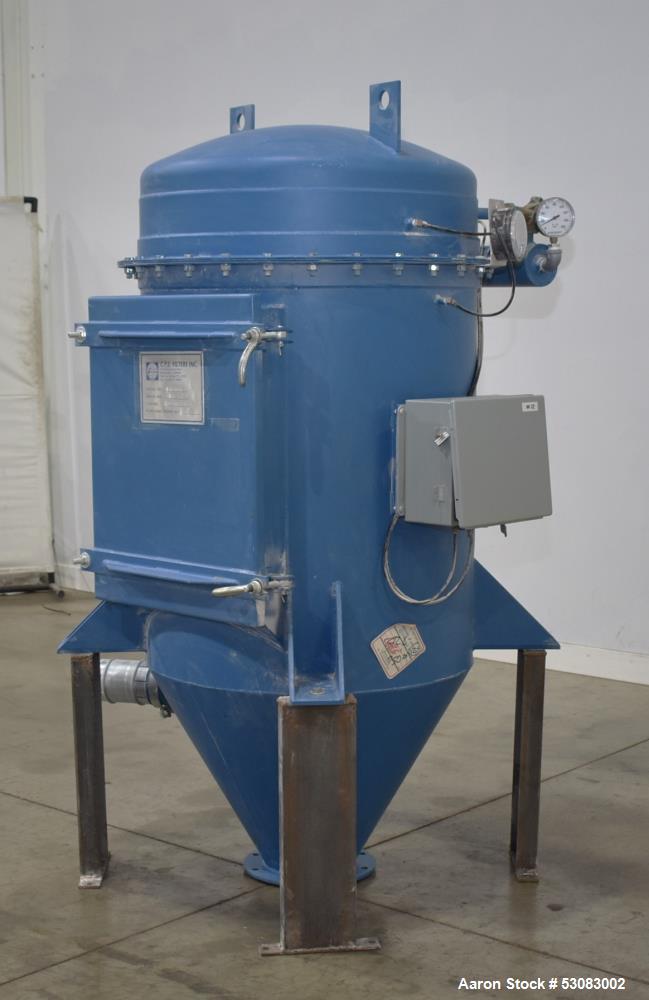

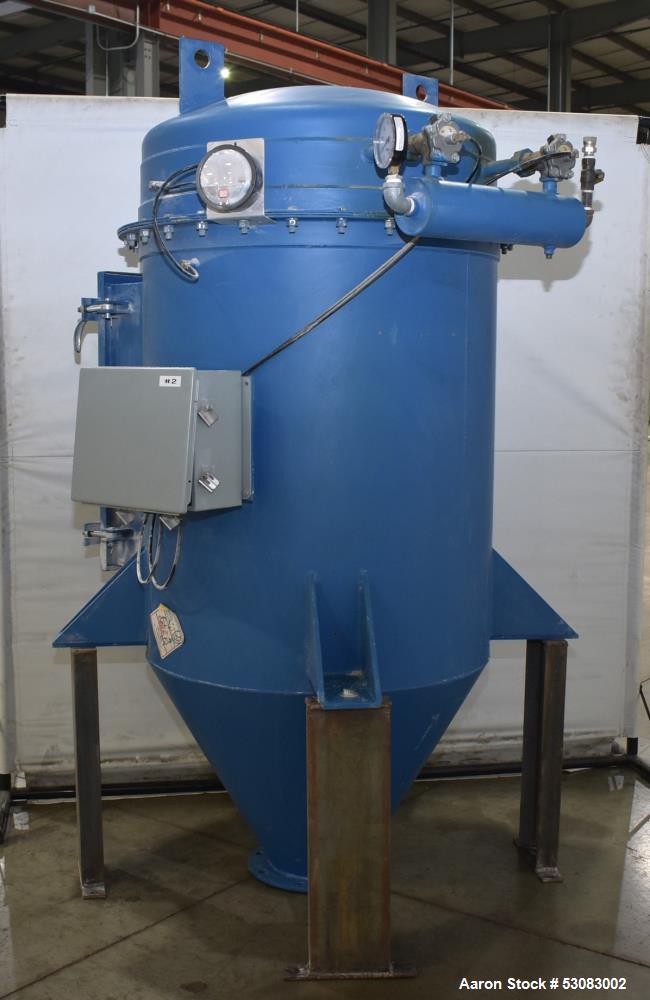

Submit Offer $3,250Used- CPE Filters Inc Cartridge Filter Receiver / Dust Collector, Model 24-CFR-009-C, Carbon Steel, Vertical. Designed for 400 acfm. 142 Square foot filter area. Dust density 50 lbs cubic foot. Approximate 28" diameter x 36" straight side housing. Dished top, coned bottom. (9) 6" diameter x 24" long filter cartridges. Design temperature 200 degrees F. 18" x 24" Side access door. (3) Valves. 4" Diameter clean air outlet, 4" tube dusty air inlet with internal baffle. Approximately 8" center bottom outlet. Side lug mounted with (4) carbon steel legs. Serial# 5887. Does not include blower.
-

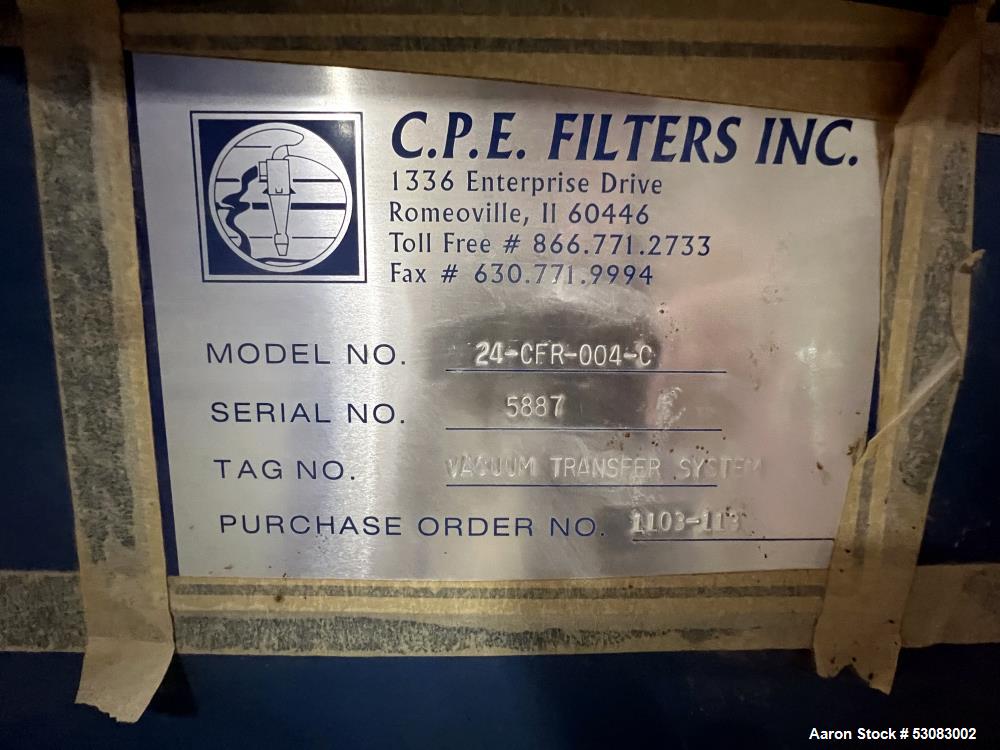

ManufacturerCPE
-
Model24-CFR-004-C
-
Serial #5887
-
CategoryDust Collectors
-
SubcategoryDust Collectors
-
Material Of ConstructionCarbon Steel
-
Square Footage Filter Area142
-
Side Access DoorYes
-
Inlet Size4"
-
Outlet Size8"
-
Straight Side36"
-
BottomConed Bottom
-
Includes BlowerNo
-
MountedMounted on 4 Legs
-
Overall Dimensions42" x 42" x 80"T
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information:
- Manufacturer: CPE Filters Inc
- Model: 24-CFR-009-C
- Condition: Used
- Material Construction: Carbon Steel
- Serial Number: 5887
Manufacturing Data:
- Airflow Capacity: 400 ACFM
- Filter System:

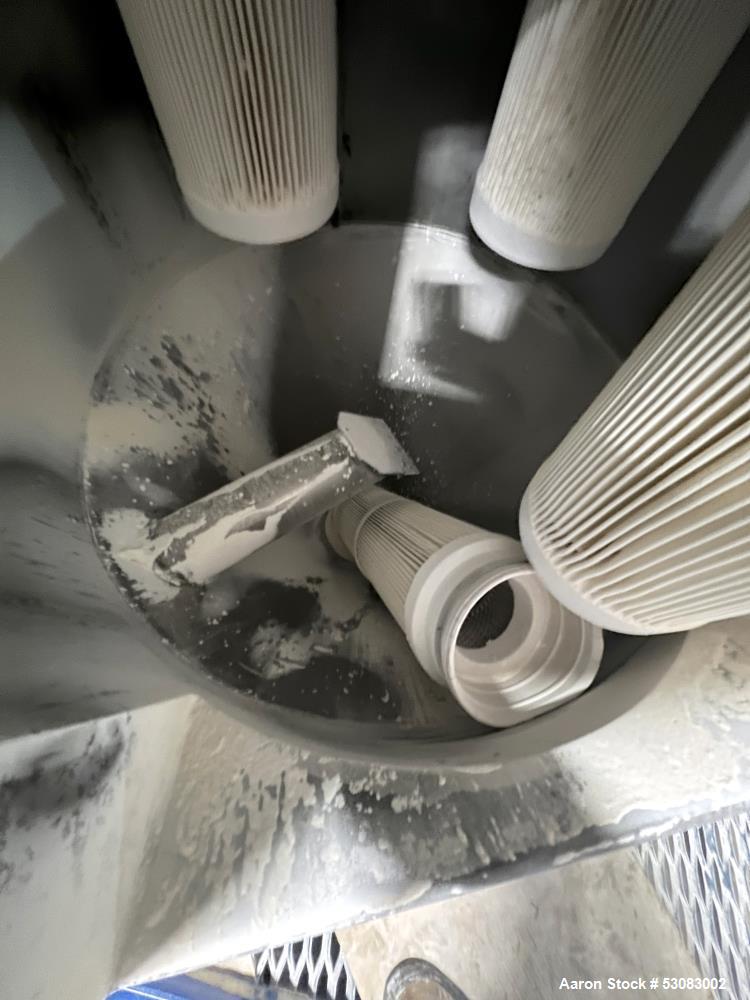

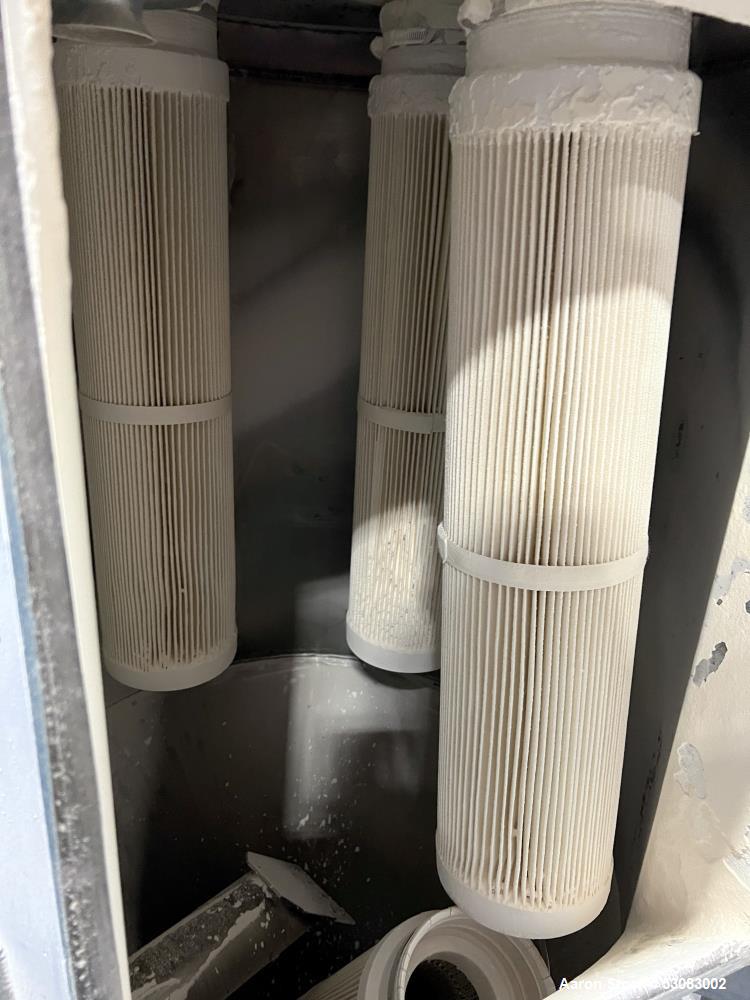

- (9) 6” diameter x 24” long filter cartridges
- Total Filter Media Area: 142 square feet
- Dust Density Rating: 50 lbs per cubic foot
- Design Temperature: 200°F
- Housing Dimensions: Approx. 28” diameter x 36” straight side
- Structure:
- Top: Dished
- Bottom: Coned

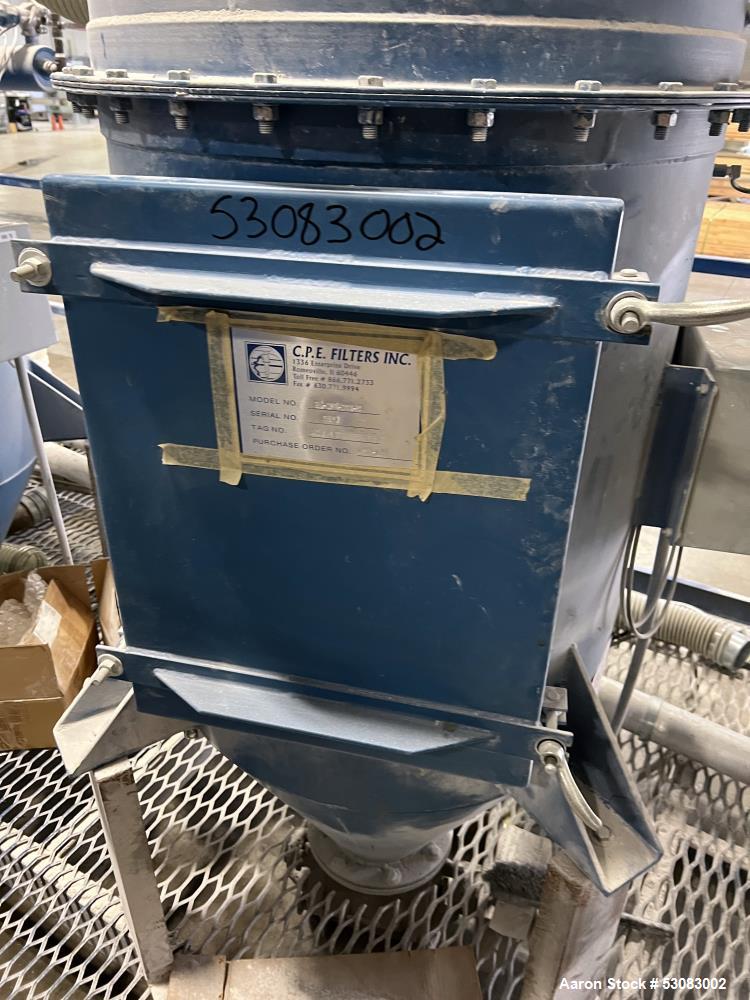

- Side Access Door: 18” x 24”
- Valves: (3) integrated valves
- Inlet/Outlet:

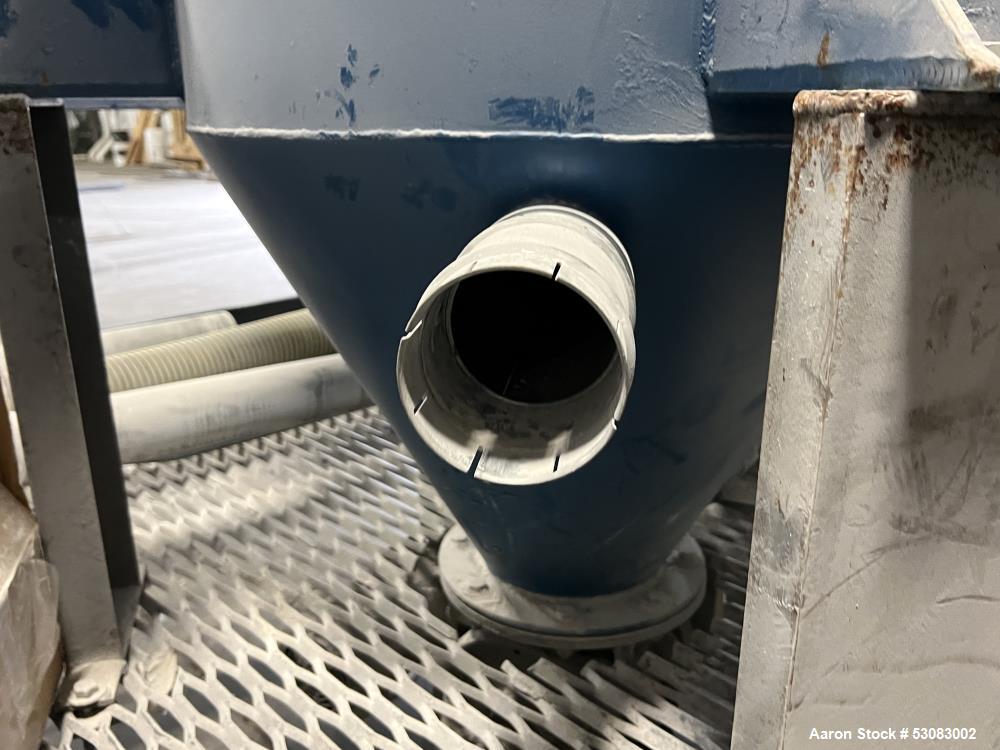

- Dusty Air Inlet: 4” tube with internal baffle
- Clean Air Outlet: 4” diameter
- Dust Discharge Outlet: 8” center bottom outlet
- Mounting: Side lug mounted with (4) carbon steel legs
- Blower: Not included
Description:
The CPE Filters Inc 24-CFR-009-C Cartridge Filter Receiver / Dust Collector is designed for efficient dust collection in industrial applications with a 400 ACFM airflow capacity. Featuring (9) cartridge filters providing 142 square feet of filtration area, this unit is ideal for capturing and controlling fine particulates in dusty environments.
Built from carbon steel for durability, the system includes a dished top, coned bottom, and internal baffle for airflow management. The side access door (18” x 24”) allows for easy filter maintenance, while the integrated 4” clean air outlet and 4” dusty air inlet provide smooth air movement. The unit is side lug mounted on four sturdy carbon steel legs for stability.
Specifications:
- Airflow Capacity: 400 ACFM
- Material: Carbon Steel
- Total Filter Media Area: 142 square feet
- Filter Cartridges: (9) 6” diameter x 24” long
- Dust Density: 50 lbs/cubic foot
- Operating Temperature: 200°F max
- Housing Dimensions: 28” diameter x 36” straight side
- Access Door: 18” x 24” side access
- Air Inlet: 4” tube with internal baffle
- Clean Air Outlet: 4” diameter
- Dust Discharge Outlet: 8” center bottom
- Mounting: Side lug mounted on (4) carbon steel legs
- Blower: Not included
Applications:
This cartridge filter receiver and dust collector is ideal for industrial air filtration in the following industries:
- Manufacturing & Processing – Capturing fine particulate in factories
- Chemical Processing – Filtration of airborne dust and powders
- Pharmaceutical Industry – Removing fine pharmaceutical dusts
- Food & Beverage Processing – Airborne ingredient filtration
- Metalworking & Welding – Capturing metal and welding fumes
- Woodworking & Composites – Filtering sawdust and composite particulates
What Products Would This Be Used For?
- Powder and dust filtration
- Metal and welding fume extraction
- Chemical and pharmaceutical particulate control
- Food-grade dust collection
- Industrial clean air applications
Product Details
- Used cartridge filter dust collector
- CPE Filters Inc dust collector
- Industrial dust collection system for sale
- Carbon steel dust collector receiver
- 400 ACFM dust collector unit
- Used CPE Filters Inc 24-CFR-009-C industrial cartridge filter receiver
- 400 ACFM carbon steel dust collector with 9-cartridge filter system
- High-efficiency dust collector for chemical and food processing
- Industrial cartridge filter system with 142 square feet media area
- Used side-lug mounted dust collector with coned bottom discharge
-
