Used Battery Recycling Systems Lead Refining Kettle Air Filtration System – 30,000 CFM, 150 HP Blower, Bag House, BRS/Wirtz

Manufacturer Information

• Manufacturer: Battery Recycling Systems, Inc. (a subdivision of Wirtz)

• Specialization: Systems and equipment for the environmental control of lead-acid battery manufacturing and recycling operations.

• Noted for compliance-driven engineering and tailored ventilation/filtration solutions.

Description

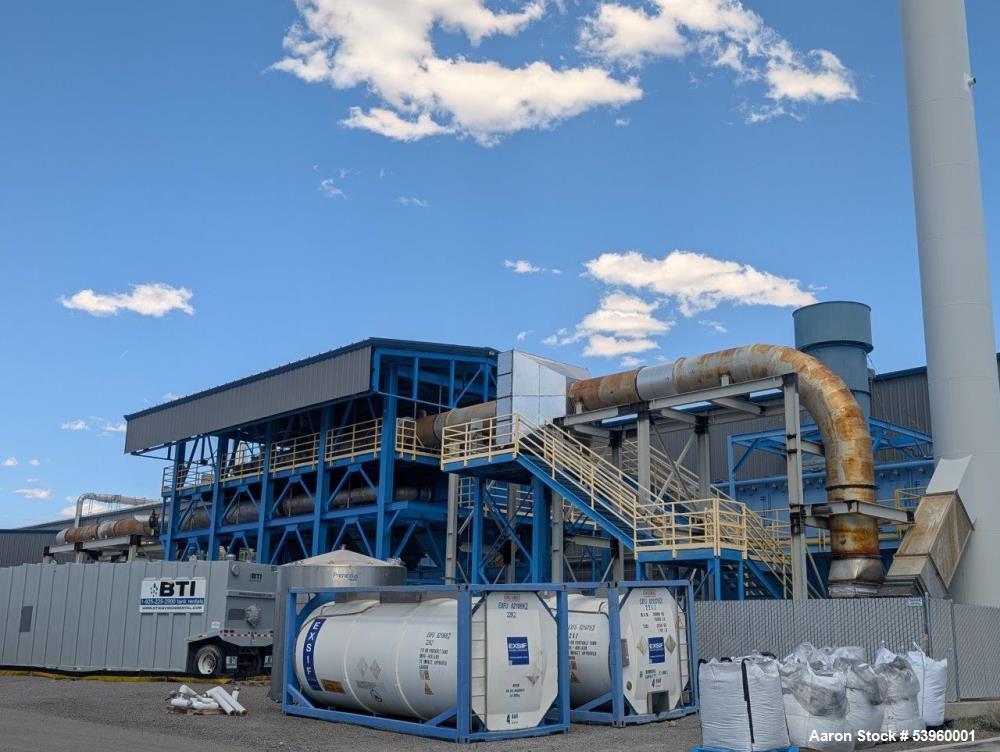

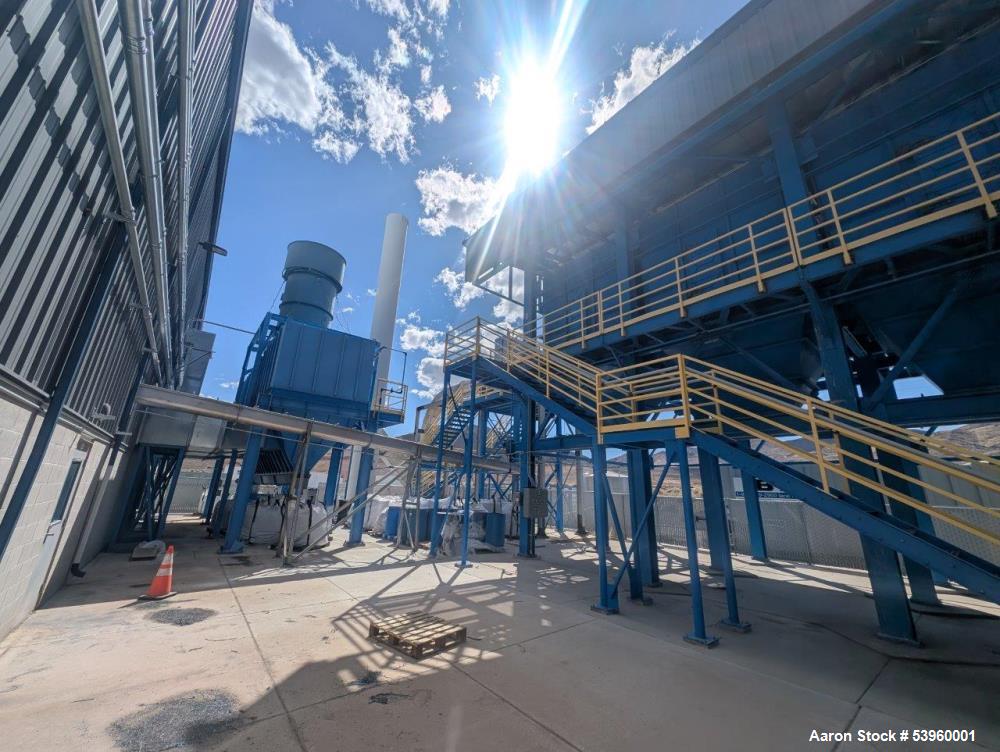

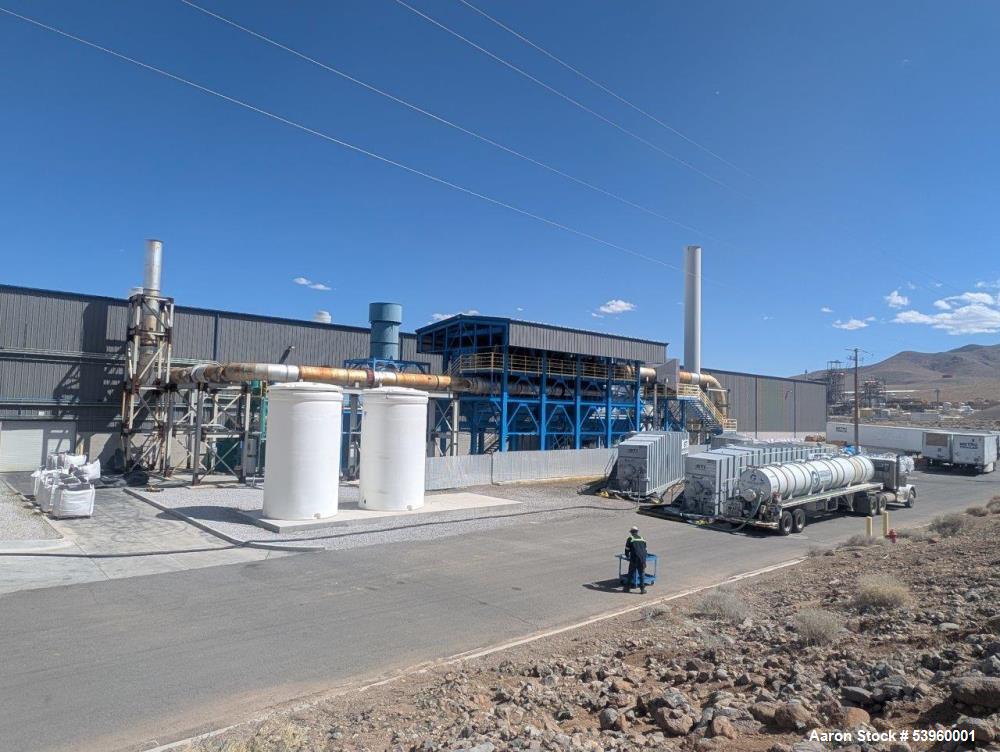

This is a complete used air filtration system originally manufactured by Battery Recycling Systems, Inc., a Wirtz company. It is designed to handle exhaust and airborne contaminants from lead refining kettles using an integrated sanitation hood, air ducting network, and a bag house filtration unit.

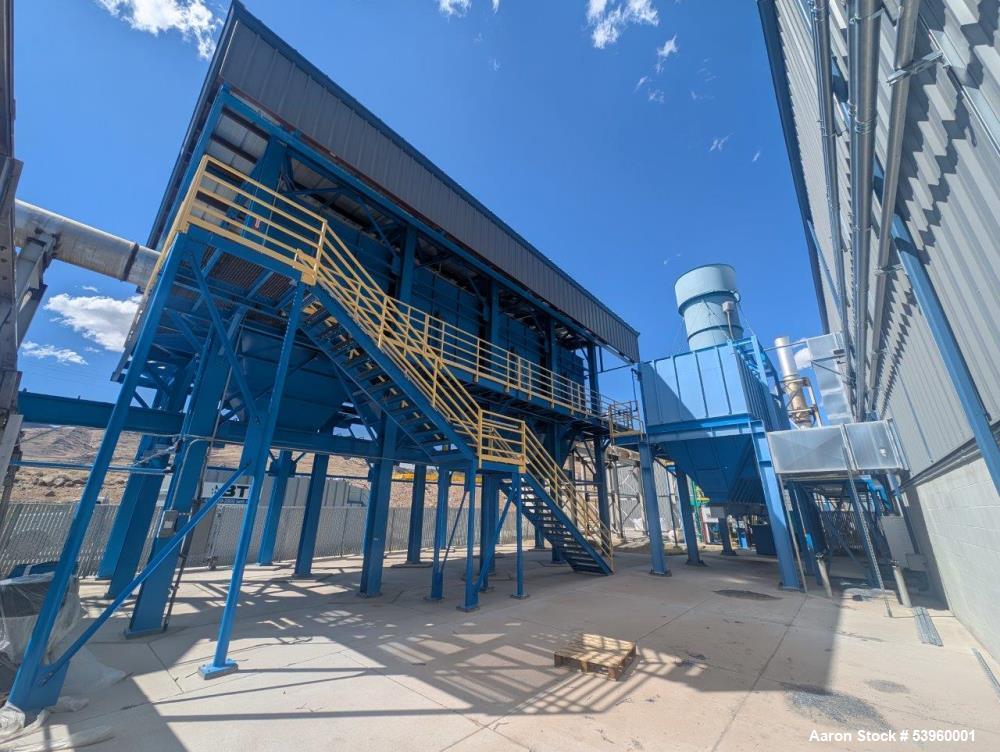

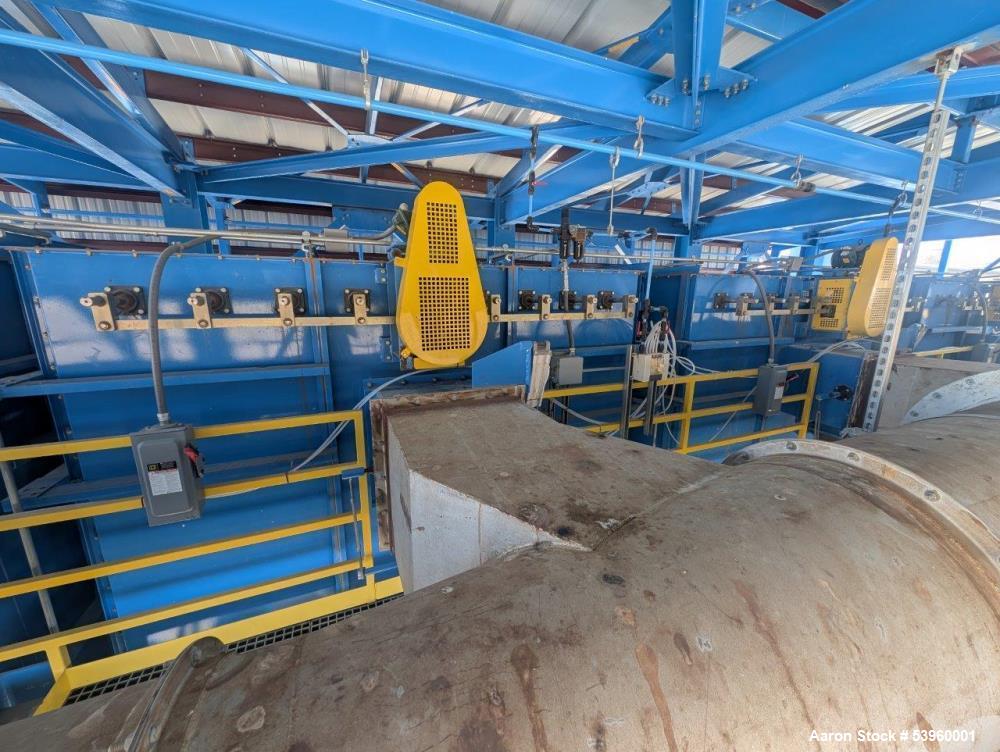

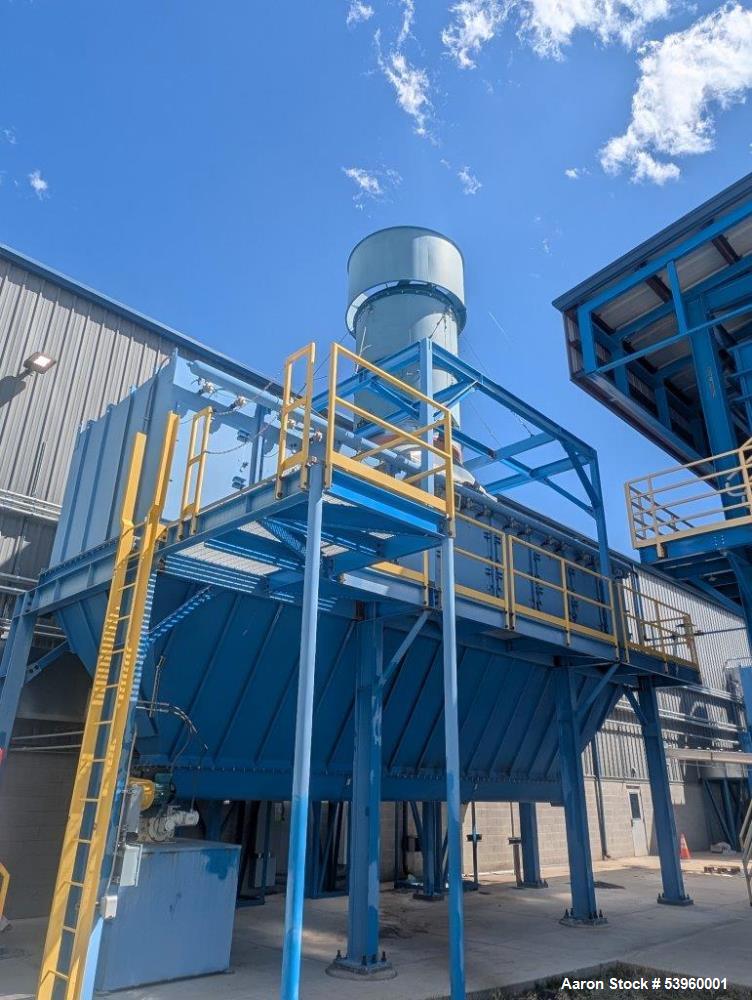

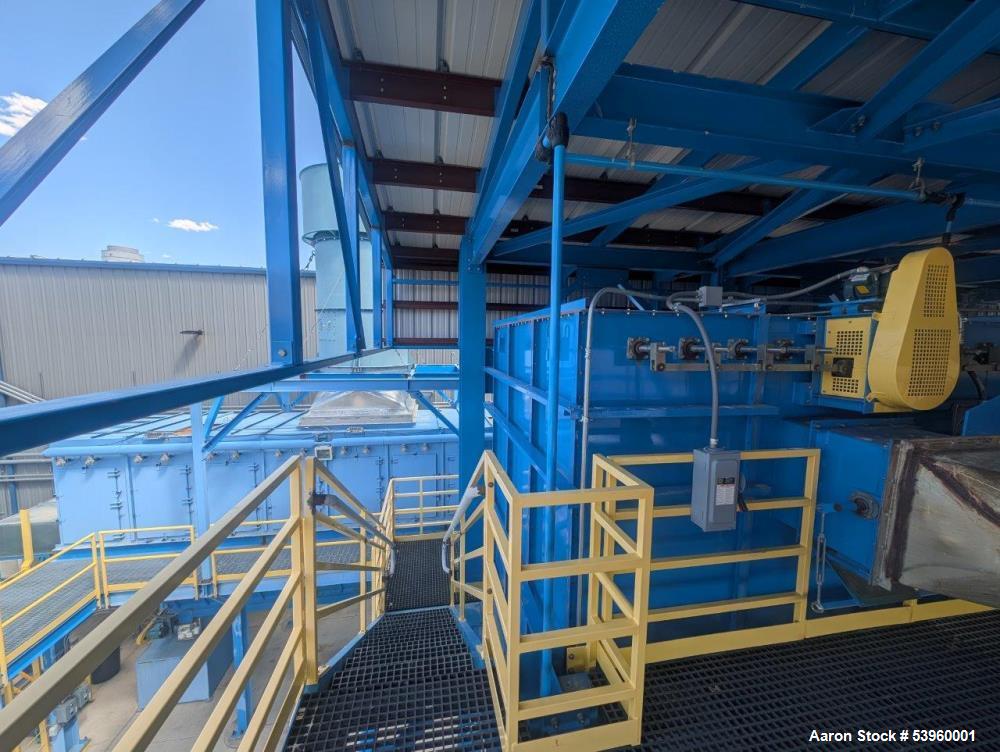

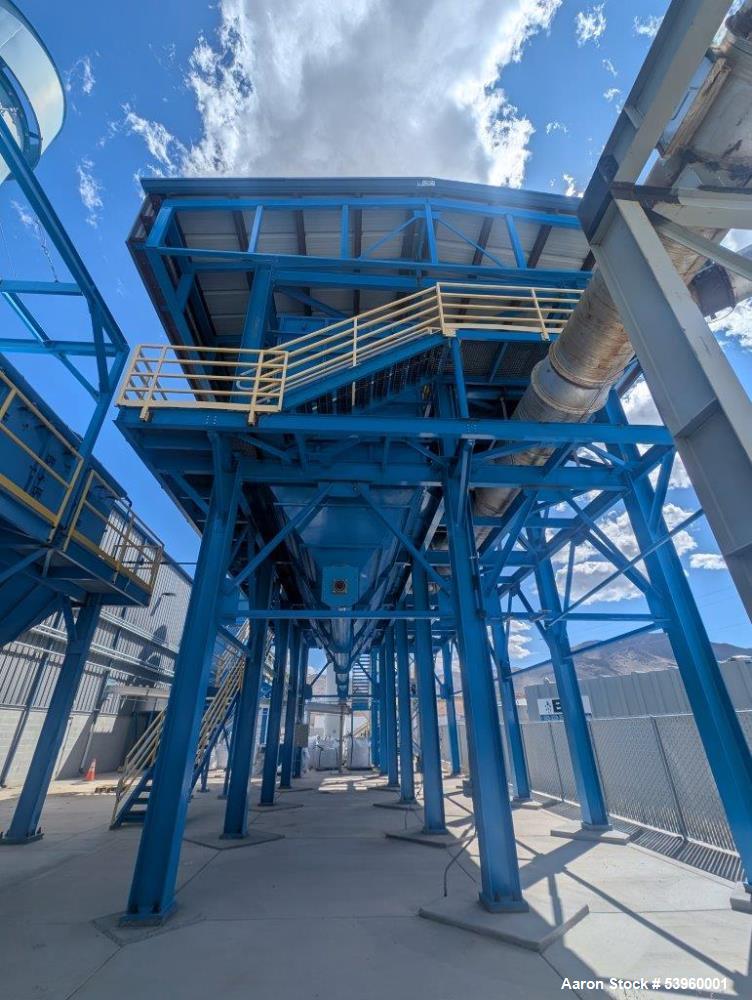

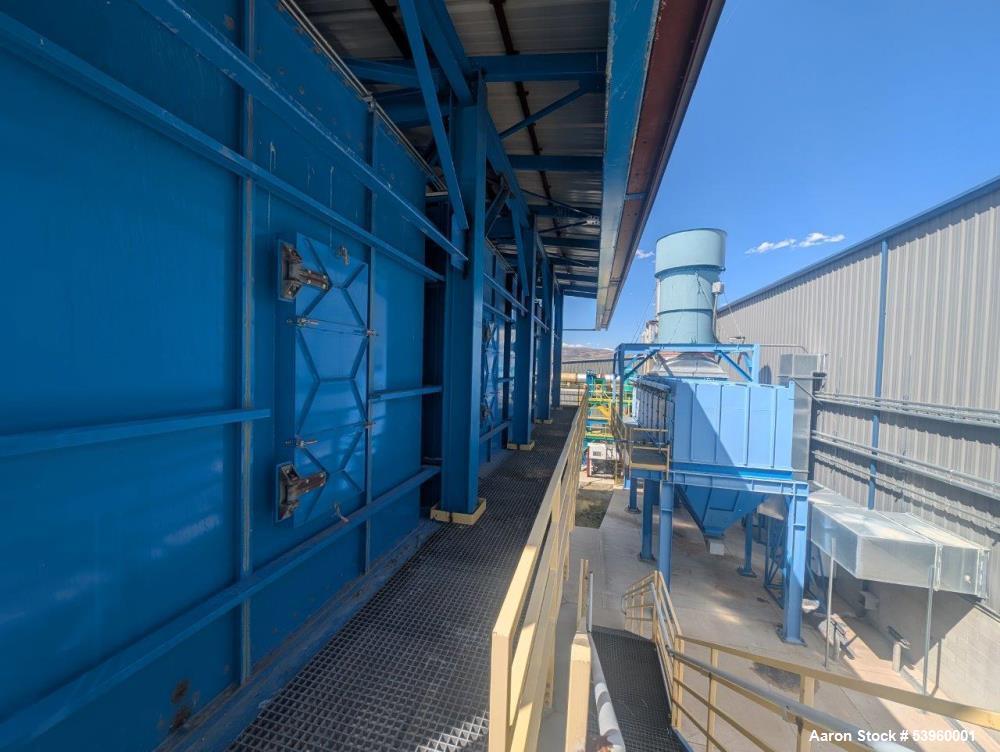

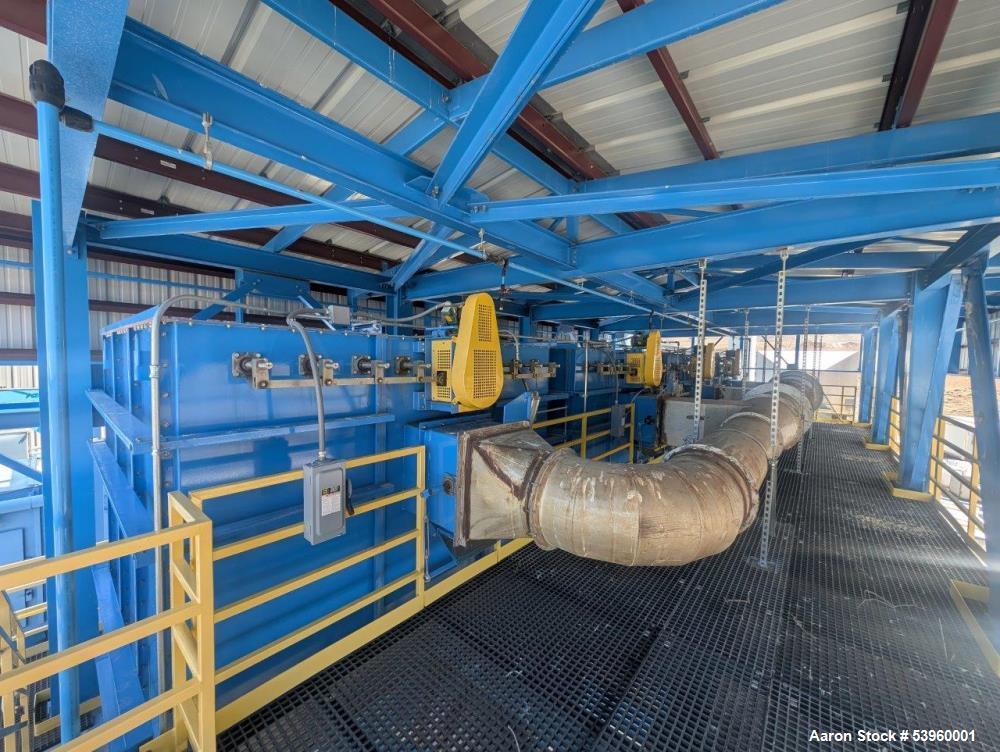

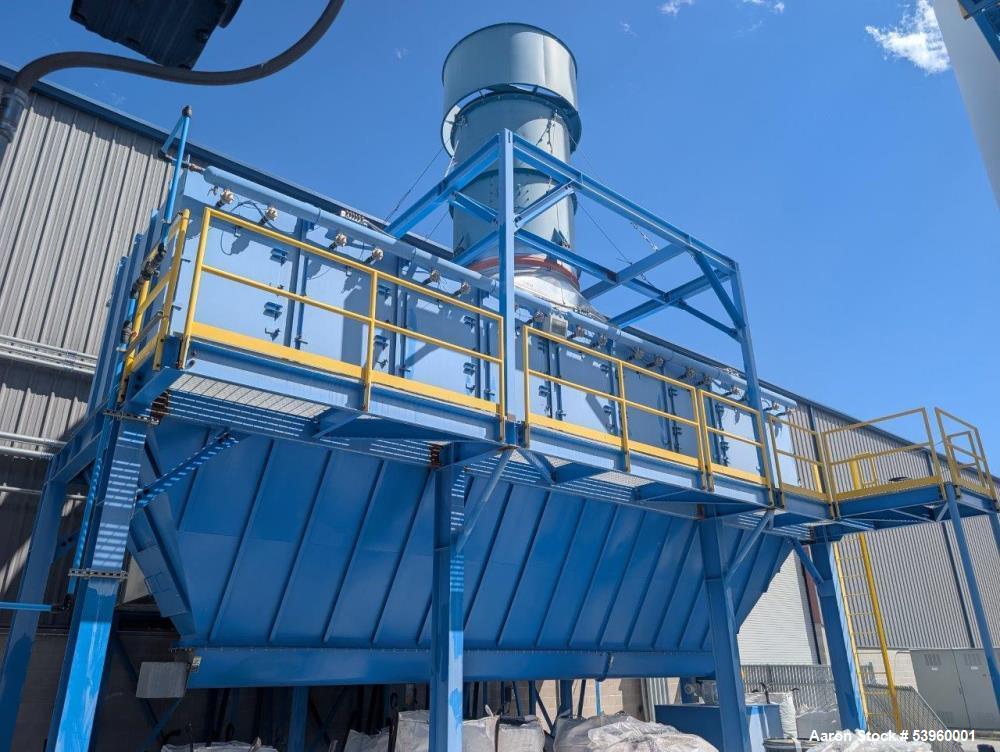

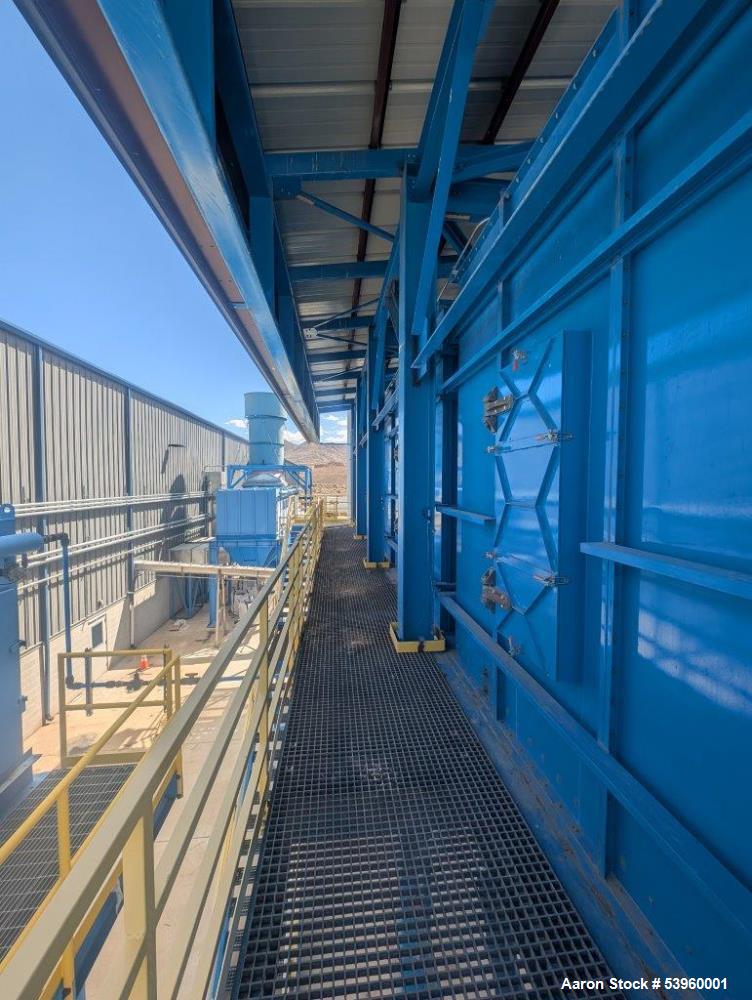

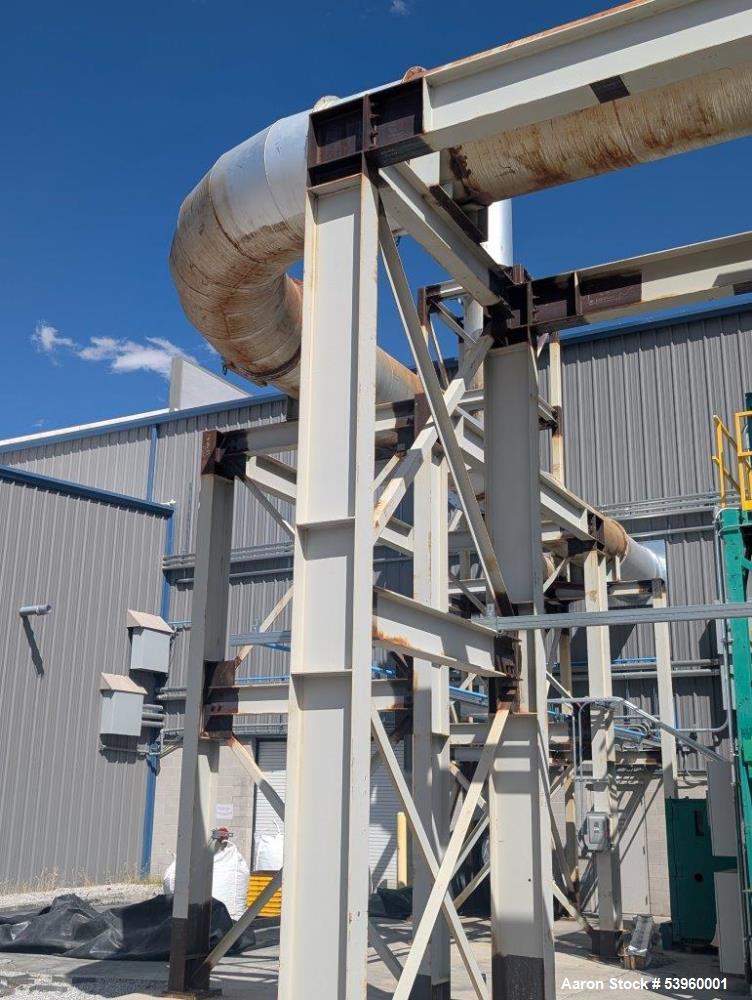

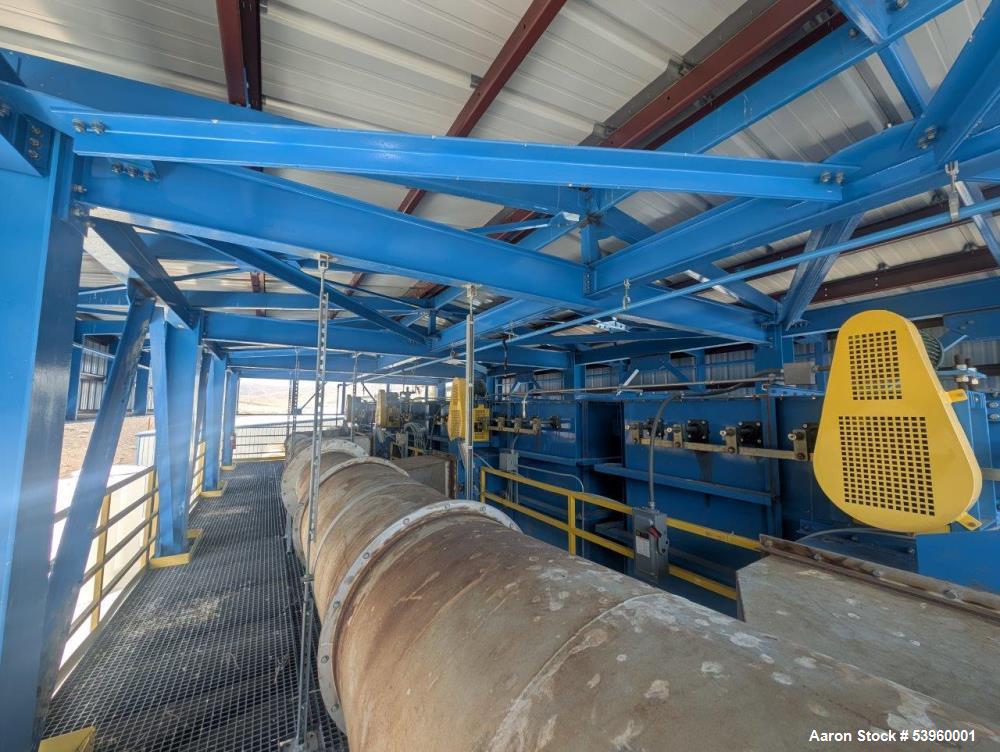

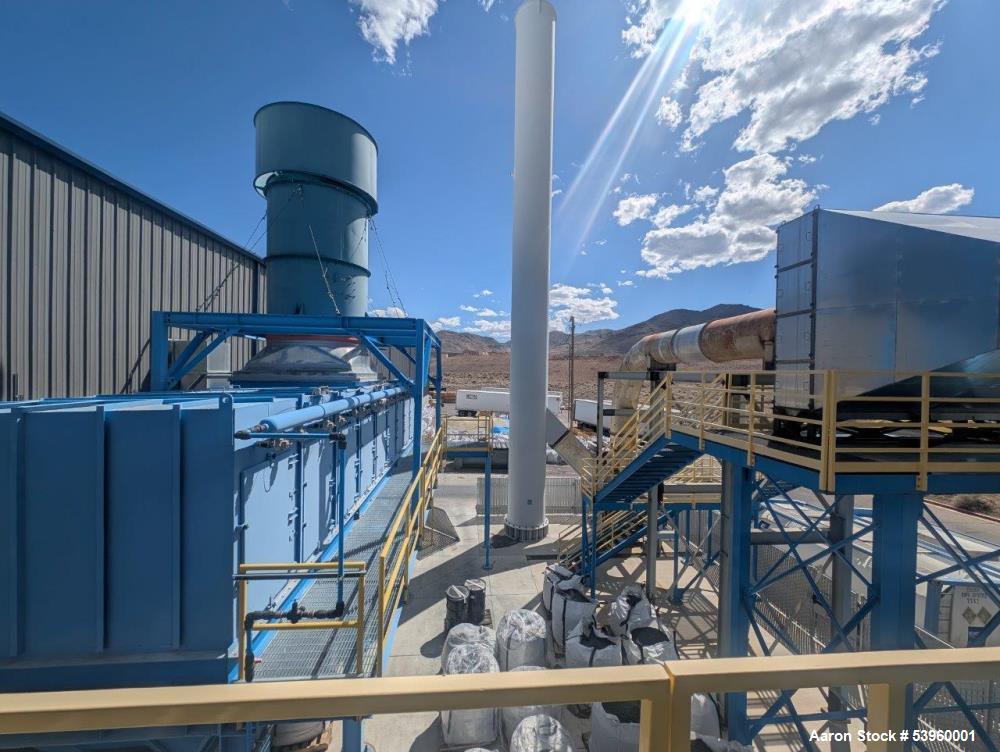

The setup includes a multi-cell bag house with drop-out boxes and an automatic filter bag cleaning system with integrated dust collection. The air is pulled through approximately 60 feet of plant ductwork and recirculated by a specialty air blower, with processed air discharged through a chimney stack (to be installed by the buyer per BRS specs).

Electrical system: Operates on 460V, 3-phase, 60 Hz with 3-wire and 24 VDC control voltage. Construction features include RAL-5015 Sky Blue painted carbon steel components and RAL-1018 Zinc Yellow safety guards, using English standard fasteners and units.

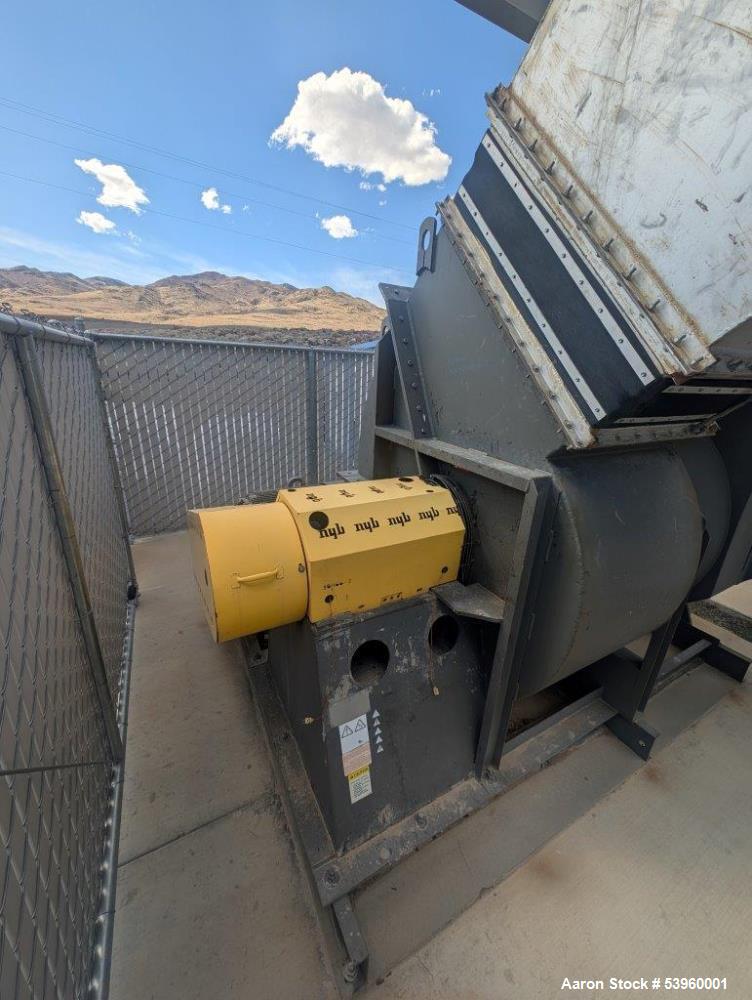

Fan System:

• Manufacturer: New York Blower

• Model: BC-30 SIZE 36 BC ARR-1 POS-Z CW ROTATION TAU Discharge

• Motor: 150 HP Baldor, 1800 RPM, 3-phase, 460V, premium efficiency, frame 445T

• Air Capacity: 30,000 CFM, 18” WG pressure, 2207 RPM

• Static Pressure: 0.0607 lb/ft³ at 4400 ft elevation, 70°F

• Power Consumption: 132 BHP

Specifications

• Type: Lead refining kettle air filtration and ventilation system

• Filtration: Multi-cell bag house with drop-out boxes and filter bag cleaning system

• Blower: New York Blower BC-30 SIZE 36 BC, 150 HP, 1800 RPM, TEFC

• CFM: 30,000

• Static Pressure: 18” WG

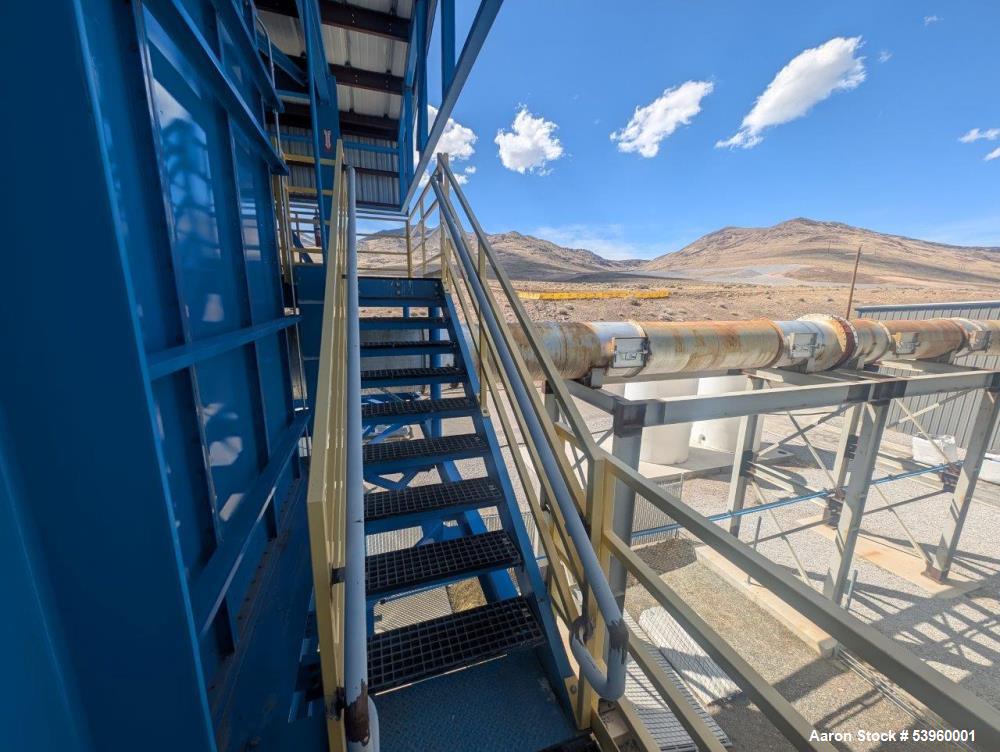

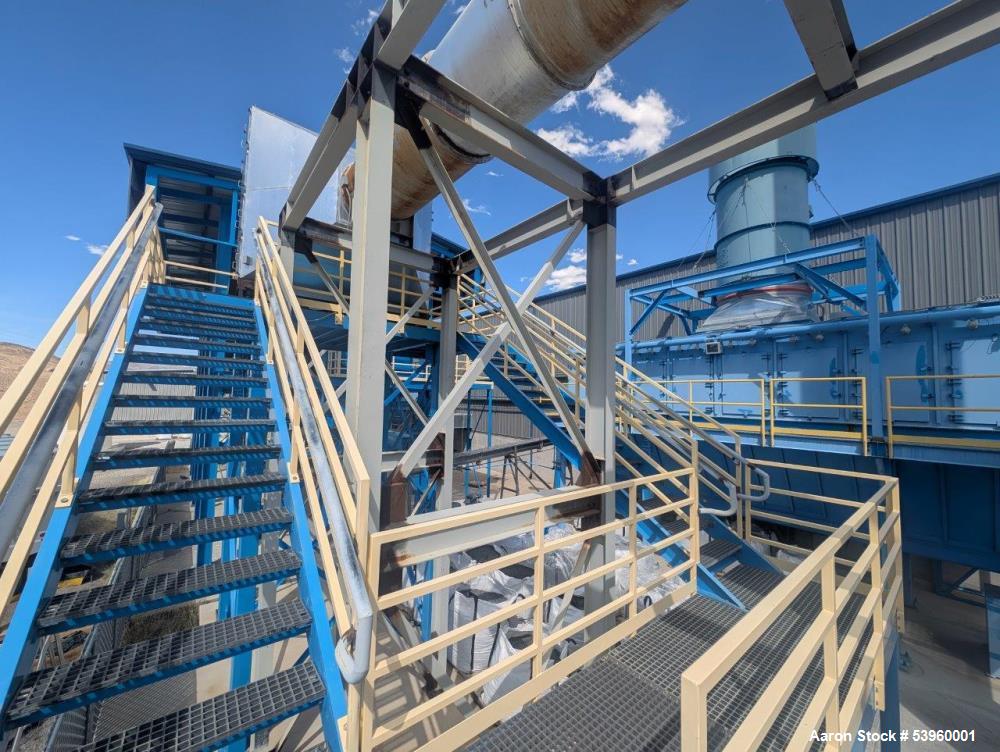

• Ducting: Approx. 60 feet, includes sanitation hoods for each kettle

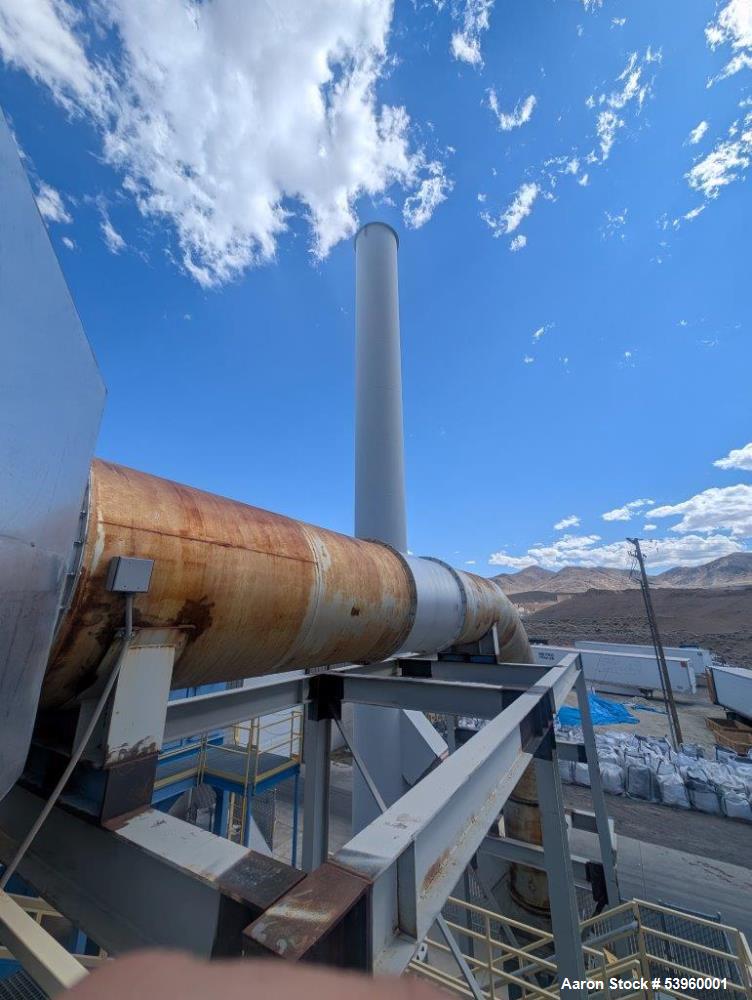

• Chimney Stack: Required on-site installation per BRS specifications

• Paint Scheme:

  • RAL-5015 (Sky Blue) – Carbon steel

  • RAL-1018 (Zinc Yellow) – Safety guards

• Control Voltage: 24 VDC

• Power: 460V, 3-phase, 60Hz, 3-wire

• Construction: English fasteners and measurement standards

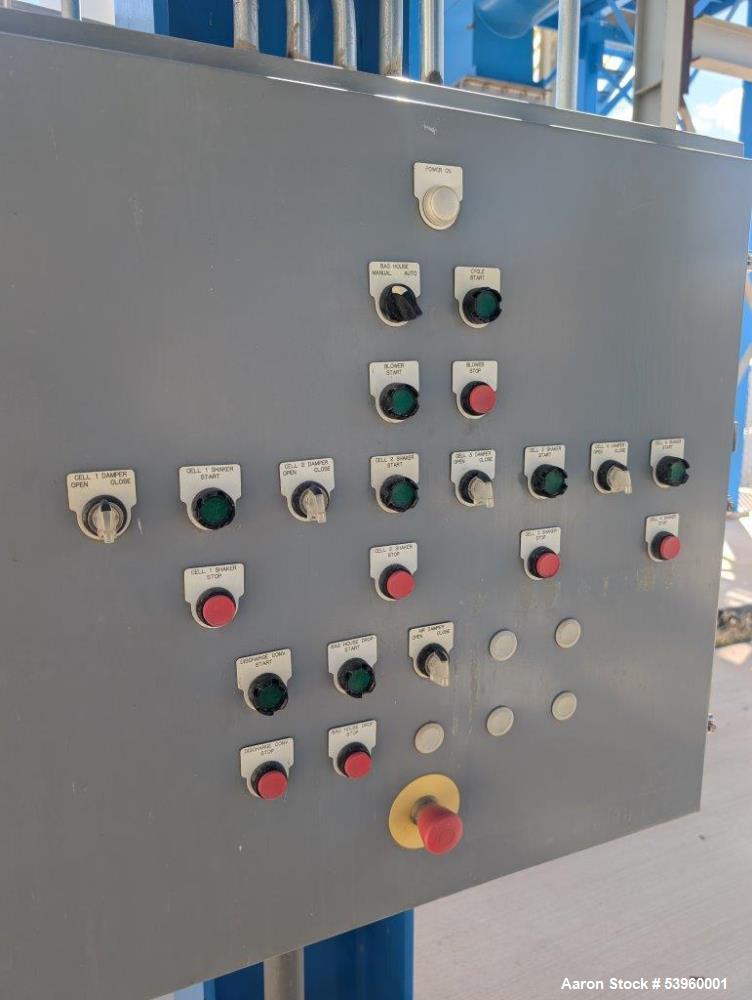

• Control: Integrated automatic filter bag cleaning

Applications

• Lead refining exhaust control

• Battery recycling plant emission systems

• Heavy metal fume extraction

• Foundry kettle exhaust handling

• Metal smelting emissions management

• Industrial air filtration for metal refining

• Environmental compliance in metal operations

• Dust and fume capture in high-temperature refining

• OSHA and EPA emission standard compliance

• Battery industry HVAC and filtration solutions

What Products Would This Be Used For?

• Lead ingots

• Recycled battery lead

• Refined molten lead

• Lead-based solder materials

• Battery plate materials

• Lead oxide

• Smelting plant air quality systems

• Furnace byproducts

• Heavy metal particulates

• High-density dust streams
