Unused-435 Square Foot Flex-Kleen Stainless Dust Collector, Model 84-CTTC-41 (III). Drawing #A-99JC-209. Built in 2000. Orig...

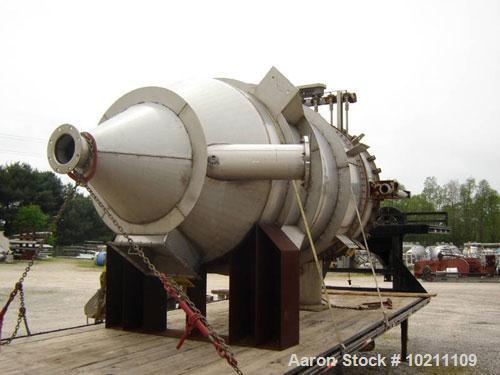

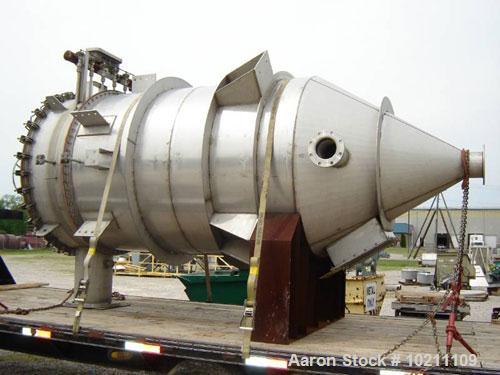

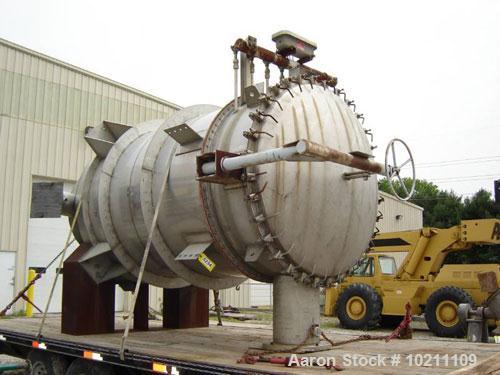

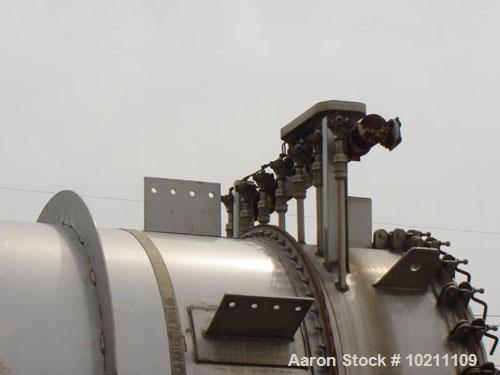

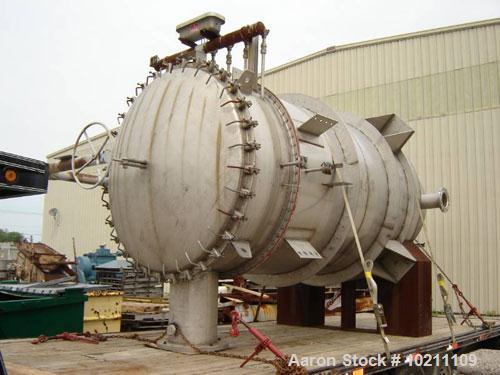

Unused-435 Square Foot Flex-Kleen Stainless Dust Collector, Model 84-CTTC-41 (III). Drawing #A-99JC-209. Built in 2000. Originally designed for 1620 cfm with ratio of 3.72:1 (very conservative). Designed for collecting polymer fines at 10 LB/CF. Unit was never used. Top removal Flex-Kleen snap band design davit arm for swing away stainless top. Unit is 304L stainless steel all gas contact construction including housing and clean air plenum and venturis. Designed for 17" hg and 2.5 psig. NEMA 7-9 timer and enclosure. Clean air outlet is 16" with 150 lb 304L stainless flange. Hopper has one 10" 304L stainless flanged inlet and one 6" 304L stainless flanged inlet. Hopper also has a 20" X 20" recessed curved inspection port. Material outlet is 8" flanged. Housing diameter is approximately 5 1/2'. Overall height is approximately 14' 8". Unit is 41 bag design and currently has no bags or cages. Unit has four large 12" X 14" stainless mounting lugs and is also vacuum reinforced. Complete vendor data and drawings on file. No platform available. Unit was over $ 50,000 new in 2000.
