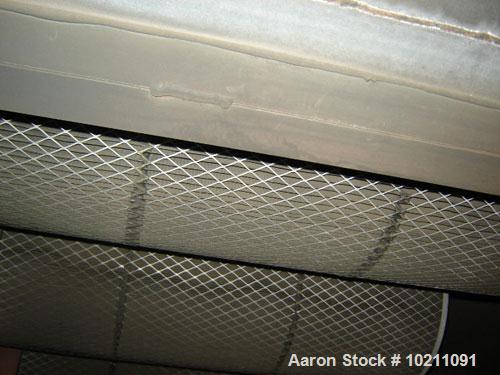

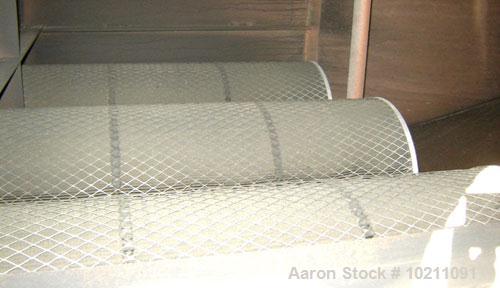

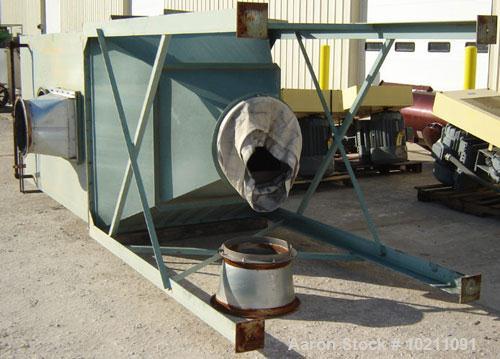

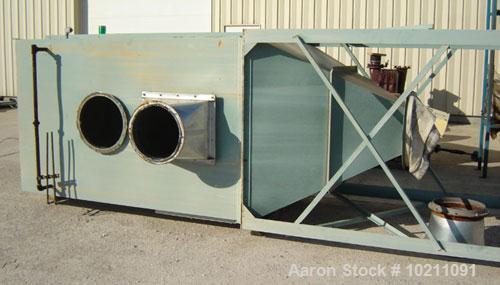

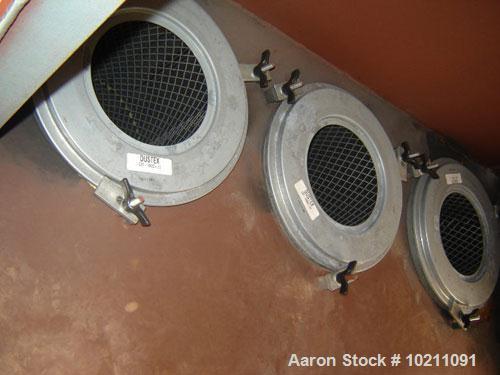

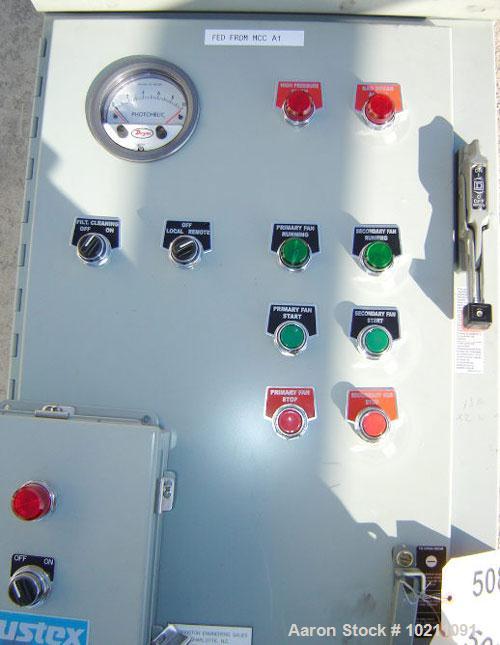

Used-1,700 Square Foot Pulse Jet Dustex Cartridge Style Dust Collector, Model CJU-1500. Unit contains six 14" diameter X 36" long pleated cartridges in a compressed air pulse jet design chamber. Compressed air header is located internally in the top removal clean air plenum. Unit is painted carbon steel construction and is approximately 1700 square feet. Overall dimensions 58" X 58" X 183" high. Approximately 48" vertical clearance under hopper outlet to ground. Material outlet at bottom of hopper is approximately 22" diameter. Dirty air inlet is 16" diameter. Clean air outlet is 18" diameter. Unit is reported in excellent condition. The six cartridges are mounted inside collector and appear to be in good condition. There is a sophisticated control panel that includes pushbuttons for fan and timer activation along with photohelic gauge. Control was built by Carrington Engineering Sales, Charlotte NC. Control panel is 22" wide X 12" deep X 30" tall.
