Used-1200 Square Foot Airecon Cartridge Dust Collector, Model TR-24-36-1200. Originally had (24) 12-3/4" X 36" spun bonded p...

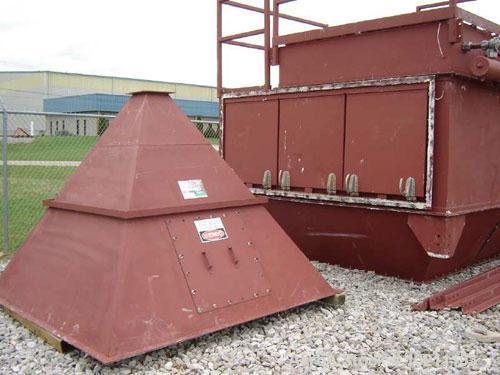

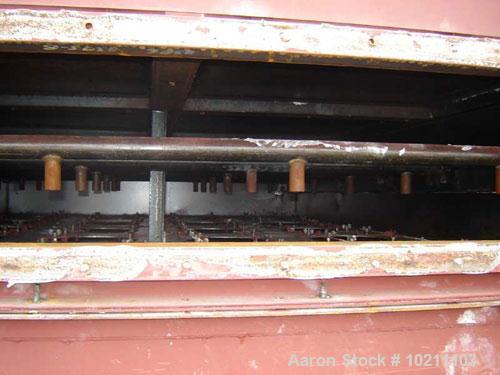

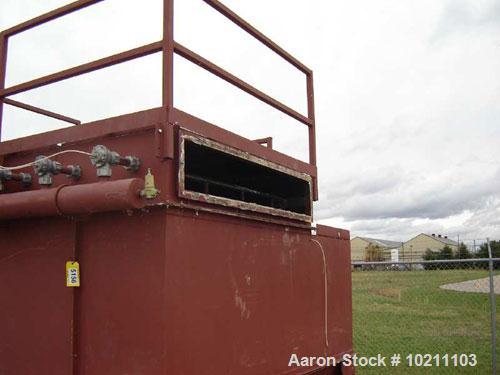

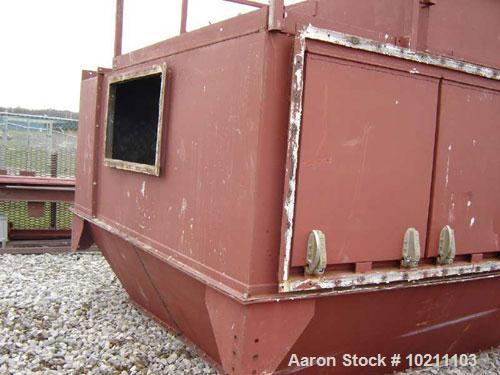

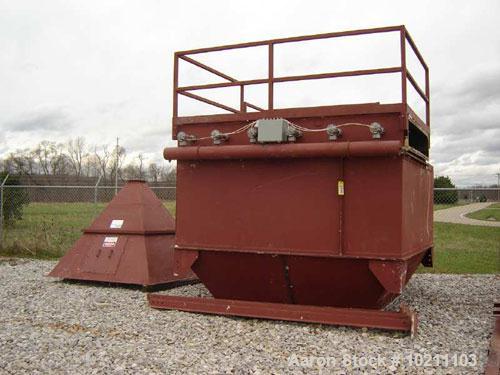

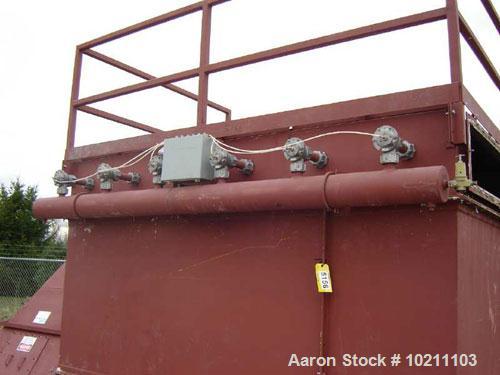

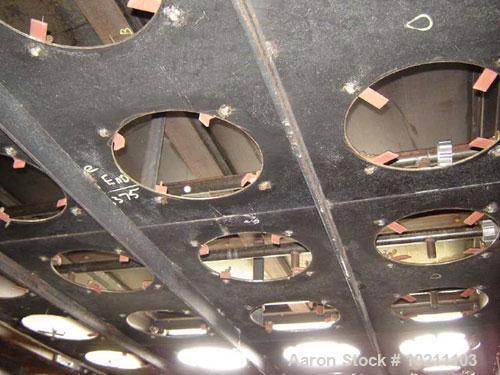

Used-1200 Square Foot Airecon Cartridge Dust Collector, Model TR-24-36-1200. Originally had (24) 12-3/4" X 36" spun bonded polyester wide pleat cartridges, each having 50 square feed of media. This unit could be fitted with a 77 square foot bonded polyester cartridge for fine dust and powder, giving it a total of 1848 square feet of filter area. This collector has a unique feature of a converging-diverging blast nozzle per cartridge which provides a higher energy pulse than on other collectors. This collector can clean with 60-80 psig compressed air. Manufactured by Airecon Manufacturing Corp, Cincinnati OH. Collector is designed for 24 pulse jet compressed air cartridges. Design is top removal pulse jet with handrail, hopper, legs, access maintenance platform, ladders, cross bracing, etc. Unit is primed but does not have a finish coat of paint. Collector has (3) 34" X 36" explosion doors with Brixson latches. Unit is approximately 10' 2" X 10' 2" square. Legs are 4" angle. Hopper has 28" X 28" inspection - cleanout. Cartridges have been removed, cleaned and stored indoors. Unit was disassembled so that it could be shipped as non-oversized load. Top filter loading feature with 3 access doors, heavy duty hardware and gaskets. 12 gauge mils steel housing reinforced to 24 inch W. G. Negative operating pressure. 3/16" thick tube sheet.
