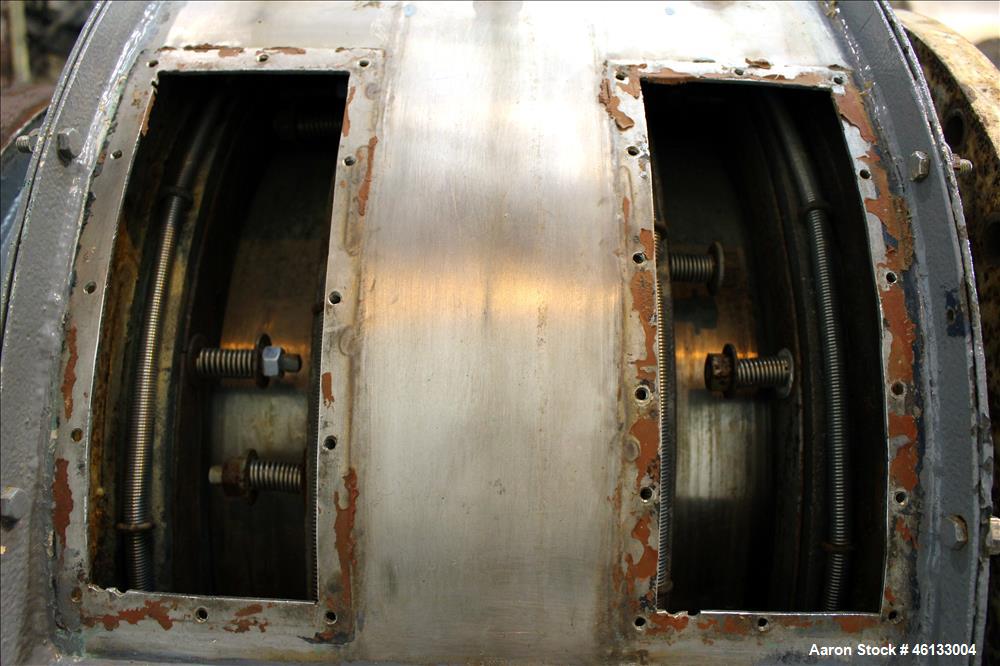

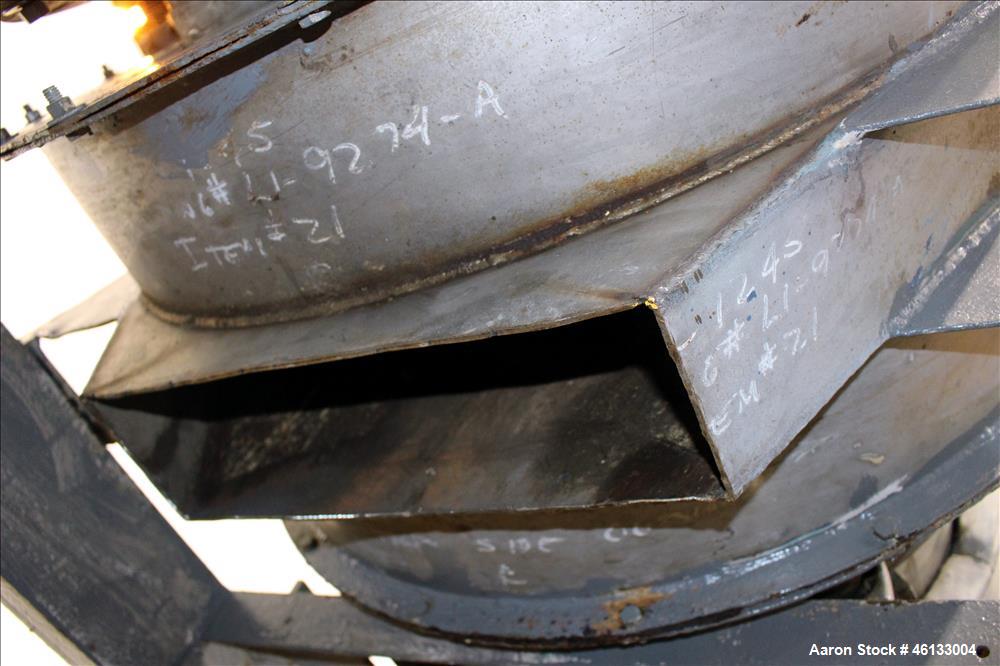

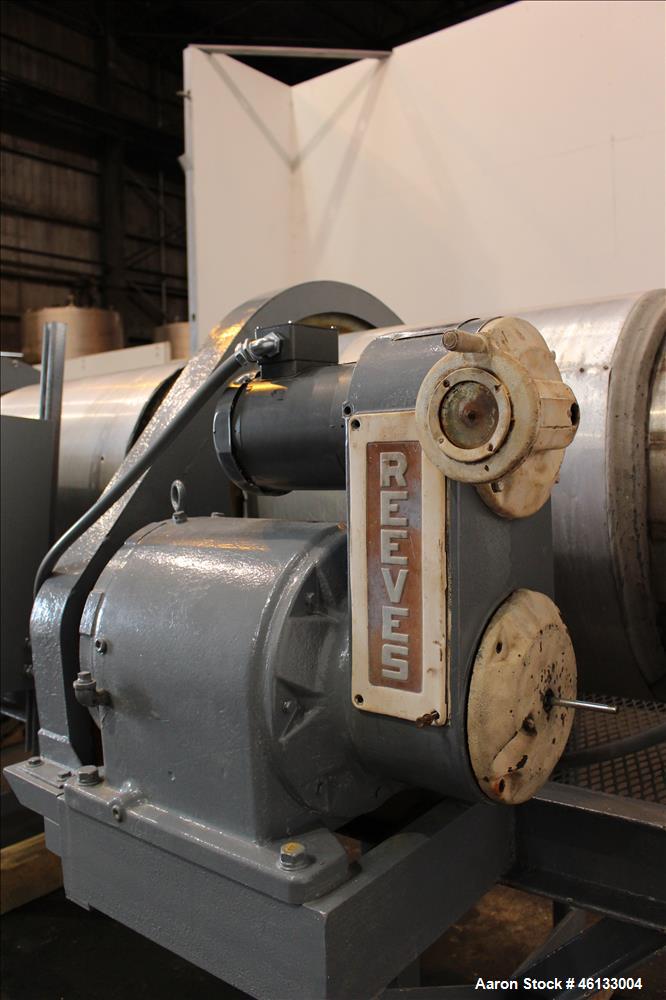

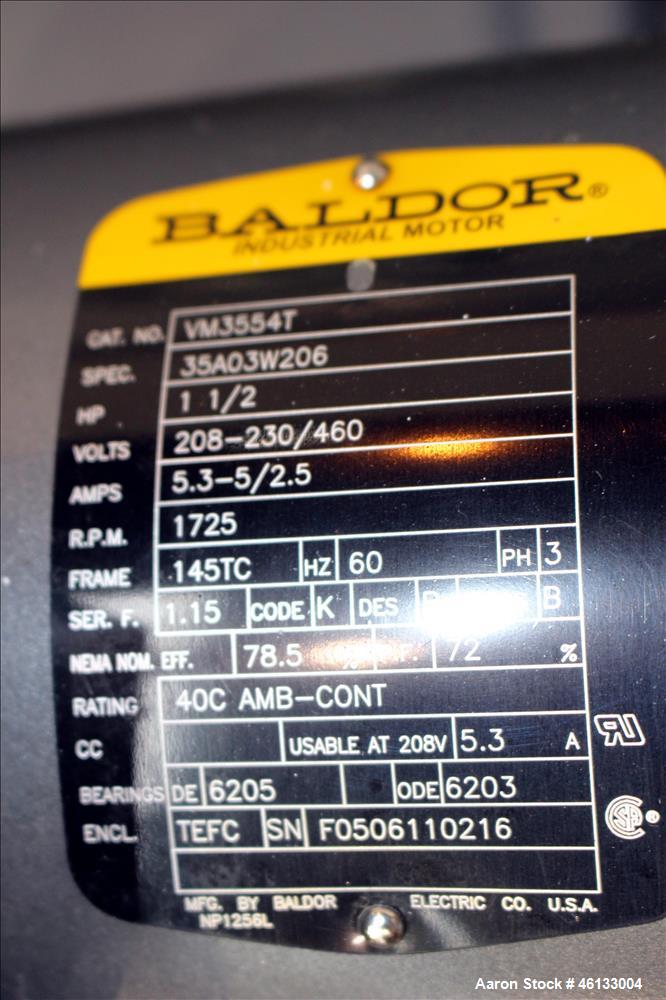

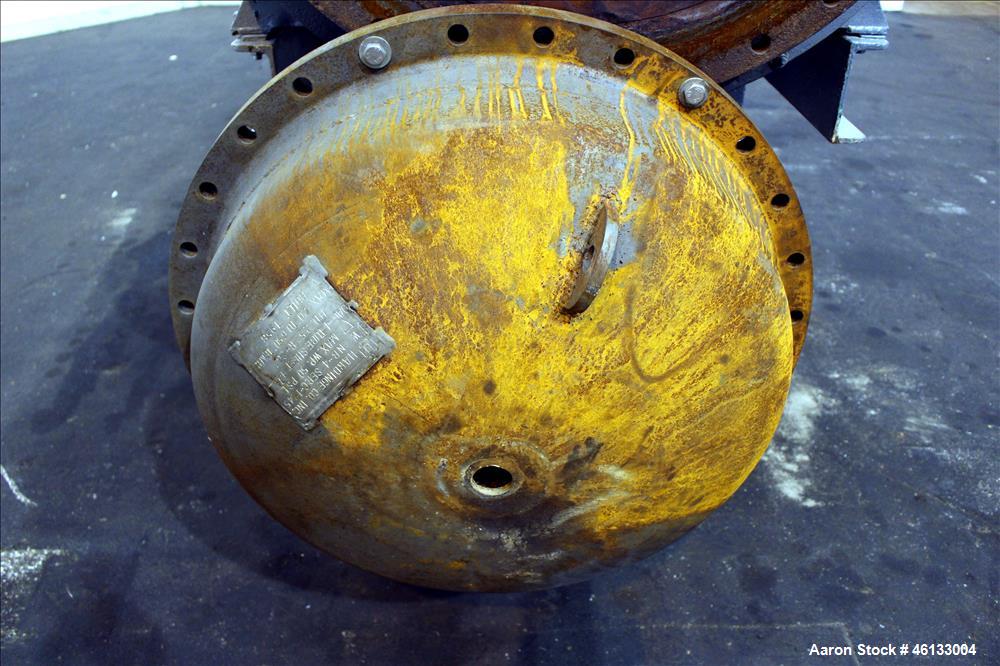

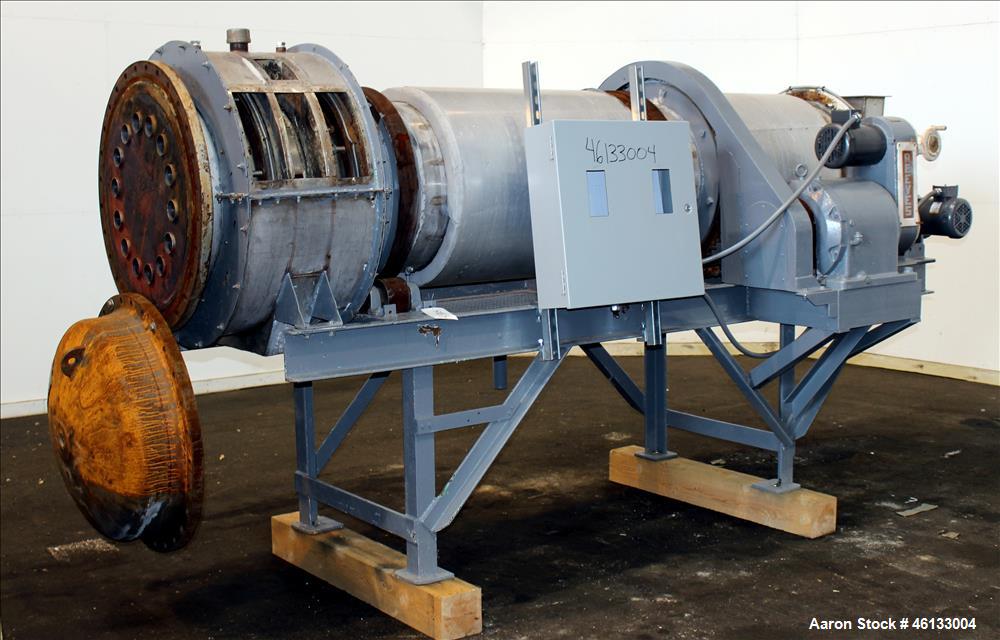

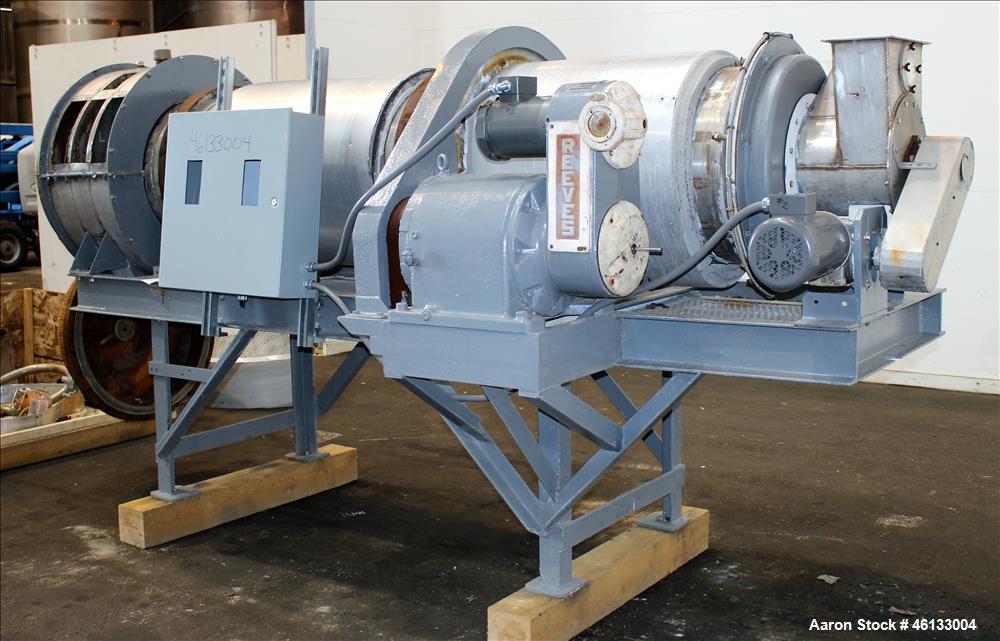

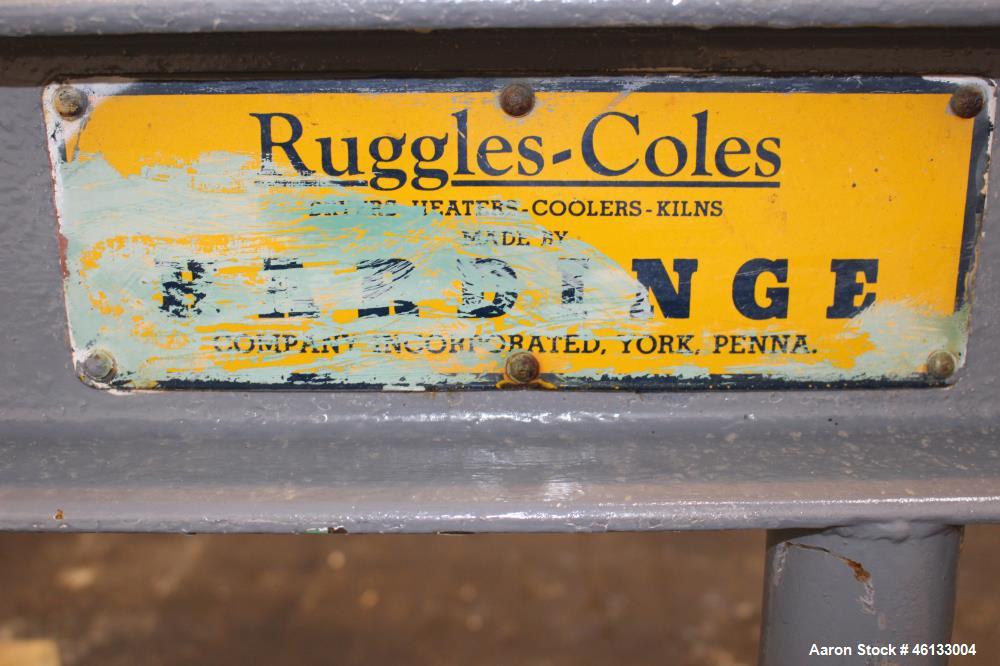

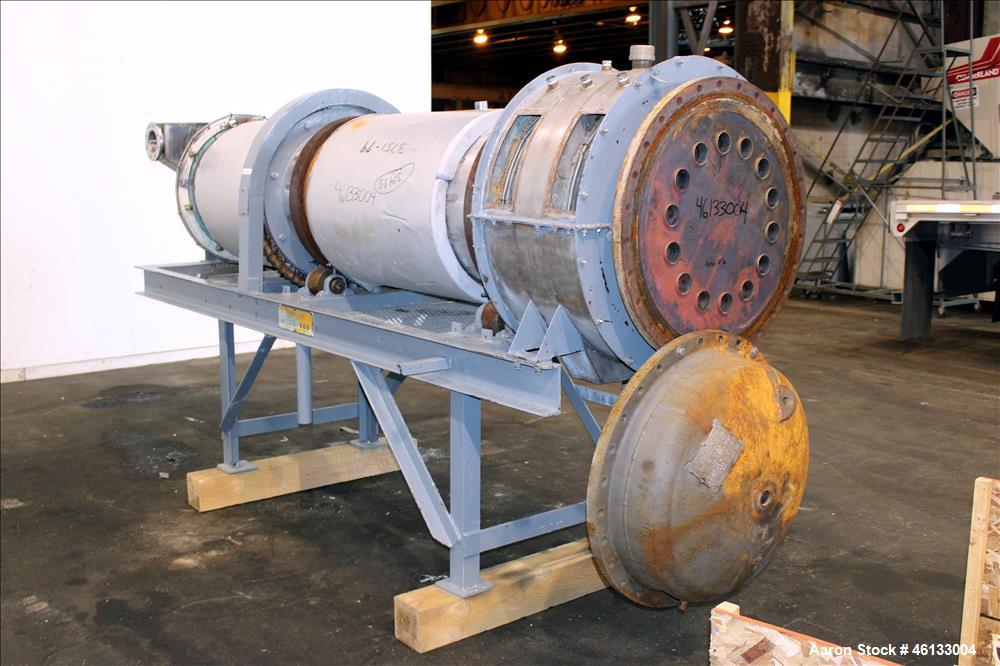

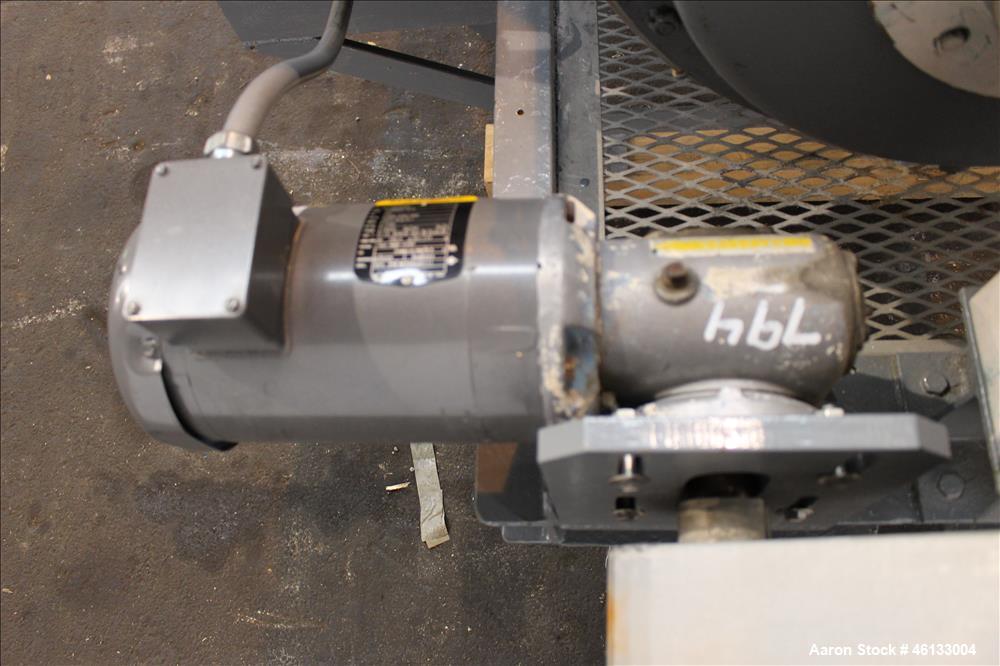

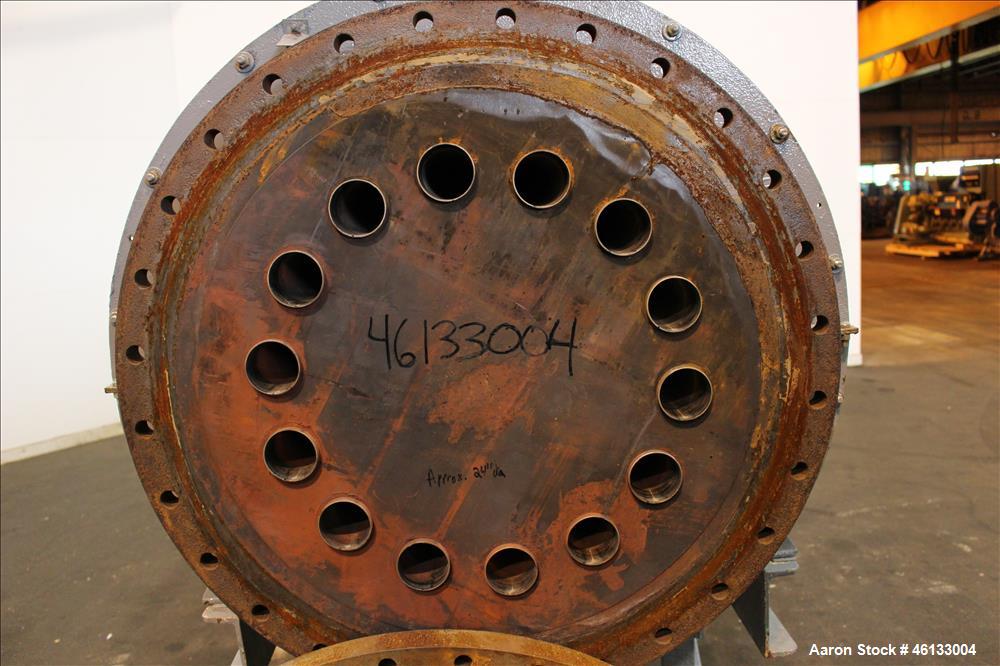

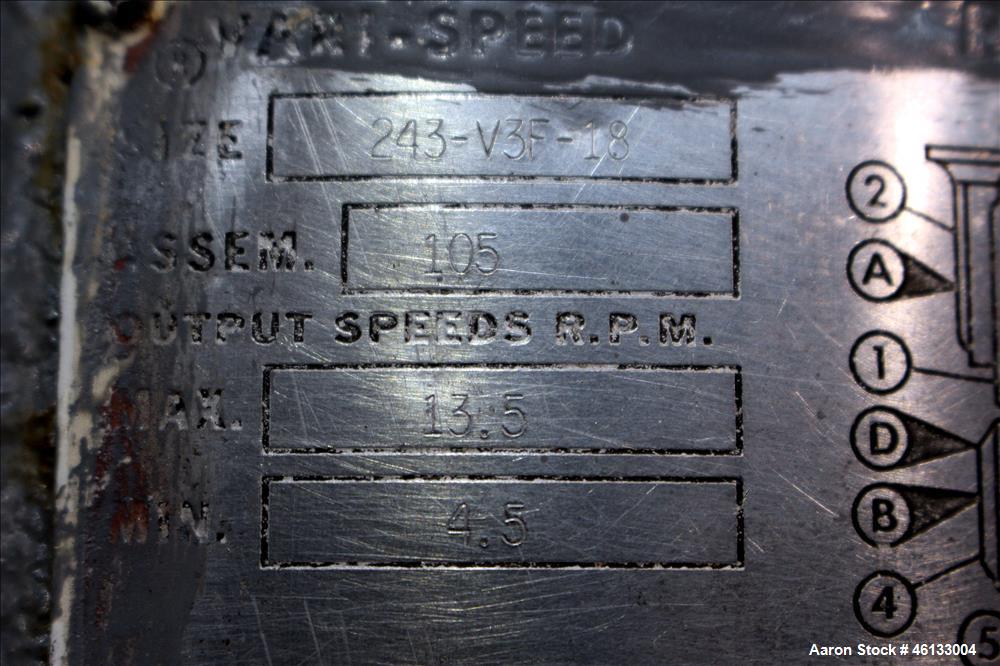

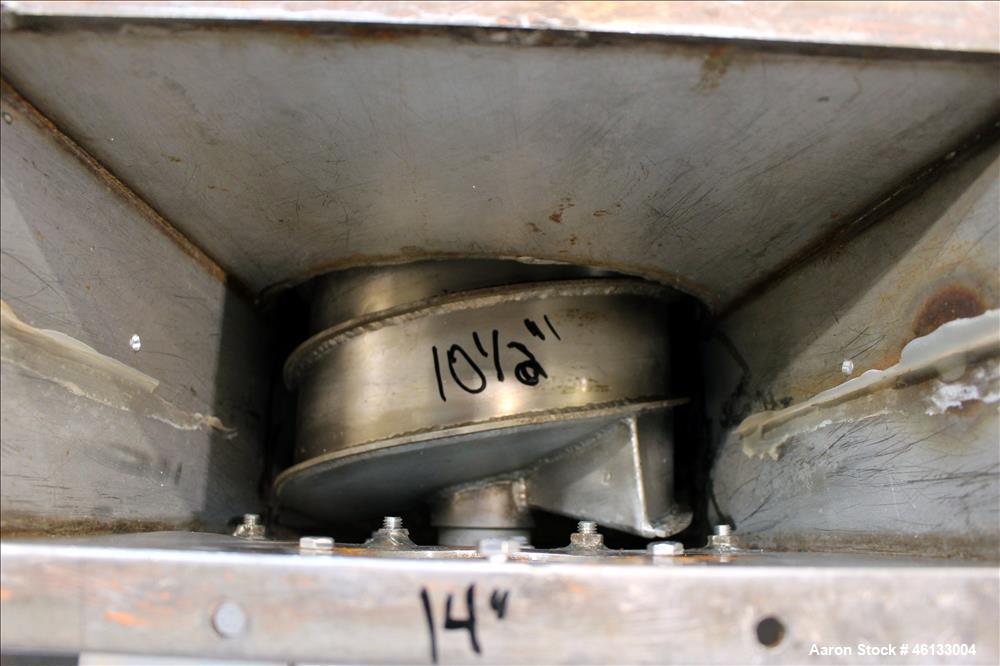

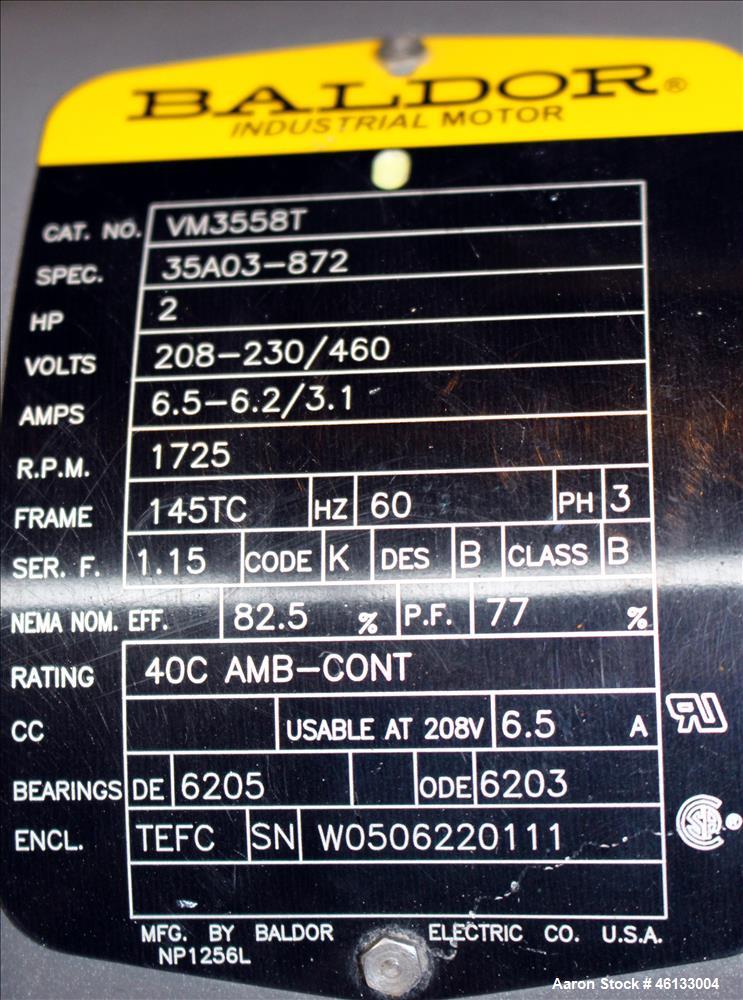

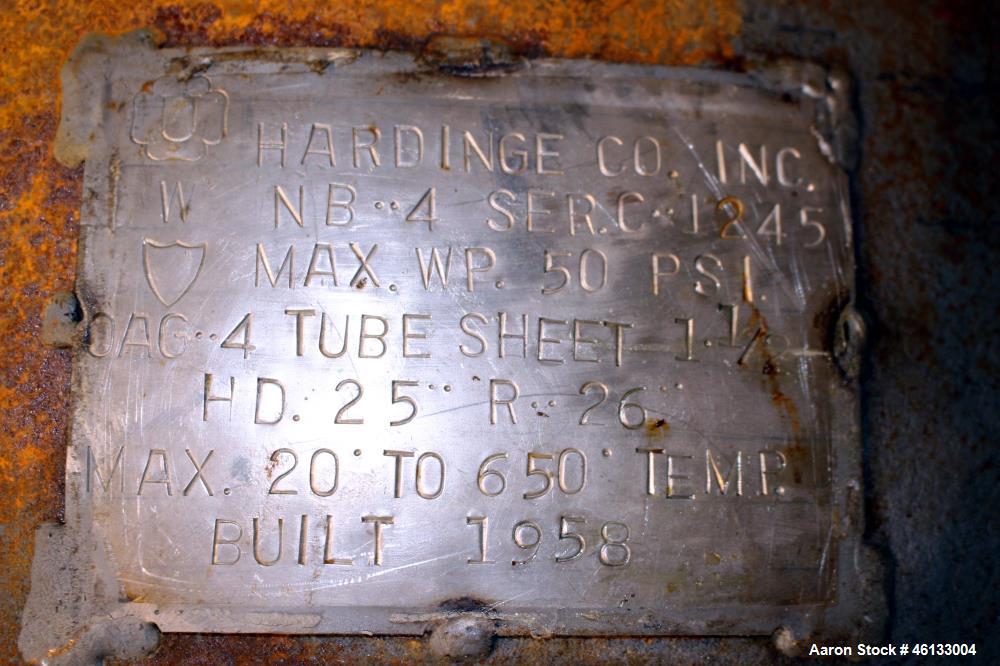

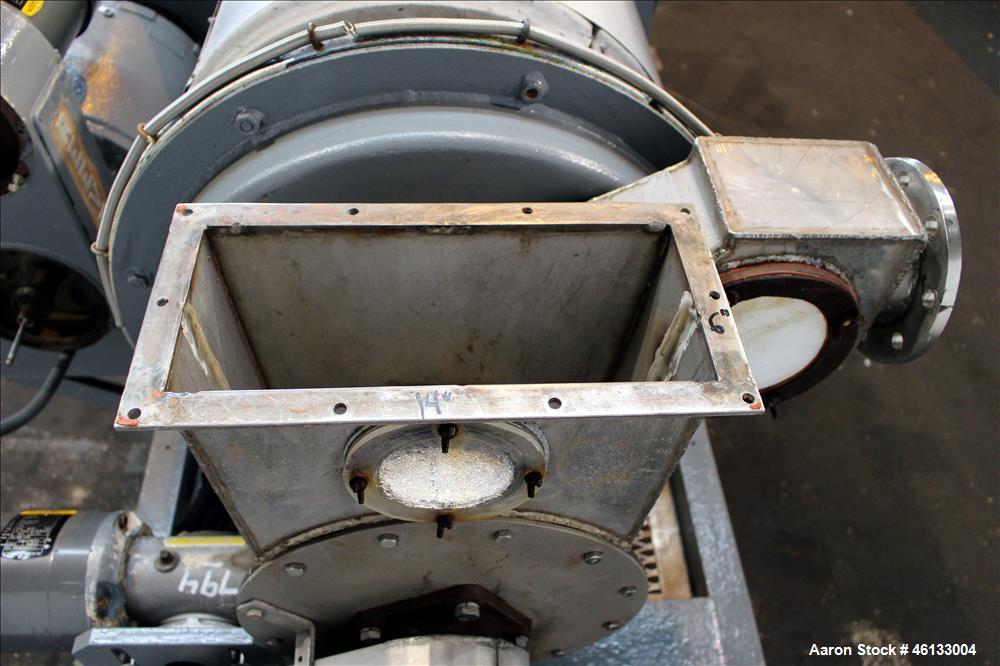

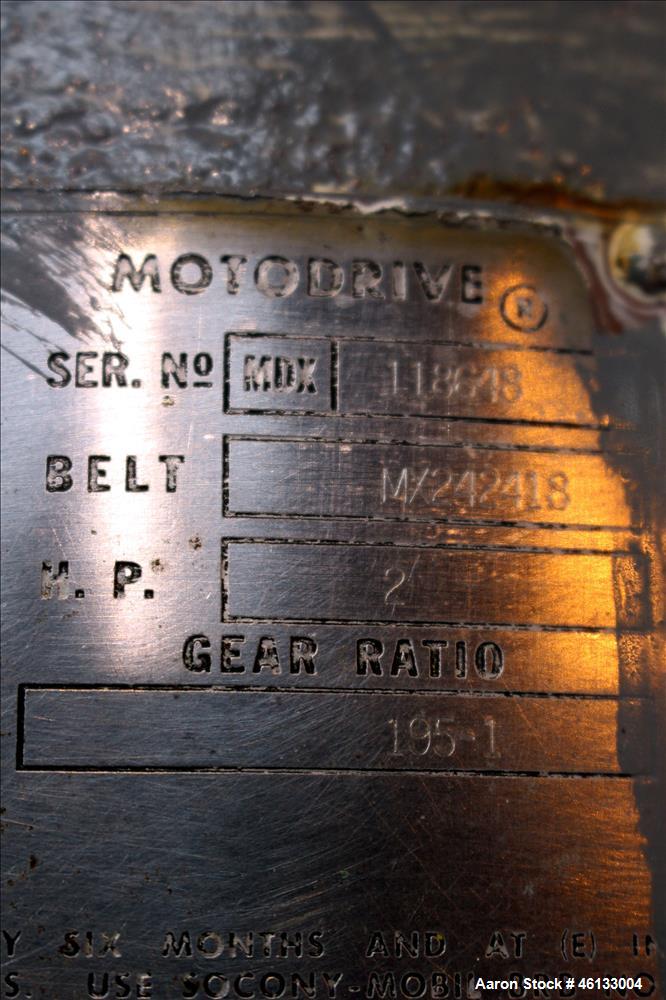

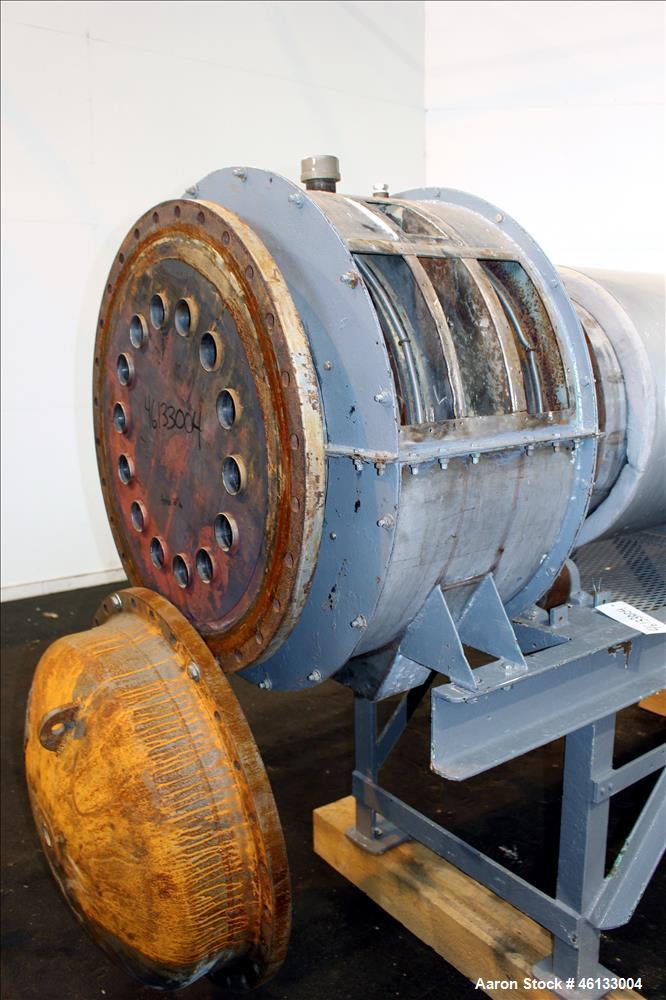

Used Hardinge Ruggles-Coles Pilot Plant Steam Tube Dryer. 304 Stainless steel 24" diameter x 128" long shell, insulated, chain driven by 1-1/2 hp, 208-230/460 volt, 1725 rpm motor attached to Reeves gearbox, ratio 195 to 1. Has (14) 2-1/2" diameter stainless steel tubes. Infeed opening 14" x 6" and 4-1/2" diameter, to 10-1/2" diameter screw feed, driven by 2 hp, 20-230/460 volt, 1725 rpm motor. Indirect heat dryer, can be connected to any available steam supply, 1-1/2" inlet. Maximum 50 psi at 20 to 650 degrees F. Mounted on carbon steel frame. Serial C-#1245, National Board #4, built 1958.
