Baker-Pullman/Honeywell Industrial Burner Refractory Combustion Chamber
Used Baker-Pullman/Honeywell Industrial Burner Refractory Combustion Chamber For Drum Dryer/ Kiln previously used in a top-performing Animal Feed Drying/ production line that got shutdown a few months after launch. This innovative industrial dehydration solutions comes complete with a MAXON Ovenpak 400 Series, Key Number 487M, Natural Gas Burner (8.7M Btu/hr) and gas train setup with complete Burner Management System (BMS) and Allen Bradley Panel View touchscreen HMI, for seamless integration into a production process. You will need a kiln/Rotary Drum to complete setup. Model 487M OVENPAK Gas Burner with optional: combustion air filter connecting base and linkage assembly electrical control motor Combustion Chamber Dimensions: 116"L x 84W" x 122" H (chamber diameter: 31" and Heat tube 25") Shipping weight: 11,000lbs The chamber (made by Baker-Rullman) is refractory lined to protect the shell walls from the high temperatures as you can see. The combustion chamber is used to house the combustion reaction that feeds heat into the dryer, preventing direct contact between the flame and the material being processed. It can be used on either a co-current or counter-current design.
| Manufacturer | Baker-RullmanBaker-Rullman |
| Model | 487M OVENPAK |
| Category | Dryers - Drying EquipmentDryers - Drying Equipment |
| Subcategory | Rotary Kiln - Direct FireRotary Kiln - Direct Fire |
Manufacturer Information
- Manufacturers: Baker-Rullman, Honeywell
- Burner: MAXON OVENPAK 400 Series, Key Number 487M
- Condition: Used / Excellent (Shutdown After Limited Use)
- Availability: Immediate
- Location: In Stock
Description

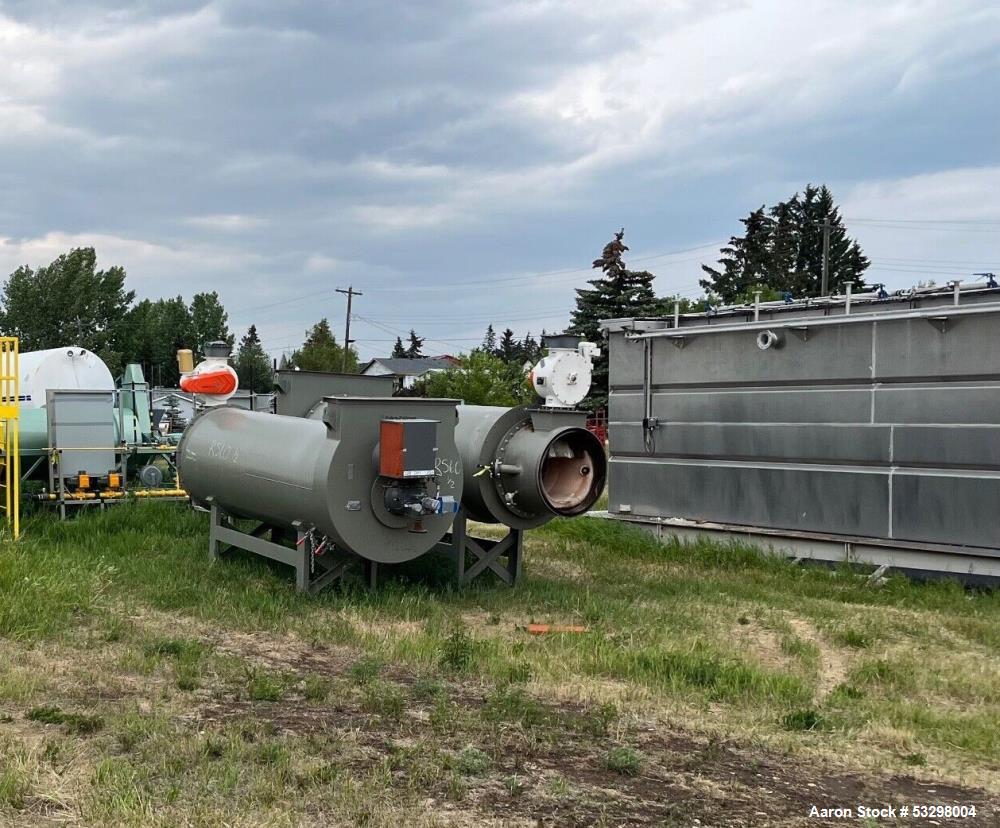

Used Baker-Rullman/Honeywell Industrial Burner Refractory Combustion Chamber, previously integrated into a high-performance animal feed drying and production line that was shut down shortly after launch. This state-of-the-art industrial dehydration system offers reliable heat generation for drum dryers or kilns, ensuring efficient indirect heating with optimal control.
The system features a MAXON OVENPAK 400 Series Burner, Key Number 487M, natural gas powered, with an impressive 8.7M BTU/hr rating. Included is a complete gas train setup with a Burner Management System (BMS) and Allen-Bradley PanelView Touchscreen HMI, providing seamless integration and real-time monitoring of the combustion process.

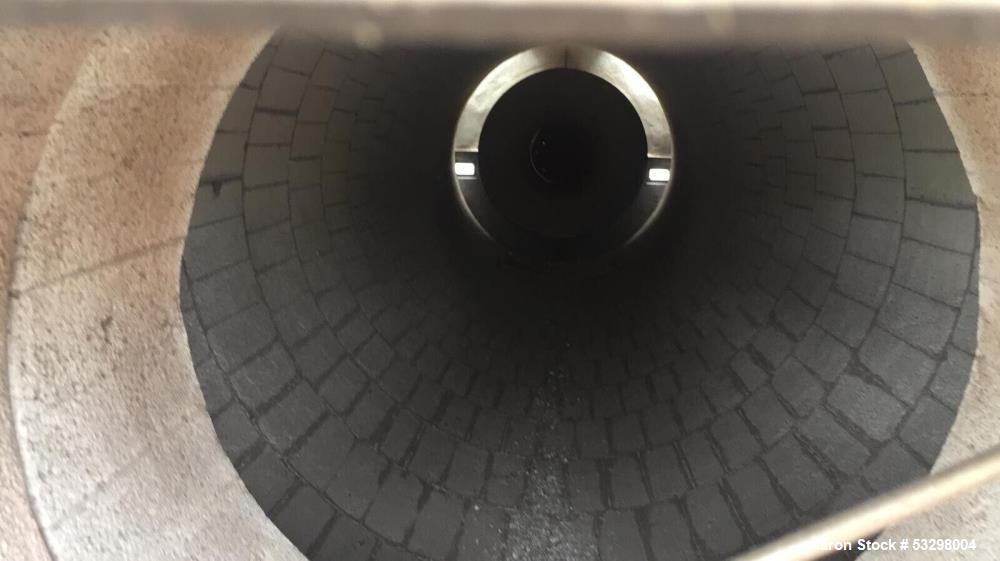

The refractory-lined combustion chamber, manufactured by Baker-Rullman, measures 116" L x 84" W x 122" H, with a chamber diameter of 31" and a heat tube diameter of 25". Weighing approximately 11,000 lbs, this robust unit is designed to house the combustion reaction, providing thermal protection and preventing direct flame contact with materials in the drying process. Suitable for co-current or counter-current drying system designs.
This setup requires a rotary drum/kiln to complete the installation but is otherwise a turnkey heat system solution for industrial dryers, animal feed production, chemical processing, and other bulk material drying applications.
Specifications
- Manufacturers: Baker-Rullman (Combustion Chamber), Honeywell/MAXON (Burner)
- Burner Type: MAXON OVENPAK 400 Series
- Burner Model: 487M
- Burner Fuel: Natural Gas
- BTU Rating: 8.7M BTU/hr
- Optional Components Included:
- Combustion Air Filter
- Connecting Base
- Linkage Assembly
- Electrical Control Motor
- Burner Management System (BMS): Included
- Control System: Allen Bradley PanelView Touchscreen HMI
- Combustion Chamber Dimensions:
- Length: 116"
- Width: 84"
- Height: 122"
- Chamber Diameter: 31"
- Heat Tube Diameter: 25"
- Construction: Refractory Lined Chamber for High-Temperature Protection
- Weight: Approximately 11,000 lbs
- Design Compatibility: Co-current or Counter-current Systems
- Last Use: Top-Performing Animal Feed Dryer Line (Shutdown Shortly After Launch)
- Condition: Used / Excellent
Applications
- Animal feed production lines
- Industrial drum dryers and kilns
- Bulk material dehydration
- Biomass drying systems
- Chemical drying and thermal processing
- Food processing dryers
- Minerals and aggregates drying
- Fertilizer production
- Wood chip and sawdust drying
- Renewable energy fuel drying systems
Products This Combustion Chamber Can Be Used For
- Animal feed and pet food drying
- Biomass and wood pellets
- Fertilizer and soil amendments
- Mineral powders and aggregates
- Chemicals and specialty compounds
- Drying of agricultural by-products
- Food product dehydration
- Sludge and waste drying
- Renewable energy material processing
- Industrial raw material conditioning
animal feed, Dry Food Products, Dry Foods, Dry Pet Food, Dry Woods Chips, Dryed Grains, Drying, Oven
- Baker-Rullman refractory combustion chamber
- MAXON OVENPAK 487M burner system
- 8.7M BTU/hr industrial burner
- Burner management system with Allen Bradley HMI
- Industrial dehydration combustion chamber
- Animal feed rotary drum dryer burner
- Refractory-lined combustion chamber for kiln
- Co-current and counter-current combustion system
- Honeywell MAXON gas burner with BMS
- Industrial kiln heat generation system
- Industrial combustion chamber
- MAXON gas burner
- Rotary drum dryer burner
- Refractory combustion system
- Industrial dehydration system
- Burner management system
- Animal feed dryer equipment
- Industrial kiln heating
- Allen Bradley control HMI
- Natural gas burner for kilns
- Buy used Baker-Rullman combustion chamber
- MAXON OVENPAK burner for sale
- Industrial burner management system supplier
- Sell refractory combustion chambers
- Rotary drum dryer burner in stock
- Natural gas burner with BMS
- Animal feed dryer combustion system
- Co-current kiln combustion chamber
- Allen Bradley HMI industrial controls
- High BTU industrial burner available
