Used Rotary Kiln and Direct Fire Dryers

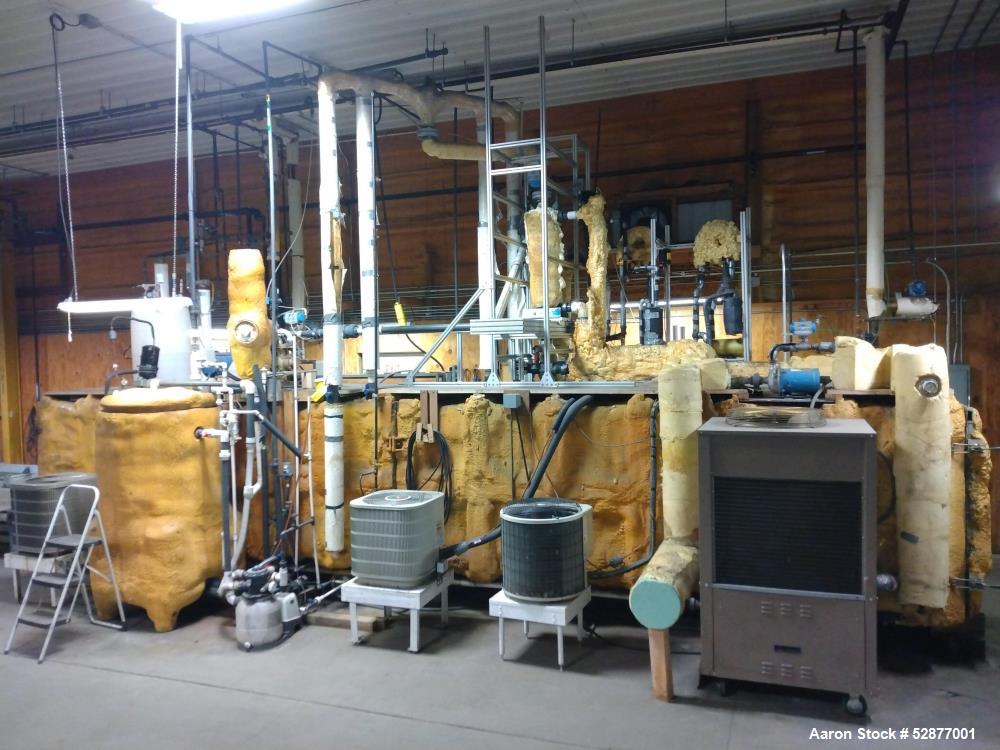

Stock# 52877001

Used-PC Specialties Vacuum Kiln; VK Series; can dry down 2800 Board feet per charge; 50" x 48" x 26'; can go from fresh cut to dry 7.5% in 8-14 days; Pump DV 0076B-DA3 7 HP 460v feed motor; Pump Feed Water Chilling Tank, 320 gallons, 1.5 Ton 220V A/C, Standard Sand filter. Condensation Recovery System includes A Drake 2 ton A/C cabinet 460V with pumps; 2nd A/C 1.5 ton with freon to water transfer coil; 3rd A/C 1.5 ton with freon to water coil; 460V Booster Pumps for circulation; Air driven pressure pumps to keep water system around 30psi; (2) Procon fluid recirculation pumps; Procon style pump for hot water recirculation in heat plates; System uses a steam to water heat transfer system that could be converted to pure electric if steam isn't available. Includes: kiln, computers, lift, and all extra parts. System is in perfect working order and can be demonstrated to interested parties. Training on unit and all logs from previous runs are available these logs will help set it up for different species.

Stock# 53134001

Used- Refractory Engineering Calciner/Kiln, Material of construction A3, 304SS, 321SS on product contact and exhaust parts. 11 working sections 1885 mm length each, total 20735 mm long. Max temp 1000 deg C. (1832 deg F). Max working temp. 950 dec C (1742 deg F.). Natural gas operated by 32 burners. Incl. Fans, piping, pumps, sensors, valves, and additional infrastructure (1) loading table 1600 mm (52") x 1800 mm (59") with rubber covered steel rolls, (1) unloading table 1600 mm (52") x 1800 mm (59"), (1) Plate recycling line. Built 2016.

Stock# 53298004

Used- Baker-Pullman/Honeywell Industrial Burner Refractory Combustion Chamber For Drum Dryer/ Kiln previously used in a top-performing Animal Feed Drying/ production line that got shutdown a few months after launch. This innovative industrial dehydration solutions comes complete with a MAXON Ovenpak 400 Series, Key Number 487M, Natural Gas Burner (8.7M Btu/hr) and gas train setup with complete Burner Management System (BMS) and Allen Bradley Panel View touchscreen HMI, for seamless integration into a production process. You will need a kiln/Rotary Drum to complete setup. Model 487M OVENPAK Gas Burner with optional: combustion air filter connecting base and linkage assembly electrical control motor Combustion Chamber Dimensions: 116"L x 84W" x 122" H (chamber diameter: 31" and Heat tube 25") Shipping weight: 11,000lbs The chamber (made by Baker-Rullman) is refractory lined to protect the shell walls from the high temperatures as you can see. The combustion chamber is used to house the combustion reaction that feeds heat into the dryer, preventing direct contact between the flame and the material being processed. It can be used on either a co-current or counter-current design.

Stock# 49941004

Used- Rotary Kiln Package Kiln, Carbon Steel. Approximate 5'6" diameter x 32'6" long. Rotary Air Lock Feed Screw. 7 Feet Long Maxon Oven-Pak II Model 400 Size 445 Gas Burner (Direct Fired). Full chassis frame for feed/hopper and rotary kiln. A wrap-around cat-walk is available with it as well as gear reducer and motor. All plaques attached via pictures.
