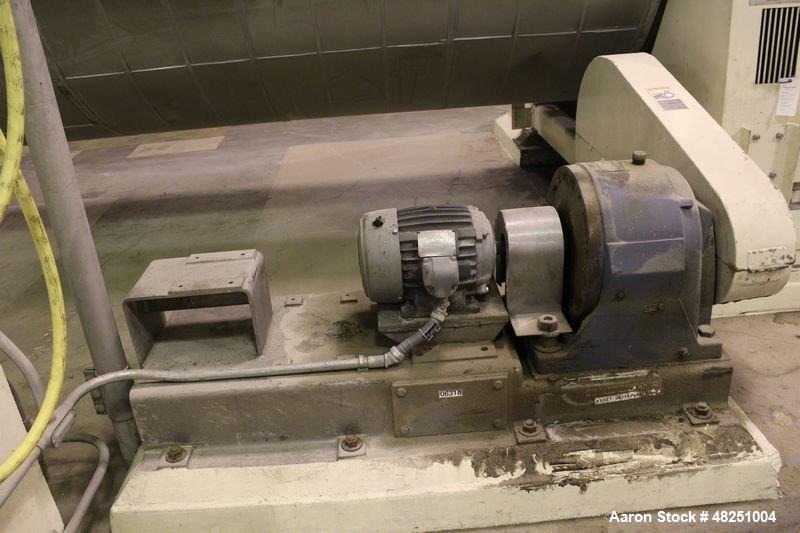

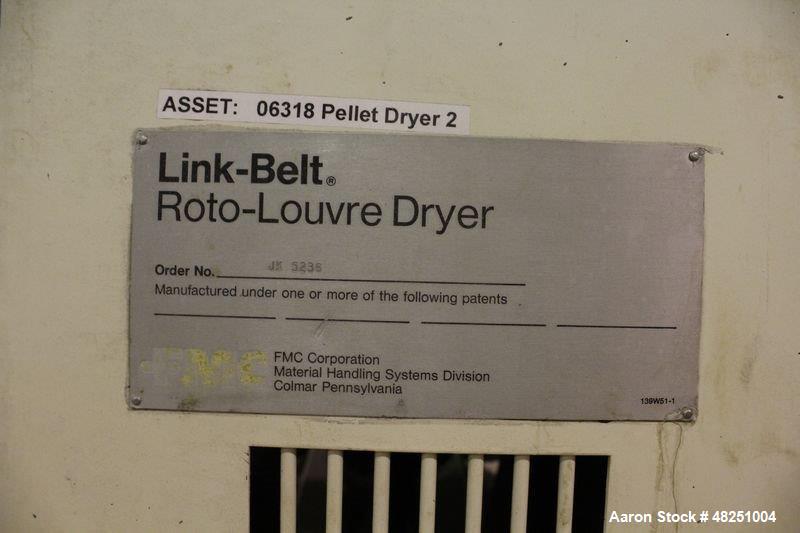

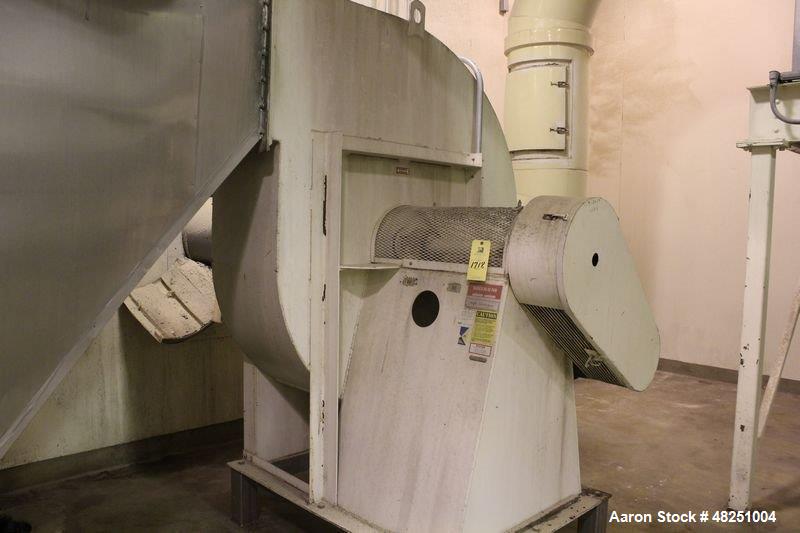

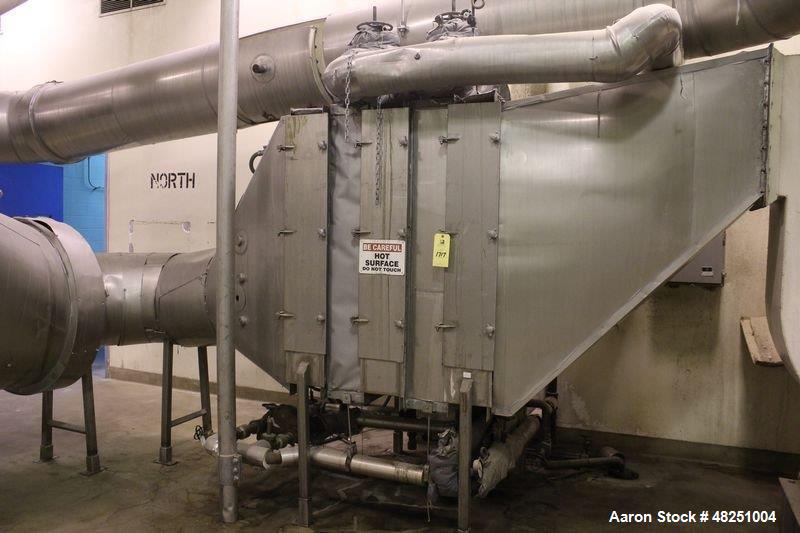

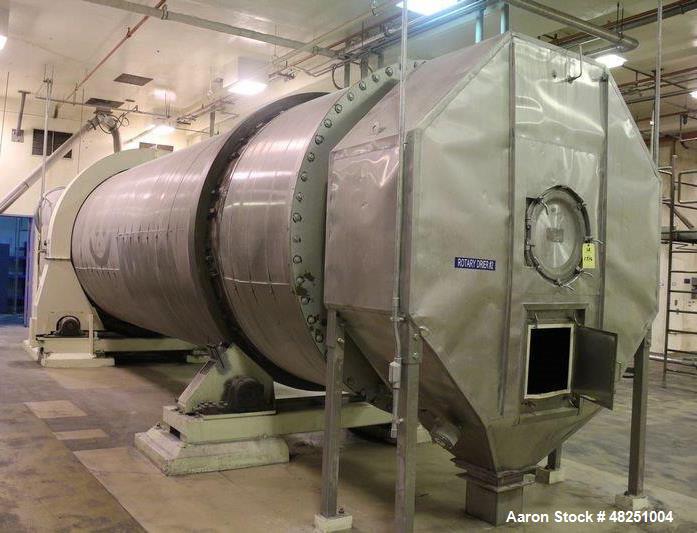

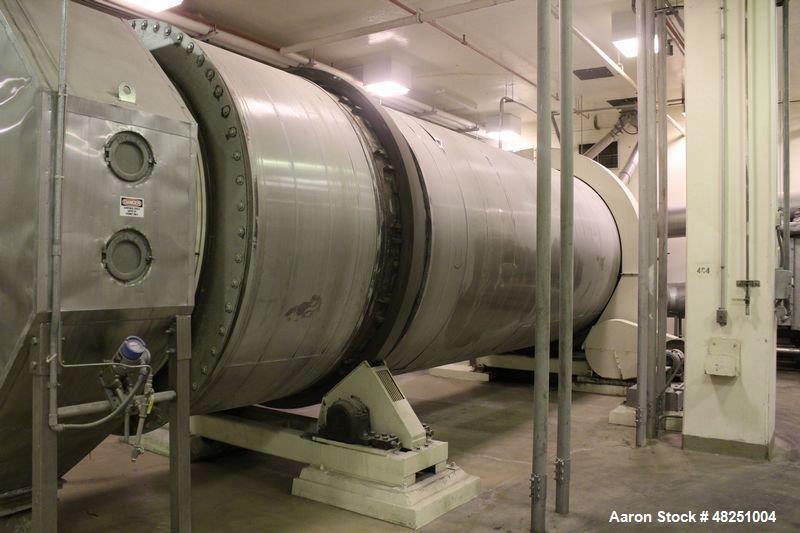

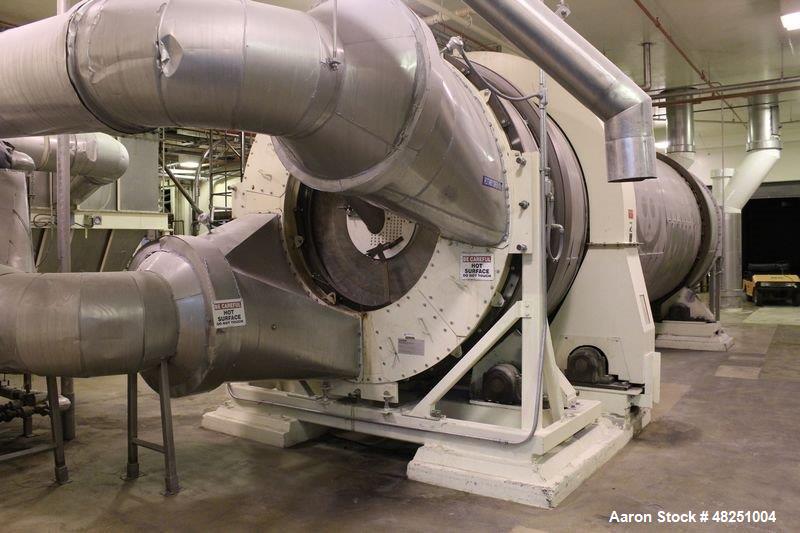

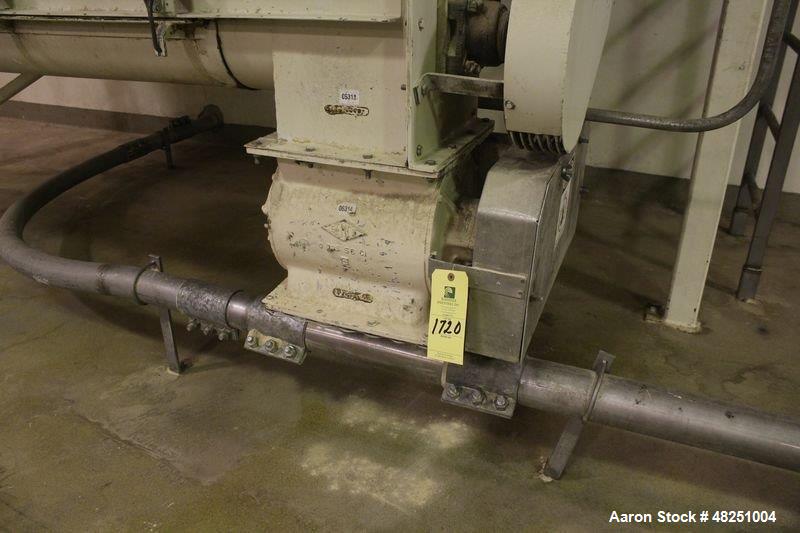

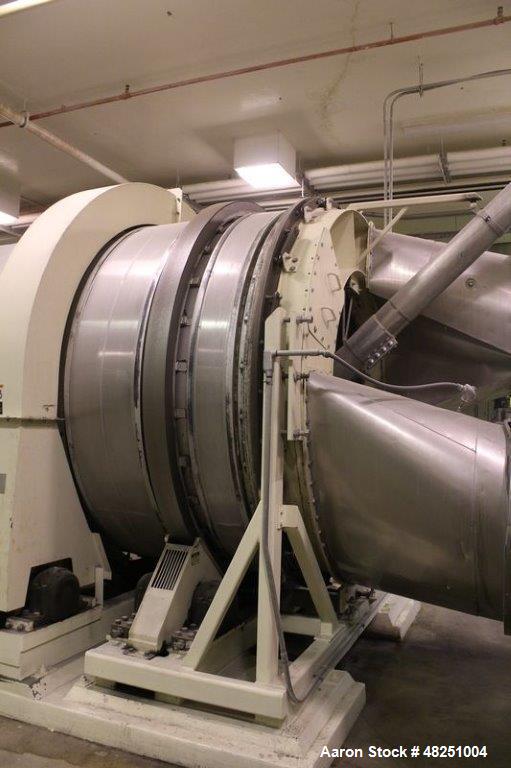

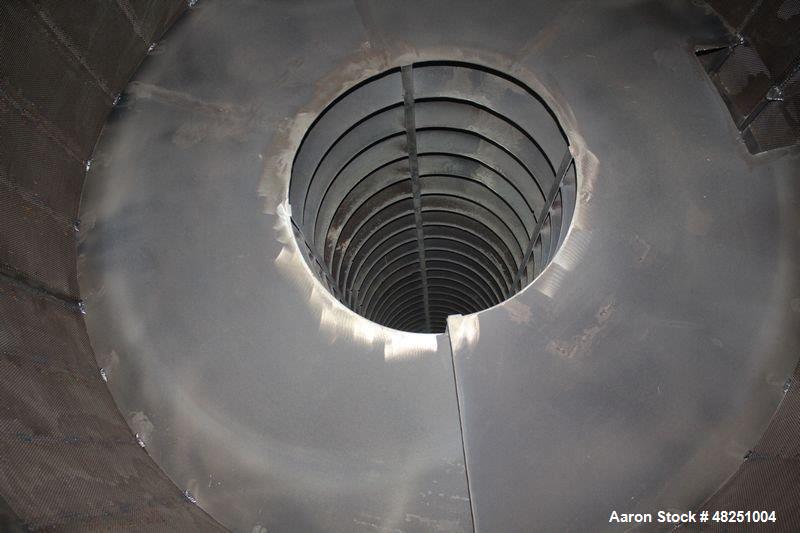

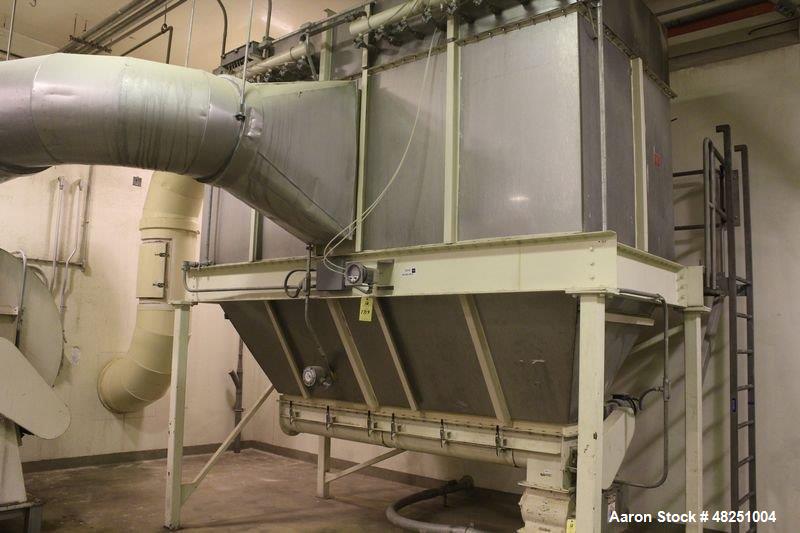

Used FMC Link-Belt Roto-Louvre Spiral Roaster, Carbon Steel. Tube approximate 66" diameter x 348" long with spiral flights. Approximate 10" diameter end inlet feed tube, end discharge hood. Dryer sits on 6" wide x 20" diameter trunnions. Chain driven by a 5 hp, 3/60/230/460 volt, 1150 rpm motor thru a reducer, ratio 38.4 to 1. Order# JK-5236. Mounted on a frame. Includes (1) steam coil chest, (1) New York Blower Series 20 GI Fan, size 454, shop# C-8315-100, driven by a 20 hp, 3/60/230/460 volt, 1765 rpm motor, (1) Flex-Kleen pulse jet dust collector, approximate 550 square feet filter area, Model 30-PRBH-128XL(111G), Serial# 10-79-30872, carbon steel. Housing approximate 146" long x 68" wide x 52" straight side x 22" top plenum x 48" coned bottom. (2) Side access doors. (1) 10" Diameter x 112" long bottom discharge screw conveyor, driven by a 1 hp, 3/60/230/460 volt, 1725 rpm gear motor, ratio 40 to 1, (1) Semco rotary valve, Model RV04, Serial# 871850, built 1987, driven by a 3/4 hp, 3/60/230/460 volt, 1690 rpm gear motor, ratio 36.93 to 1.
Used FMC Link-Belt Roto-Louvre Spiral Roaster, Carbon Steel. Tube approximate 66" diameter x 348" long with spiral flights. Approximate 10" diameter end inlet feed tube, end discharge hood. Dryer sits on 6" wide x 20" diameter trunnions. Chain driven by a 5 hp, 3/60/230/460 volt, 1150 rpm motor thru a reducer, ratio 38.4 to 1. Order# JK-5236. Mounted on a frame. Includes (1) steam coil chest, (1) New York Blower Series 20 GI Fan, size 454, shop# C-8315-100, driven by a 20 hp, 3/60/230/460 volt, 1765 rpm motor, (1) Flex-Kleen pulse jet dust collector, approximate 550 square feet filter area, Model 30-PRBH-128XL(111G), Serial# 10-79-30872, carbon steel. Housing approximate 146" long x 68" wide x 52" straight side x 22" top plenum x 48" coned bottom. (2) Side access doors. (1) 10" Diameter x 112" long bottom discharge screw conveyor, driven by a 1 hp, 3/60/230/460 volt, 1725 rpm gear motor, ratio 40 to 1, (1) Semco rotary valve, Model RV04, Serial# 871850, built 1987, driven by a 3/4 hp, 3/60/230/460 volt, 1690 rpm gear motor, ratio 36.93 to 1.
