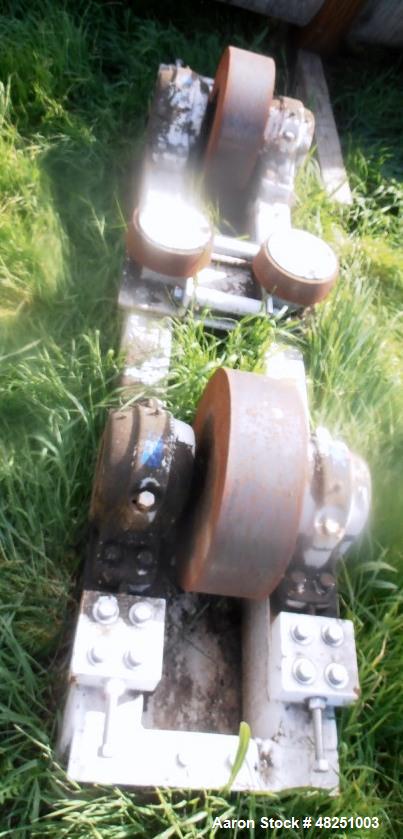

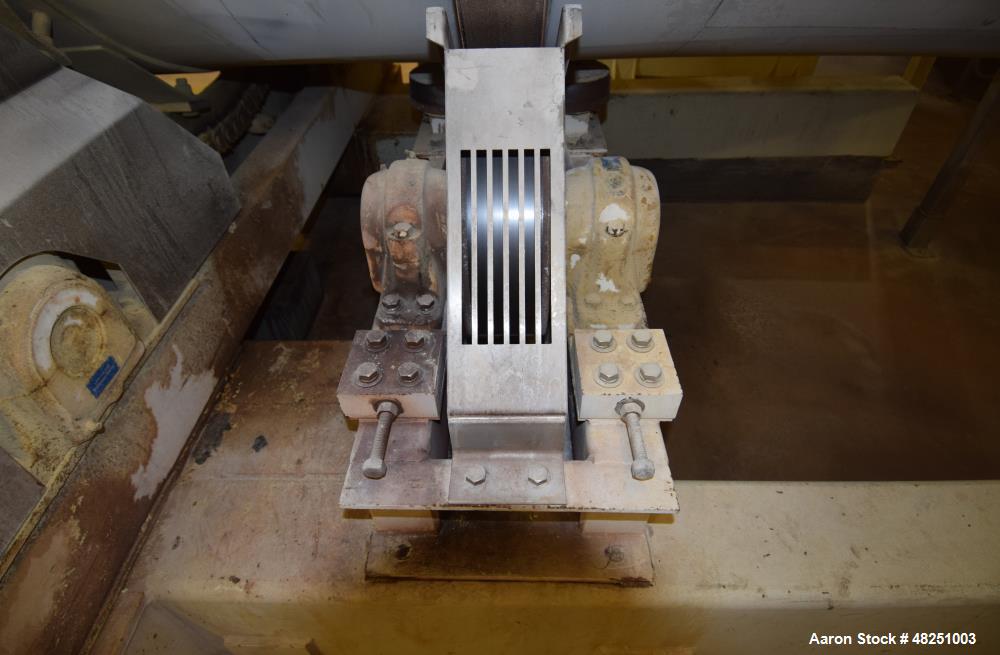

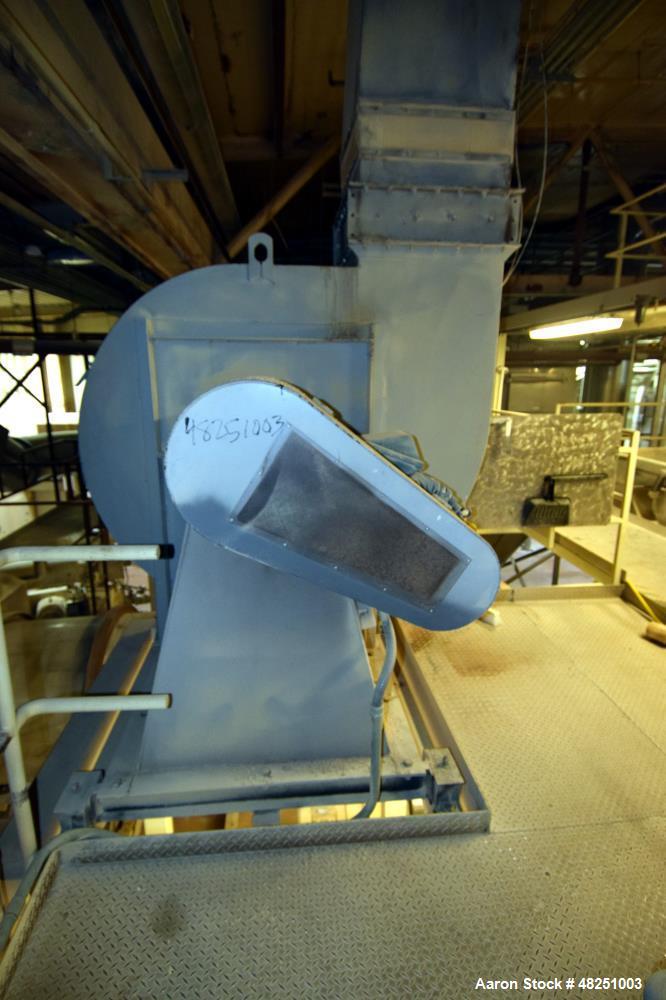

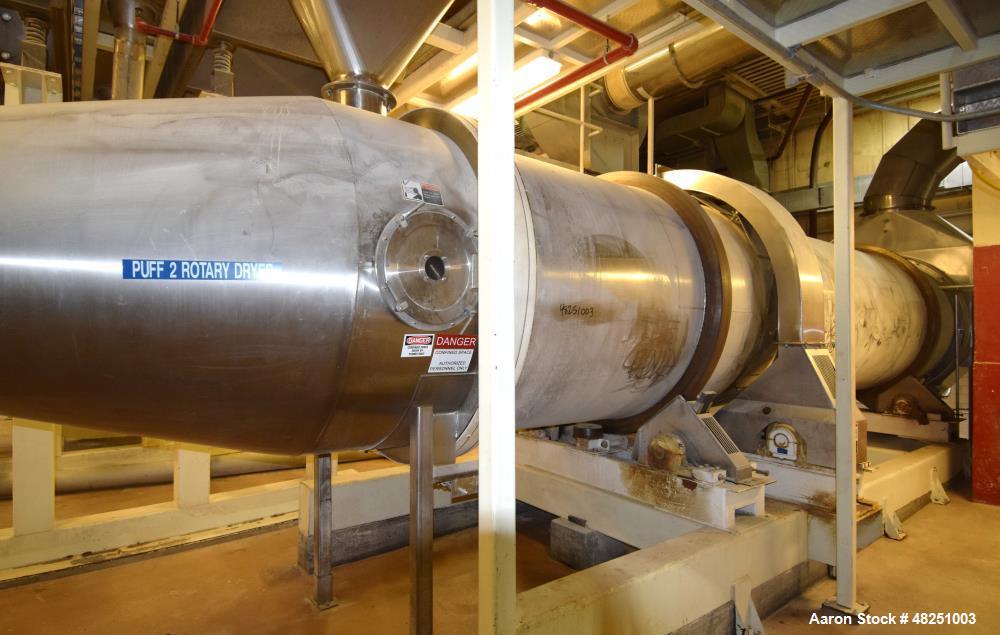

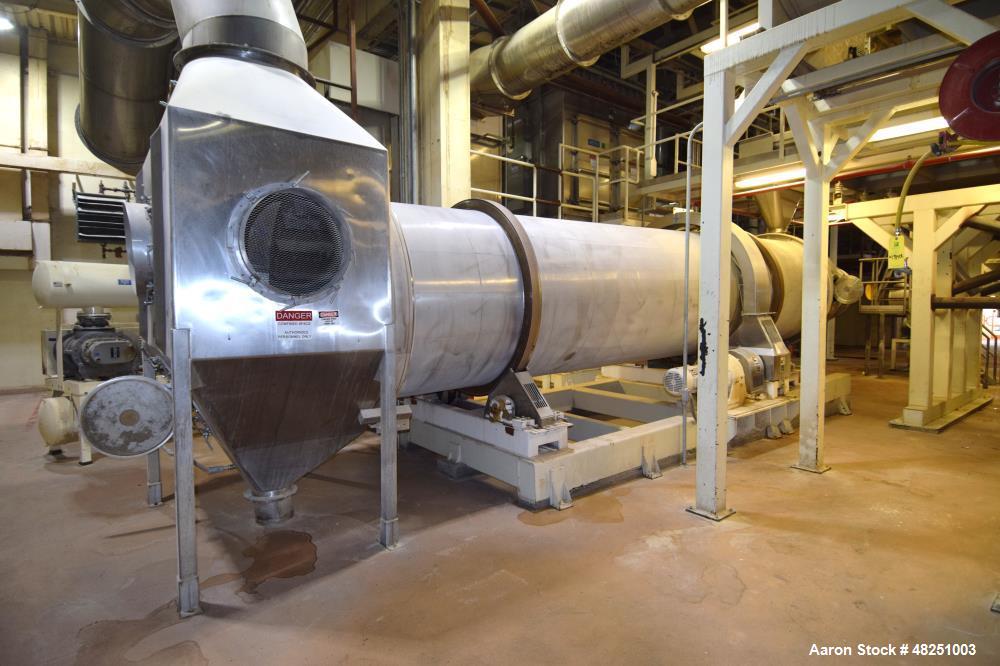

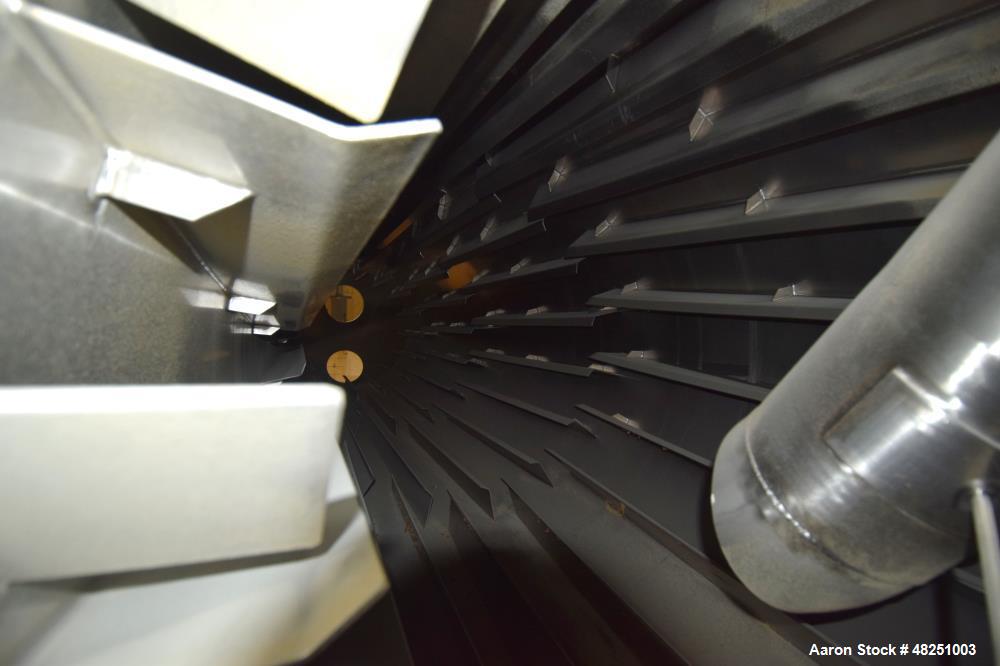

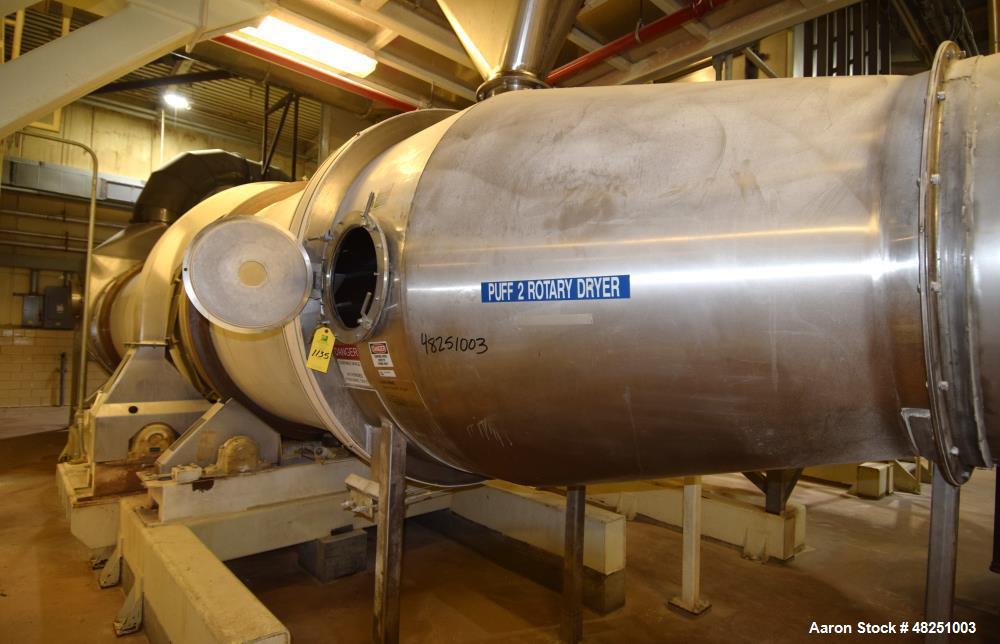

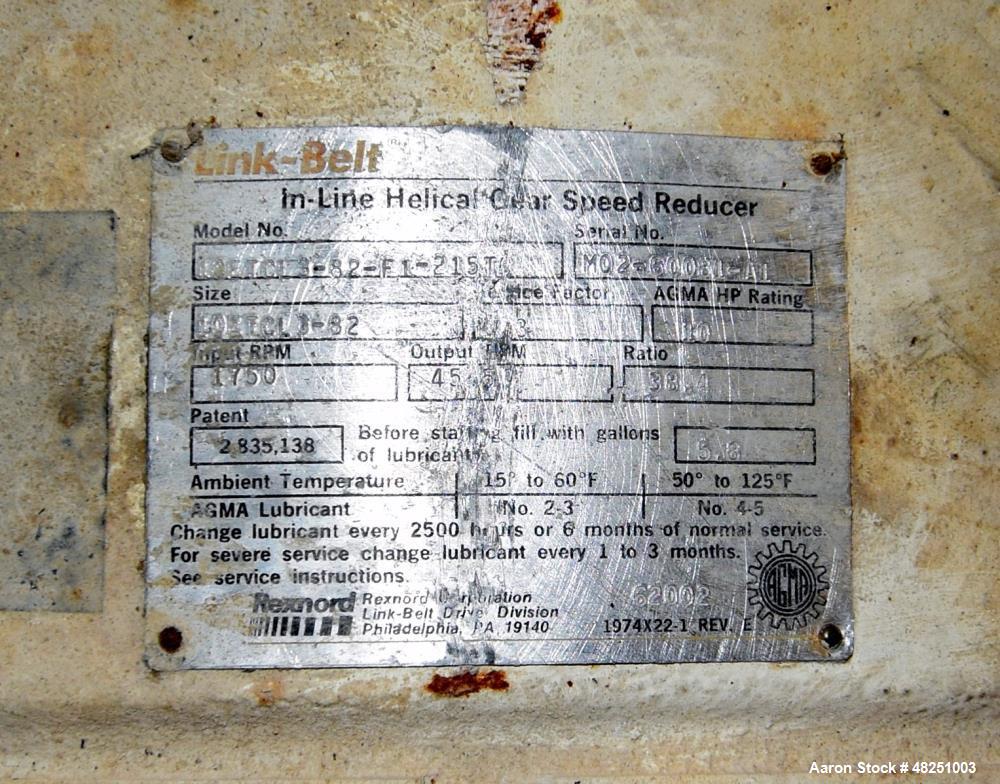

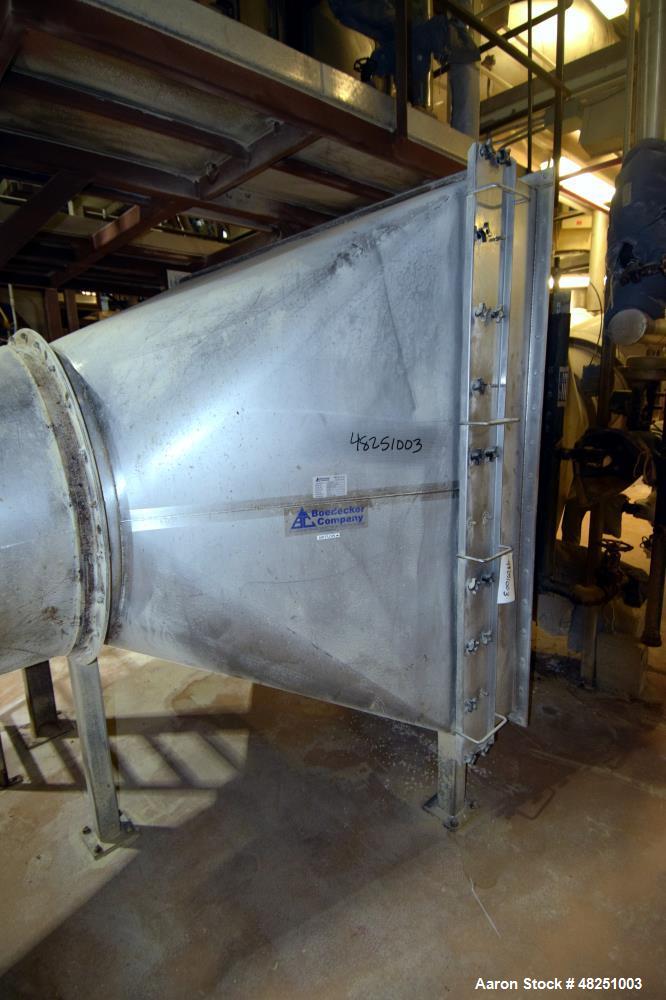

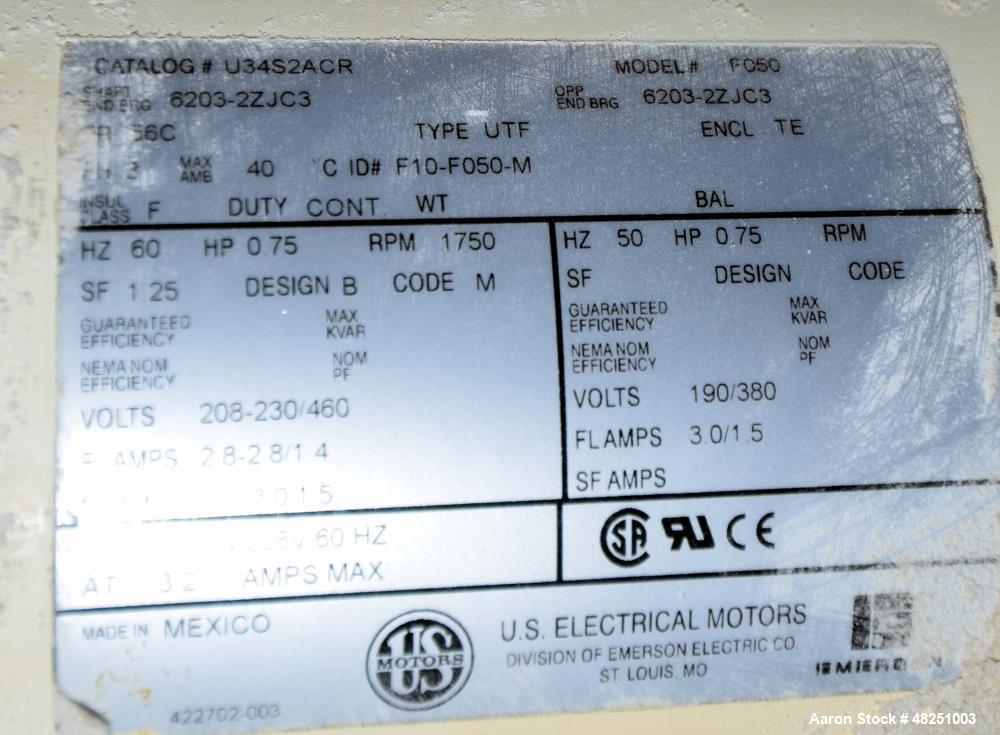

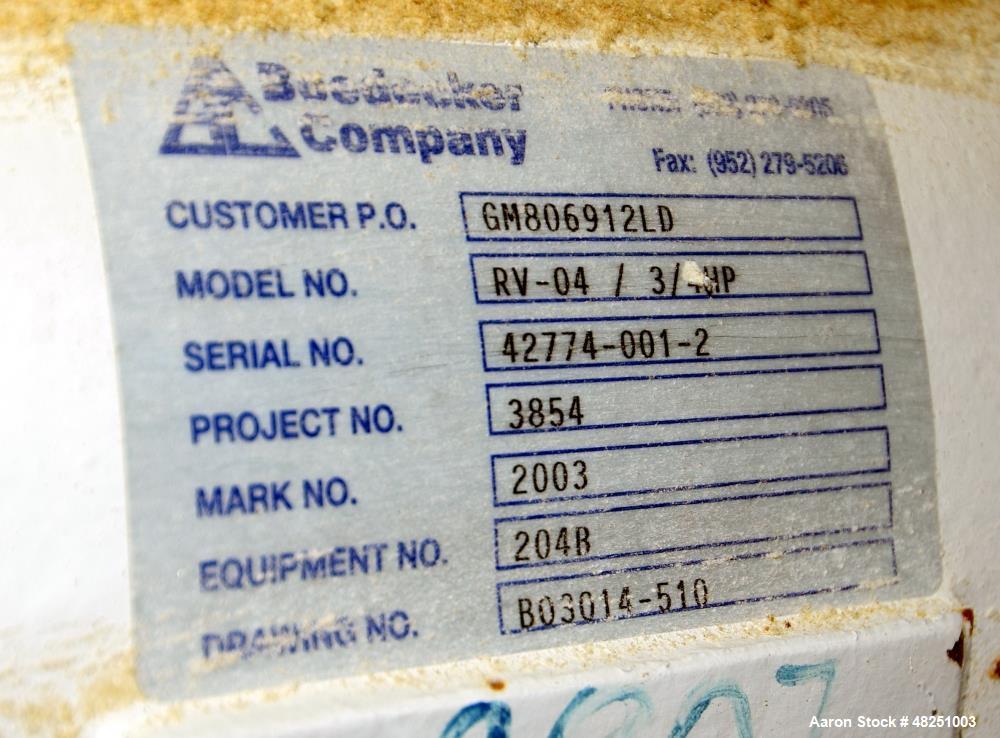

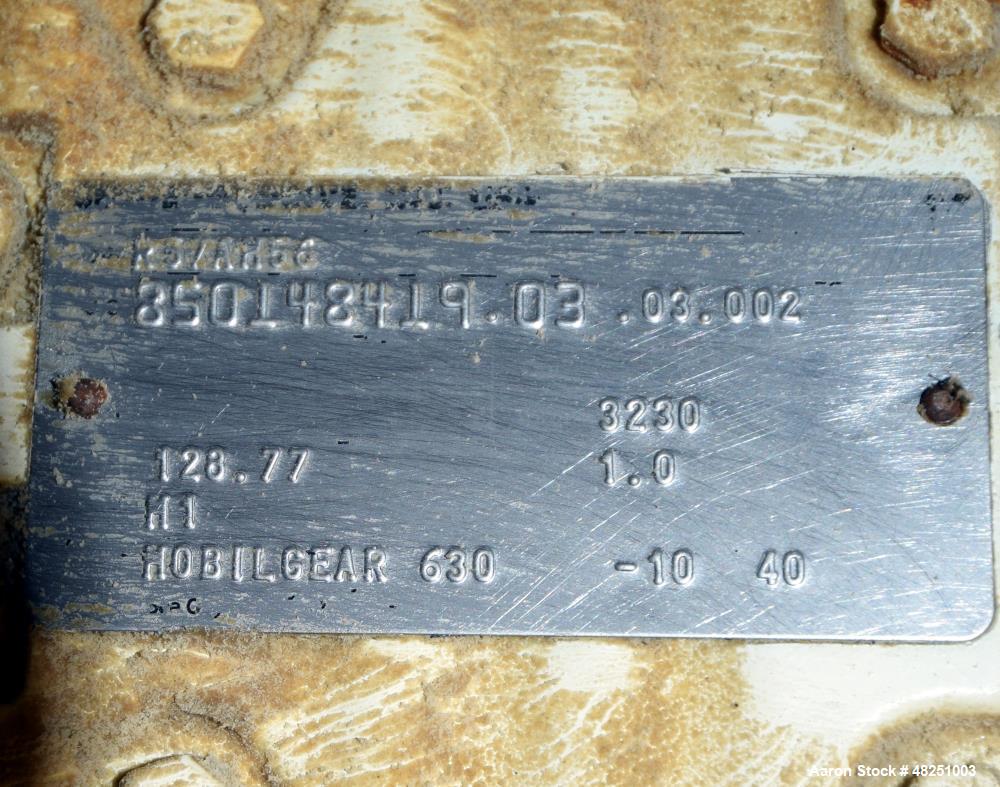

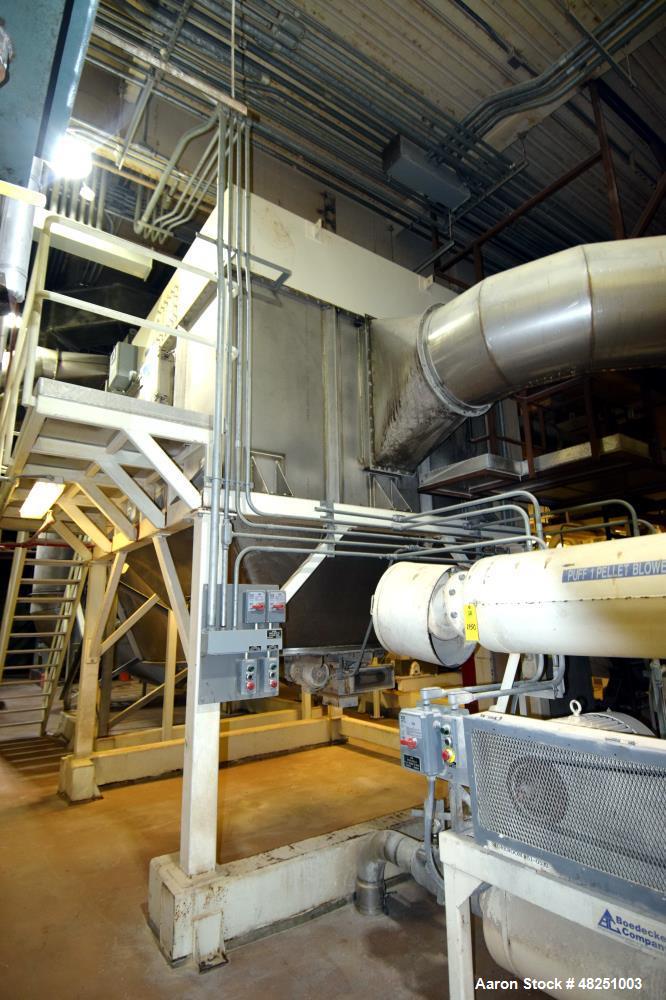

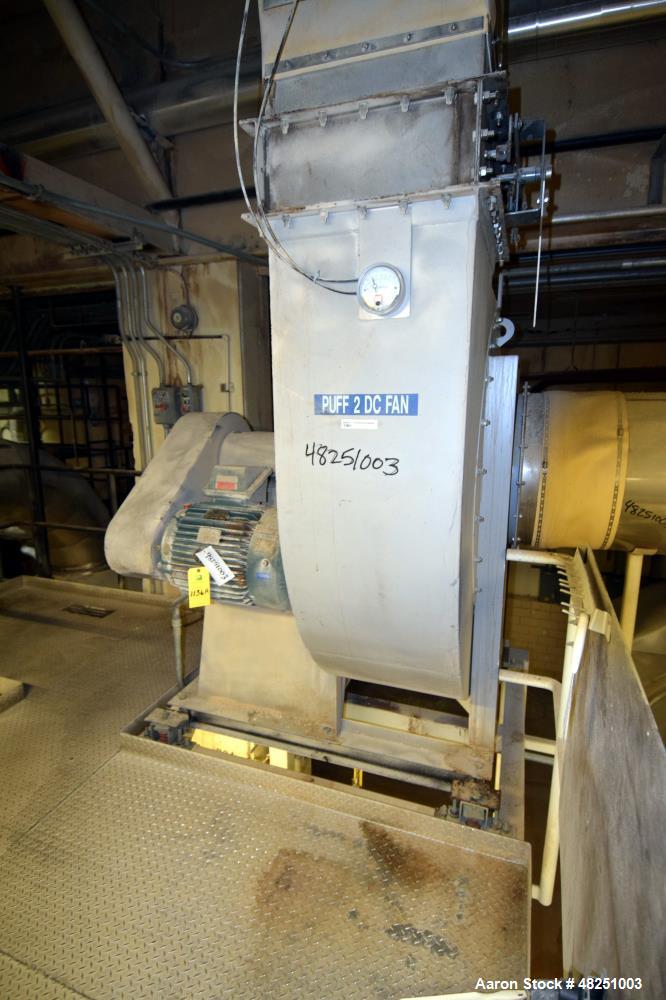

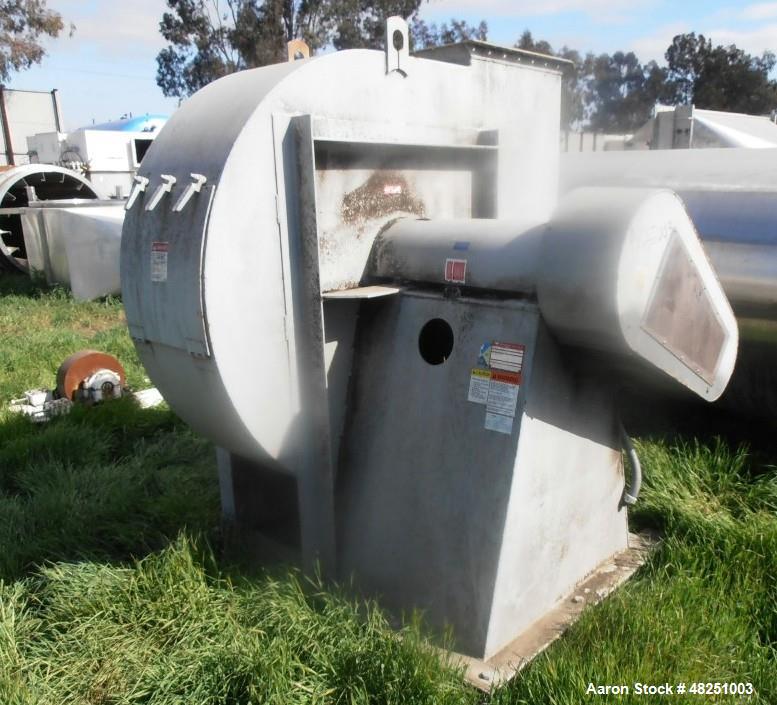

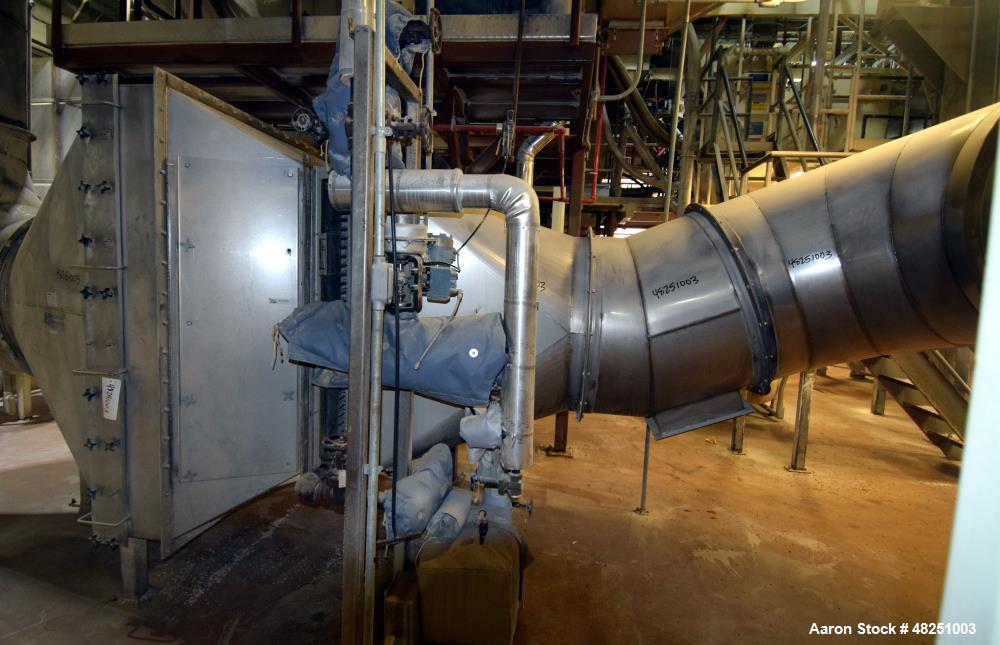

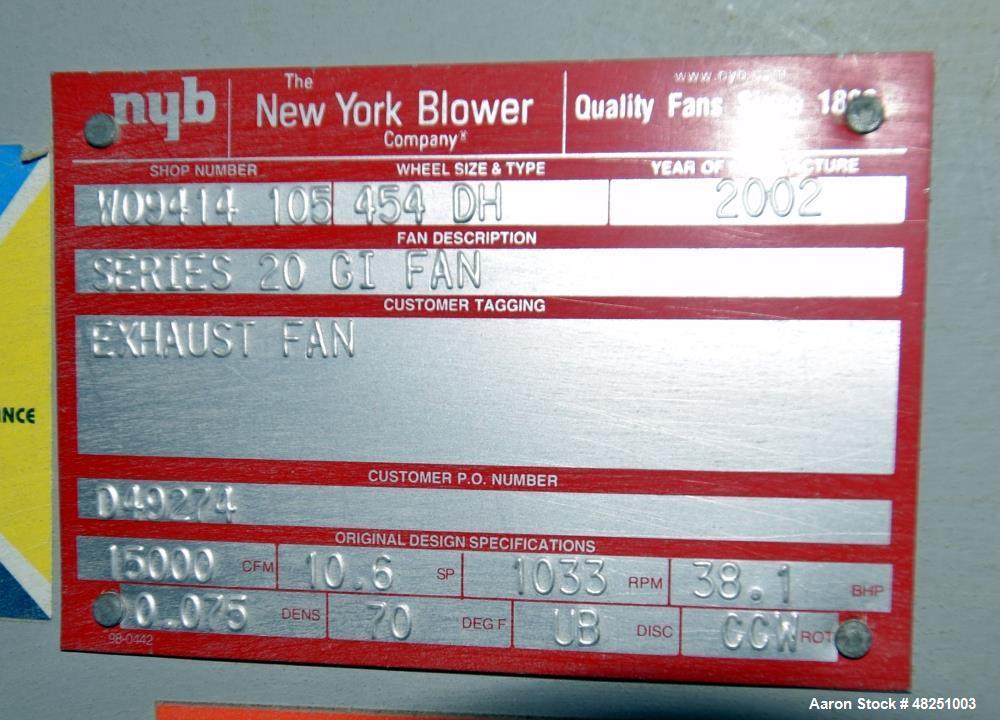

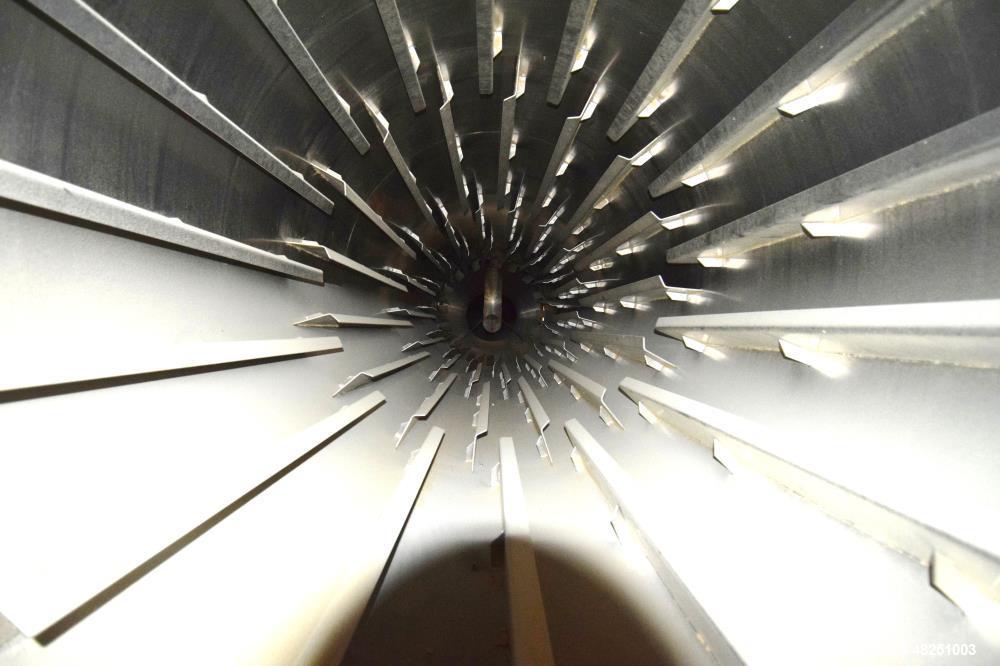

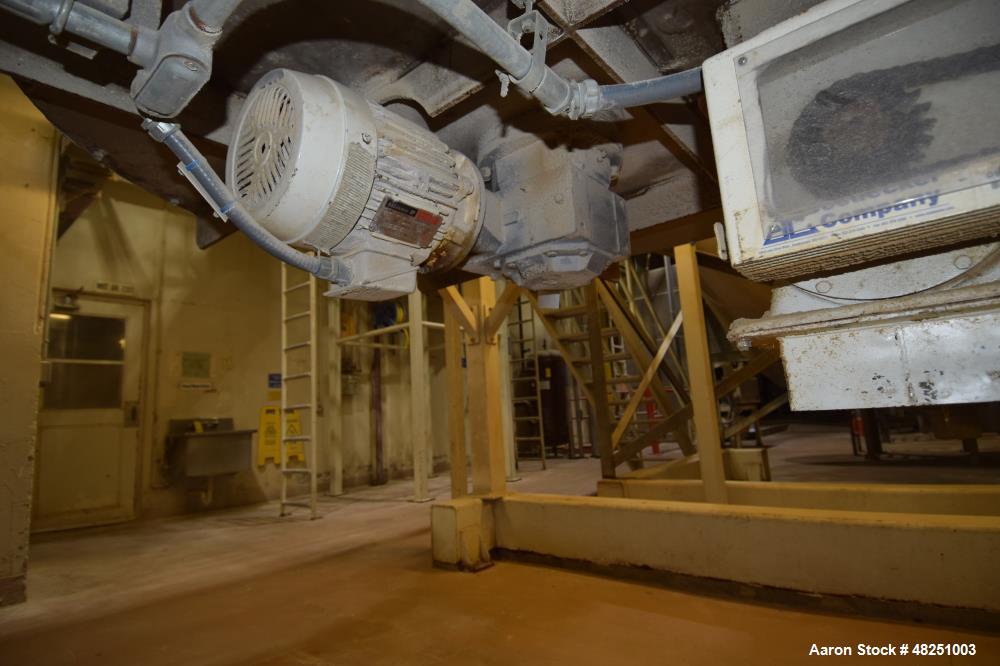

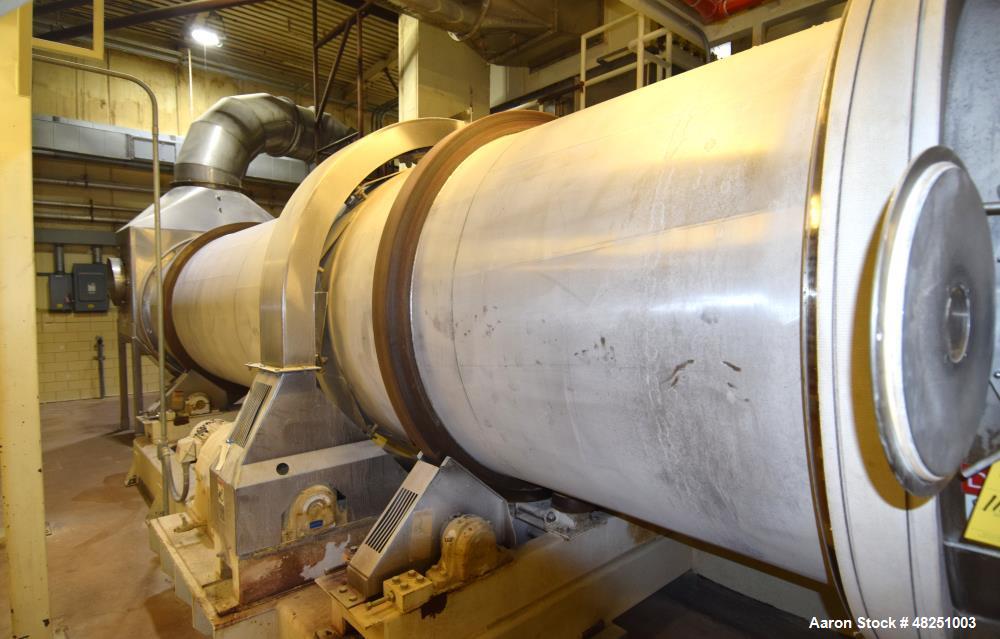

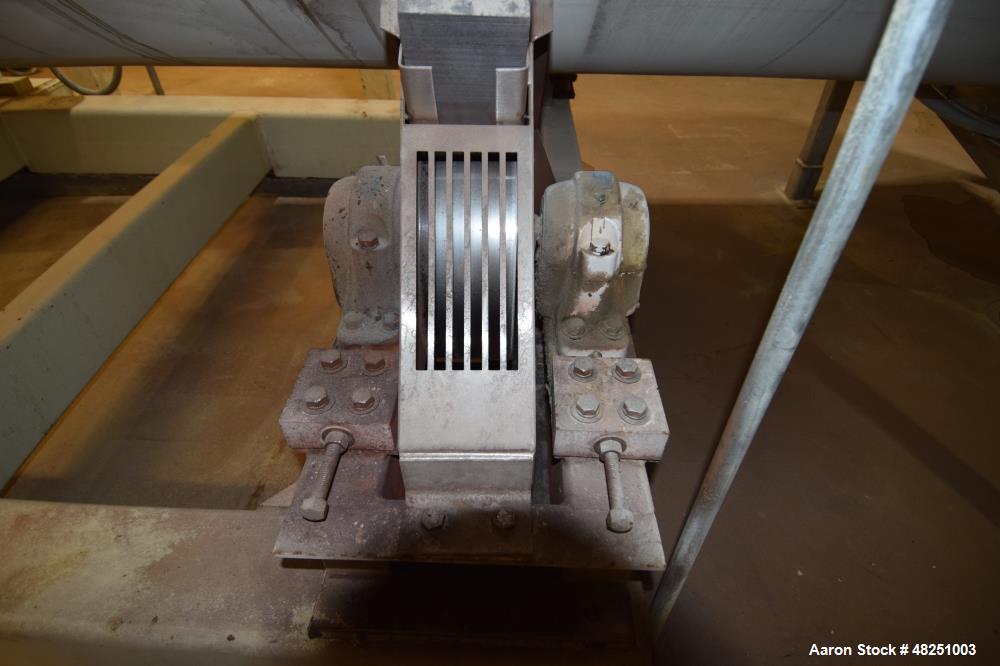

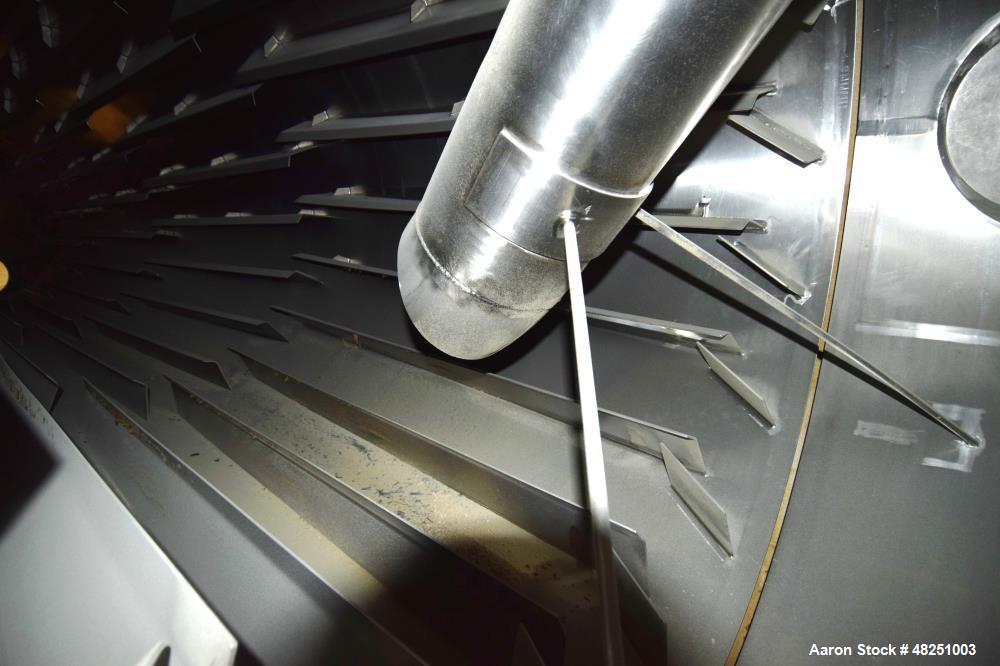

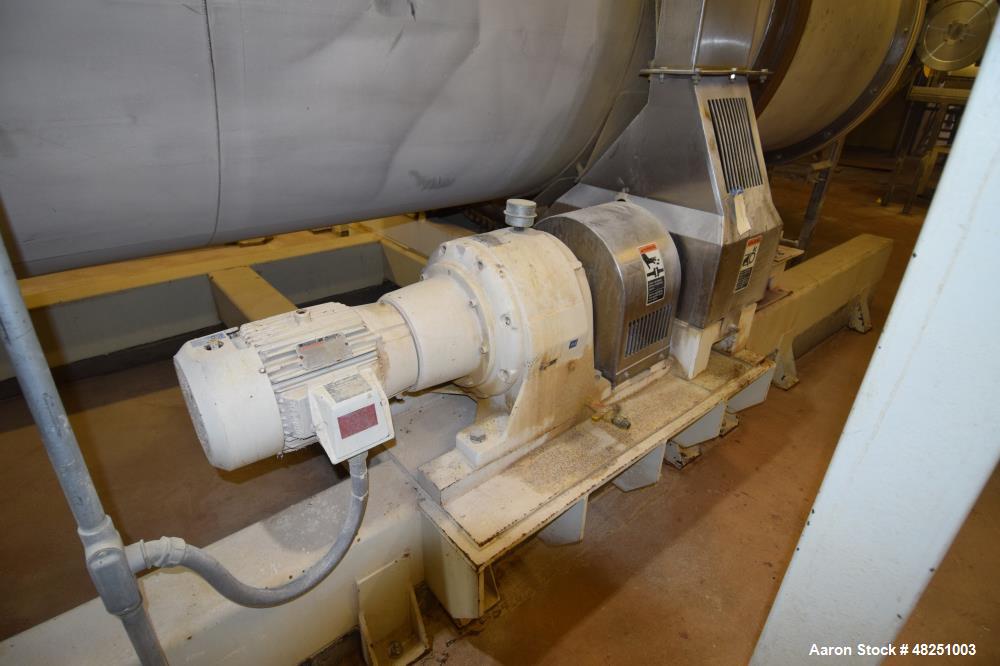

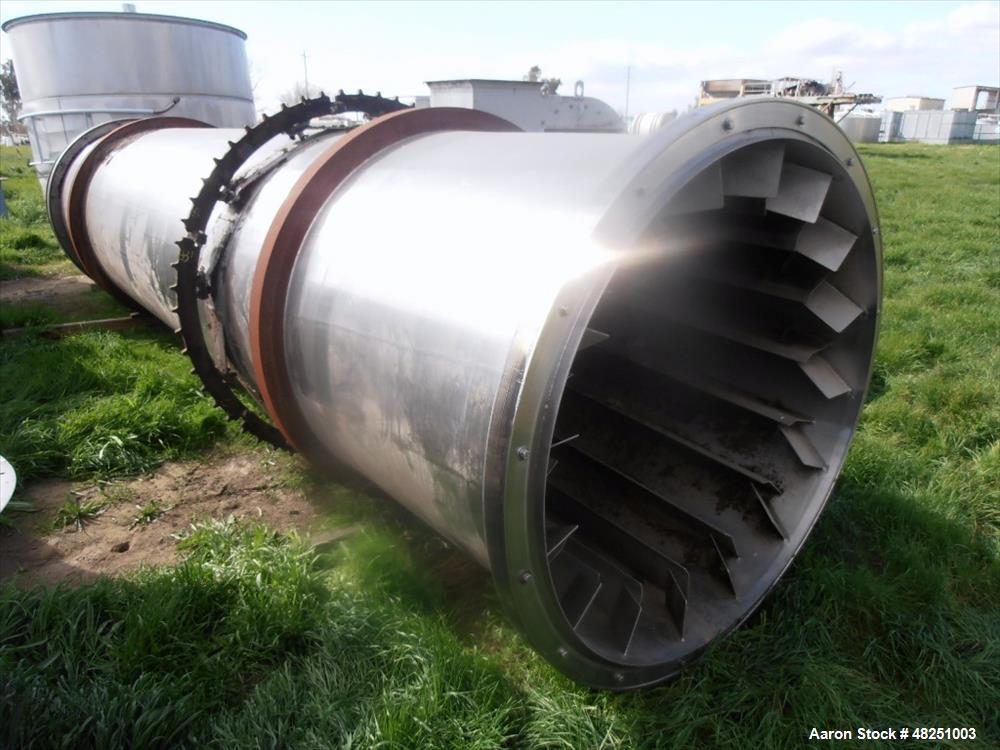

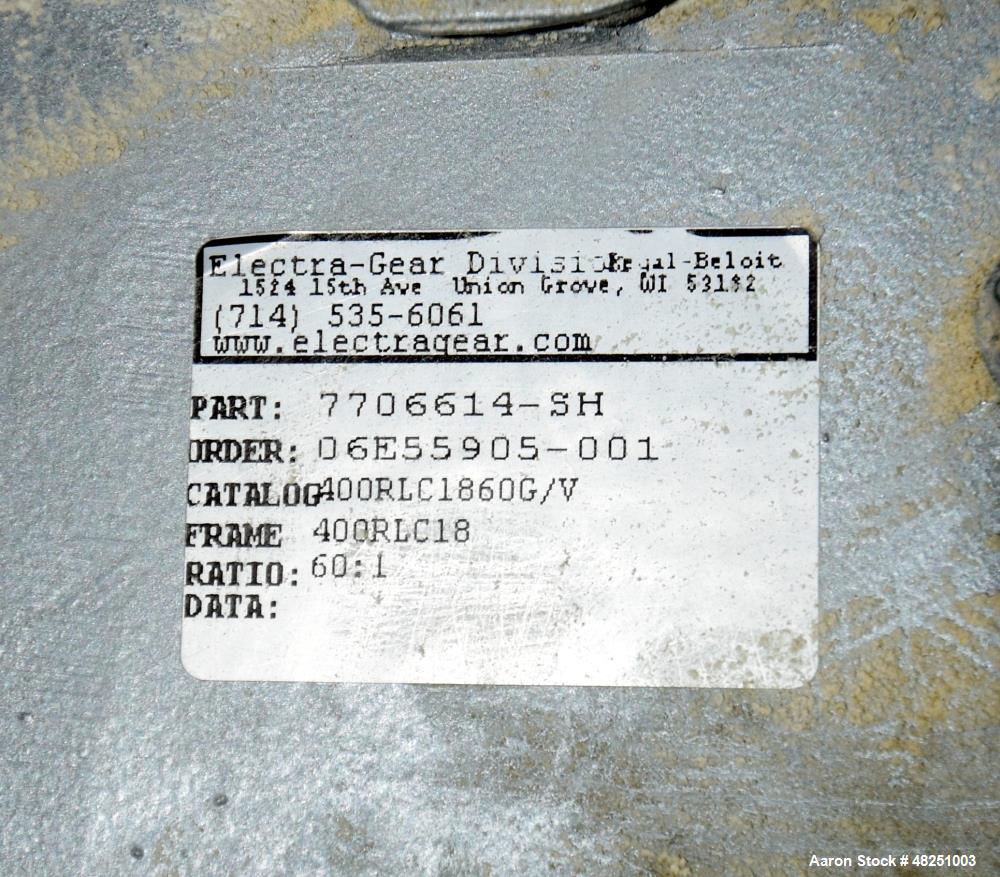

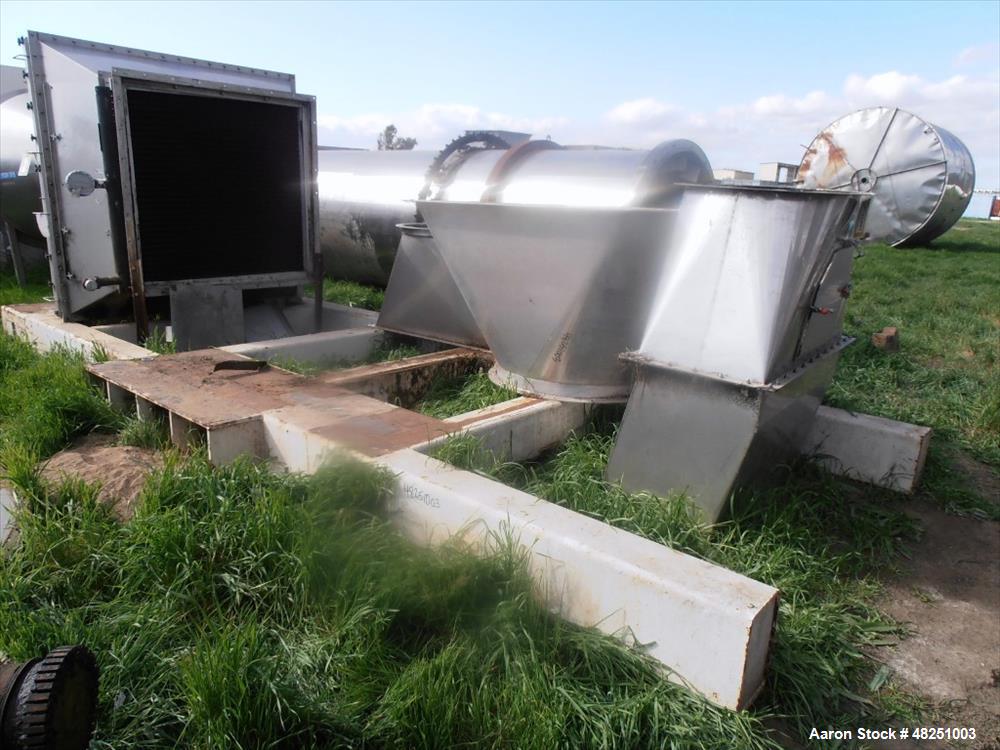

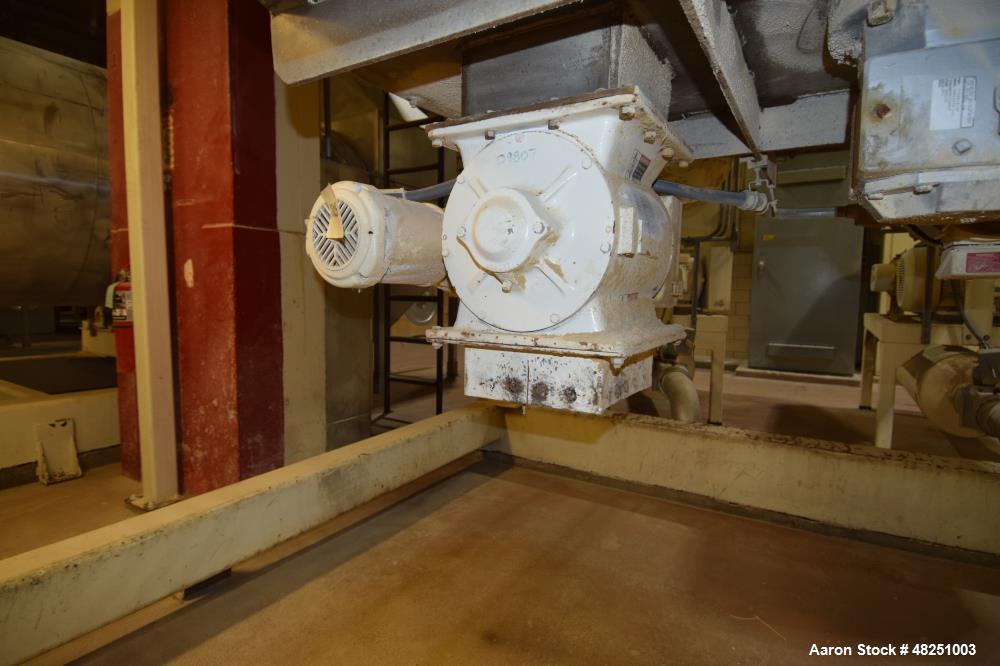

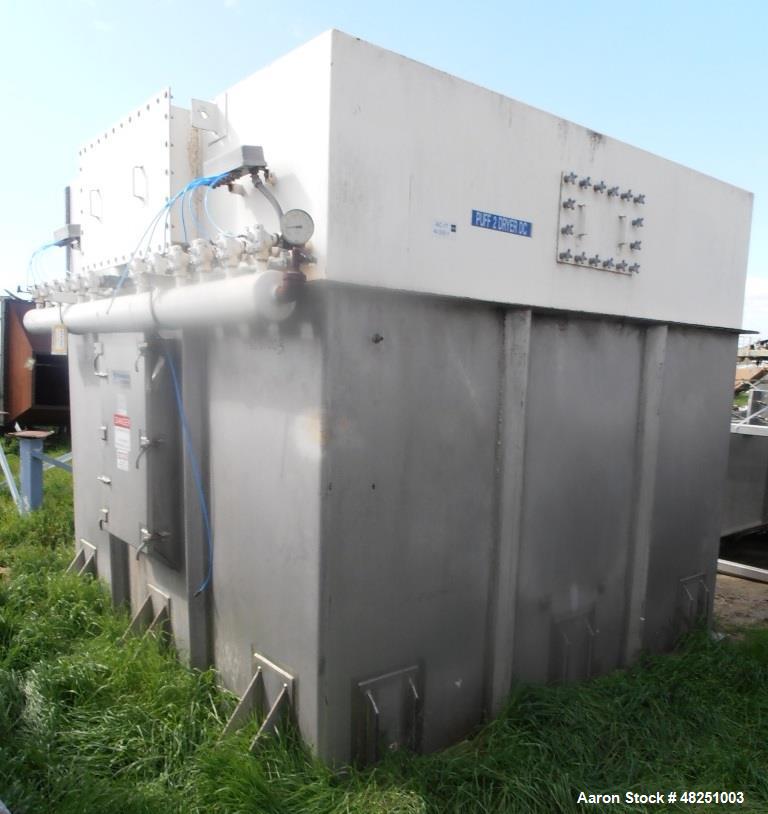

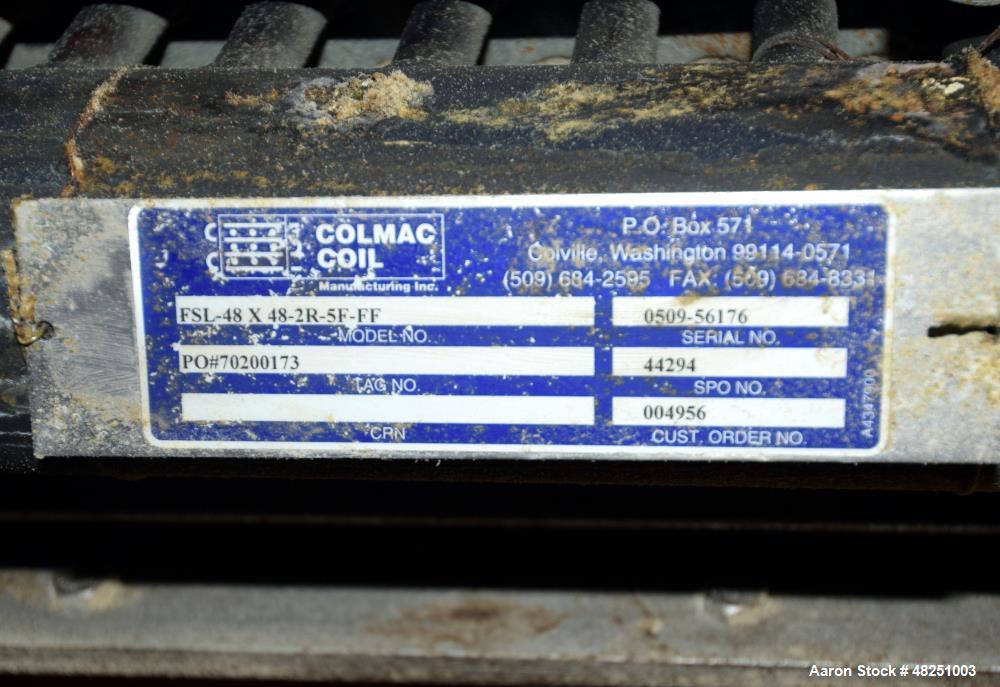

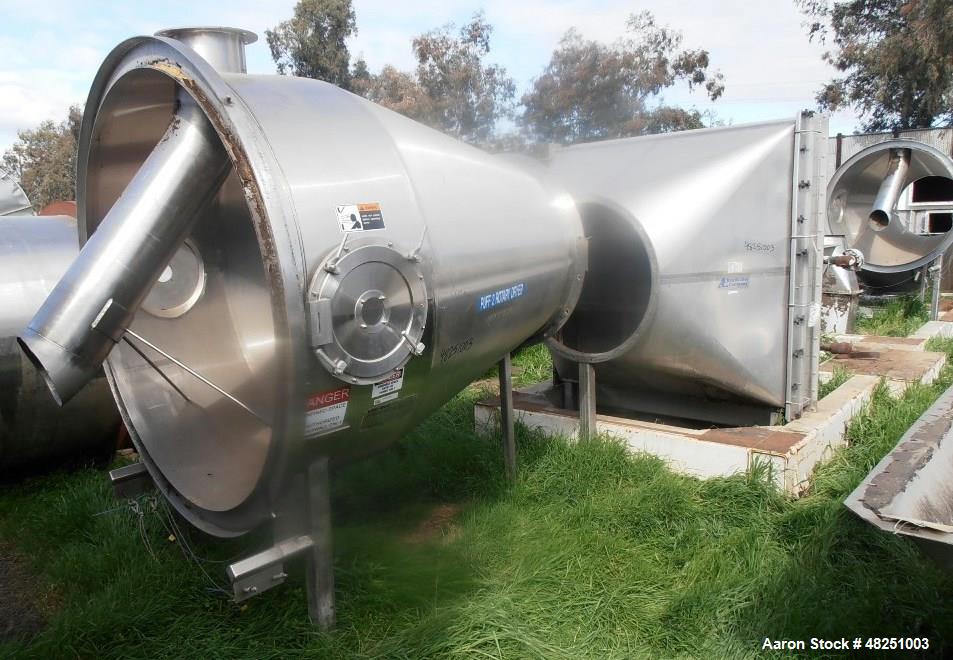

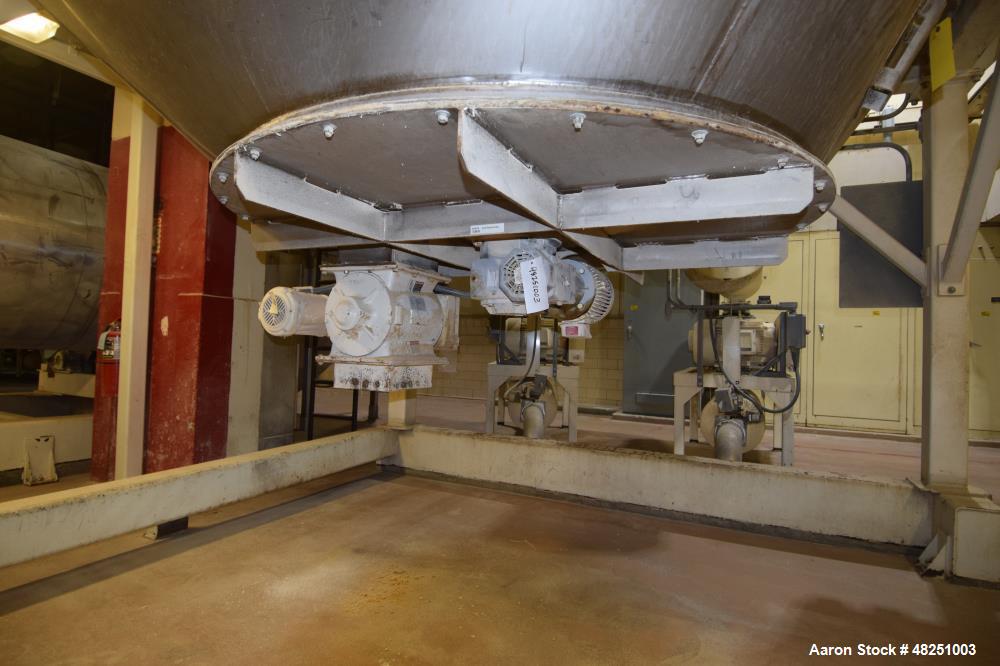

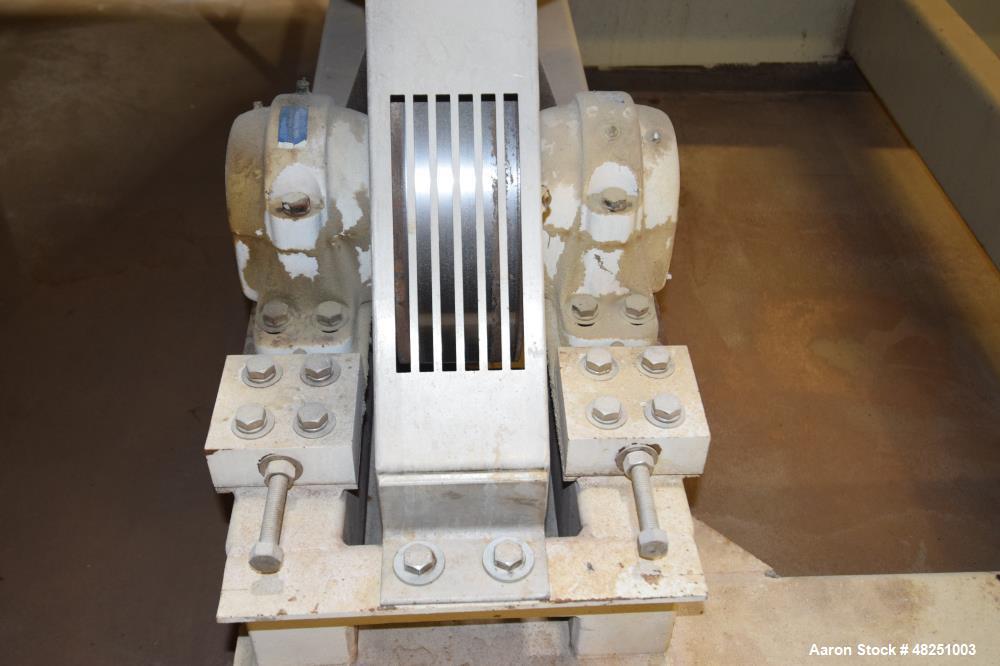

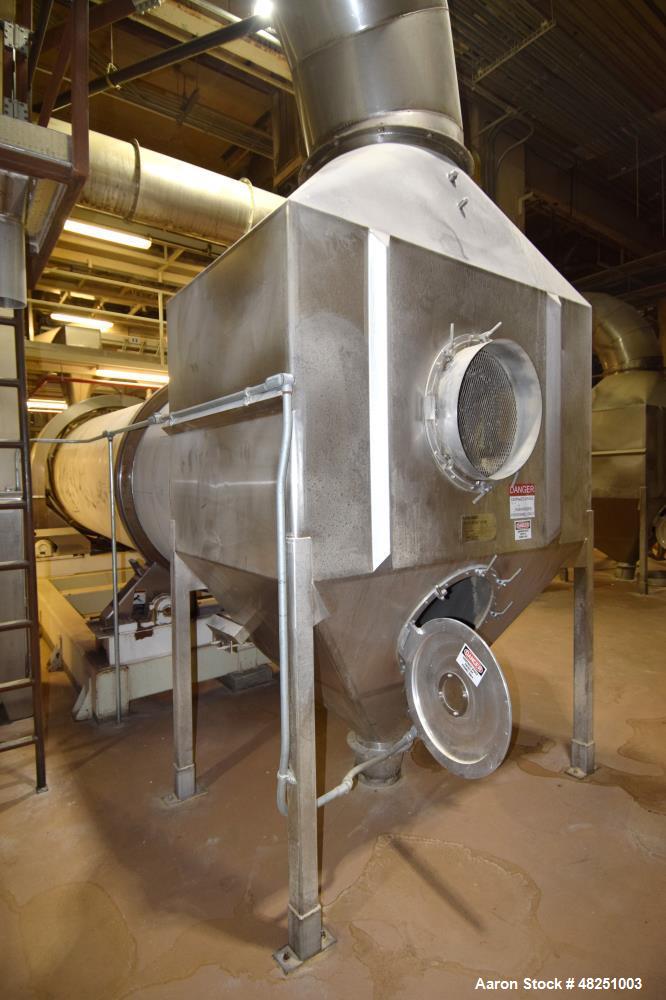

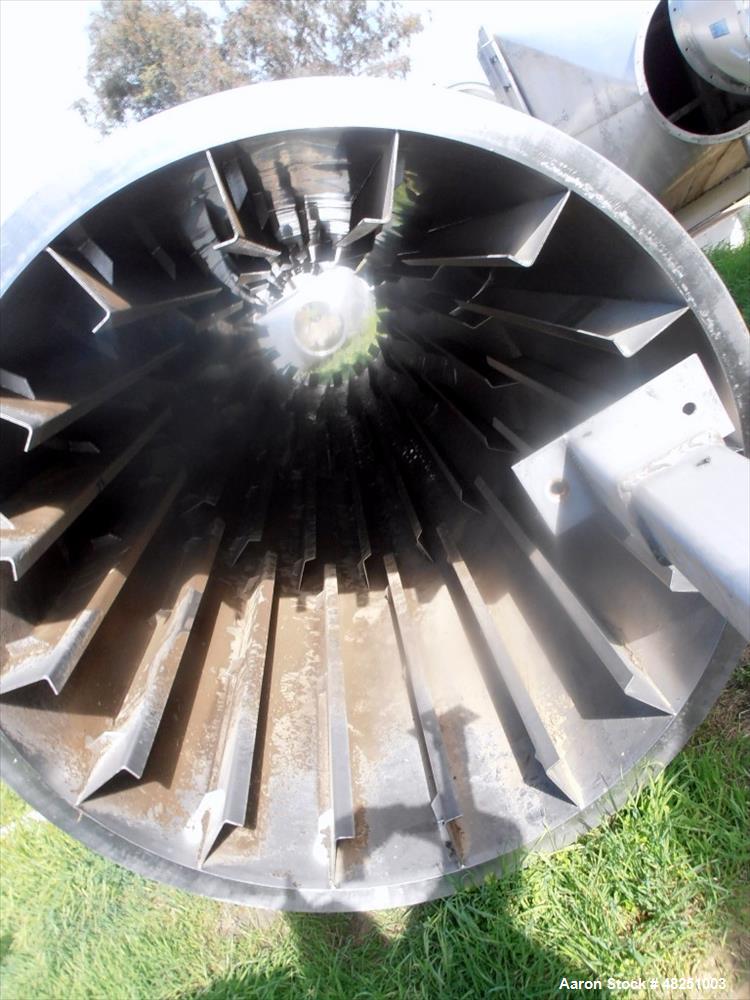

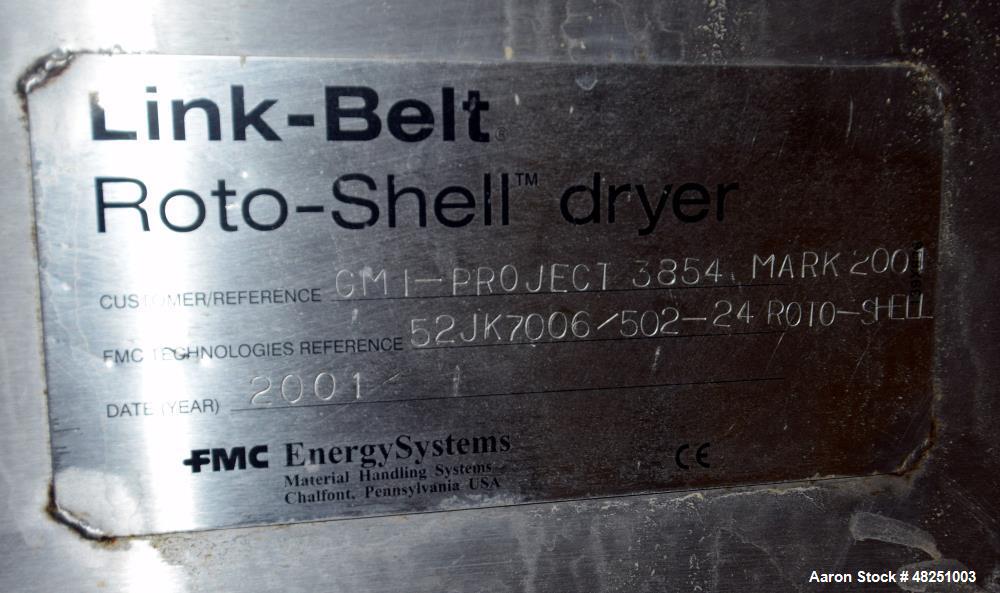

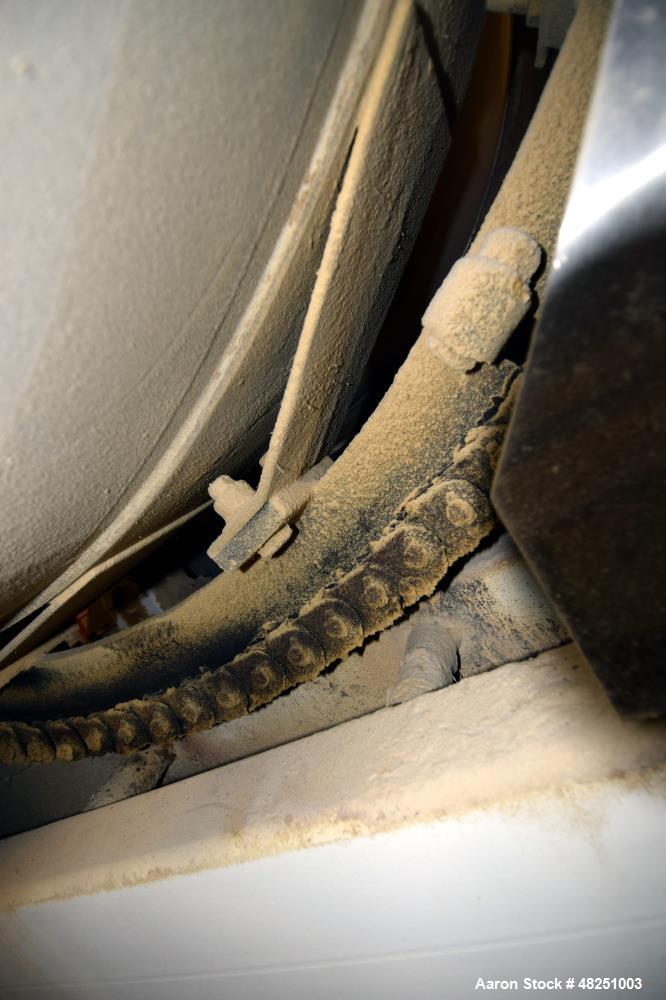

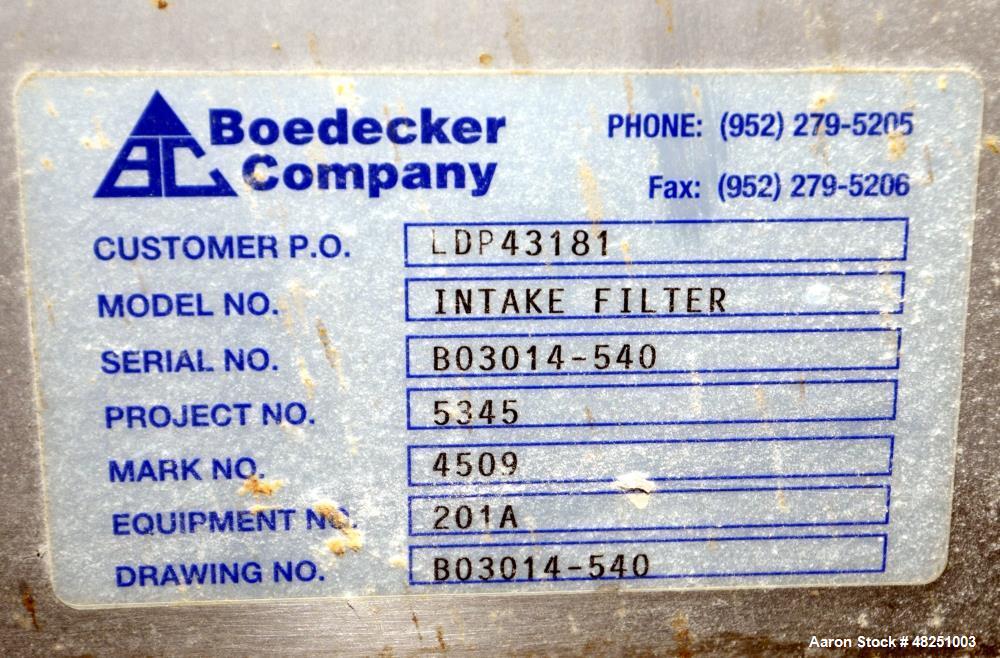

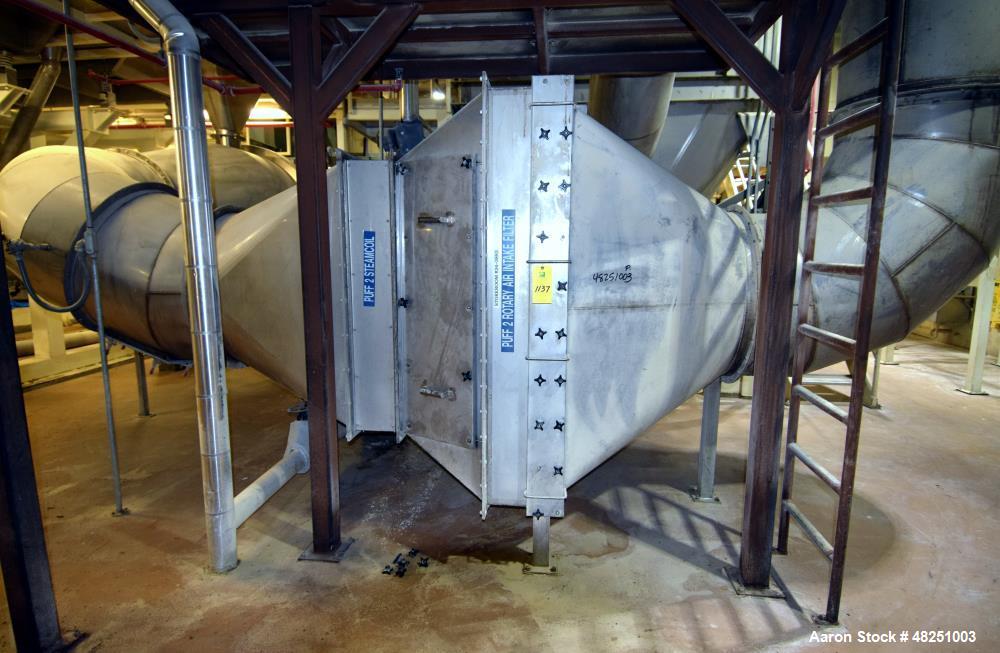

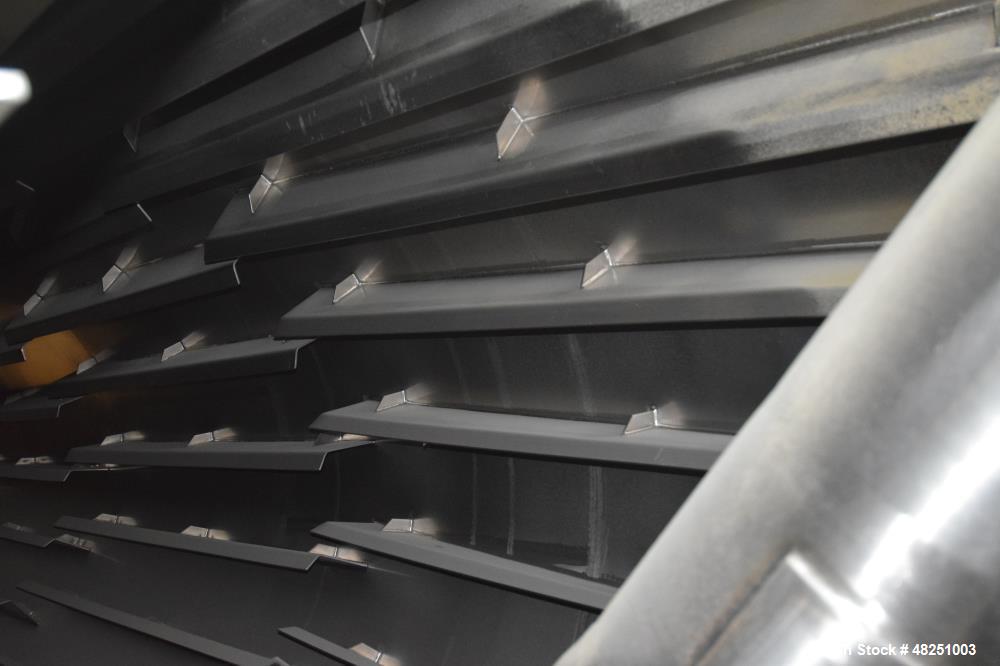

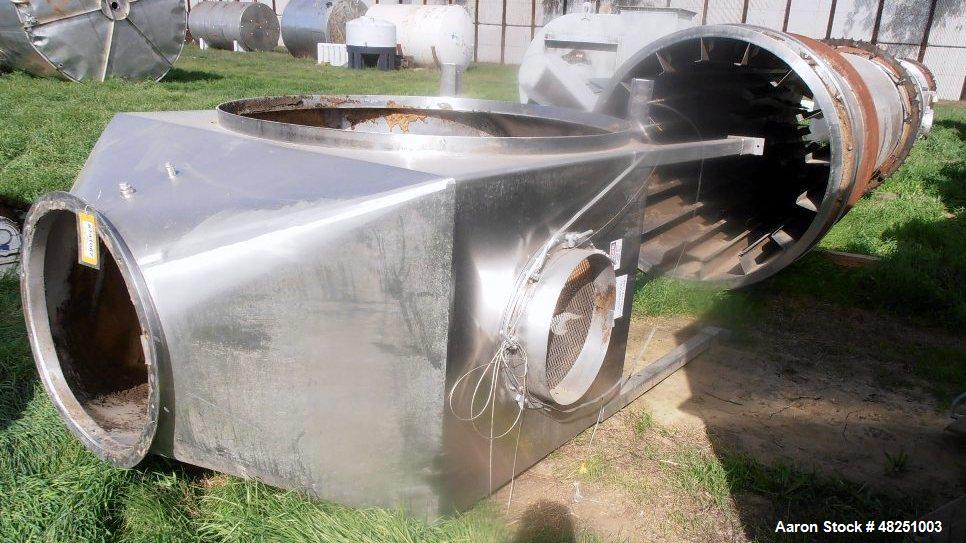

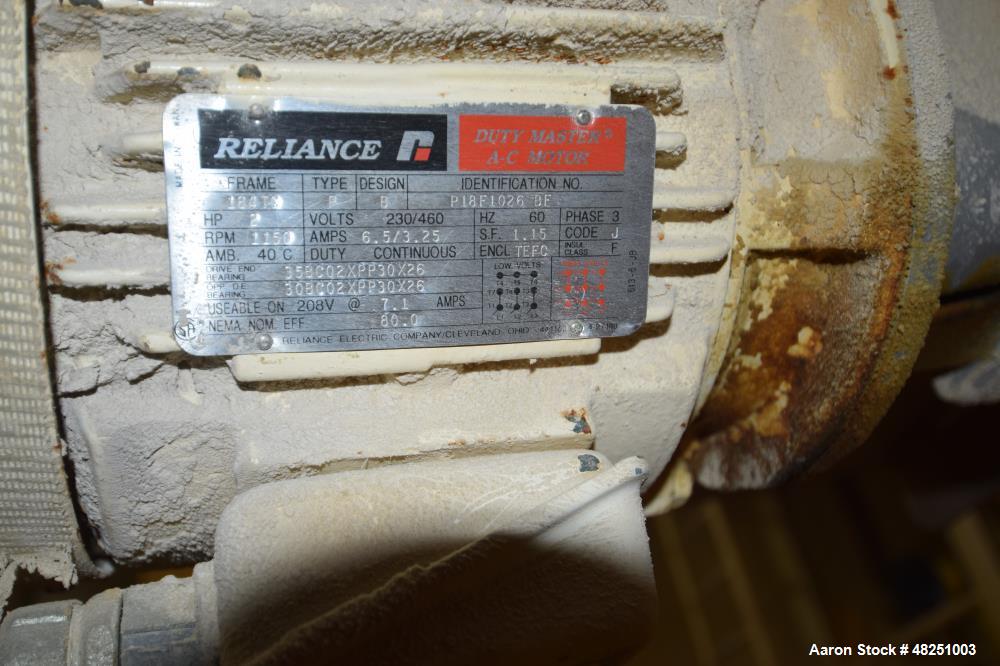

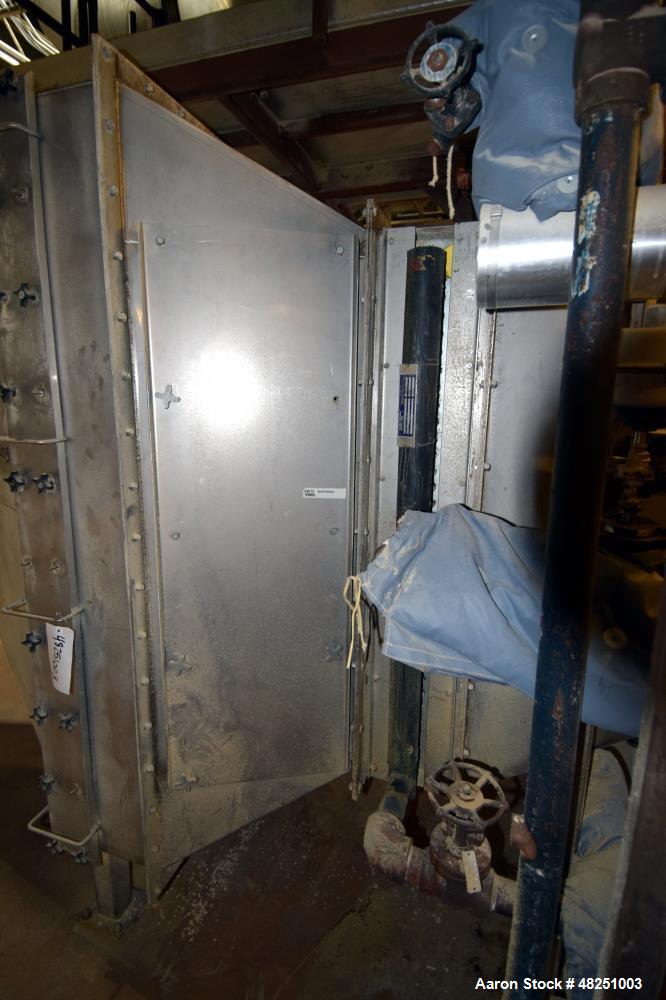

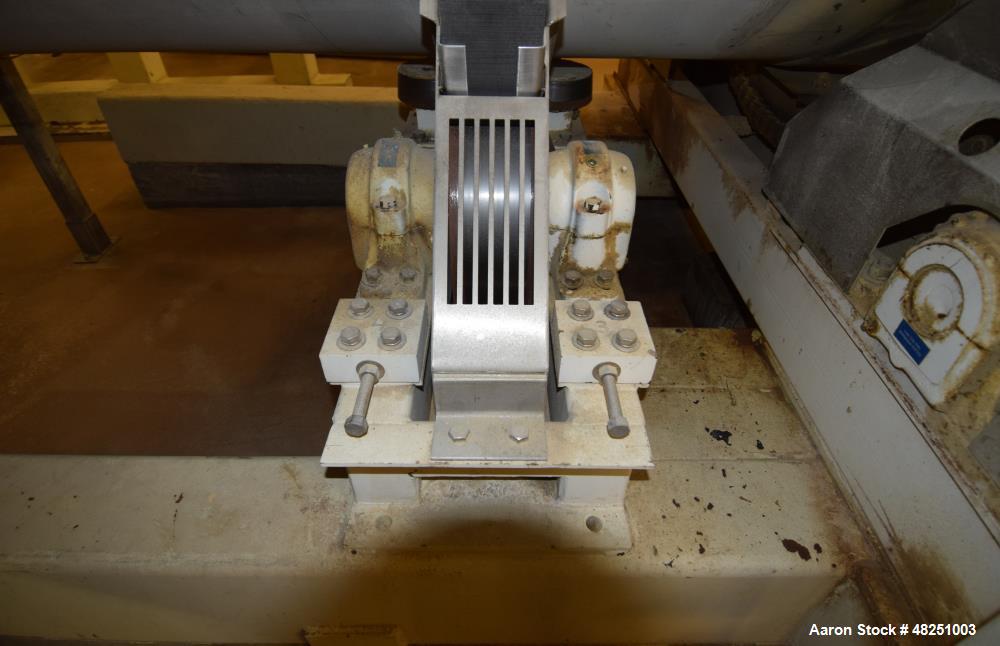

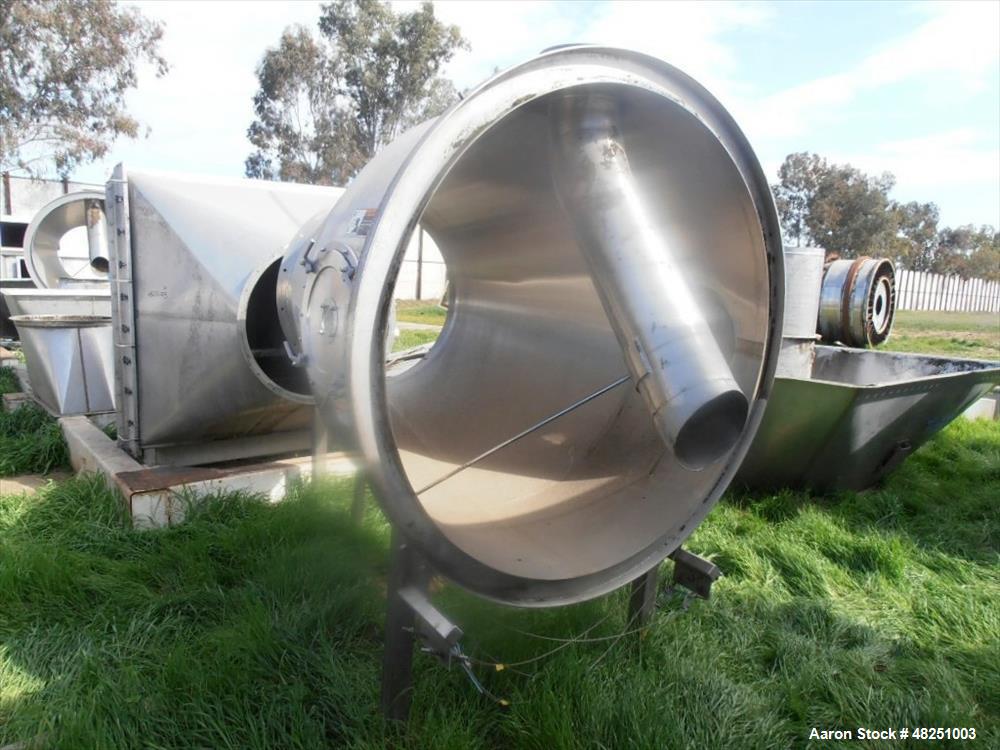

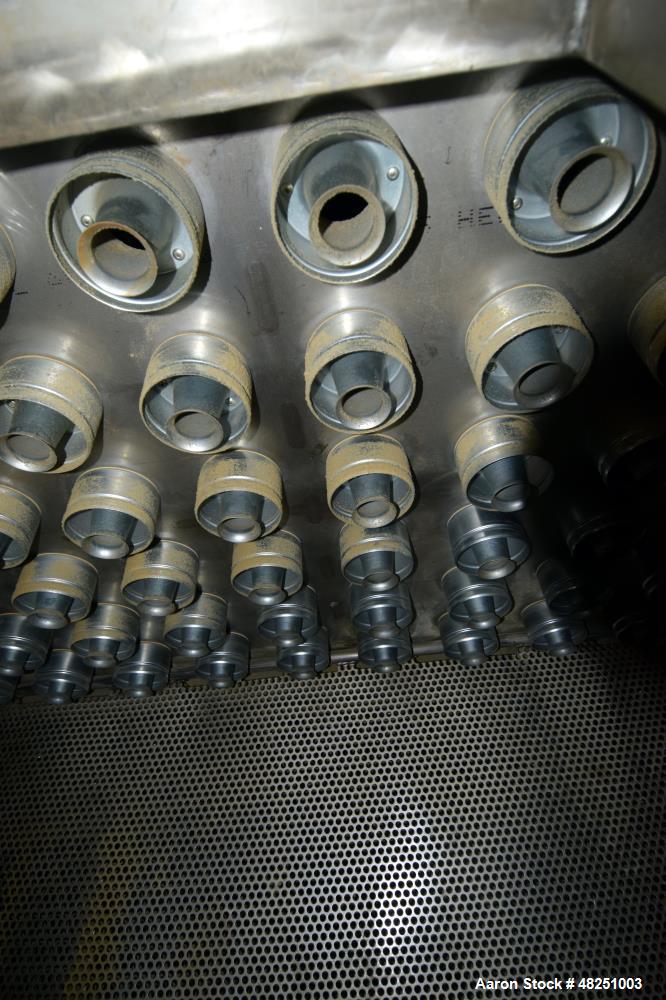

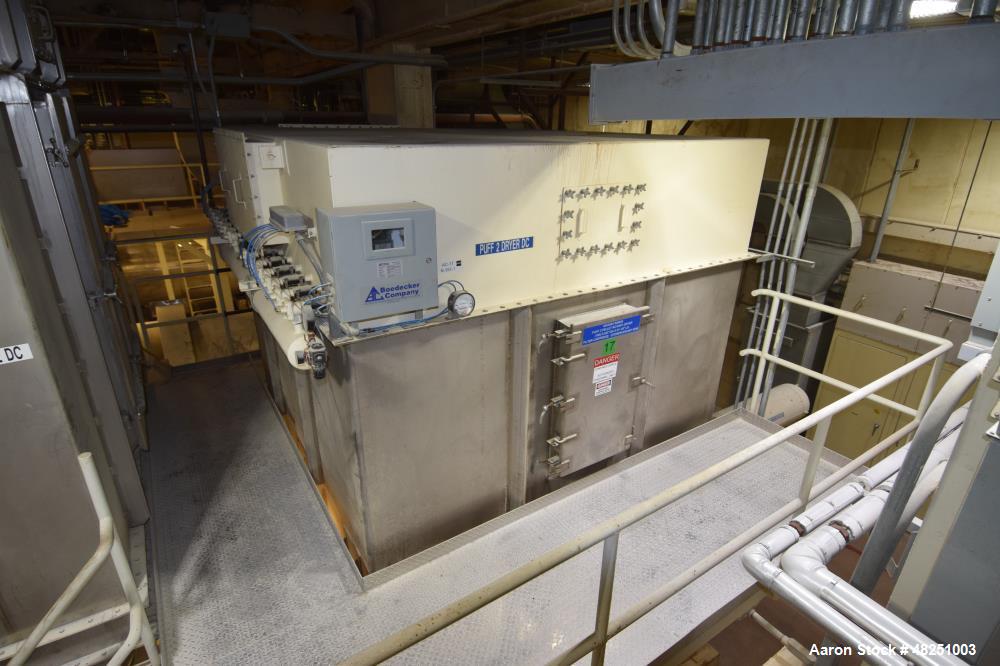

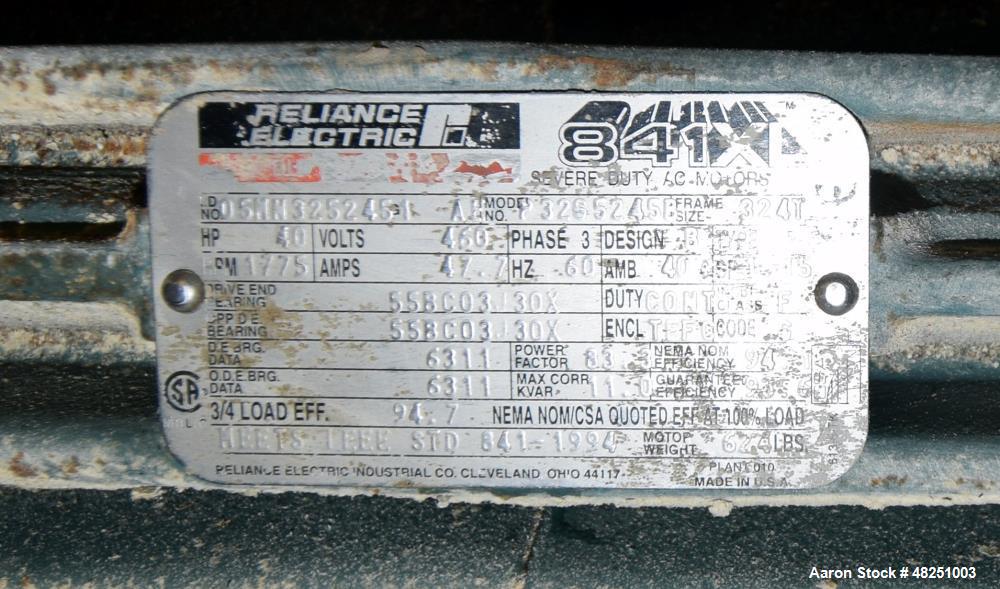

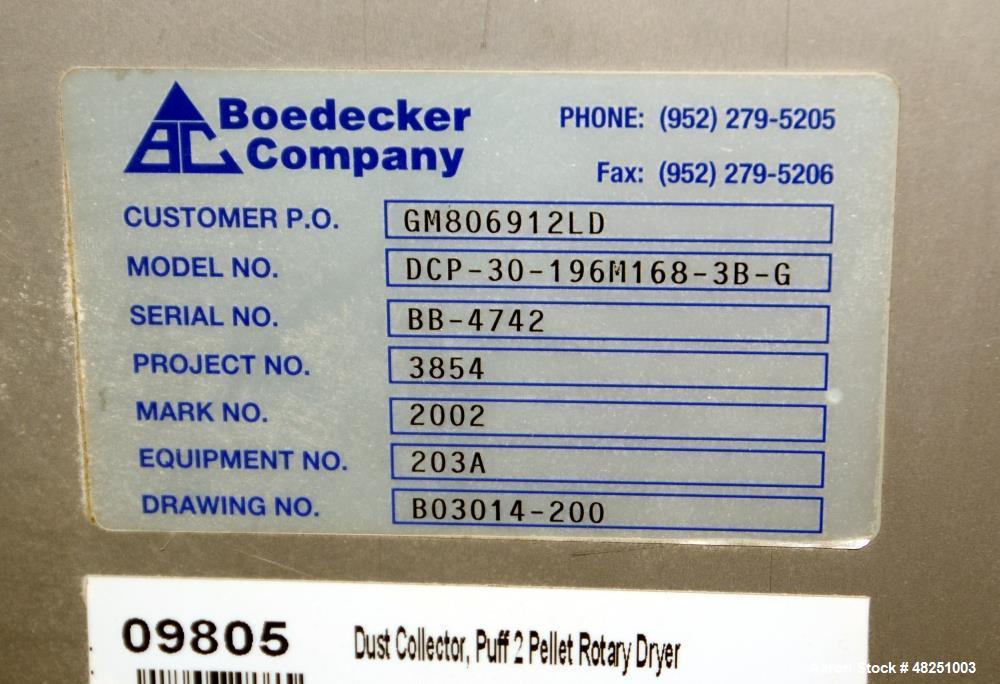

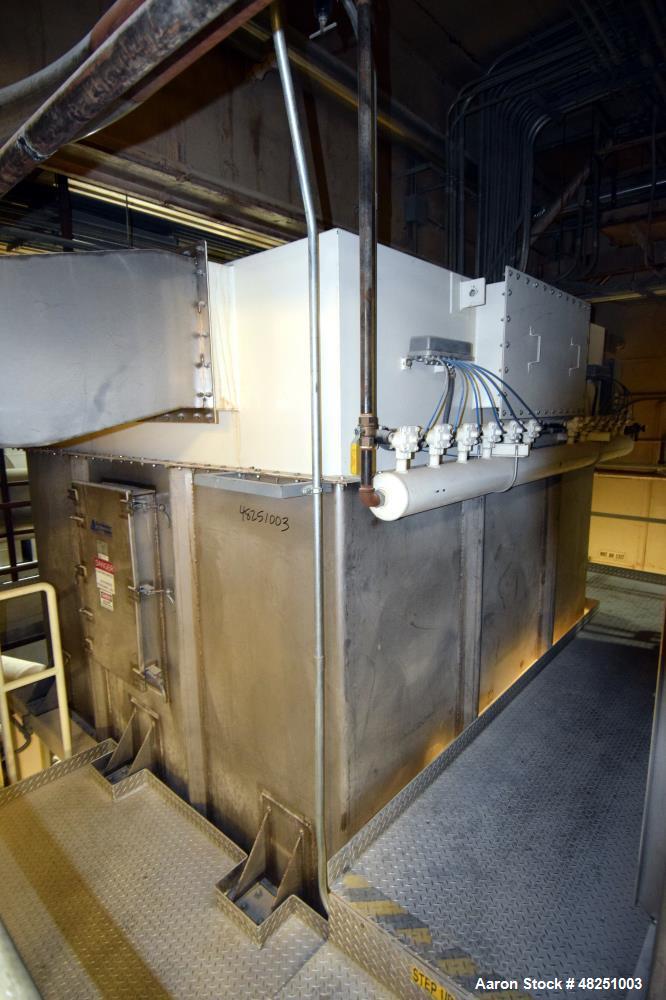

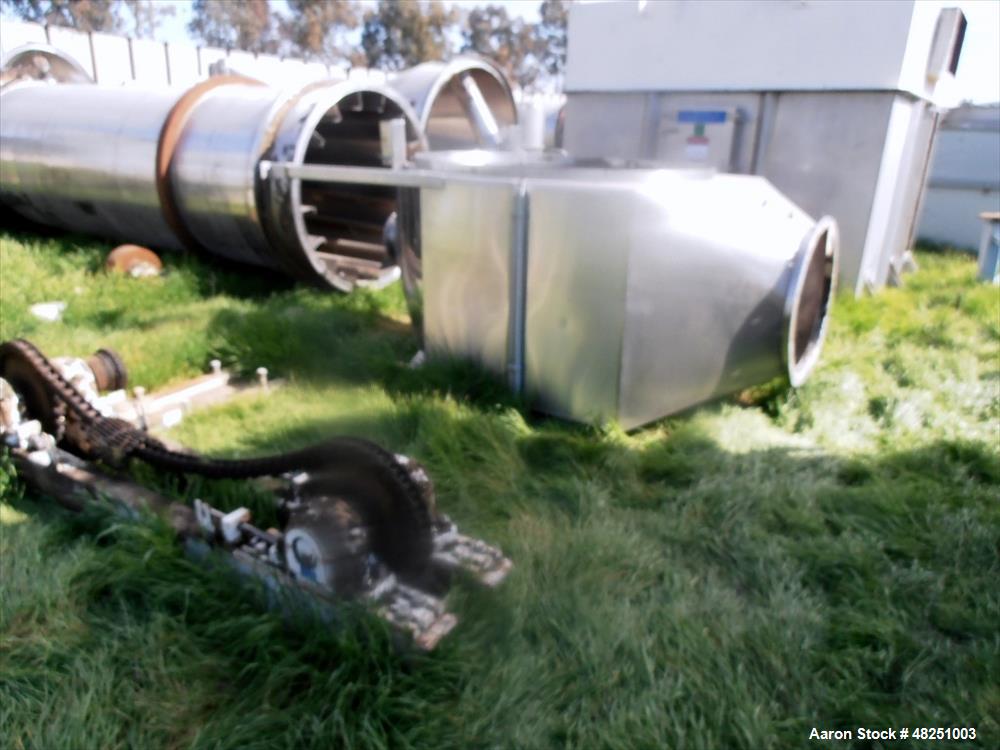

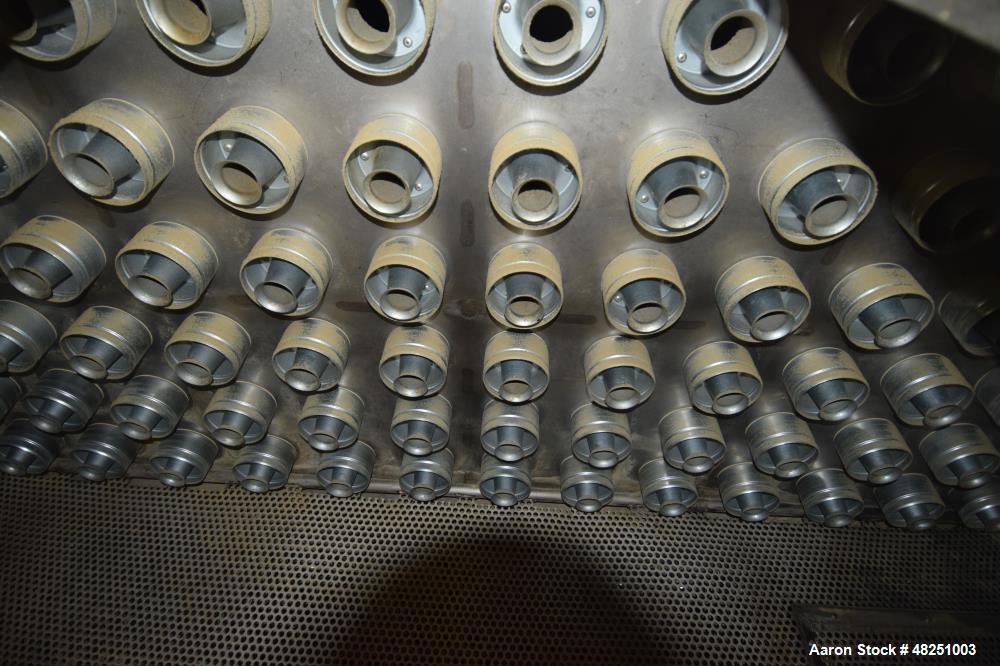

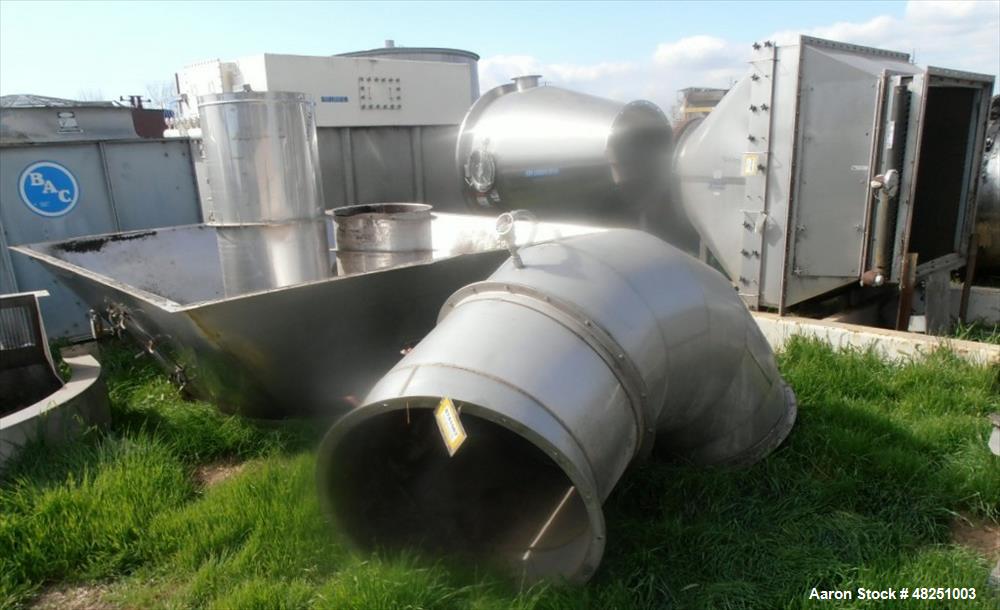

Used FMC Link-Belt Roto-Shell Dryer,316 Stainless Steel. Tube approximate 62" diameter x 288" long with spiral flights. Top end inlet feed, end discharge hood. Dryer sits on 5" wide x 16" diameter trunnions. Chain driven by a 10 hp, 3/60/460 volt, 1755 rpm motor thru a reducer, ratio 38.4 to 1. Order# 52JK7006/502-24. Mounted on a carbon steel frame. Includes (1) Colmac Coil steam coil chest, Model FSL-48X48-2R-5F-FF, Serial# 0509-56176, (1) Boedecker intake filter, Serial# B03014-540, (1) New York Blower Series 20 GI Fan, size 454, shop# W09414-105, built 2002, driven by a 40 hp, 3/60/460 volt, 1775 rpm motor, (1) Boedecker stainless steel pulse jet dust collector, Model DCP-30-196M168-3B-G, Serial# BB-4742. Housing approximate 112" long x 112" wide x 70" straight side x 30" top carbon steel plenum x 44" coned bottom. (2) Side access doors. Flat bottom with a Boedecker sweep discharge, Model HUV-72, Serial# B03014-500, driven by a 2 hp, 3/60/230/460 volt, 1150 rpm gear motor, ratio 60 to 1, (1) Boedecker rotary valve, Model RV-04, Serial# 42774-001-2, driven by a 3/4 hp, 3/60/208-230/460 volt, 1750 rpm gear motor, ratio 128.77 to 1.
