Used Denver Holo-Flite Processor Dryer, Model Q2424-6-DED. 316L stainless steel material contact parts. 1227 square feet of heat transfer area. Screws: four screws each 24 inch diameter x 24 feet lon...

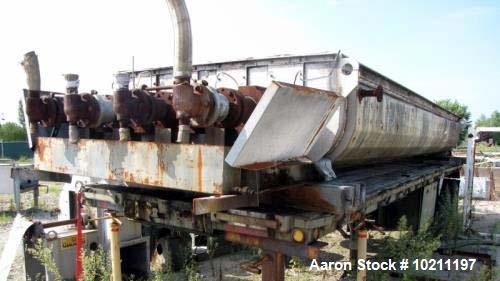

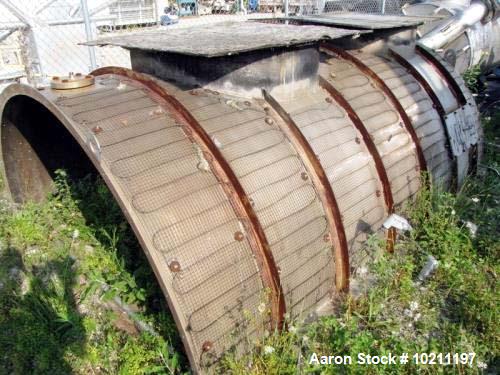

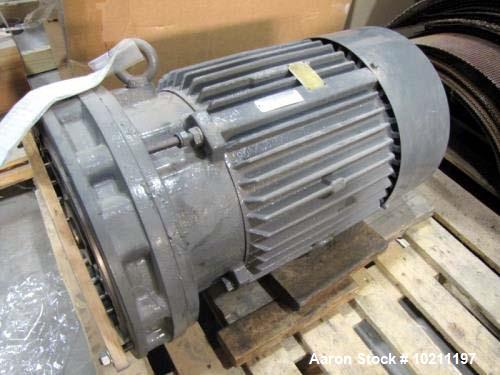

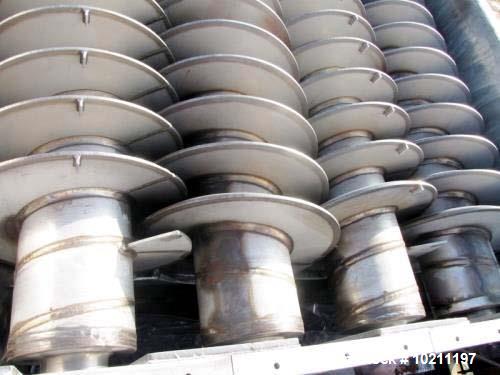

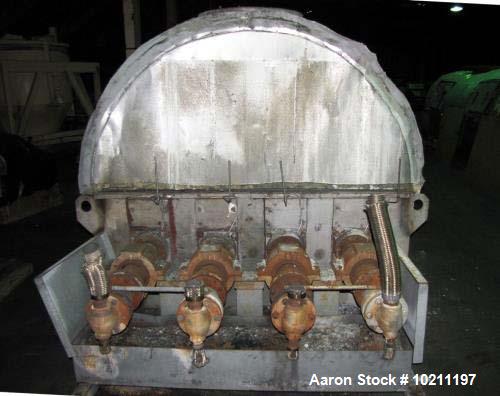

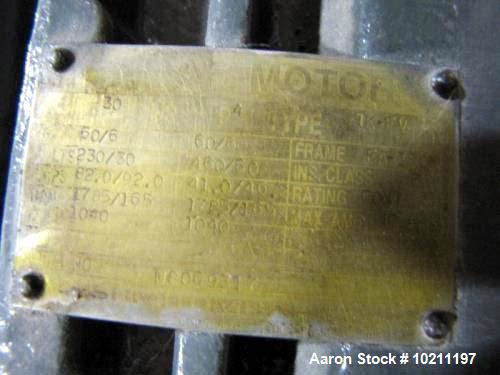

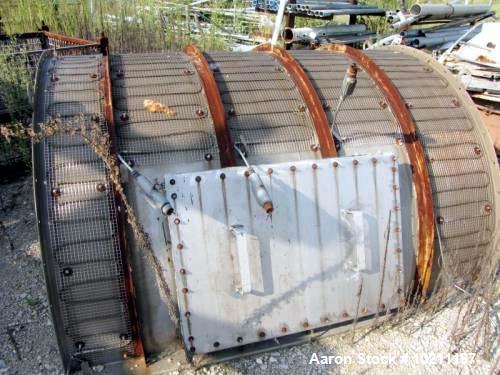

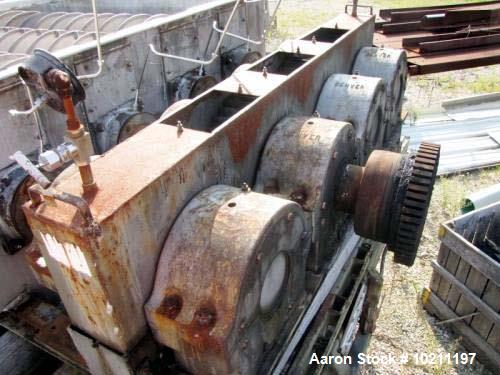

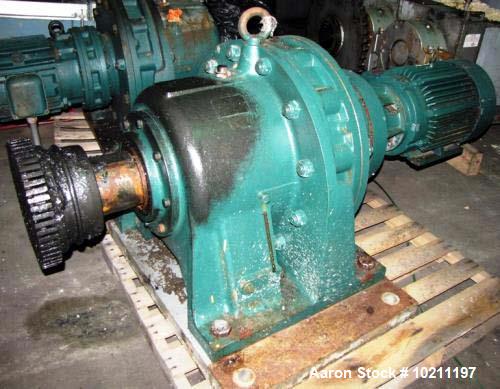

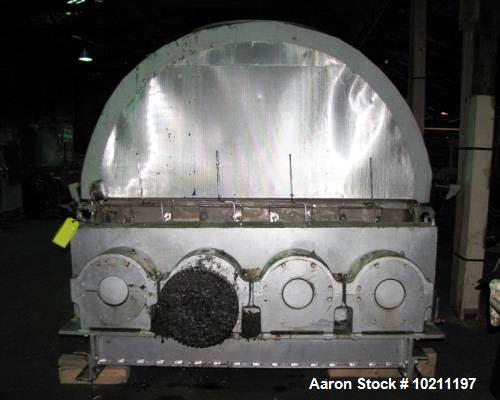

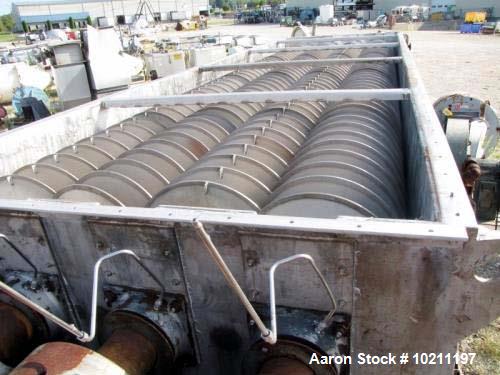

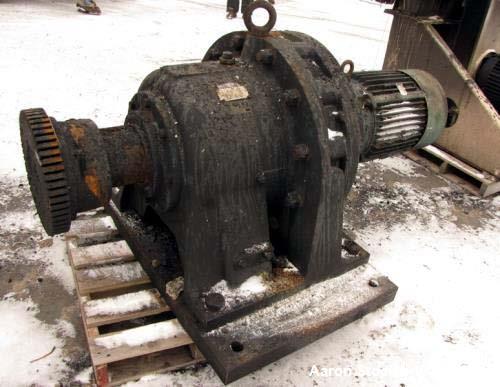

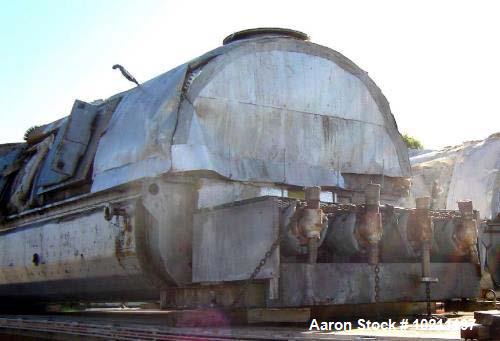

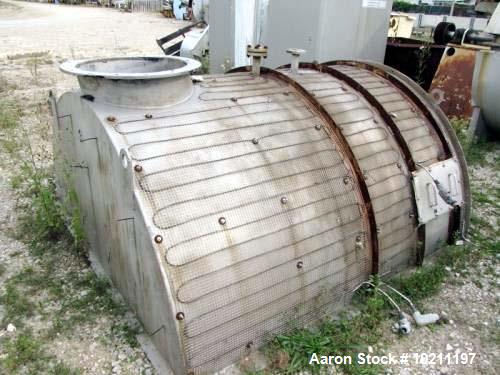

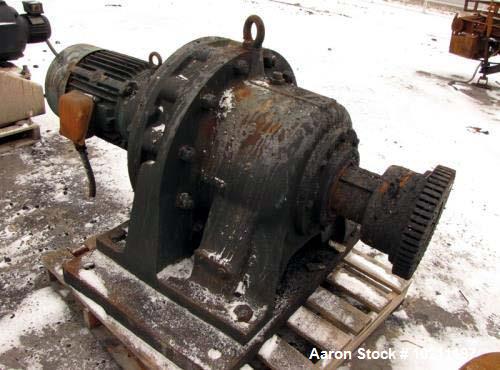

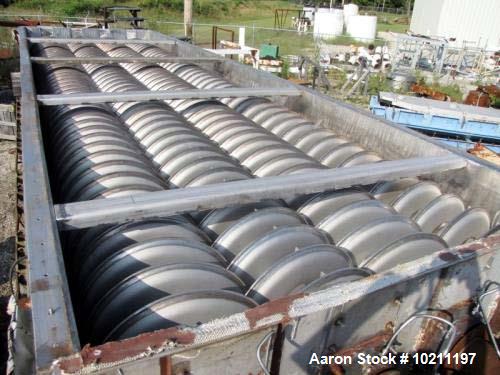

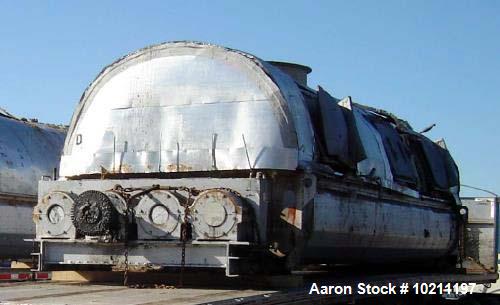

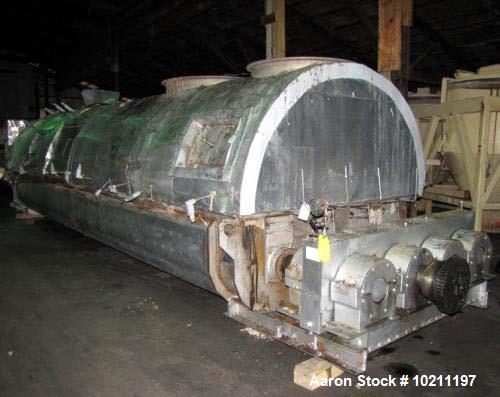

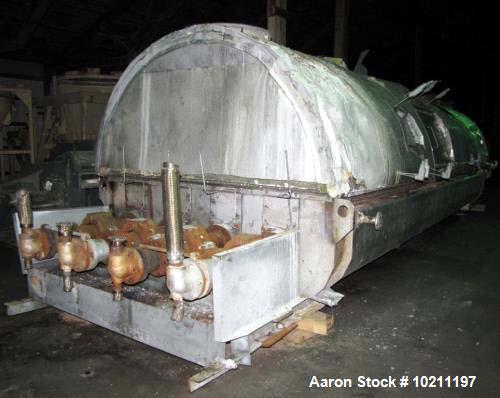

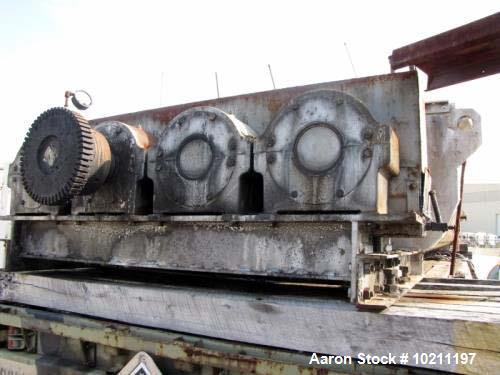

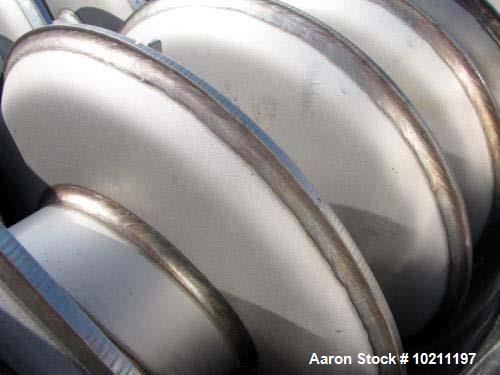

Used- Denver Holo-Flite Processor Dryer, Model Q2424-6-DED. 316L stainless steel material contact parts. 1227 square feet of heat transfer area. Screws: four screws each 24 inch diameter x 24 feet long , 6 inch pitch. Asme design and code stamped for 175 psig at 650 degrees F. Trough: the drive end discharge is 12" long x 65" wide. Trough is jacketed and code stamped for 175 psig at 650 degrees F. Interior welds ground smooth. Insulation spikes for 3" insulation on trough. Internals of trough and vapor dome designed for 3 psig and 30" w.c. vacuum. Vapor dome: with vapor outlet of 42" inside diameter x 46" outside diameter x 1/2" thick. 48 holes 1/2" on collector designed to support 1500 lbs. and two inspection ports. Constructed of 316L stainless steel. Stiffening bars on outside of vapor dome. Several nozzles for temperature, steam snuffing, etc. Drive: Sumitomo gearmotor, M3265/19-B, 493:1 ratio, 228,000 in./lb. output rating. Motor is 30 hp, 1785 rpm, TEFC, 460 volt, 3 ph, 60 hz Nema design B with winding thermostat add for chemical duty. Coupling is 1150 T 10 falk steel flex. Speed indicator and soleplate for under gearmotor only. Mfg. 1994.
