Stainless Steel 24” U-Trough Screw Conveyor with Thermal Heating & Cooling

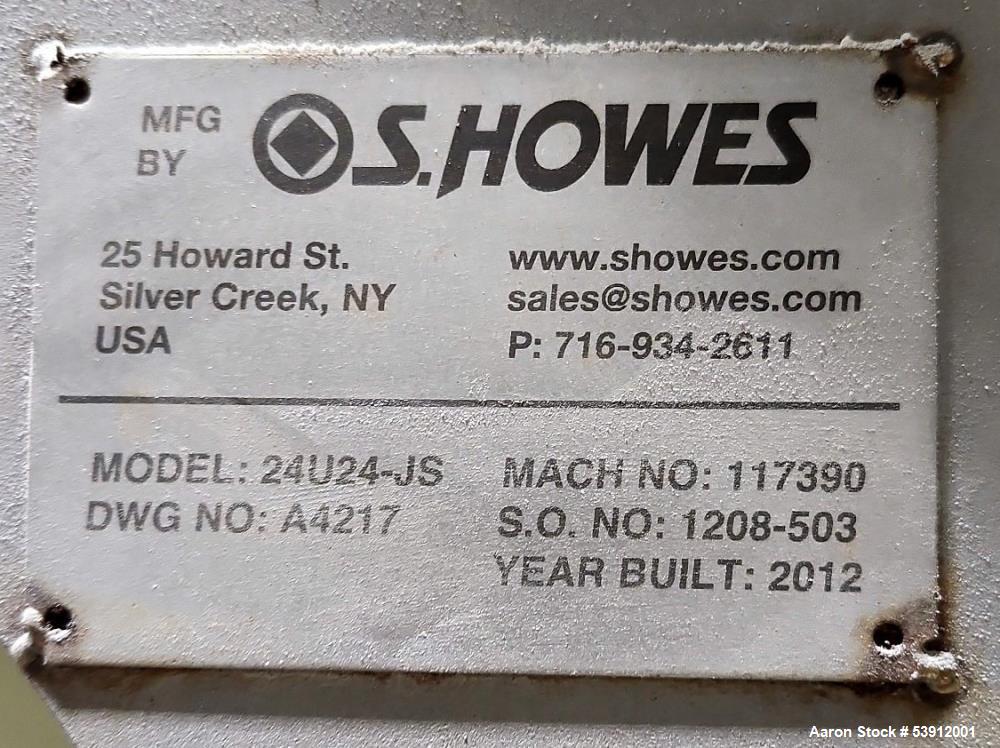

🏭 Manufacturer Info:

• Manufacturer: S. Howes Inc.

• Model: 24U24-JS

• Machine #: 117390

• Year Built: 2012

• Made in: USA

• Control Panel: Fulton 120VAC, 1-Phase, 60Hz with 6 PID controllers

🧾 Product Description:

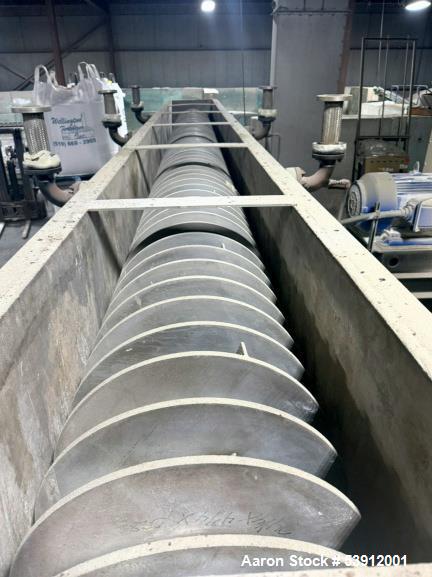

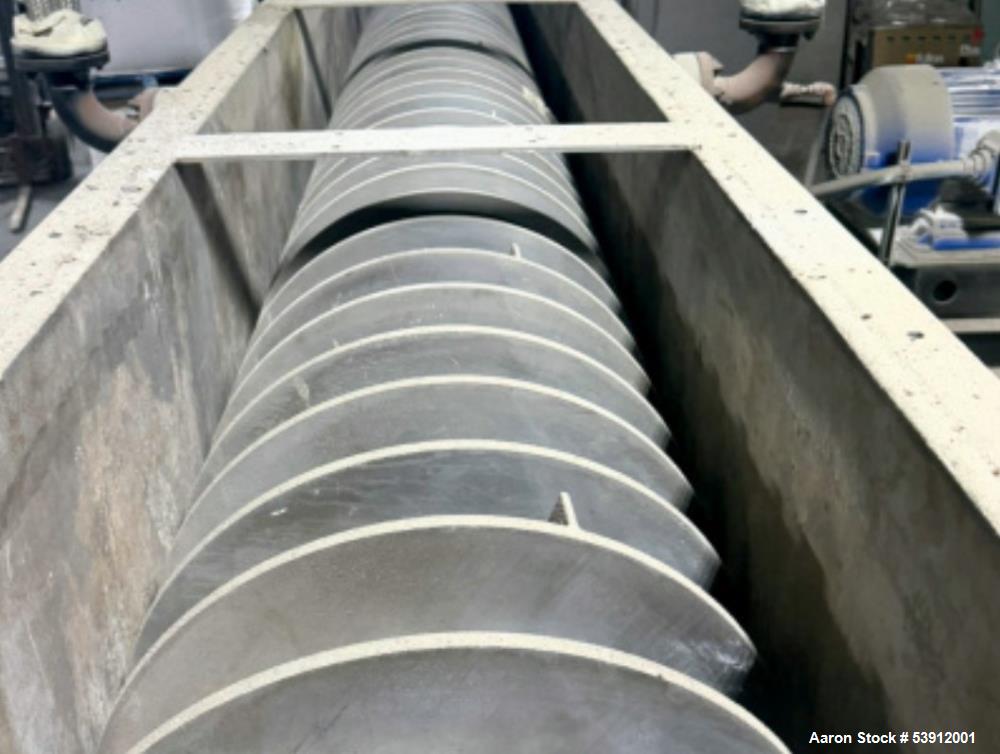

This Used S. Howes 24U24-JS Thermal Processing Screw Conveyor is a high-capacity, thermally-controlled conveying system constructed with 316 stainless steel in both product contact and jacket areas. It features a 24” diameter screw inside a 24-foot-long U-trough. The oversized 16” shaft pipe is thru-bored to allow heating or cooling fluid to circulate directly through the shaft, while the 22-foot-long jacket allows further thermal fluid or low-pressure steam regulation.

Integrated with a Fulton control panel, the unit uses 6 digital PID temperature controllers to manage temperature zones precisely. Designed for thermal fluid or low-pressure steam, it includes 3” and 1” inlet/outlet valves, manual and pneumatic valve systems, and is driven by a 15 HP motor, making it ideal for thermal batch or continuous process applications in food, chemical, and industrial sectors.

⚙️ Specifications:

• Model: 24U24-JS

• Screw Diameter: 24 inches

• Screw Length (Inside Dimension): 24 feet

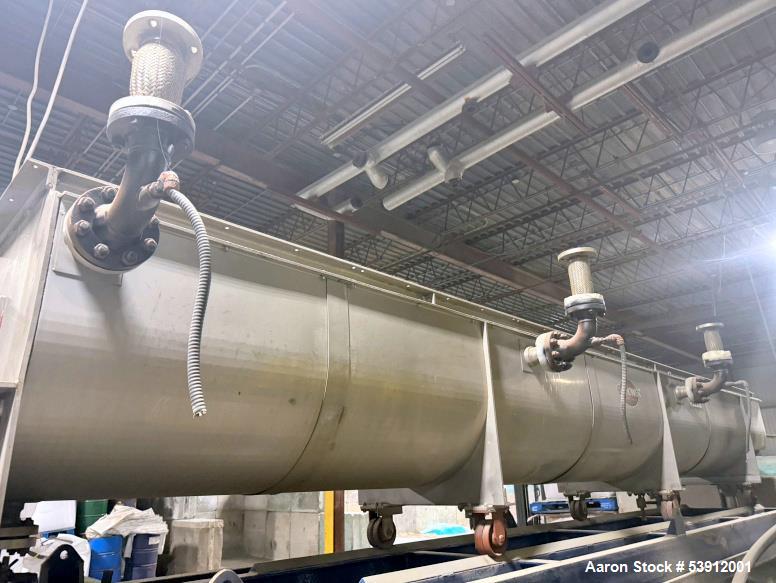

• Jacket Length: 22 feet

• Shaft Pipe: 16” diameter, thru-bored

• Construction: 316 Stainless Steel (product contact and jacket)

• Inlets/Outlets:

  • 3” on main body (x3 pneumatic valves)

  • 1” on screw (x1 pneumatic valve)

  • 10 x 3” manual gate valves

• Pressure Rating: 14.9 psig design pressure

• Thermal Media: Thermal oil, glycol, or low-pressure steam

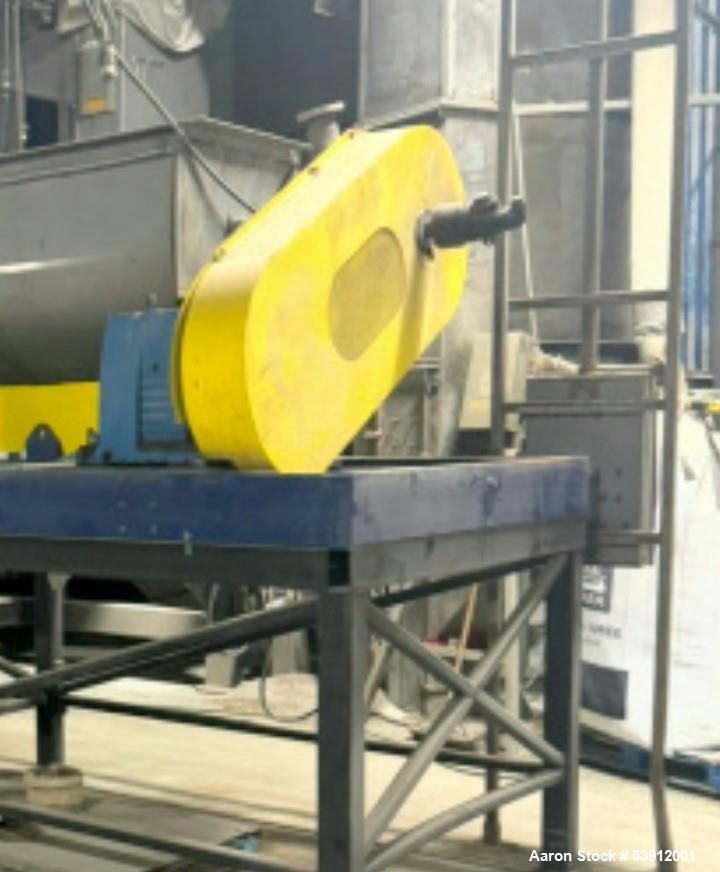

• Motor: 15 HP, 3/60/460V

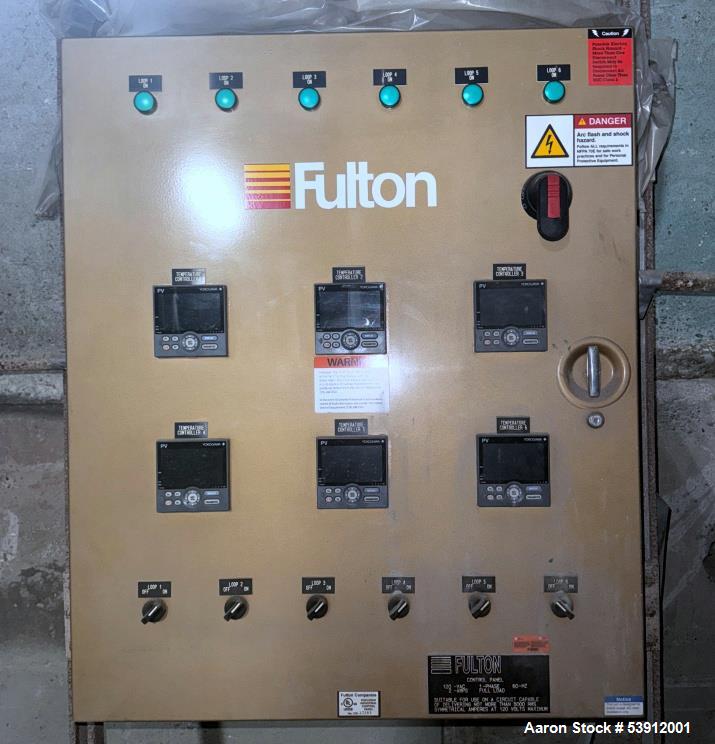

• Control Panel: Fulton, 120VAC, 1-Phase, 60Hz, 6 digital PID controllers

🧪 Applications:

• Thermal processing of powders and granules

• Drying or cooling operations

• Food-grade heating or cooling

• Chemical process manufacturing

• Plastics and resins temperature control

• Pharmaceutical batch processing

• Temperature-sensitive materials transfer

• Pilot and scale-up thermal applications

• Steam-based material agitation

• Thermal fluid jacketed mixing systems

📦 What Products Would This Be Used For:

• Granular food ingredients (sugar, flour, starch)

• Pharmaceuticals in powder form

• Resin pellets or plastic granules

• Chemicals requiring thermal regulation

• Heat-sensitive industrial powders

• Agricultural feed or byproducts

• Nutraceuticals in bulk form

• Minerals and catalysts

• Hygienic process materials

• Thermal pre-treatment materials
