Used Anderson Dahlen Stainless Steel Dual Screw Holoflite Dryer – 24” x 20’ ASME Rated

Manufacturer Information:

• Brand: Anderson Dahlen
• Model: Dual Screw Holoflite Dryer
• Material: 316L Stainless Steel
• Certification: ASME Code Built

Description:

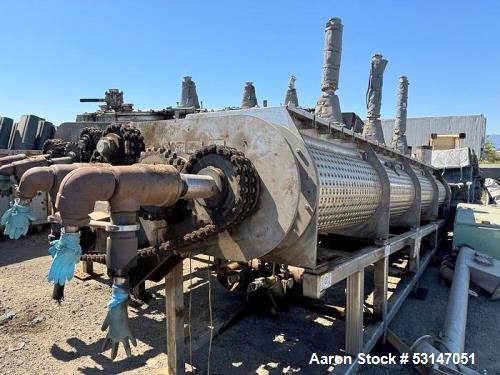

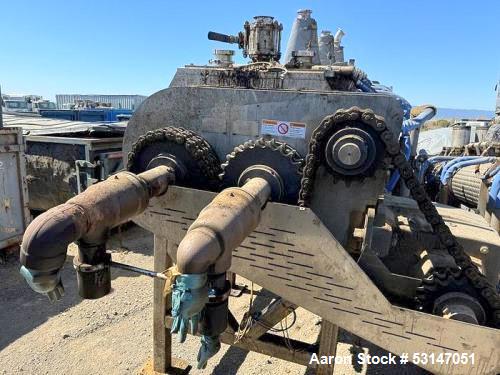

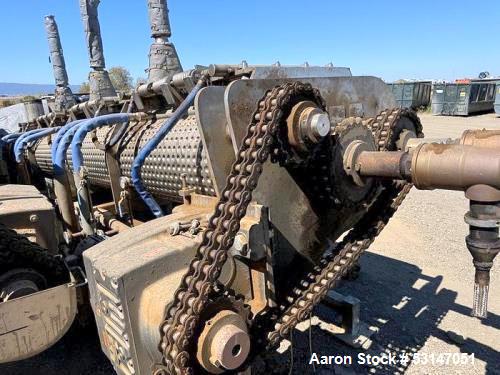

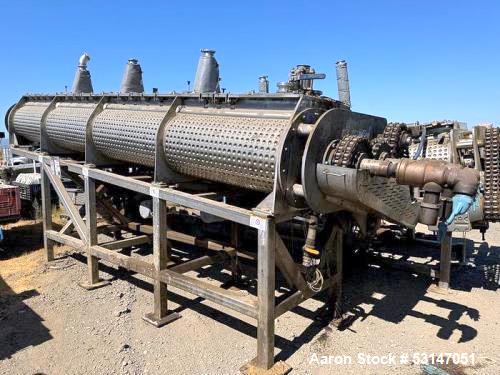

This used Anderson Dahlen dual screw Holoflite dryer is a high-efficiency thermal processing system, designed for continuous drying and heat transfer applications. Constructed from 316L stainless steel, it features a 24” diameter x 20’ long processing chamber, ensuring durability and corrosion resistance.

The screws and jacket are rated for 100 PSI/FV, capable of operating at temperatures up to 350°F and as low as -20°F. Previously used for food waste dehydration and heated by hot oil, this unit is ideal for industrial drying and thermal processing.

Specifications:

• Type: Dual Screw Holoflite Dryer
• Material: 316L Stainless Steel
• Chamber Size: 24” Diameter x 20’ Long
• Pressure Rating: 100 PSI/FV
• Temperature Range: -20°F to 350°F
• Heating Source: Previously heated by hot oil
• Application History: Food waste dehydration

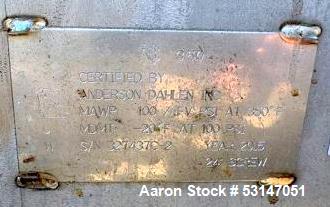

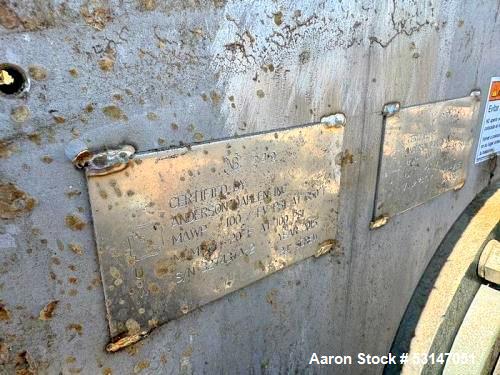

• Certification: ASME Code Built

Applications:

• Food Processing – Dehydration of food waste, grains, and powders
• Chemical Processing – Drying and heat treatment of industrial chemicals
• Pharmaceutical Manufacturing – Controlled thermal processing of pharmaceutical ingredients
• Biomass & Waste Recycling – Drying organic and industrial waste materials
• Pet Food & Animal Feed – Moisture removal in pet and livestock feed production
• Plastics & Polymers – Heat transfer for resin and polymer processing

Common Uses for This Dryer:

• Industrial food waste dehydration
• Chemical and pharmaceutical drying applications
• Biomass and waste recycling processes
• Heat treatment of powders and granules
• Pet food and feed moisture reduction
