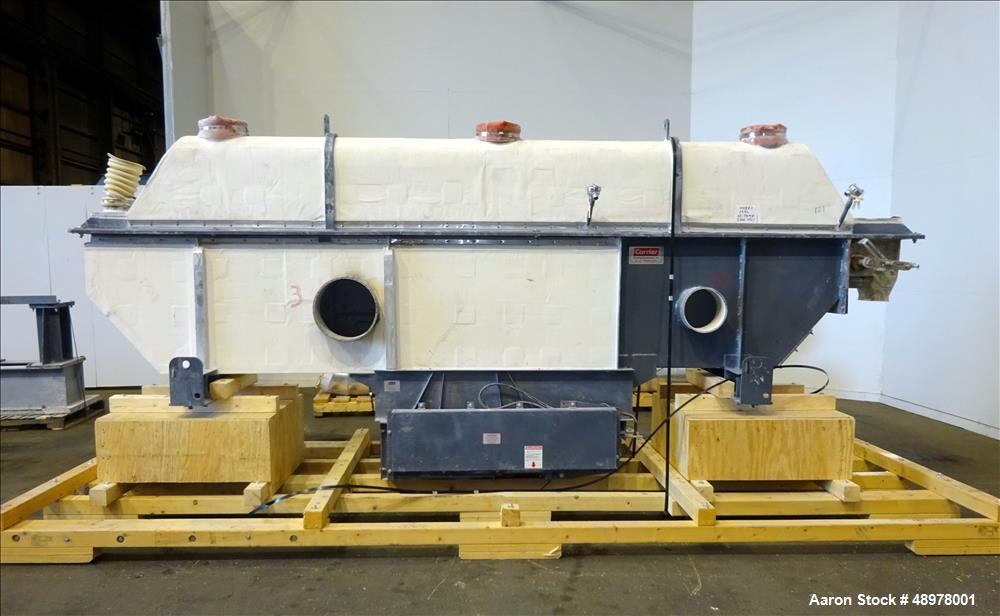

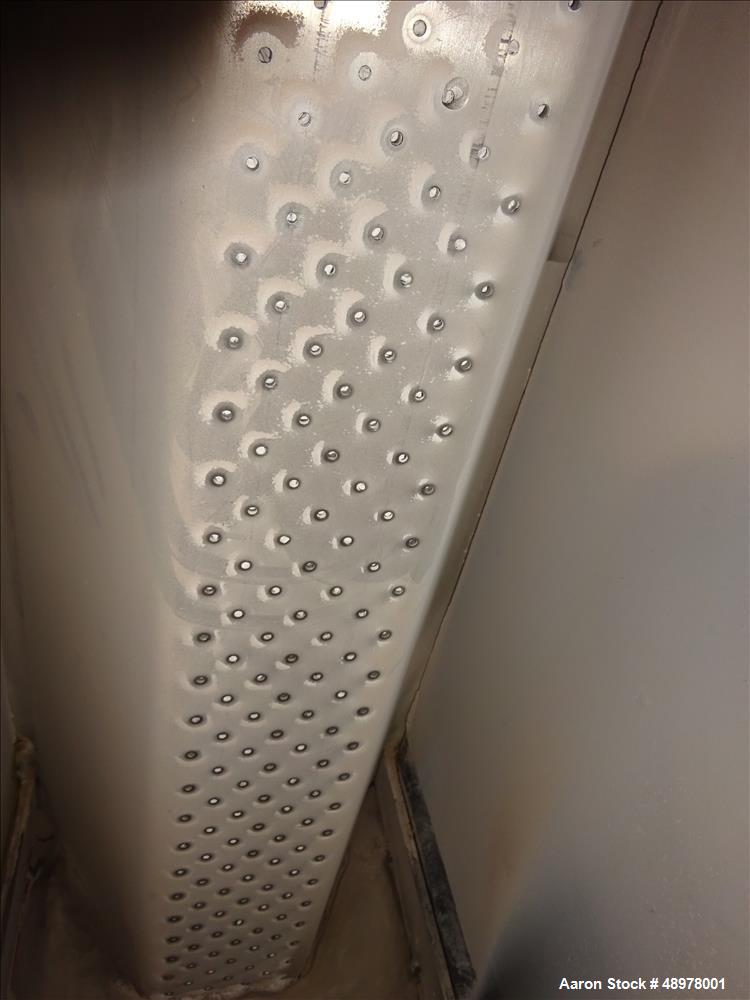

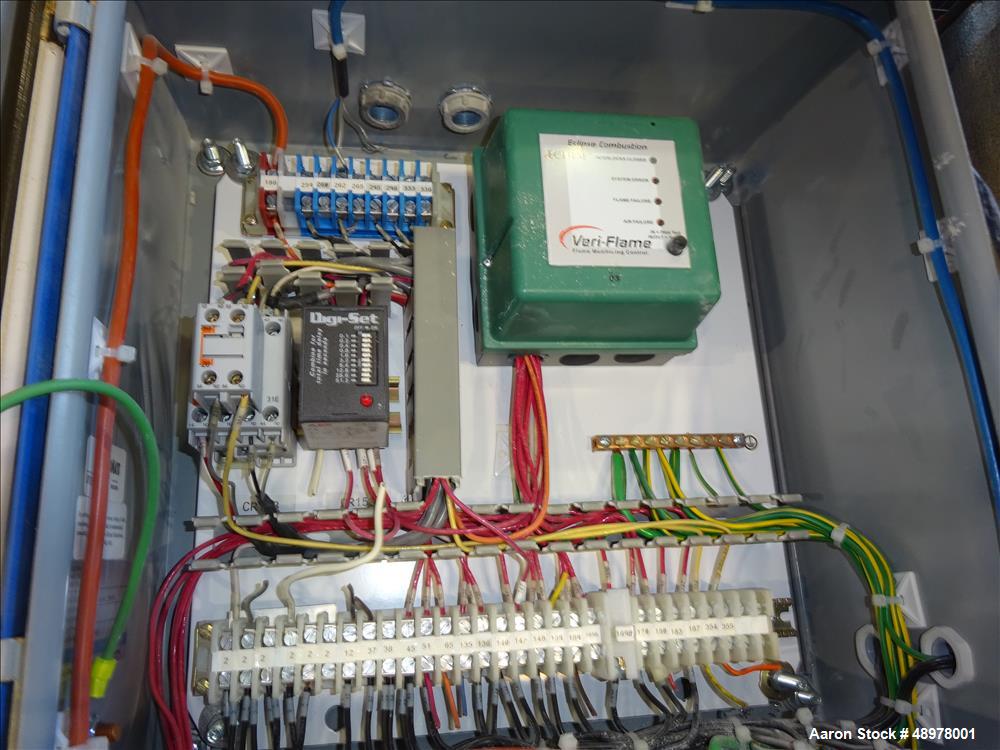

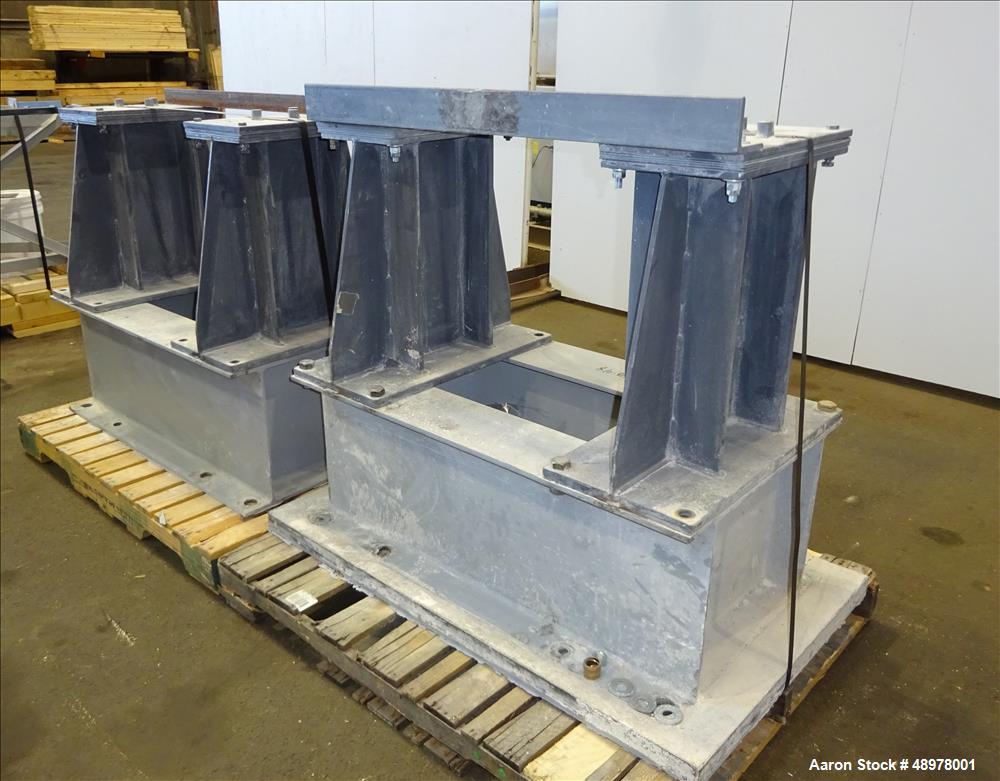

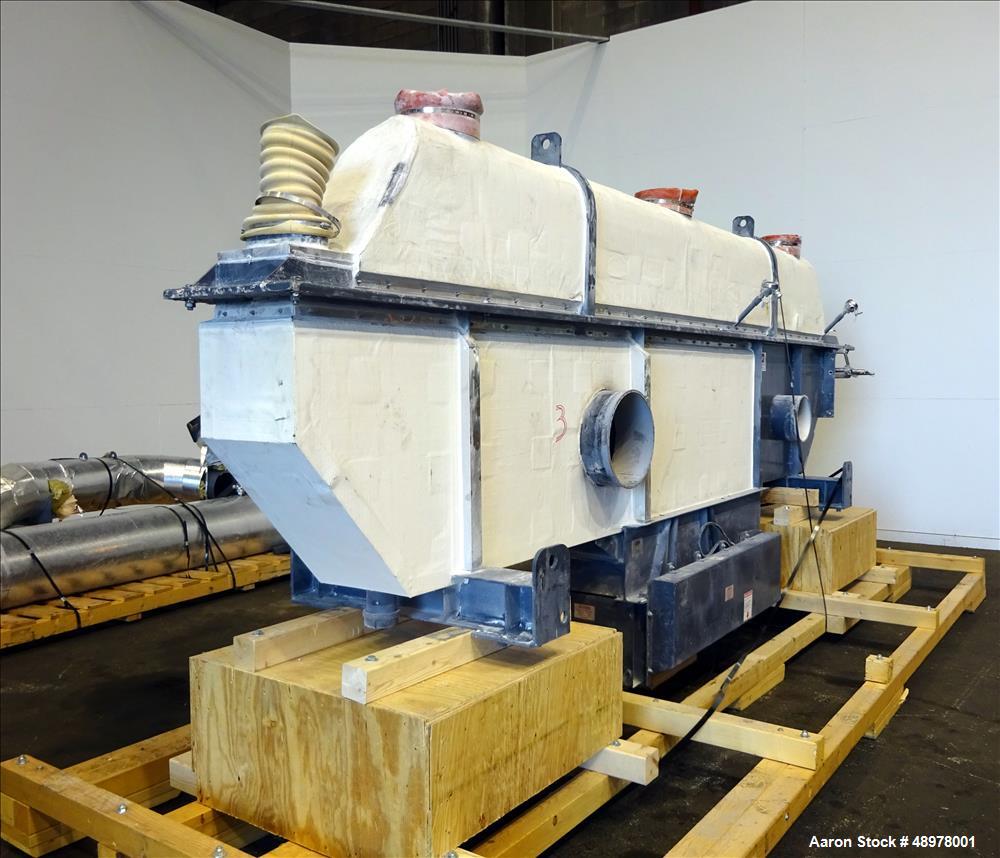

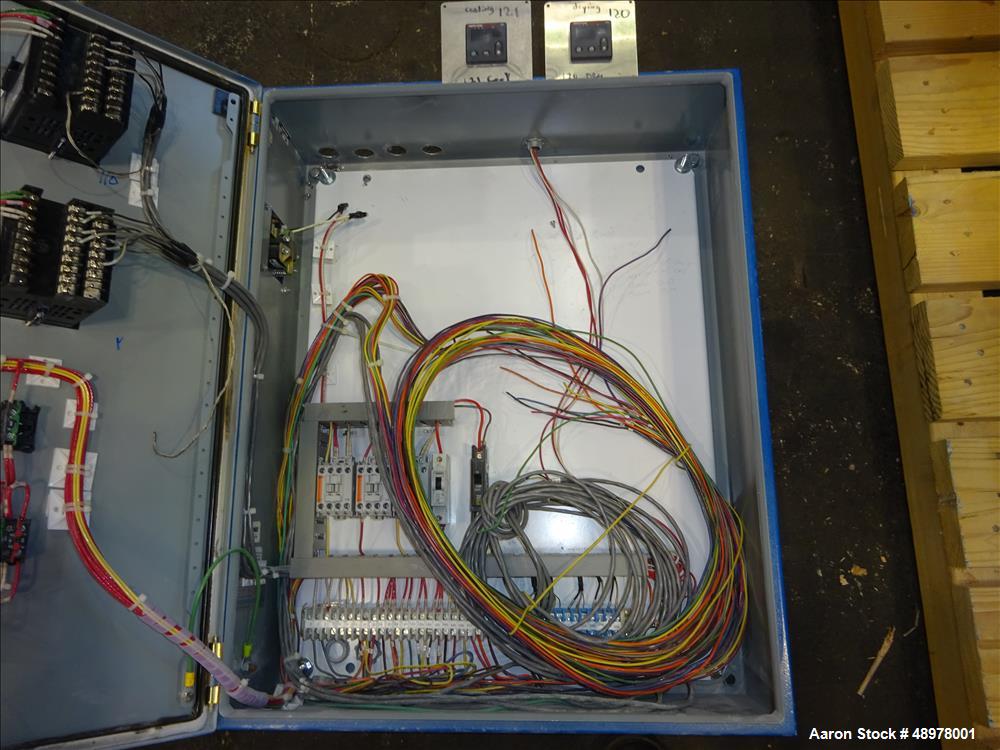

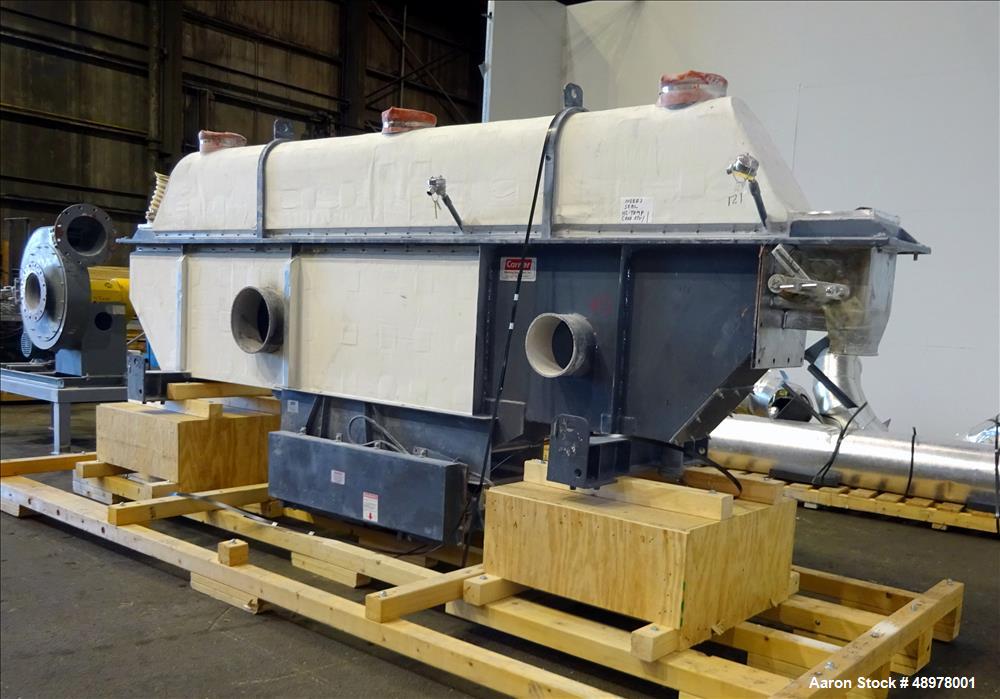

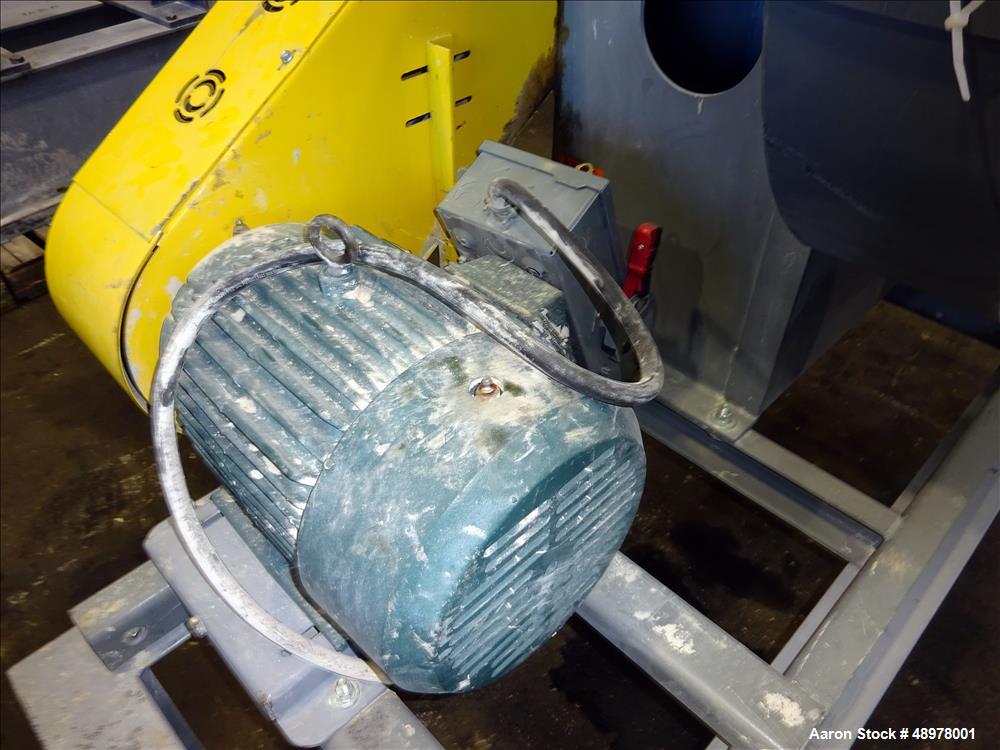

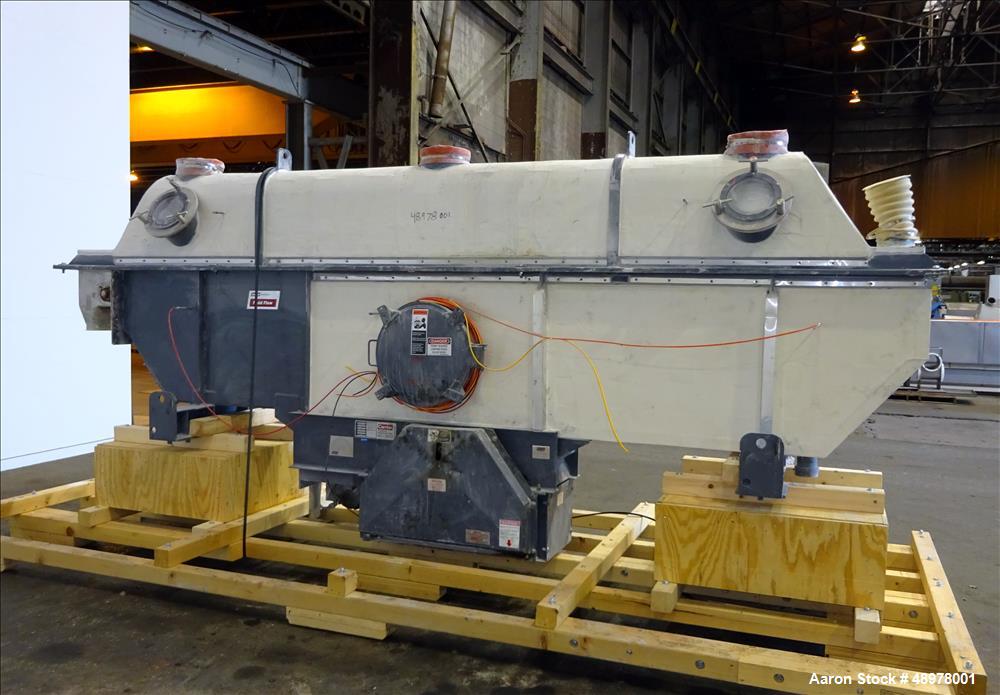

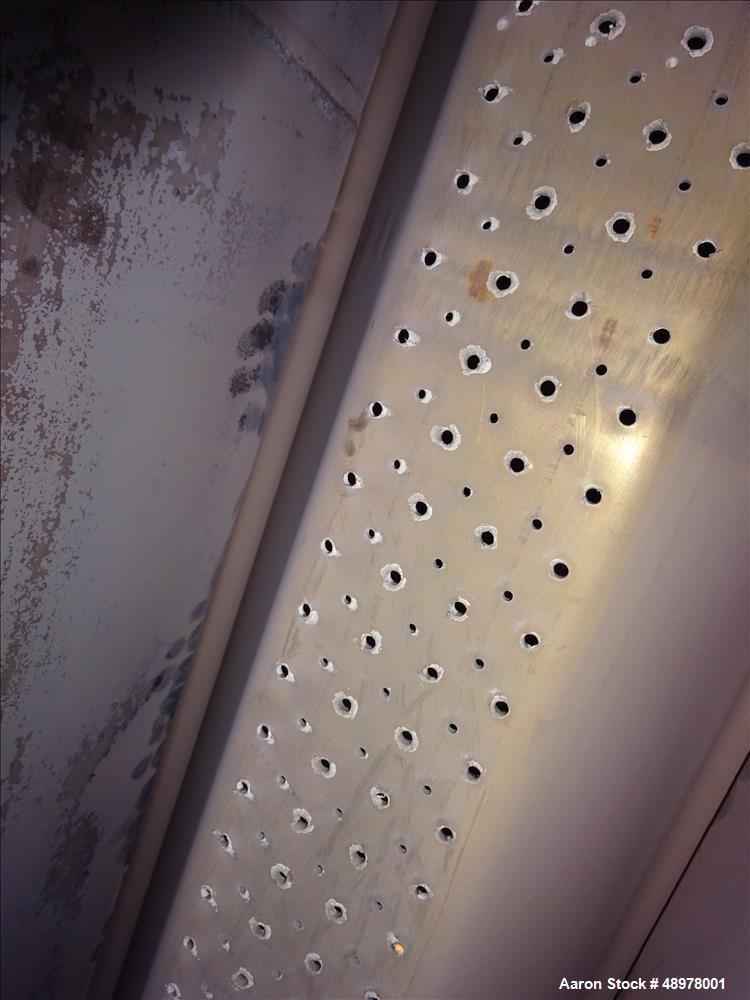

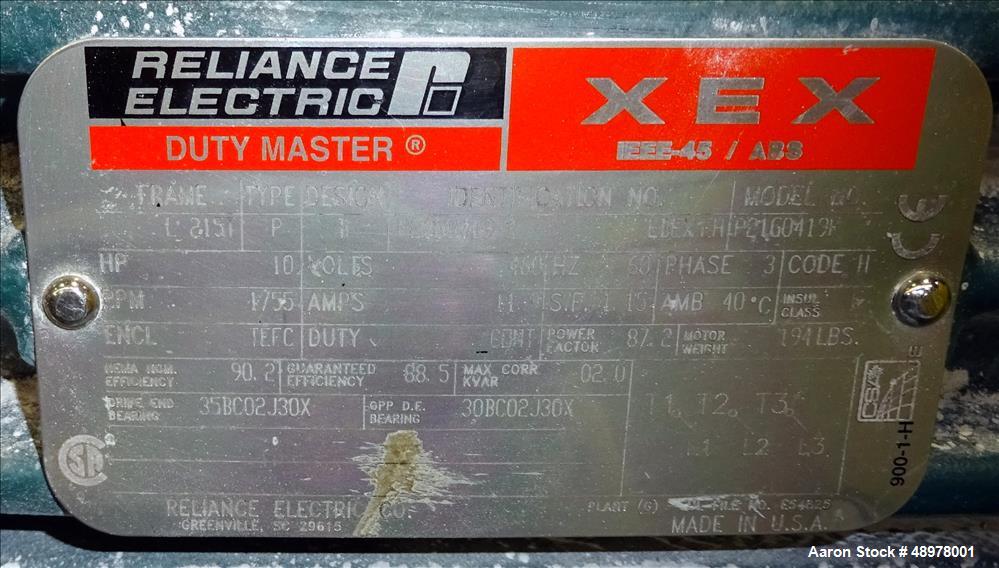

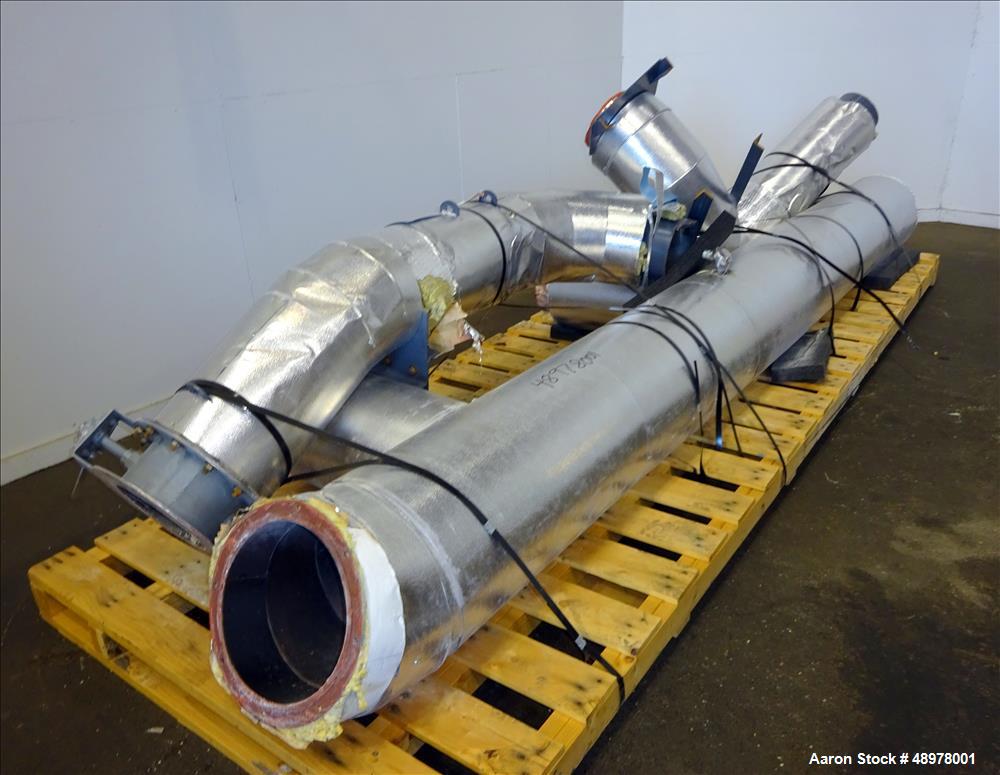

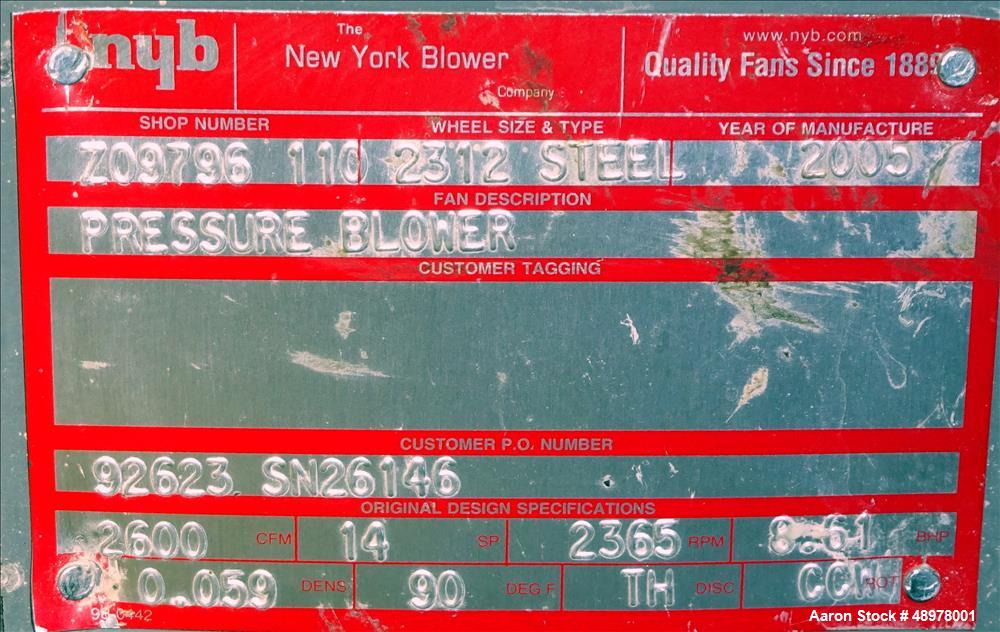

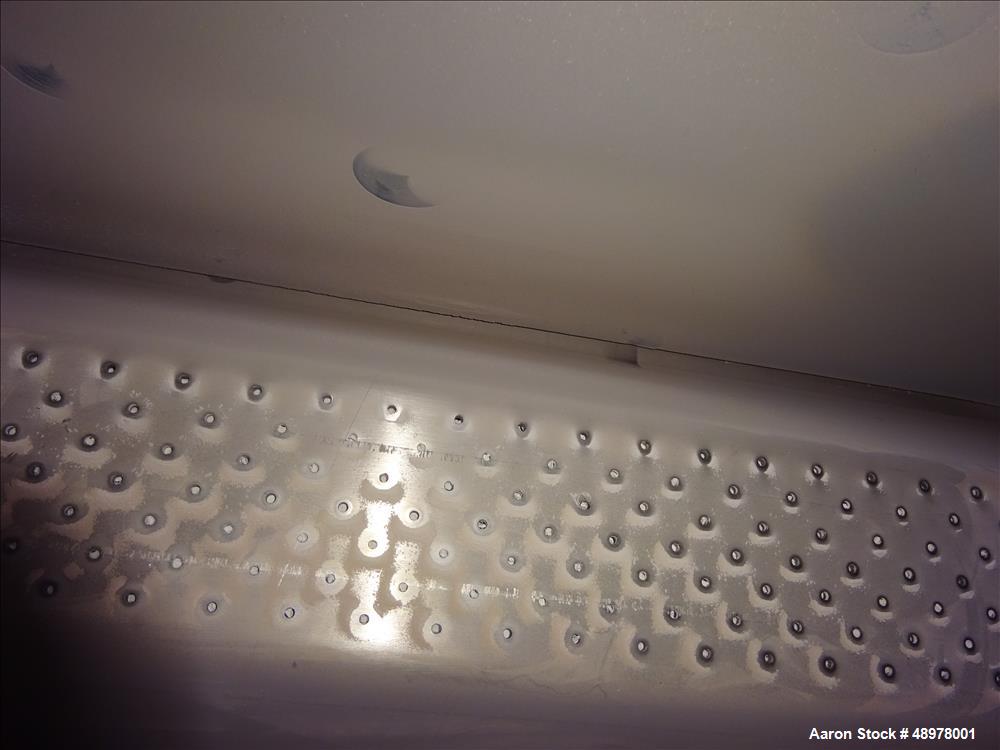

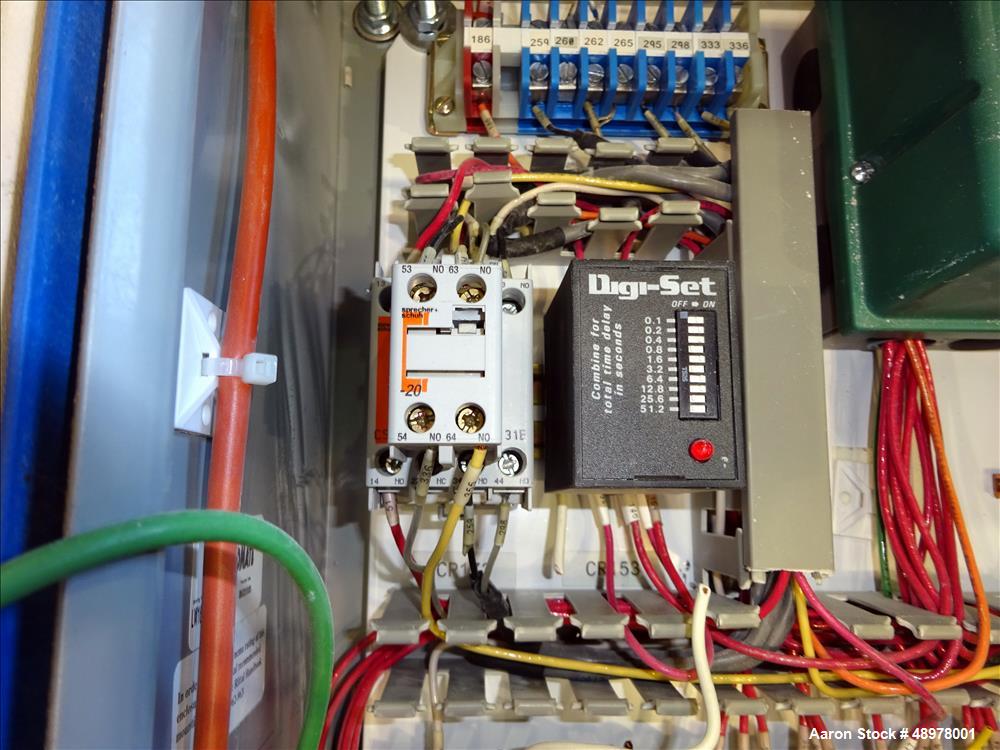

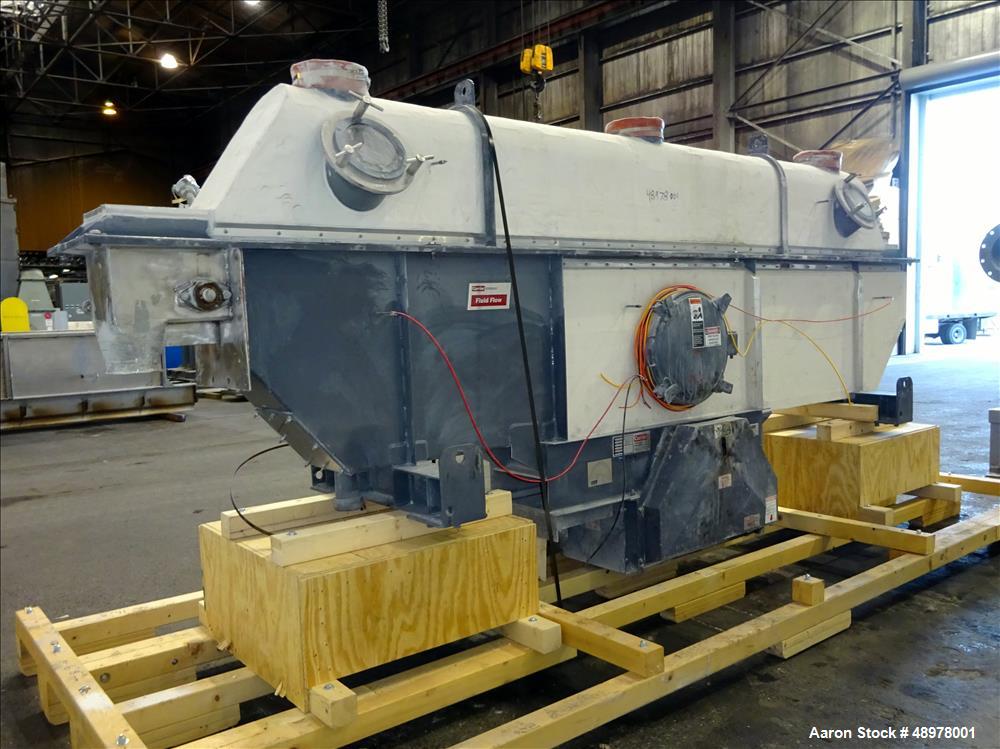

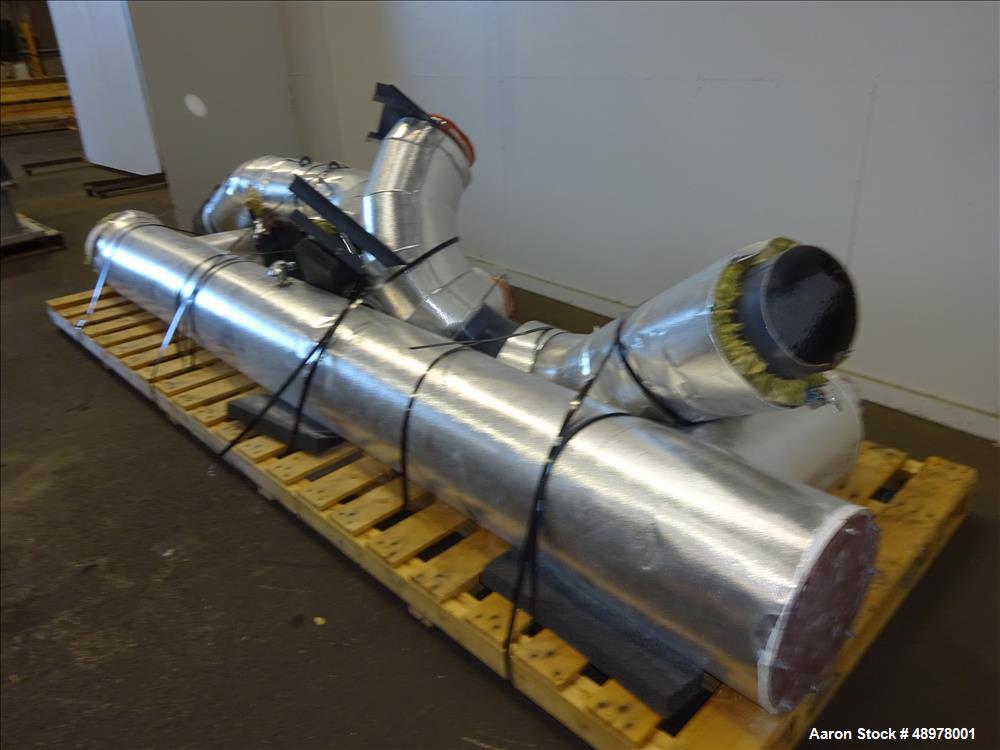

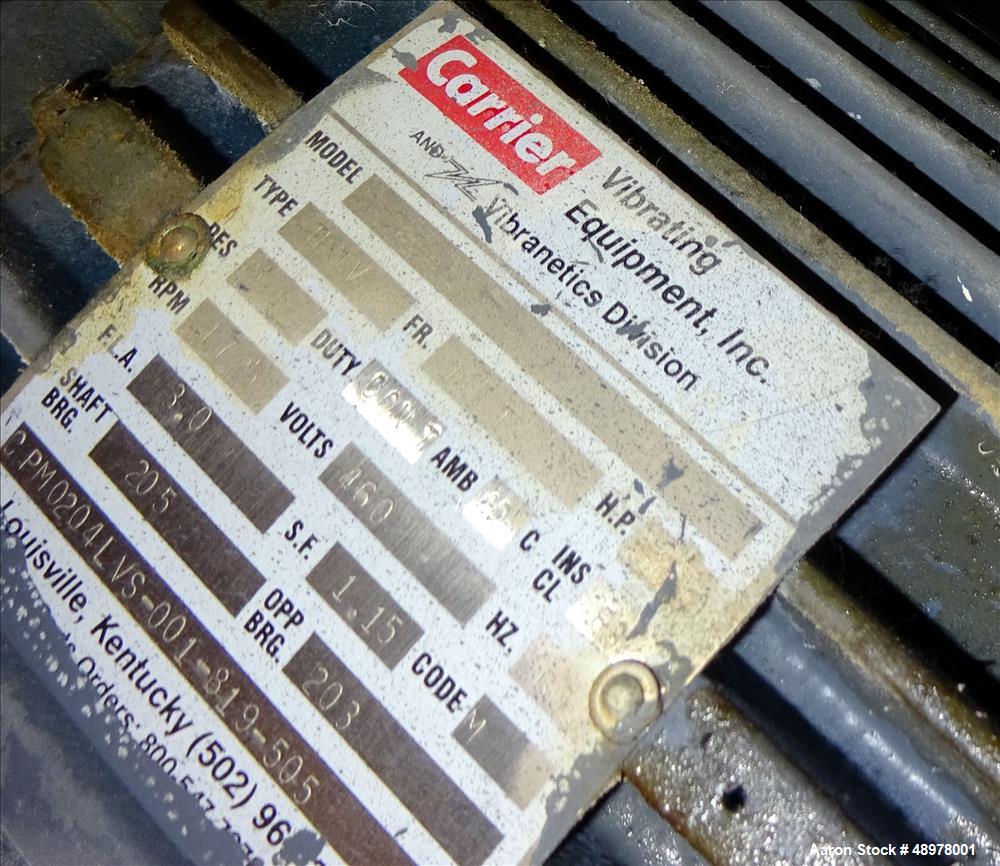

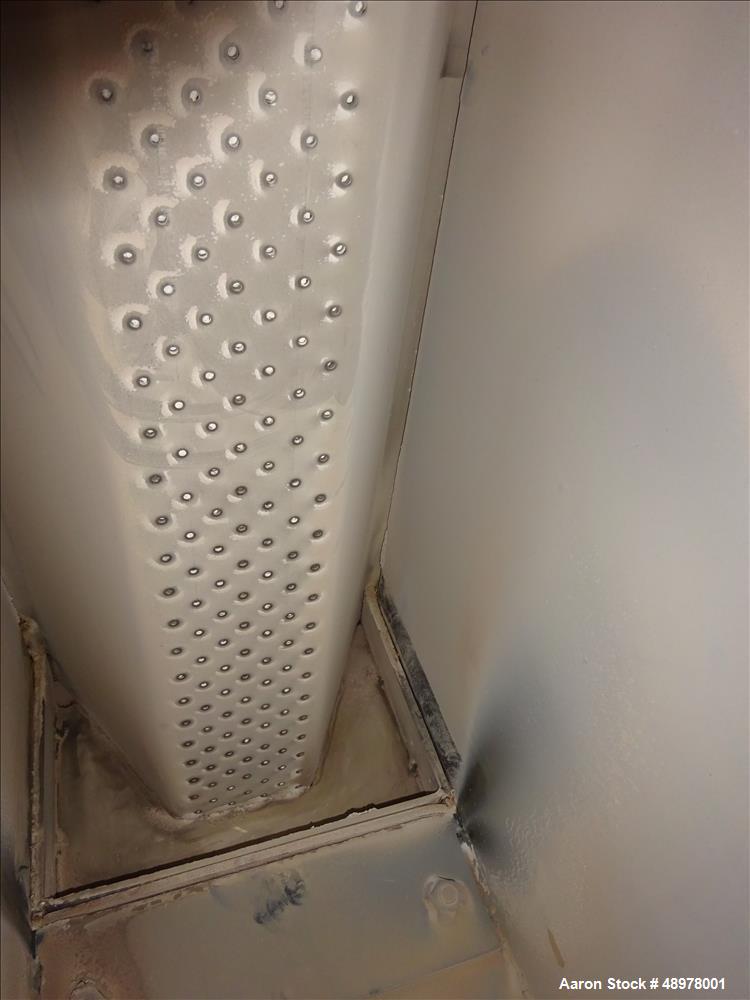

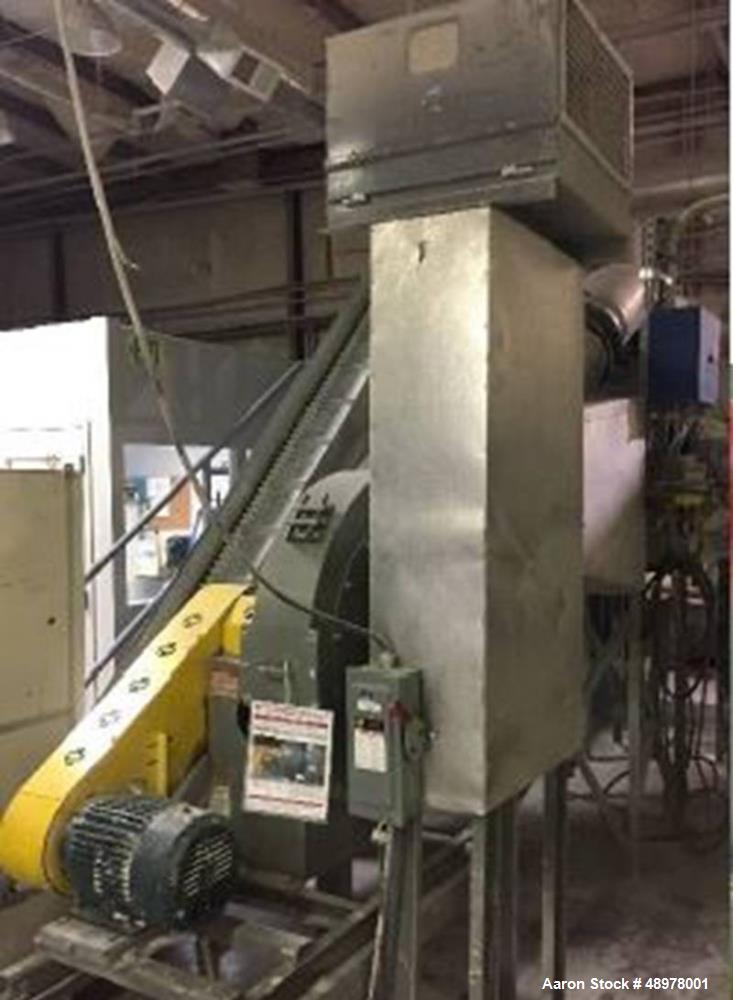

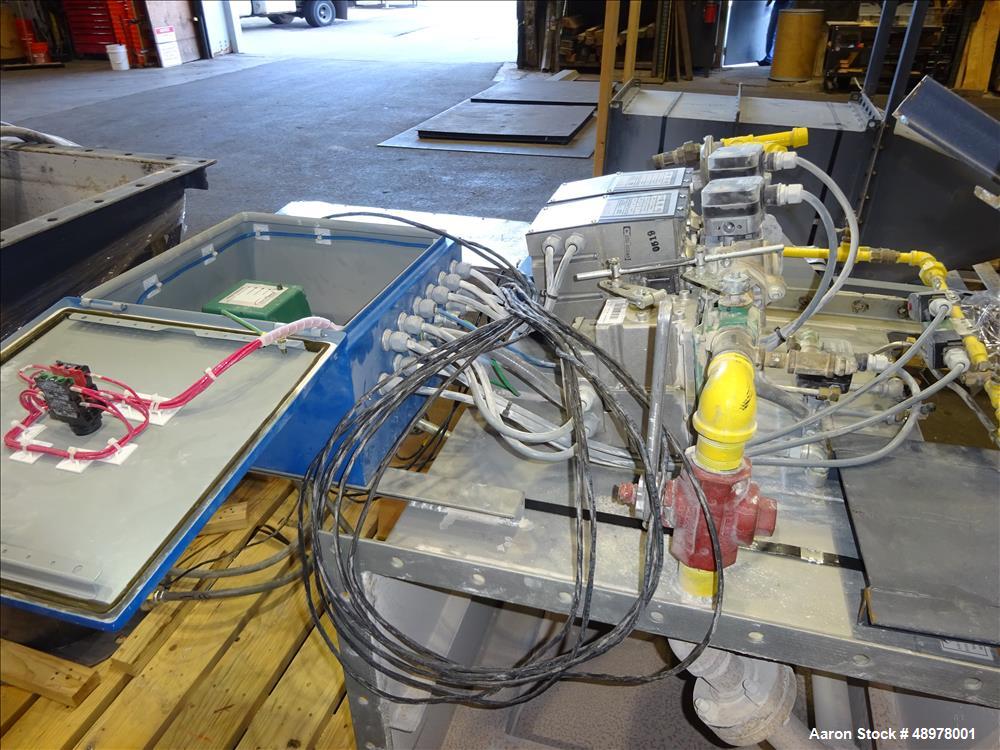

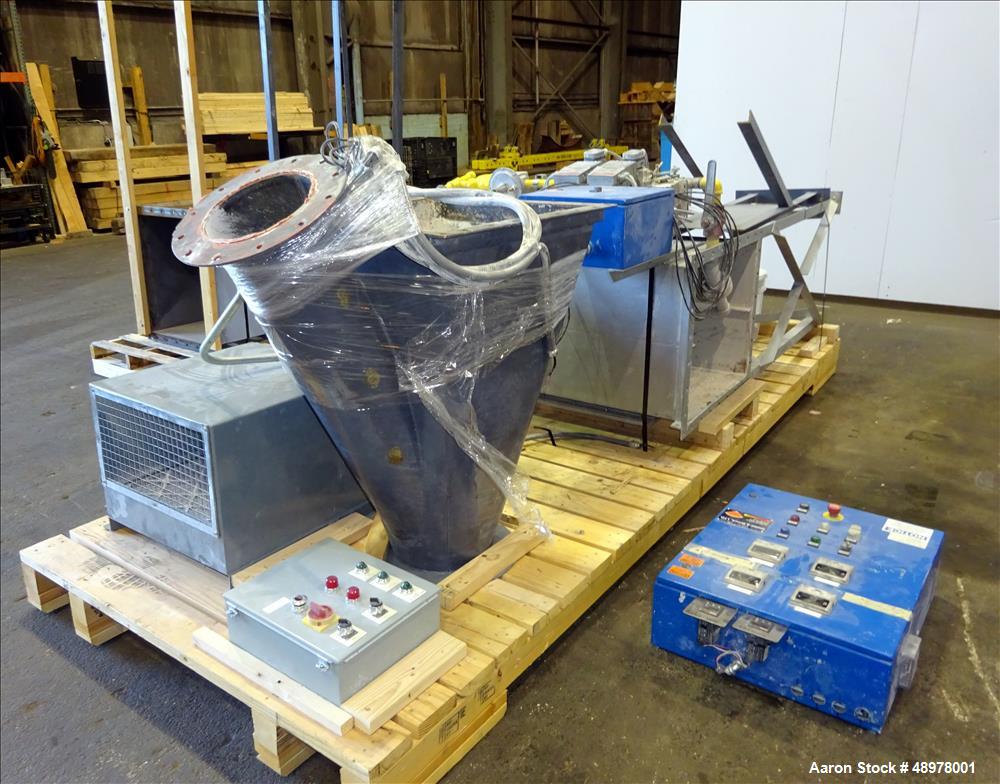

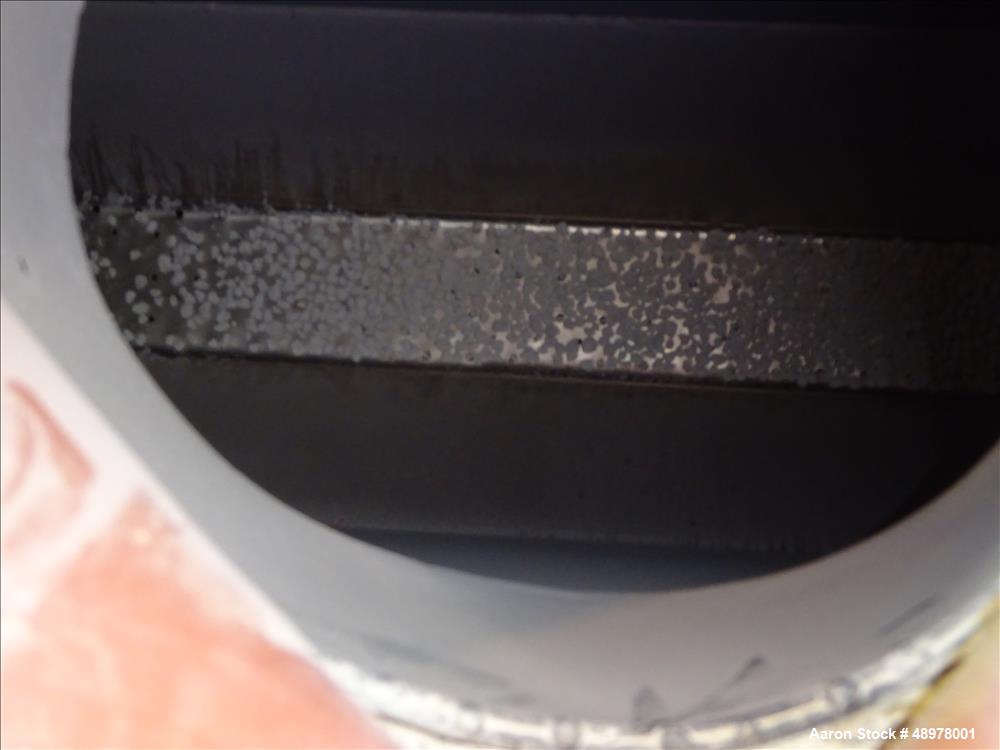

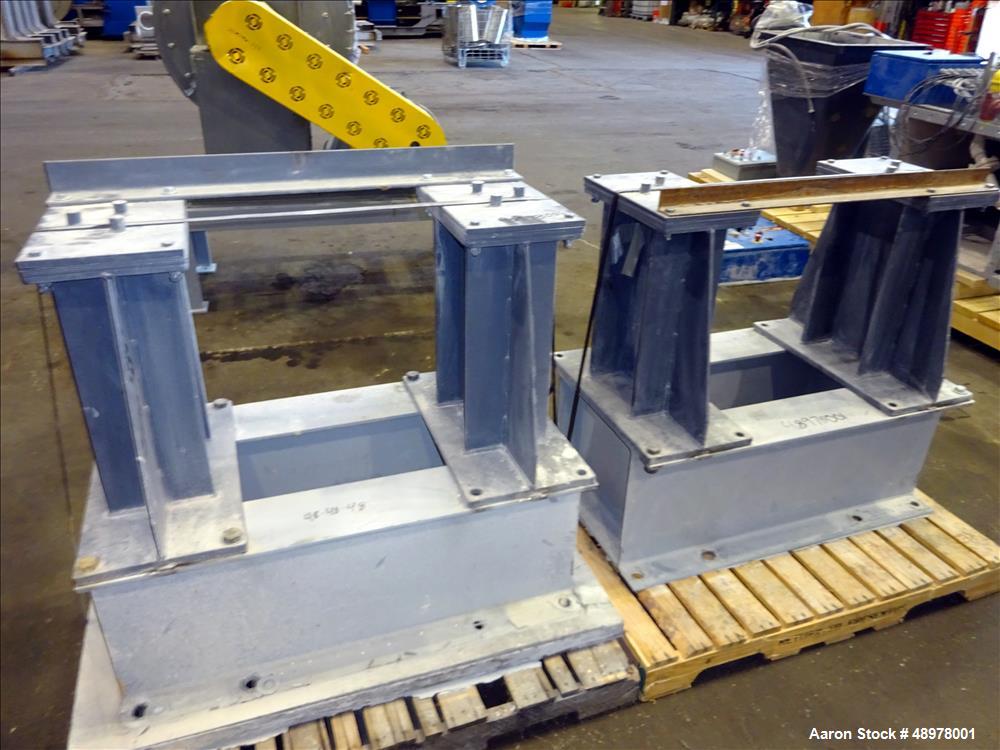

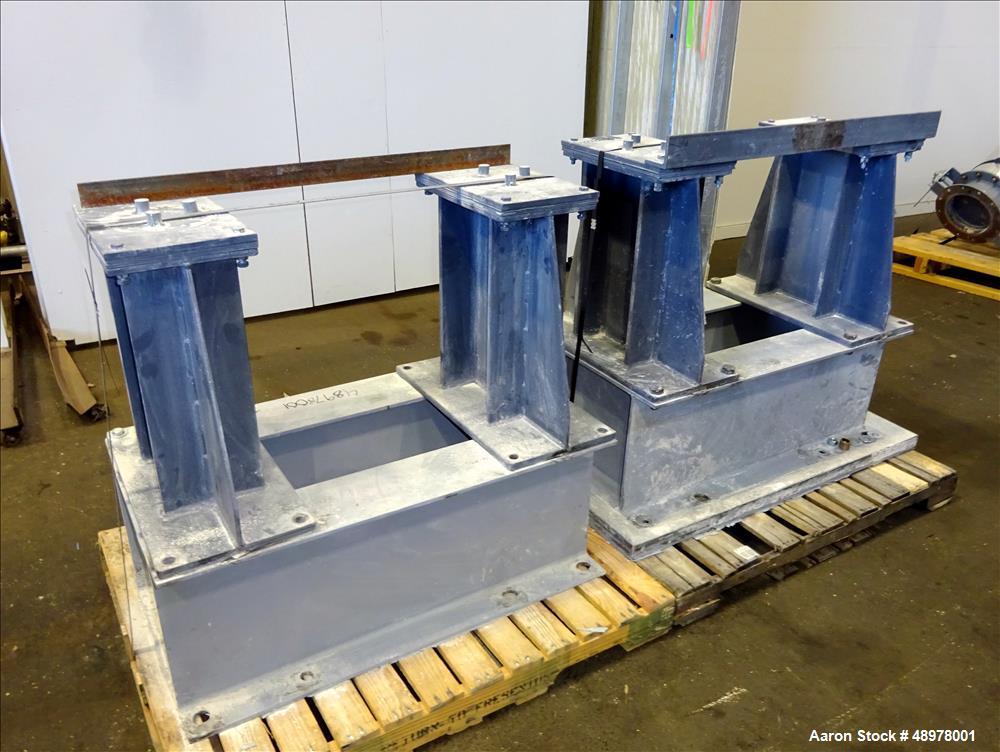

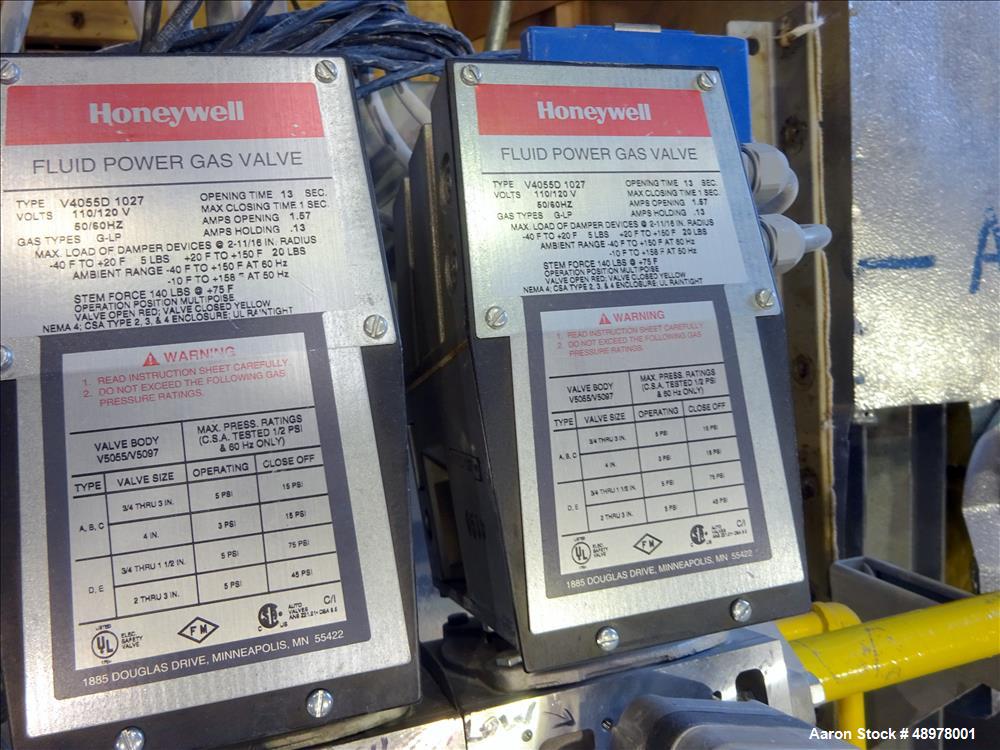

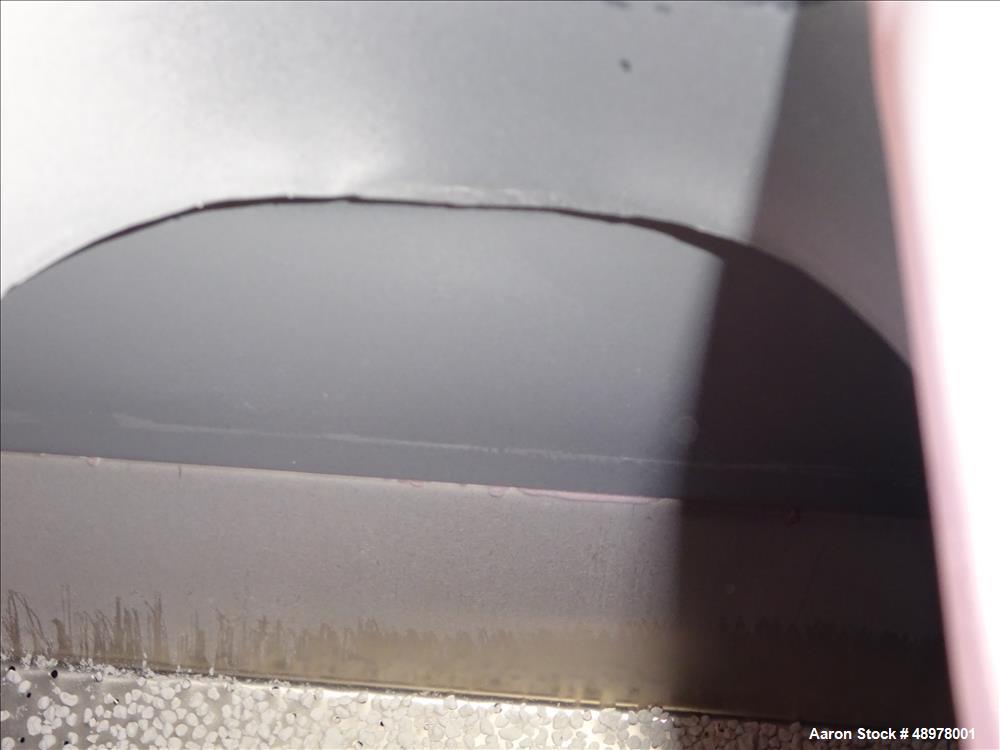

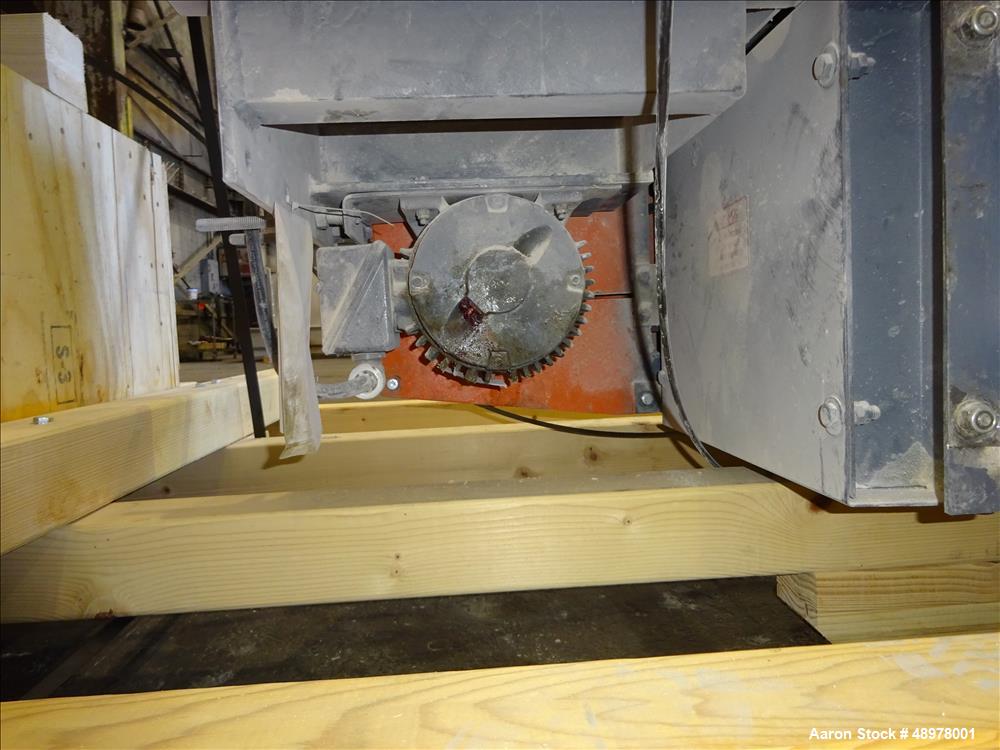

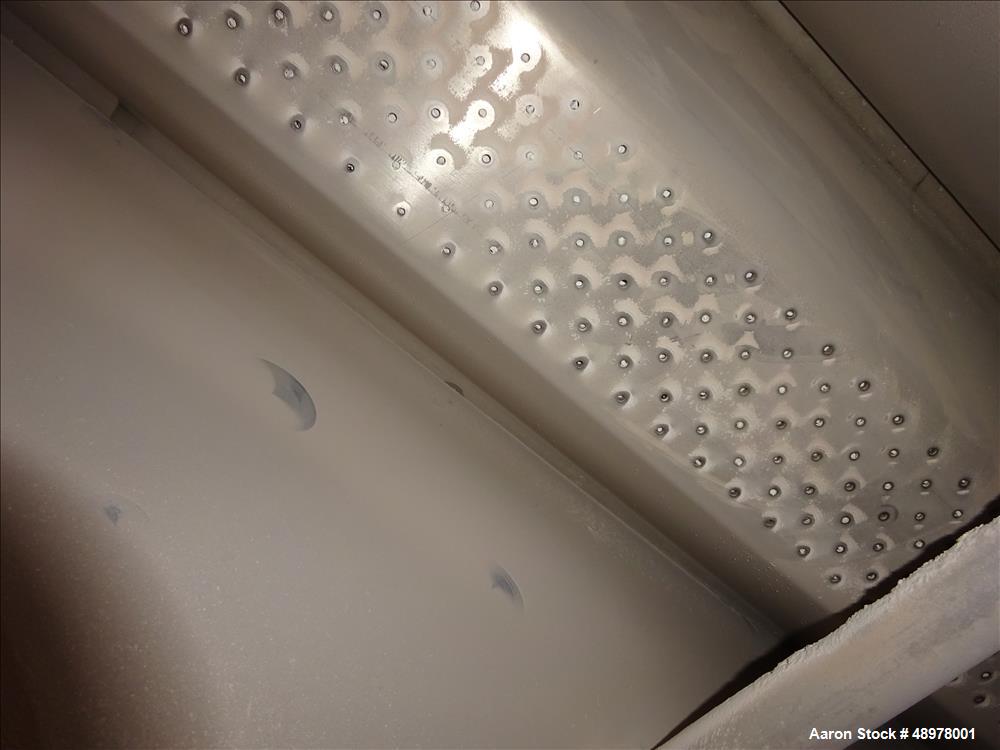

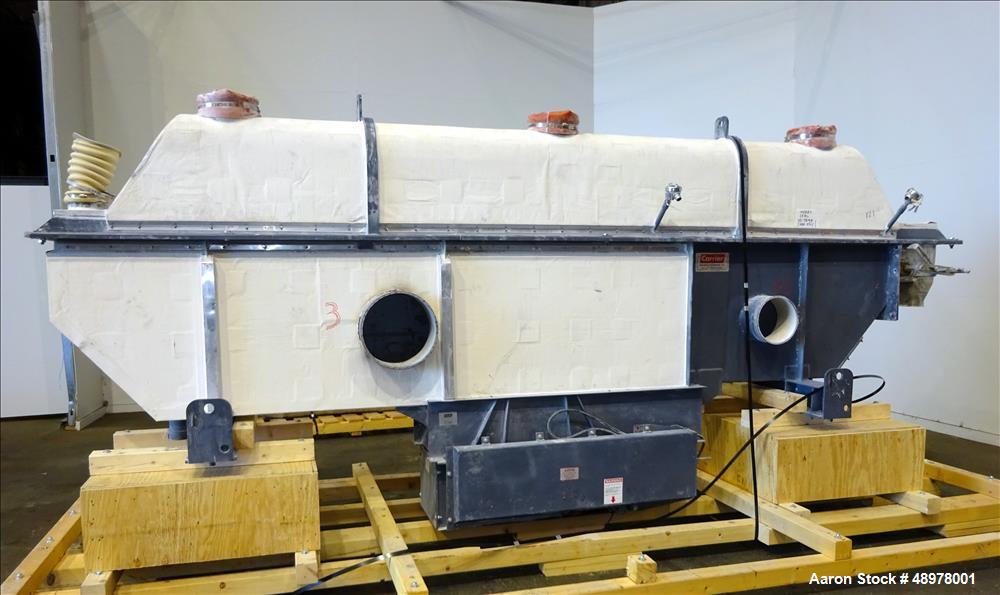

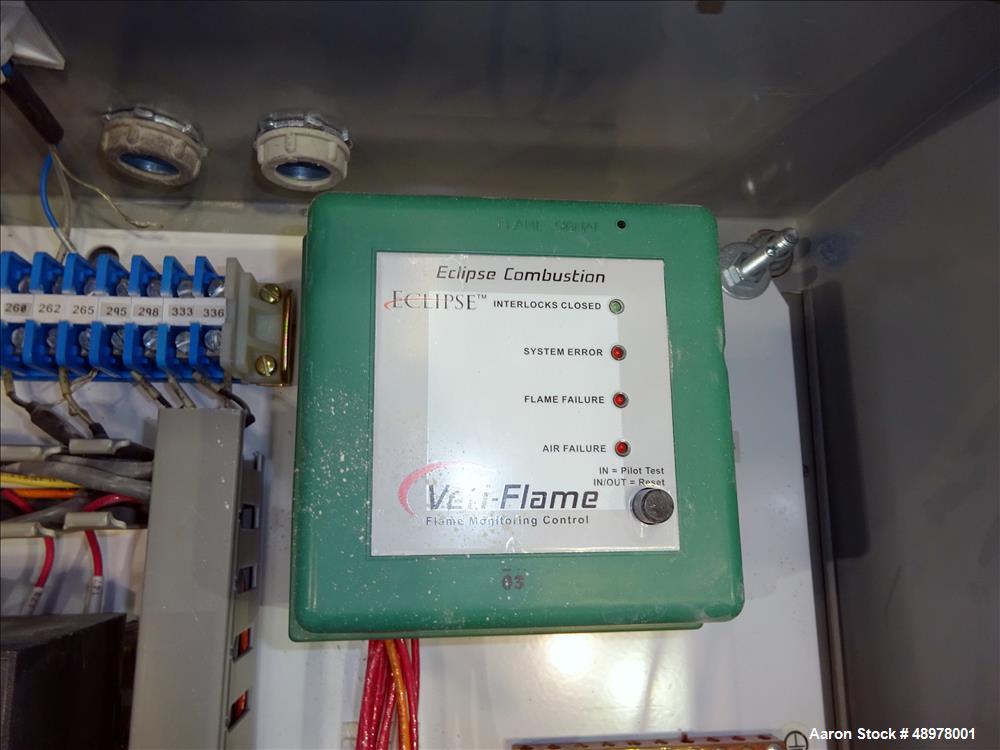

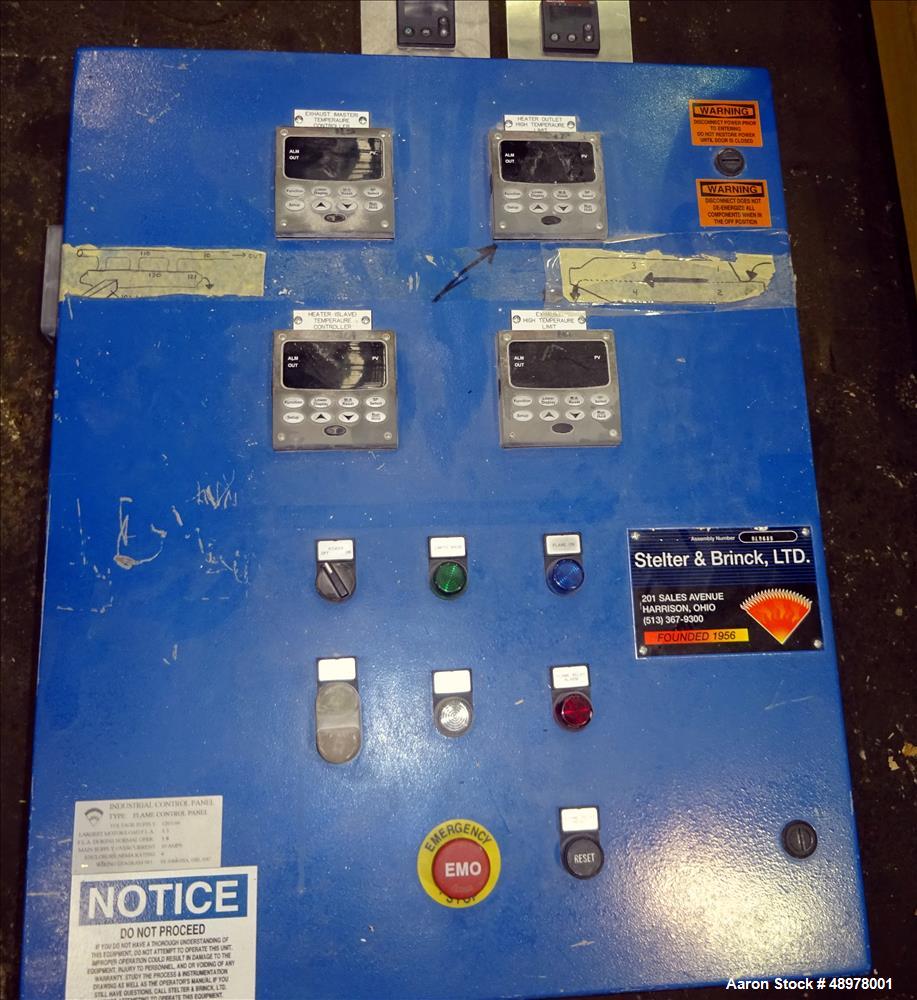

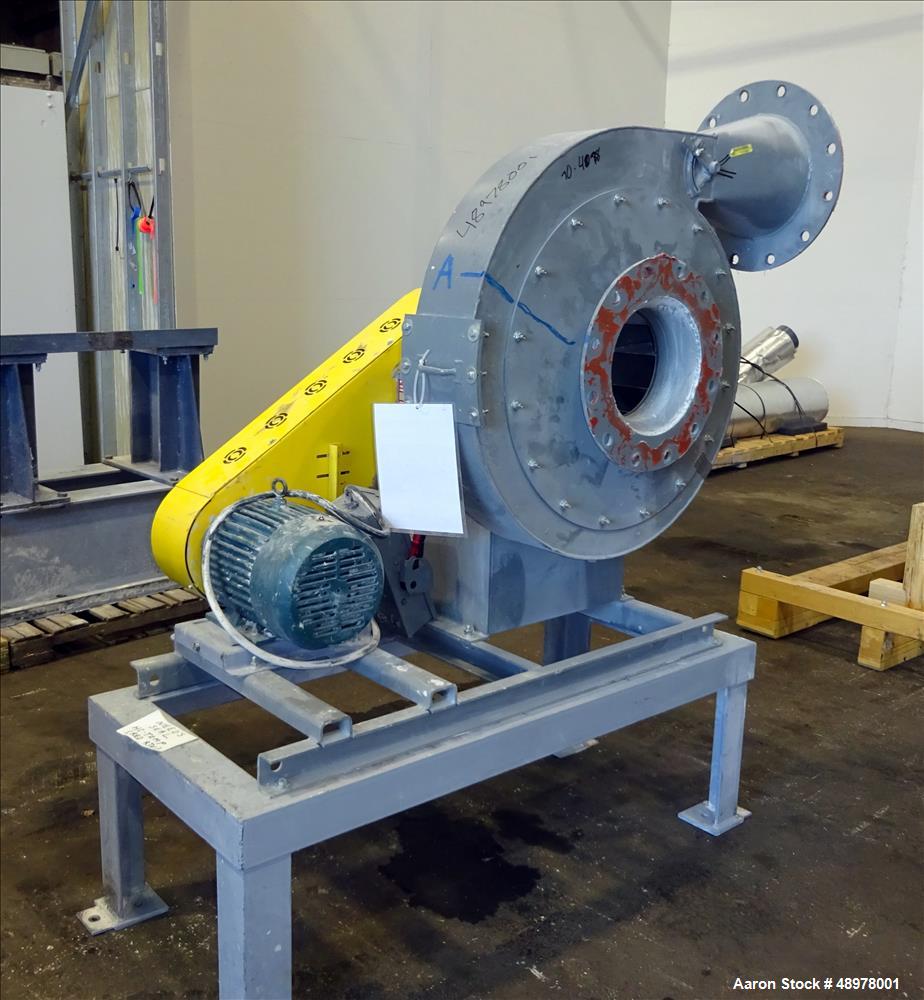

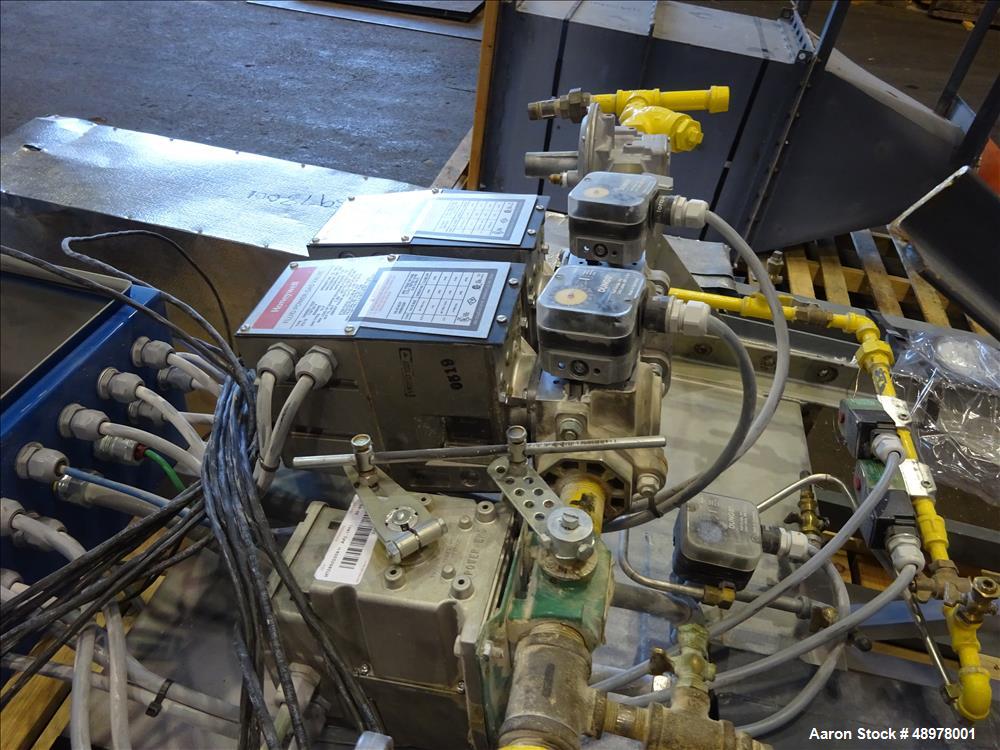

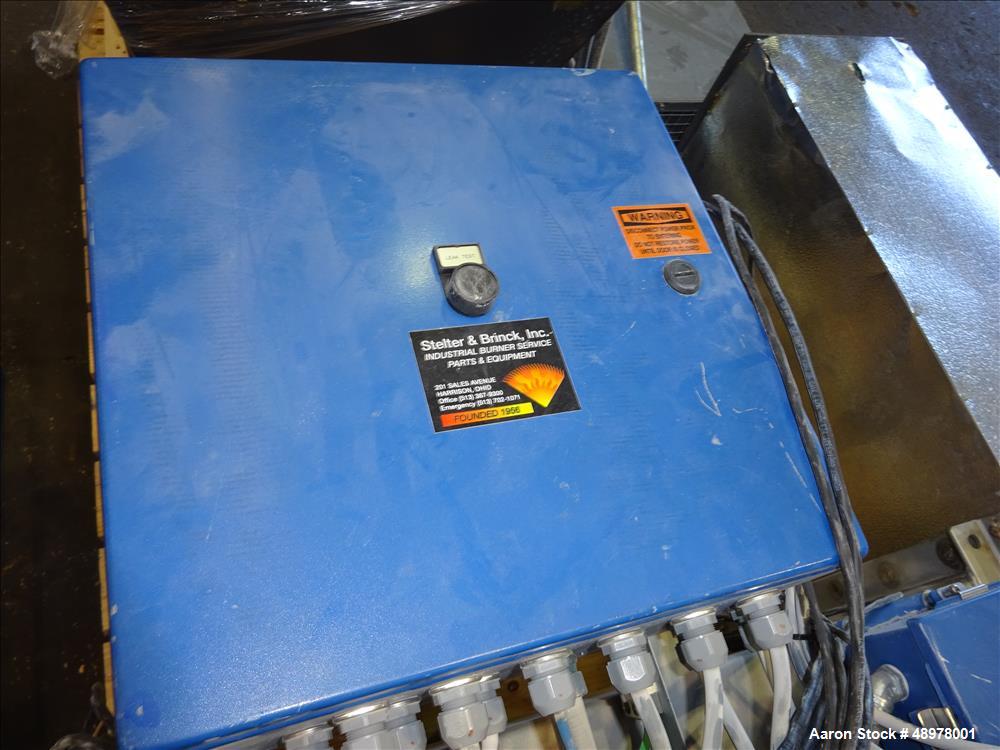

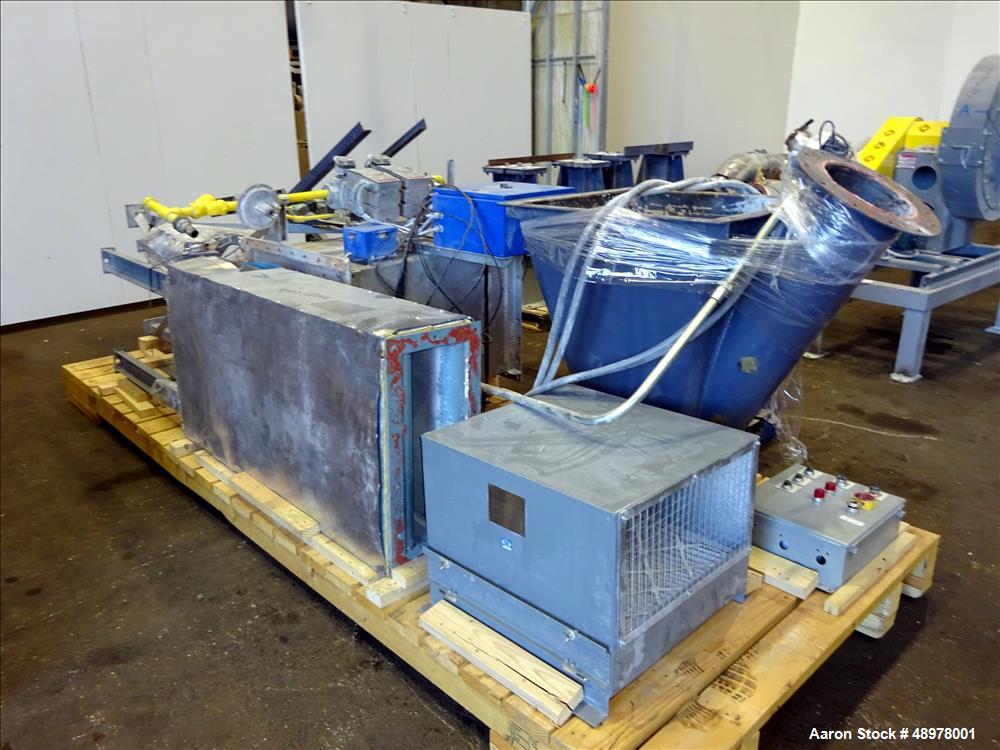

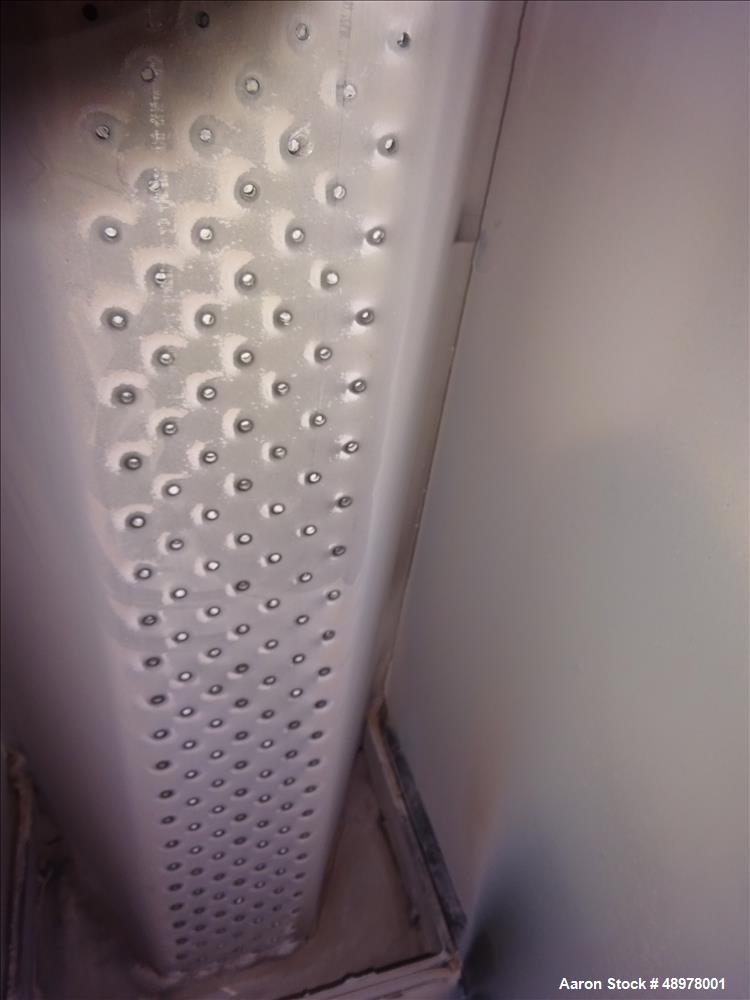

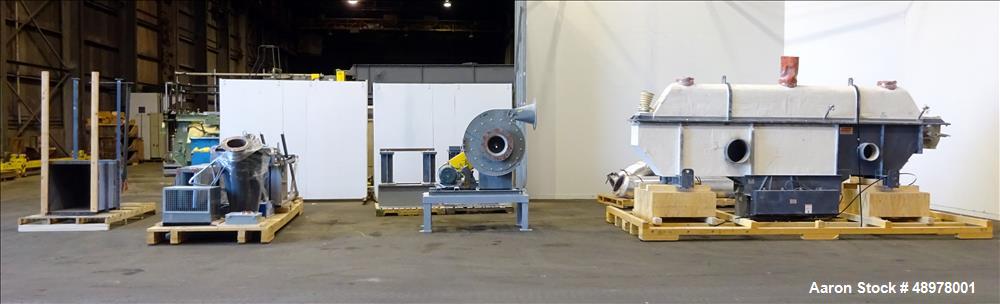

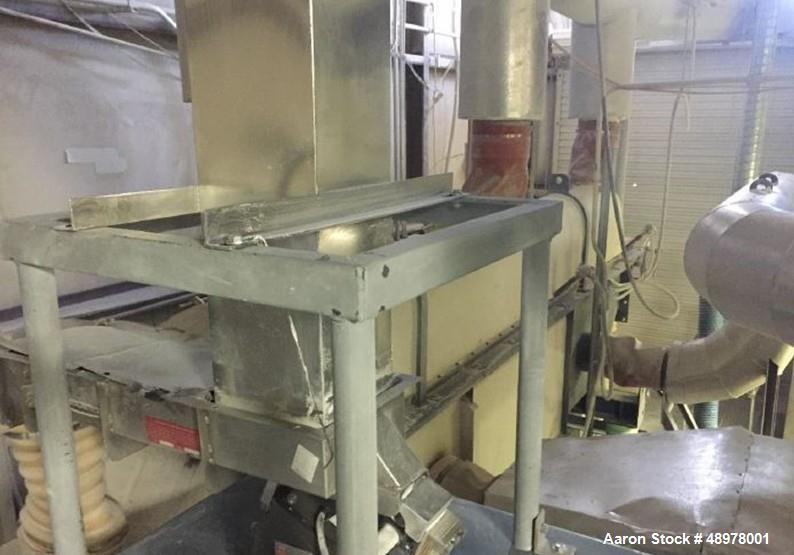

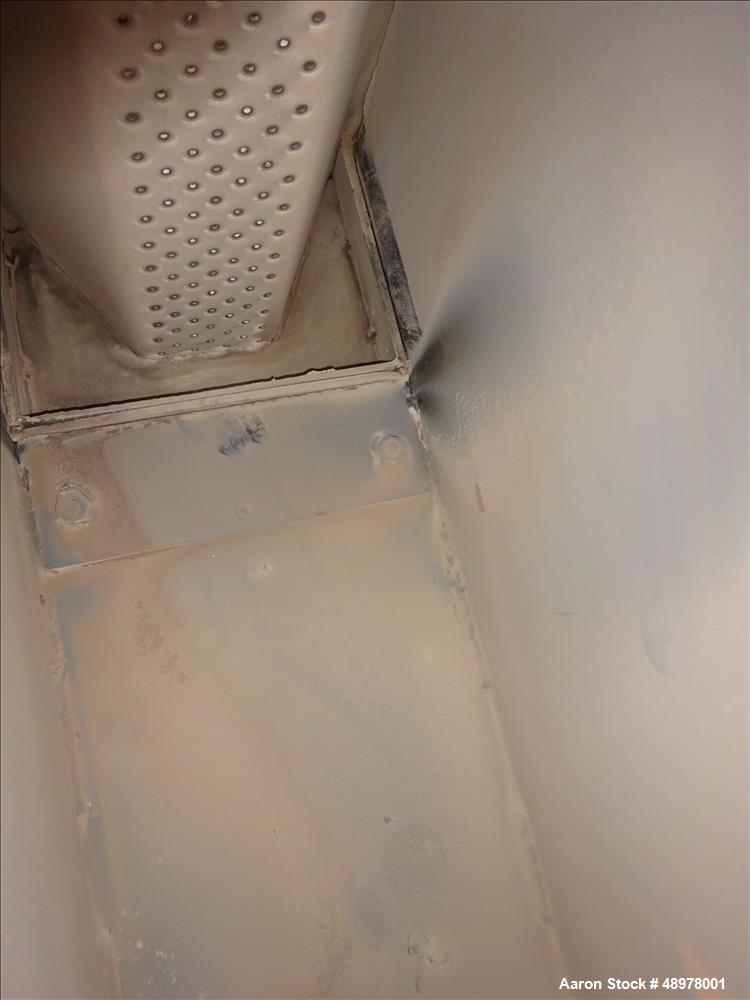

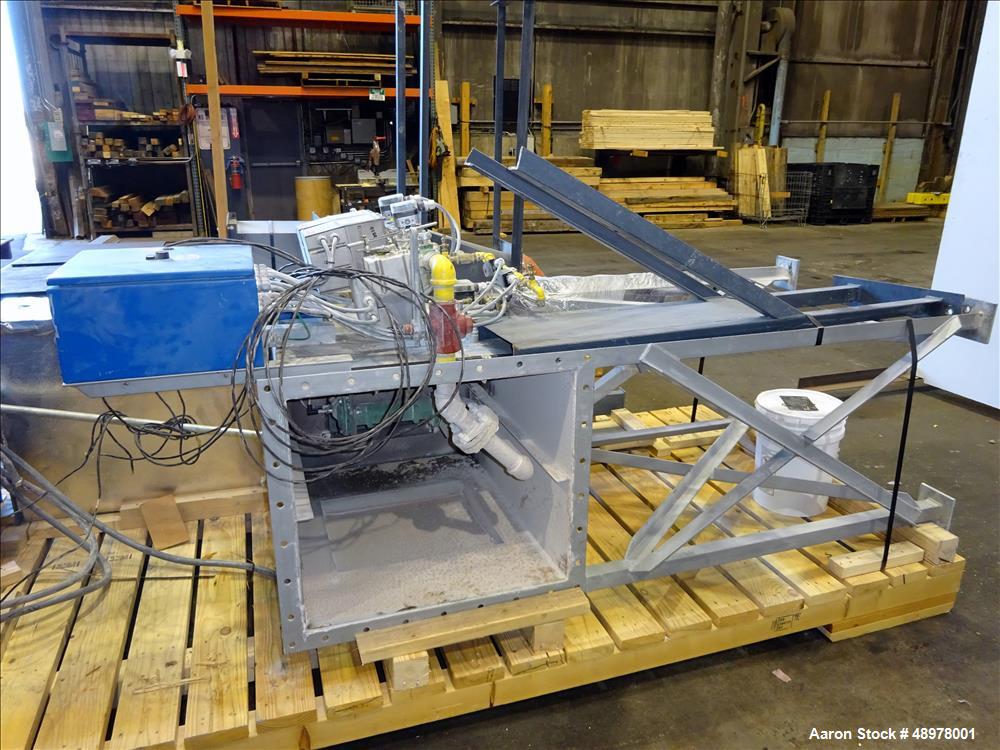

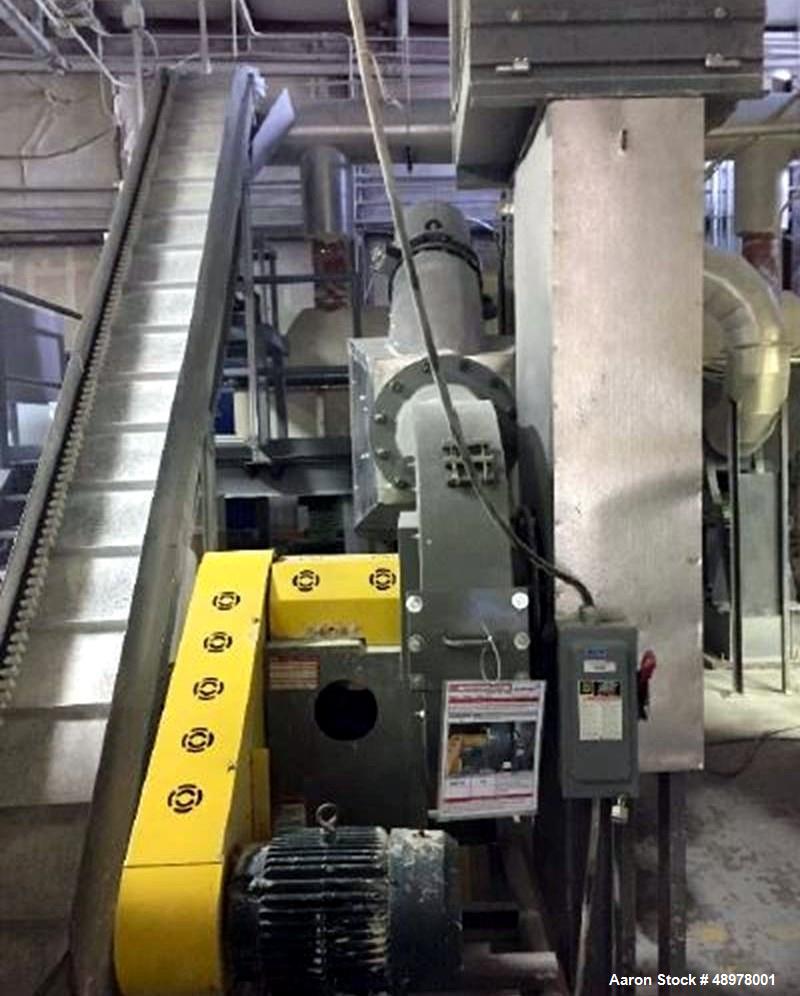

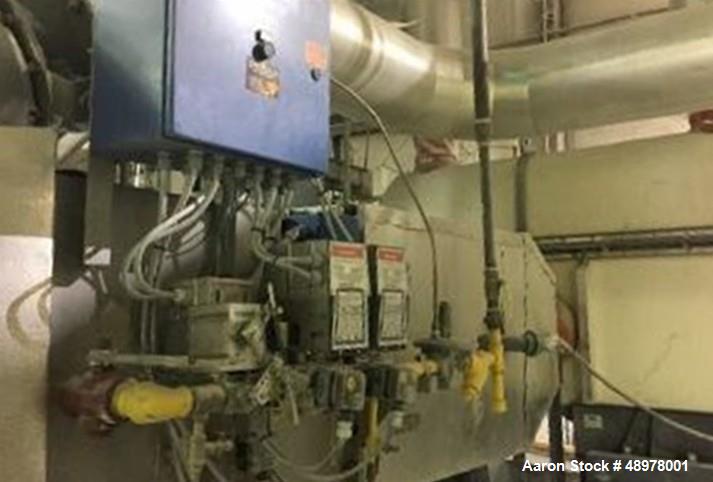

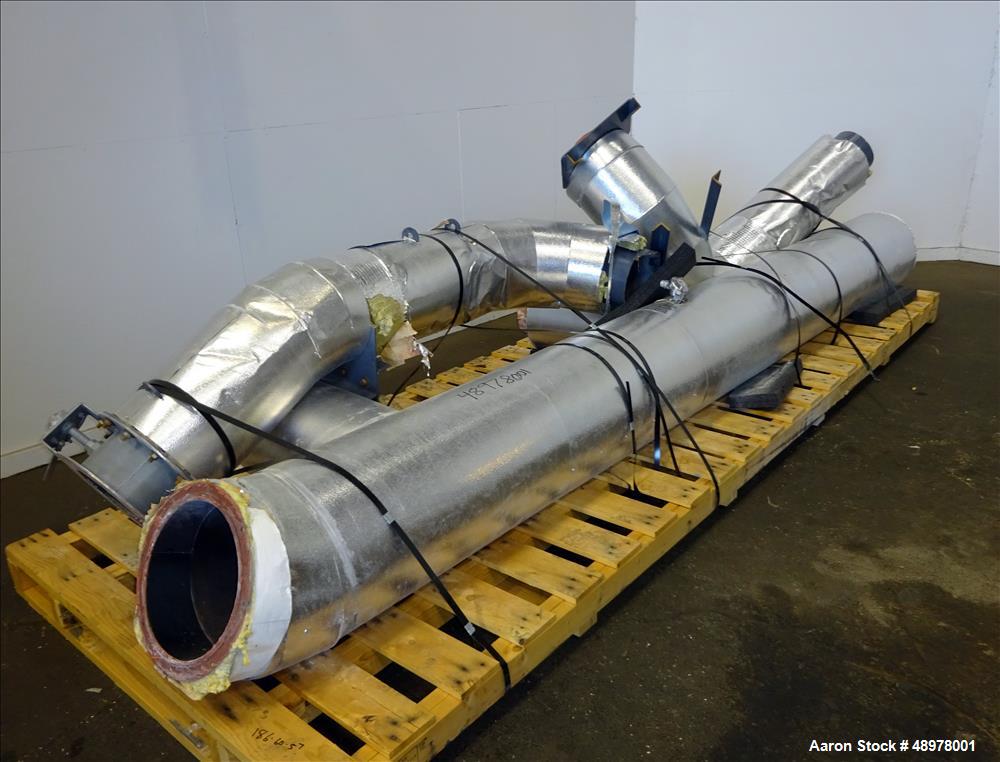

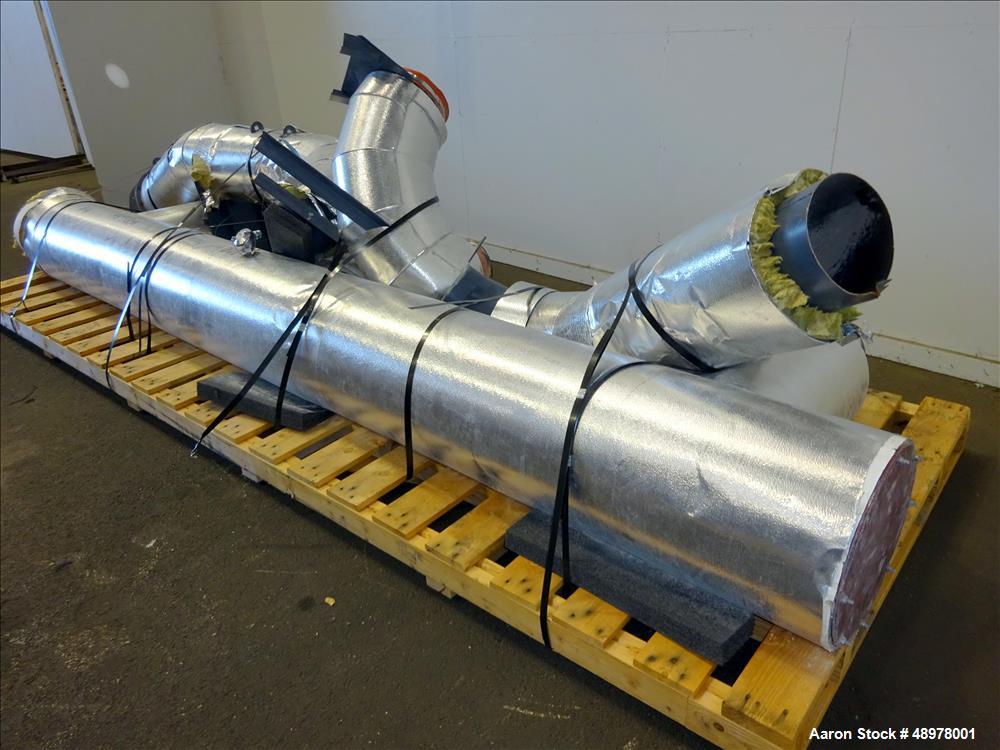

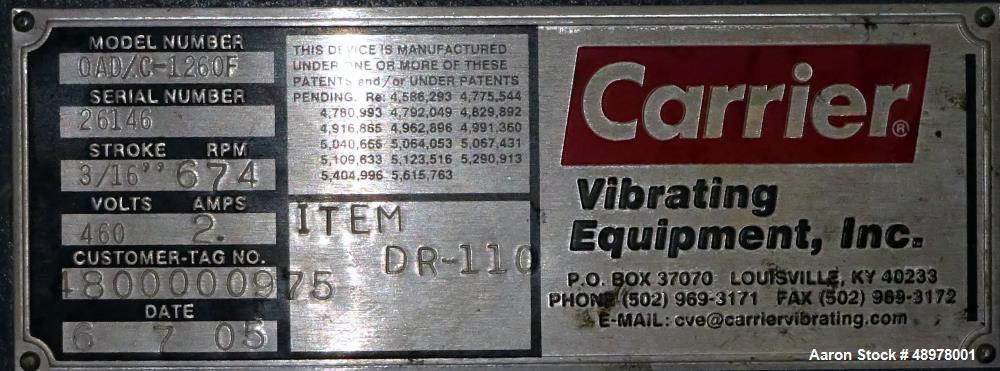

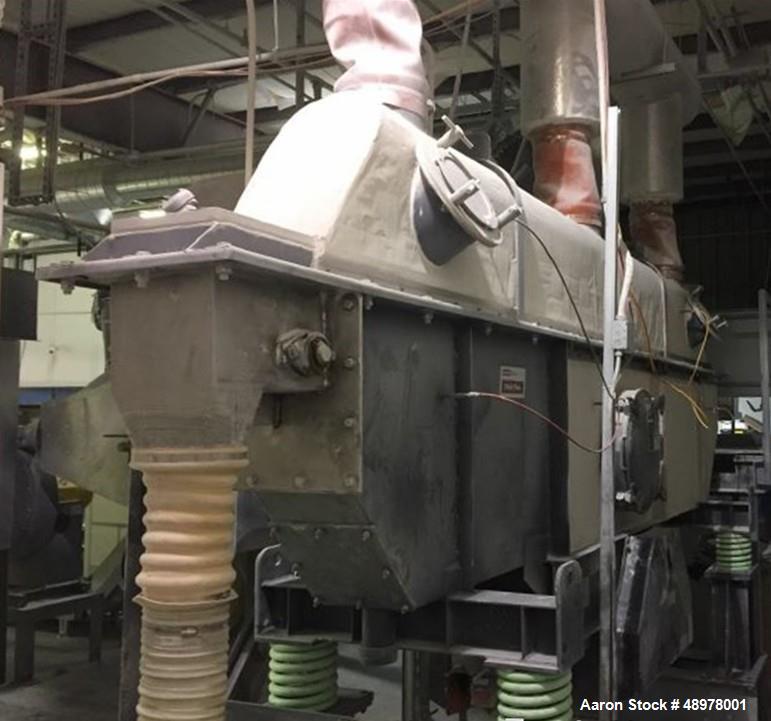

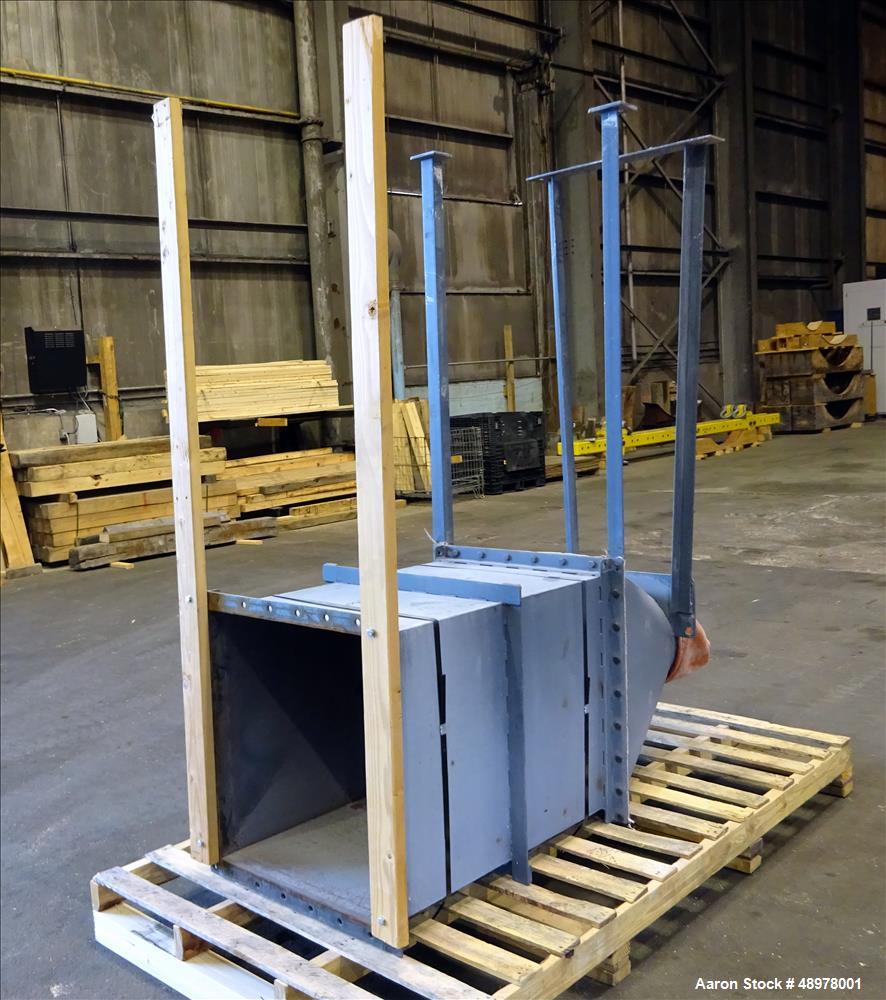

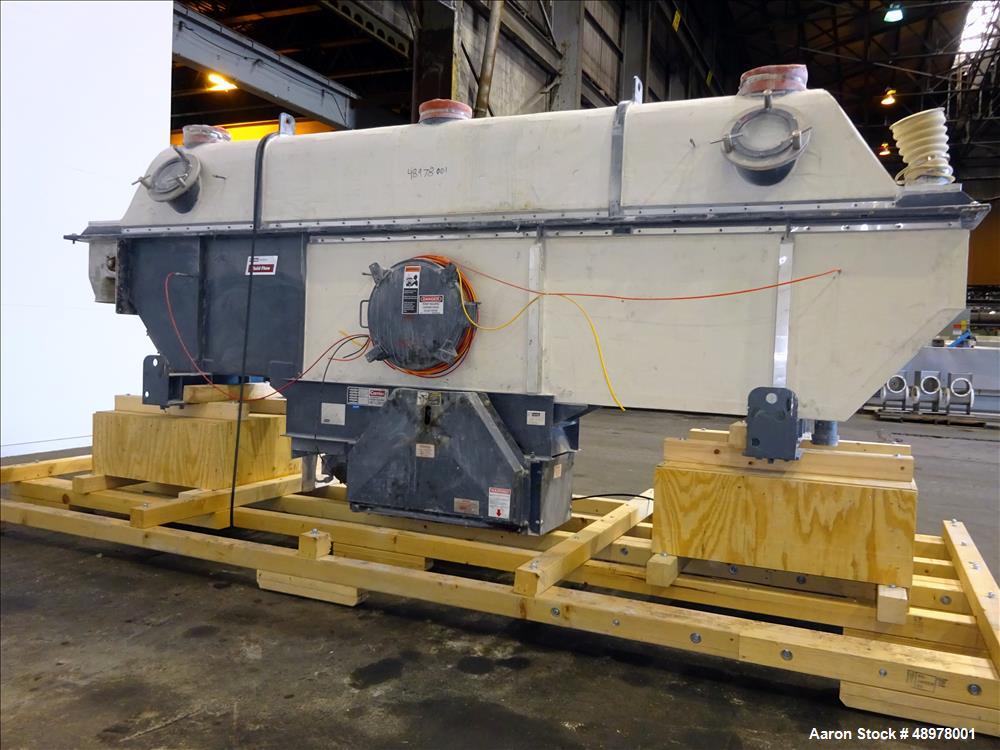

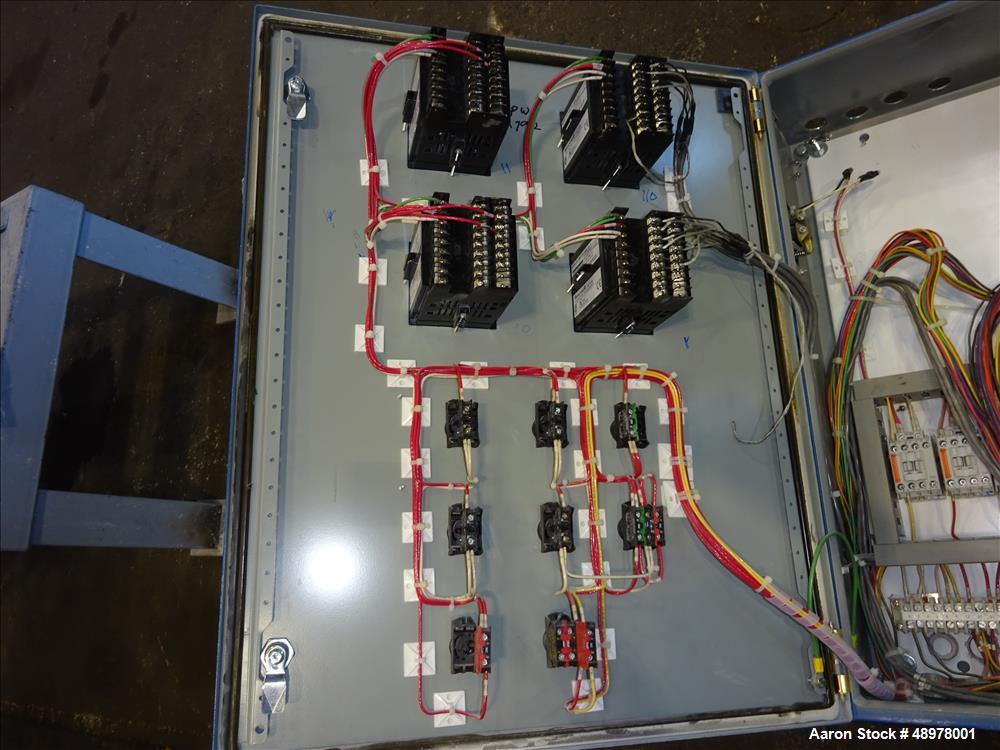

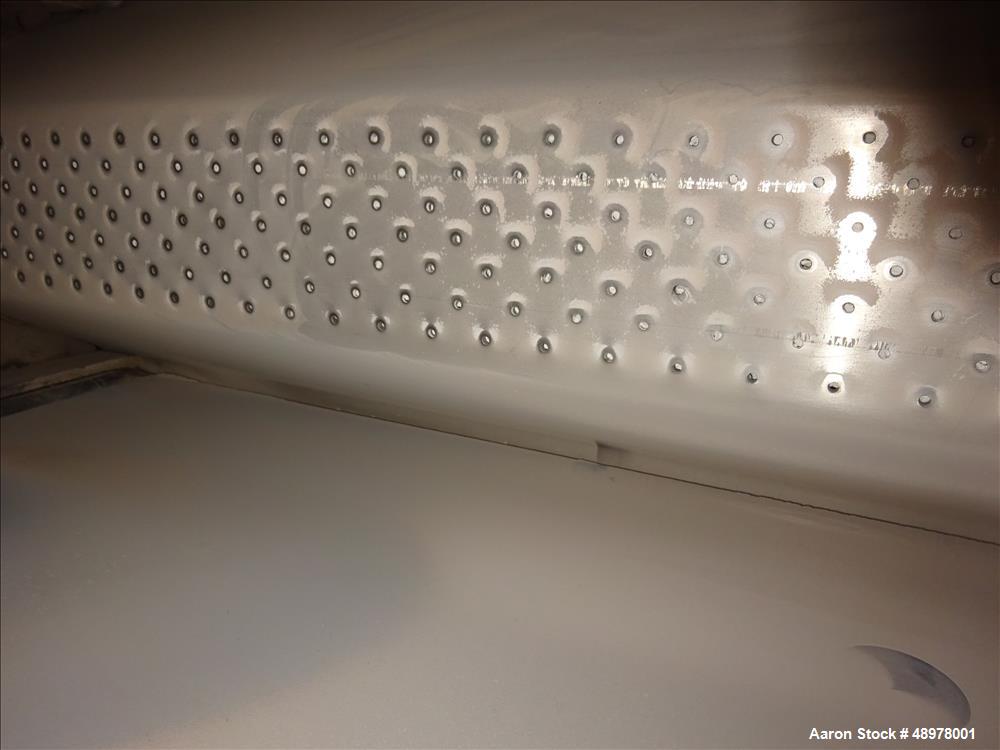

Used Carrier Vibrating Equipment Inc. Vibratory Fluid Flow Continuous Fluid Bed Dryer/Cooler Model QAD/C1260S-156"-2HP, 304 Stainless Steel Flared Deck. Approximate 186/172" long x 12" wide flared deck, drying zone approximate 9/6" long x 10"-5/8 wide or 3.2 feet squared. Cooling zone approximate 410" long x 10"5/8 wide or 1.6 feet squared. 3/16" Stroke efficiency at 650 RPM, 1/8" screen holes. Maximum product feed rate 220 pounds per hour wet, maximum discharge rate 127 per hour wet. Total drying rate 1,200 SCFM at 70 degrees F. Cooling rate 600 SCFM at 70 degrees F. Driven by a 2 HP motor. Top end inlet, end bottom outlet. Driven by a 2hp, 3/60/460 volt, 1800 rpm motor. Mounted on a carbon steel frame with legs. Includes a top cover, 10hp New York pressure blower, 2,600 CFM, driven by a 10 HP motor, Stelter & Brinck gas burner with Honeywell valves, control panel, and miscellaneous piping. Serial# 20146, Built 2005.
