Stock #
53877001

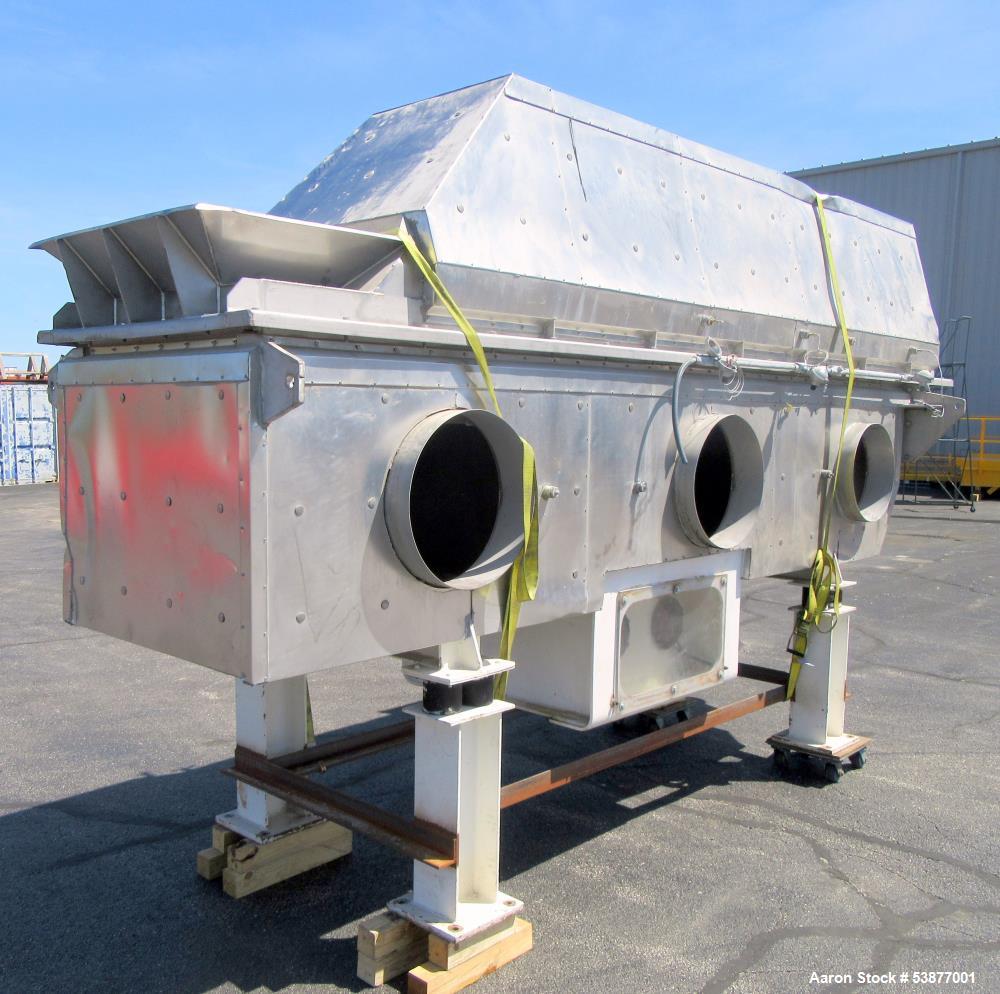

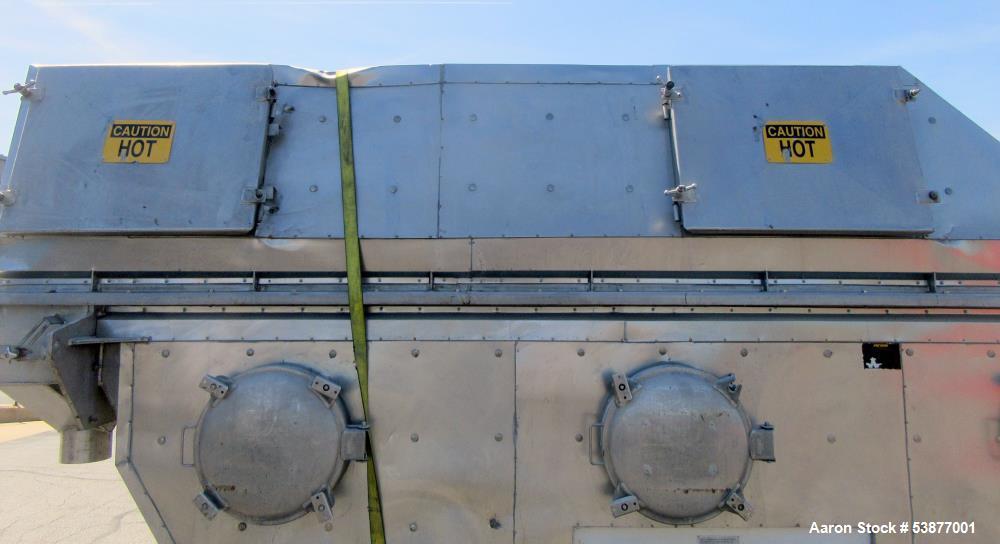

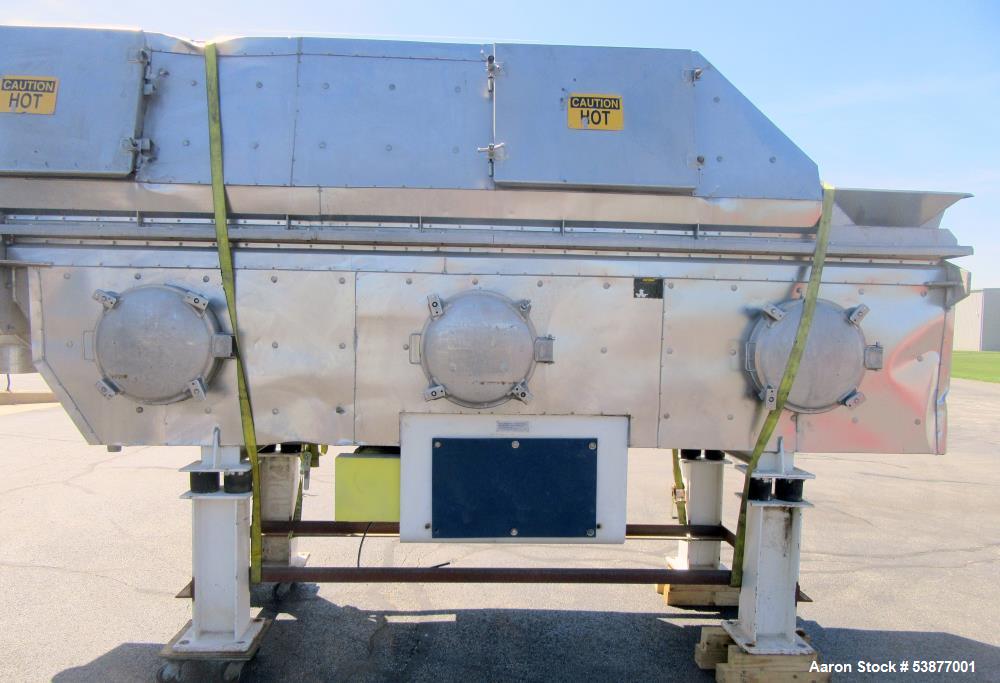

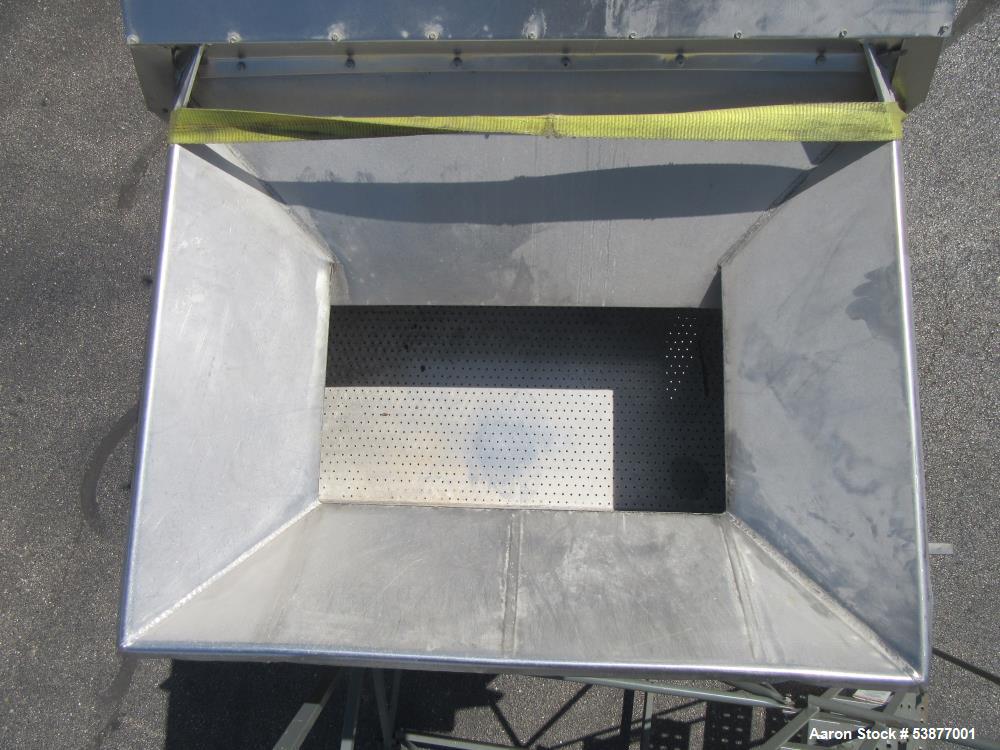

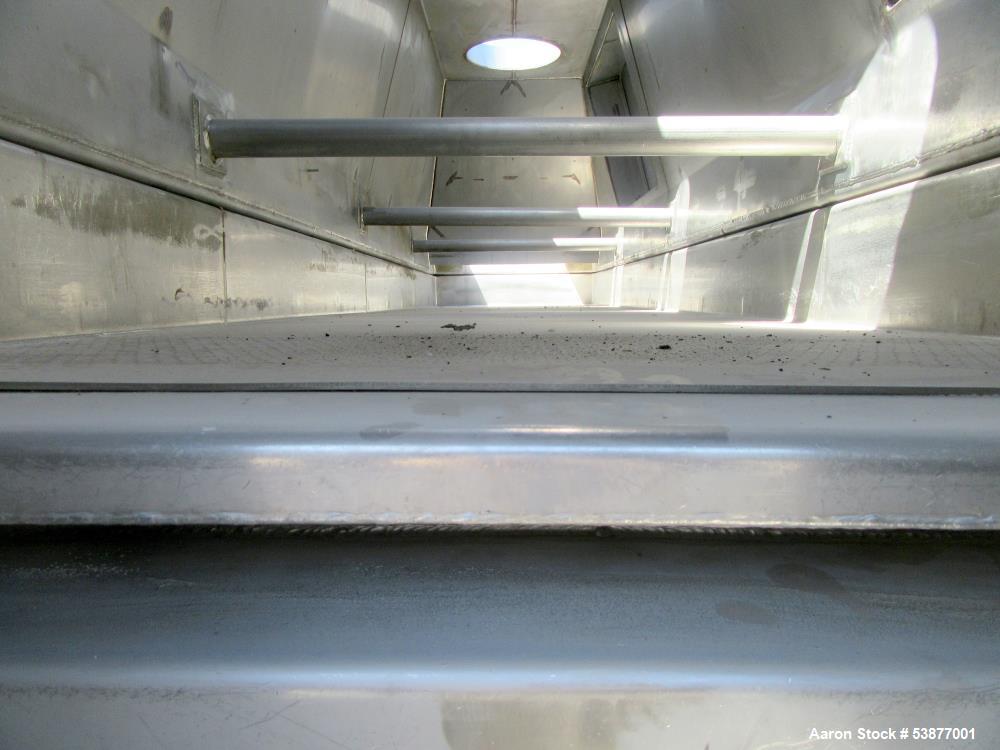

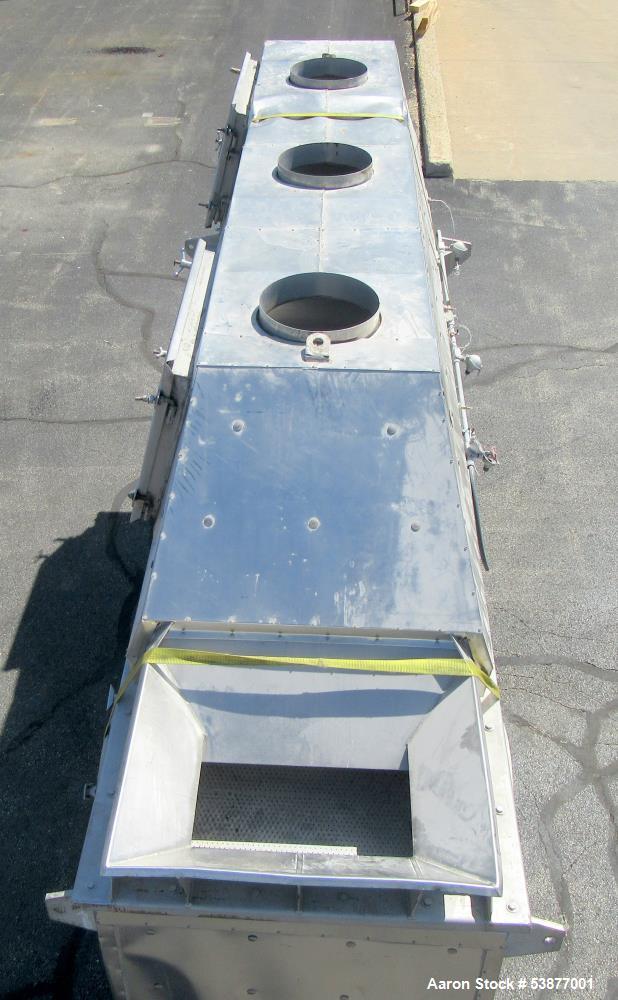

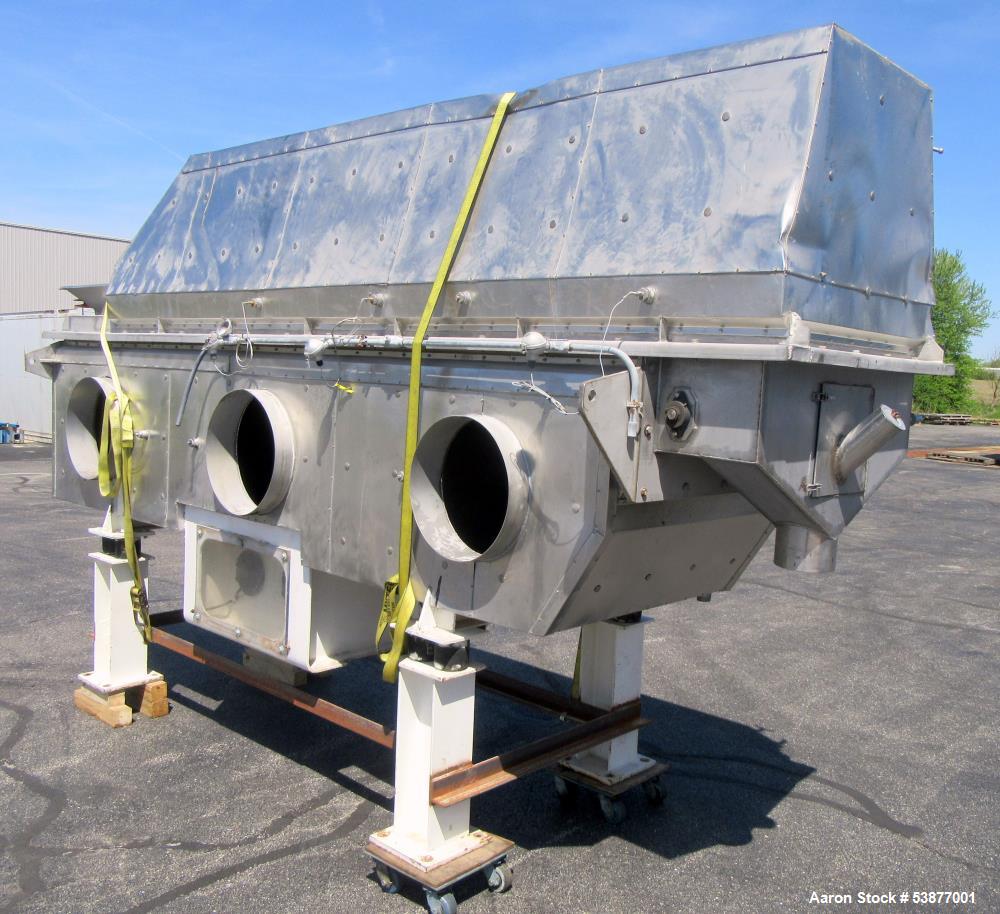

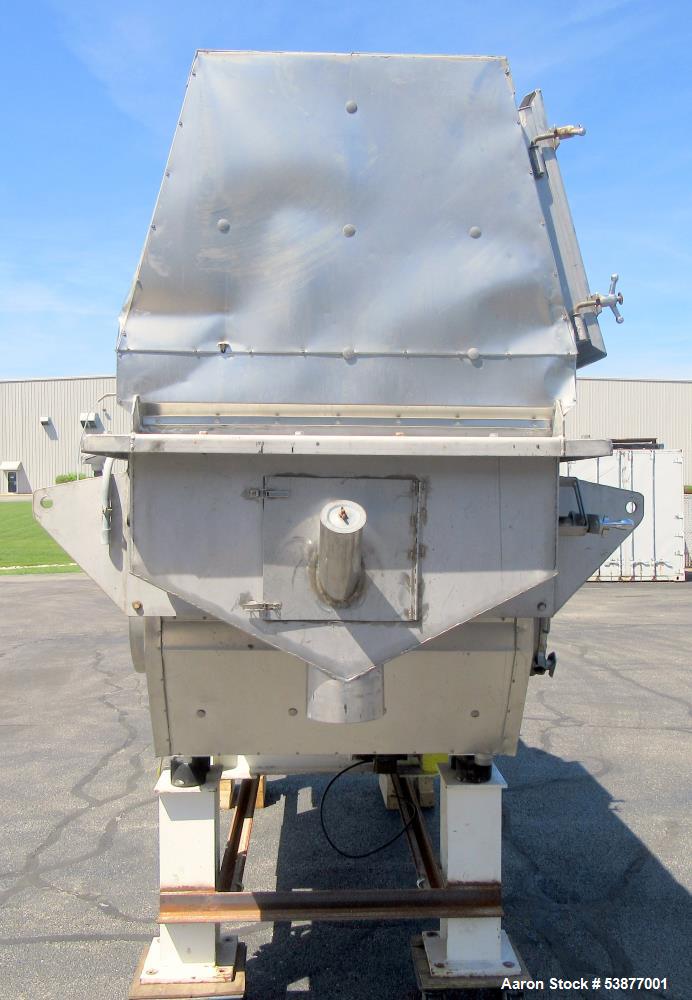

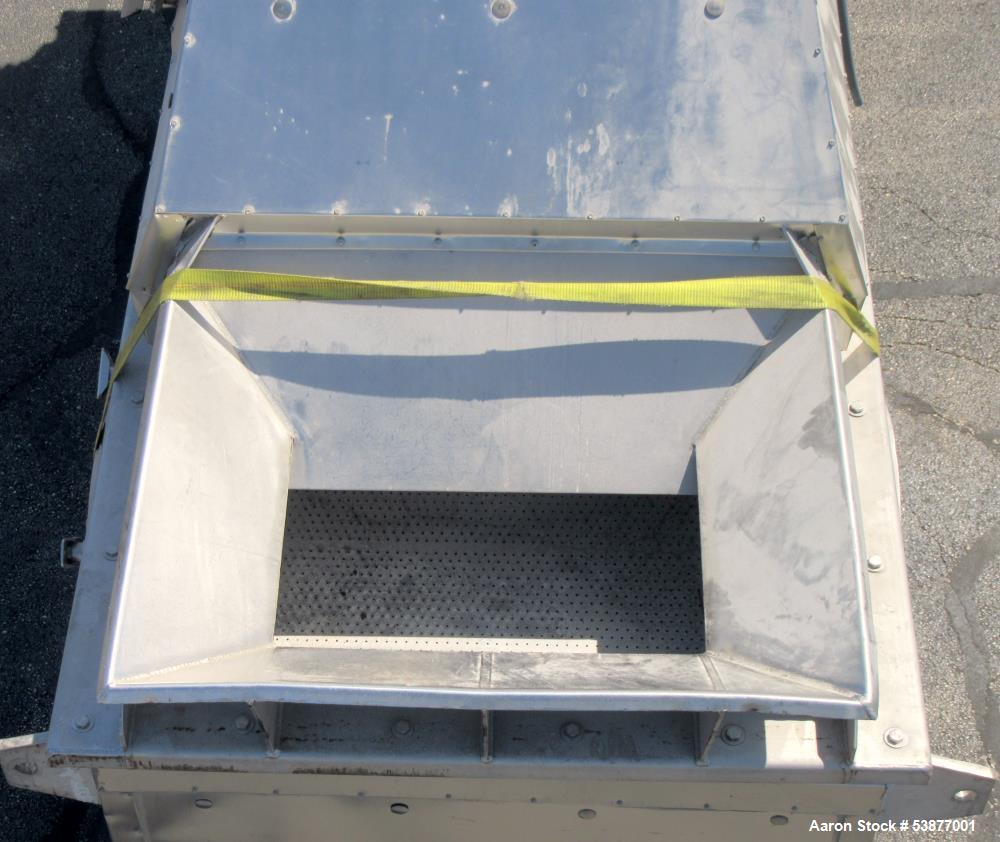

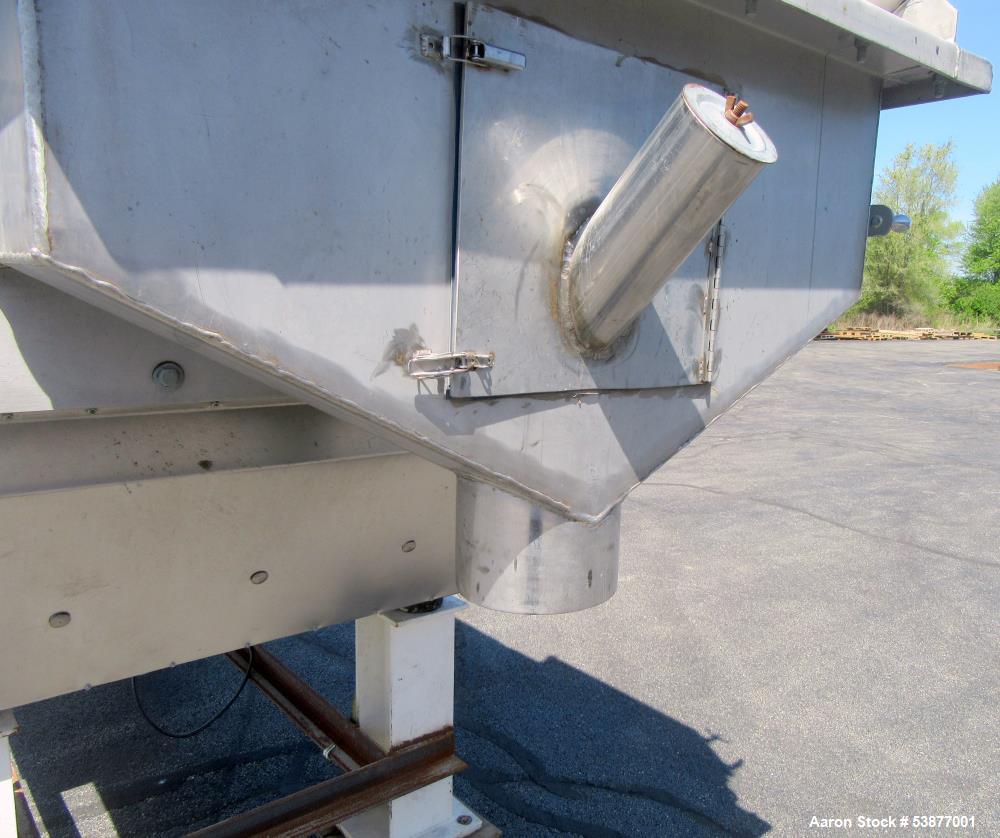

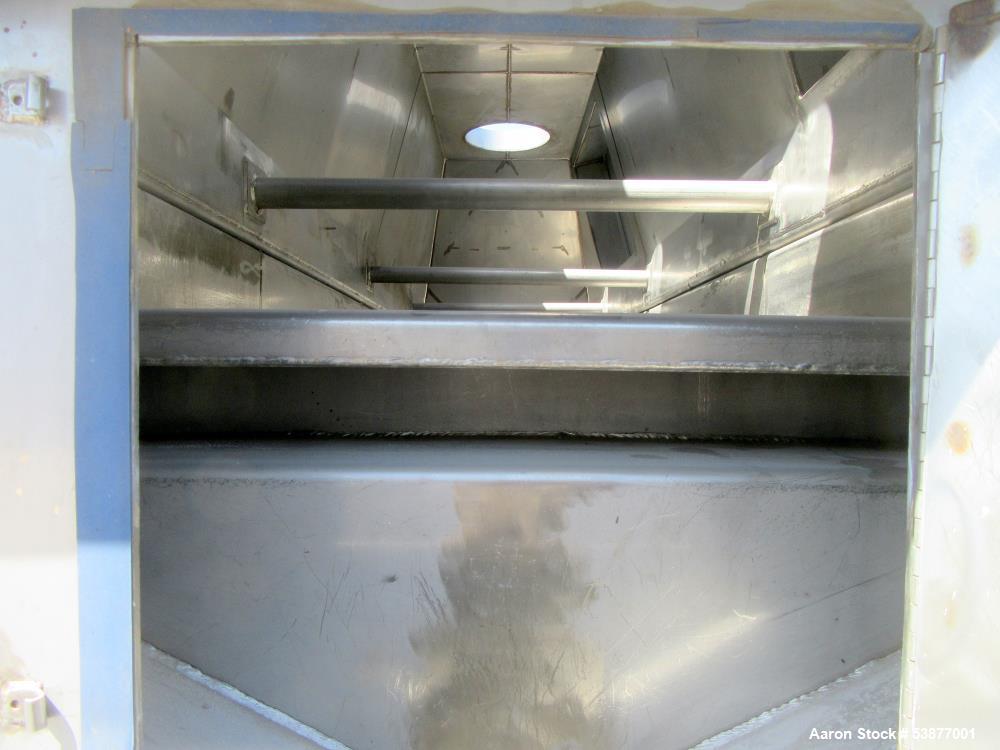

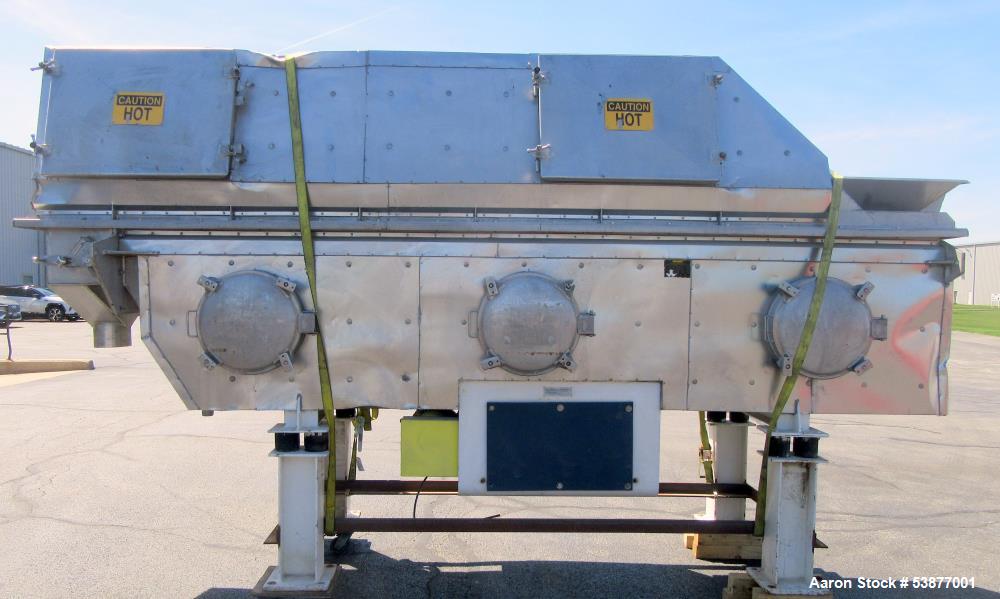

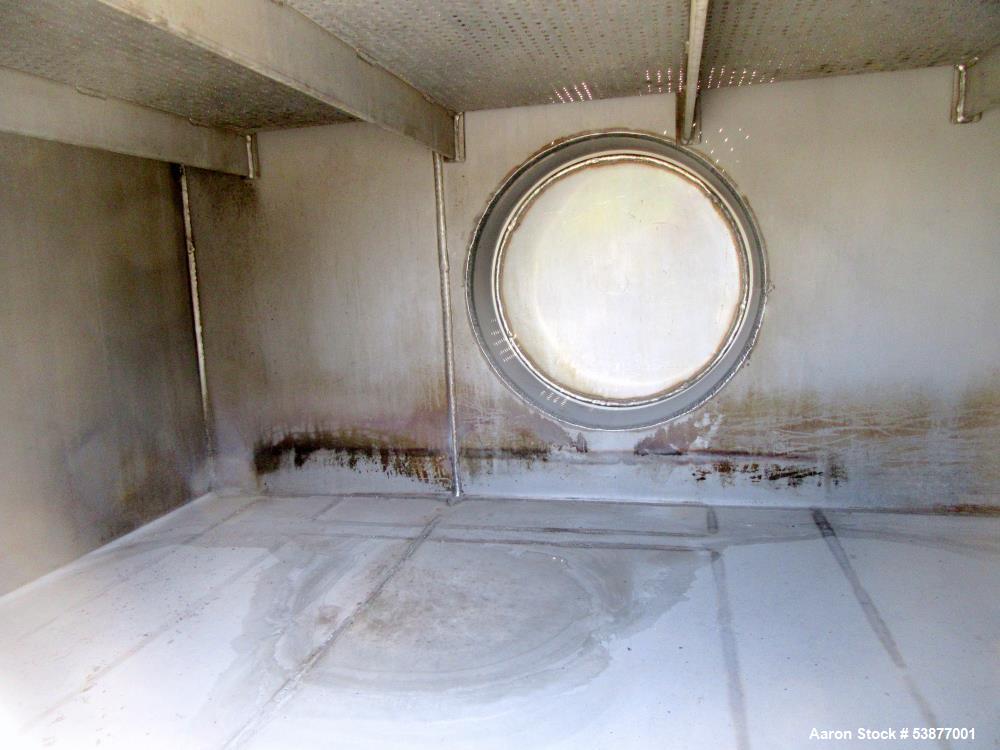

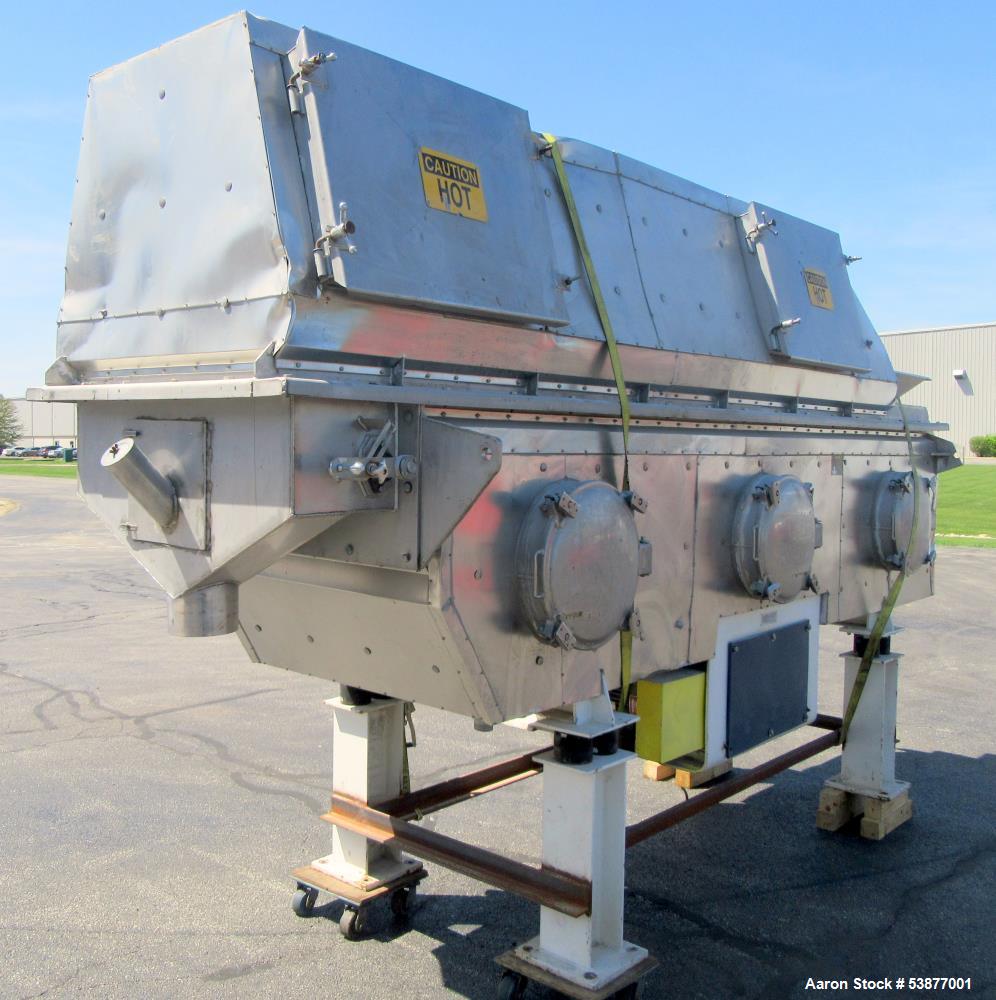

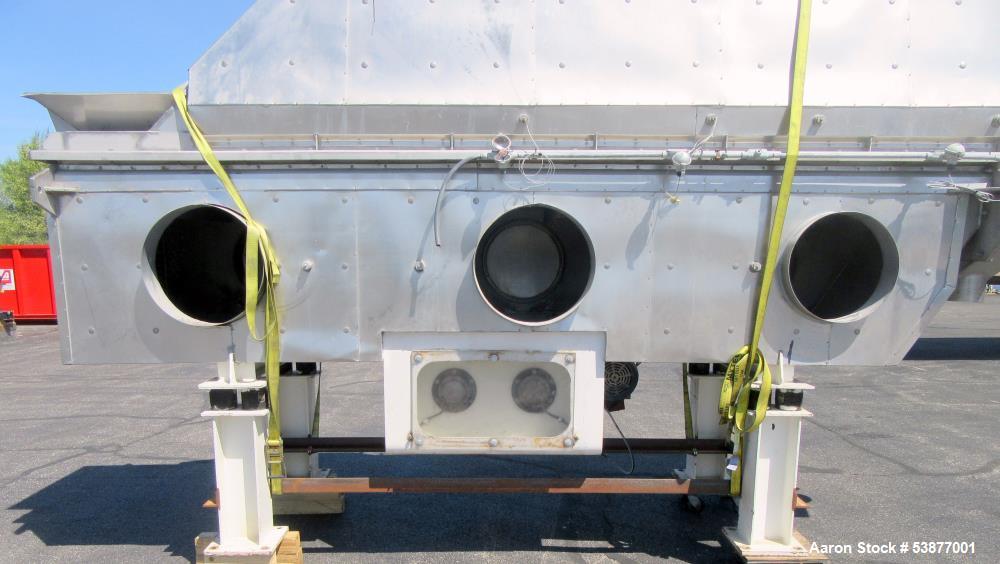

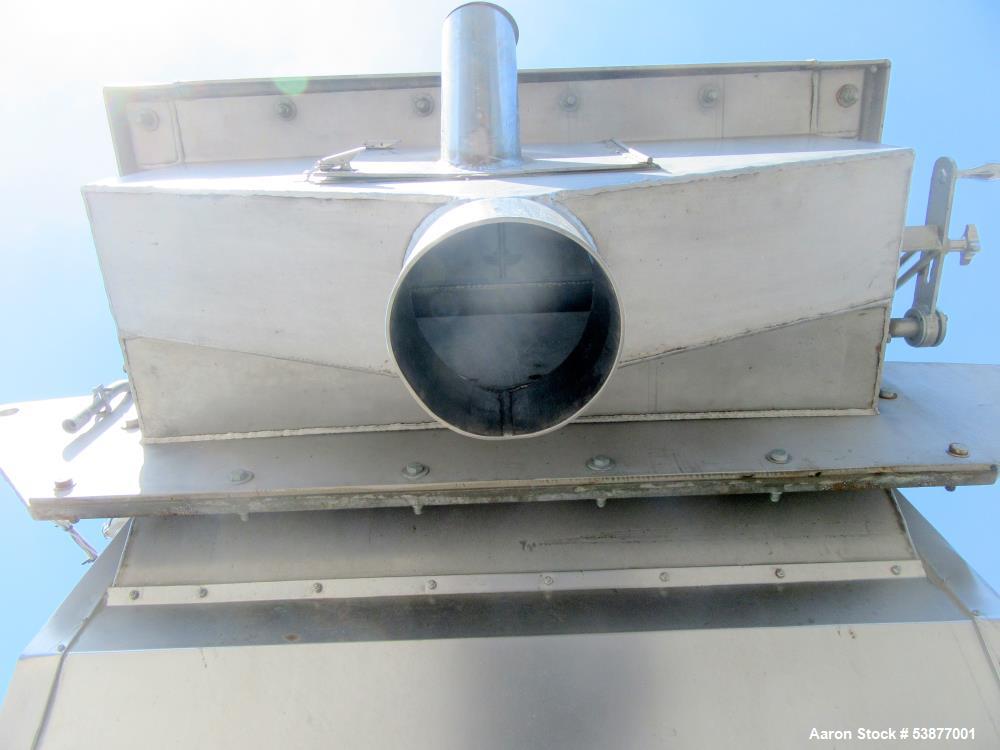

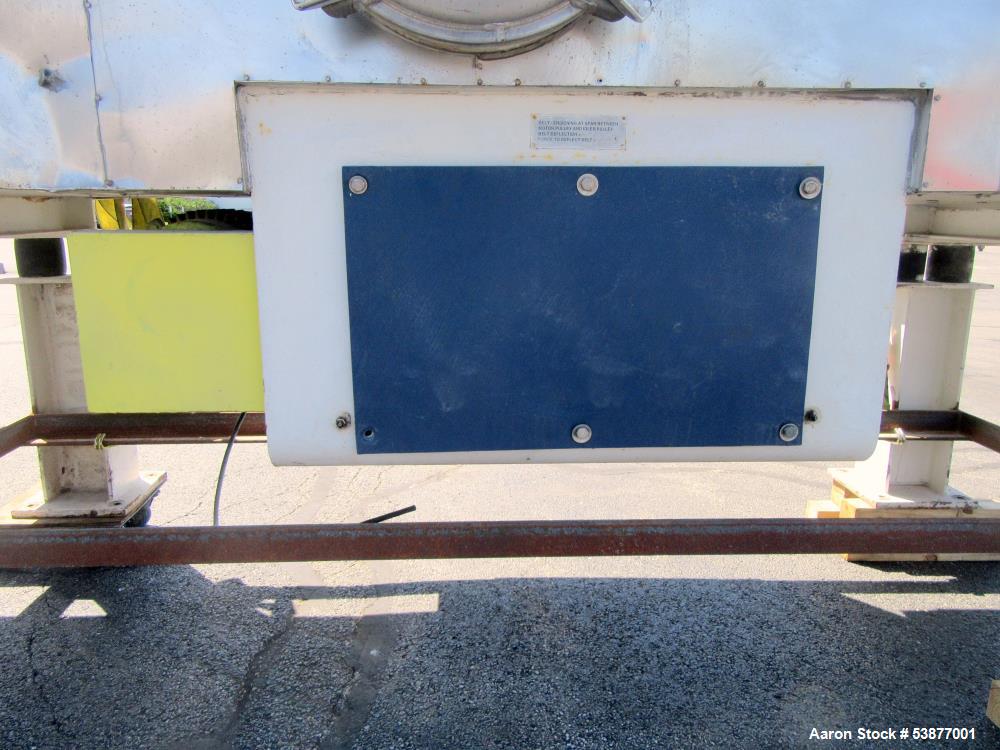

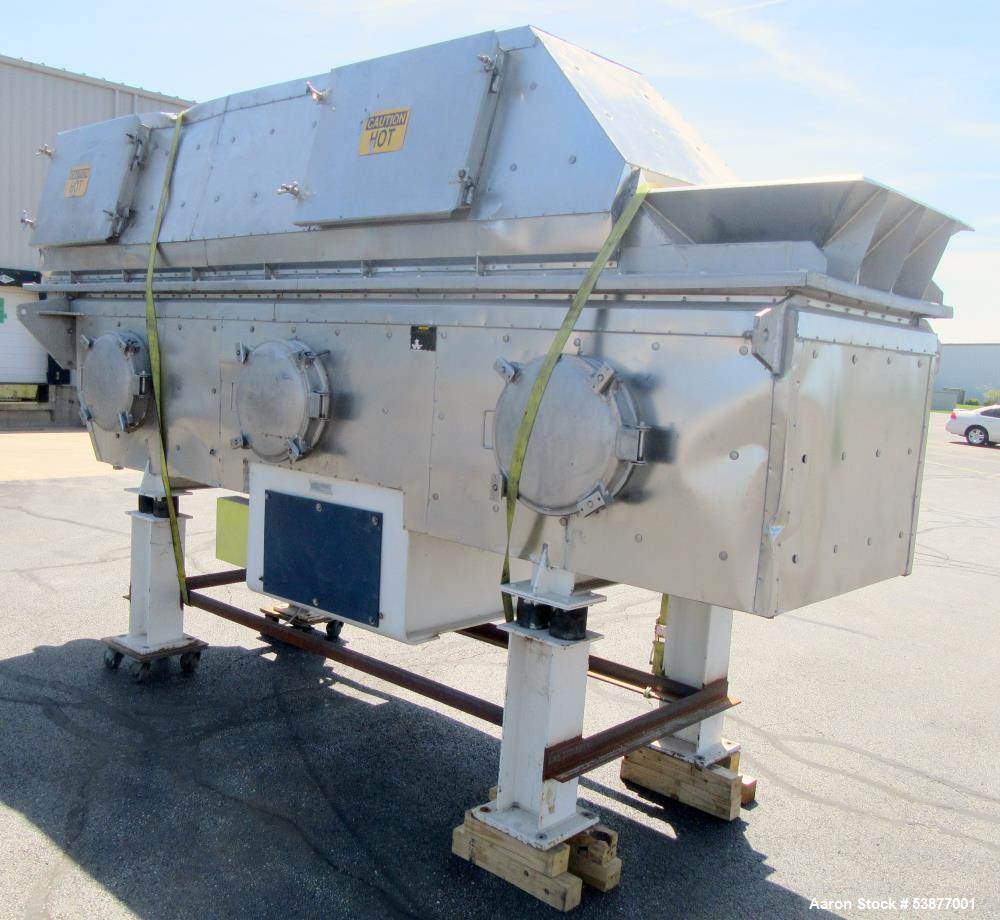

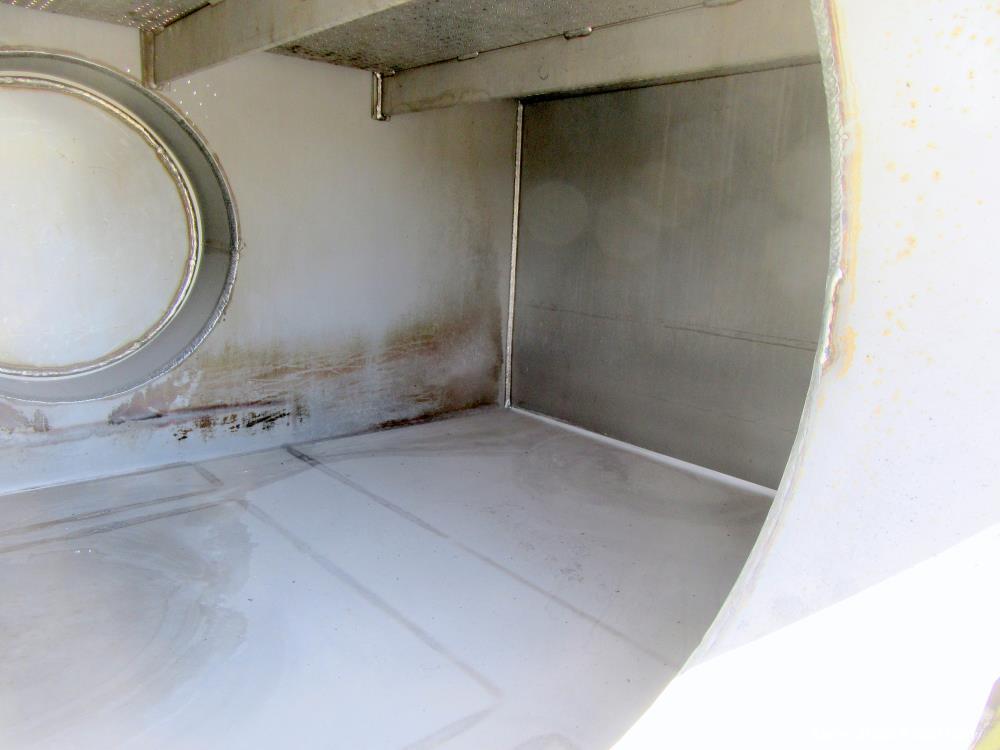

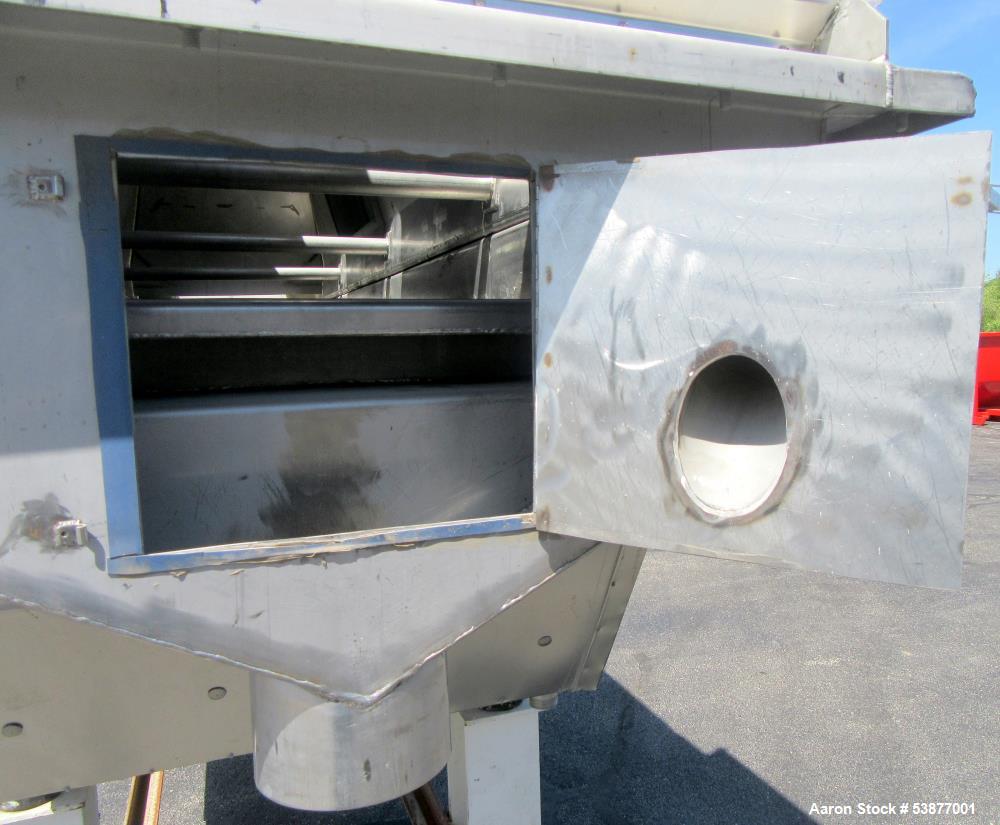

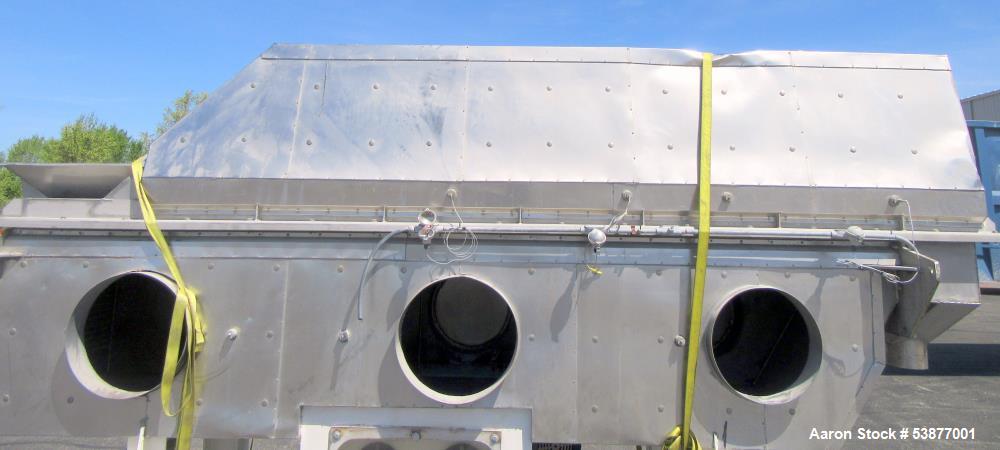

Used Carman Industries Model FBP-422, Vibrating Fluid Bed Dryer and Cooler Processor, Stainless steel. 40" wide bed x 8 drying zone and 63" cooling zone. This system is capable of processing up to 5,000 pounds per hour of materials such as 1/8-inch diameter peppercorns with a bulk density of 35 pounds per cubic foot. Reduces moisture content from a maximum of 14% to 9% while handling product temperatures up to 180F at the inlet and cooling them to 100F at the outlet, with a maximum operating temperature of 250F. The Model FBP-422 is powered by approximately 7.5 HP force vector drive operating at a 1/8-inch stroke and runs on a 230/460V, 60Hz, 3-phase electrical supply. Natural gas fired. On mezzanine.
Used Equipment Facts About This Machine
Manufacturer Information:
- Brand: Carman Industries
- Model: FBP-422
Description:
The Carman Industries Model FBP-422 Vibrating Fluid Bed Dryer & Cooler Processor is a high-capacity drying and cooling system designed for efficient moisture reduction and temperature control in industrial processing applications.
With a 40" wide bed, this system features:
- 8 drying zones
- 63" cooling zone
Capable of processing up to 5,000 lbs per hour, it efficiently handles materials like 1/8-inch diameter peppercorns (bulk density: 35 lbs per cubic foot). It reduces moisture content from 14% to 9%, accommodating inlet temperatures of up to 180°F and cooling product to 100°F.
This natural gas-fired unit operates at a maximum temperature of 250°F and is powered by a 7.5 HP force vector drive running at a 1/8-inch stroke. Mounted on a mezzanine, it operates on a 230/460V, 60Hz, 3-phase electrical supply.
Specifications:
- Machine Type: Vibrating Fluid Bed Dryer & Cooler
- Bed Width: 40”
- Drying Zone: 8 zones
- Cooling Zone: 63”
- Processing Capacity: Up to 5,000 lbs per hour
- Moisture Reduction: From 14% to 9%
- Temperature Handling:
- Inlet Temperature: Up to 180°F
- Outlet Temperature: 100°F
- Max Operating Temperature: 250°F

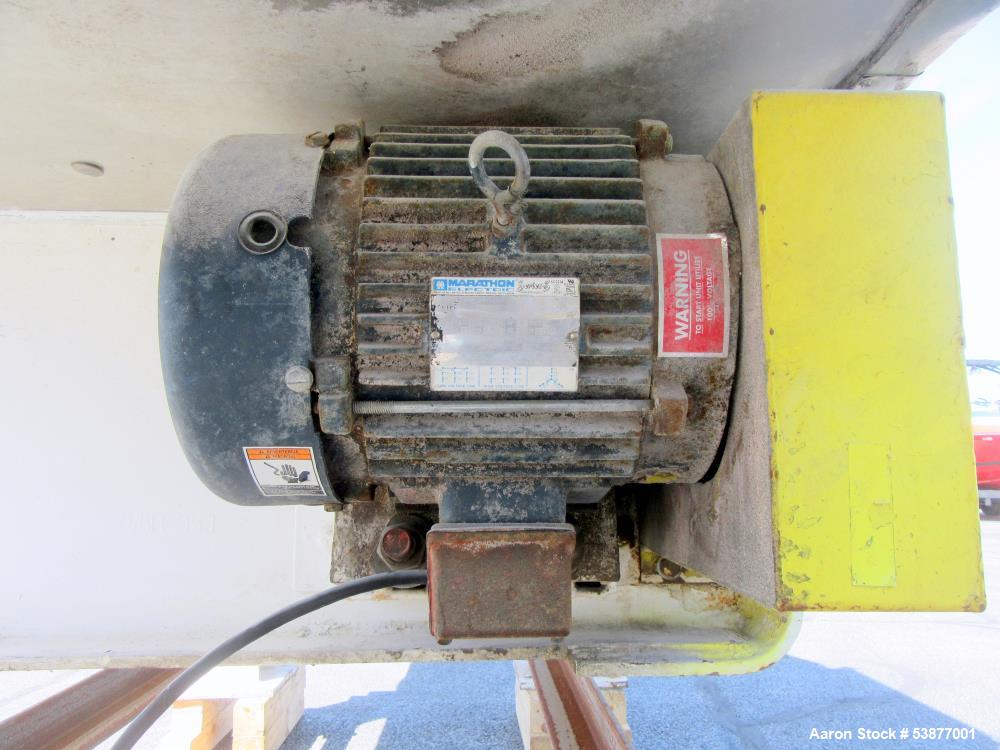

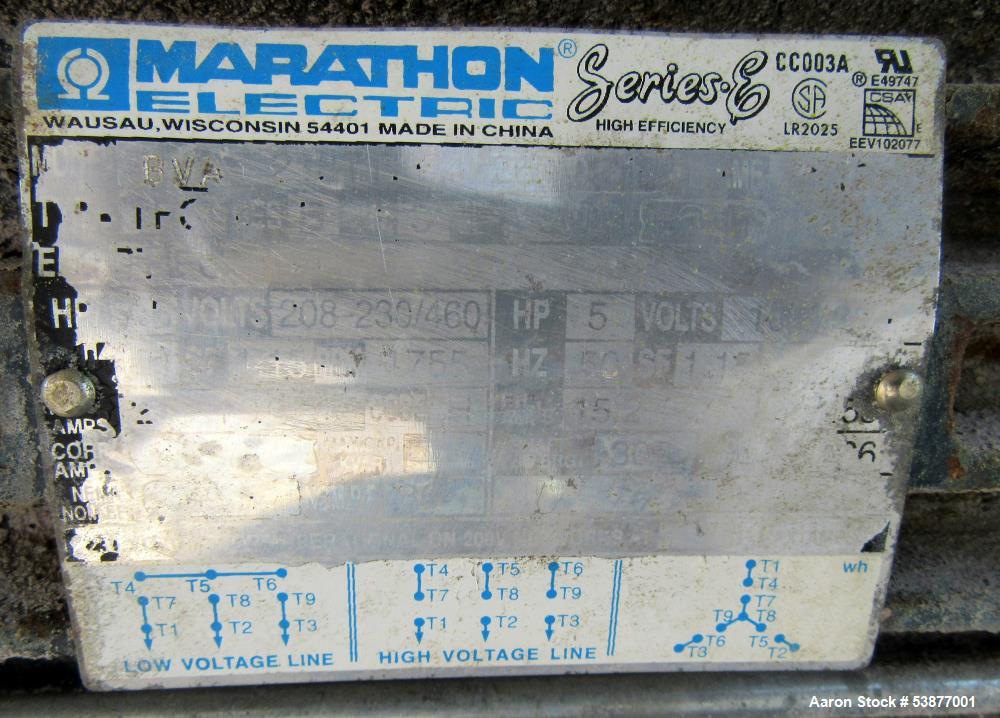

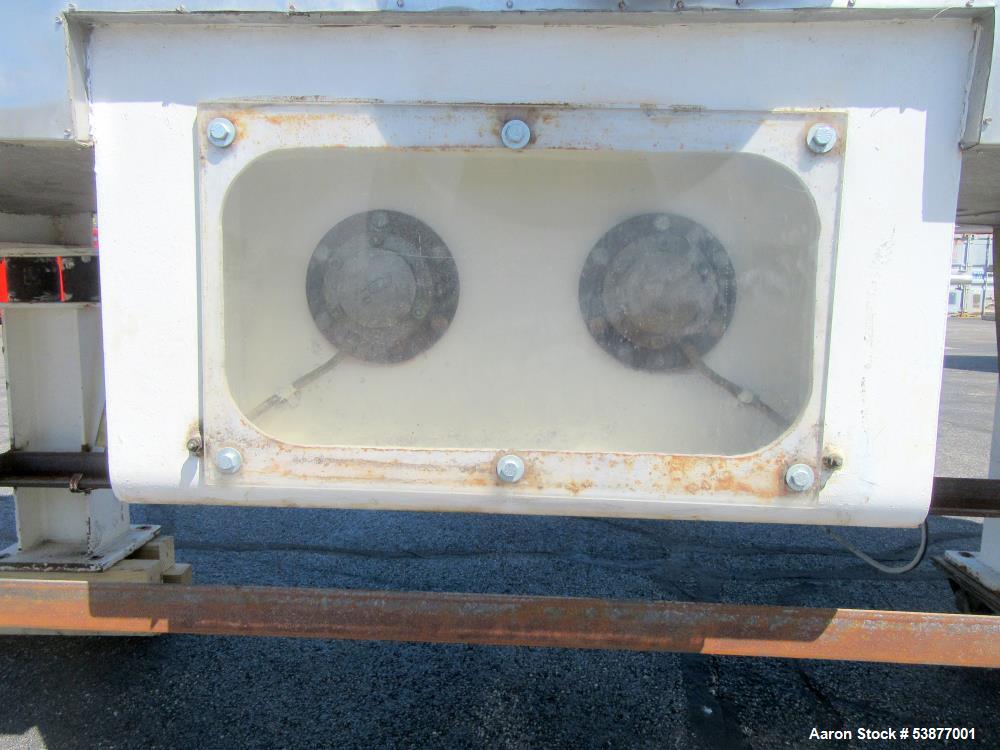

- Drive System: 7.5 HP force vector drive (1/8” stroke)
- Power Requirements: 230/460V, 60Hz, 3-phase
- Fuel Source: Natural gas fired
- Mounting: On mezzanine
Applications:
- Food processing (spices, grains, nuts, and seeds)
- Pharmaceutical ingredient drying and cooling
- Chemical powder processing
- Industrial bulk material drying
- Agricultural product moisture reduction
What Products Would This Be Used For?
- Peppercorns, spices, and seasonings
- Grains, rice, and cereals
- Coffee beans and cocoa nibs
- Nutritional supplements and powders
- Chemical powders and industrial materials
