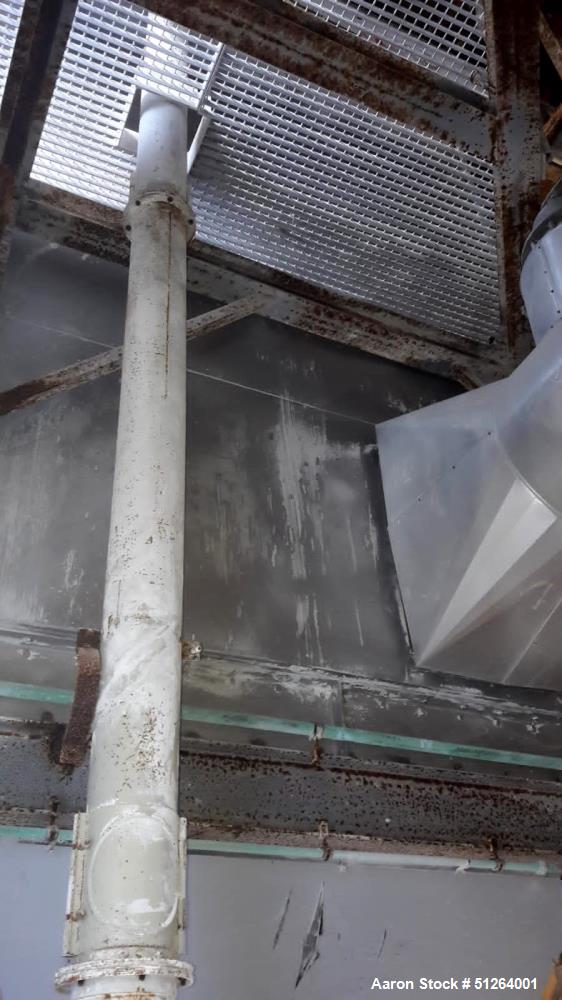

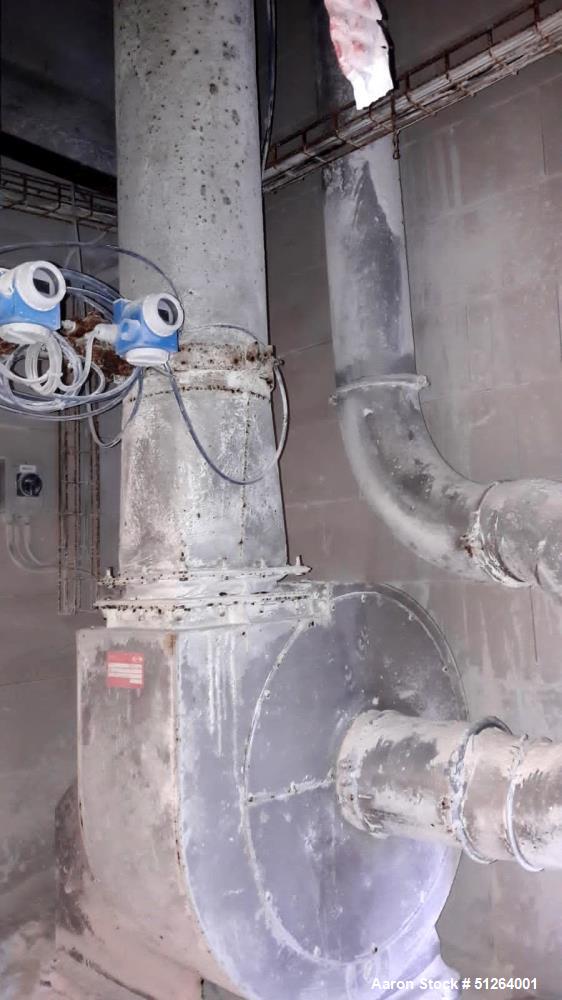

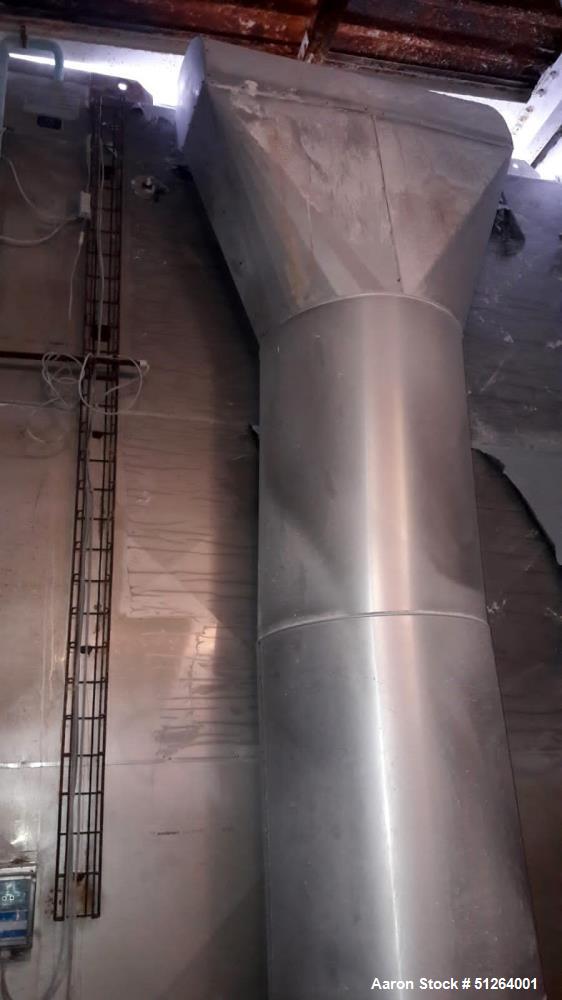

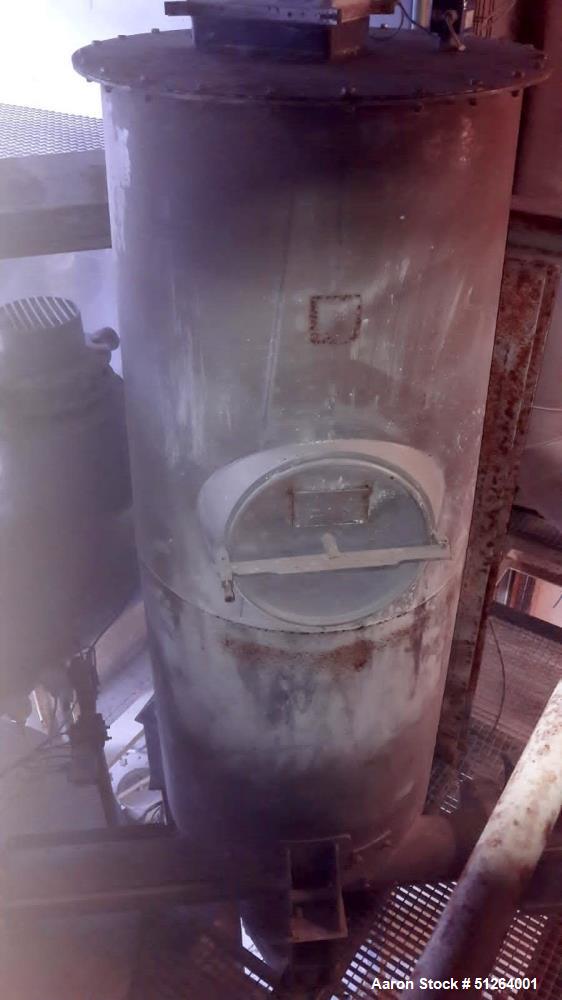

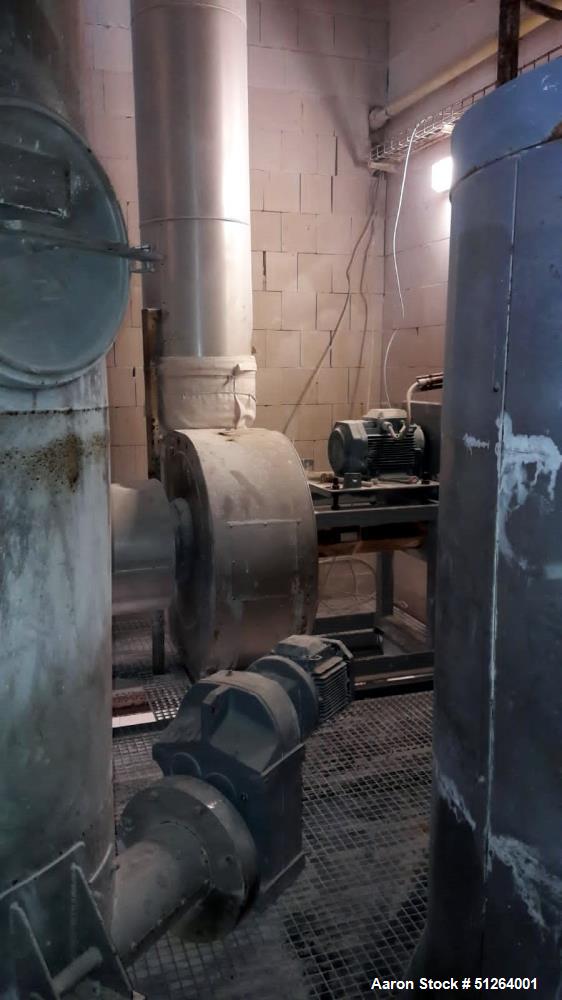

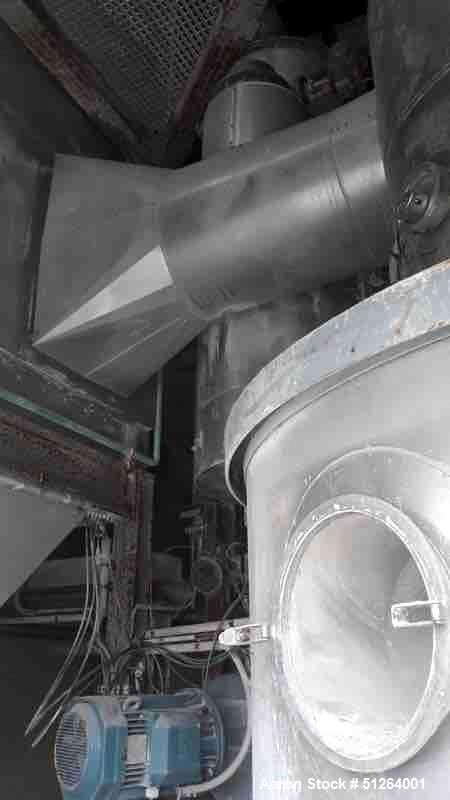

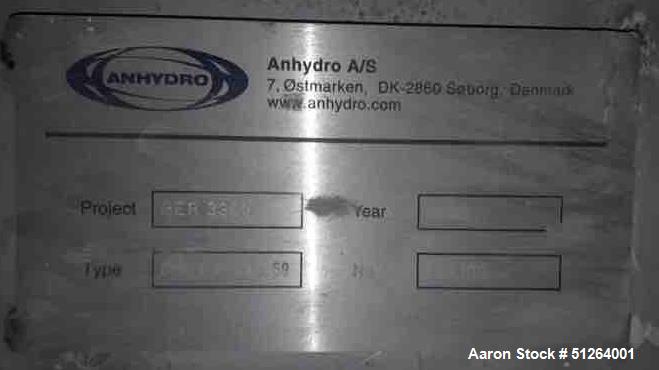

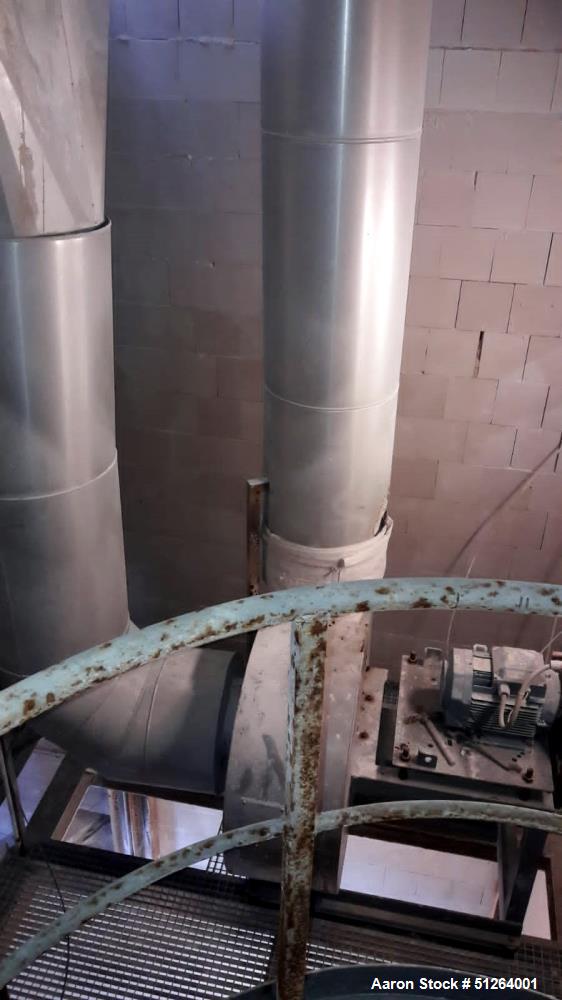

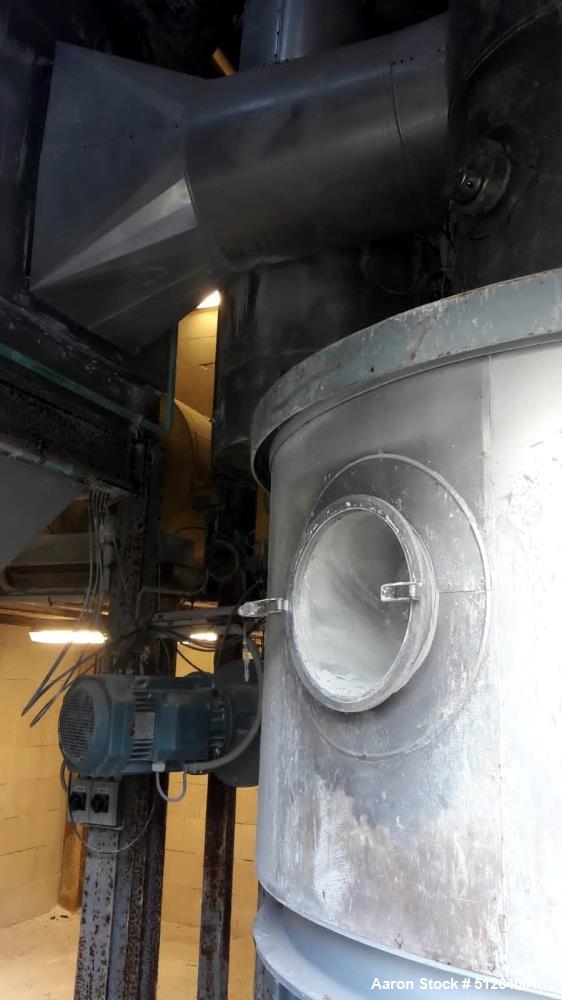

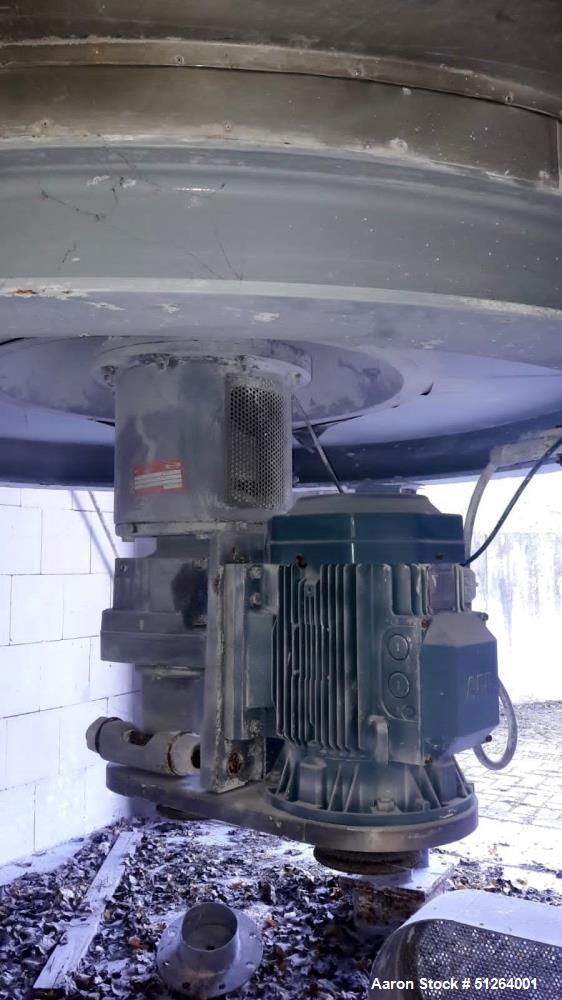

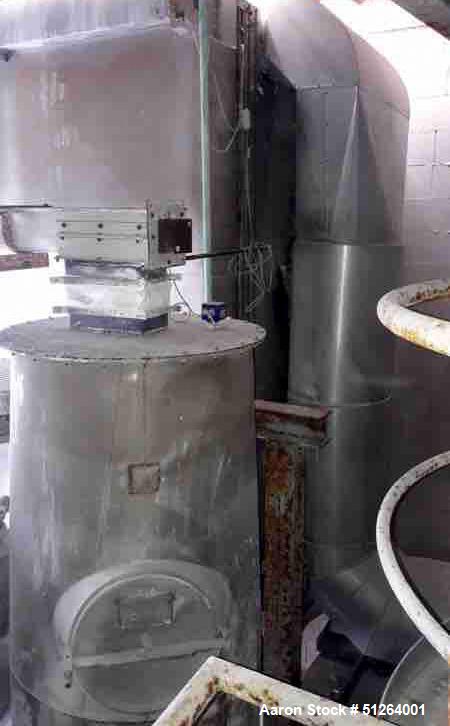

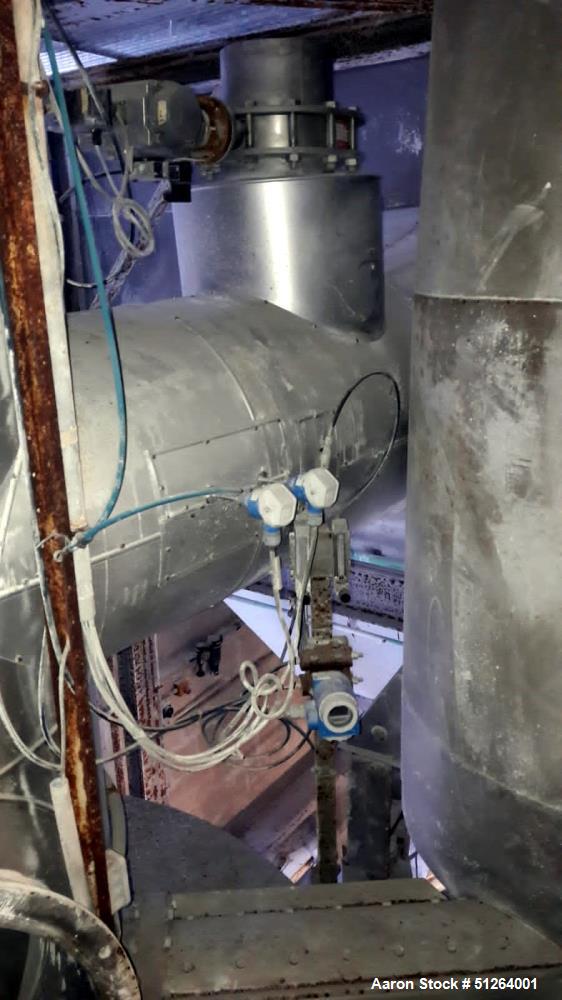

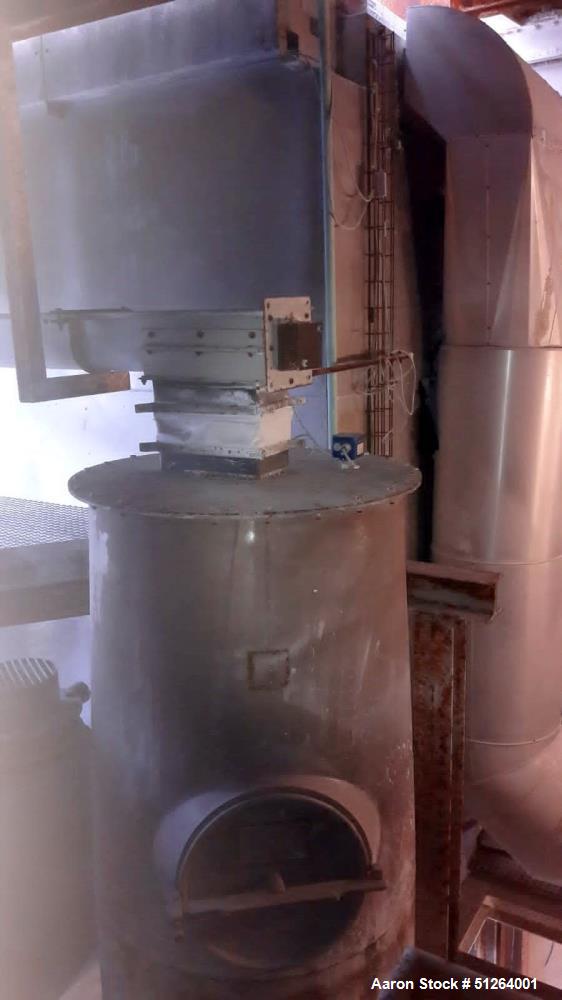

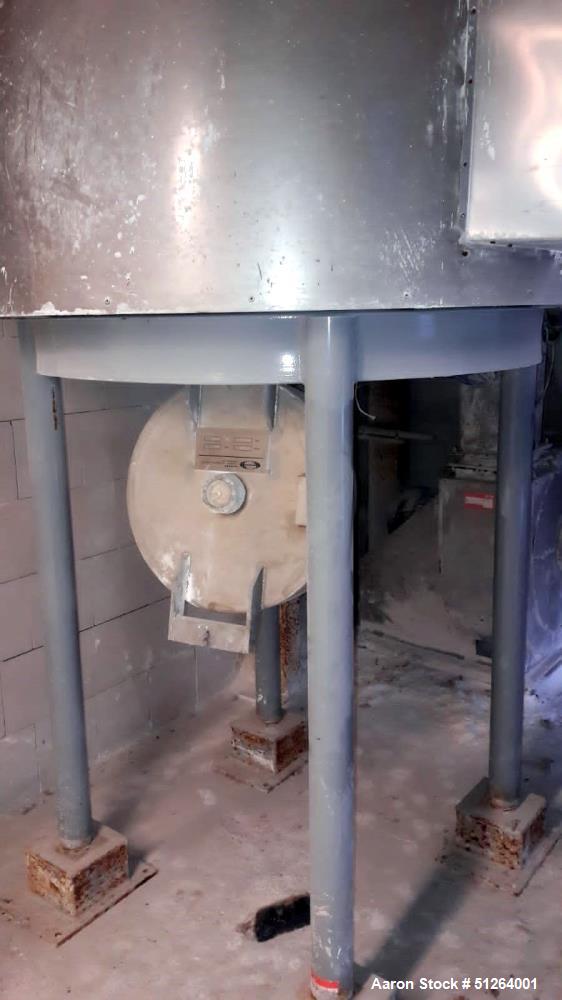

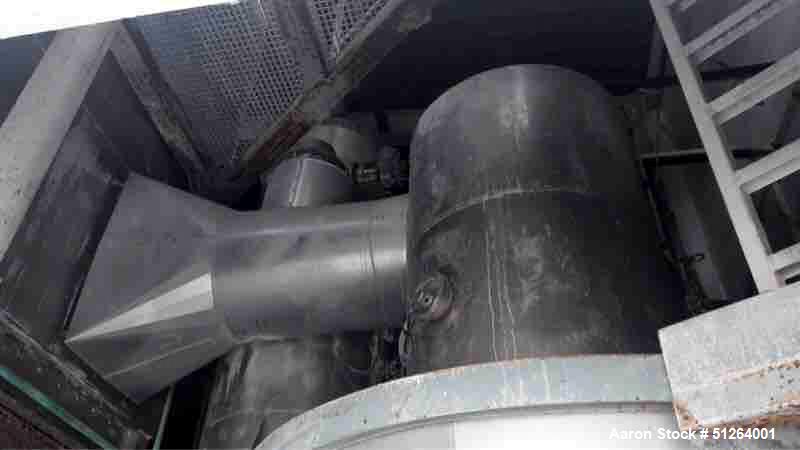

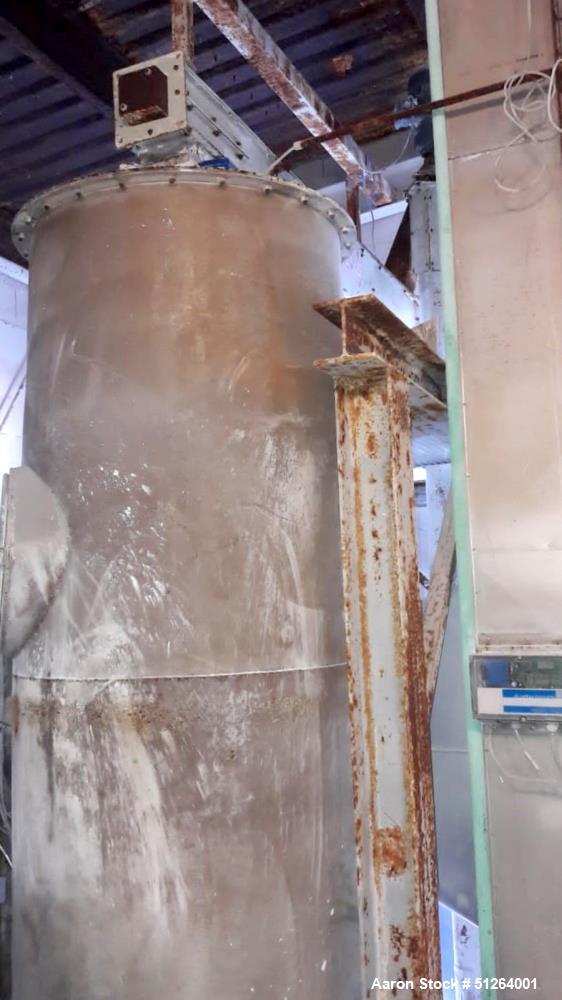

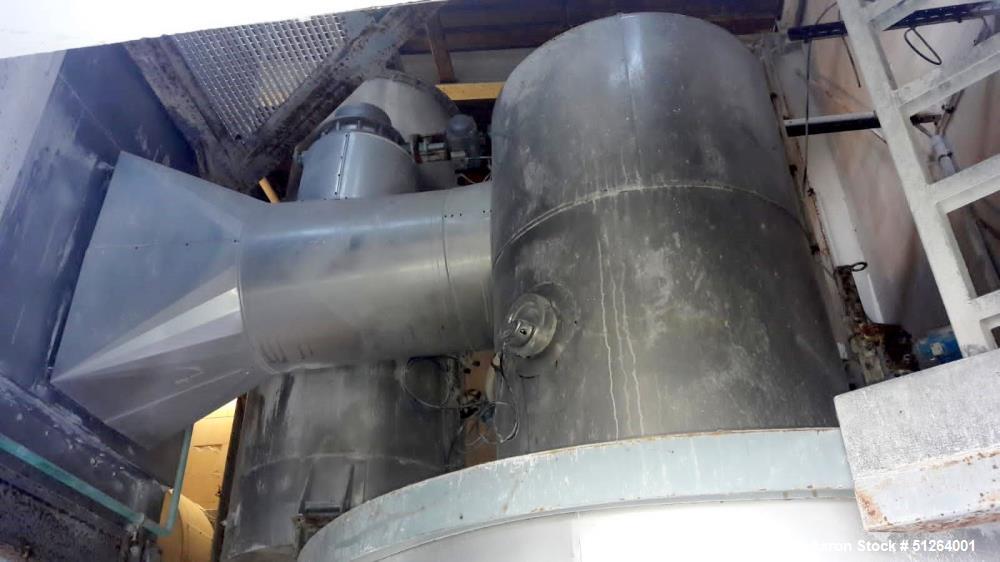

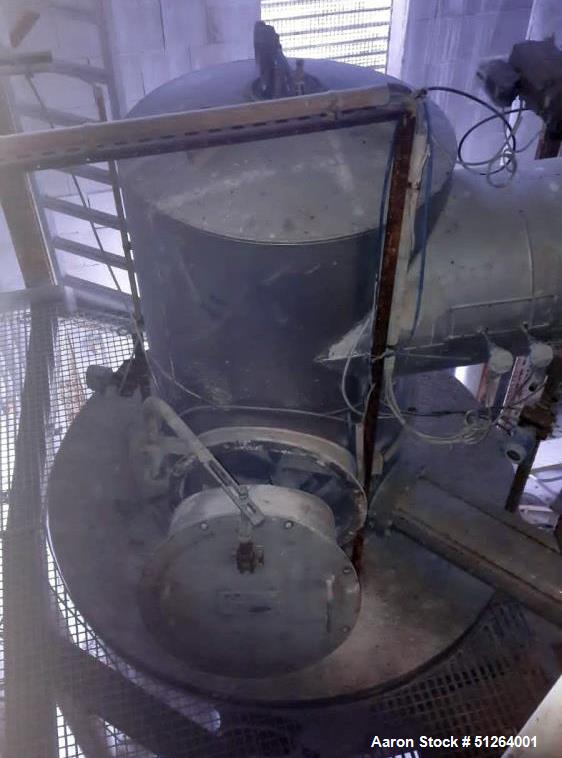

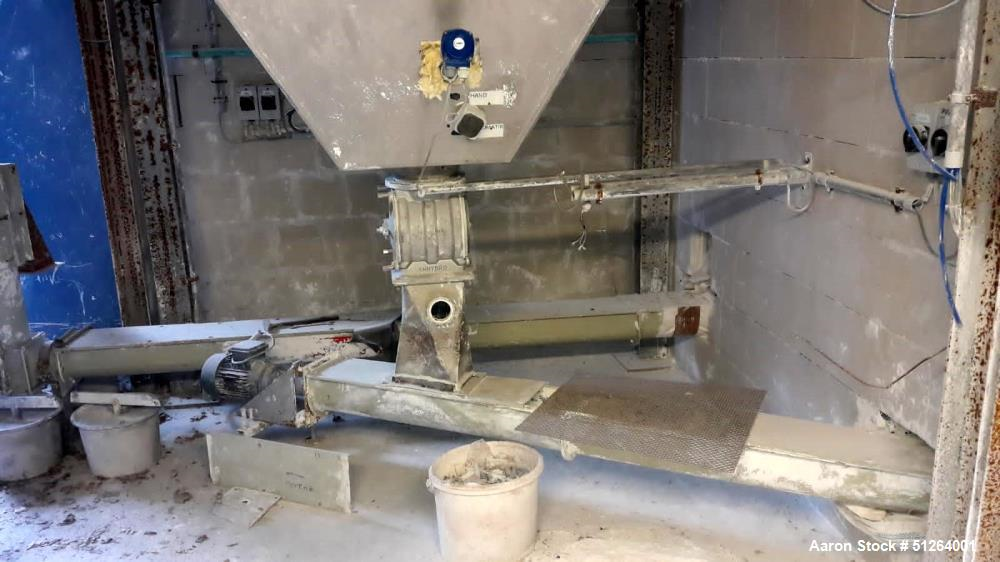

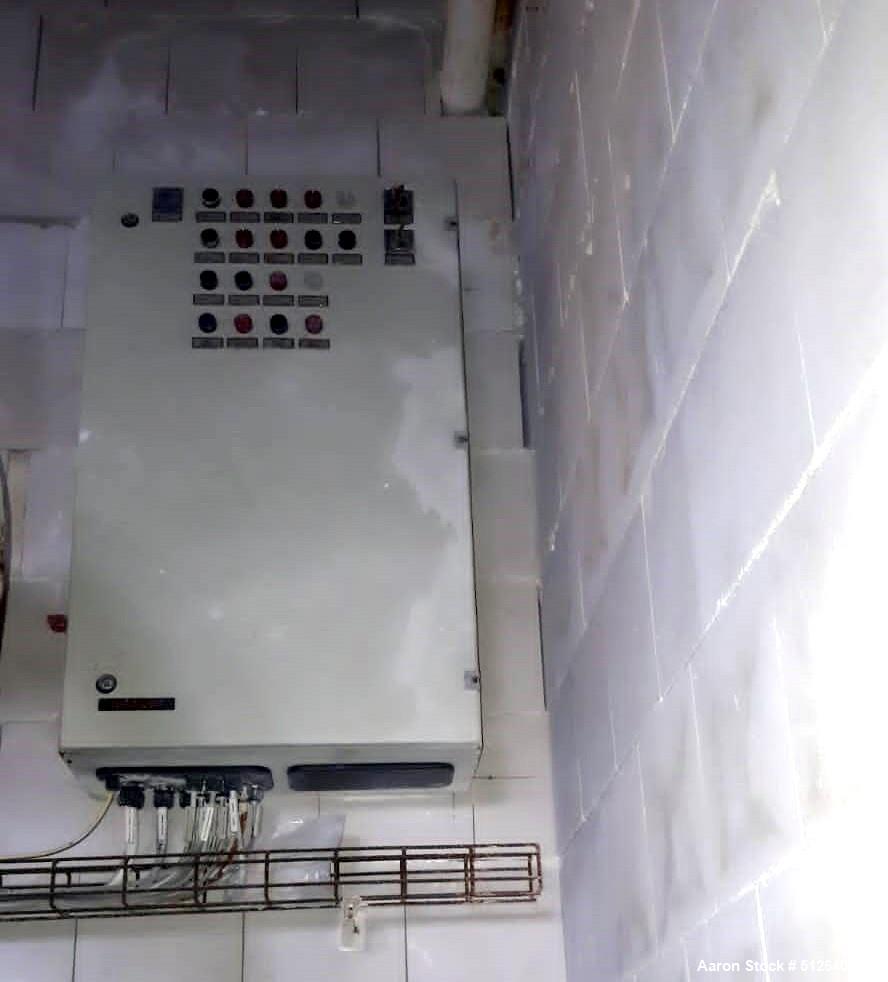

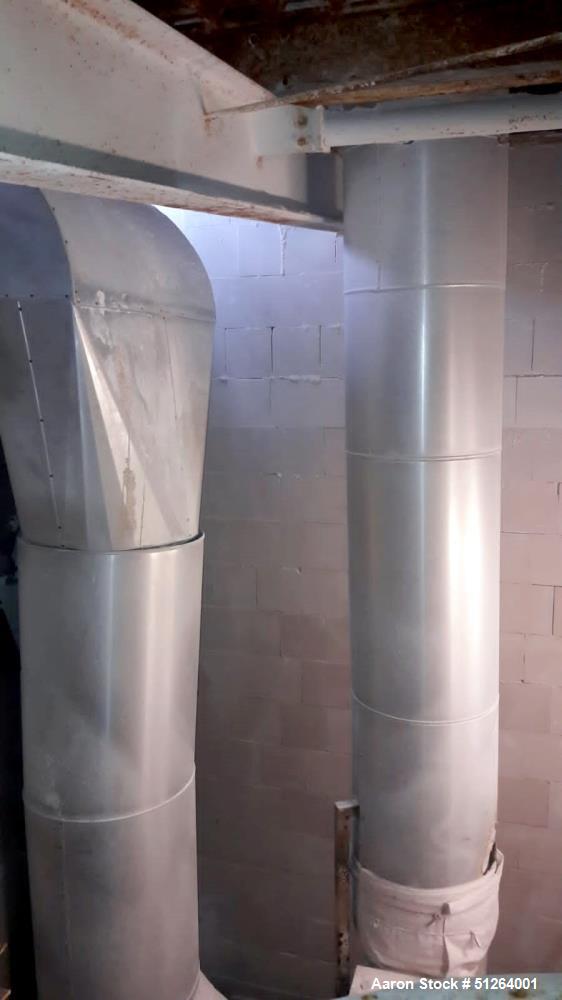

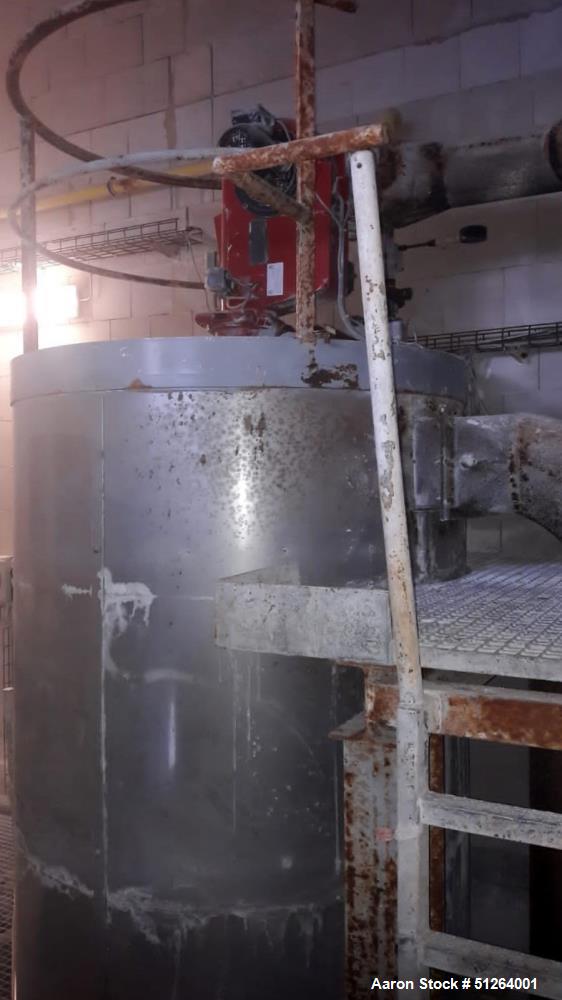

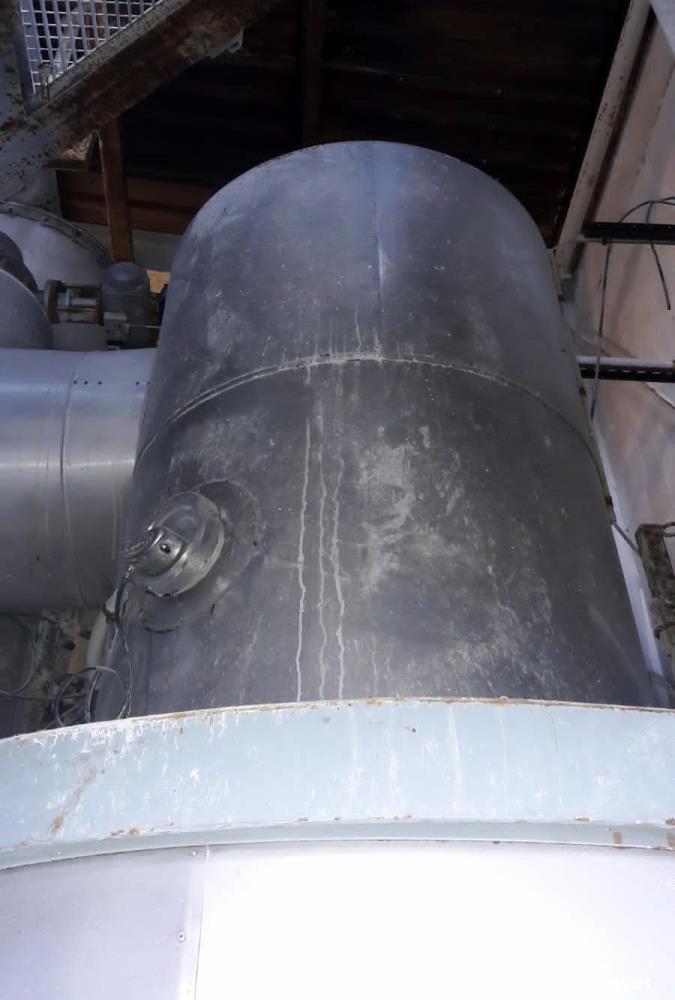

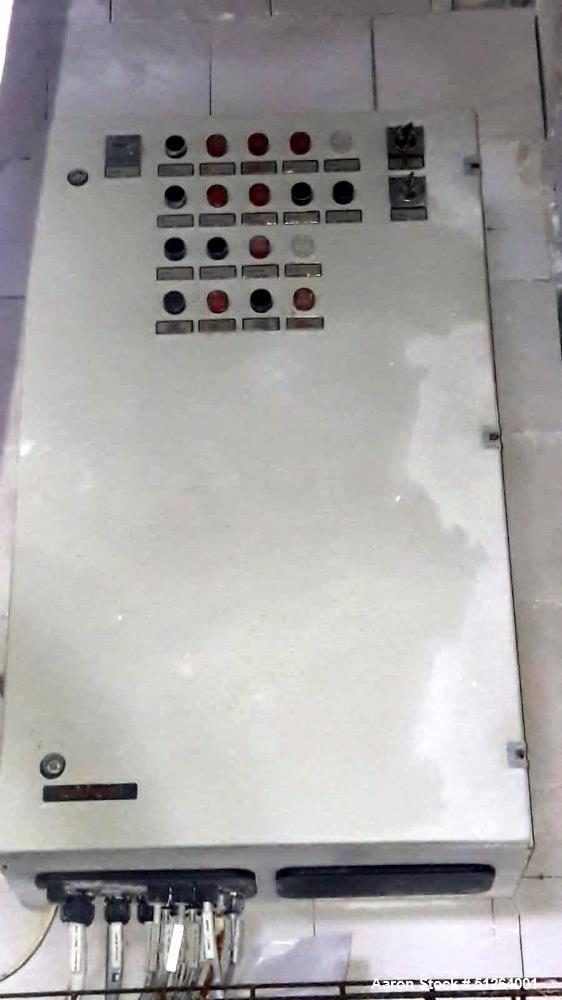

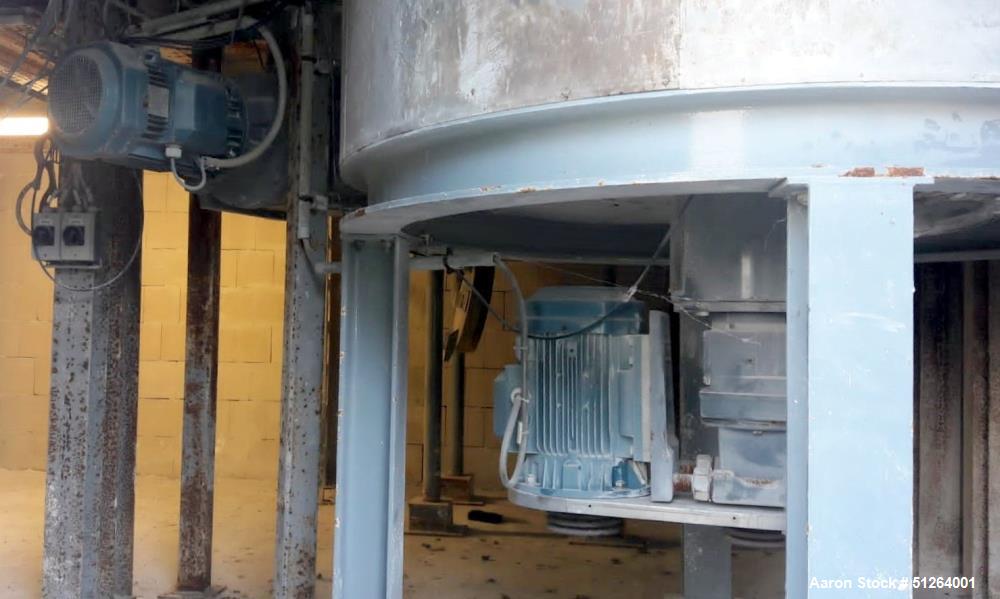

Used Anhydro SFD-59 Continuous Spin Flash Drying System. Consisting of: (1) Anhydro feed system, stainless steel, screw feed, includes drive motor. (1) Anhydro spin flash dryer, type Spin Flash No. 59 (SFD 59). AISI 316 (1.4301) Stainless steel. 26" (800 mm) diameter x 292" (9000 mm) drying chamber. Feed 5280 pounds/hour. (2400 kg/hour) with dry matter of 77% - water evaporation 763.4 pounds/hour. (347 kg/hr.) - air inlet temperature: 680 F (360 C) - gas 50 Nm3/h, Feed 3597 pounds/hour. (1635 kg/hour) with dry matter of 77% - water evaporation 517 pounds/hour (235 kg/hour) - air inlet temperature: 554 F (290 C) - gas 38 Nm3/h. Heated with natural gas. Bottom driver, on 4 legs. (1) Intensiv-Filter GmbH & Co KG bag filter, Type IFJC 45/2-3 S stainless steel with product outlet, on 4 legs. Complete with air in- and outlet, valves, pumps, correcting piping, additional infrastructure, and control panel. Serial # 303100. New 2006. Previous used in a dicalcium phosphate application.
