Used GEA Niro Swirl Fluidizer Flash Dryer – 55 kg/hr Evaporation, Stainless Steel Skid

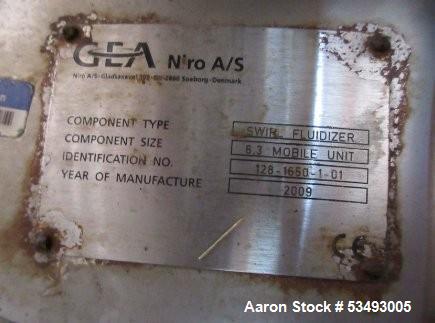

Manufacturer Information

• Brand: GEA Niro
• Model: Swirl Fluidizer/Agitated Flash Dryer System
• Construction: Stainless steel
• Built: 2009
• Fuel Supply: Natural gas/propane

Description

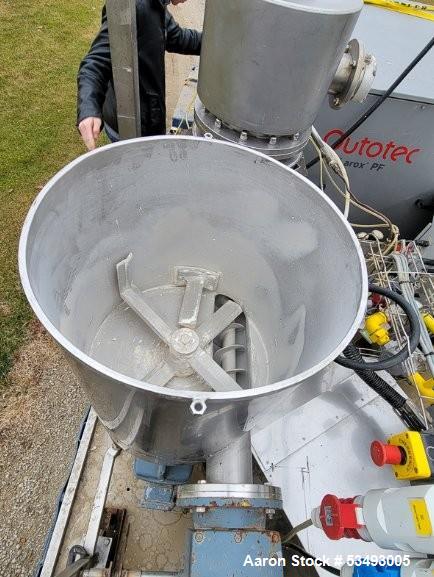

The GEA Niro Swirl Fluidizer/Agitated Flash Dryer System is a high-performance drying system designed for the continuous drying of pastes and slurries such as cellulose pastes. Built in 2009, this system features a stainless steel fluidizing slurry tank (approx. 3' D x 3' H) with a bottom scraped-wall blade agitator for uniform feed handling, connected to a screw conveyor.

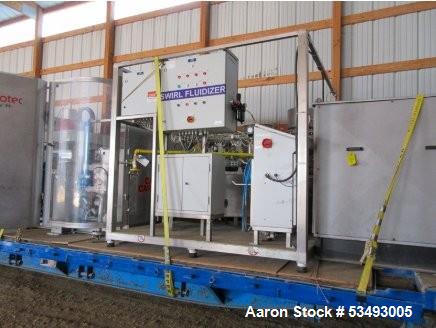

The dryer is mounted on an 86" x 87" x 82" stainless steel skid for ease of integration. It operates with 450-630 kg/hr air flow, inlet temperatures from 100°C to 350°C, and outlet temperatures from 60°C to 150°C. This system has a water evaporation rate of up to 55 kg/hr, a maximum powder output of 100 kg/hr, and a 150 kg/hr maximum feed rate. It is designed for use with natural gas or propane fuel supplies and comes with a complete control system and inlet air gas heater.

Specifications

• System Type: Swirl fluidizer/agitated flash dryer
• Construction: Stainless steel
• Slurry Tank Size: Approx. 3’ D x 3’ H
• Tank Features: Bottom scraped-wall blade agitator, outlet to screw conveyor
• Skid Dimensions: 86" x 87" x 82" (stainless steel skid)
• Air Flow: 450-630 kg/hr
• Inlet Temperature: 100°C to 350°C
• Outlet Temperature: 60°C to 150°C
• Water Evaporation Rate: Up to 55 kg/hr
• Max. Powder Output Rate: 100 kg/hr
• Max. Feed Rate: 150 kg/hr
• Fuel Supply: Natural gas/propane

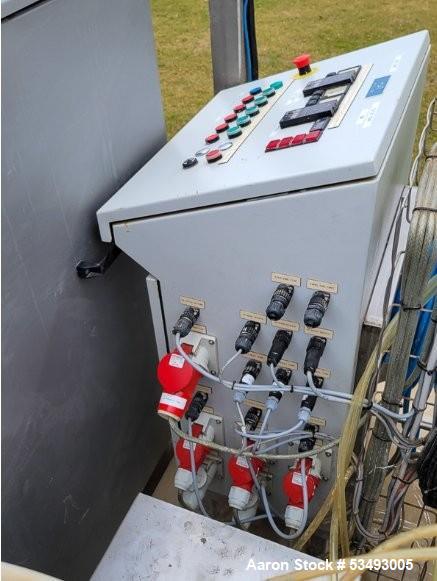

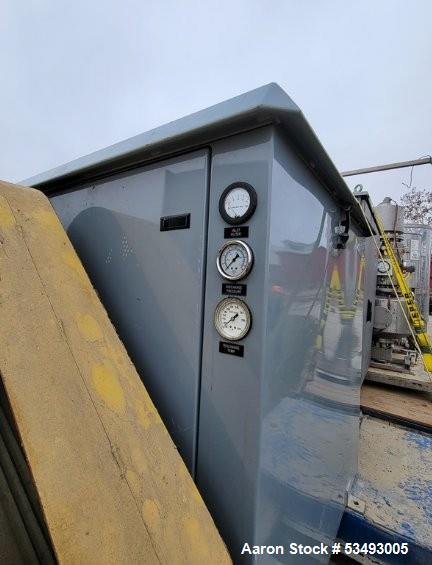

• Controls & Heater: Included
• Built: 2009
• Previous Use: Drying cellulose pastes prior to filtration

Applications

• Cellulose paste drying
• Food ingredients and paste drying
• Fine chemicals
• Nutraceuticals and pharmaceutical slurries
• Polymer and resin drying
• Starch and gum drying
