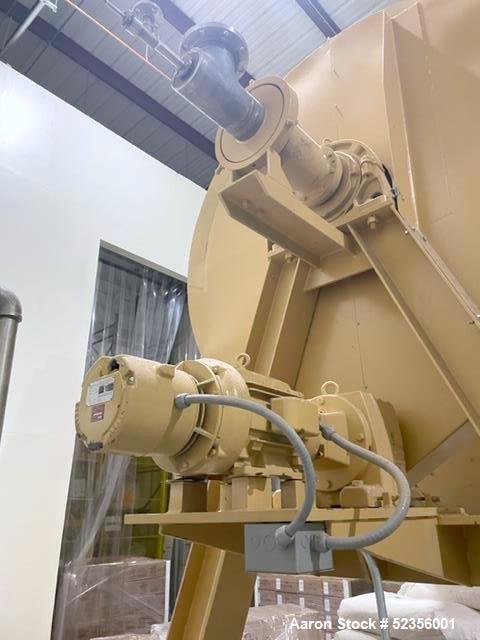

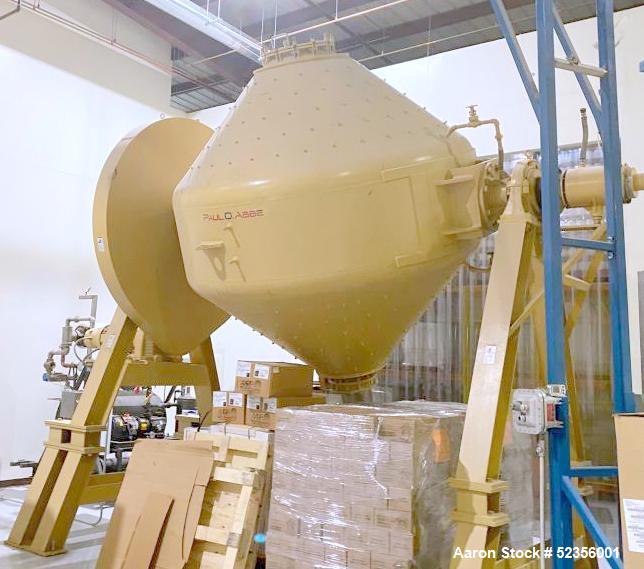

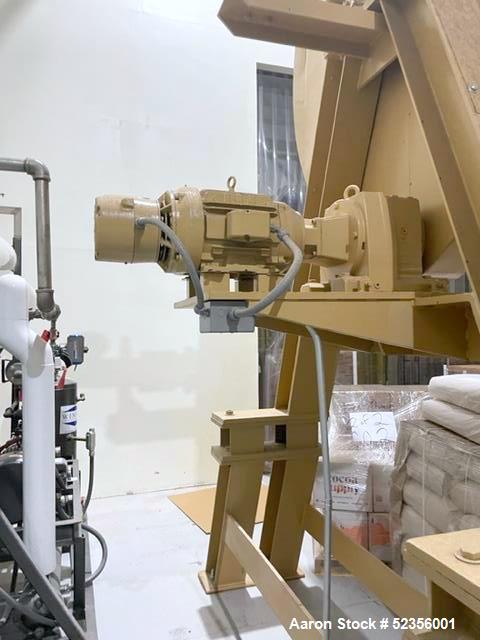

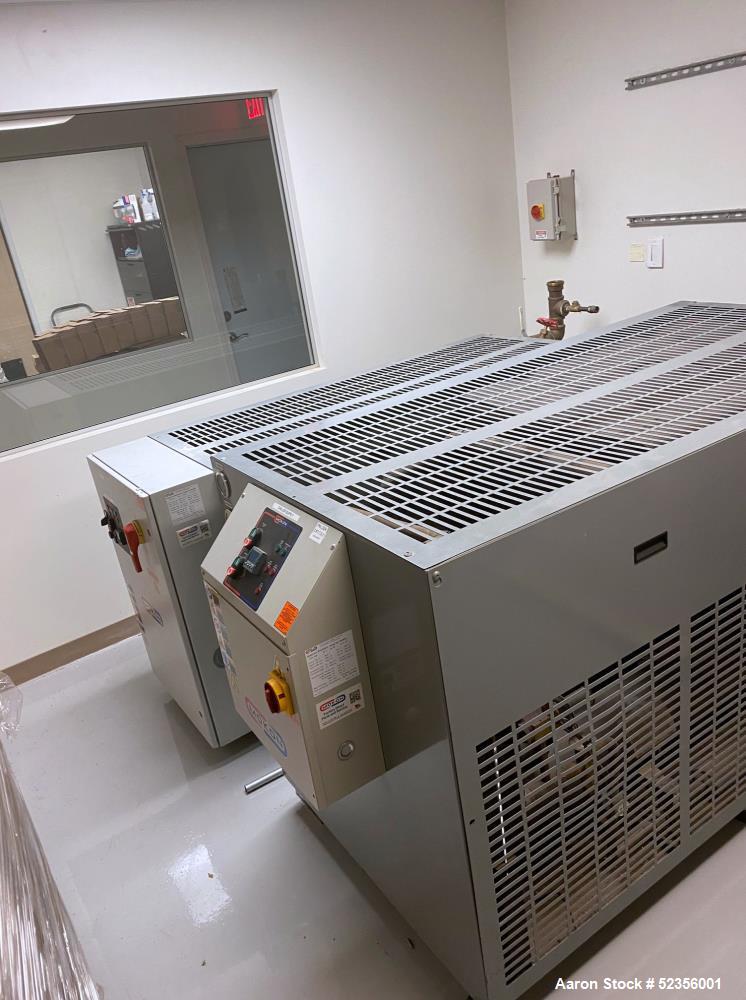

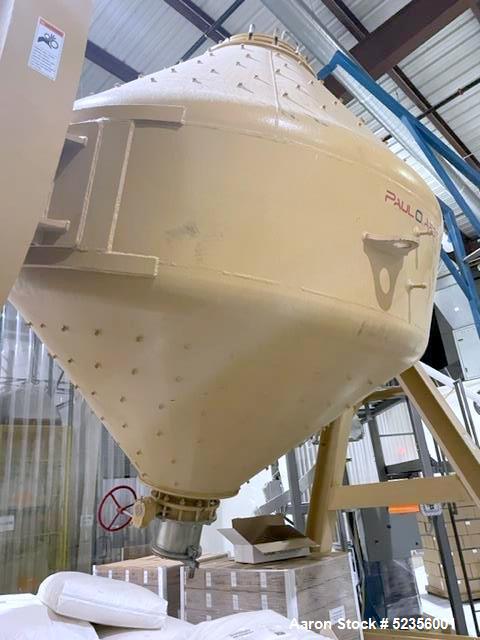

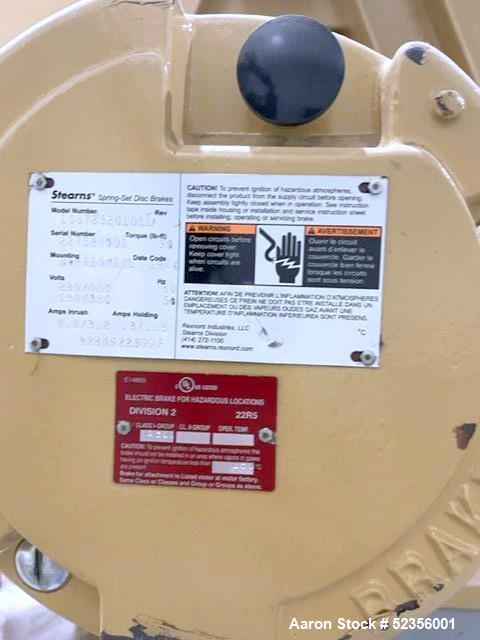

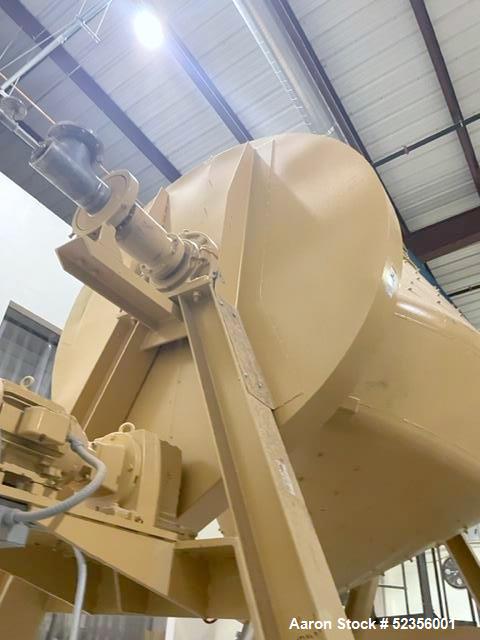

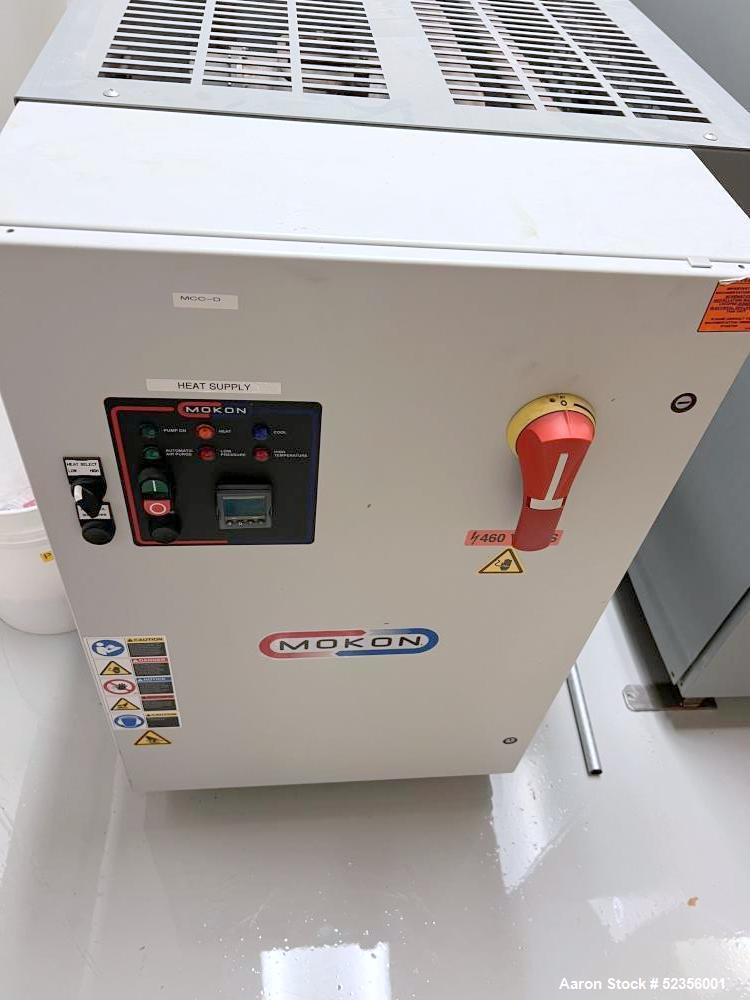

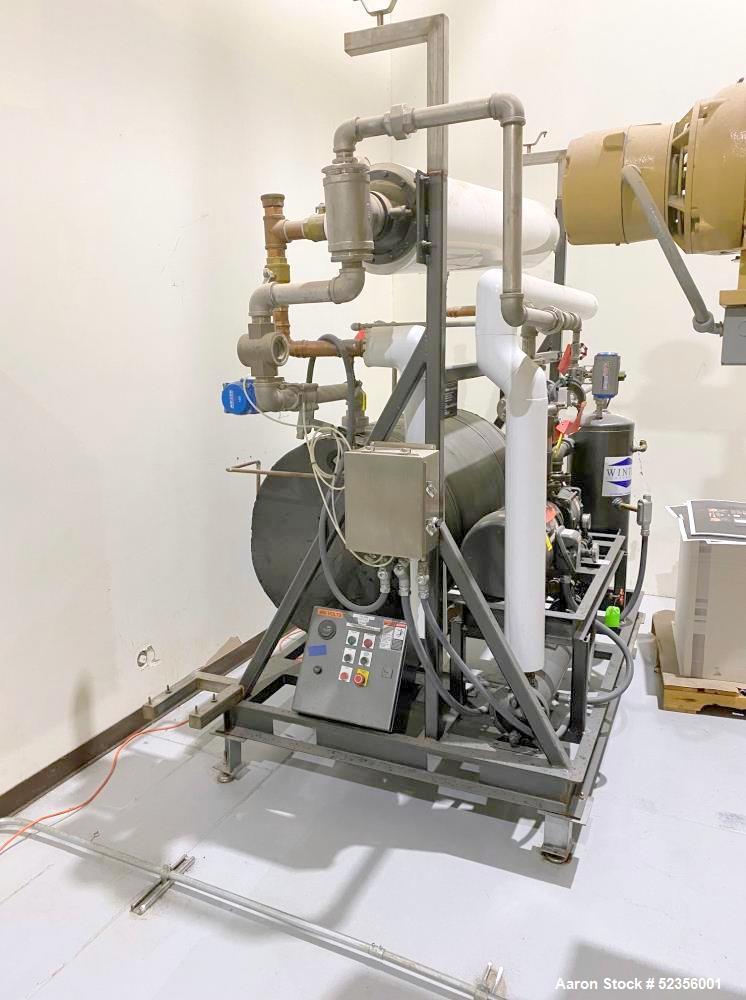

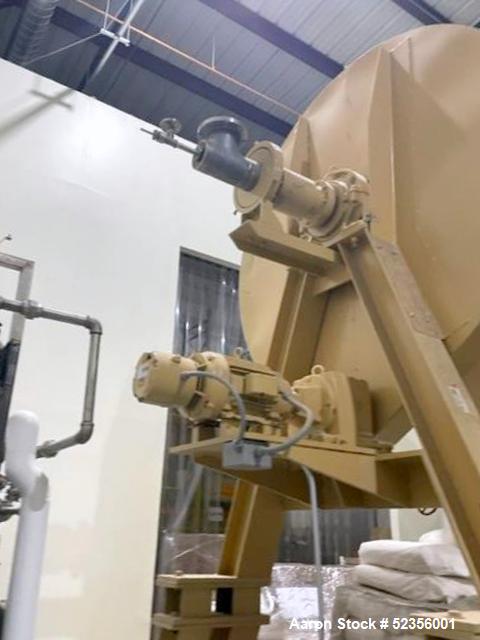

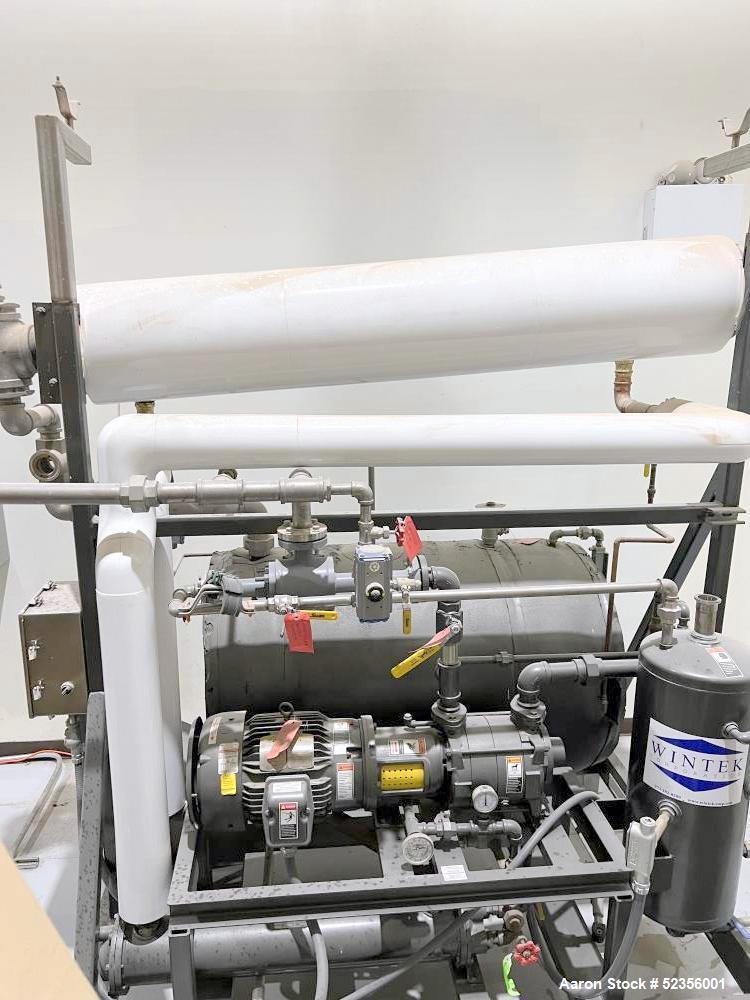

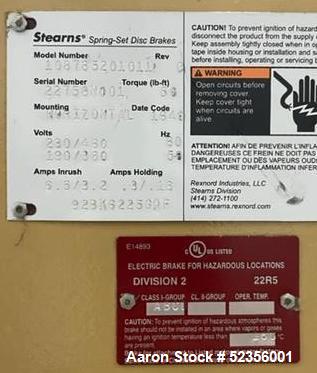

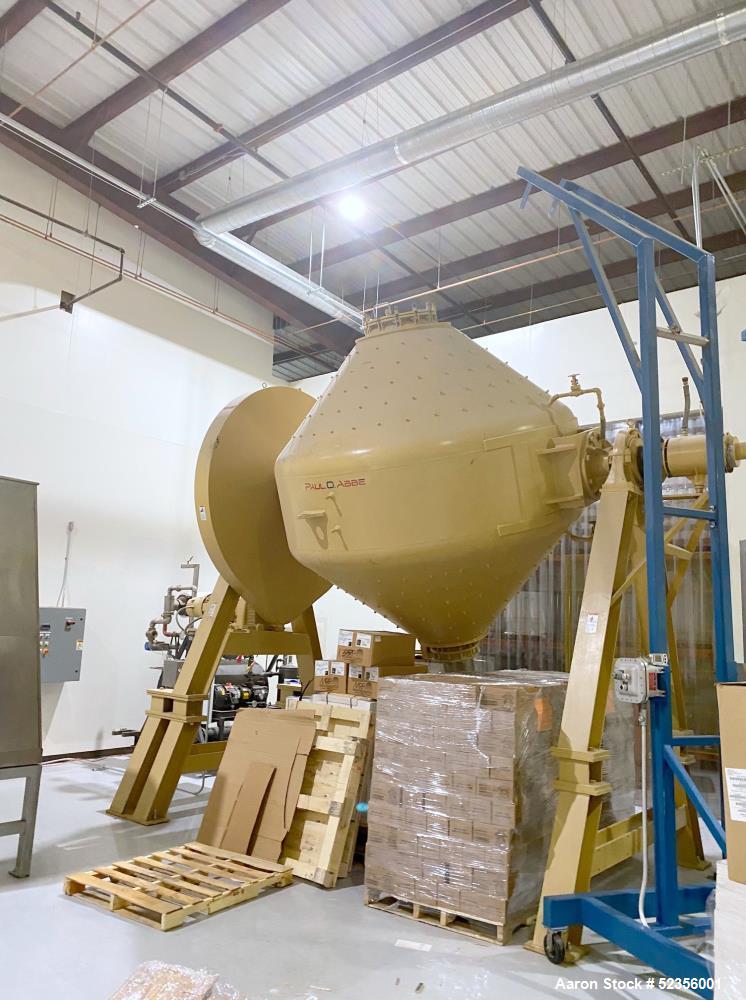

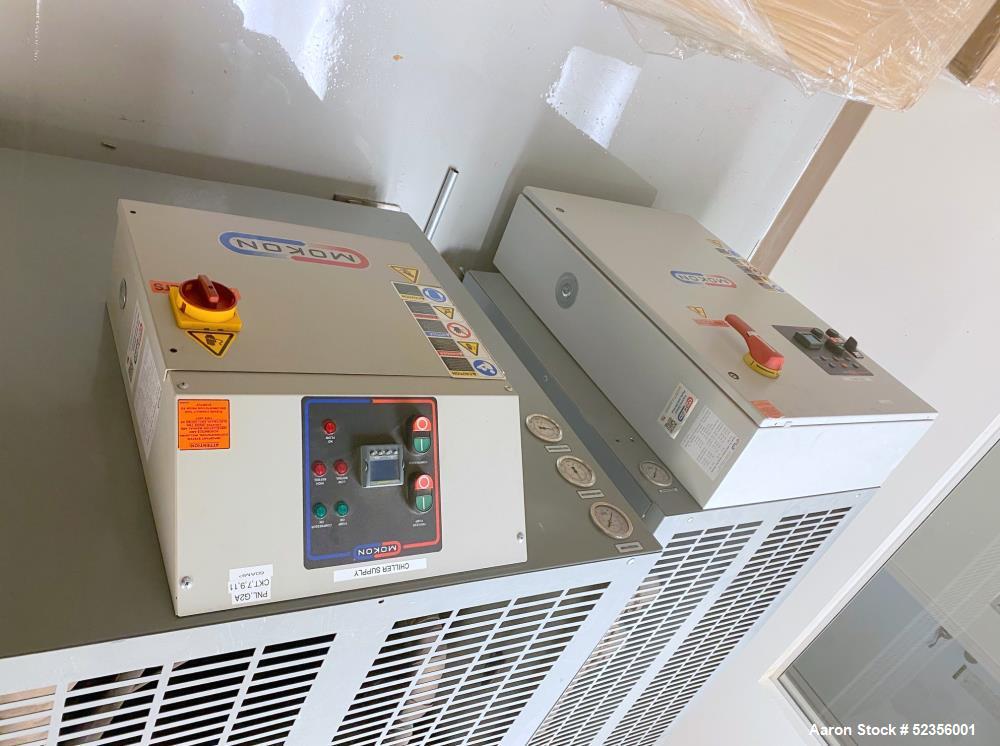

Used Paul O Abbe Rota-Cone Vacuum Dryer, model 108 RCVD, 304 stainless steel. 240 Cubic feet working capacity, 365 total. #4 Polished internal 108 diameter, rated 30 psi at 500 deg F to full vacuum.Carbon steel jacket rated 40 psi at 500 deg F coincident with full vacuum on internal. 20" diameter top port with cover, 12" center bottom outlet. Driven by a 10 hp, 3/60/230/460 volt gear motor with brake, ratio 82.6 to 1. Approximate 4 rpm cone. Mounted on carbon steel stands. Includes Control panel for dryer, Wintek Vacuum Pump Skid, Mokon Chiller and Mokon hot oil circulating unit. 2016 refurbishment included: General clean up; New Vacuum Line; New Oil Feed Box; New Drive & Idler Side Bearings; New Gear Wheel; New Spray Line; New Pinion Gear; New Gear Guard; New Valve w/ Gear Wheel Operator; New Gearmotor w/ Brake; Polished product contact areas to 180 Grit. 260" Long x 120" Wide x 170" High. Approximately 18,000 lbs.
Used Paul O Abbe Rota-Cone Vacuum Dryer, model 108 RCVD, 304 stainless steel. 240 Cubic feet working capacity, 365 total. #4 Polished internal 108 diameter, rated 30 psi at 500 deg F to full vacuum.Carbon steel jacket rated 40 psi at 500 deg F coincident with full vacuum on internal. 20" diameter top port with cover, 12" center bottom outlet. Driven by a 10 hp, 3/60/230/460 volt gear motor with brake, ratio 82.6 to 1. Approximate 4 rpm cone. Mounted on carbon steel stands. Includes Control panel for dryer, Wintek Vacuum Pump Skid, Mokon Chiller and Mokon hot oil circulating unit. 2016 refurbishment included: General clean up; New Vacuum Line; New Oil Feed Box; New Drive & Idler Side Bearings; New Gear Wheel; New Spray Line; New Pinion Gear; New Gear Guard; New Valve w/ Gear Wheel Operator; New Gearmotor w/ Brake; Polished product contact areas to 180 Grit. 260" Long x 120" Wide x 170" High. Approximately 18,000 lbs.
