Stock No.: 51711004

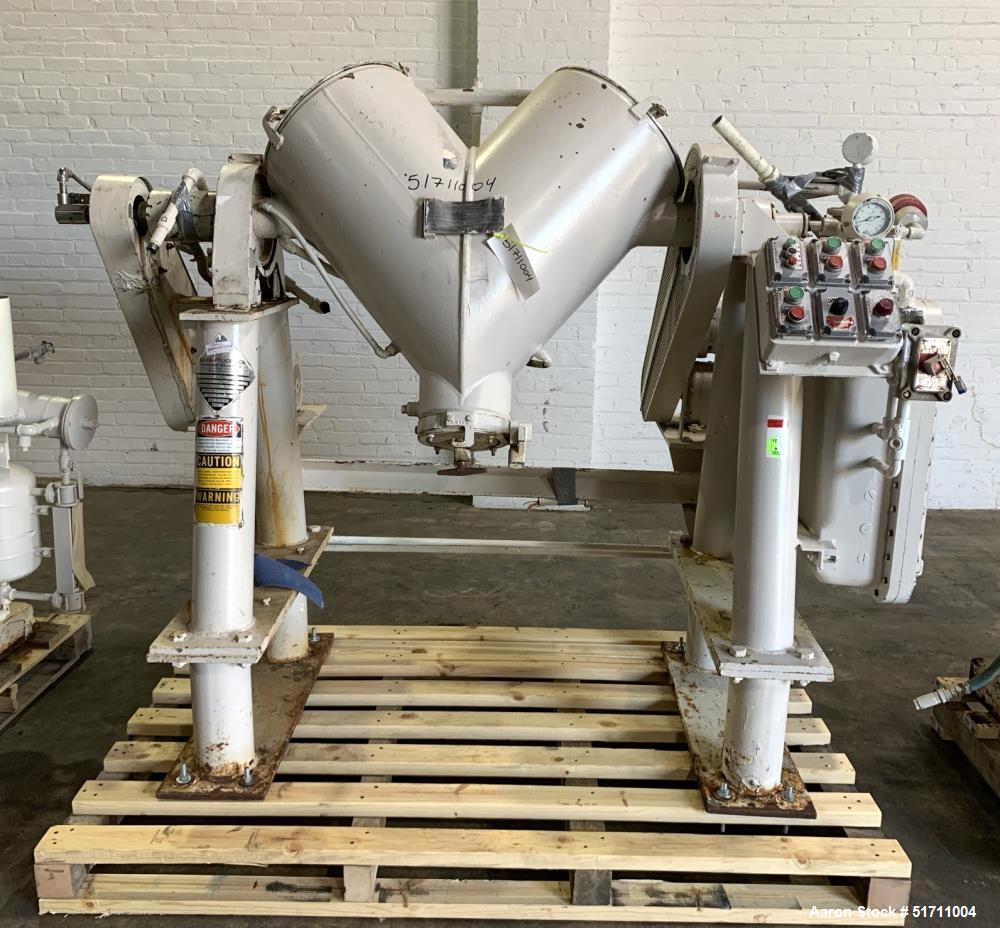

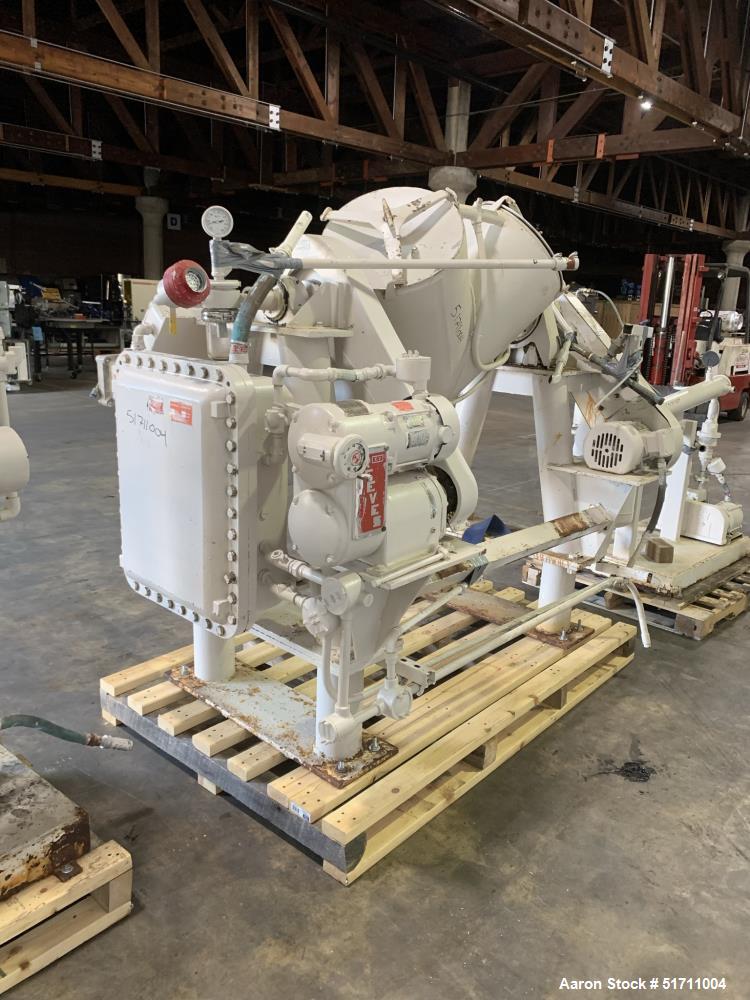

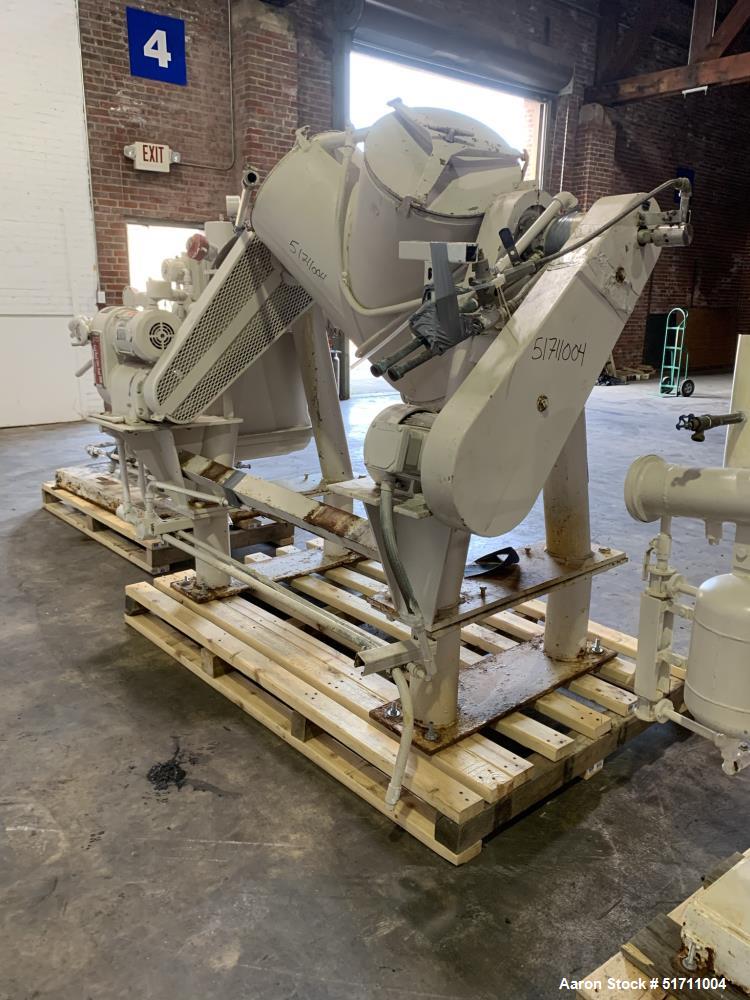

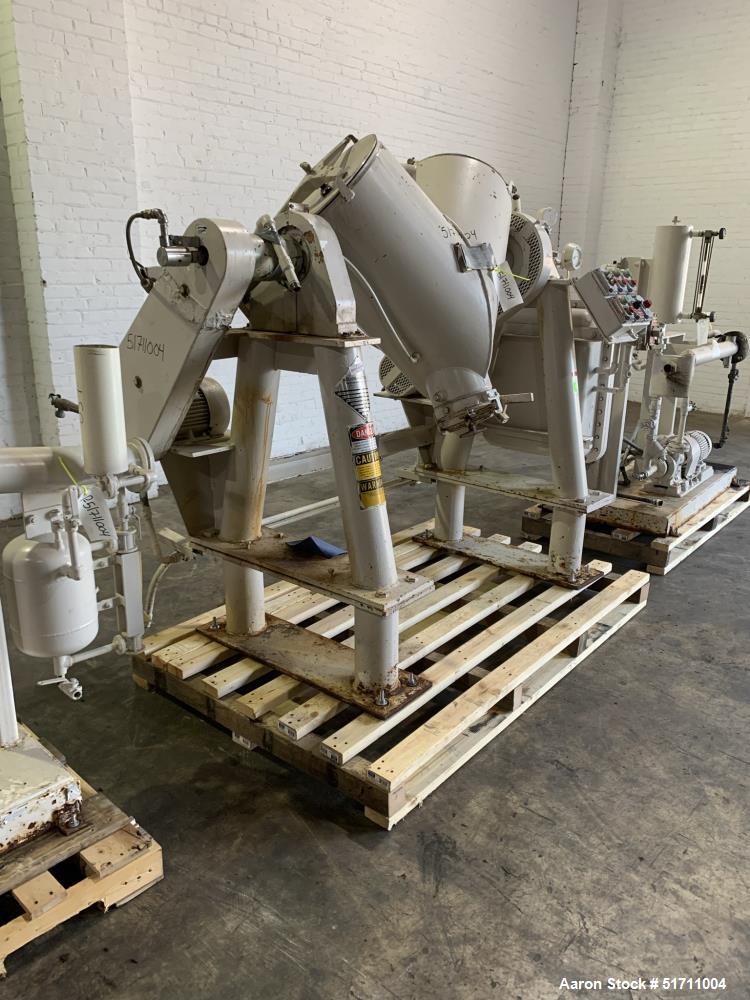

Used Industrial Patterson Kelley Twin Shell Solids Processor – 3 Cubic Feet, Vacuum & XP Motor

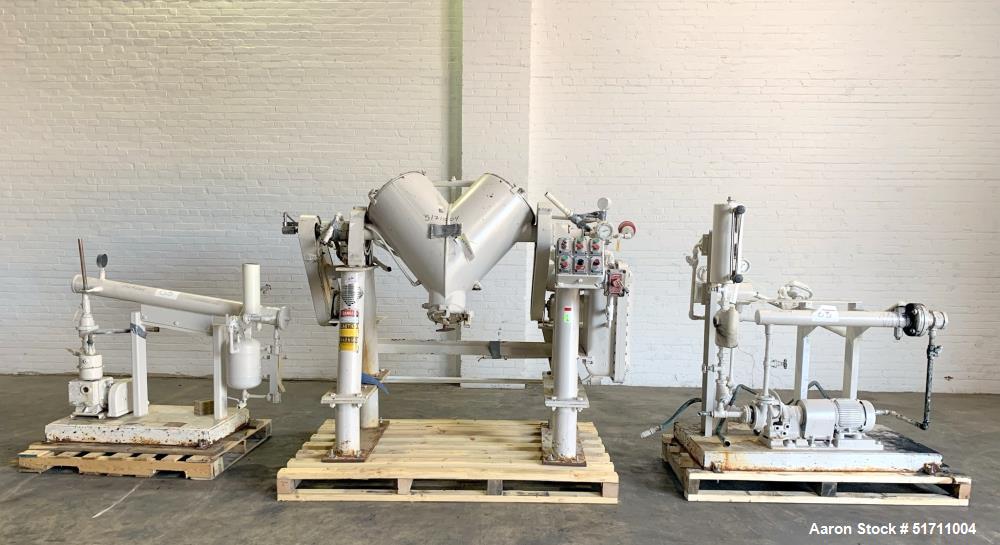

Used- Patterson Kelley (PK) Twin Shell Solids Processor. 3 Cubic feet working capacity. Maximum material density 100 pounds per cubic foot. 304 Stainless Steel Vessel, 316 Stainless Steel Shaft. Shell rated full vacuum at 250 degrees F maximum temperature. Jacket rated 30 psi at 250 degrees F. (2) 16" Diameter charge ports with quick change covers. Shell driven by Reeves manual adjustable speed drive with 3/4hp, 3/60/230/460 volt, 1725 rpm XP gear motor, 44:1 ratio, 10.6 to 84 rpm output speed. Intensifier bar driven by 2hp, 3/60/230/460 volt, 1725 rpm XP motor. 6" Center bottom outlet with manual butterfly valve, approximate discharge height 30". Includes explosion proof control panel, vacuum pump skid with 1/2hp vacuum pump and circulation skid with 1hp pump. Frame mounted. PK Serial# 272781, National board# 51987.
-
ManufacturerPatterson Kelley
-
Serial #272781
-
CategoryDryers - Drying Equipment
-
SubcategoryDouble Cone - V Rotary Vacuum
-
Material Of Construction304 Stainless Steel
-
Capacity3 Cubic Feet
-
Maximum Material Density100lbs per cu/ft
-
Internal RatedFull Vacuum
-
Pressure RatedJacket 30 psi
-
Internal Temperature250 Degrees F.
-
Opening Size(2) 16" charge ports
-
Opening CoverYes
-
Outlet Size6
-
Liquids/Solids BarYes
-
Motor Hp3/4
-
Motor Phase3
-
Motor Cycle60
-
Motor Voltage208-230/460 Volt
-
Motor Rpm1725
-
Motor TypeExplosion Proof (XP)
-
Drive Ratio44:1
-
Control PanelYes
-
MountedFrame Mounted
-
Overall DimensionsOAD BLENDER 84" X 52" X 76"T, VACUUM SKID 62" X 40" X 58"T, CIRCULATION SKID 70" X 34" X 70"T.
-
Year Built1985
Used equipment facts about this machine
Manufacturer Information
Industrial Used - Patterson Kelley (PK) Twin Shell Solids Processor
Manufacturer Information:
- Manufacturer: Patterson Kelley (PK)
- Model: Twin Shell Solids Processor

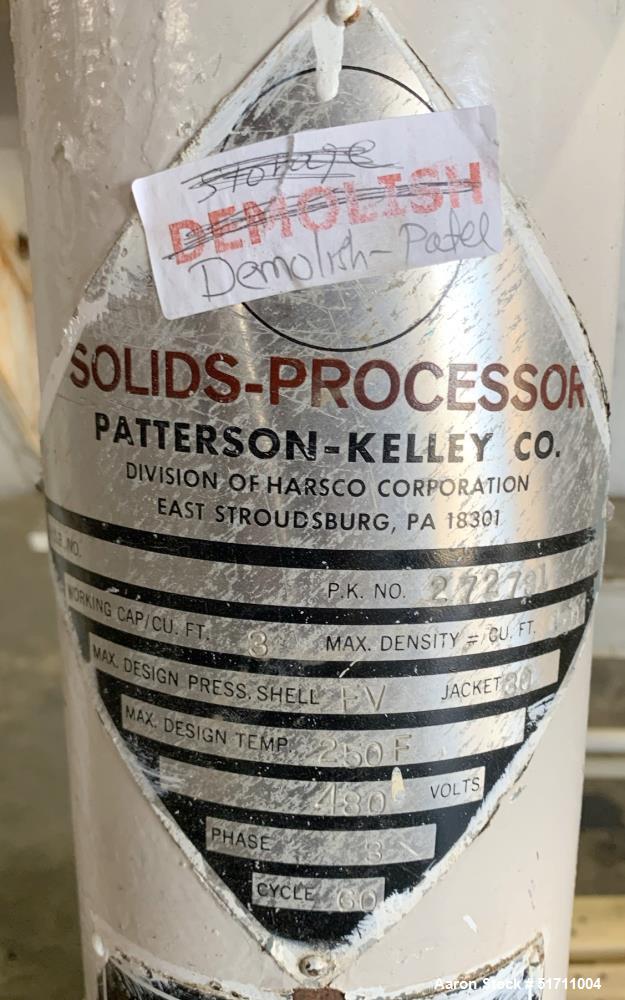

- Serial Number: 272781

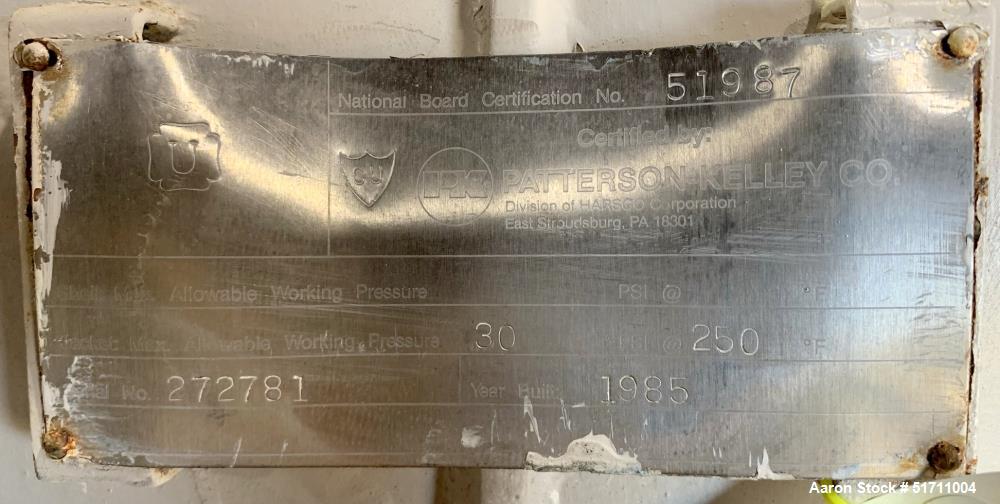

- National Board Number: 51987
- Year of Manufacture: 1985
Specifications:
- Working Capacity: 3 Cubic Feet
- Maximum Material Density: 100 Pounds Per Cubic Foot
- Material of Construction:
- Vessel: 304 Stainless Steel
- Shaft: 316 Stainless Steel
- Pressure & Temperature Ratings:
- Shell: Rated for Full Vacuum at 250°F
- Jacket: Rated 30 PSI at 250°F
- Charge Ports: (2) 16" Diameter Ports with Quick Change Covers
- Drive System:

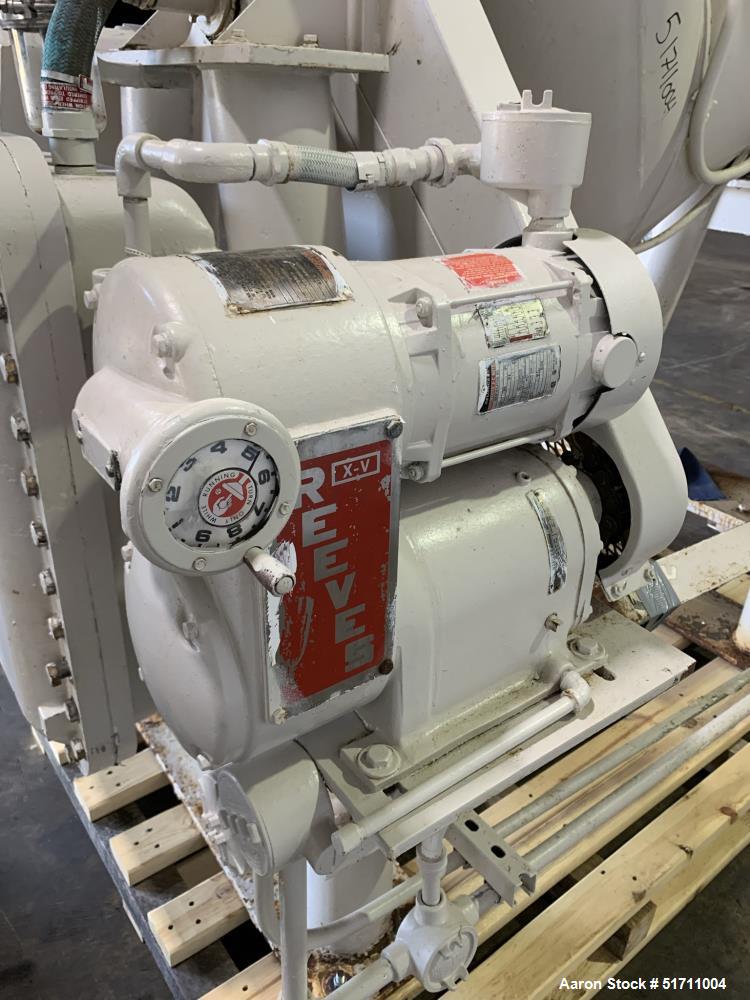

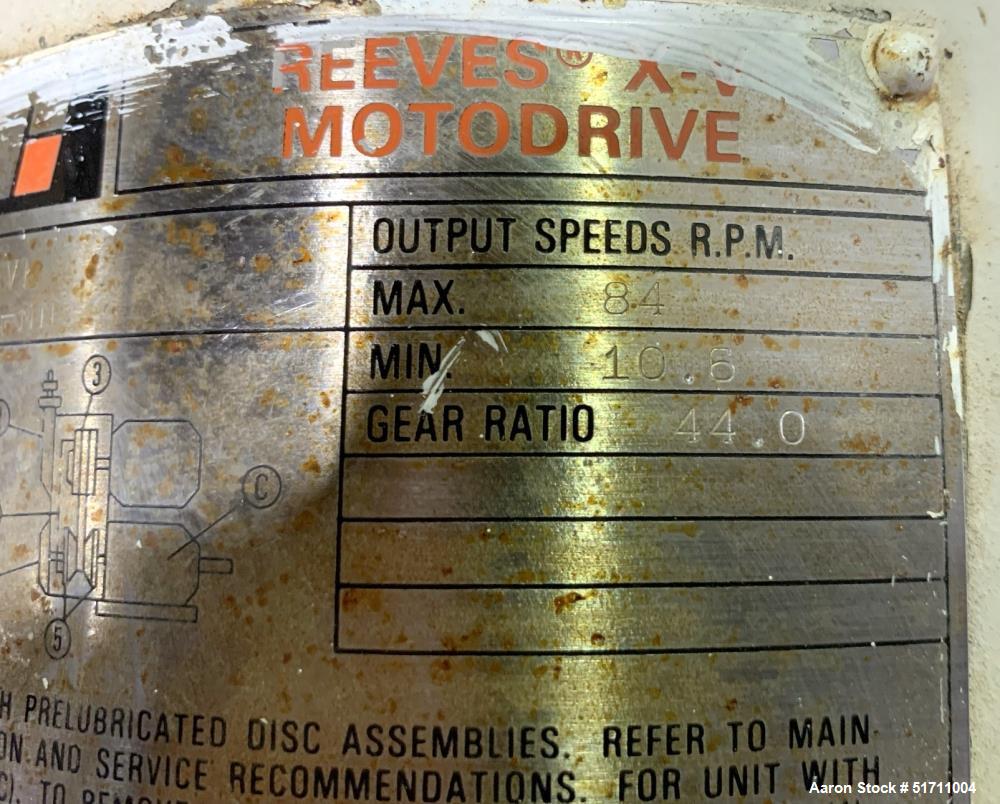

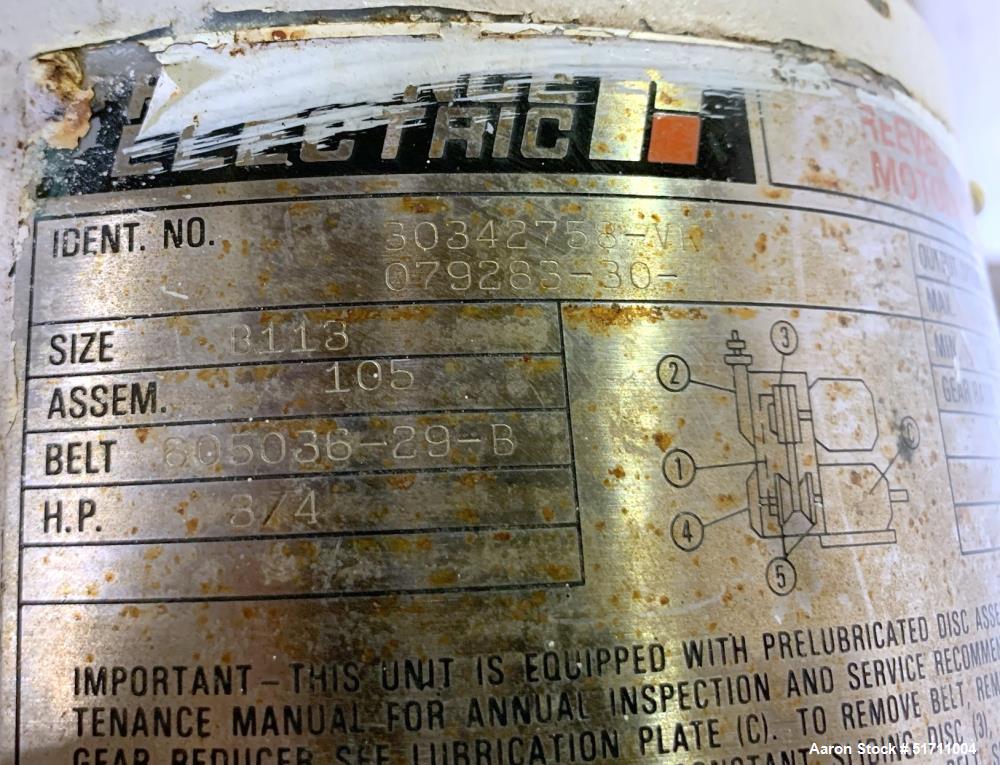

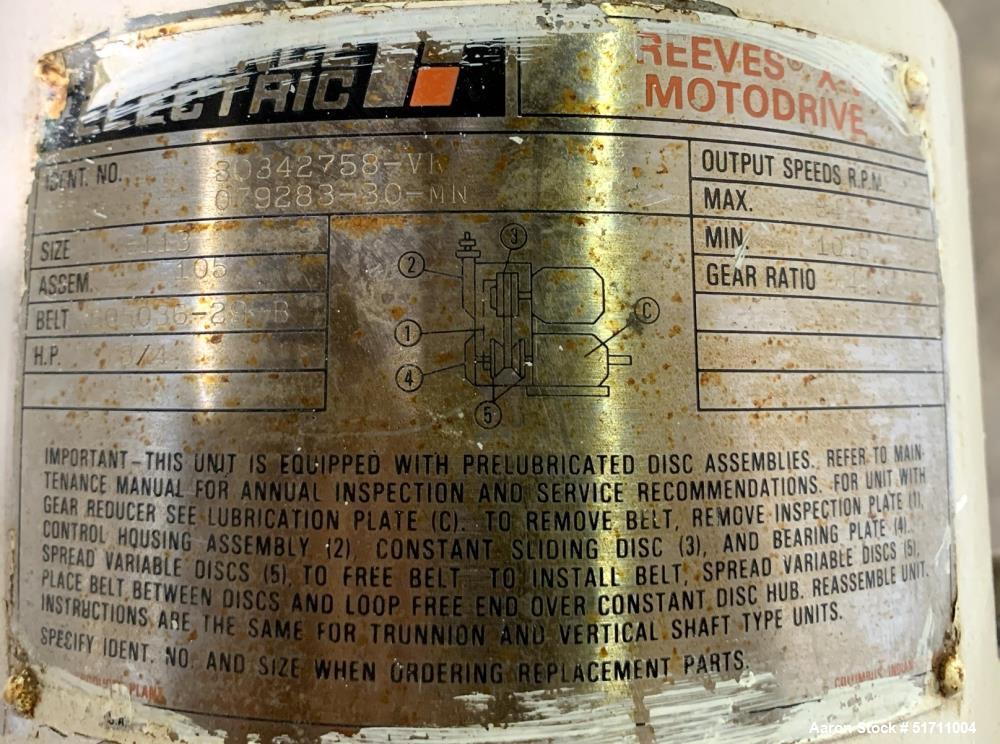

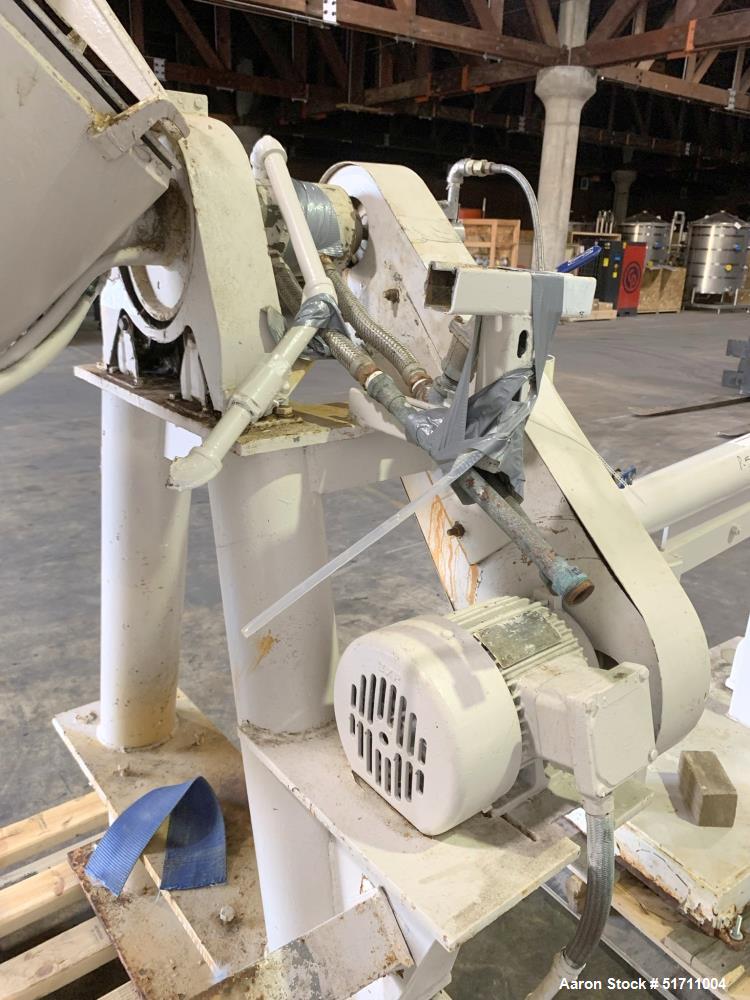

- Shell Drive: Reeves Manual Adjustable Speed Drive

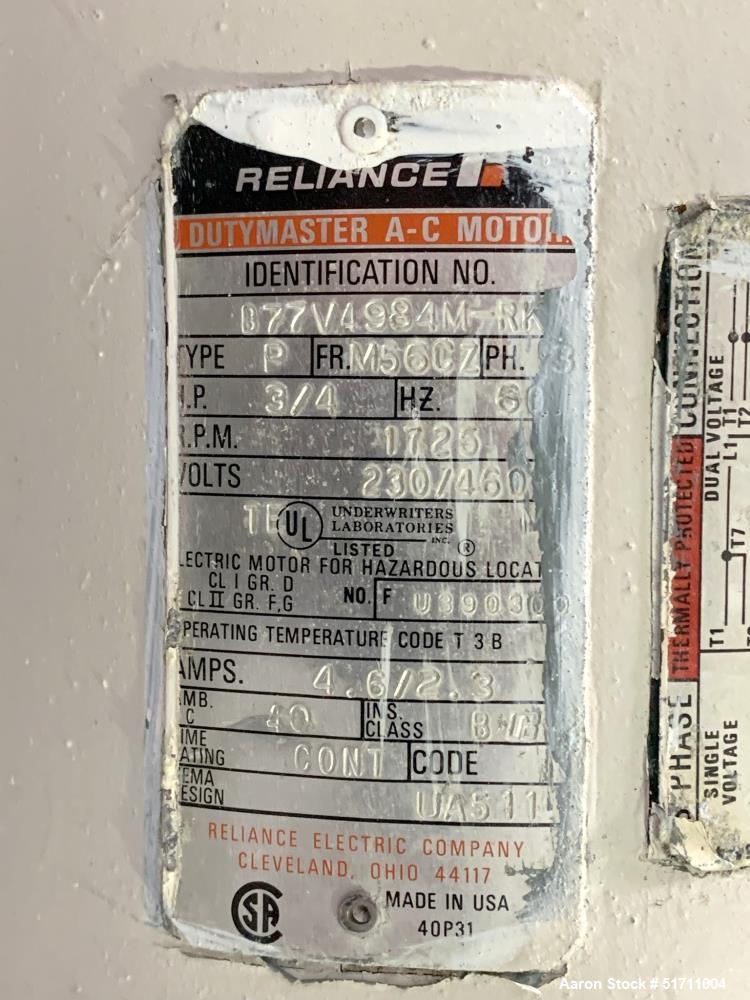

- Motor: 3/4 HP, 3/60/230/460V, 1725 RPM XP Gear Motor
- Gear Ratio: 44:1
- Output Speed: 10.6 - 84 RPM

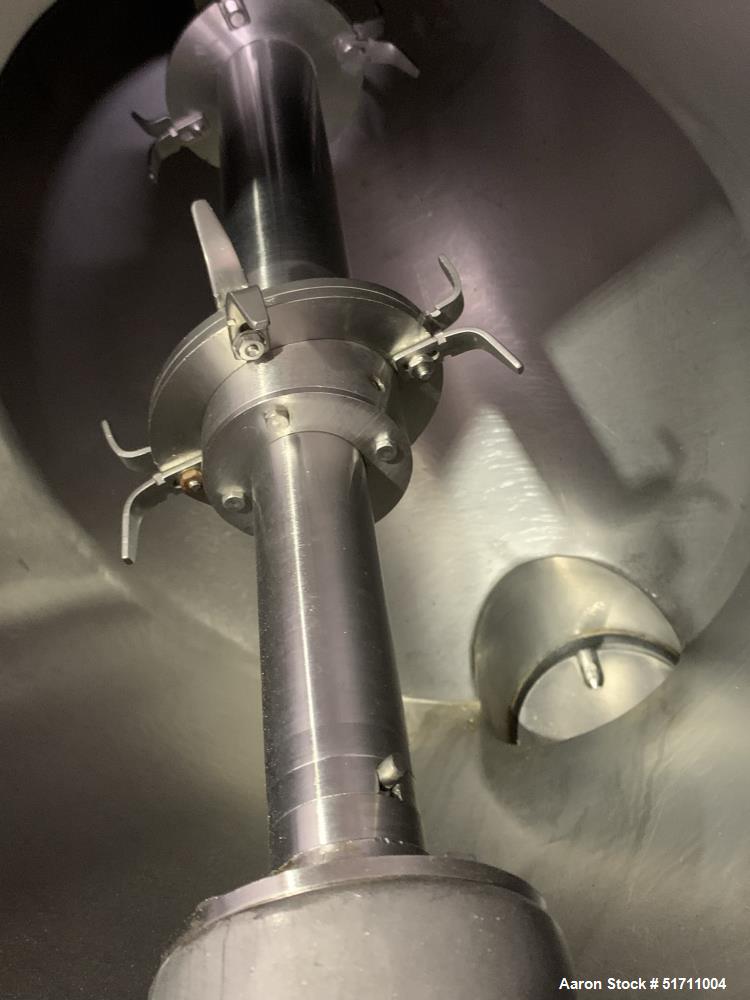

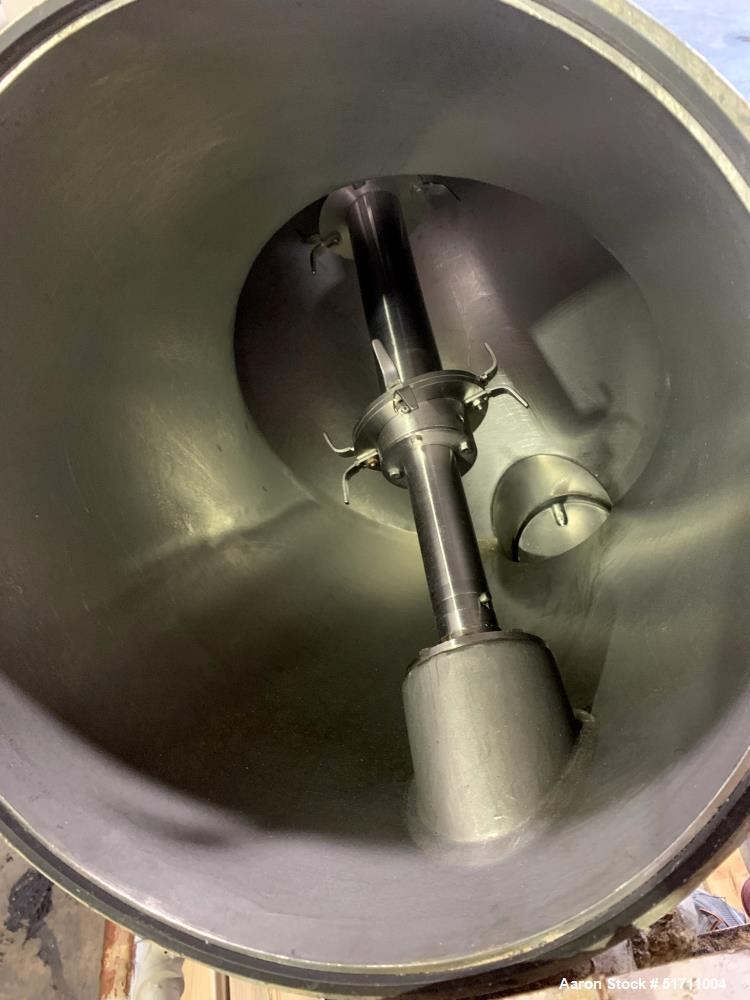

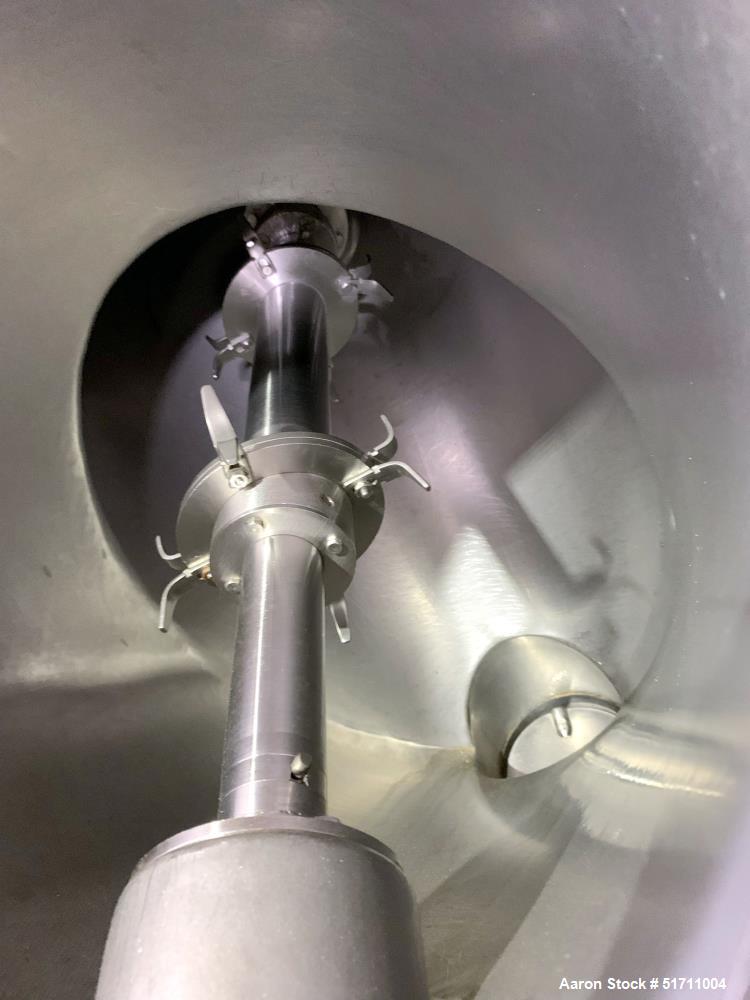

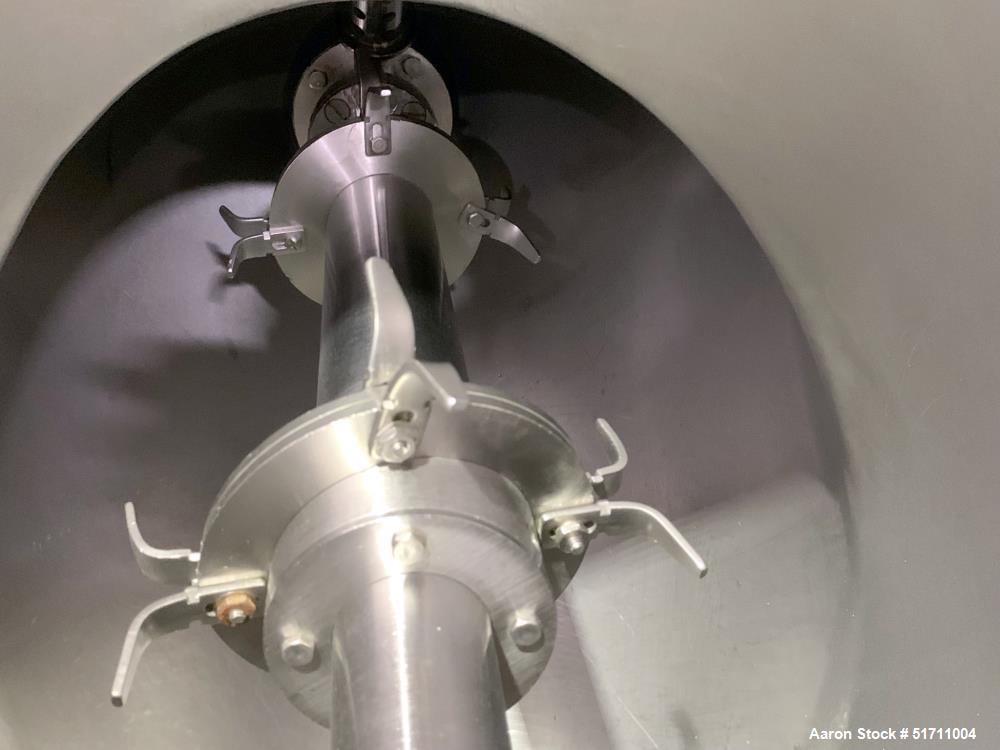

- Intensifier Bar:

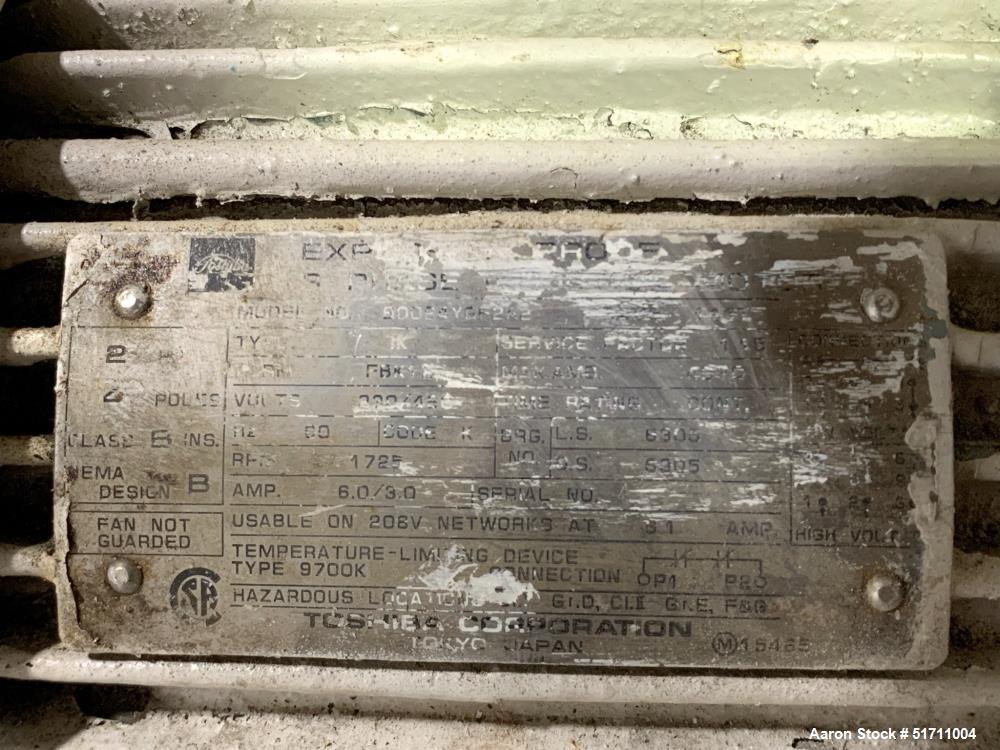

- Motor: 2 HP, 3/60/230/460V, 1725 RPM XP Motor
- Shell Drive: Reeves Manual Adjustable Speed Drive
- Discharge System:

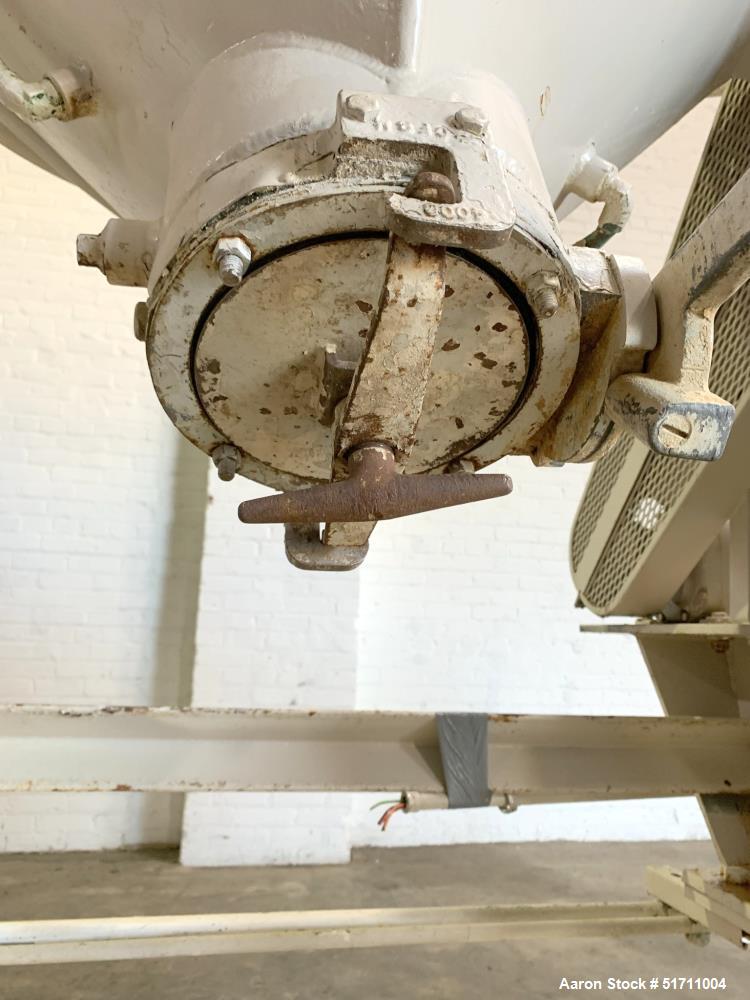

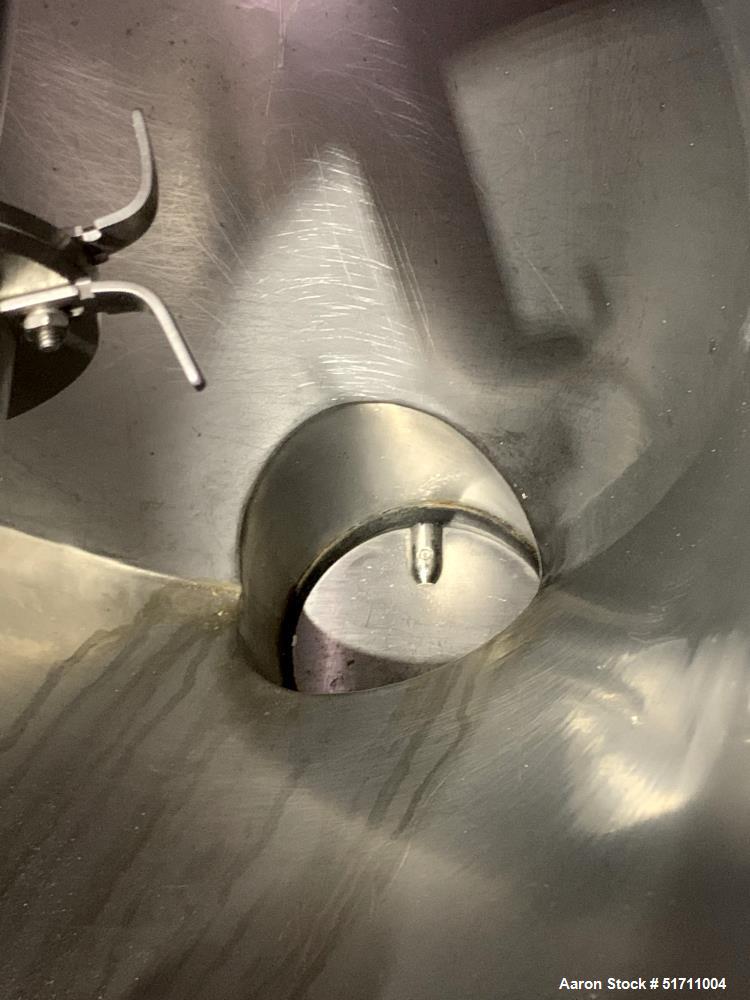

- 6" Center Bottom Outlet with Manual Butterfly Valve
- Approximate Discharge Height: 30"
- Additional Components:

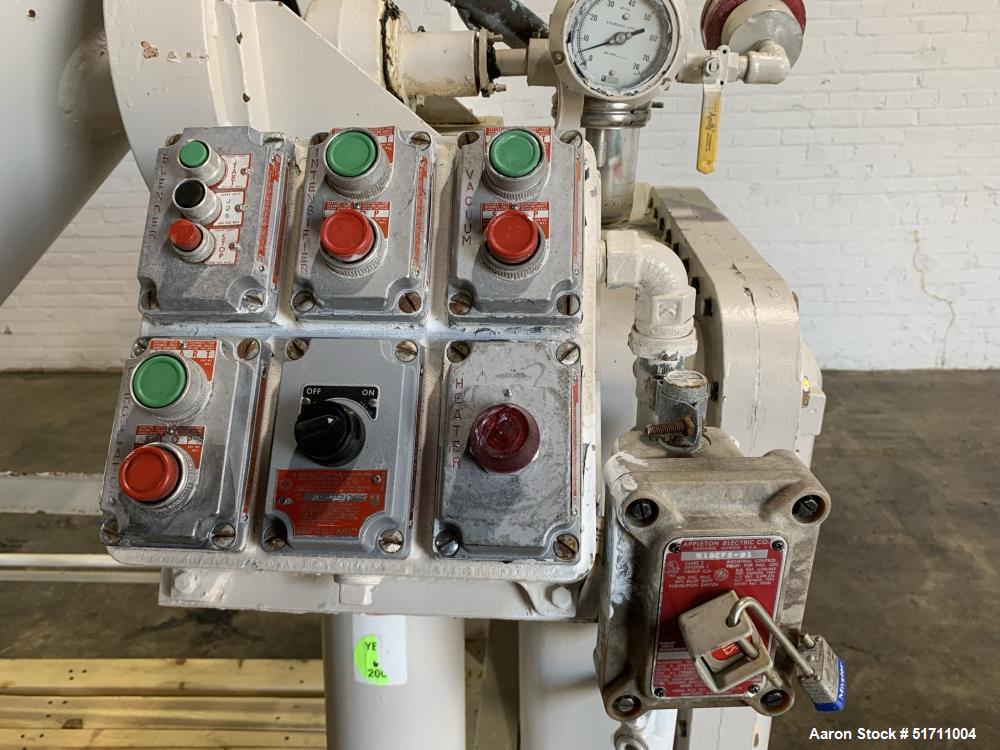

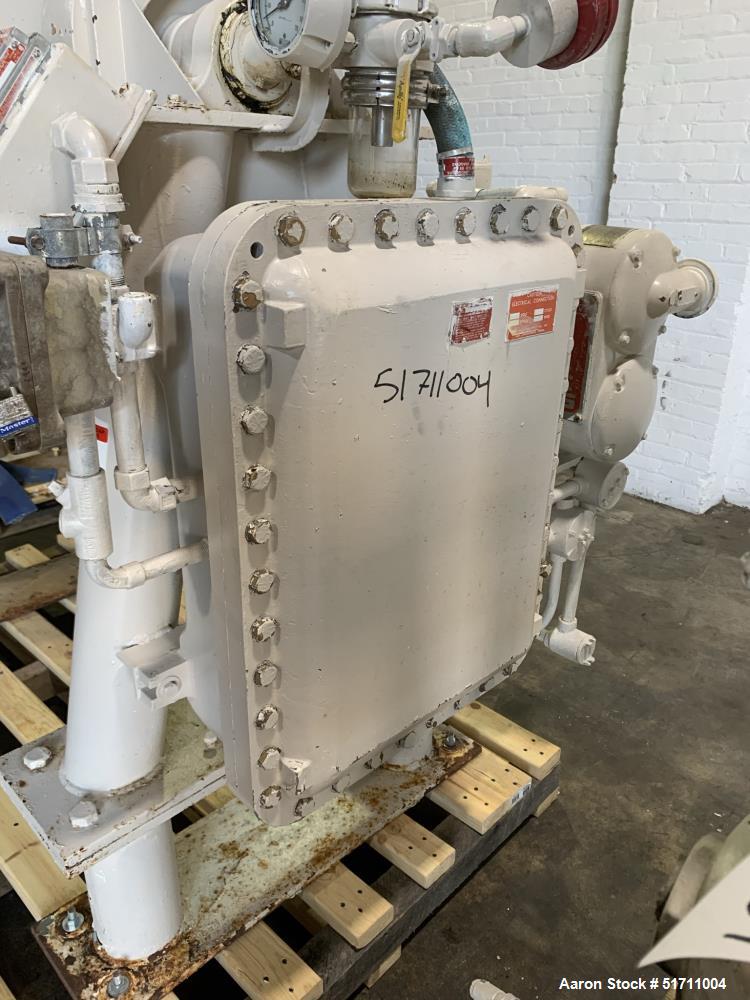

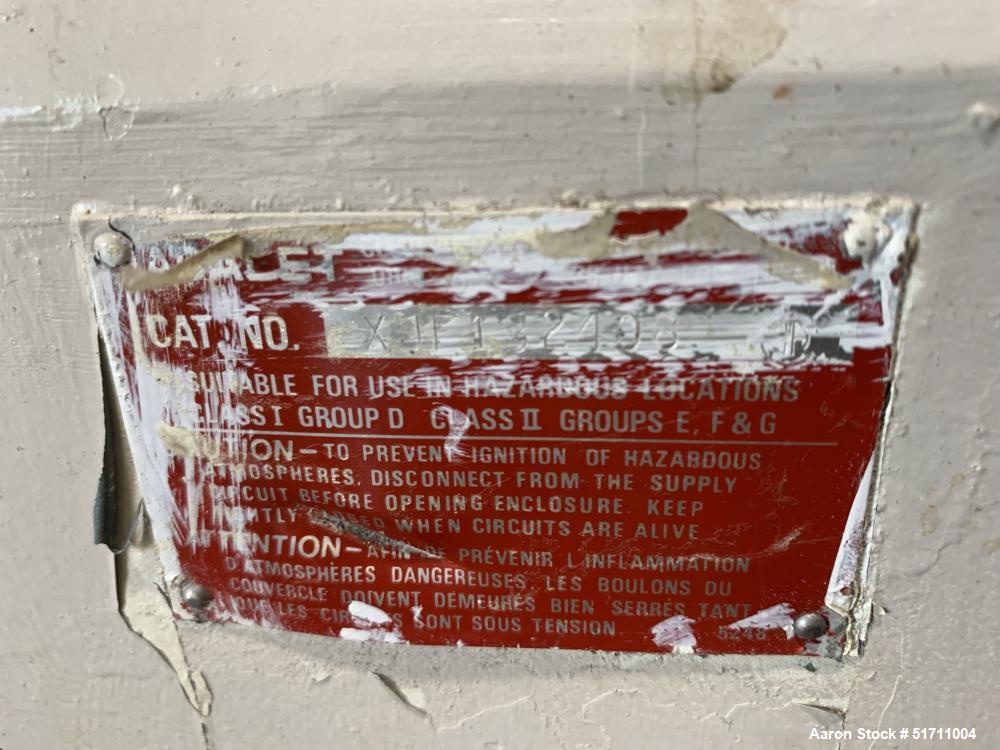

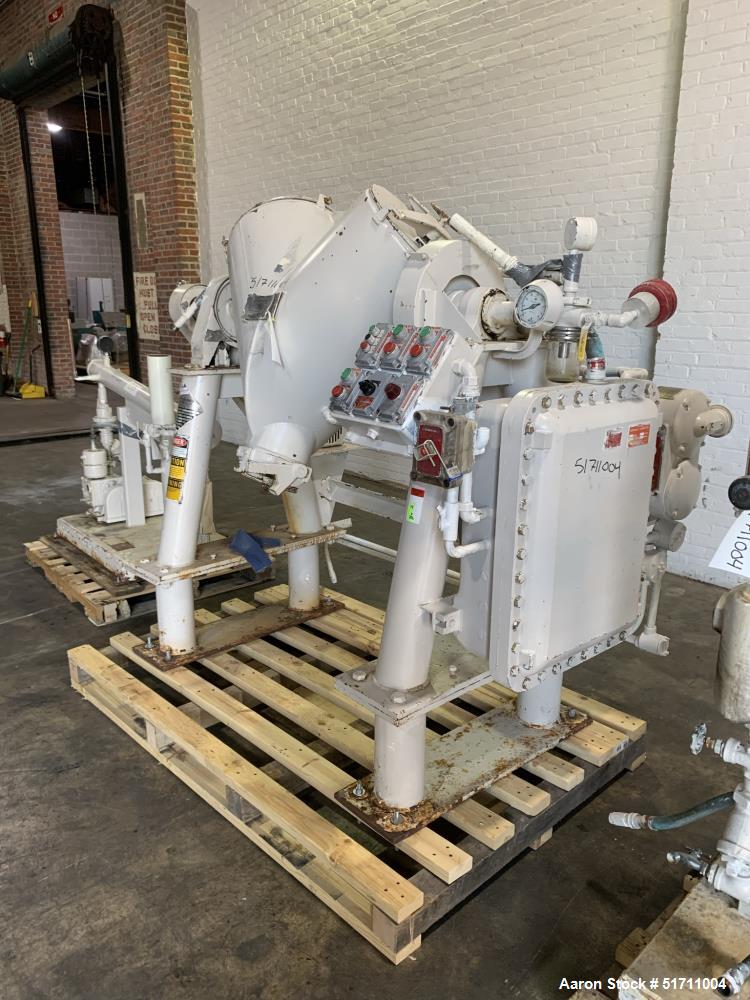

- Explosion-Proof Control Panel

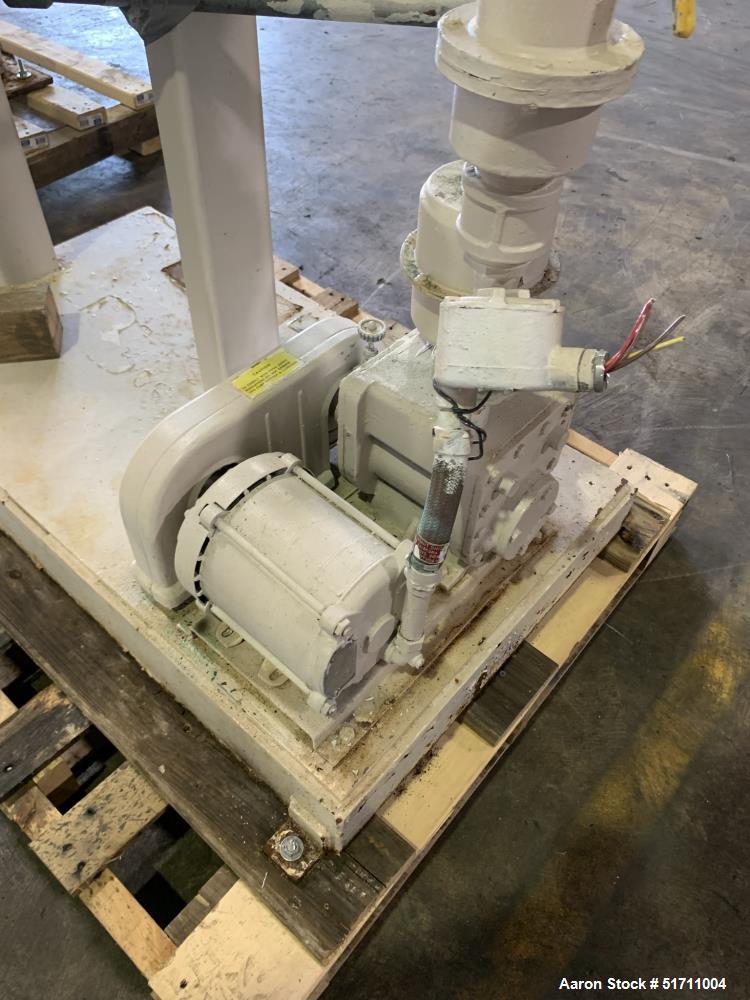

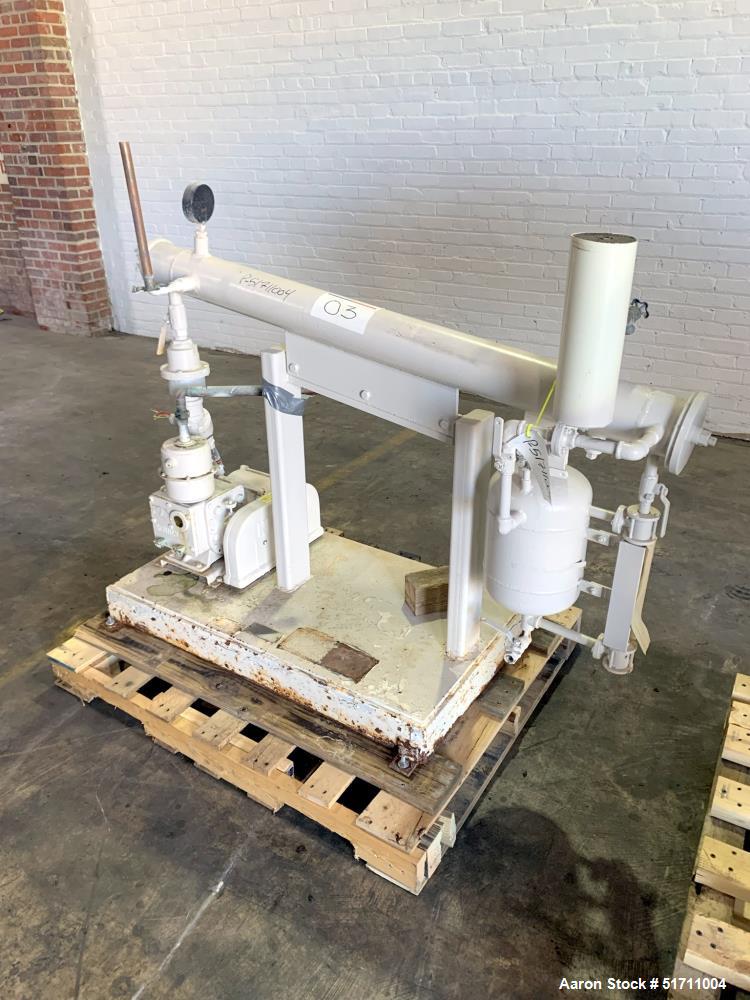

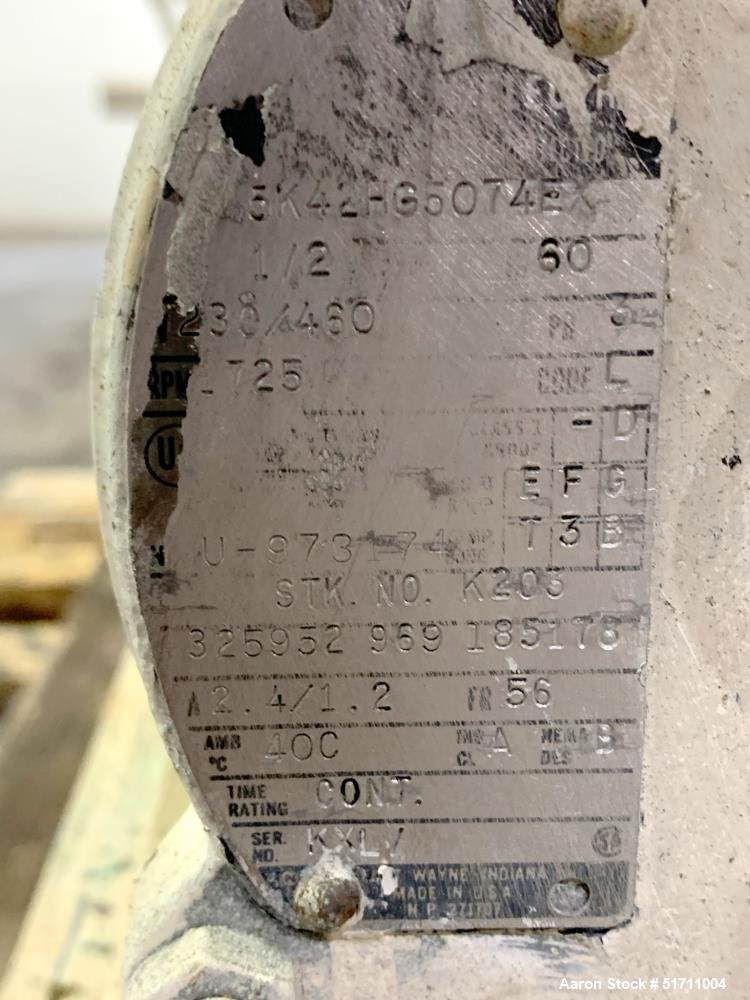

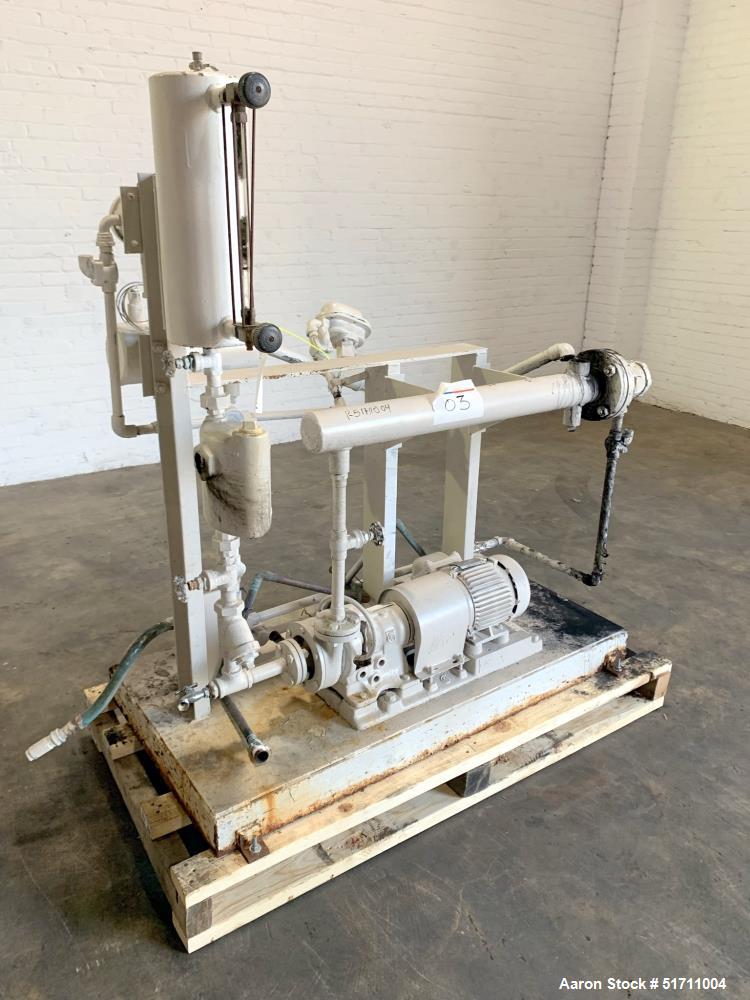

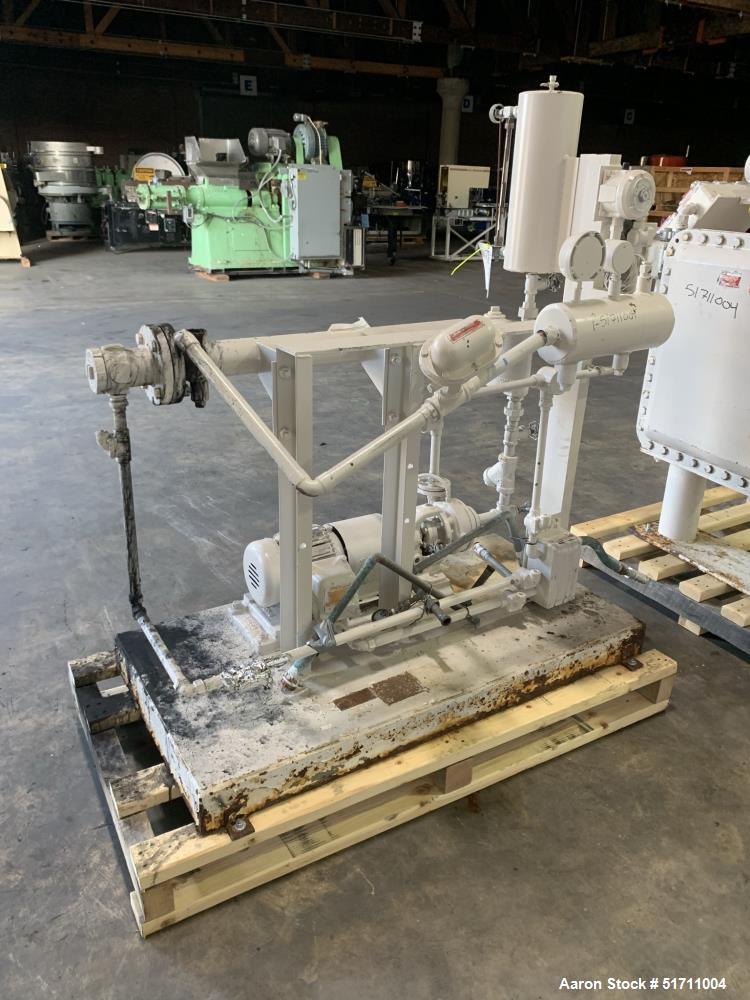

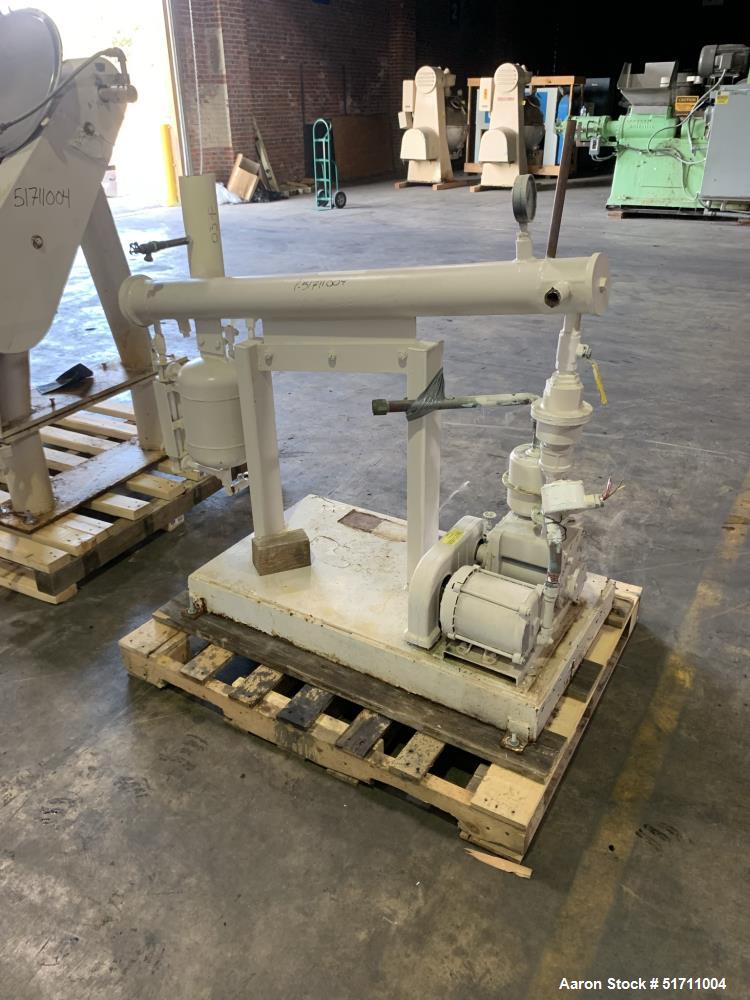

- Vacuum Pump Skid: 1/2 HP Vacuum Pump

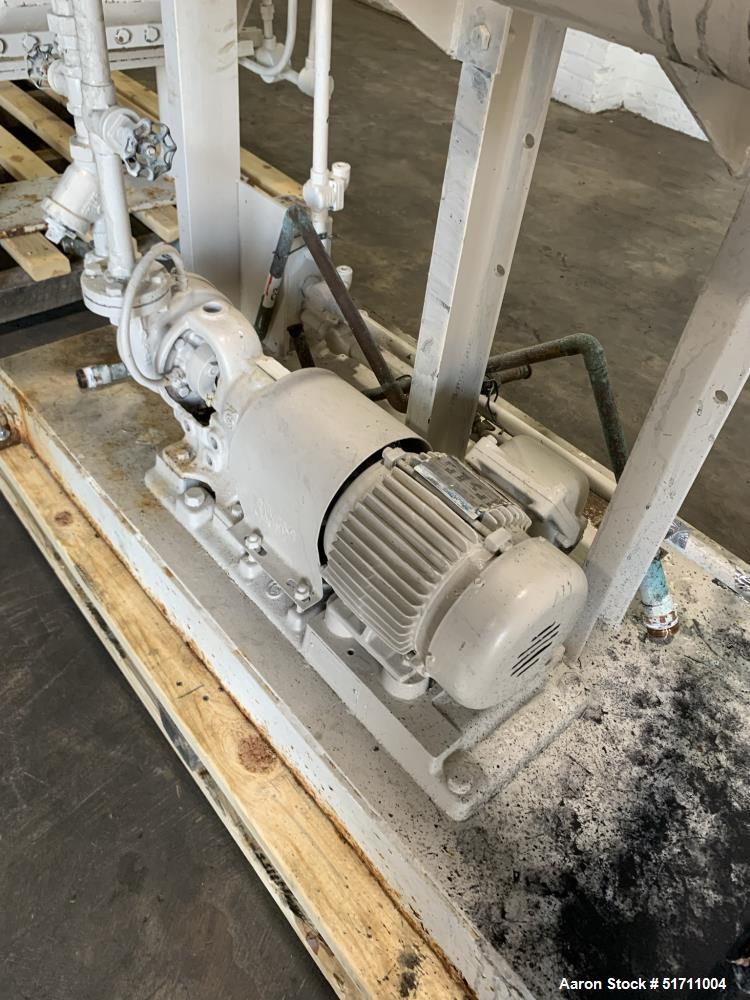

- Circulation Skid: 1 HP Pump
- Mounting: Frame Mounted
Applications:
- Pharmaceutical Processing: Blending and drying of powders, granules, and API ingredients
- Food & Nutraceuticals: Mixing and homogenization of powdered ingredients, protein blends, and spices
- Chemical Processing: Drying, coating, and blending of specialty chemicals and fine powders
- Powder Metallurgy & Ceramics: Uniform mixing of metal powders and ceramic materials
- Cosmetics & Personal Care: Homogenization of powders for makeup, skincare, and fragrance formulations
- Plastics & Polymers: Pre-mixing additives and resins for compounding applications
Product Details
- Used Patterson Kelley twin shell solids processor
- Industrial powder blending and drying machine
- Vacuum-rated twin shell mixer
- Stainless steel solids processor for pharmaceutical applications
- PK twin shell processor with intensifier bar
- Explosion-proof mixer with vacuum and circulation pump
- Patterson Kelley twin shell blender with adjustable speed drive
- Used industrial mixing and drying system
- High-efficiency solids processing equipment
- Food and chemical-grade twin shell processor
- Used Patterson Kelley twin shell solids processor for sale
- Industrial twin shell blender with intensifier bar and vacuum system
- 3 cubic foot stainless steel solids processor with 316 SS shaft
- Explosion-proof twin shell mixer for food, pharmaceutical, and chemical processing
- Vacuum-rated Patterson Kelley processor with 30 PSI jacketed vessel
- Used industrial powder mixing and drying system
- PK twin shell solids processor with manual butterfly valve discharge
- Frame-mounted vacuum blender for powders and granules
- Patterson Kelley stainless steel solids processing equipment
- Heavy-duty twin shell processor for pharmaceutical and nutraceutical applications
