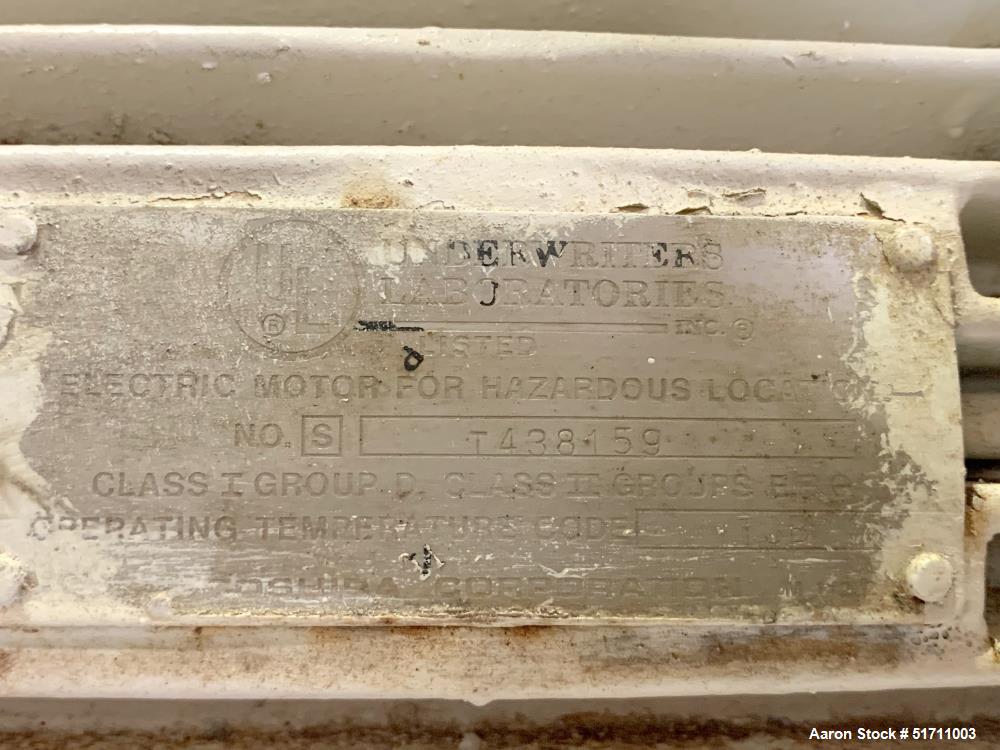

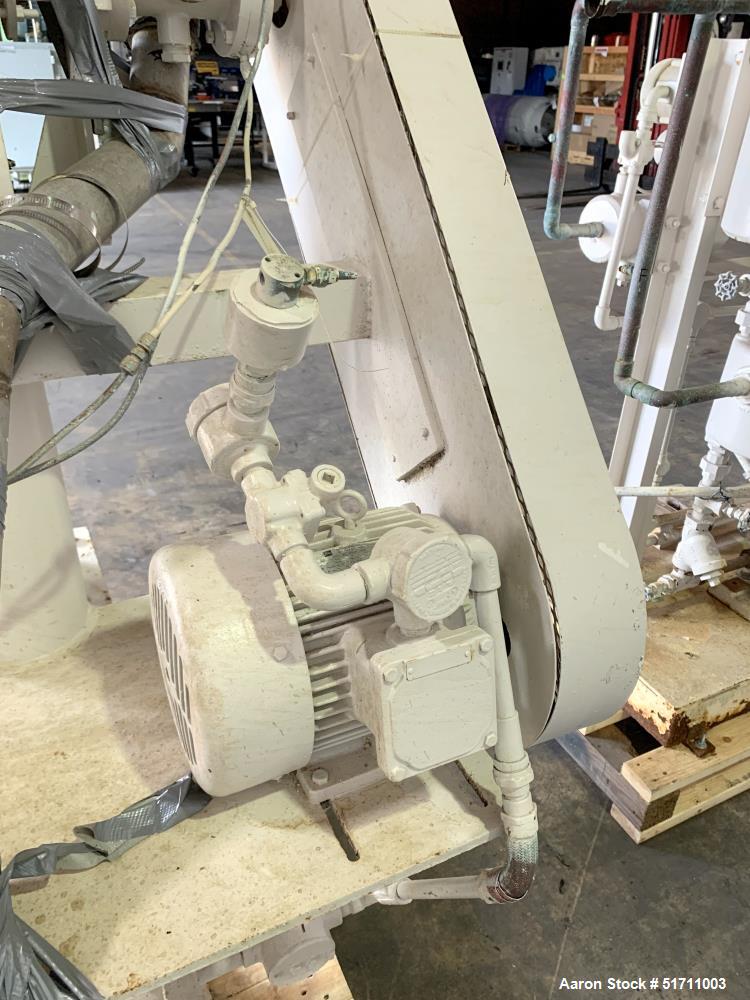

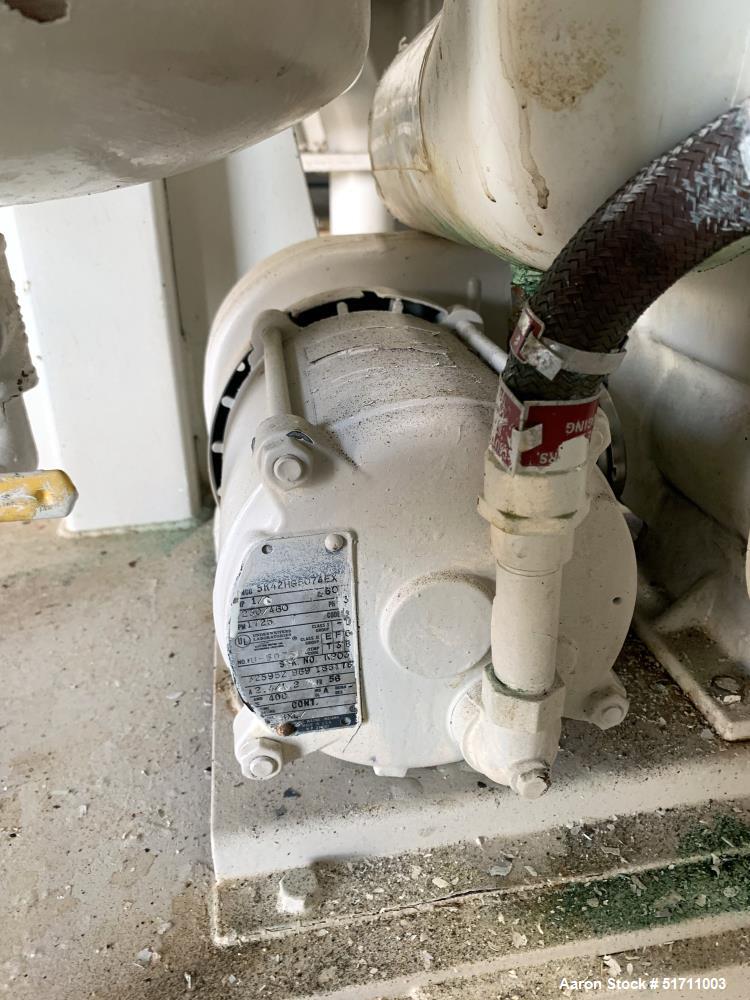

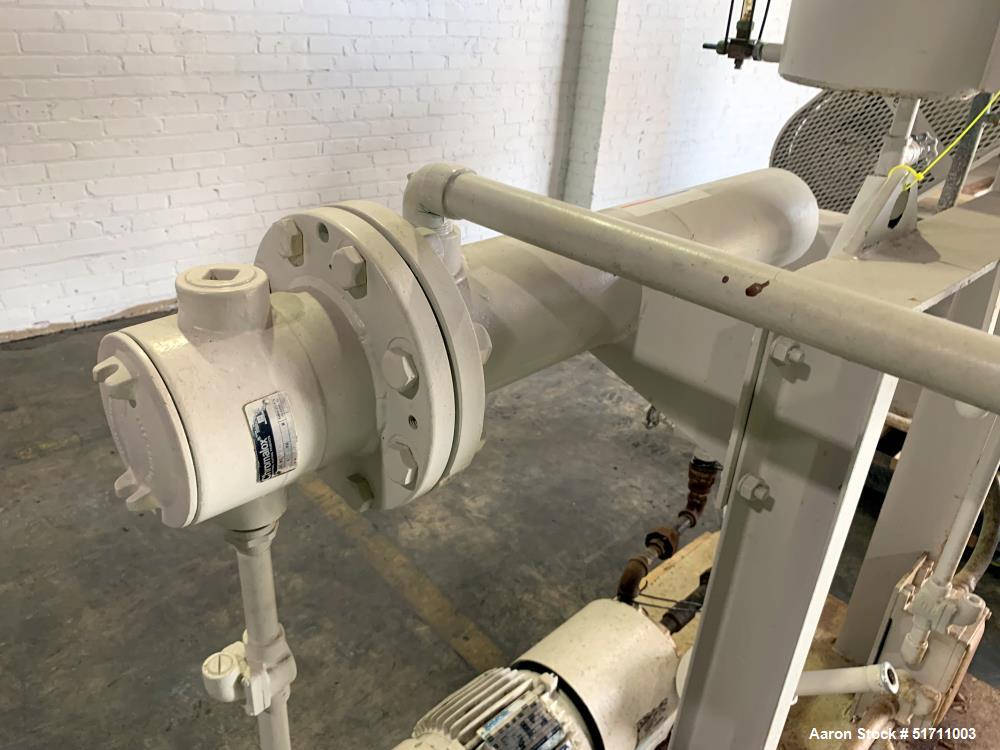

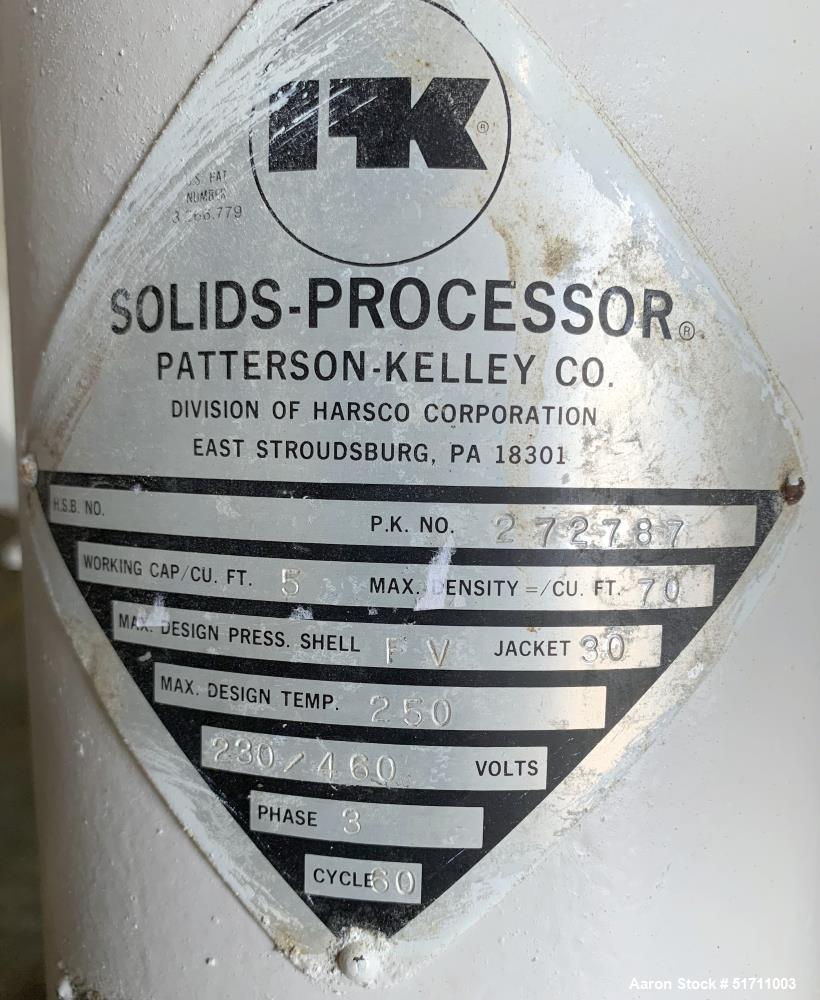

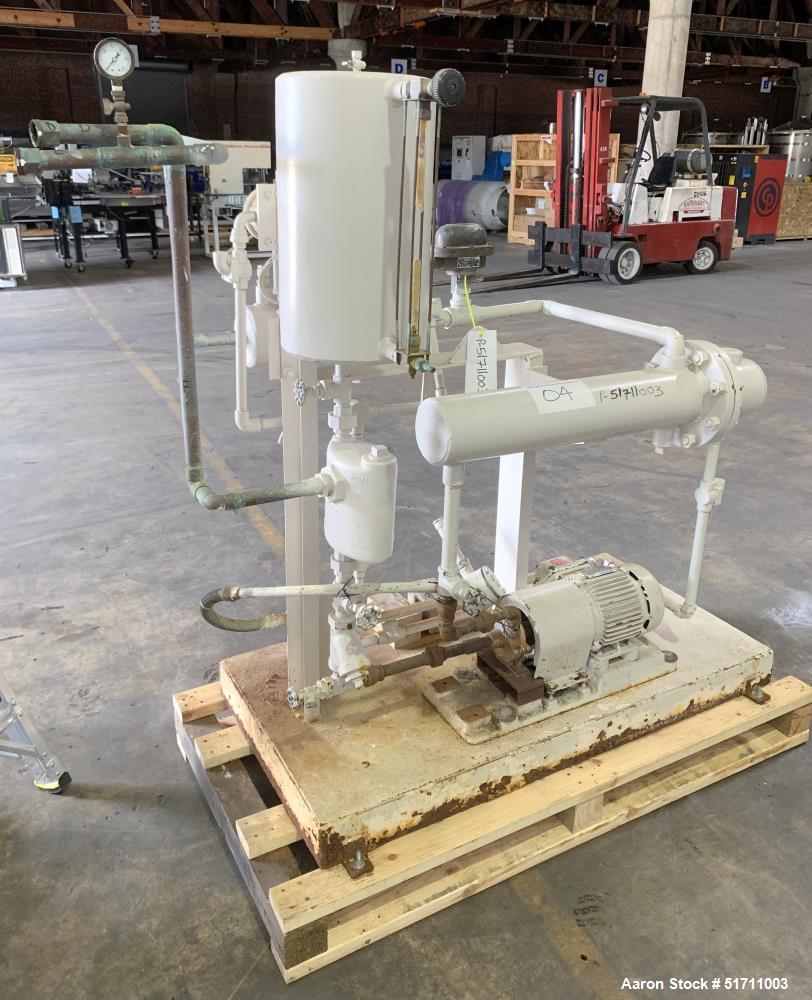

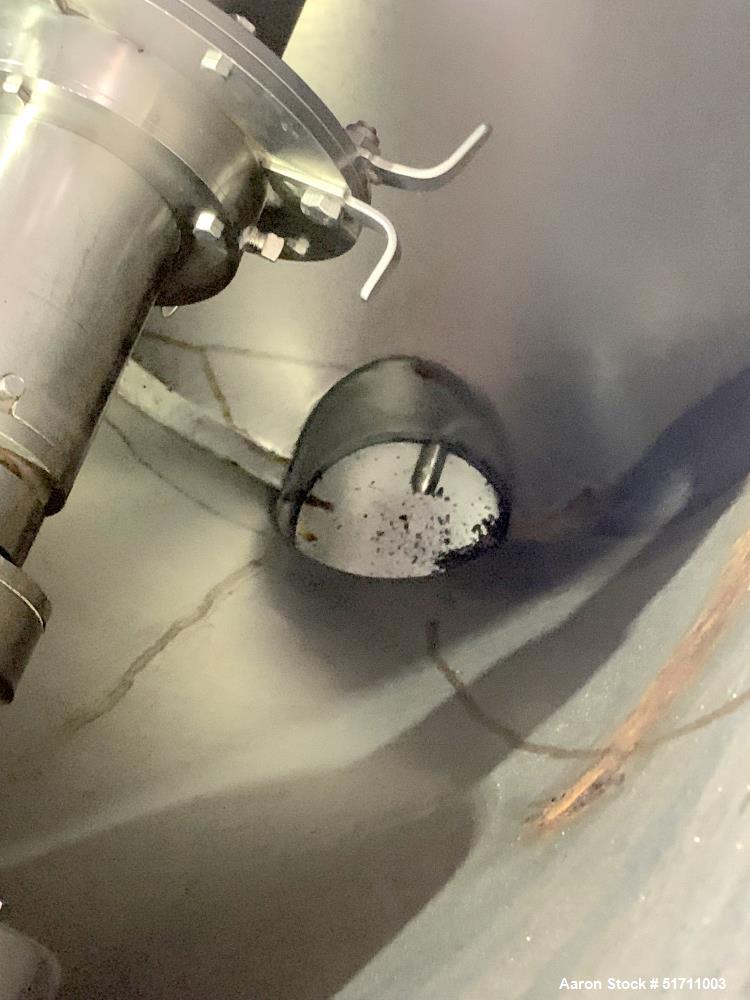

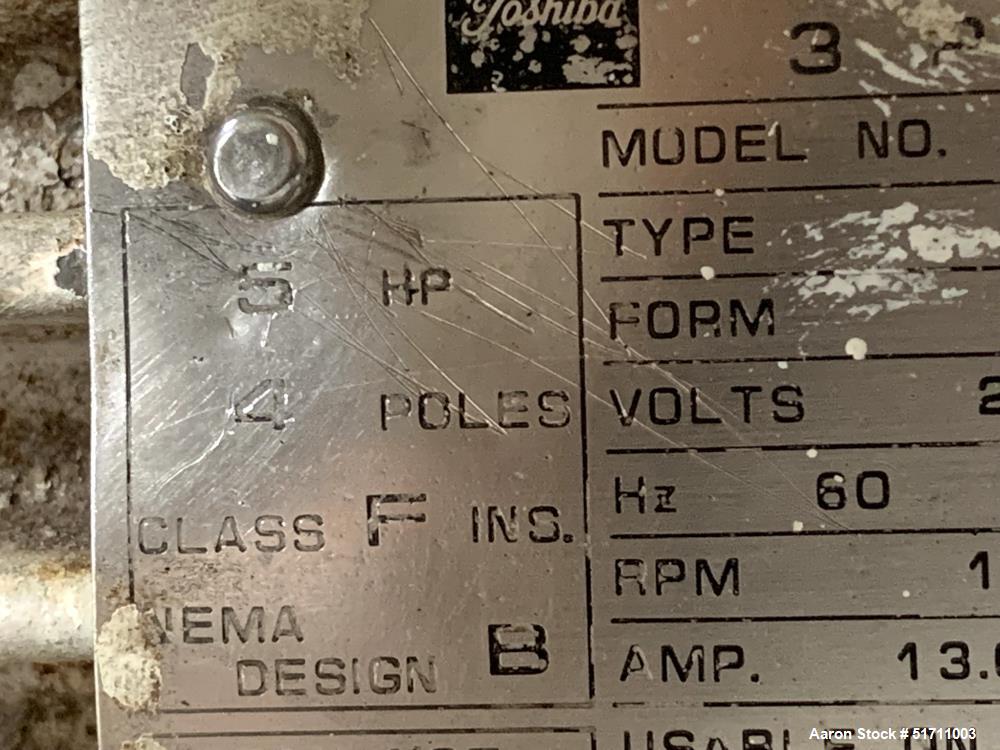

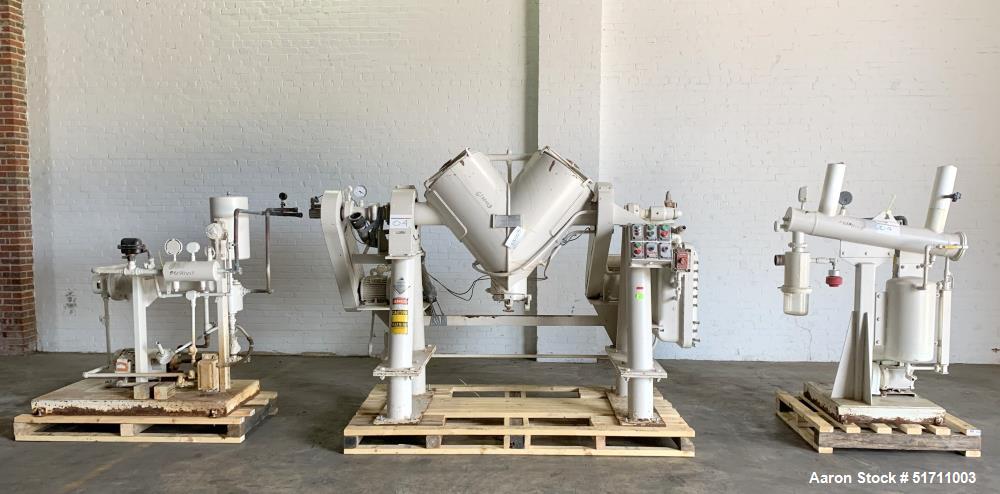

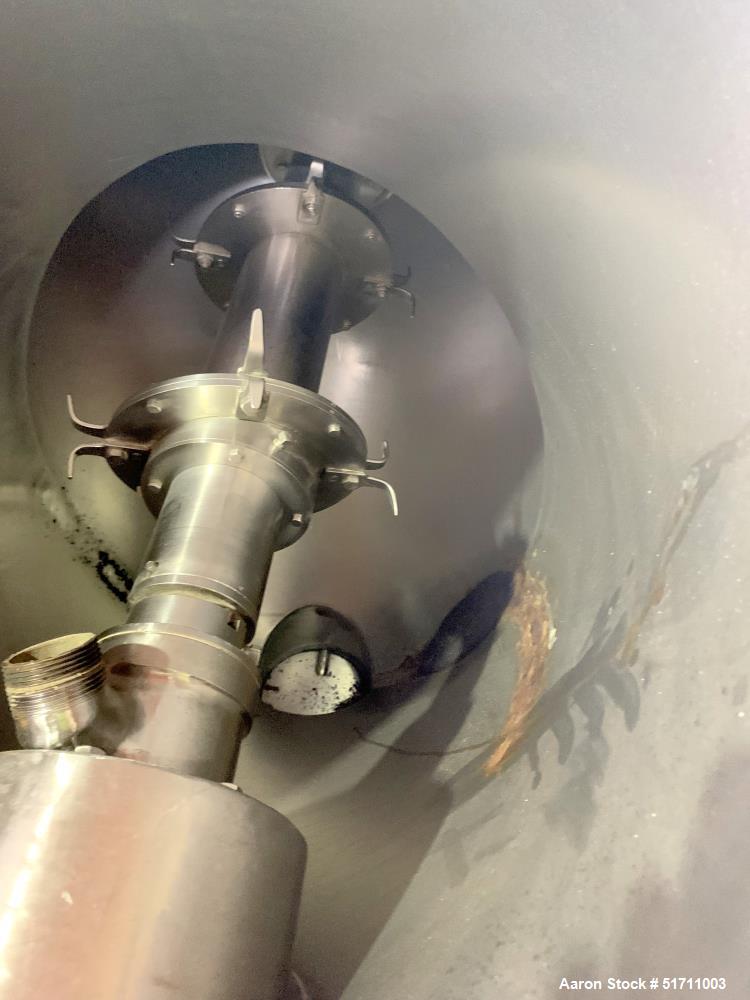

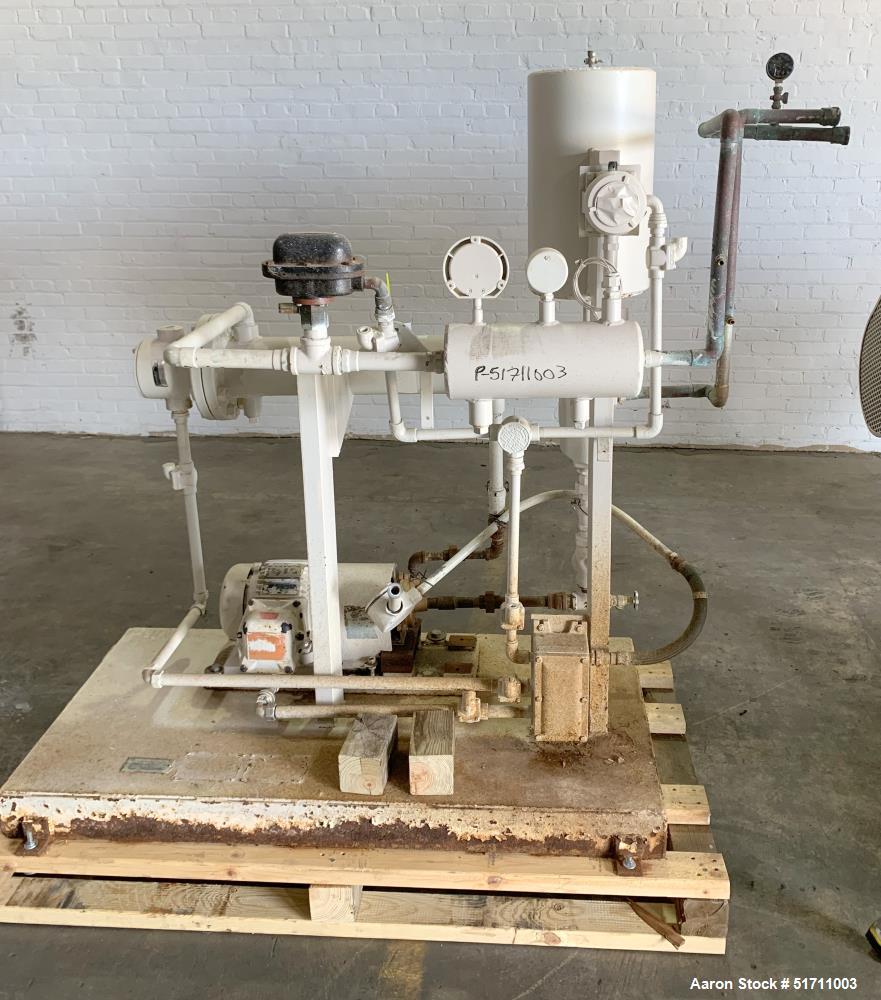

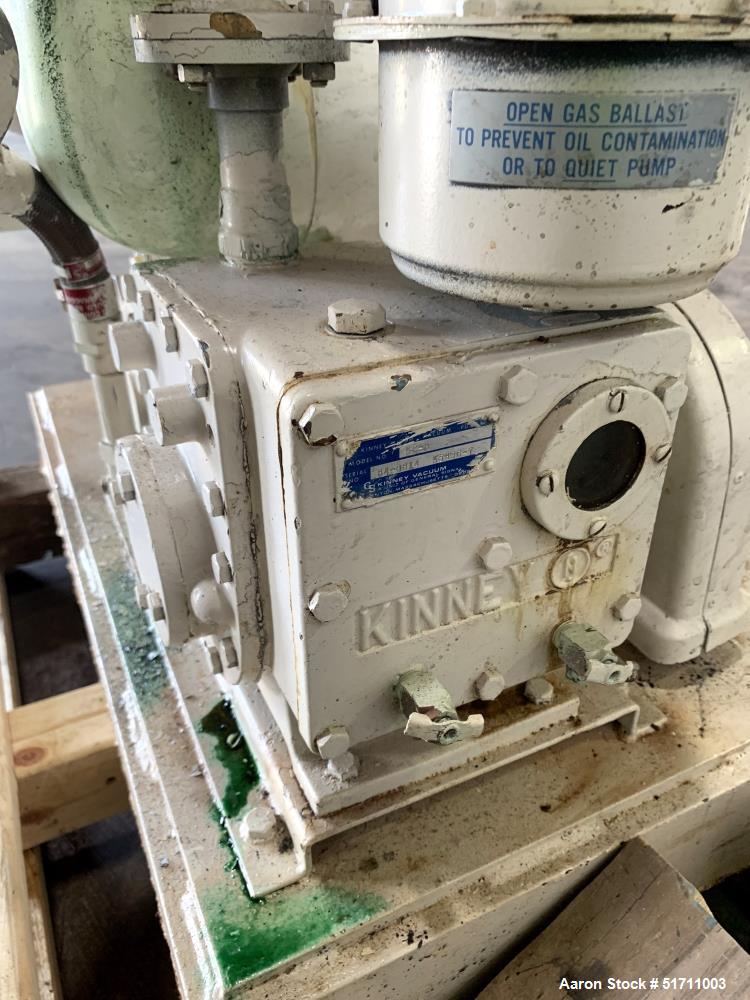

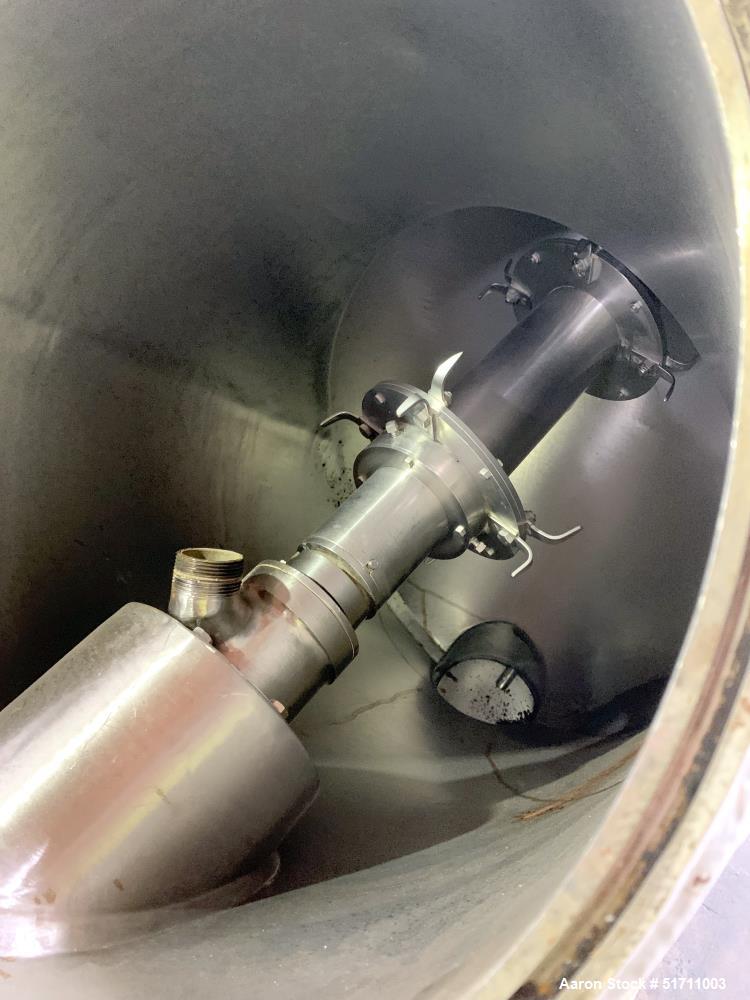

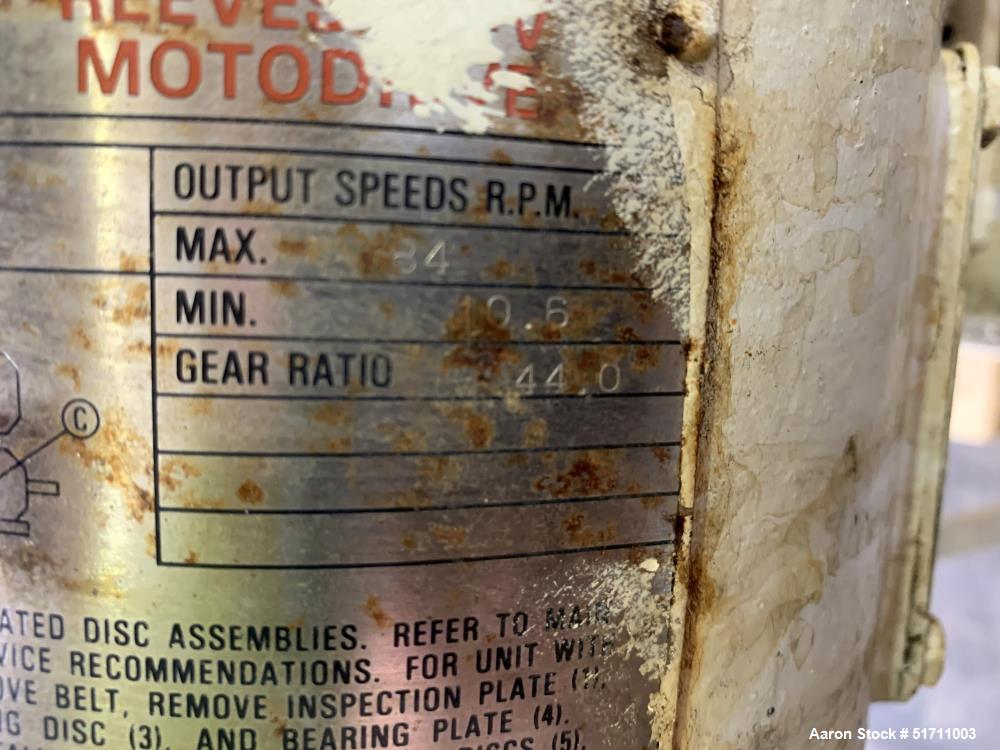

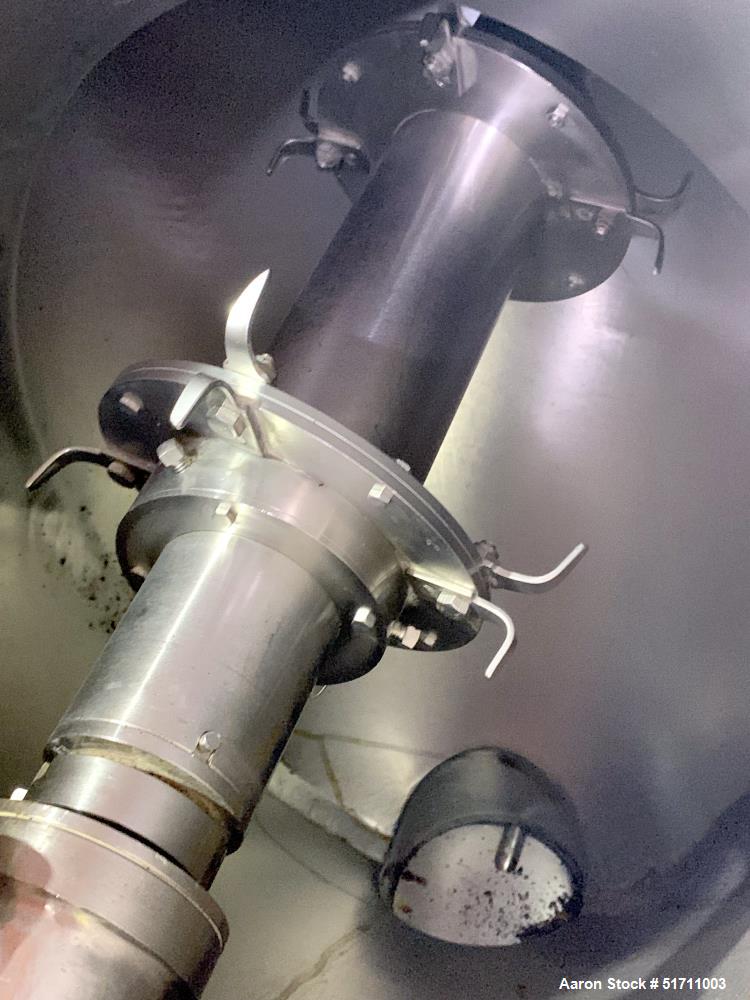

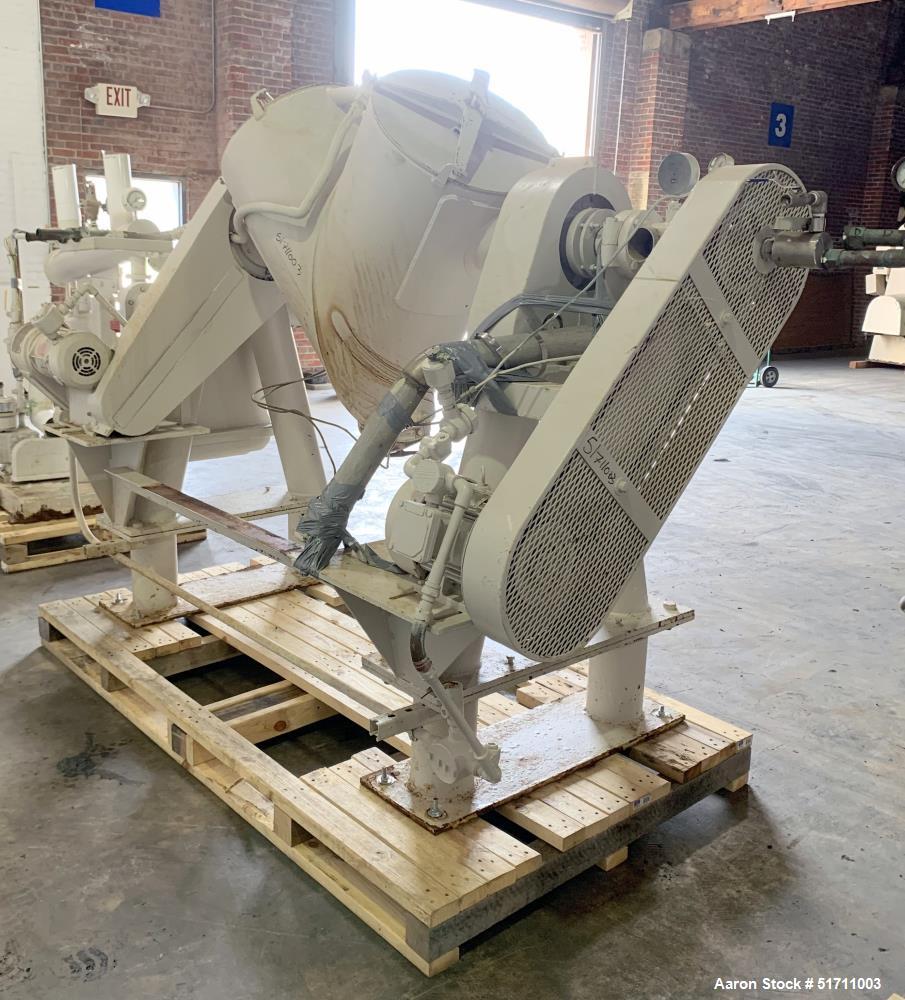

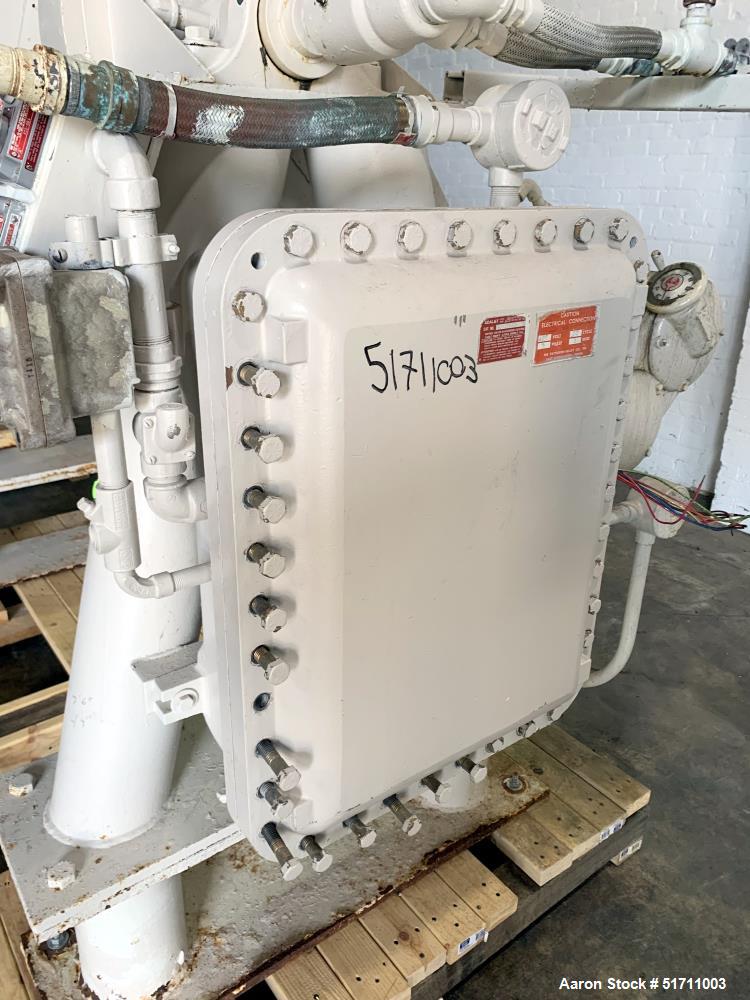

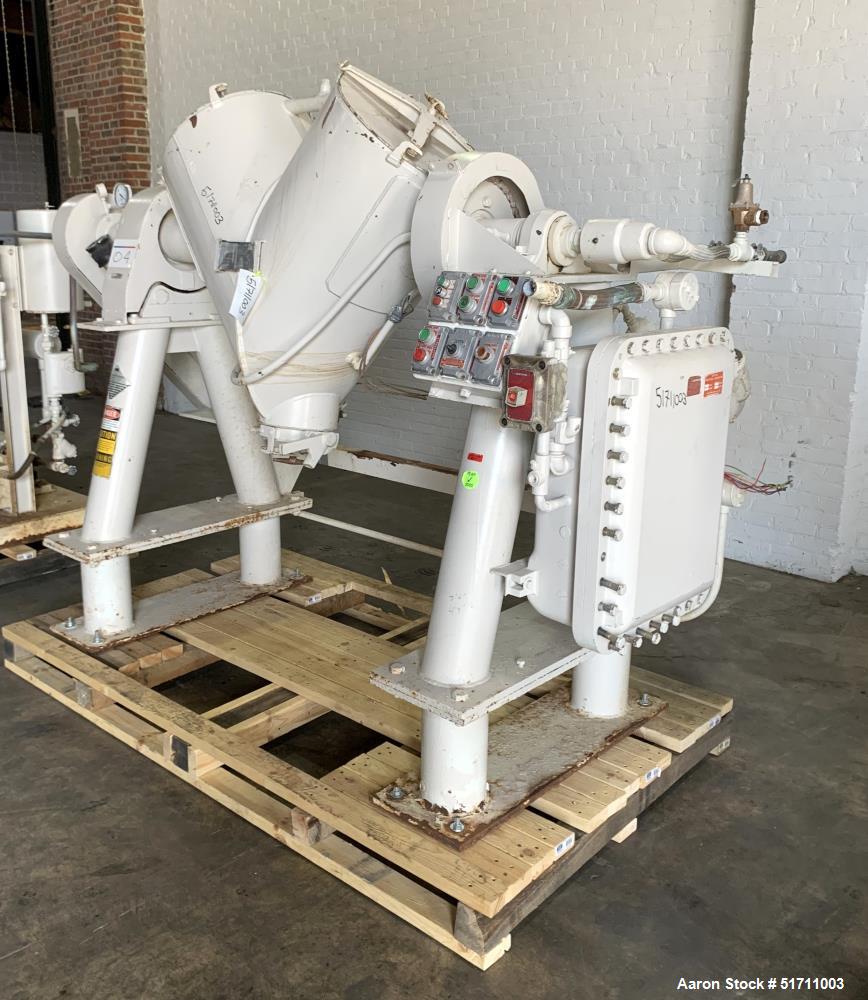

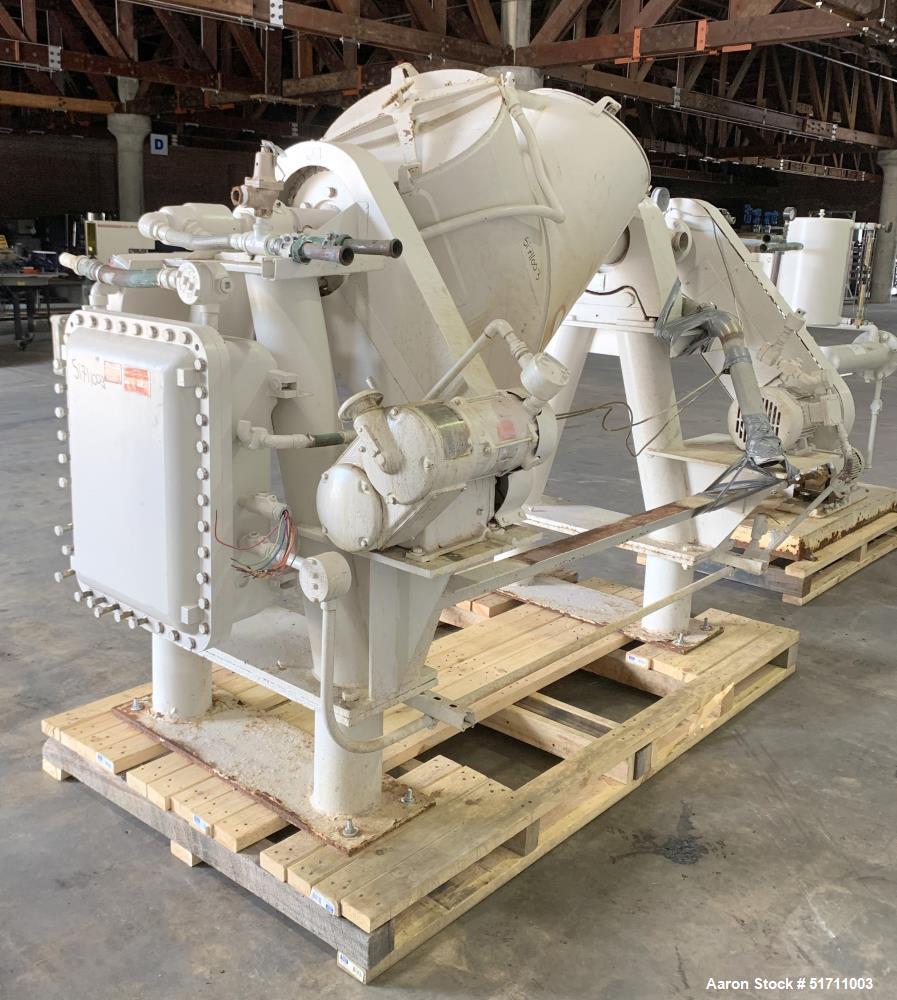

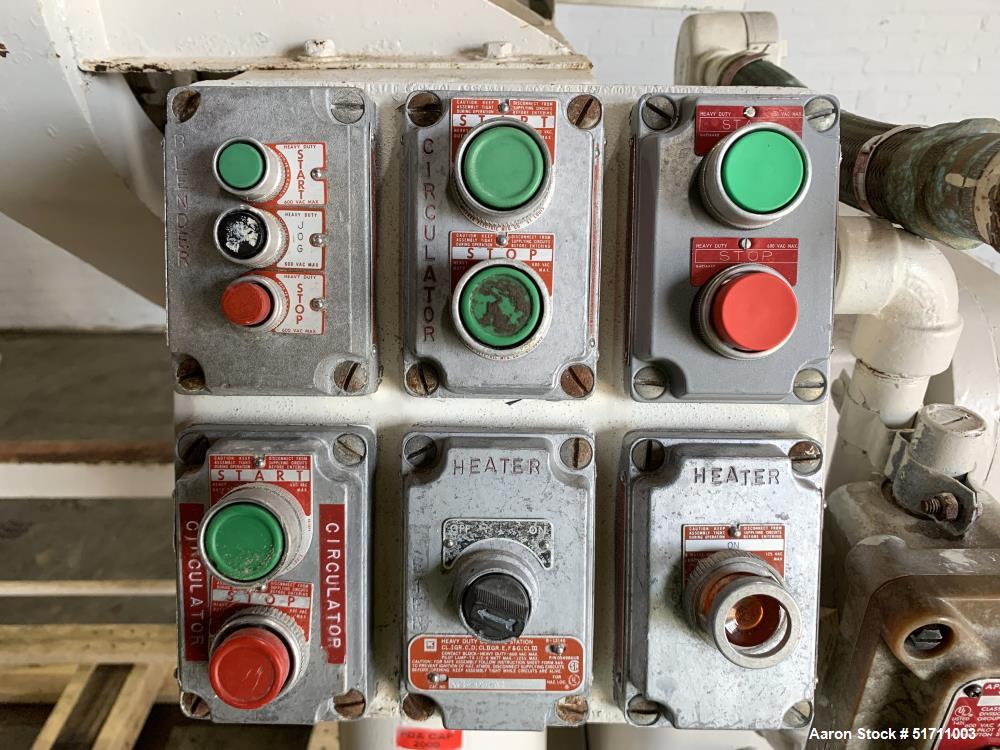

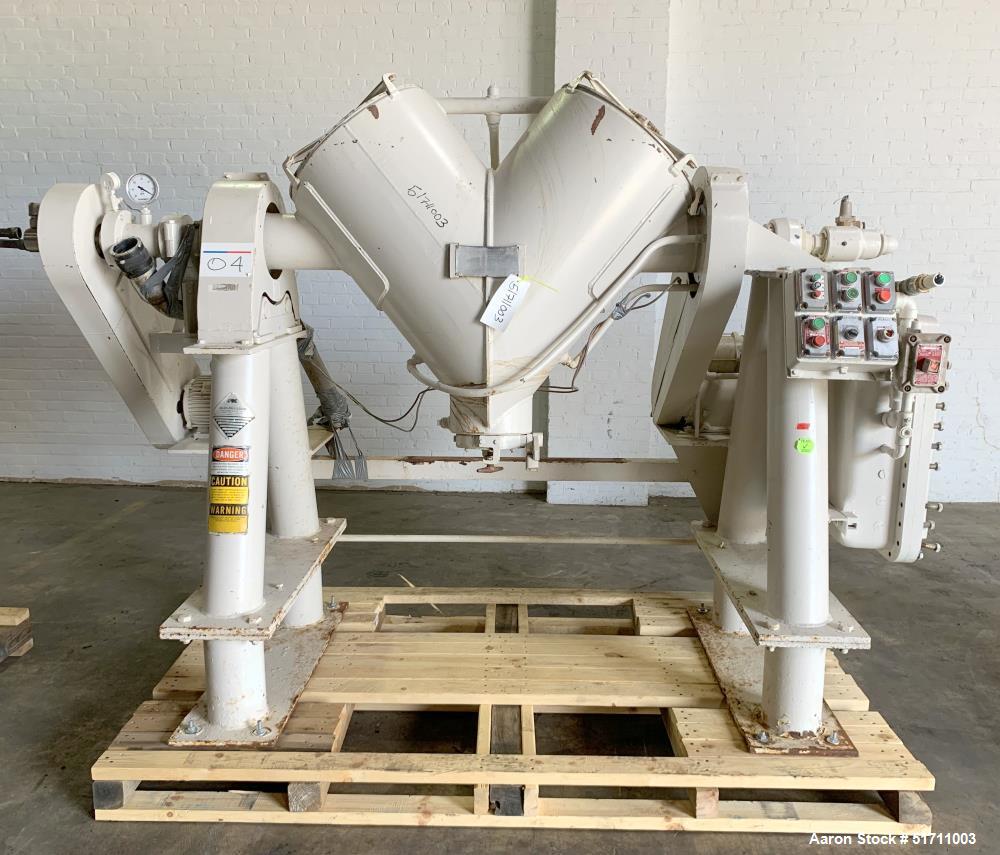

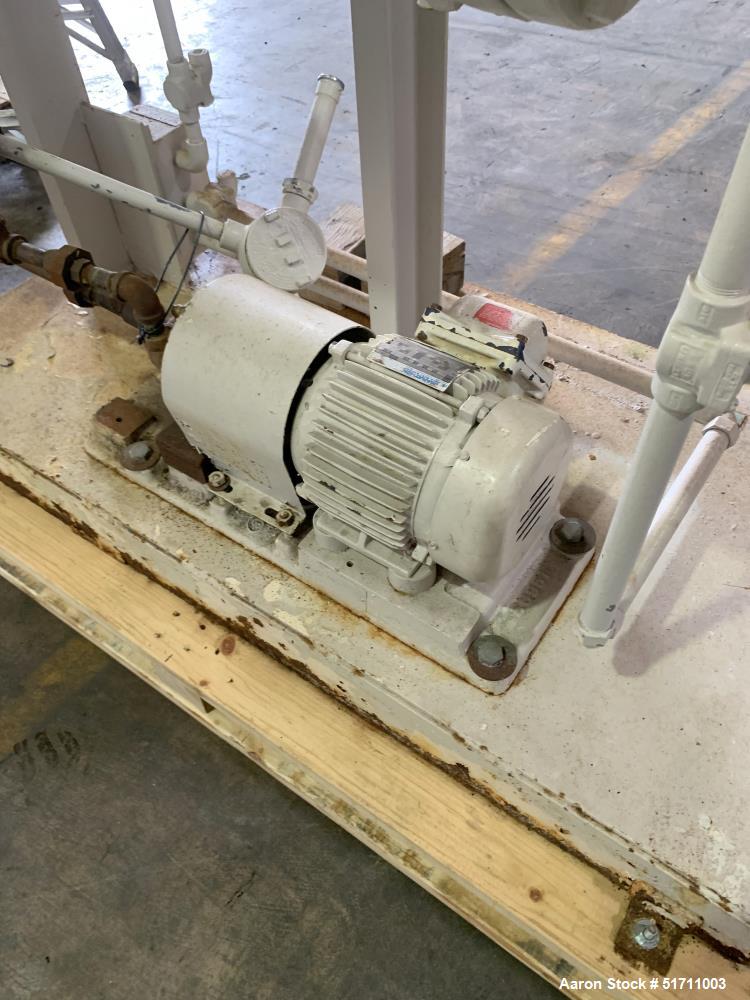

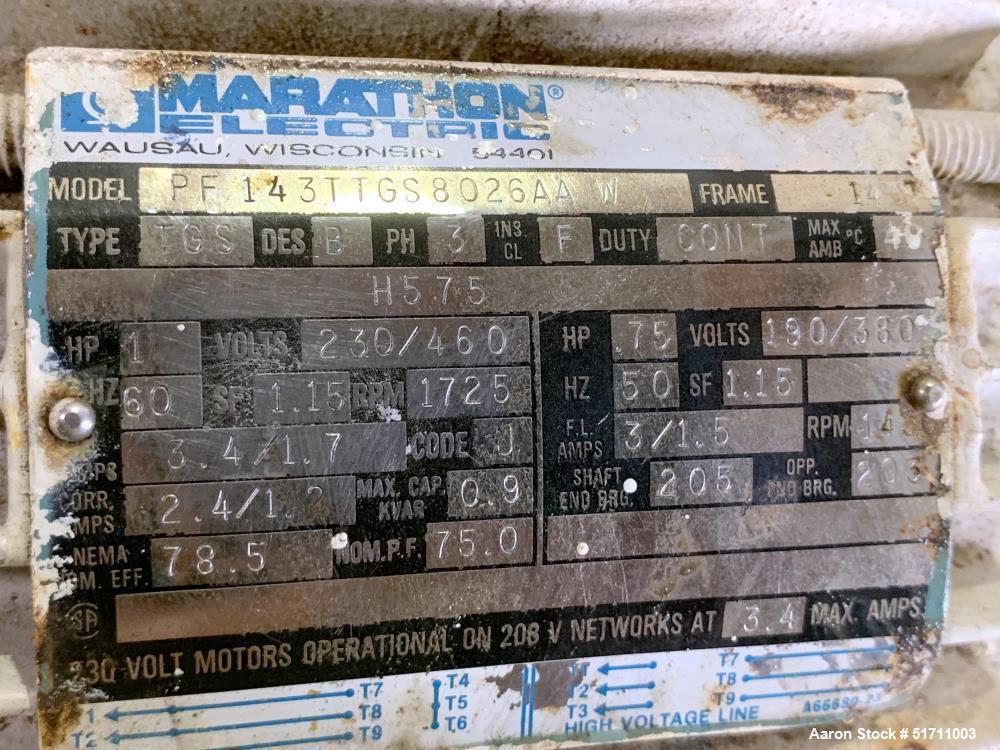

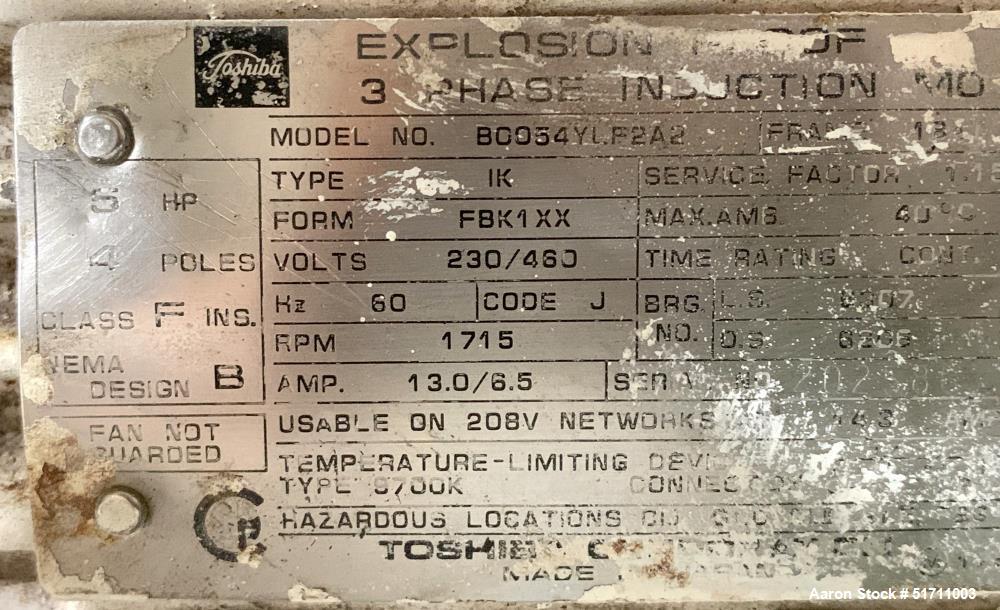

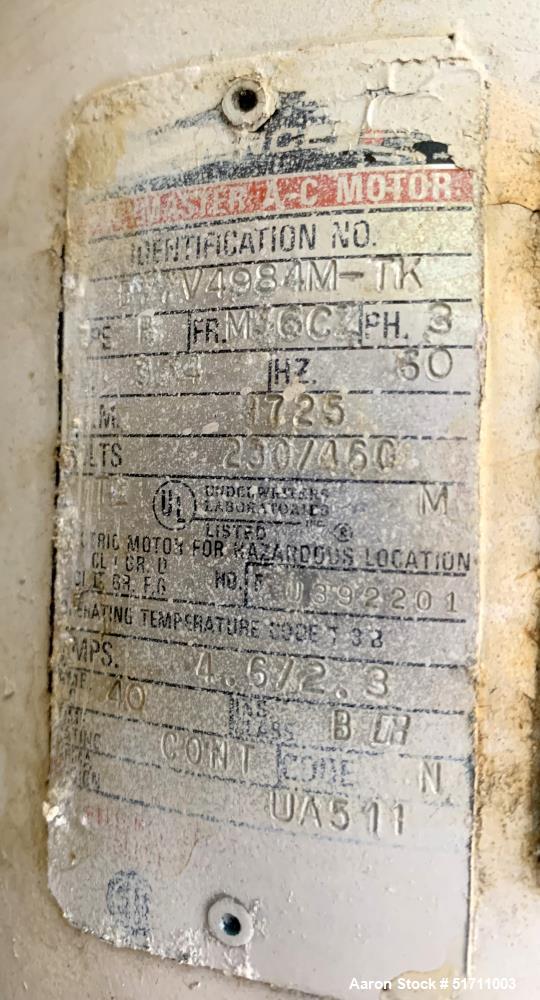

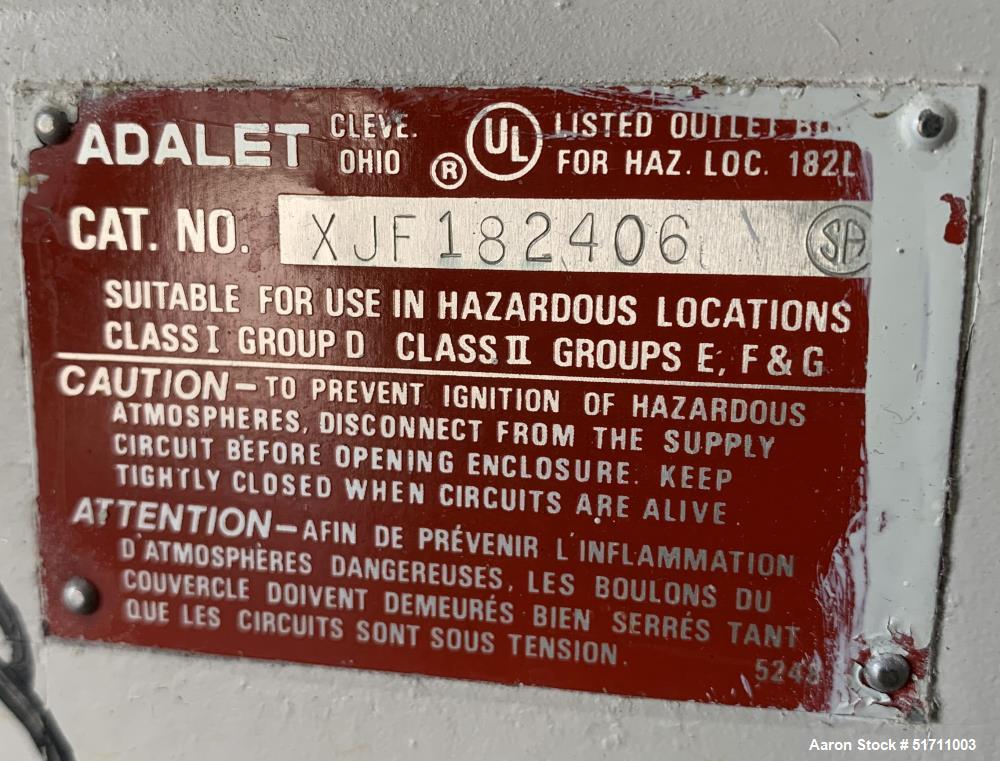

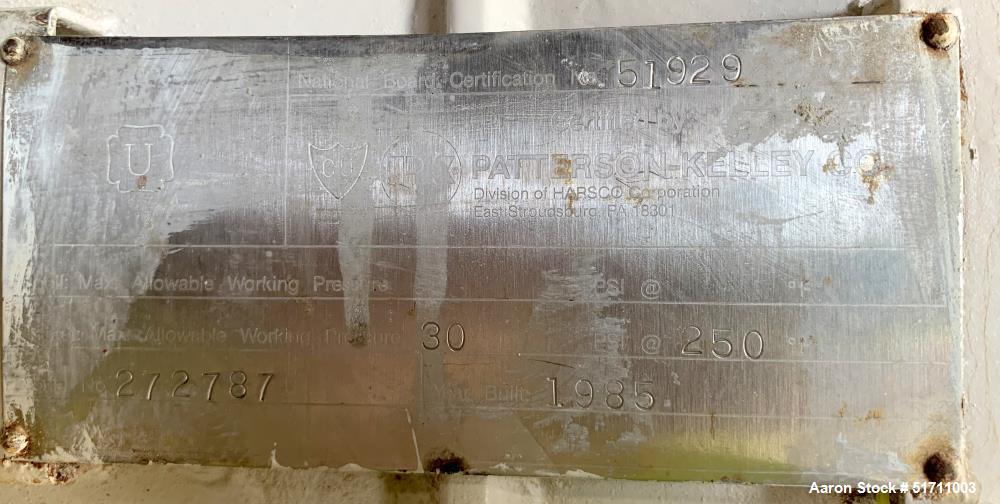

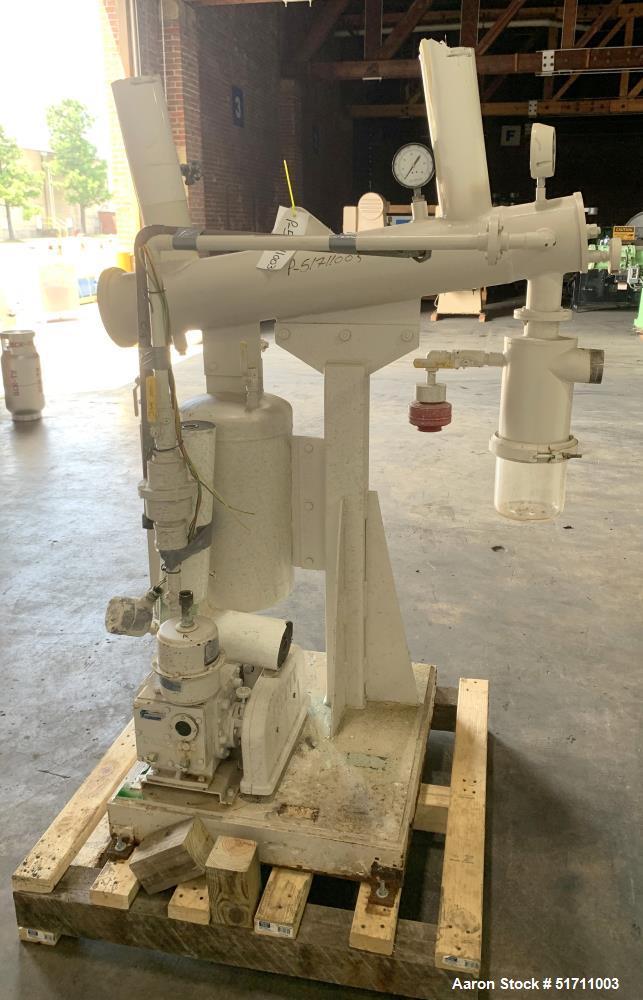

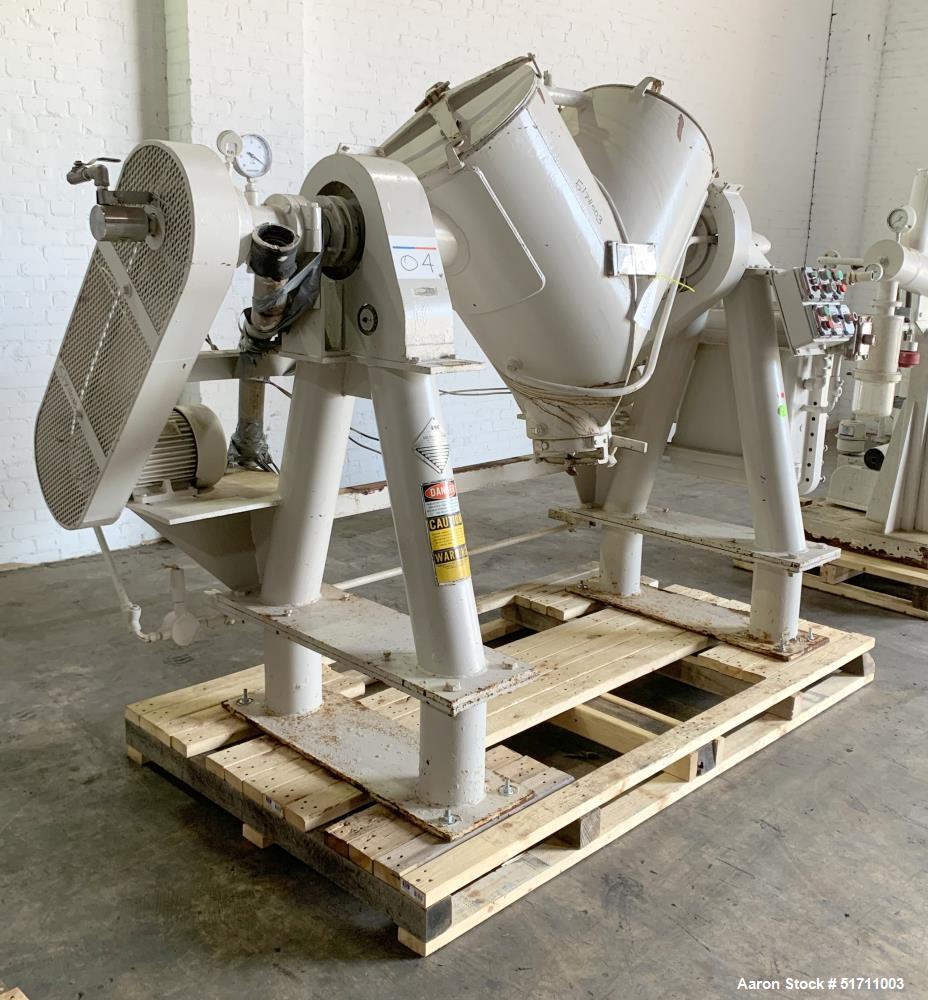

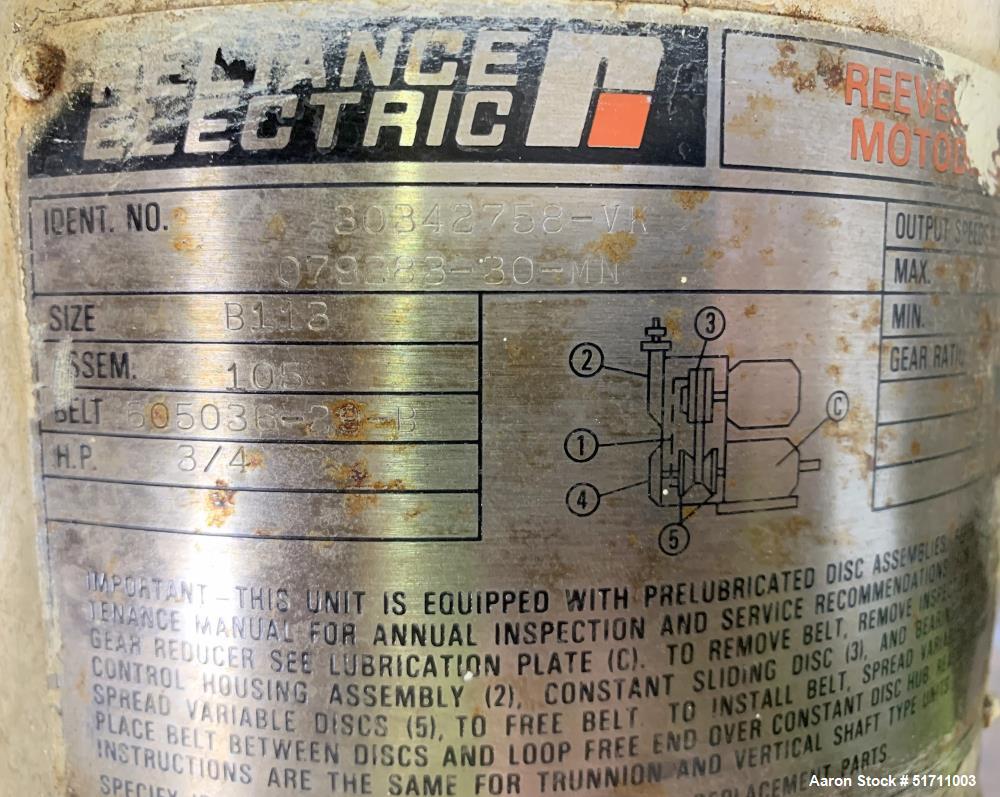

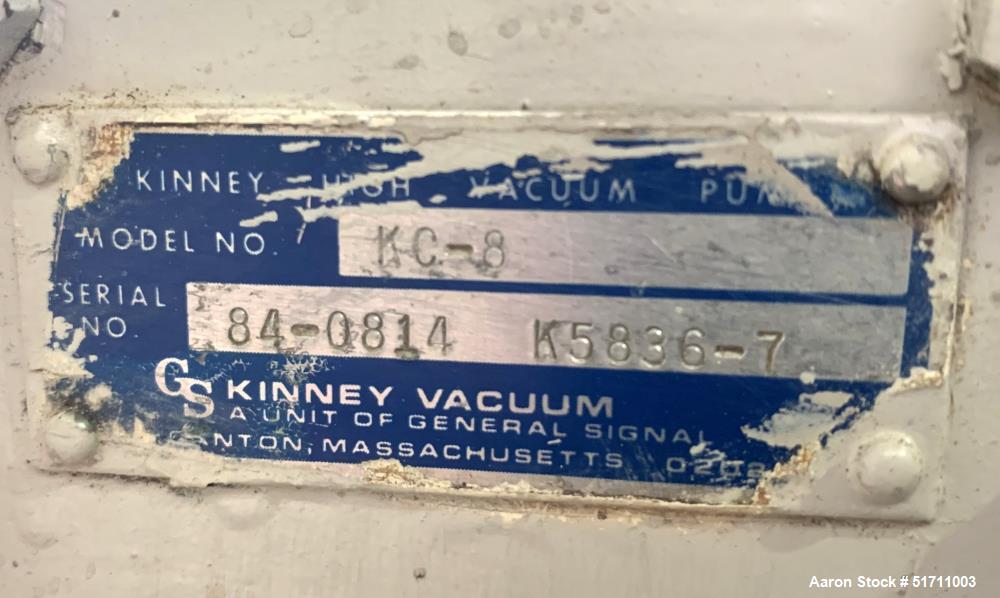

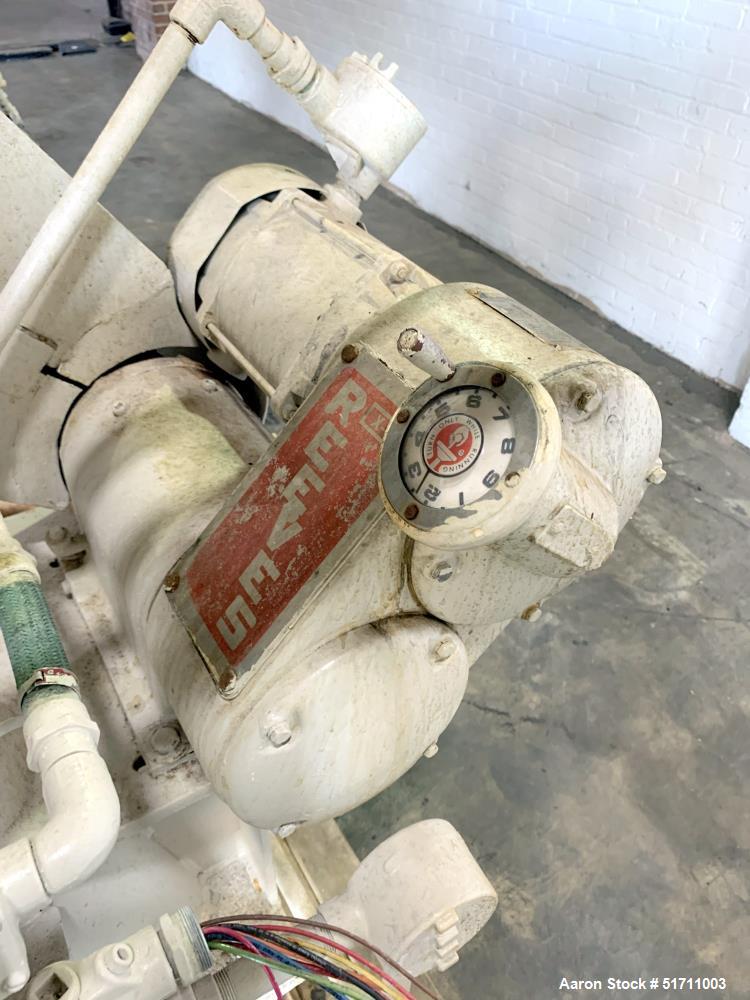

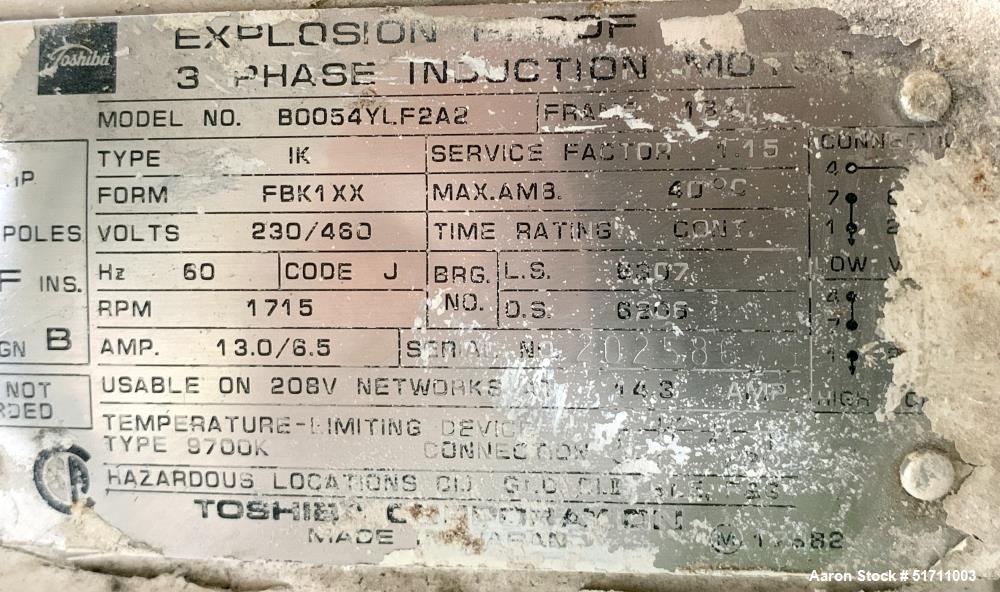

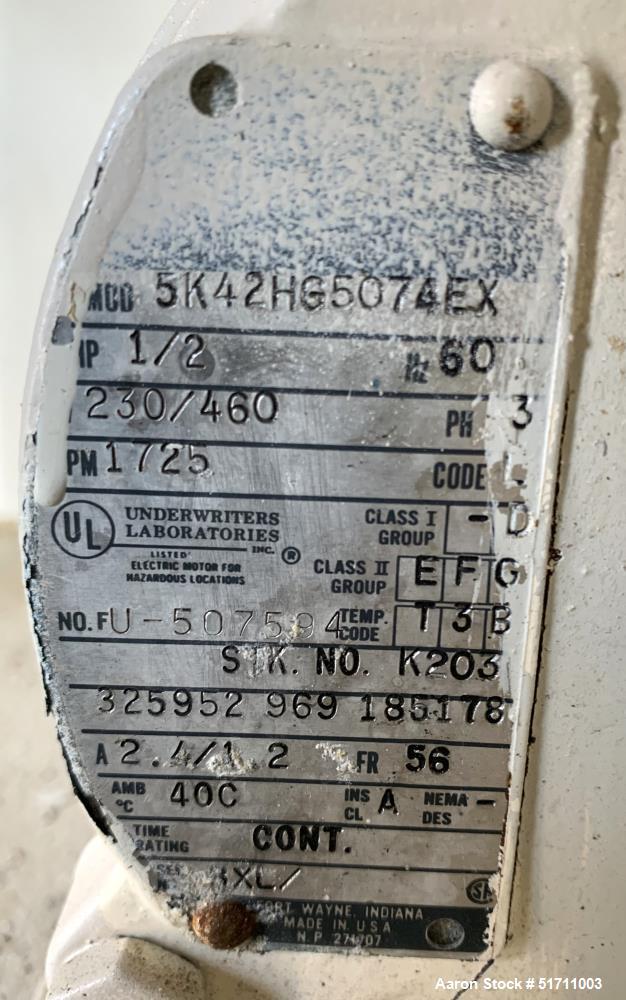

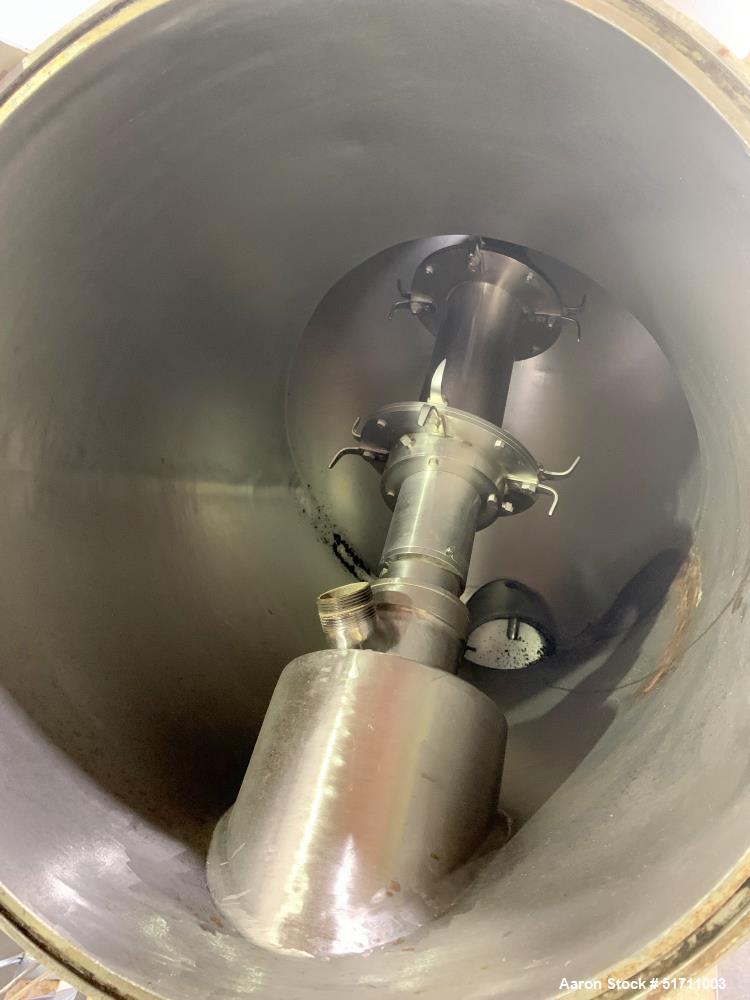

Used Patterson Kelley (PK) Twin Shell Solids Processor. 5 Cubic feet working capacity. Maximum material density 70 pounds per cubic foot. 304 Stainless Steel Vessel, 316 Stainless Steel Shaft. Shell rated full vacuum at 250 degrees F maximum temperature. Jacket rated 30 psi at 250 degrees F. (2) 19" Diameter charge ports with quick change covers. Shell driven by Reeves manual adjustable speed drive with 3/4hp, 3/60/230/460 volt, 1725 rpm XP gear motor, 44:1 ratio, 10.6 to 84 rpm output speed. Intensifier bar driven by 5hp, 3/60/230/460 volt, 1715 rpm XP motor. 6" Center bottom outlet with manual butterfly valve, approximate discharge height 30". Includes explosion proof control panel, vacuum pump skid with 1/2hp vacuum pump and circulation skid with 1hp pump. Frame mounted. PK Serial# 272787, National board# 51929, Built 1985.
Used Patterson Kelley (PK) Twin Shell Solids Processor. 5 Cubic feet working capacity. Maximum material density 70 pounds per cubic foot. 304 Stainless Steel Vessel, 316 Stainless Steel Shaft. Shell rated full vacuum at 250 degrees F maximum temperature. Jacket rated 30 psi at 250 degrees F. (2) 19" Diameter charge ports with quick change covers. Shell driven by Reeves manual adjustable speed drive with 3/4hp, 3/60/230/460 volt, 1725 rpm XP gear motor, 44:1 ratio, 10.6 to 84 rpm output speed. Intensifier bar driven by 5hp, 3/60/230/460 volt, 1715 rpm XP motor. 6" Center bottom outlet with manual butterfly valve, approximate discharge height 30". Includes explosion proof control panel, vacuum pump skid with 1/2hp vacuum pump and circulation skid with 1hp pump. Frame mounted. PK Serial# 272787, National board# 51929, Built 1985.
