Used- Posey Iron Works Indirect Gas Fired Rotary Calciner

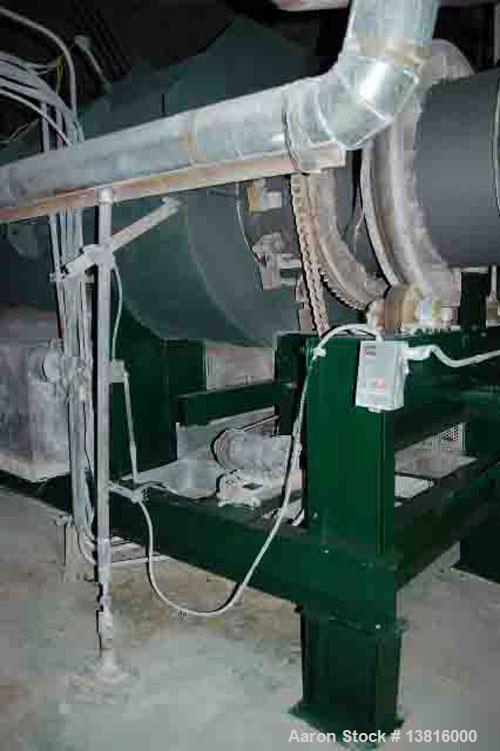

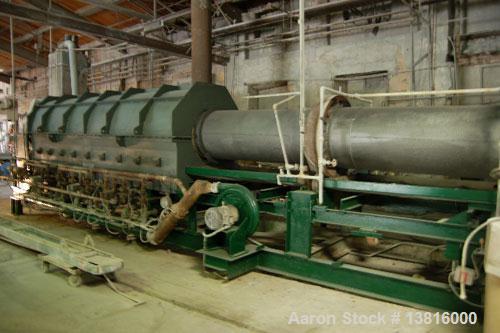

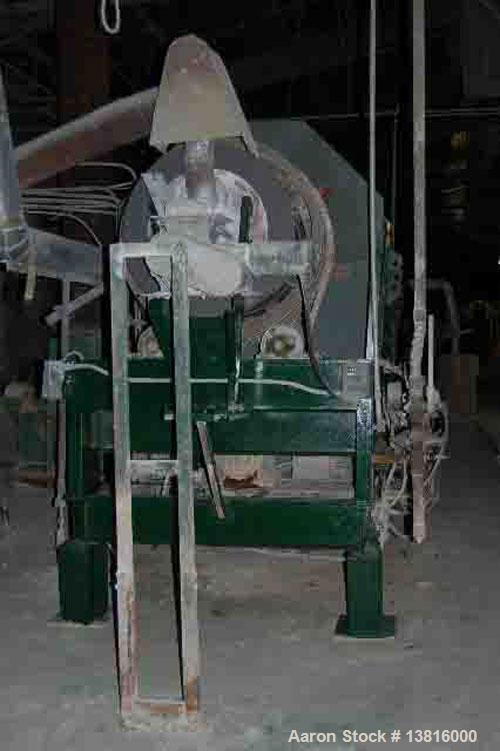

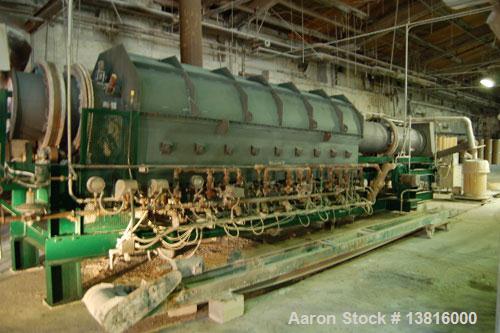

Used- Posey Iron Works Indirect Gas Fired Rotary Calciner.30" Diameter x 34' overall length, three-zone 16' furnace with 6" thick refractory; each zone has three gas burners, maximum total output of 1.7 million BTU per hour; gas burner system intact with control and combustion blower; 16' heated section is 310 stainless steel, 14' cooler section and 4' feed section are carbon steel, cooler section has external water spray nozzles and drip pan; 2 hp retort drive, 440 volt/3 phase/60 hz motor mounted on variable-speed reducer chain driven to retort, rotation 0.5 to 4.0 rpm; feed and discharge hoods are dust-tight design carbon steel; (1) 6" diameter x 4' long feed screw with drive mounted in feed hood, (1) 6" diameter x 6' long discharge screw with drive mounted in bottom of discharge hood.
