Used- FEECO International Indirect Electrically Heated Rotary Calciner.

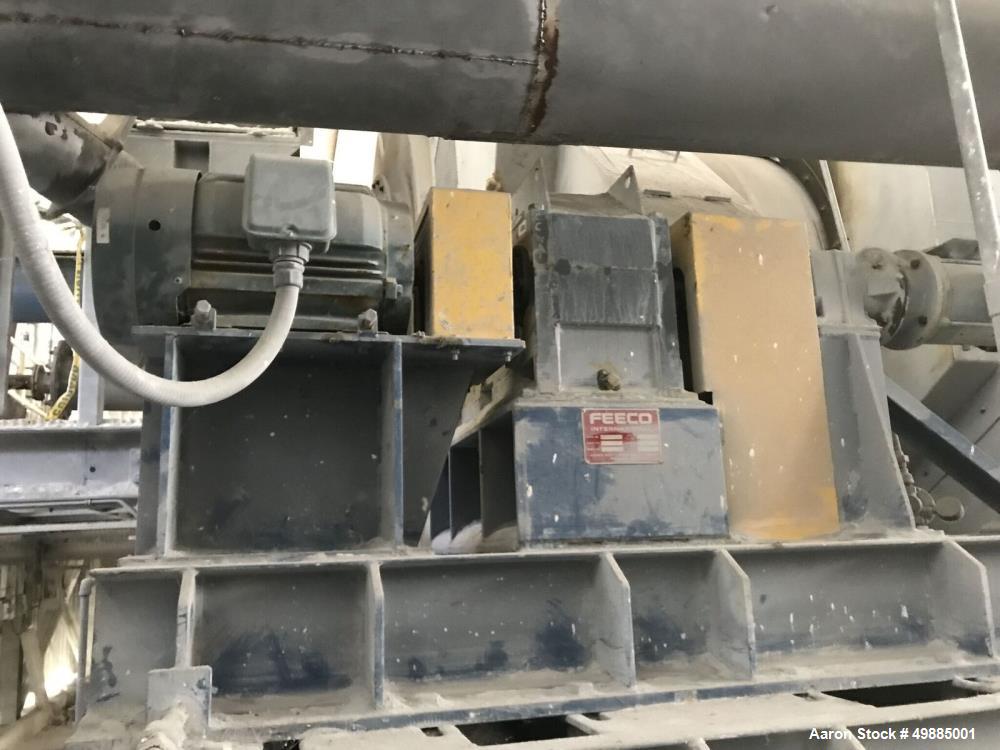

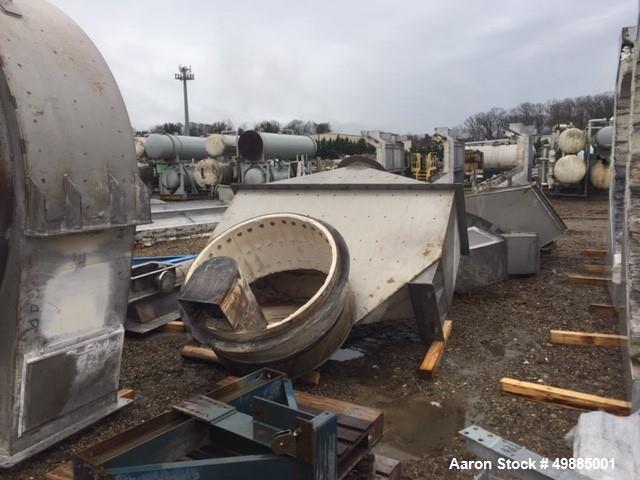

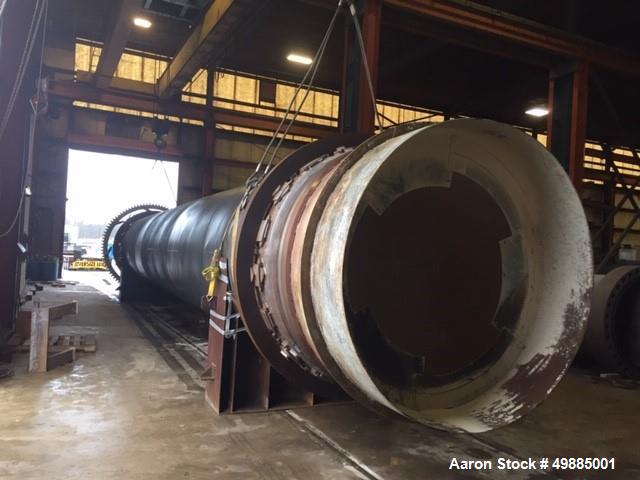

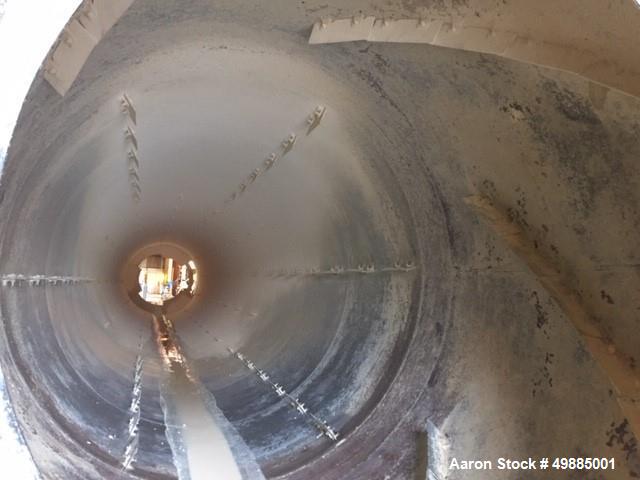

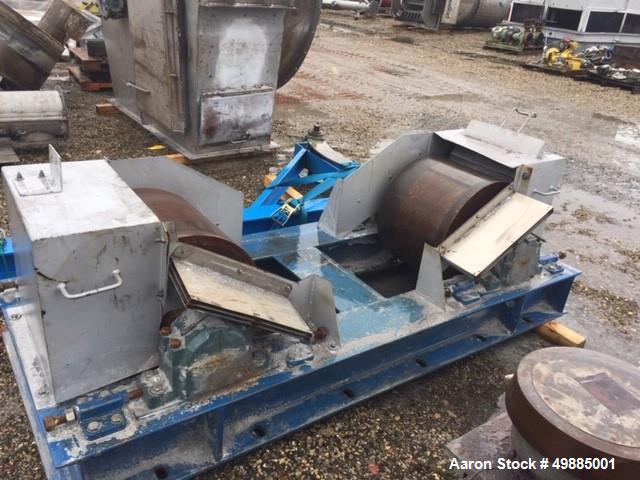

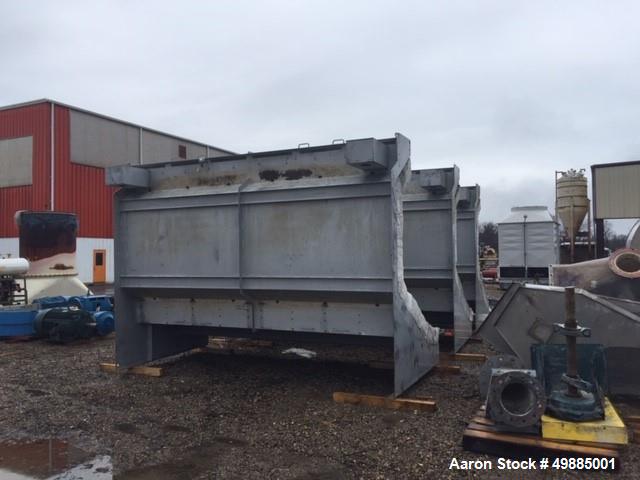

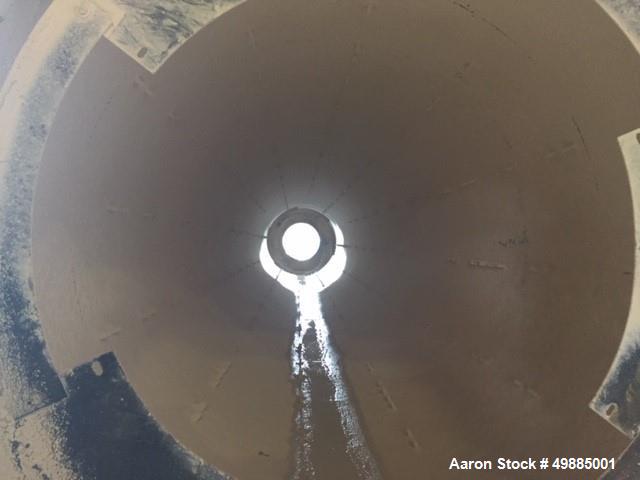

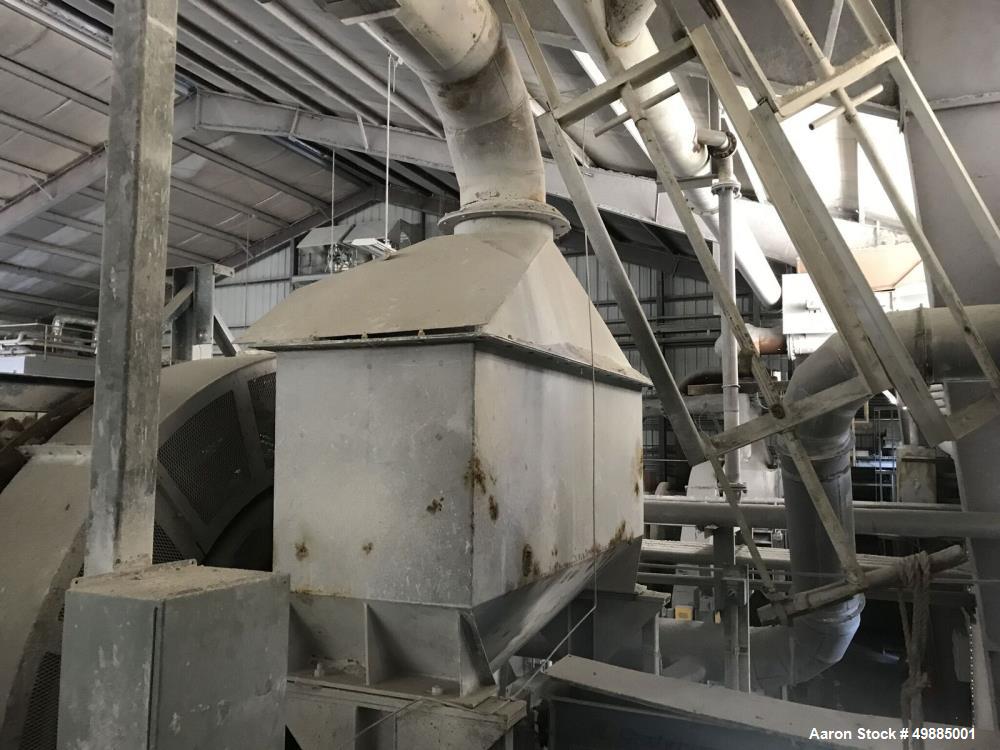

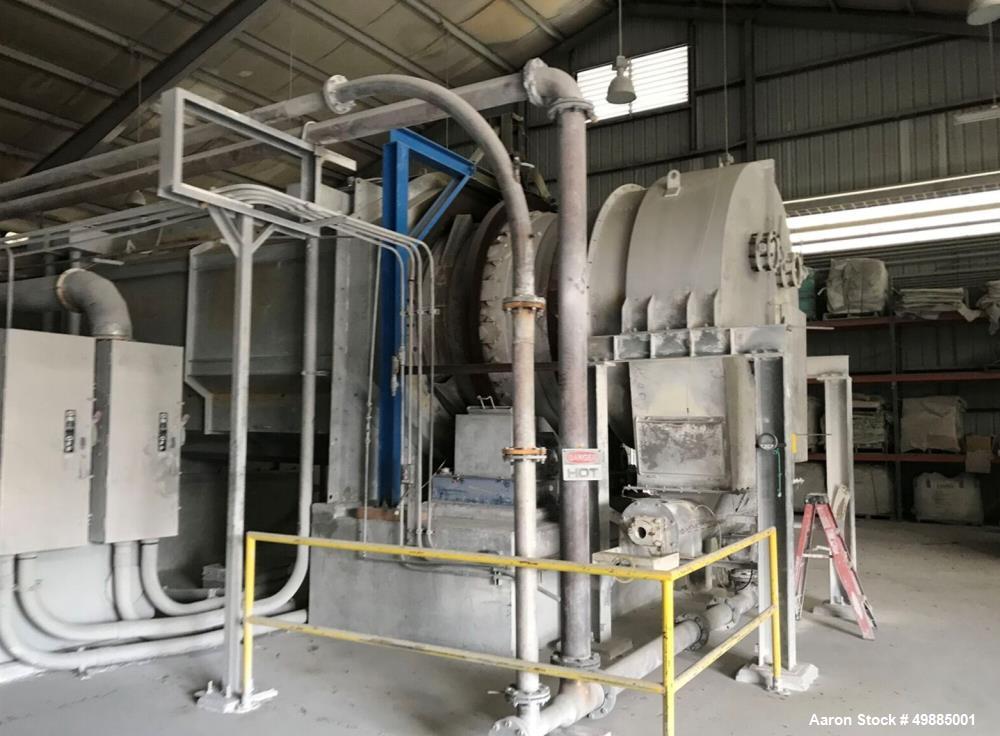

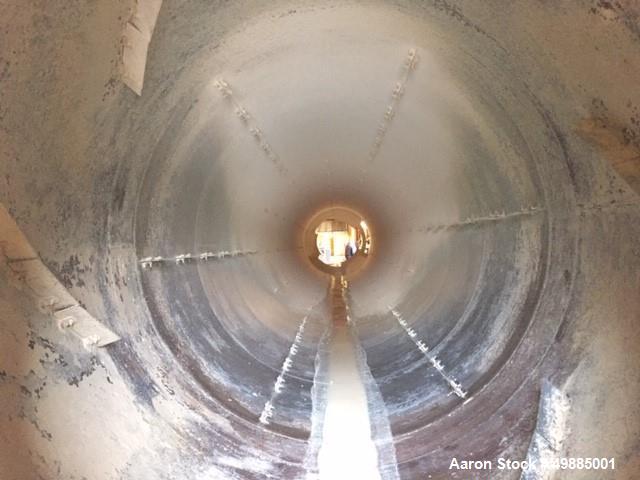

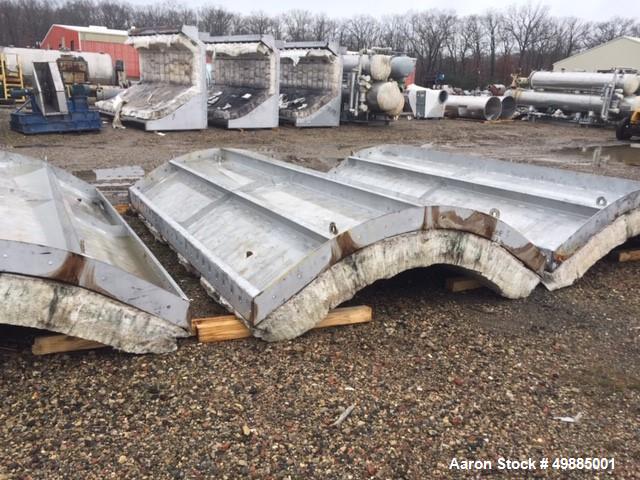

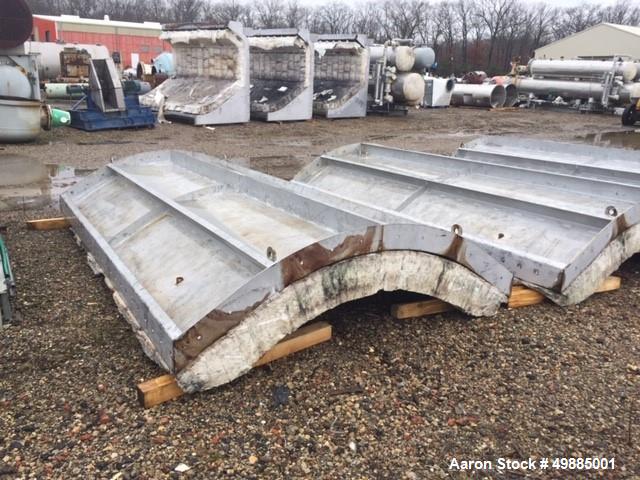

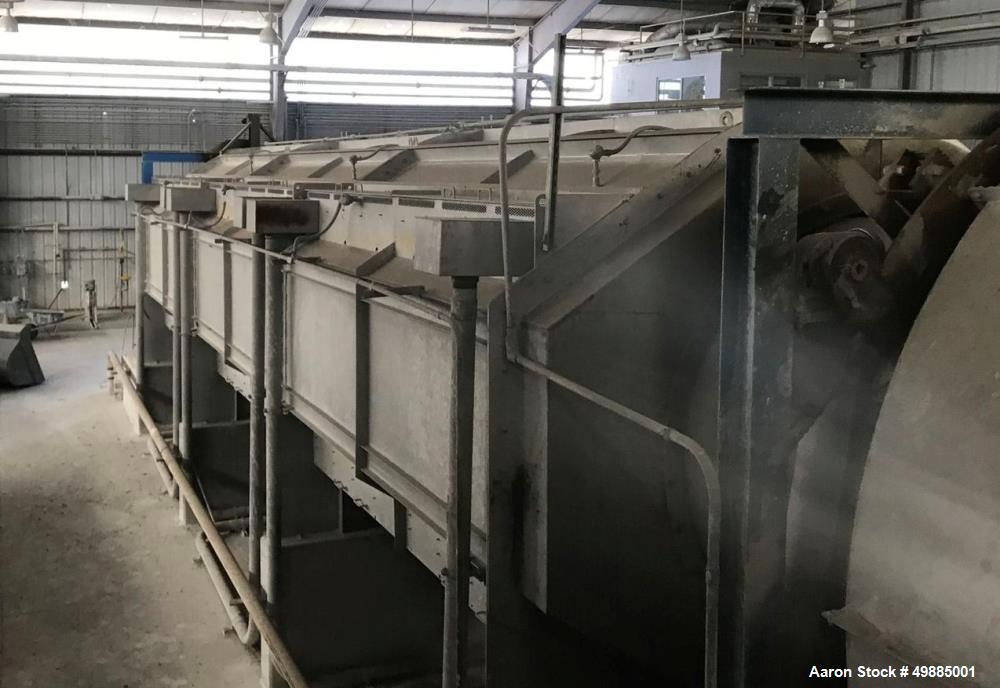

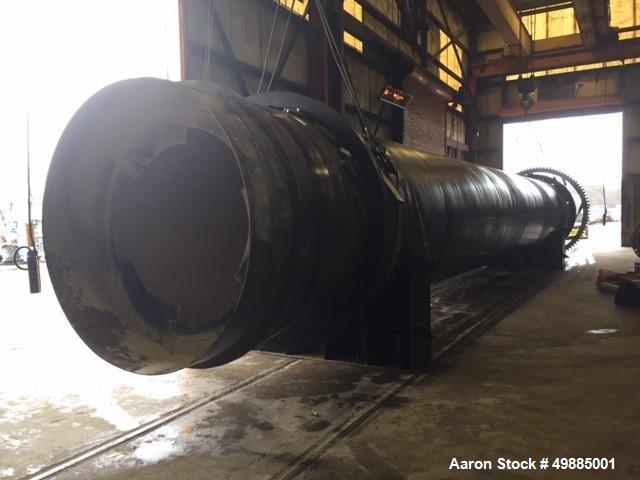

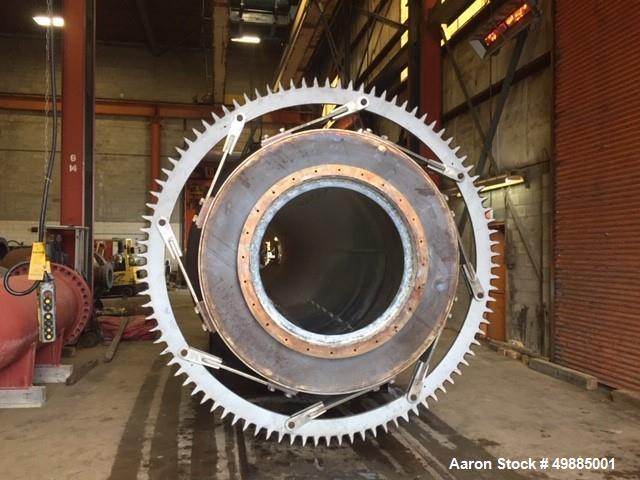

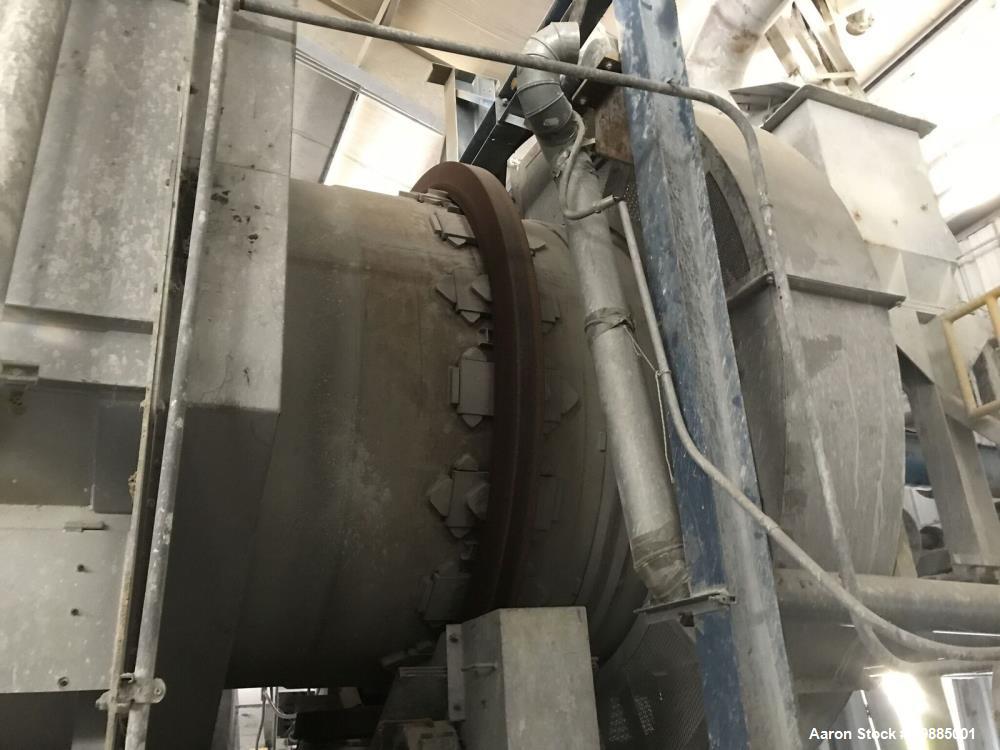

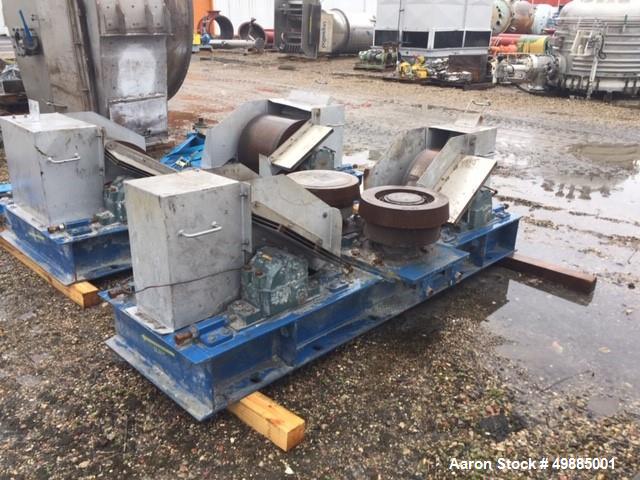

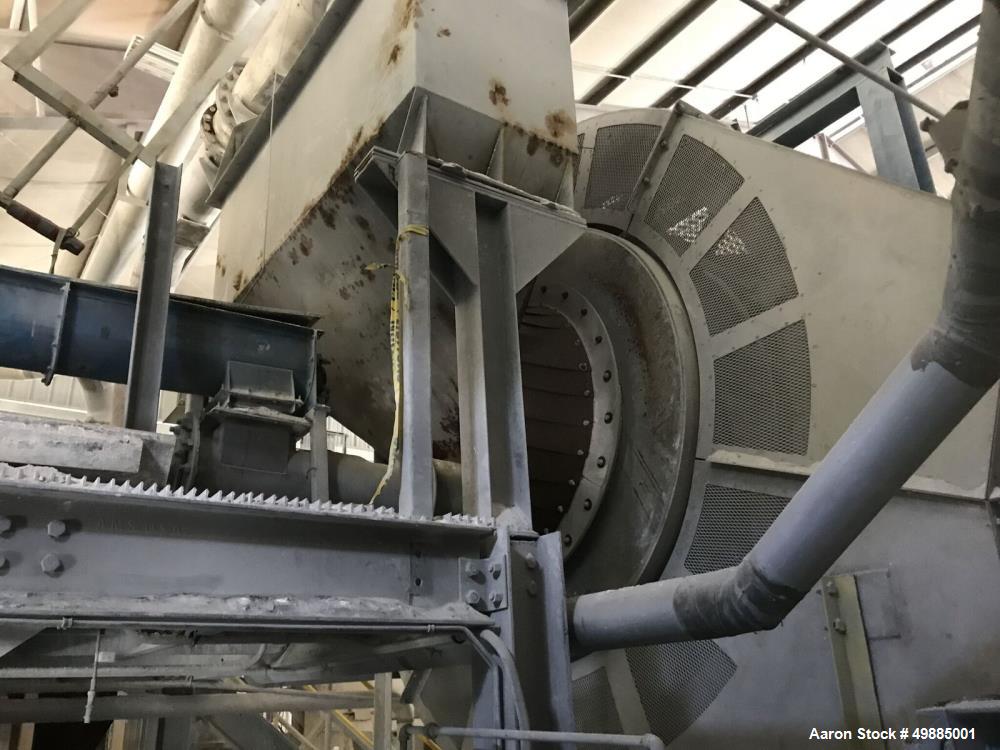

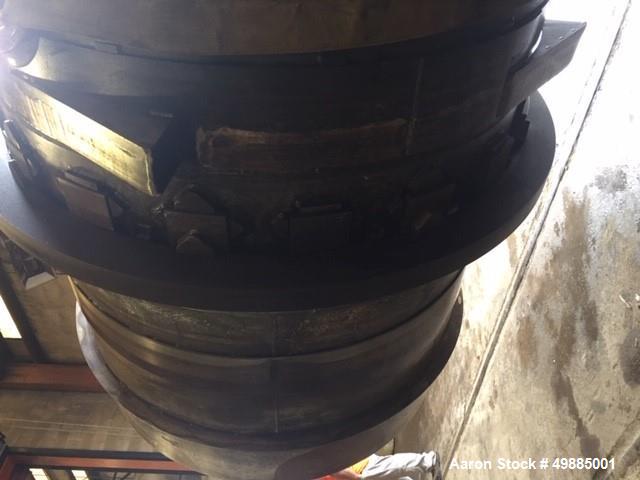

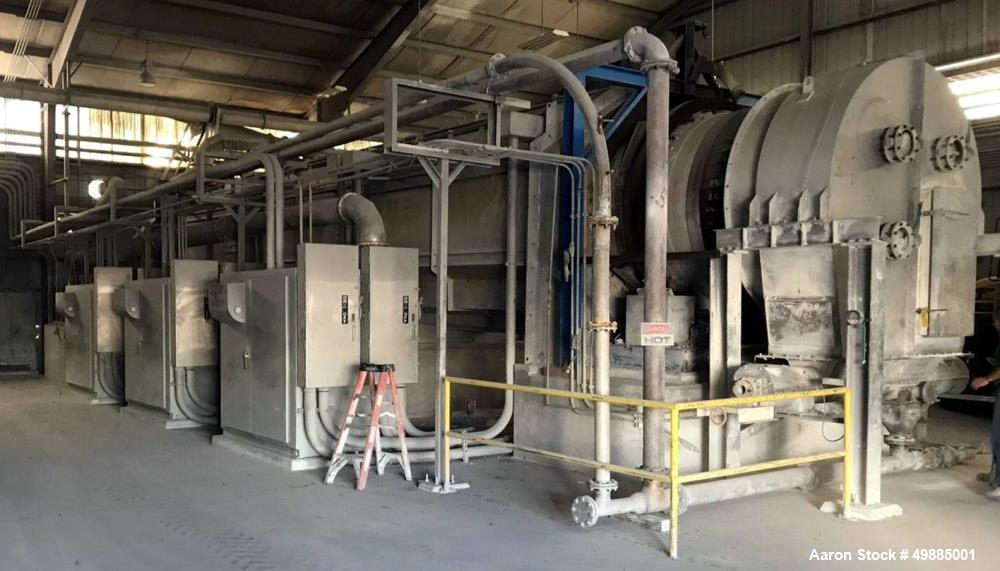

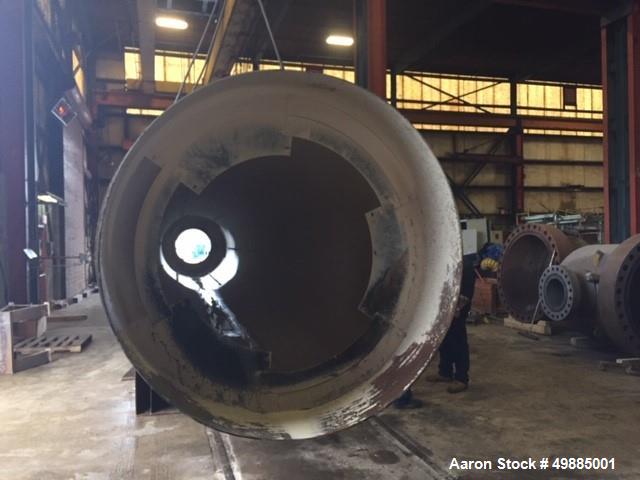

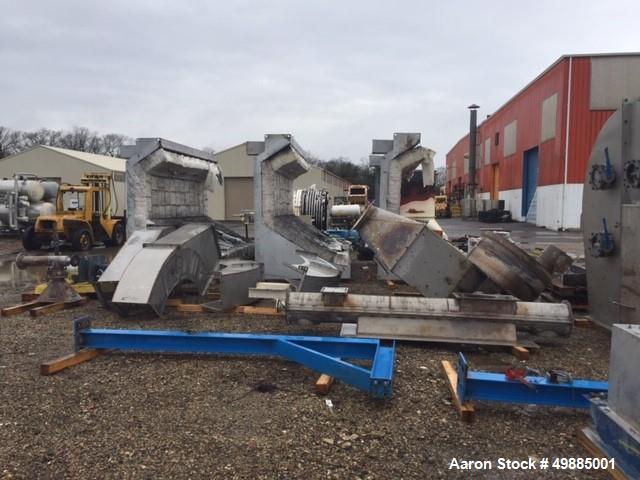

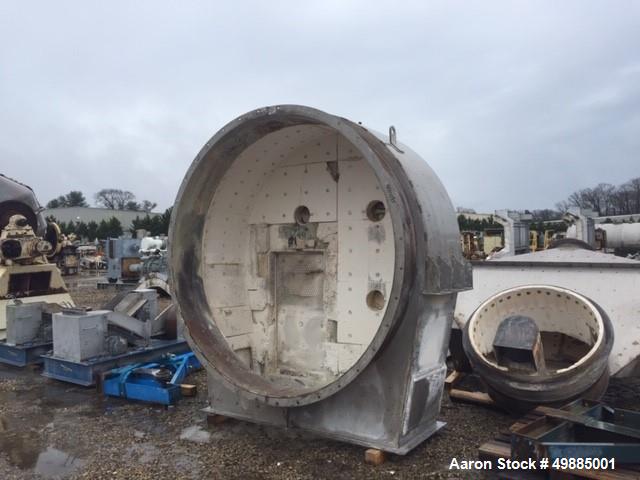

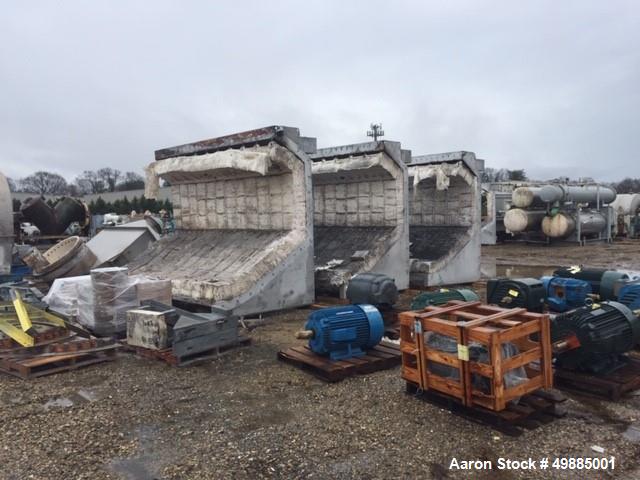

Used- FEECO International Indirect Electrically Heated Rotary Calciner. Approximate 7' diameter x 55' overall length Incoloy 803 drum, approximate 42' (3) zone heated length. Maximum heat input 1050 KW, maximum continuous operating temperature 2,000 degrees F, Counter-current solids and gas flow. Driven by a 20 hp, 3/60/230/460 volt, 1750 rpm motor with a Falk reducer, ratio 80.930 to 1. 316 Stainless steel inlet and outlet breeching hoods. Unit was designed to process up to 6.7 wet tons at 50% moisture of paper sludge. Serial# D20063850. Built 2006.
