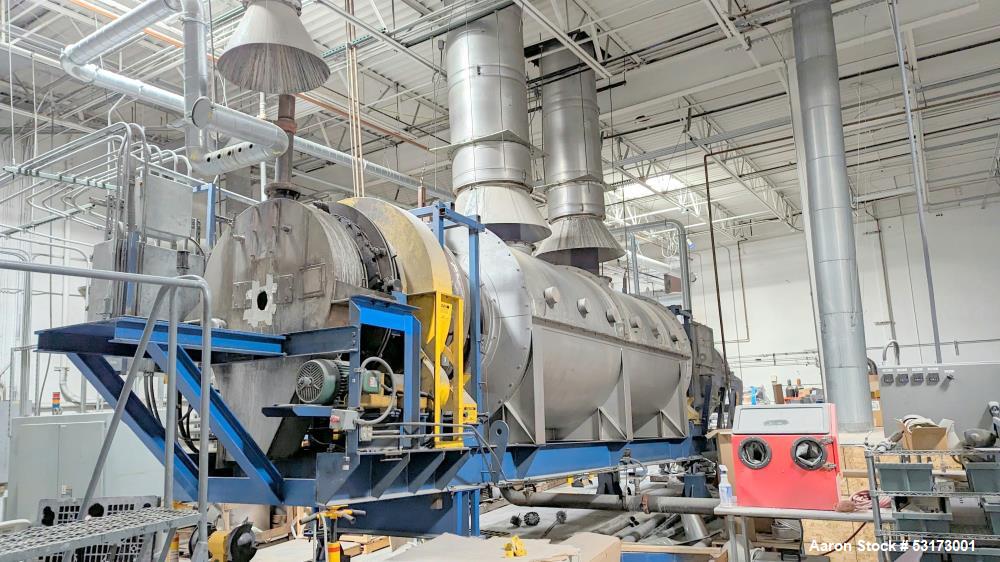

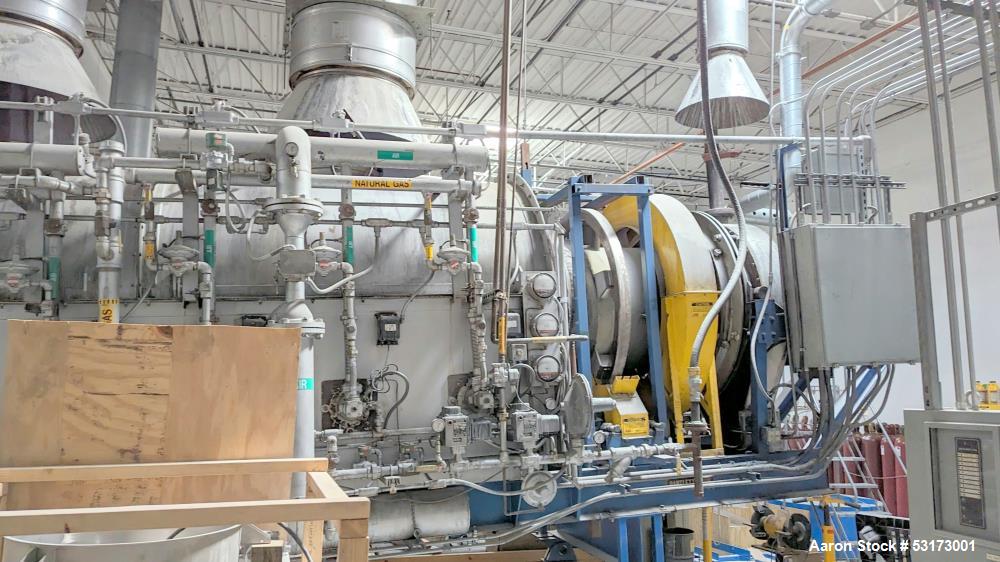

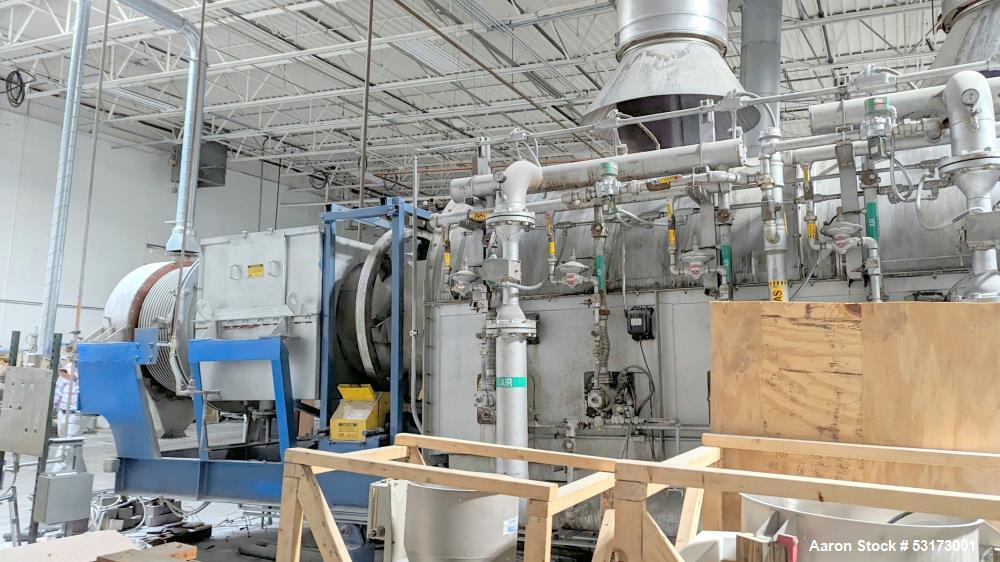

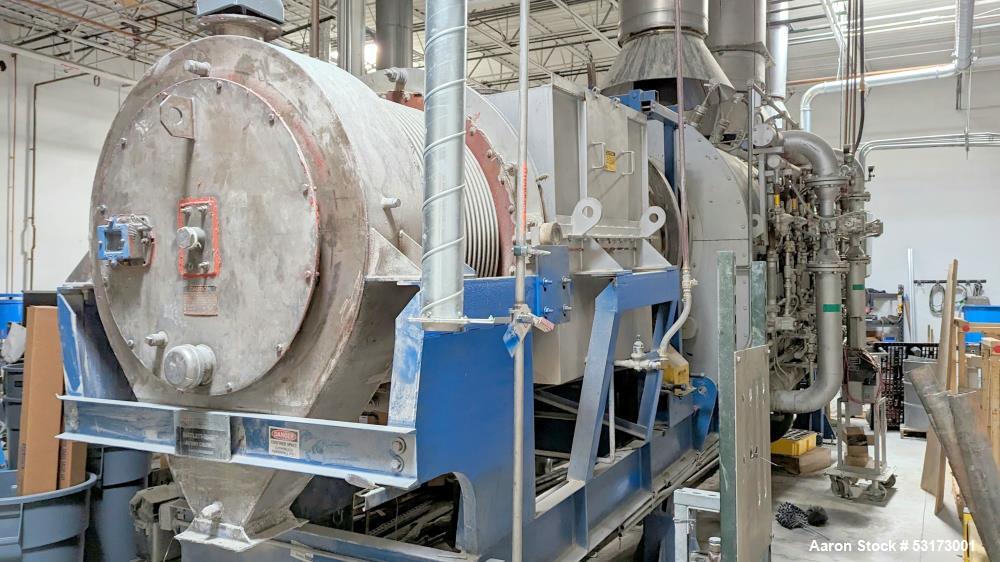

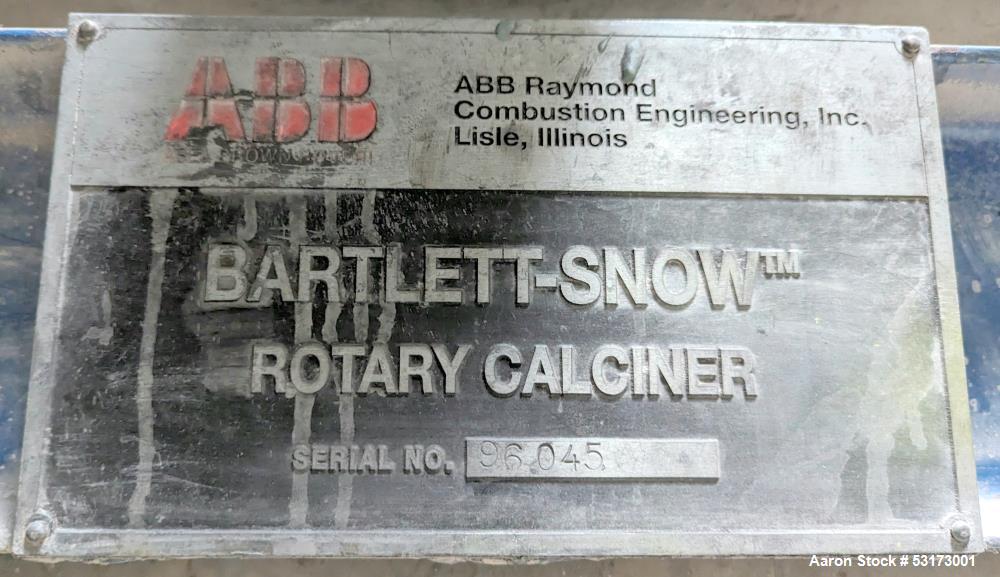

Used Bartlett-Snow 36" Diameter x 31.5' Long Rotary Calciner, Inconel 22 tube. Approximate 343 lb/hr Feed Capacity, 250 lb/hr Product Capacity, 27% Feed Moisture, 0% Product Moisture, 33 lb/ft3 Feed Bulk Density, 26 lb/ft3 Product Bulk Density, 0.3 Btu/lb F Specific Heat, 60 Degrees F Feed Temperature, 2,050 Degrees F Product Temperature, 350-450 Degrees F Cooled Product Temperature, 2,100 Degrees F Shell Temperature, 500 Degrees F Purge Gas Inlet Temperature, Steam Purge Gas, 45 Minute Retention Time, 10% Cylinder Loading, 1 rpm Minimum Cylinder Speed, 6 rpm Maximum Cylinder Speed. Utility Requirements: Natural Gas Fuel Type; 21,750 Btu/lb Fuel Heat Content; 1.23 mm Btu/hr Estimated Heat Required; 3/60/460 Main Power Supply; 1/60/110 Control Power Supply.
Calciner, Dehydrated, Dehydrater, Dewatering, Dry Granulation, Dry Processed Foods, Drying, Minerals, Mining & Minerals, Mining Industry
Used Bartlett-Snow 36" Diameter x 31.5' Long Rotary Calciner, Inconel 22 tube. Approximate 343 lb/hr Feed Capacity, 250 lb/hr Product Capacity, 27% Feed Moisture, 0% Product Moisture, 33 lb/ft3 Feed Bulk Density, 26 lb/ft3 Product Bulk Density, 0.3 Btu/lb F Specific Heat, 60 Degrees F Feed Temperature, 2,050 Degrees F Product Temperature, 350-450 Degrees F Cooled Product Temperature, 2,100 Degrees F Shell Temperature, 500 Degrees F Purge Gas Inlet Temperature, Steam Purge Gas, 45 Minute Retention Time, 10% Cylinder Loading, 1 rpm Minimum Cylinder Speed, 6 rpm Maximum Cylinder Speed. Utility Requirements: Natural Gas Fuel Type; 21,750 Btu/lb Fuel Heat Content; 1.23 mm Btu/hr Estimated Heat Required; 3/60/460 Main Power Supply; 1/60/110 Control Power Supply.
Calciner, Dehydrated, Dehydrater, Dewatering, Dry Granulation, Dry Processed Foods, Drying, Minerals, Mining & Minerals, Mining Industry
