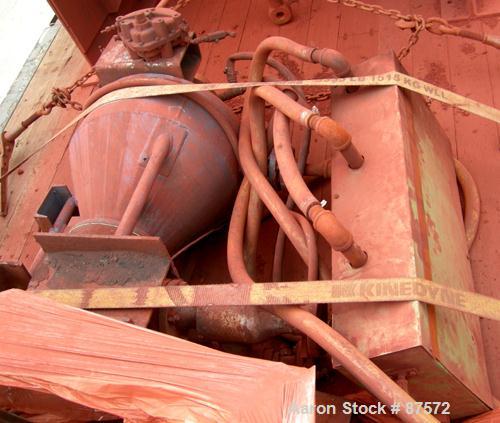

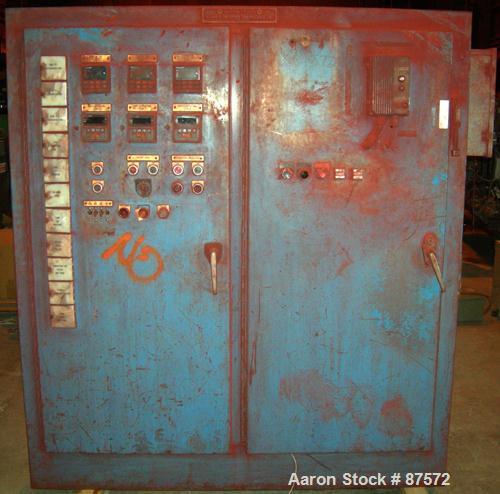

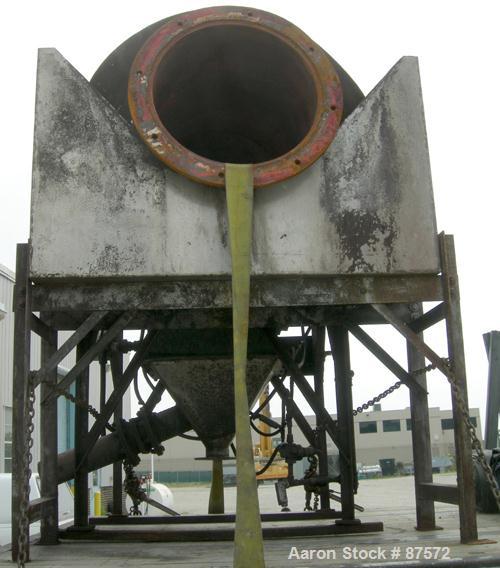

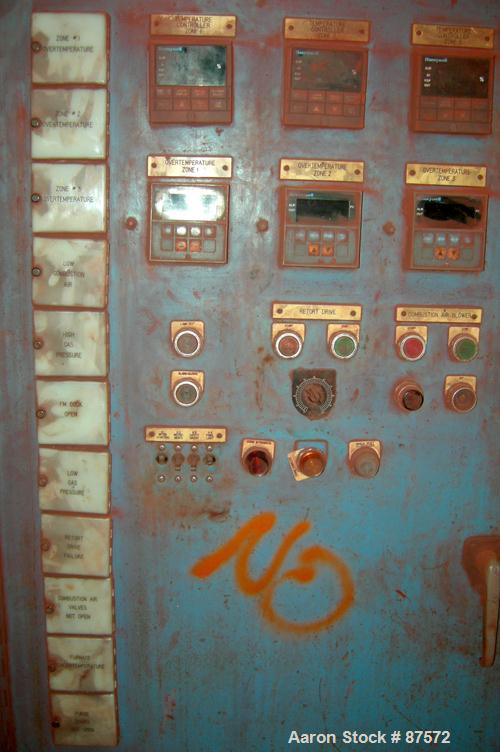

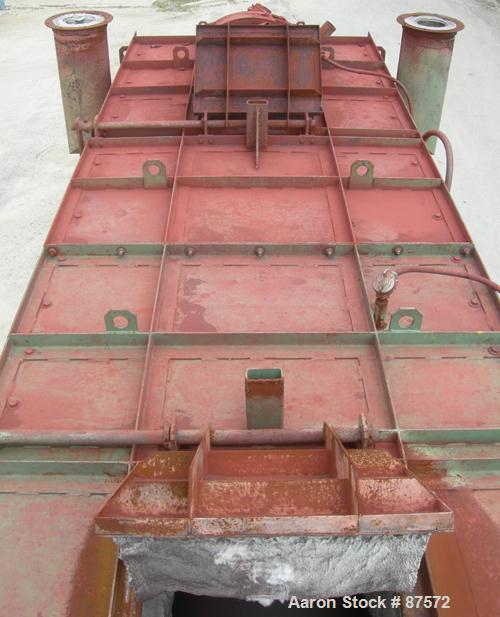

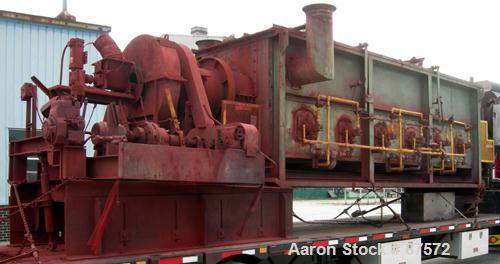

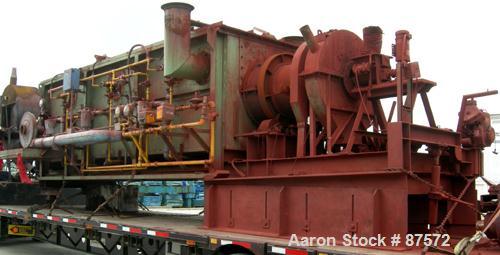

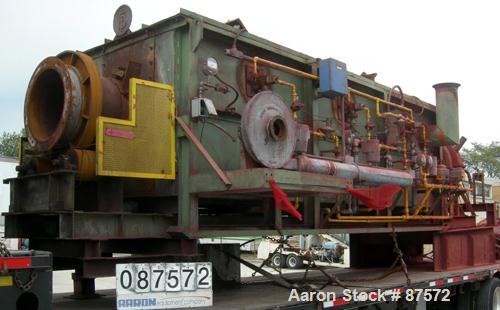

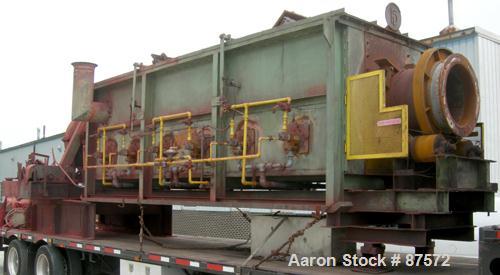

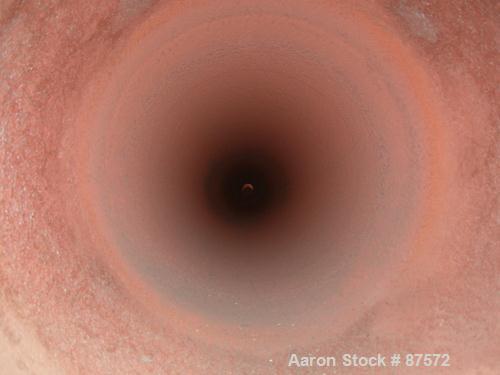

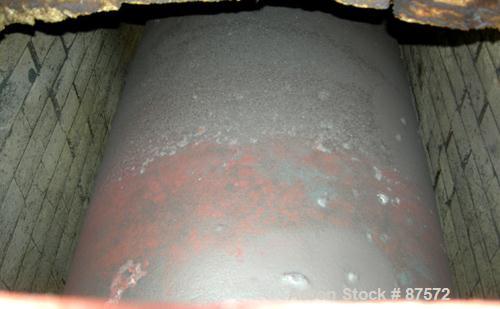

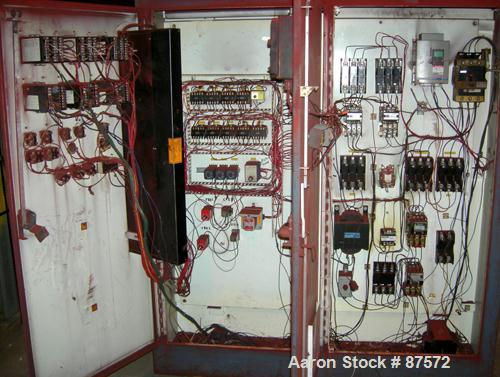

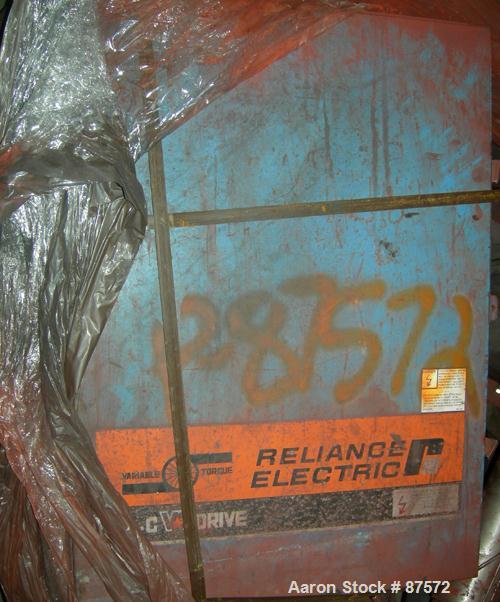

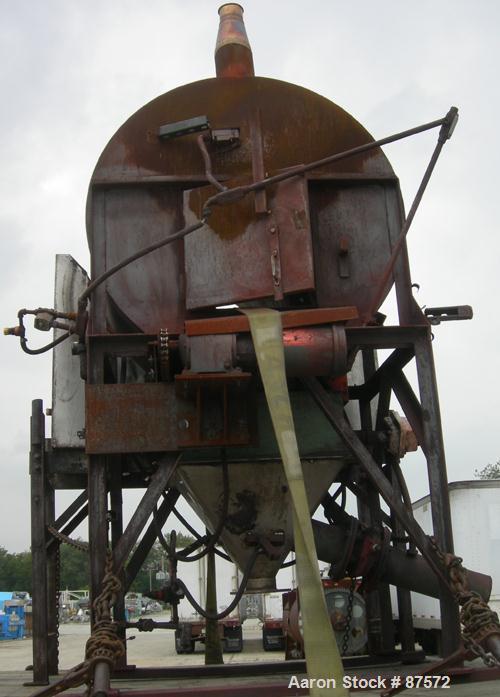

USED: Flinn and Dreffein Engineering Company rotary calciner furnace. 24" diameter x 22' long HT alloy retort tube, RA330 stainless steel. Temperature range to approximately 1800 degrees F. 3 zones, gas fired, total heat input 1,200.000 BTU/hr. Approximate capacity 450-500 pounds an hour. Carbon steel shell with refractory lining. Tube driven by a 3 hp, 3/60/230/460 volt, 1800 rpm motor with reducer, ratio 174:1, approximate 10 rpm output. Unit includes a charge hopper with feeder, discharge hopper end, Reliance drive and control panel.
