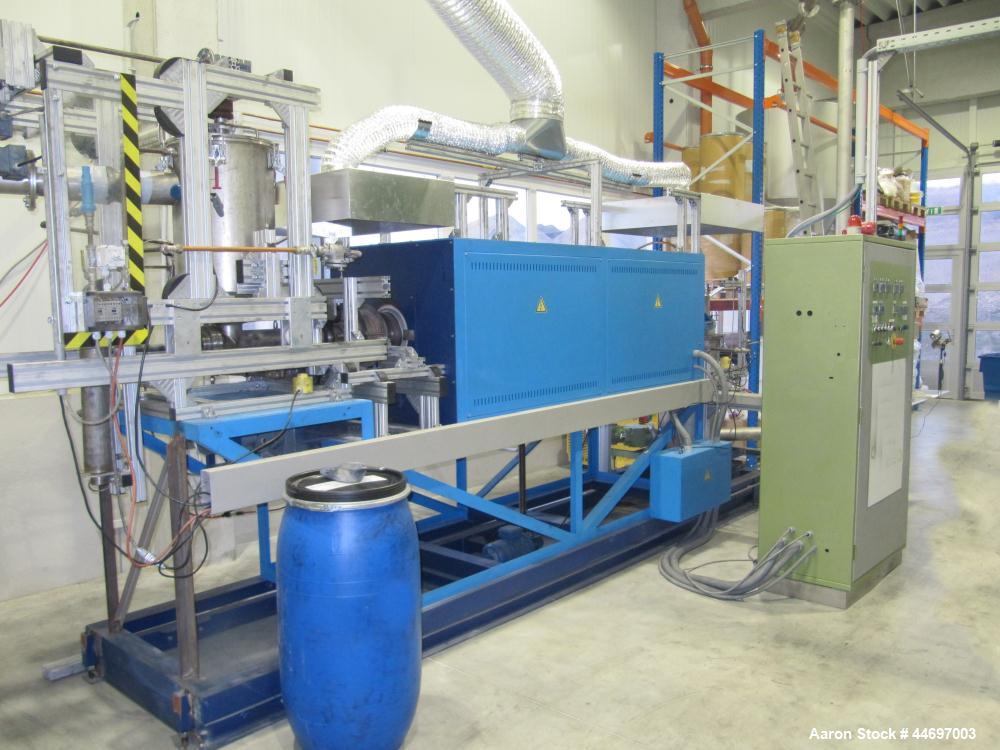

Used Continuously Operating High Temperature Calciner for evaporation of volatiles / reactive treatment of powder / pelletrized material. Chemical Vapor Deposition (CVD). The machine is based on a rotational furnace. Key Data: Worktube, d = 00 mm, l = 3000 mm max. Temp = 1100 deg C max. Temp permanent = 1000 deg C. Hot Zone = 2000 mm. Inlet/outlet section of the worktube is fitted with carbon sealings providing for gas-tight operation under HT and ambient pressure (200 m bar overpressure is possible). The inlet comprises a feed unit to charge the worktube with powder and/or pelletrized material in a controlled way. The worktube outlet ends in a stainless steel vessel, where product matter is collected. Operation is managed with Eurotherm (T, p) controllers and gas supply by means of Bronkhorst MFCs. All data is displayed and set via I-Tools software.
Used Continuously Operating High Temperature Calciner for evaporation of volatiles / reactive treatment of powder / pelletrized material. Chemical Vapor Deposition (CVD). The machine is based on a rotational furnace. Key Data: Worktube, d = 00 mm, l = 3000 mm max. Temp = 1100 deg C max. Temp permanent = 1000 deg C. Hot Zone = 2000 mm. Inlet/outlet section of the worktube is fitted with carbon sealings providing for gas-tight operation under HT and ambient pressure (200 m bar overpressure is possible). The inlet comprises a feed unit to charge the worktube with powder and/or pelletrized material in a controlled way. The worktube outlet ends in a stainless steel vessel, where product matter is collected. Operation is managed with Eurotherm (T, p) controllers and gas supply by means of Bronkhorst MFCs. All data is displayed and set via I-Tools software.
