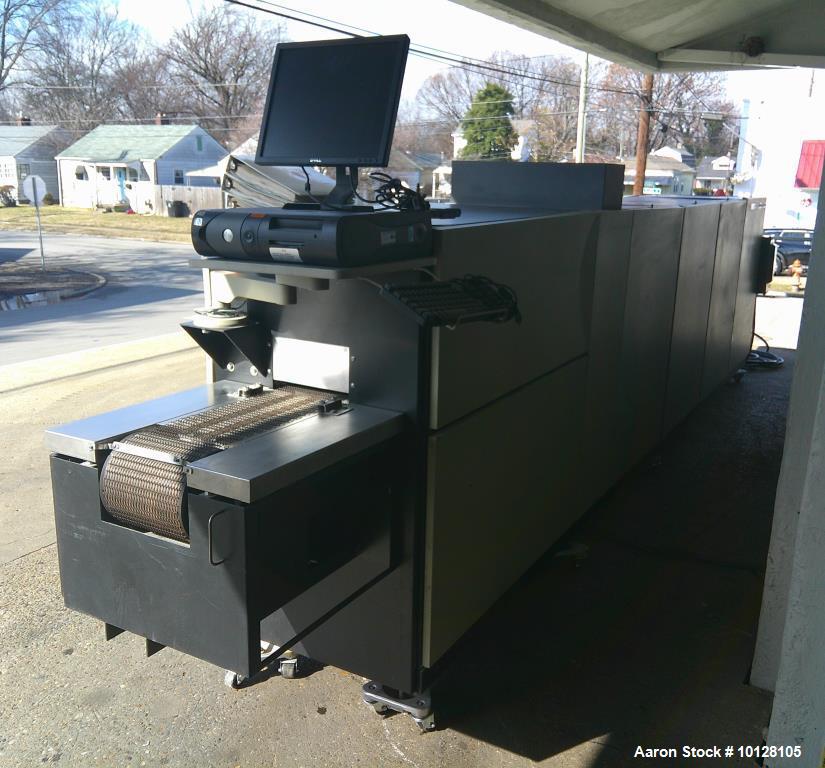

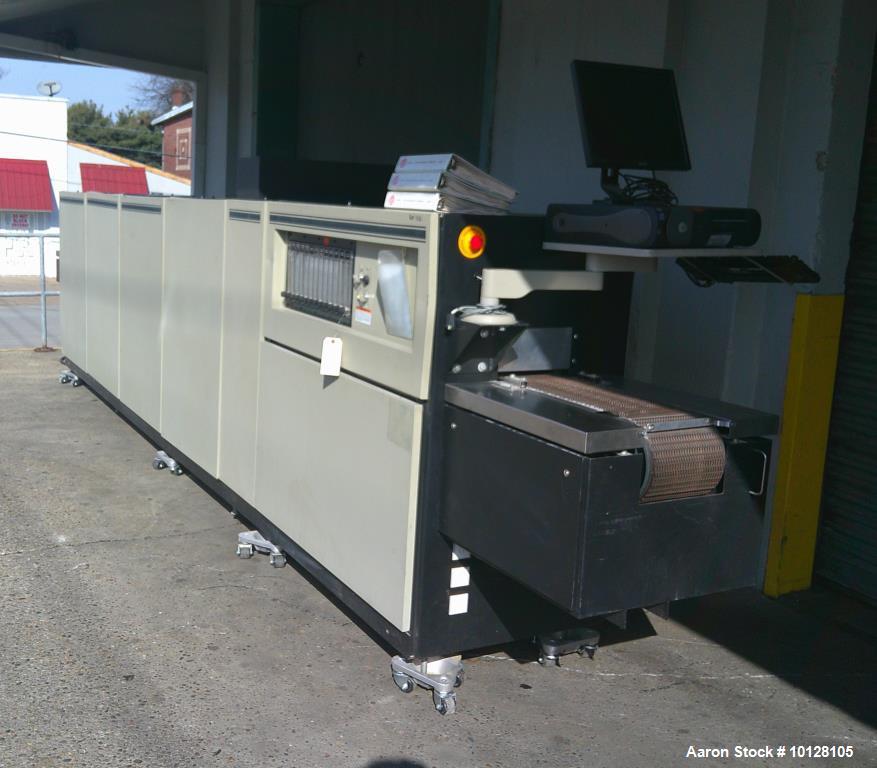

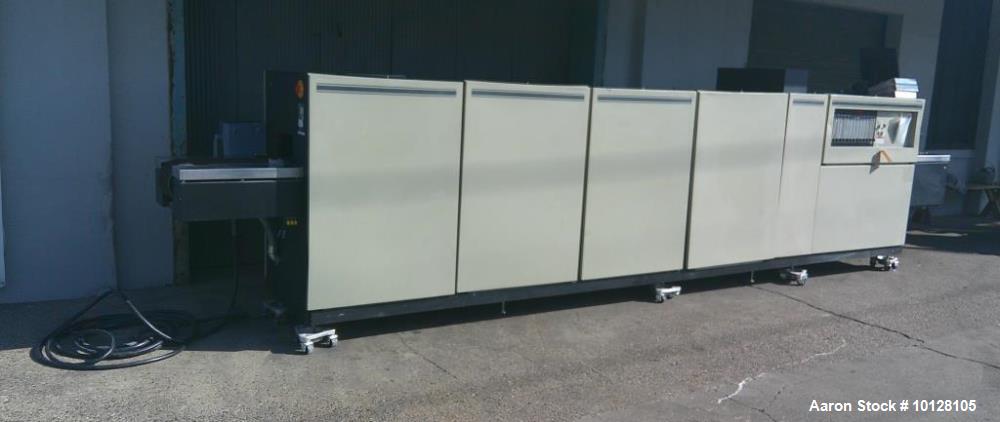

Used BTU International VM92-8-96N44 Electric Belt Furnace | 8-Zone High Temperature Conveyor Furnace

Manufacturer: BTU International
Model: VM92-8-96N44
Equipment Type: Electric Belt Furnace / Conveyor Furnace
Condition: Used
Serial Number: IRCT-1

Description

Used BTU International model VM92-8-96N44 electric belt furnace designed for continuous high-temperature thermal processing applications in electronics, ceramics, metallurgy, powder processing, and industrial manufacturing operations. Engineered for non-explosive atmospheres, this furnace utilizes a variable speed wire mesh conveyor system for controlled continuous processing.

The furnace features a 9” wide by 259” long variable speed wire mesh belt conveyor and includes eight independently controlled heating zones. Zones 1–3 operate between 200°C and 500°C, while zones 4–8 operate from 500°C to 900°C, with maximum operating temperatures reaching 1100°C.

The system includes PC-based control software for process monitoring and temperature management. Air and water utilities are required for operation, making this unit suitable for demanding thermal treatment and continuous heat processing applications.

Specifications

• Manufacturer: BTU International
• Model: VM92-8-96N44
• Type: Electric belt furnace / conveyor furnace
• Atmosphere Type: Non-explosive atmospheres
• Serial Number: IRCT-1

Conveyor System

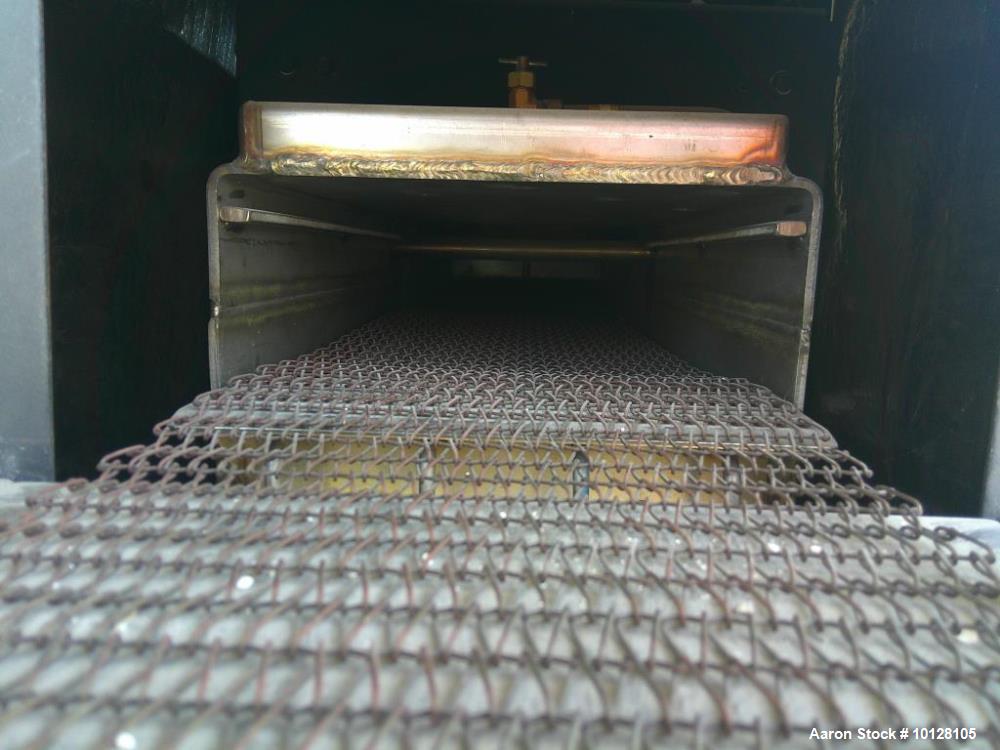

• Conveyor Type: Variable speed wire mesh belt
• Belt Width: 9”
• Belt Length: 259”

Heating Zones

• Total Zones: 8

Zone Temperature Ranges

• Zones 1–3: 200°C to 500°C
• Zones 4–8: 500°C to 900°C
• Maximum Temperature: 1100°C

Utilities & Electrical

• Electrical: 240 VAC / 3 Phase
• Current Draw: 125 Amps
• Air Required
• Water Required

Controls

• Includes PC control computer

Overall Dimensions

• Length: Approx. 260”
• Width: Approx. 35”
• Height: Approx. 66”

Applications

Ideal for continuous thermal processing, curing, sintering, annealing, drying, and heat treatment applications.

Products This Equipment Would Be Used For

• Electronic components
• Ceramic materials
• Powder metal products
• Heat-treated parts
• Industrial coatings
• Sintered materials
• Metal components
• Specialty alloys
• Semiconductor materials
• Advanced manufacturing products
