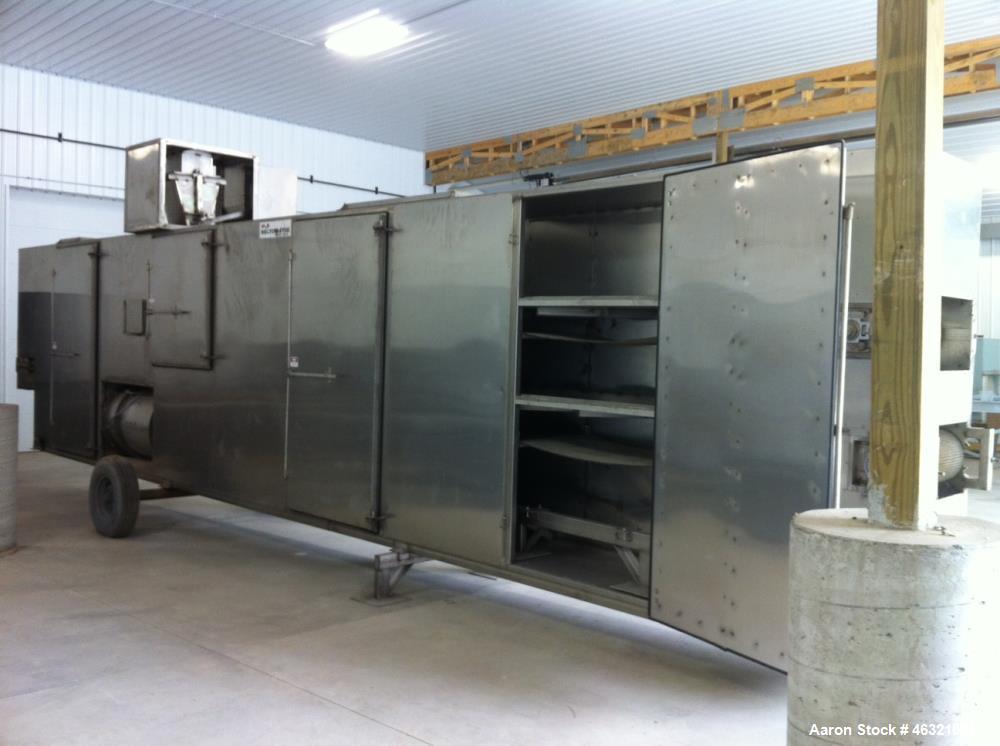

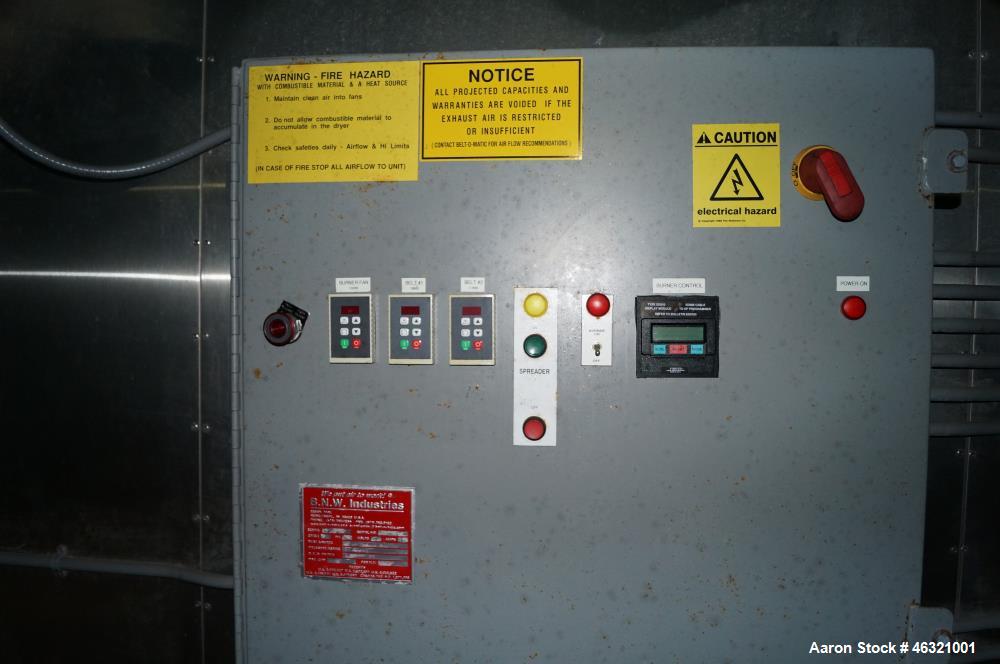

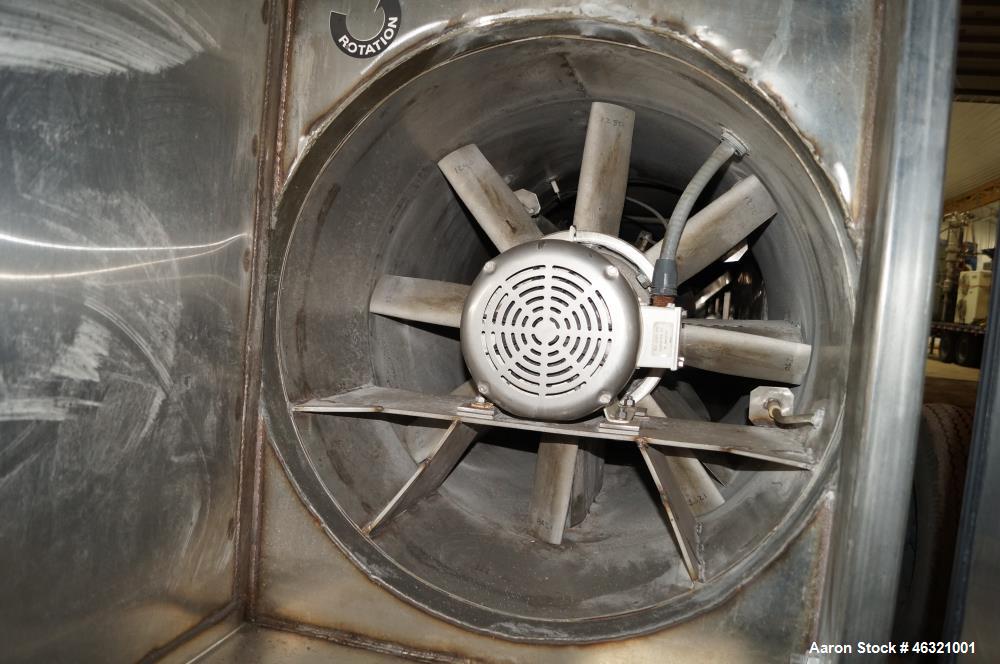

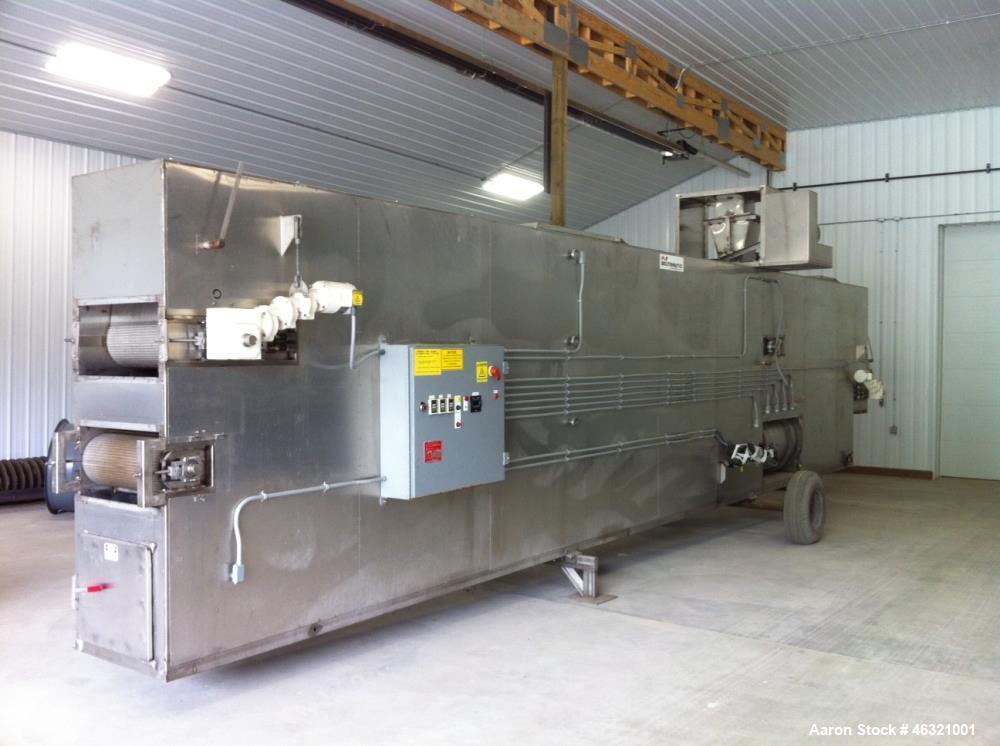

Used Belt-O-Matic Belt Dryer. Model 125B2X. Design: Convection, hot air; 22' long two pass air up drying, 10 long single-pass air down cooling. Size: 2 wide x 24 long top pass, 2 wide x 36 long bottom pass. Shipping dimensions (before crate and with spreader off): L 37 H 8 2" W 3 10". Operation: Min/Max air temp for drying: Normally 240F, can be as high as 300F. Cooling air temp: Ambient. Min/Max Btuh: 0.25 to 1.5 mmbtuh. Min/Max airflow: 3,000 to 10,000 ACFM. Product depth range: 2" to 6". Min/max belt speed: 0.27 to 1.37 FPM. Motors, gear reducers, and bearings: Leeson brand TEFC motors (wash guard, epoxy coated), 1750 RPM. Leeson brand Ironman gear reducers (epoxy coated). Nickle-plated bearings. 5-Hp Fan 2X -Hp conveyor with 3750:1 ratio gear reducer. 1-Hp oscillating tube spreader. Electrical and controls: Pre-wired electric control panel mounted on side of the dryer. 480 volts, 3 phase, 60 cycles, 30 amps (main disconnect included) Water tight plastic conduit Leeson brand sub-micro series variable drives on fan and conveyor motors. 2X High temperature limit safety switches, N/C snap disk (bottom air plenum and exhaust air plenum) 4X dial temperature thermometers, one in each air plenum. Partlow 70 series gas modulating valve (set bottom air plenum temp), 1 " 2X Asco gas safety solenoid valves, 1 . Fireye M series flame monitor. Dwyer vacuum airflow switch. Construction: 304SS inside, outside and structure (16 ga inner and outer sheet metal, 2"x 2" square tube frame) 2" thick insulation in walls and ceiling, rated for 300F.Oscillating tube product spreader (vertical swing spout). Right handed drive side (facing product discharge). 28" dia vane axial fan, alum fan blades and hub, 8 blades, adjustable pitch. Large side wall doors for inspection and cleaning (bolt handle shut for safety). Bottom flat floor (manual clean out). B-60-48-16 304SS woven wire conveyor belt. Traction conveyor drive; ru
Used Belt-O-Matic Belt Dryer. Model 125B2X. Design: Convection, hot air; 22' long two pass air up drying, 10 long single-pass air down cooling. Size: 2 wide x 24 long top pass, 2 wide x 36 long bottom pass. Shipping dimensions (before crate and with spreader off): L 37 H 8 2" W 3 10". Operation: Min/Max air temp for drying: Normally 240F, can be as high as 300F. Cooling air temp: Ambient. Min/Max Btuh: 0.25 to 1.5 mmbtuh. Min/Max airflow: 3,000 to 10,000 ACFM. Product depth range: 2" to 6". Min/max belt speed: 0.27 to 1.37 FPM. Motors, gear reducers, and bearings: Leeson brand TEFC motors (wash guard, epoxy coated), 1750 RPM. Leeson brand Ironman gear reducers (epoxy coated). Nickle-plated bearings. 5-Hp Fan 2X -Hp conveyor with 3750:1 ratio gear reducer. 1-Hp oscillating tube spreader. Electrical and controls: Pre-wired electric control panel mounted on side of the dryer. 480 volts, 3 phase, 60 cycles, 30 amps (main disconnect included) Water tight plastic conduit Leeson brand sub-micro series variable drives on fan and conveyor motors. 2X High temperature limit safety switches, N/C snap disk (bottom air plenum and exhaust air plenum) 4X dial temperature thermometers, one in each air plenum. Partlow 70 series gas modulating valve (set bottom air plenum temp), 1 " 2X Asco gas safety solenoid valves, 1 . Fireye M series flame monitor. Dwyer vacuum airflow switch. Construction: 304SS inside, outside and structure (16 ga inner and outer sheet metal, 2"x 2" square tube frame) 2" thick insulation in walls and ceiling, rated for 300F.Oscillating tube product spreader (vertical swing spout). Right handed drive side (facing product discharge). 28" dia vane axial fan, alum fan blades and hub, 8 blades, adjustable pitch. Large side wall doors for inspection and cleaning (bolt handle shut for safety). Bottom flat floor (manual clean out). B-60-48-16 304SS woven wire conveyor belt. Traction conveyor drive; ru
