Used- Mahler GmbH Continuous Belt Sintering Furnace

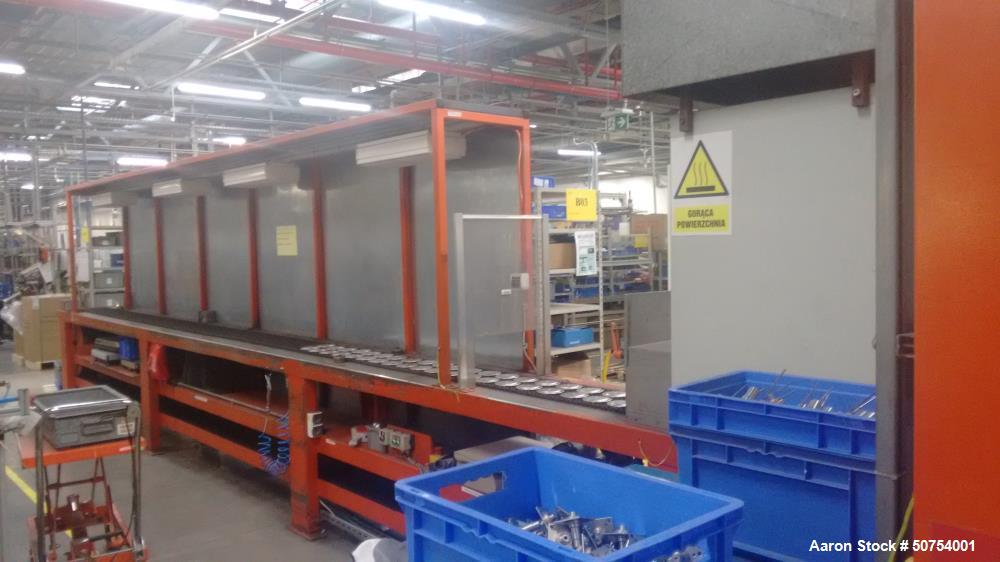

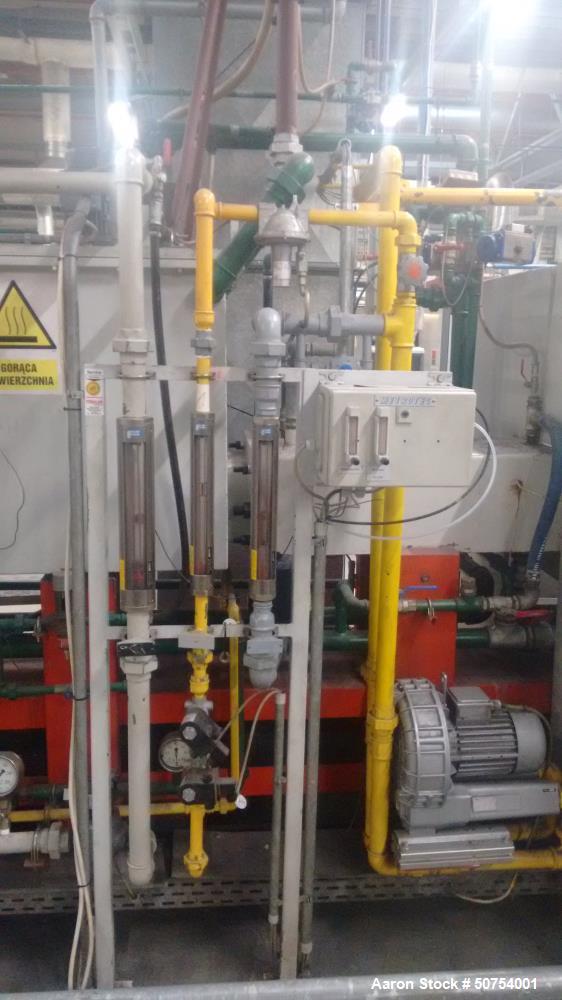

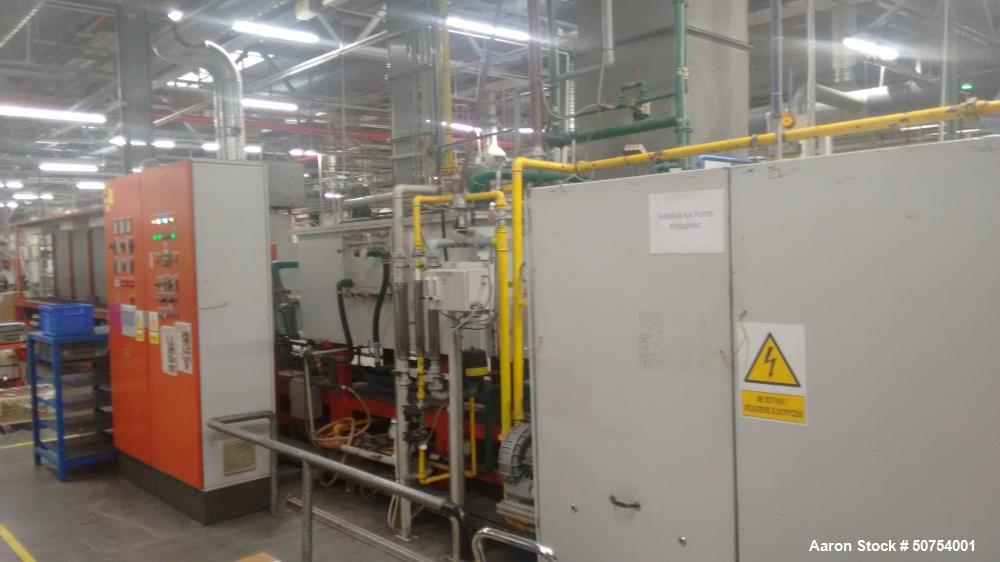

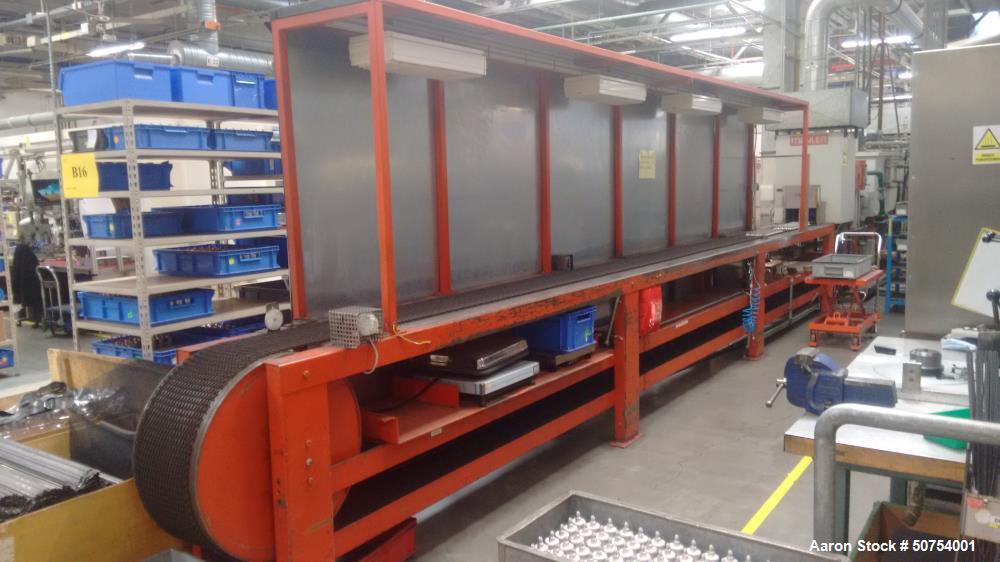

Used- Mahler GmbH Continuous Belt Sintering Furnace. For brazing and annealing of carbon steel parts under exogas atmosphere with a throughput of 286 pounds / hour (130 kgs/hour). 11.7" (300 mm) width x 682 (21000 mm) long belt. 78" (2000 mm) long x 11.7" (300 mm) x 7" (180 mm) high ceramic muffle in sintering/hot zone with temperature sensors. Working temperature 1652-2048 degree F. (900-1120 degree C. Operated with atmospheric endogas mixture (from natural gas and air). Electrically heated conveyor belt with device for compensation for elongation. Peripheries complete with gas/are supply, includes automatic adaption of protective gas quantity. Cooling water re-cooling system, dust system. Various pumps, piping and further infrastructure. Siemens S1 control system. Frame mounted on legs. New 1999.
