Industrial Thermal Oxidizer with PLC Controls & Venturi Scrubber – Griffith, 2.5MM Btu/hr

🏭 Manufacturer Information

• Manufacturer: Griffith Consulting

• System Type: Thermal Oxidizer with Quench and Venturi Scrubber

• Condition: Unused (Delivered June 2023)

• Fuel Type: Natural Gas

• Orientation: Horizontal

• Country of Origin: USA (assumed; adjust if otherwise)

📄 Product Description

The Griffith Consulting Thermal Oxidizer system is a complete, unused air pollution control solution designed for industrial VOC and hazardous compound abatement. Featuring a 2.5MM Btu/hr natural gas burner, this horizontal unit is engineered for 98% destruction efficiency of volatile organic compounds (VOCs) and combustibles. It includes a hot gas quench, Venturi scrubber, sump tank, and a 20HP blower, delivering a highly effective end-to-end emissions treatment process.

This system accepts 1500 SCFM total air stream, including dual exhaust streams from cold and hot auger furnaces. Equipped with PLC/HMI control panel, flame safeguard, and high-temperature safety features, it offers both safety and automation. New and never used, this unit was delivered in June 2023, offering turnkey compliance for demanding industrial applications.

⚙️ Specifications

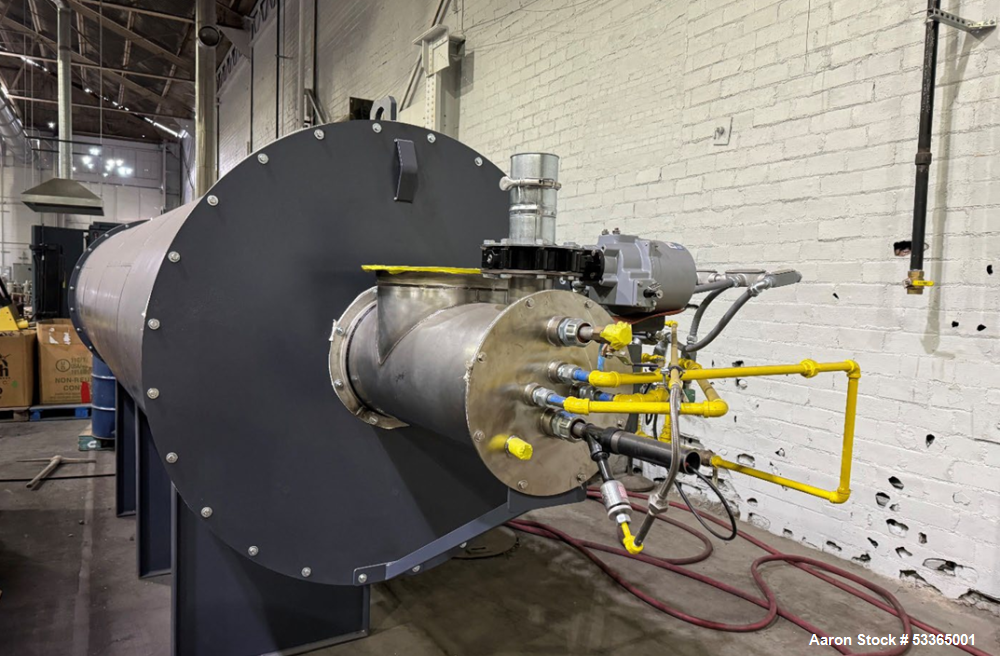

• Burner Capacity: 2.5MM Btu/hr (Natural Gas)

• VOC Destruction Efficiency: 98%

• Operating Temperature: 1450°F

• Exhaust Stream:

  • Total: 1500 SCFM

  • From Cold Auger Furnace: 750 SCFM @ 500–600°F

  • From Hot Auger Furnace: 750 SCFM @ 900–1000°F

  • Combustibles: 1.4 kg/hr

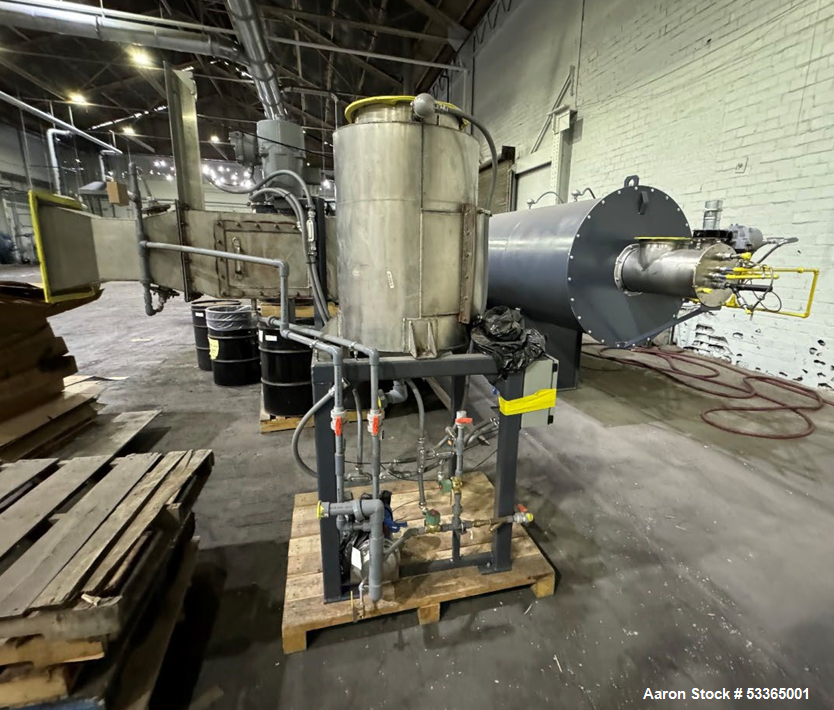

• System Components:

  • Thermal Oxidizer

  • Hot Gas Quench

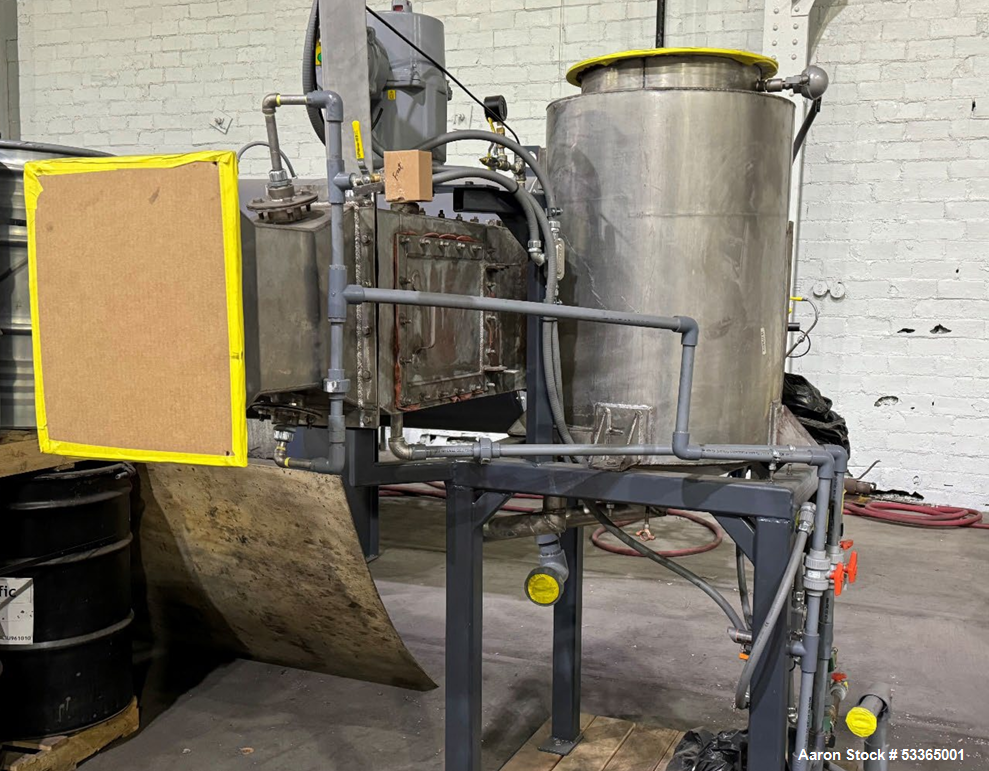

  • Venturi Scrubber

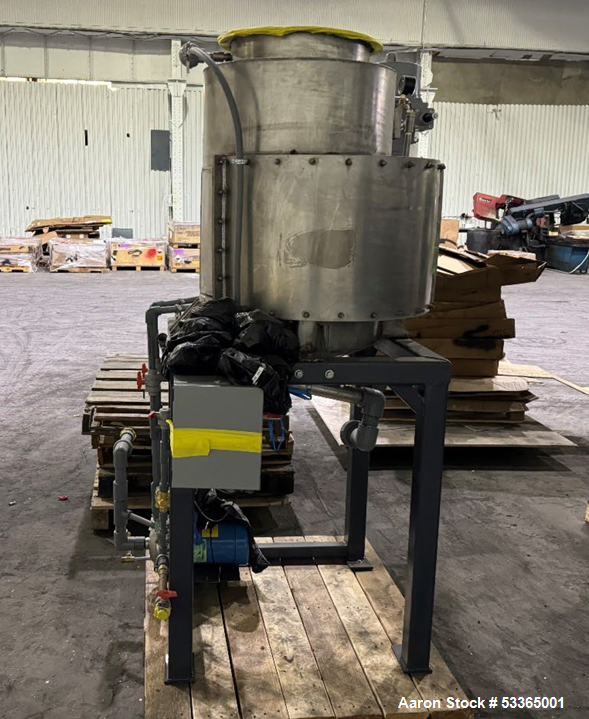

  • Sump Tank

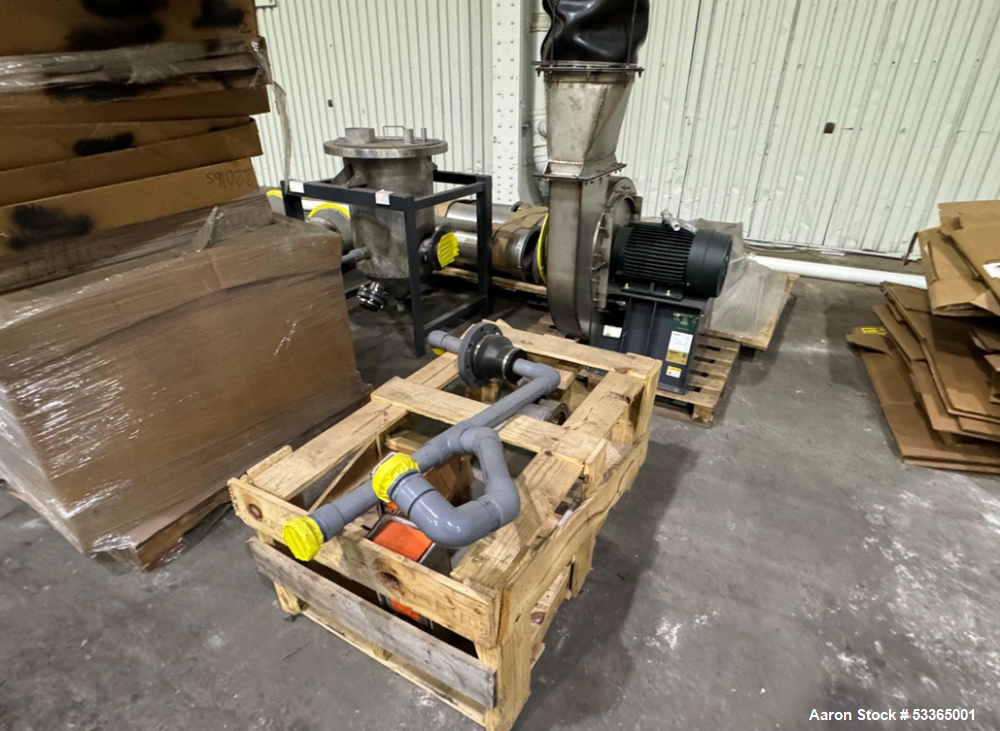

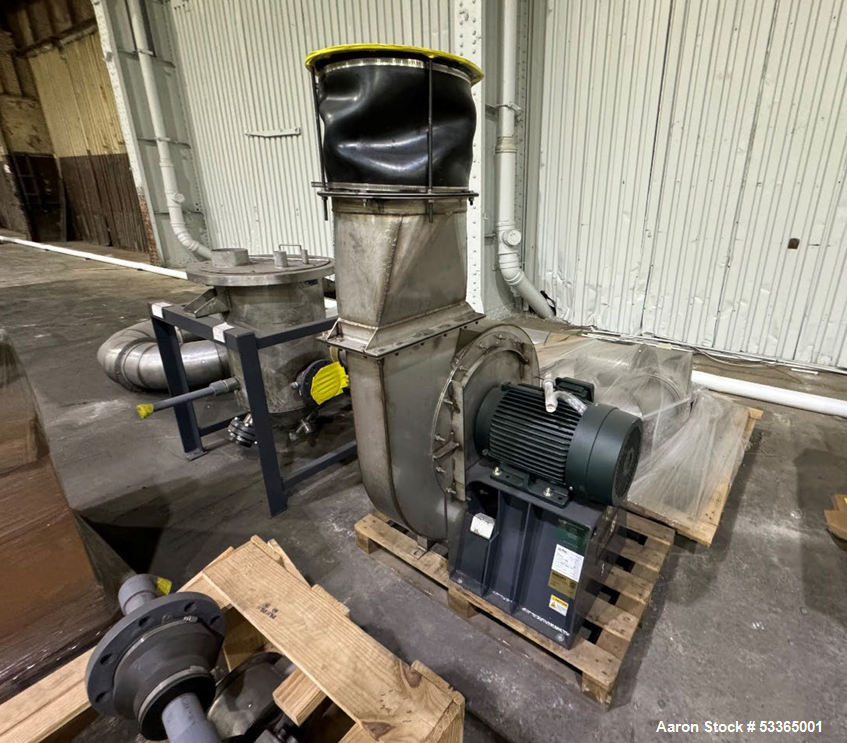

  • 20HP Blower

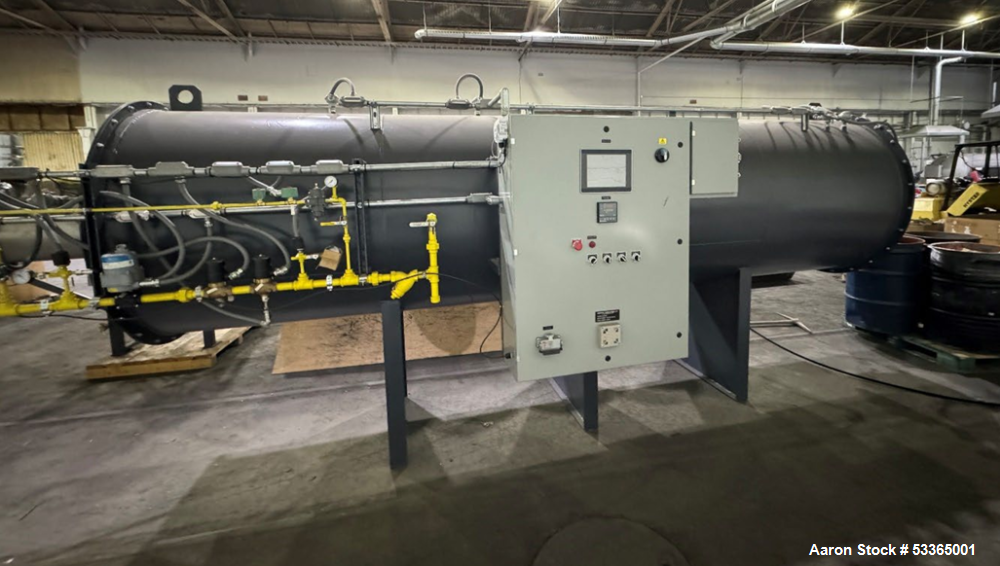

  • PLC/HMI Control Panel

  • Flame Safeguard System

  • High-Temperature Limit Switch

• Orientation: Horizontal

• Condition: New, Unused (Delivered June 2023)

🏭 Applications

• Industrial VOC Abatement

• Hazardous Waste Gas Treatment

• Furnace and Kiln Off-Gas Treatment

• Petrochemical Exhaust Cleaning

• Thermal Decomposition of Combustibles

• Metal and Foundry Emissions Control

• Pharmaceutical Manufacturing

• Paint & Coatings Industry

• Chemical Processing Facilities

• Air Emissions Compliance Systems

📦 Used In/For

• Cold Auger Furnace Off-Gas Treatment

• Hot Auger Furnace Off-Gas Processing

• Emission Reduction in Chemical Plants

• VOC Control in Paint & Coating Lines

• Exhaust Treatment in Thermal Processing Facilities

• Air Quality Compliance in Industrial Plants

• Hazardous Air Pollutant (HAP) Control

• Scrubbing High-Temperature Organic Vapors

• Industrial Waste Stream Treatment

• Post-Combustion Gas Cooling and Cleaning
