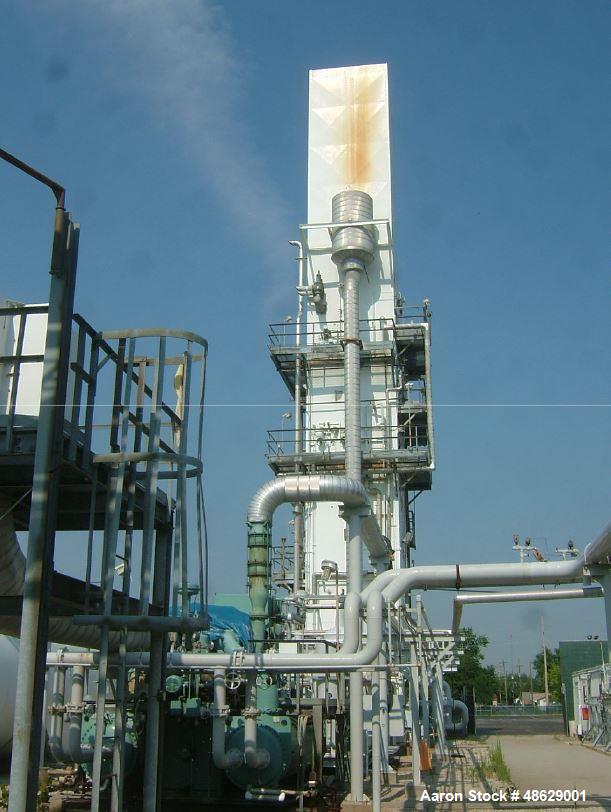

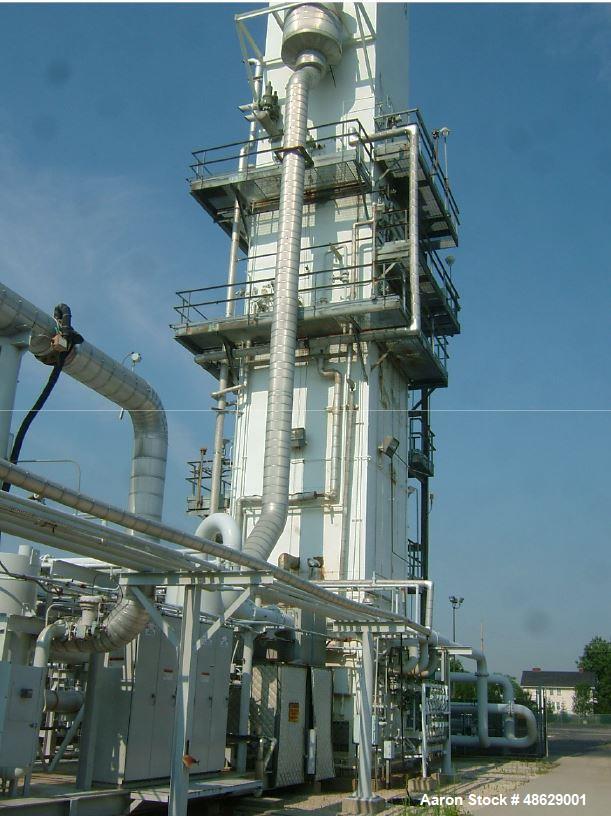

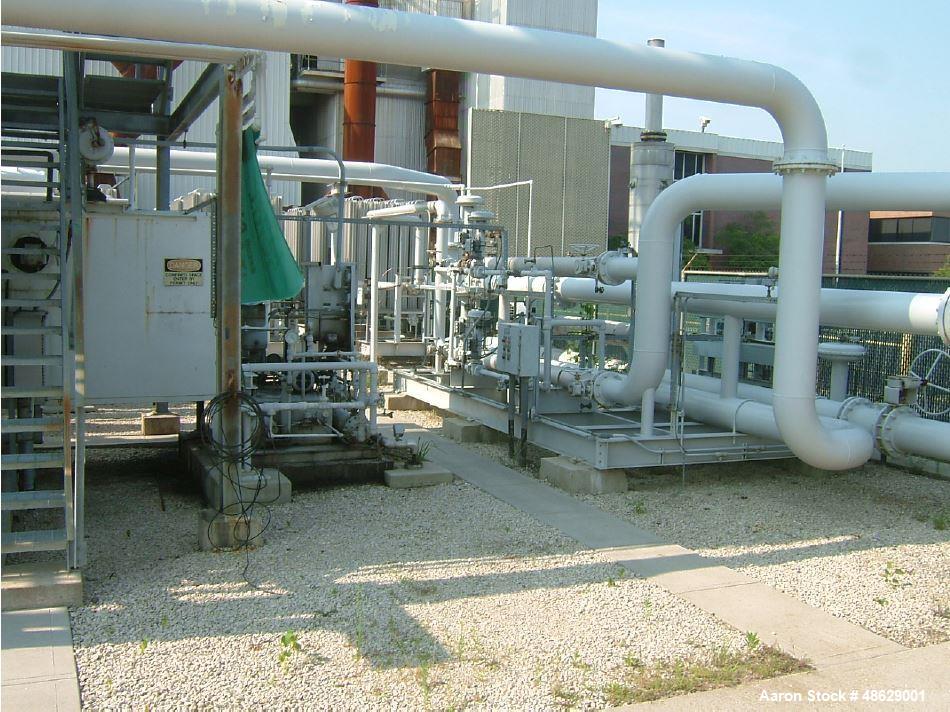

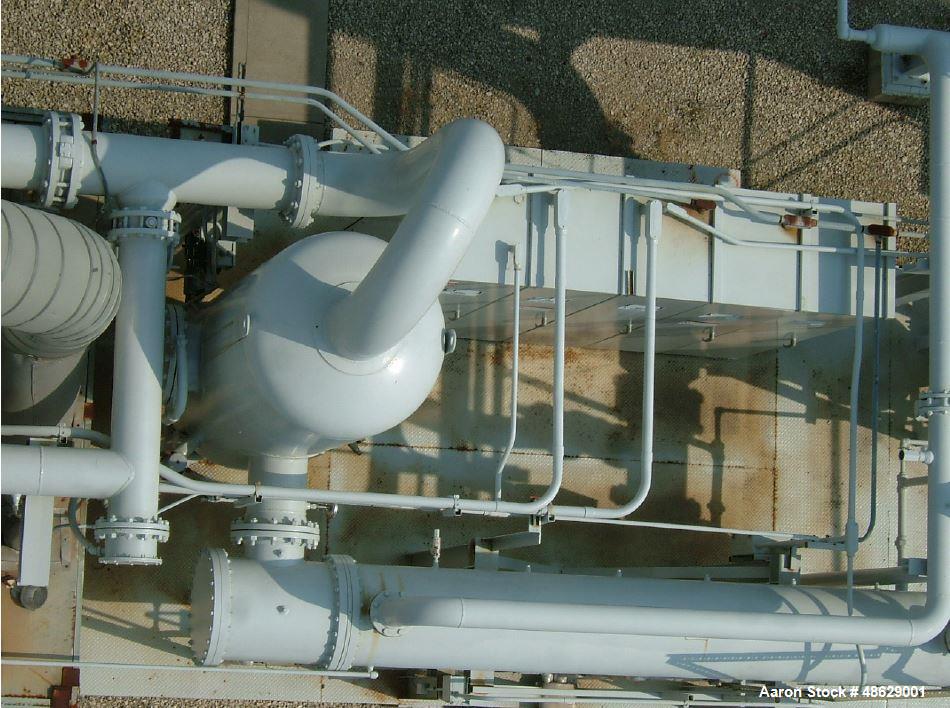

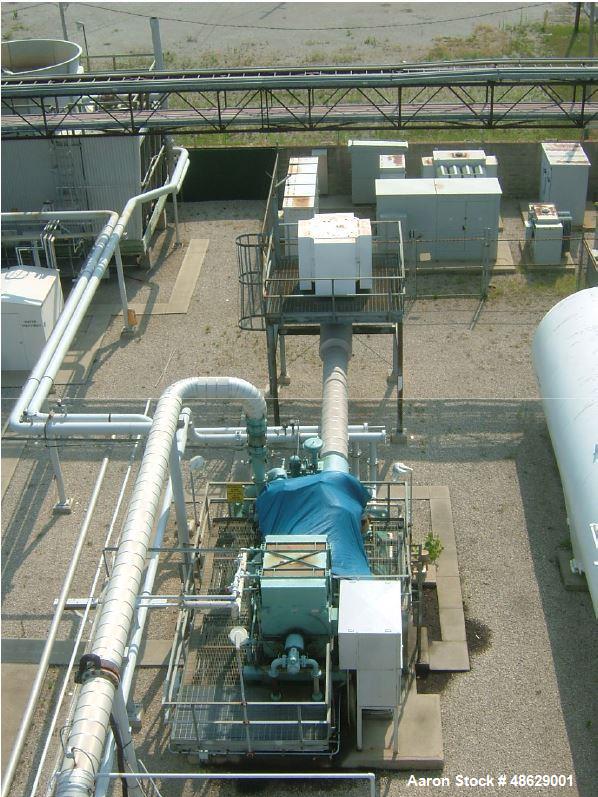

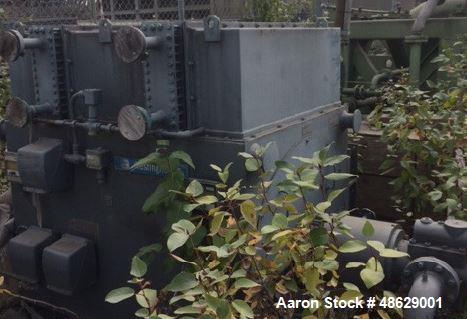

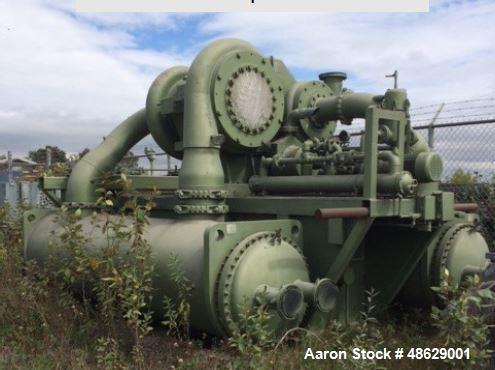

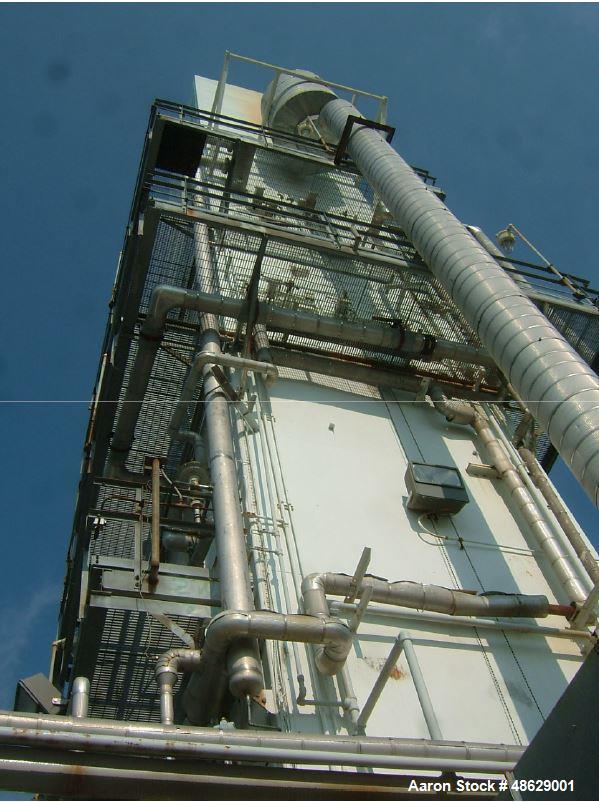

Used Oxygen Plant, Air Separation Unit. 160 T/D of GOX and 87 T/D of GAN. Reversing Heat Exchanger. Low pressure switching plant. MAC: Joy TAE-160, 3 stage; Atlas Copco, 2 stage. Switching HX, cold box. ETAO-4, Oil Loaded Expander. Oxygen at 50 psig: GOX: 95% purity, 175 T/D max, 160 T/D design. 120 T/D turn-down. Nitrogen at 50 psig: GAN: 99.99% purity, 87 T/D max, 87 T/D design, 87 T/D turn-down. Estimated power consumption: 2,240 kW. Average Amb. conditions: 14.4 psia Atmos. pressure, 56 F average temp., +88 F 95% summer high dry bulb, 65 F average CW temp. Mfg. 2004.
Used Oxygen Plant, Air Separation Unit. 160 T/D of GOX and 87 T/D of GAN. Reversing Heat Exchanger. Low pressure switching plant. MAC: Joy TAE-160, 3 stage; Atlas Copco, 2 stage. Switching HX, cold box. ETAO-4, Oil Loaded Expander. Oxygen at 50 psig: GOX: 95% purity, 175 T/D max, 160 T/D design. 120 T/D turn-down. Nitrogen at 50 psig: GAN: 99.99% purity, 87 T/D max, 87 T/D design, 87 T/D turn-down. Estimated power consumption: 2,240 kW. Average Amb. conditions: 14.4 psia Atmos. pressure, 56 F average temp., +88 F 95% summer high dry bulb, 65 F average CW temp. Mfg. 2004.
