Stock #
51654008

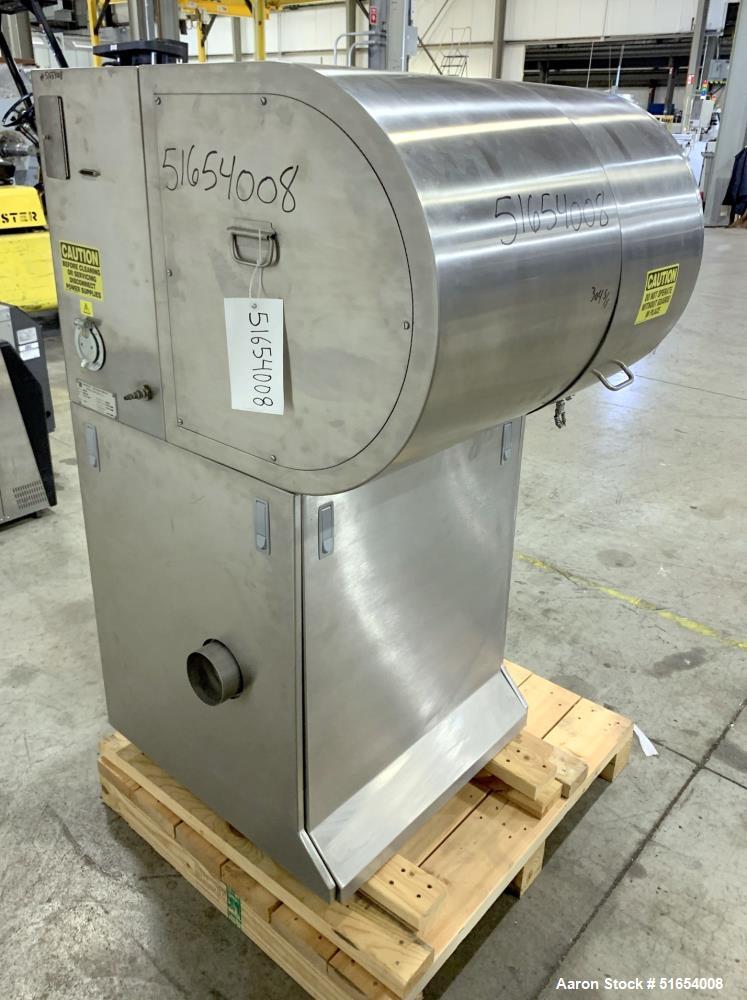

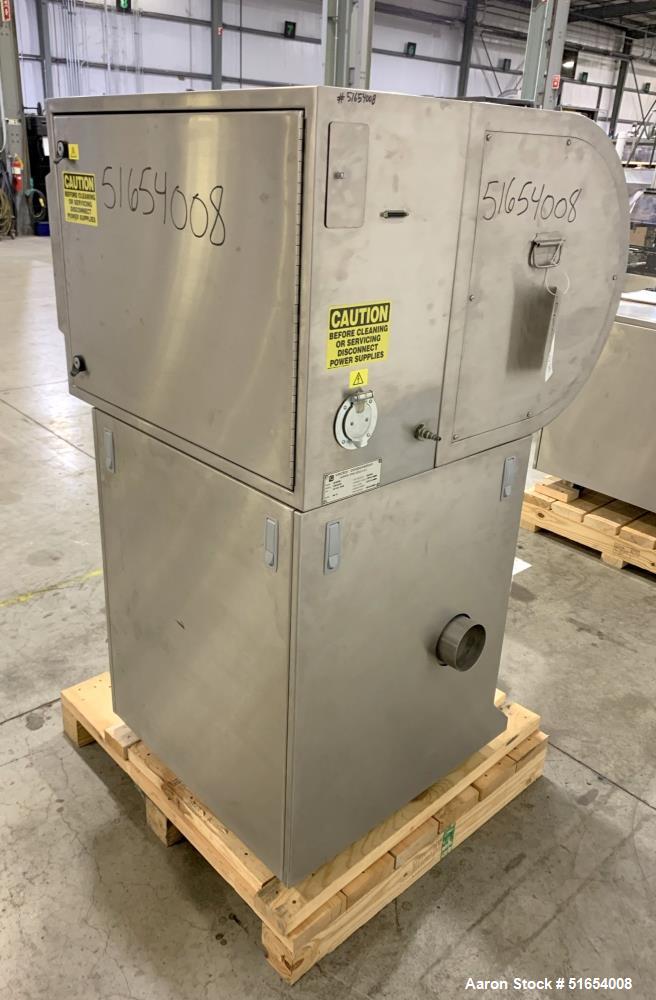

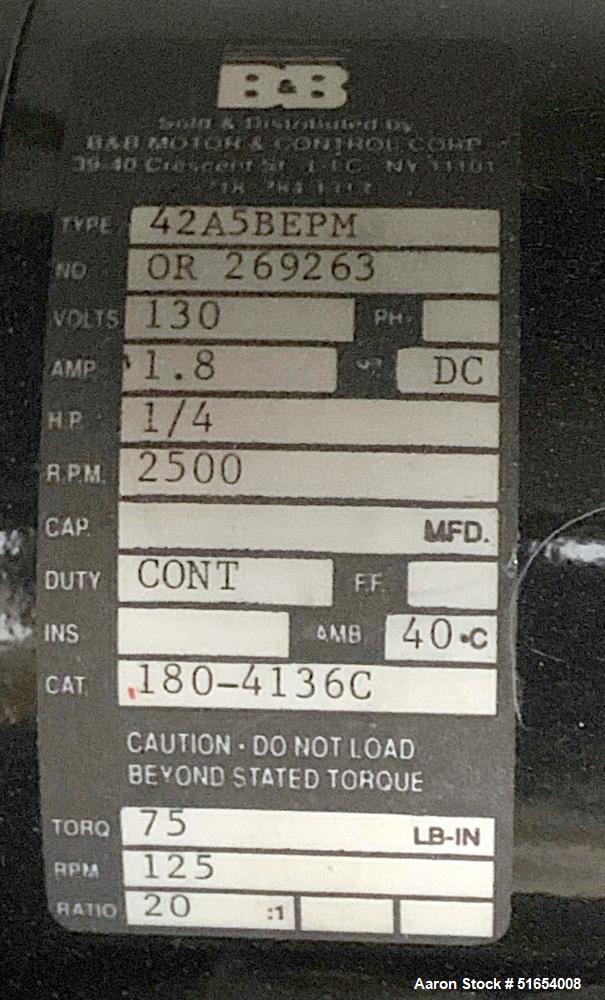

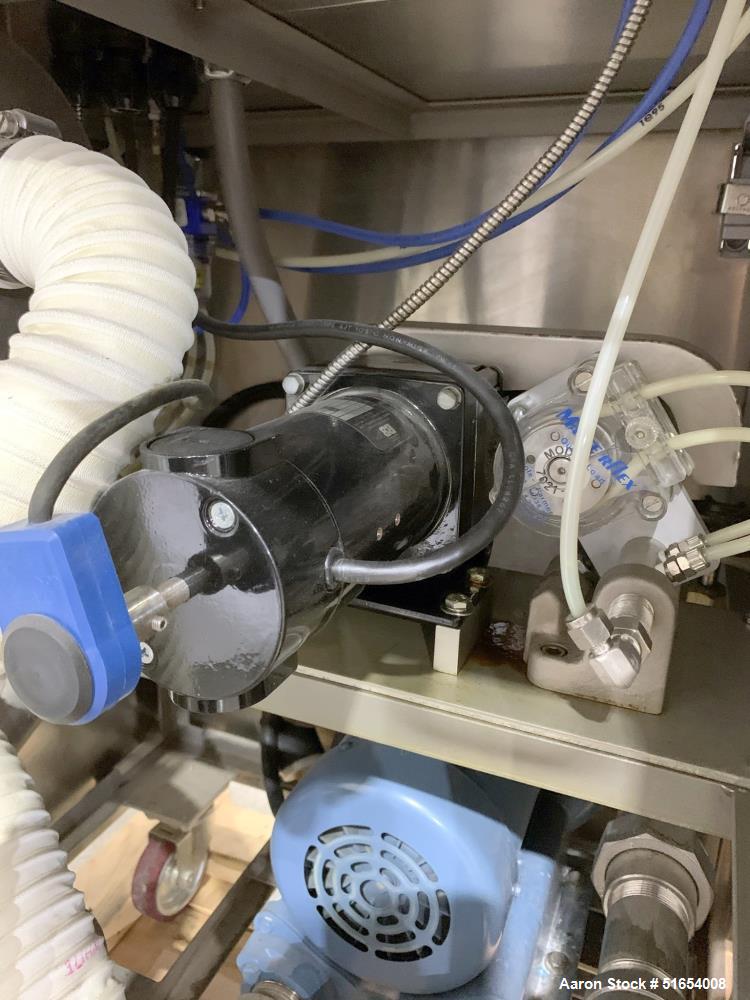

Used Vector Hi-Coater Coating System, Model LDCS-20/30. Capacity approximately 1.5 to 2.0kg. 3.75 Liter partially perforated 316 stainless steel pan, approximately 14" diameter with (4) agitator baffles. Pan driven by a 1/4hp, 2500 rpm DC motor, 125 output rpm. Pan speed approximately 6 to 40 rpm. Spray gun with 0.7/2.6mm F&A CAP. Peristaltic pump. Electric 3 kW heater with 1hp exhaust blower. Front sight door. HMI controls. Serial# HCT-242 44499. 3/60/230 Volt.
Used Equipment Facts About This Machine
Manufacturer Information:
- Manufacturer: Vector
- Model: LDCS-20/30
- Condition: Used
- Material: 316 Stainless Steel

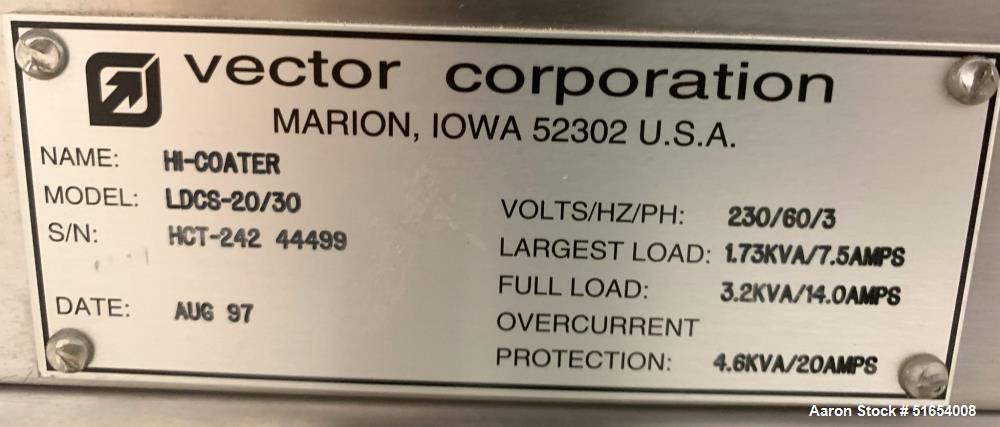

- Serial Number: HCT-242 44499
Description:

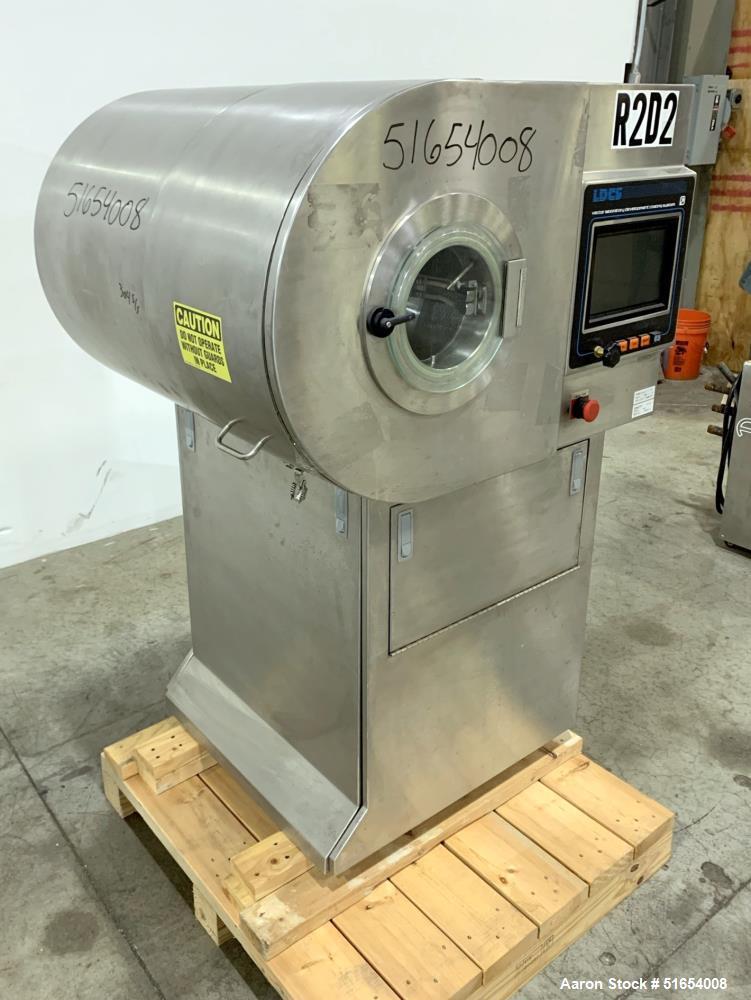

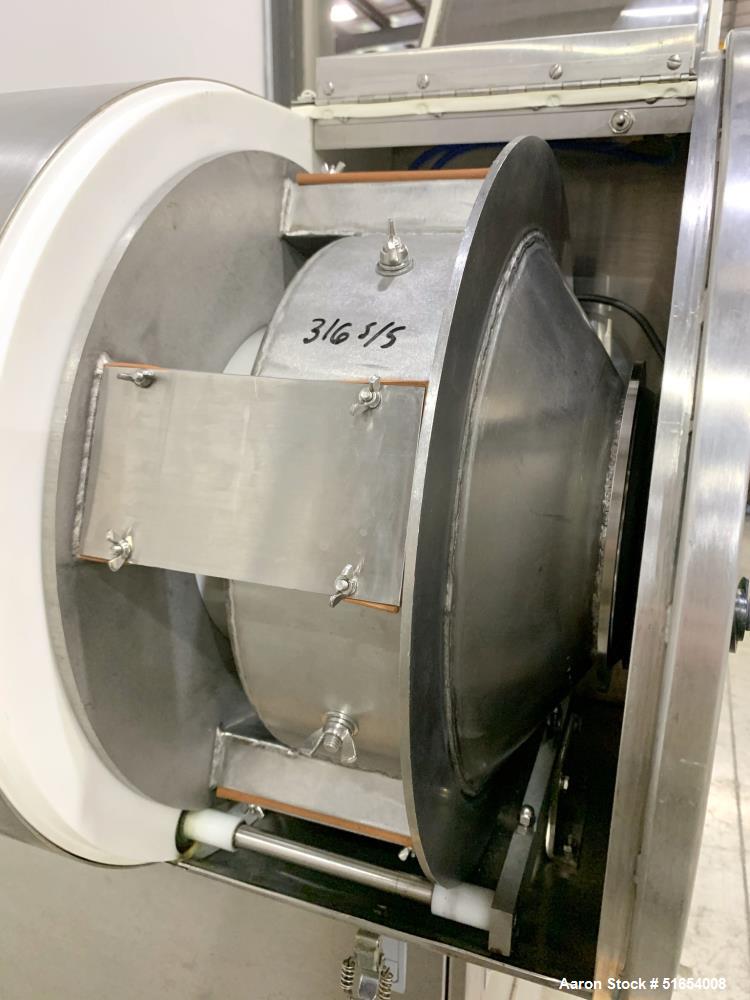

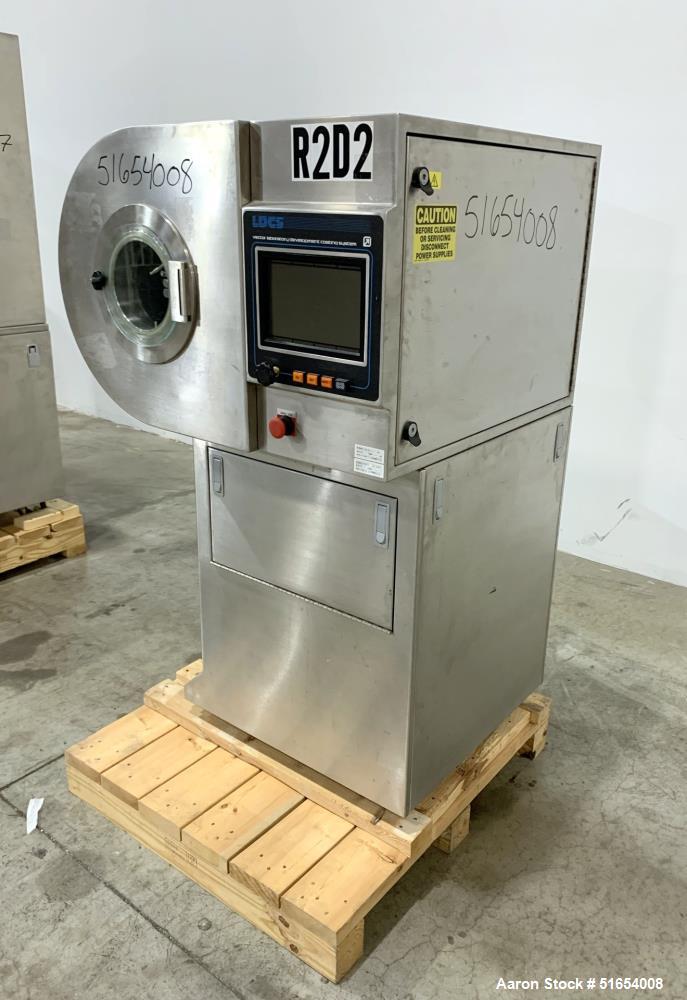

The Used Vector Hi-Coater Coating System, Model LDCS-20/30 is a compact, high-efficiency tablet coating machine, ideal for small-scale pharmaceutical, nutraceutical, and R&D applications. It features a 3.75-liter partially perforated stainless steel pan (316 stainless steel) with a 14-inch diameter and (4) agitator baffles, ensuring uniform film or sugar coating distribution.

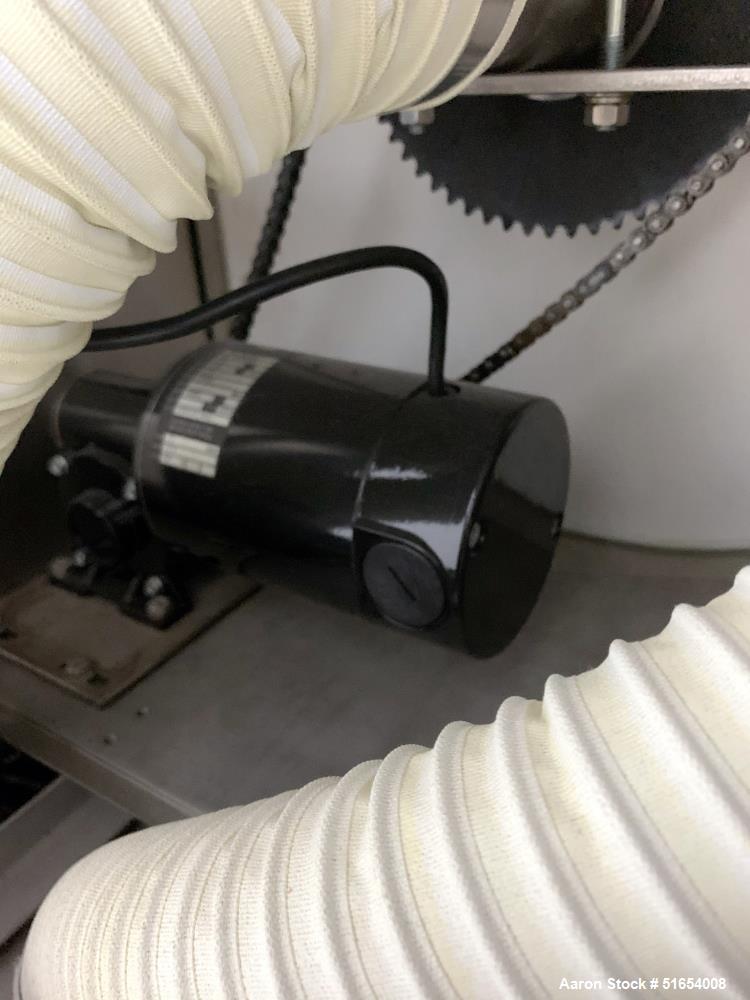

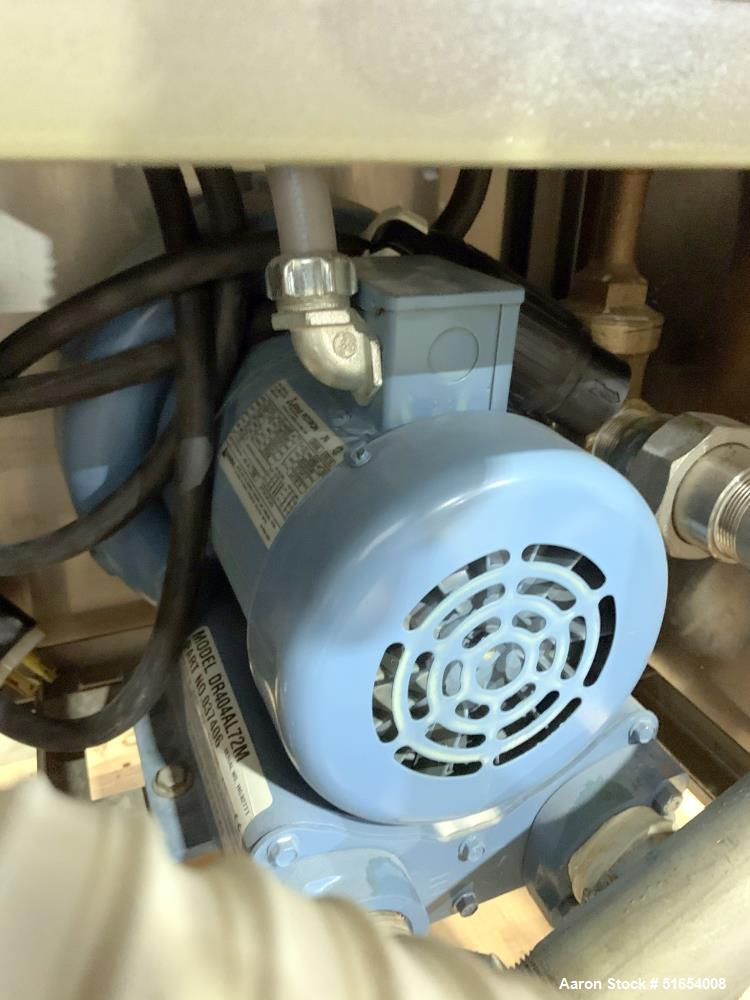

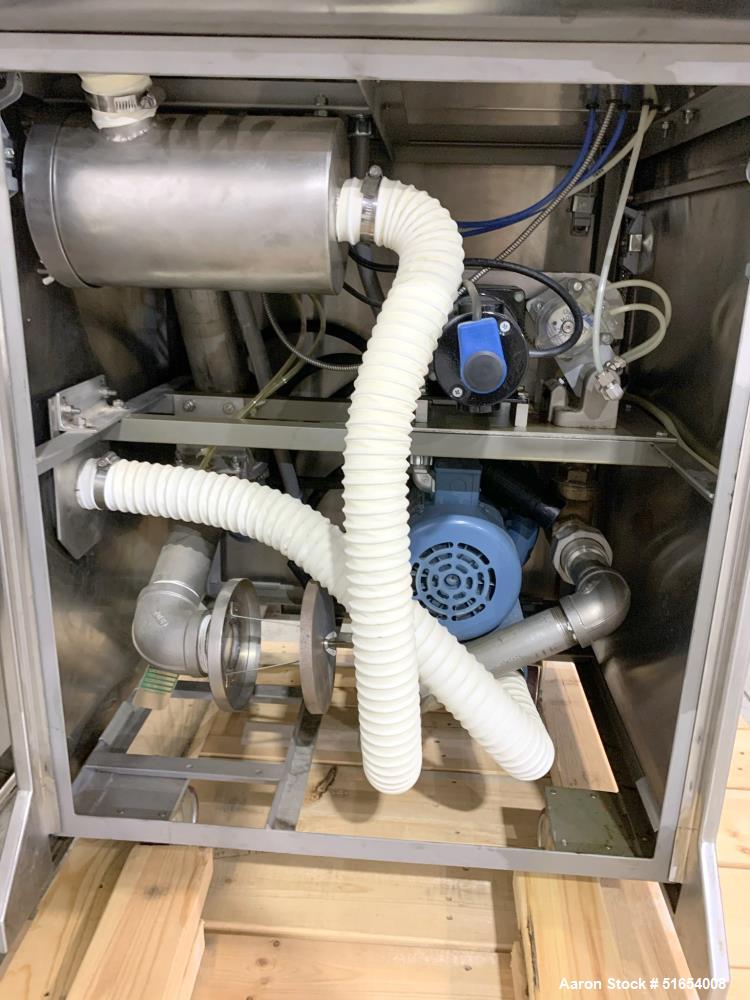

This system is equipped with a 1/4 HP DC motor that operates at 2500 RPM, with an output of 125 RPM and a pan speed adjustable from 6 to 40 RPM. The unit includes an F&A spray gun (0.7/2.6mm cap) for precise coating application, a peristaltic pump for controlled liquid delivery, and an electric 3 kW heater with a 1 HP exhaust blower for optimized drying.

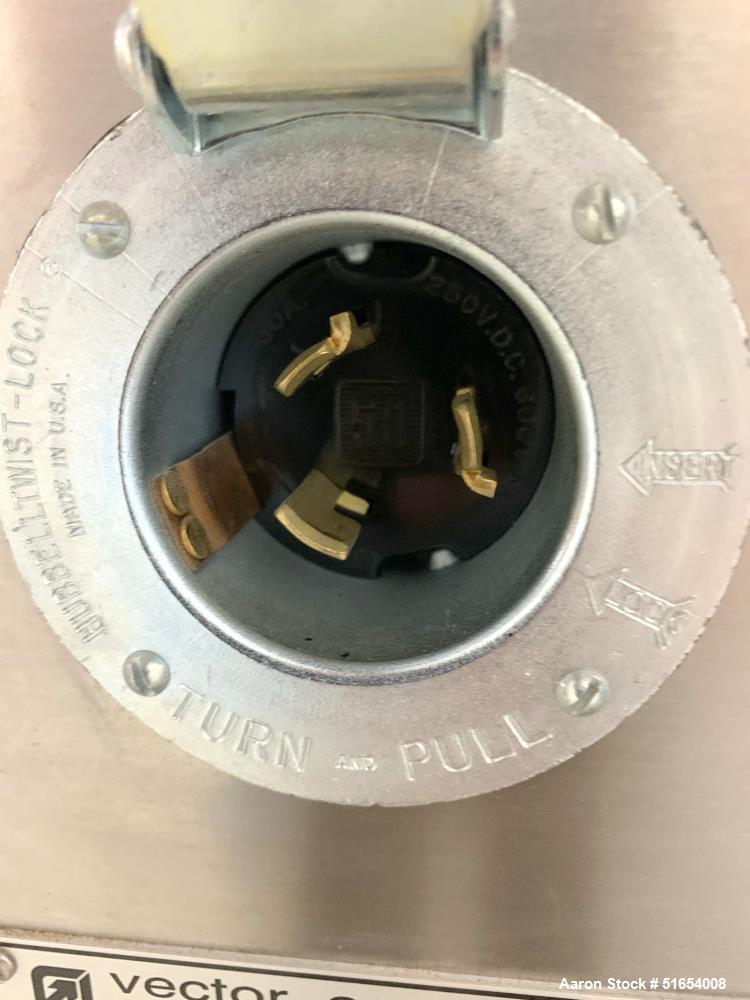

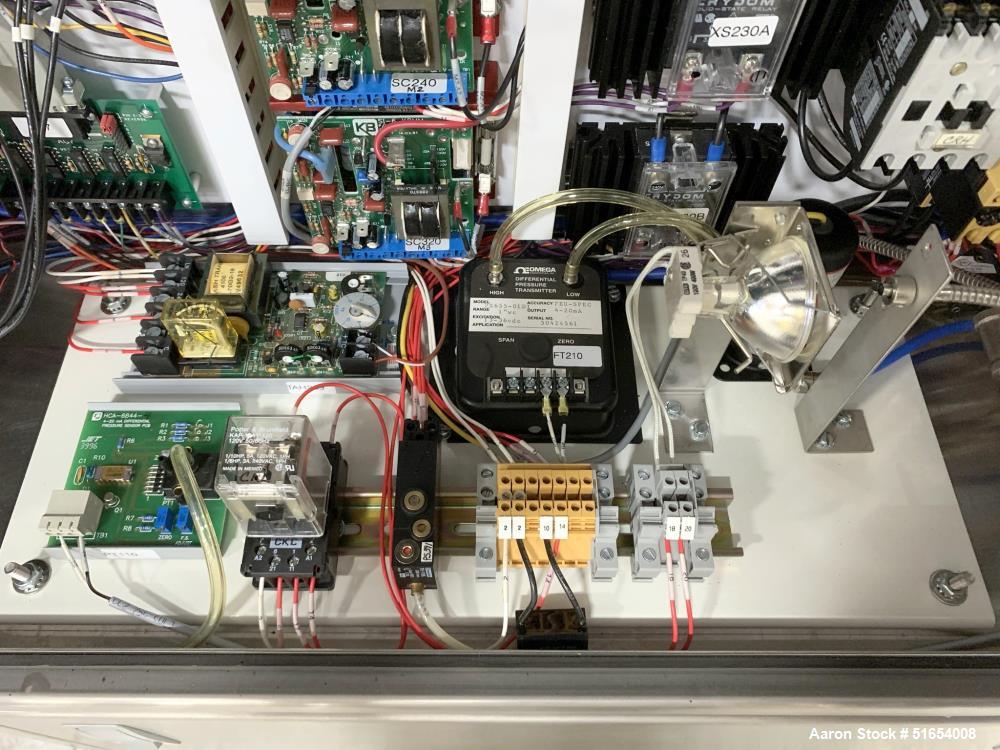

An HMI control system provides easy operation and process control, while the front sight door allows for direct monitoring during operation. The system runs on 3-phase, 60 Hz, 230V electrical power.
Specifications:
- Capacity: 1.5 to 2.0 kg
- Pan Volume: 3.75 liters

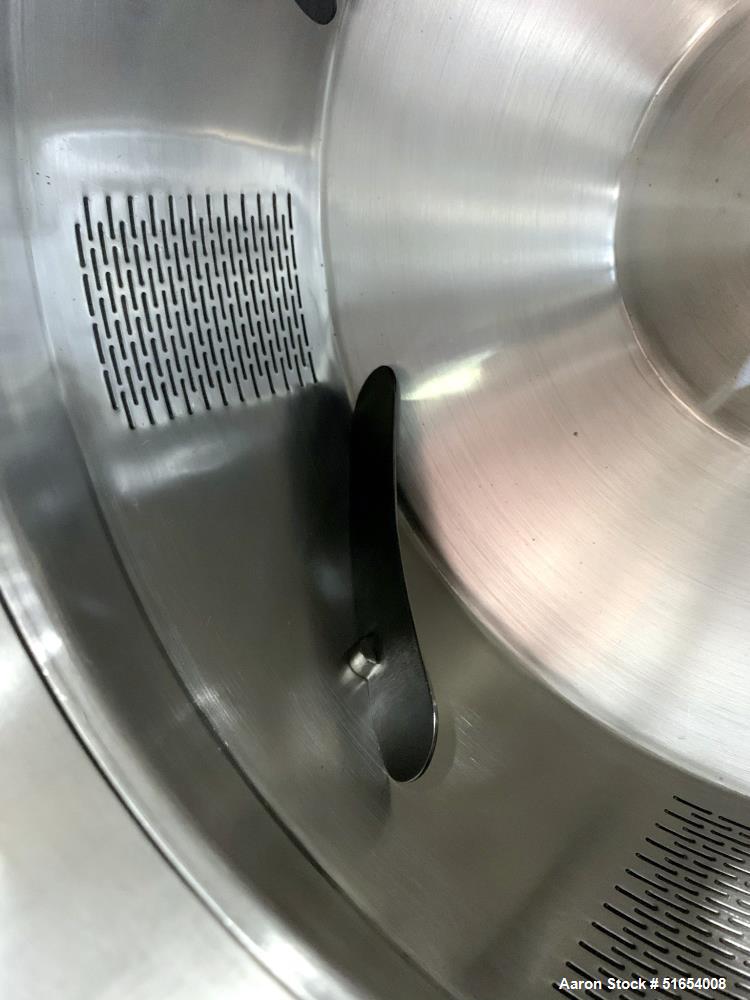

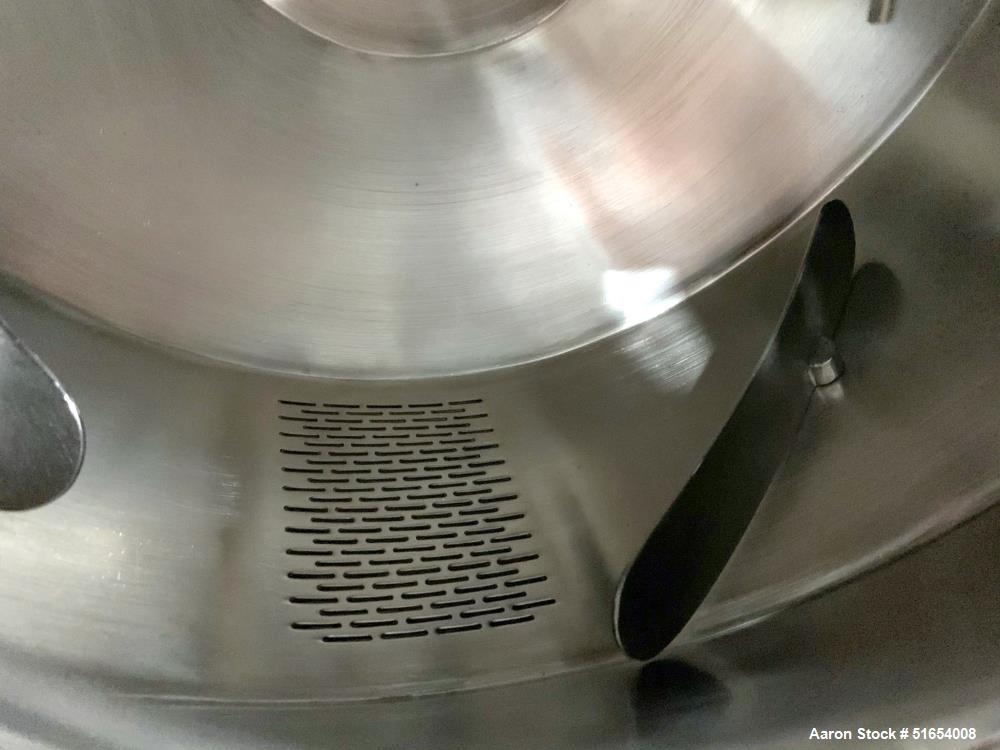

- Pan Type: Partially perforated, stainless steel
- Pan Diameter: 14 inches
- Agitator Baffles: 4
- Motor:
- Power: 1/4 HP DC motor
- Speed: 2500 RPM motor speed, 125 RPM output
- Pan Speed: 6 to 40 RPM
- Spray System:

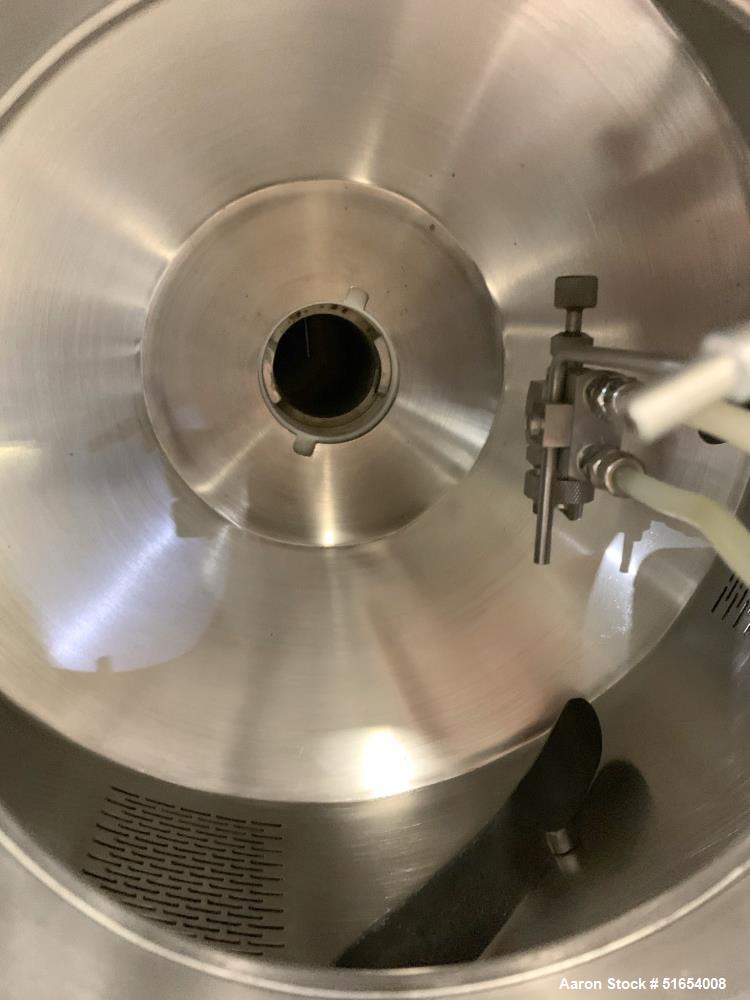

- Spray Gun: F&A 0.7/2.6mm cap
- Peristaltic Pump: Yes
- Heating System:
- Electric Heater: 3 kW

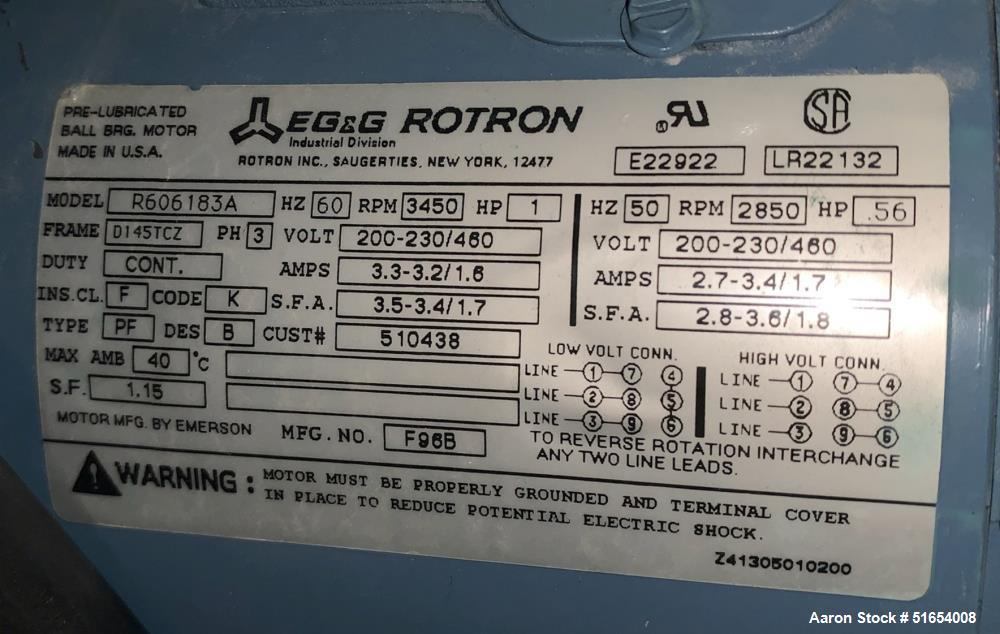

- Exhaust Blower: 1 HP

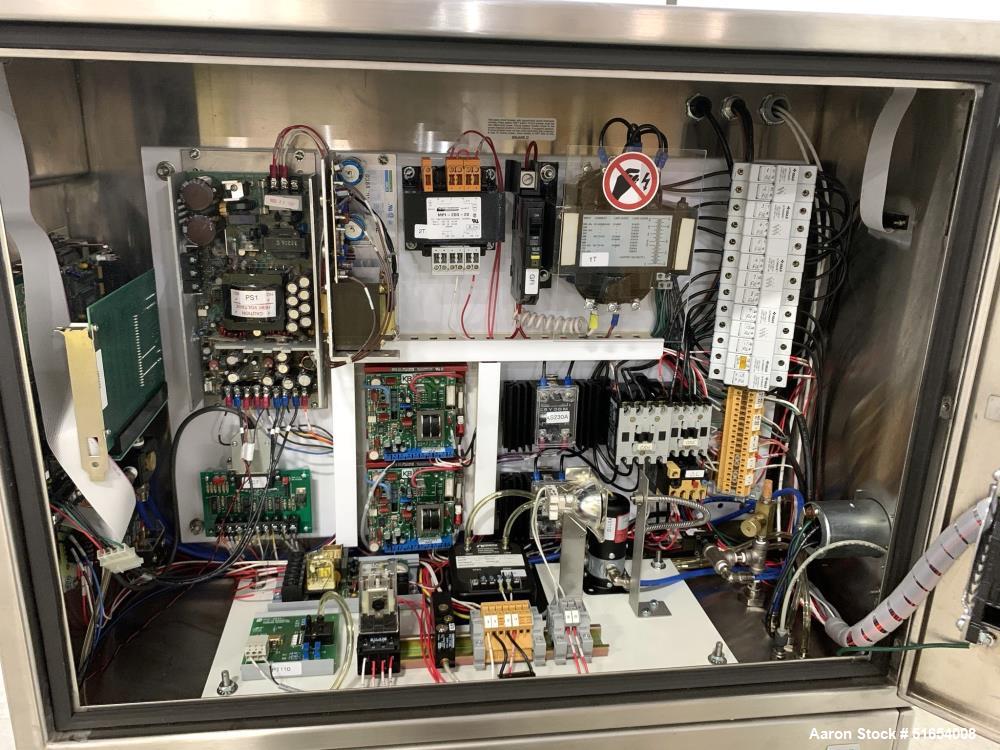

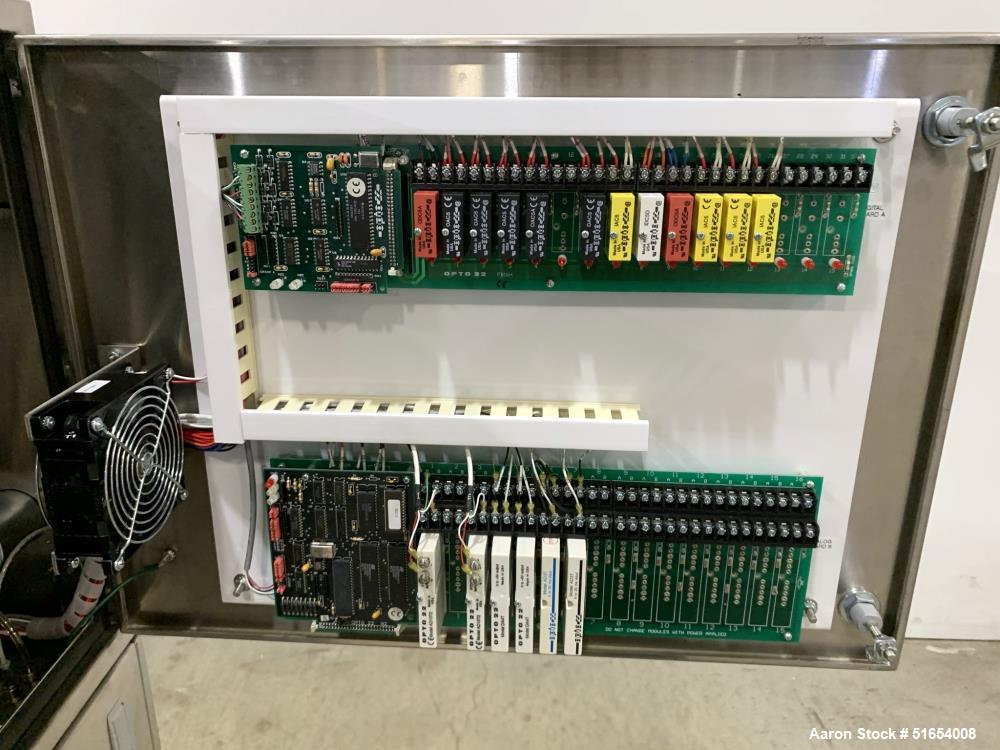

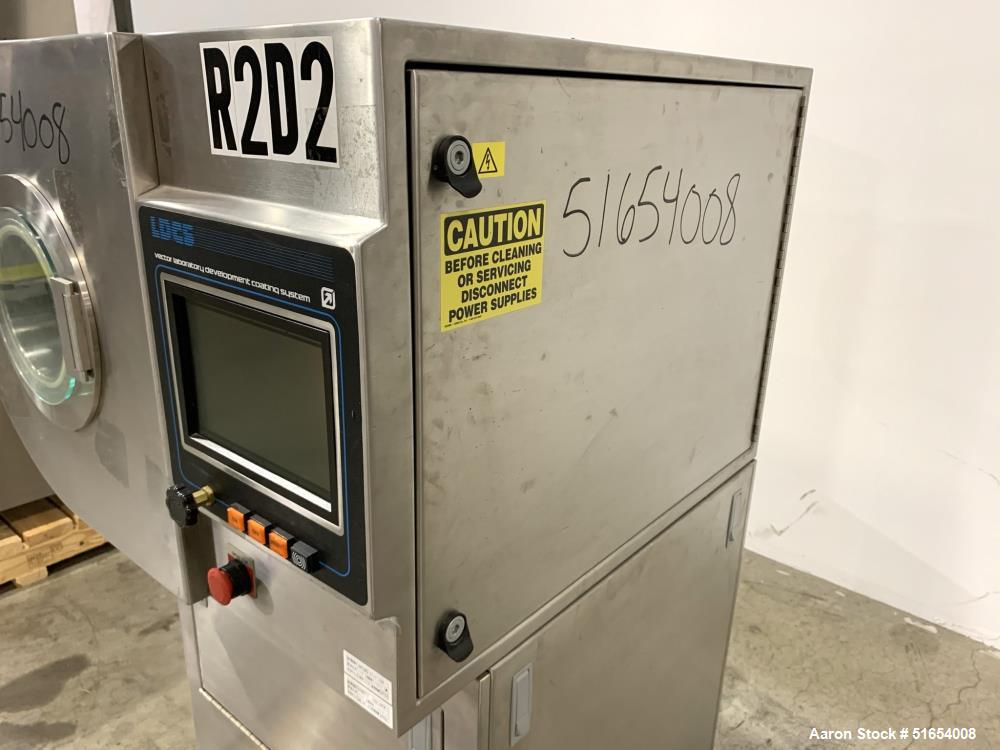

- Control System: HMI Controls

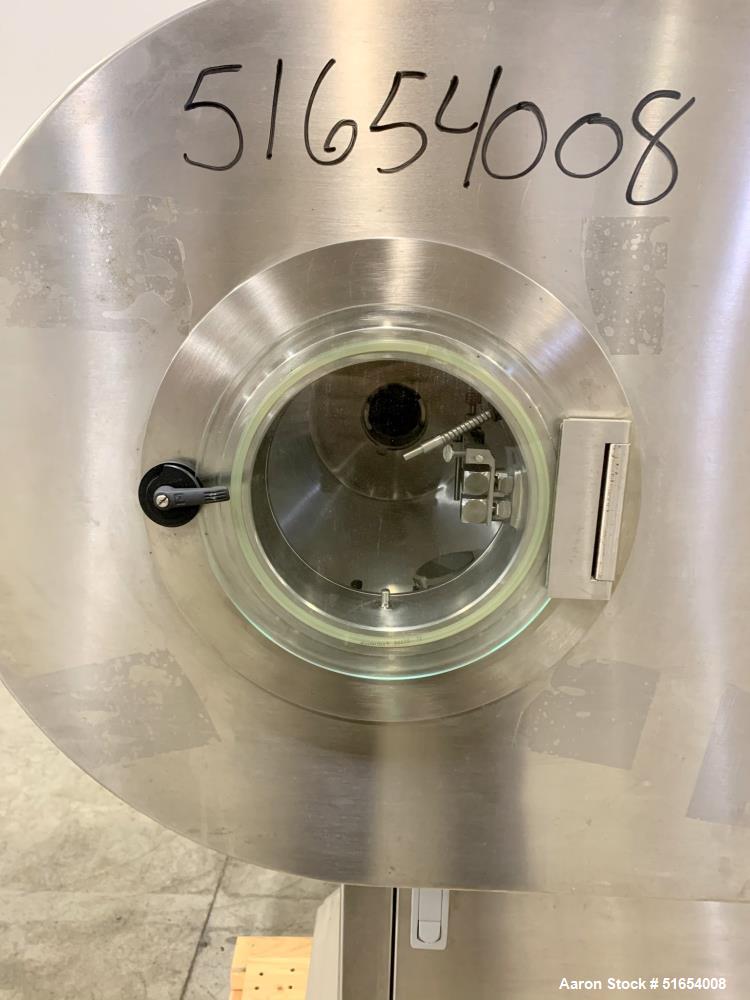

- Front Sight Door: Yes
- Voltage: 3-phase, 60 Hz, 230V
- Condition: Used, Good Working Order
Applications:
- Pharmaceutical tablet and capsule coating
- Nutraceutical and dietary supplement coating
- Food and confectionery coating (e.g., chocolate, sugar-coated candies)
- Chemical and industrial pellet coating
- Research and development for film and sugar coating applications
Compatible Uses (Industries & Facilities):
- Pharmaceutical manufacturing R&D labs
- Nutraceutical and dietary supplement production
- Food and confectionery processing
- Chemical and industrial coating applications
- Academic and research laboratories
