Manufacturer Information

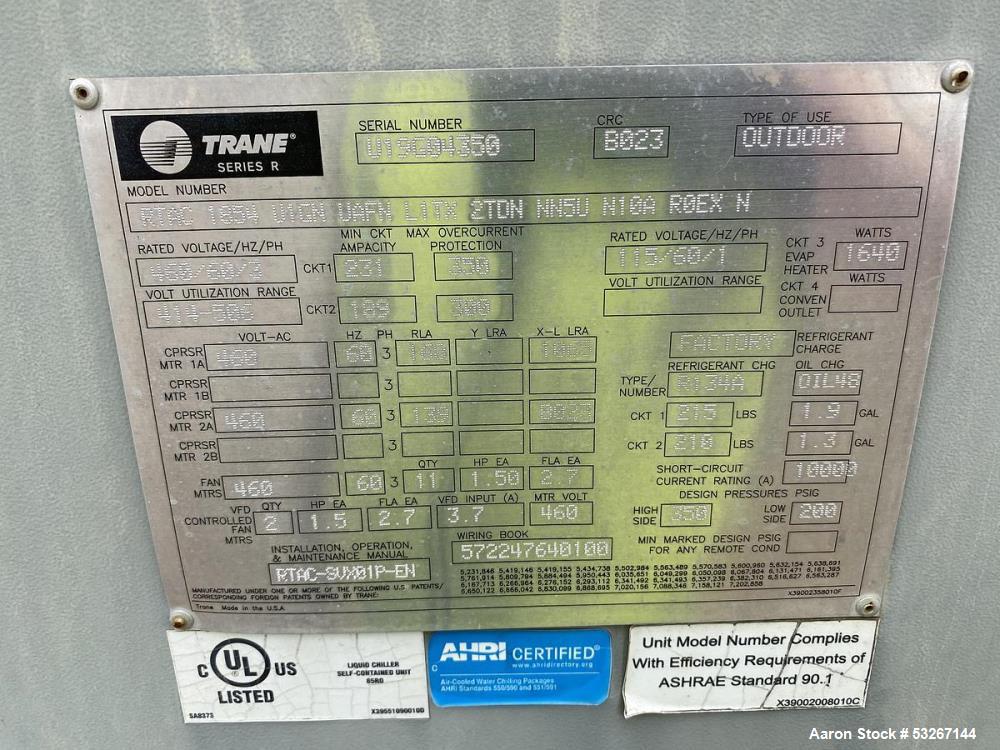

Manufacturer: Trane
Model: RTAC 1854 U1GN UAFN L1TX 2TDN NN5U N10A R0EX N
Serial Number: U19G04350
Equipment Type: Air-Cooled Chiller
Nominal Capacity: 185 Tons
Refrigerant: R134A
Condition: Used

Description

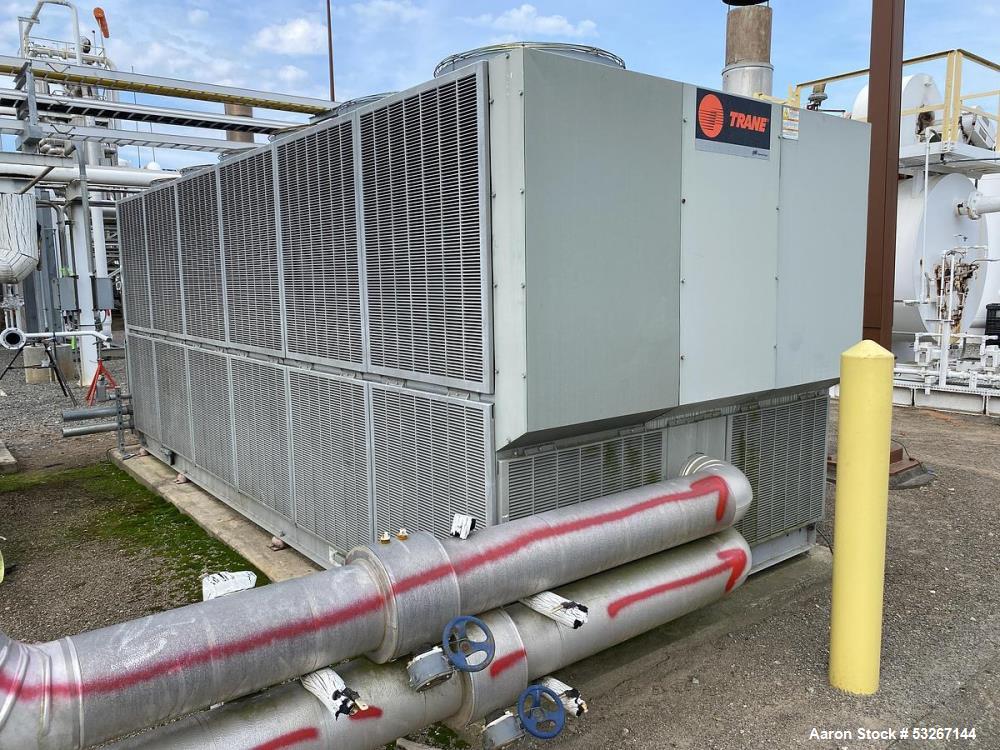

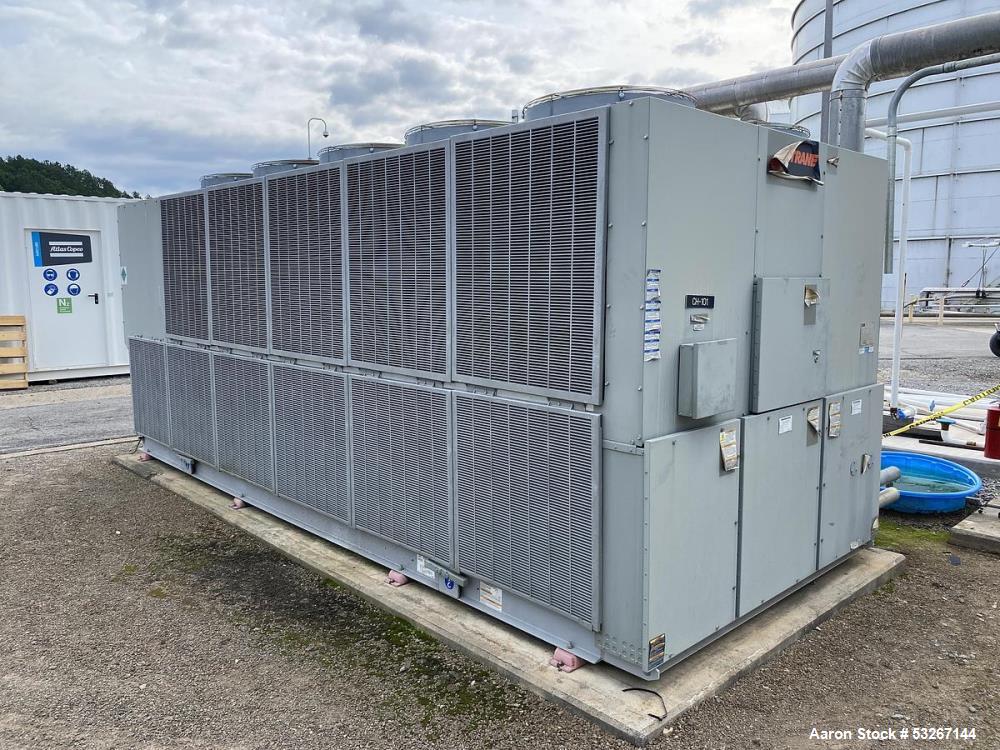

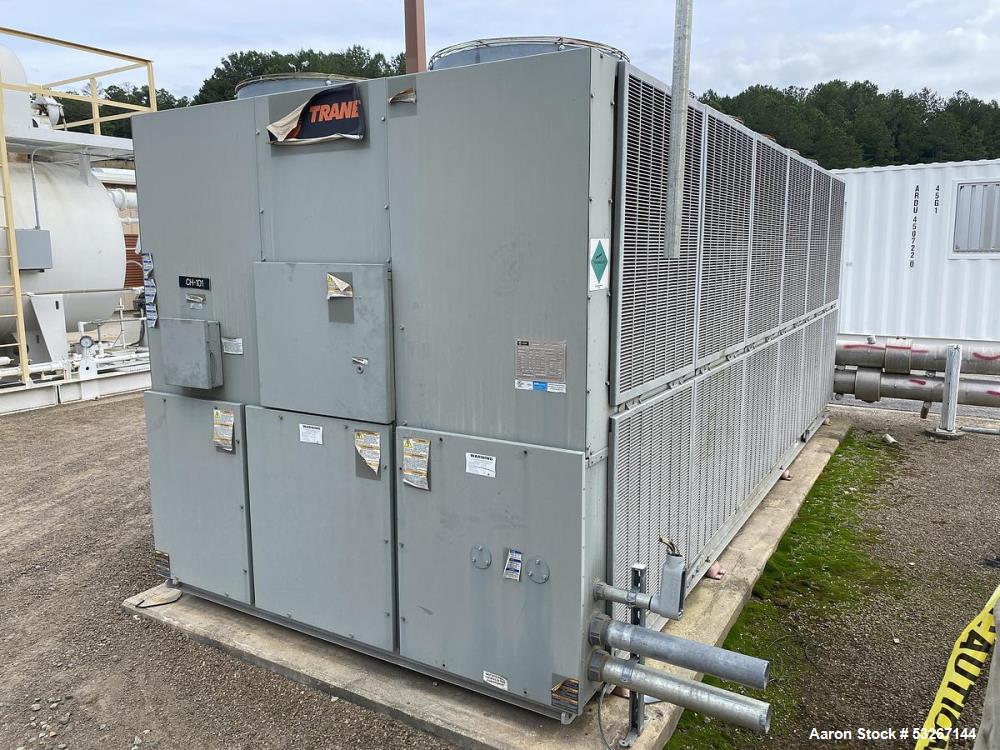

Available for sale is a used Trane RTAC 185 Ton Air-Cooled Chiller, designed for reliable industrial and commercial process cooling applications. This heavy-duty air-cooled chiller features dual compressor operation, 11 condenser fans, and factory-installed R134A refrigerant, providing dependable cooling performance for manufacturing facilities, plastics processing plants, chemical operations, HVAC systems, and industrial process applications.

The unit is configured with two independent refrigeration circuits, enhancing reliability and operational flexibility. Eleven condenser fans provide efficient heat rejection, with two fans equipped with variable frequency drives (VFDs) to improve energy efficiency and optimize condenser performance under varying ambient conditions.

With a footprint measuring approximately 19 feet 6 inches long by 90.5 inches wide by 8 feet high and an operating weight of approximately 13,000 pounds, this Trane RTAC chiller offers substantial cooling capacity while maintaining the installation advantages of an air-cooled system.

Specifications

General Information

• Manufacturer: Trane
• Model: RTAC 1854 U1GN UAFN L1TX 2TDN NN5U N10A R0EX N
• Serial Number: U19G04350
• Equipment Type: Air-Cooled Chiller
• Condition: Used

Cooling Capacity

• Nominal Capacity: 185 Tons

Electrical Requirements

• Voltage: 460 Volt
• Phase: 3 Phase
• Frequency: 60 Hertz

Compressor System

Compressors

• Quantity: 2
• Independent Refrigeration Circuits
• Industrial Duty Design

Condenser Fan System

Total Fans

• 11 Condenser Fans

Fan Motors

• 1.5 HP Each
• 460 Volt
• 3 Phase
• 60 Hertz

Variable Frequency Drives

• 2 Fans Equipped with VFD Controls

Refrigeration System

Refrigerant

• R134A

Compressor Oil

• OIL48

Refrigerant Charge

Circuit 1

• Refrigerant Charge: 215 lbs
• Oil Charge: 1.9 Gallons

Circuit 2

• Refrigerant Charge: 210 lbs
• Oil Charge: 1.3 Gallons

Pressure Ratings

High Side

• 350 PSI

Low Side

• 200 PSI

Dimensions

• Length: Approximately 19 Feet 6 Inches
• Width: Approximately 90.5 Inches
• Height: Approximately 8 Feet

Weight

• Approximate Weight: 13,000 Pounds

Applications

• Industrial process cooling
• Plastics manufacturing
• Injection molding facilities
• Extrusion operations
• Chemical processing
• Pharmaceutical manufacturing
• Food processing
• Beverage production
• HVAC cooling systems
• Data center cooling
• Manufacturing plant cooling
• Central utility cooling systems

Products This Equipment Would Be Used For

• Process water
• Chilled water systems
• Plastic molding equipment
• Extrusion cooling loops
• Chemical processing systems
• Pharmaceutical production lines
• Food manufacturing processes
• Beverage processing equipment
• HVAC systems
• Industrial machinery cooling
• Utility cooling systems
• Facility temperature control

Frequently Asked Questions

• What is the cooling capacity of this Trane chiller?
  The unit is rated for approximately 185 tons of cooling capacity.
• How many compressors are installed?
  The chiller is equipped with two compressors operating on independent refrigeration circuits.
• What refrigerant does the unit use?
  The system is factory charged with R134A refrigerant.
• How many condenser fans are installed?
  The unit utilizes 11 condenser fans.
• Do any fans utilize variable frequency drives?
  Yes, two condenser fans are equipped with VFD controls for improved energy efficiency.
• What voltage is required for operation?
  The chiller operates on 460 Volt, 3 Phase, 60 Hertz electrical service.
• What is the refrigerant charge for each circuit?
  Circuit 1 contains approximately 215 pounds of refrigerant, while Circuit 2 contains approximately 210 pounds.
• What are the physical dimensions of the chiller?
  The unit measures approximately 19'-6" long, 90.5" wide, and 8' high.
• What industries commonly use air-cooled chillers?
  Plastics processing, manufacturing, chemical processing, food production, pharmaceuticals, HVAC systems, and industrial facilities commonly utilize air-cooled chillers.
• What are the benefits of an air-cooled chiller?
  Air-cooled chillers eliminate the need for cooling towers, reduce water usage, simplify installation, and lower maintenance requirements.
• Can Aaron Equipment assist with shipping and logistics?
  Yes, Aaron Equipment can coordinate inspections, rigging, loading, transportation, export documentation, and worldwide logistics services.
• Does Aaron Equipment buy and sell used chillers and utility equipment?
  Yes, Aaron Equipment actively purchases and sells used chillers, cooling towers, boilers, heat exchangers, HVAC equipment, utility systems, and complete manufacturing facilities worldwide.
