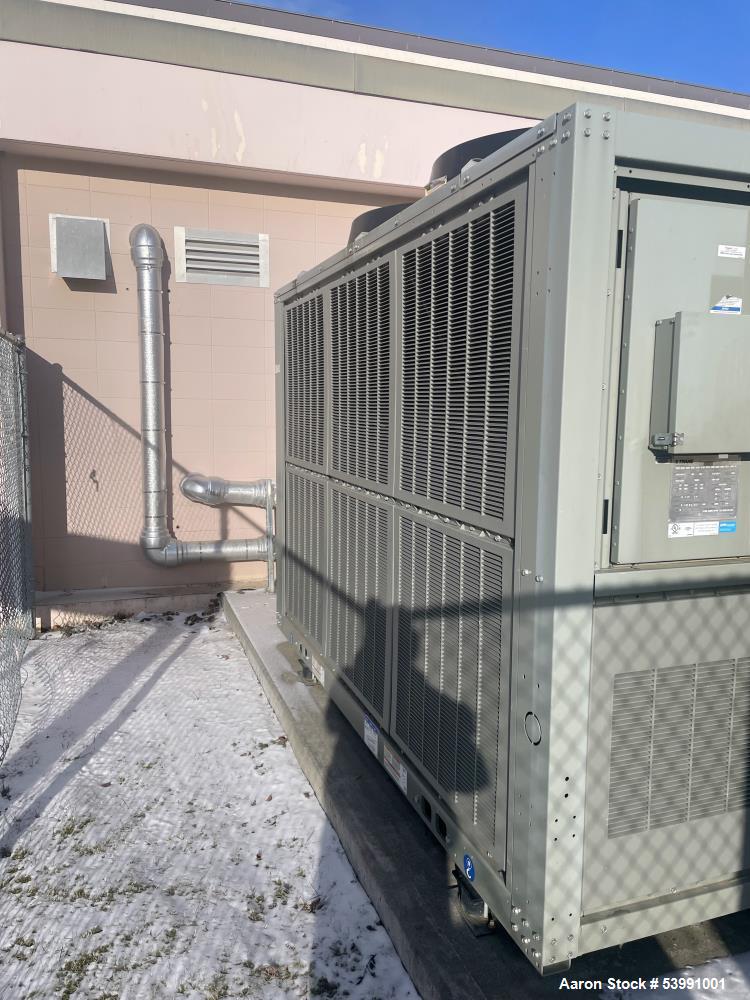

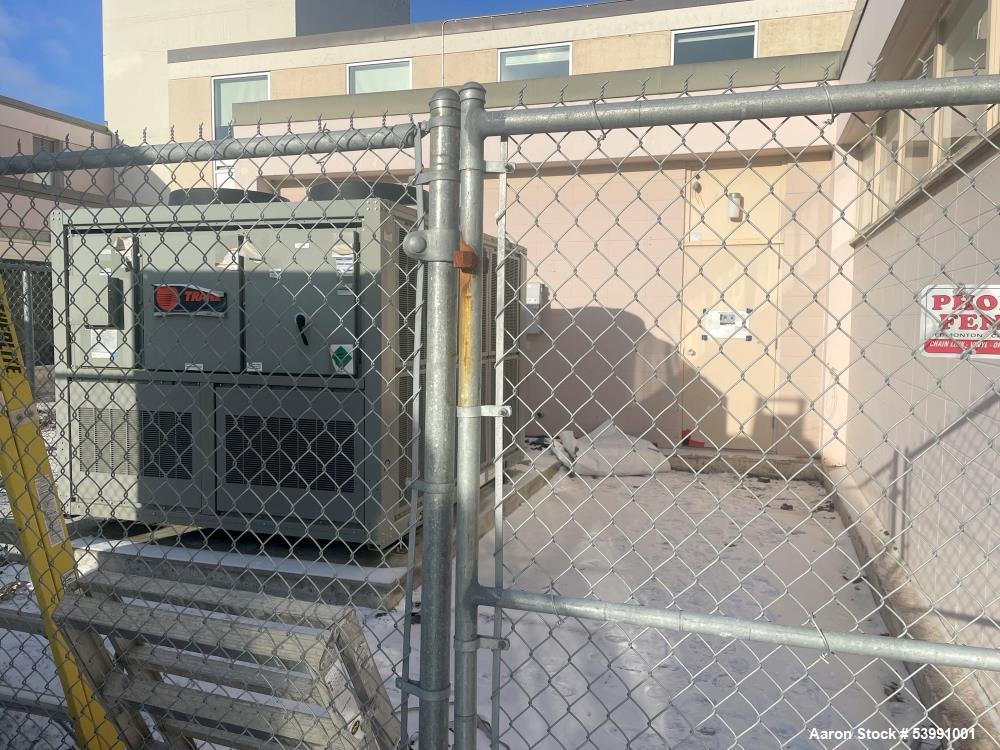

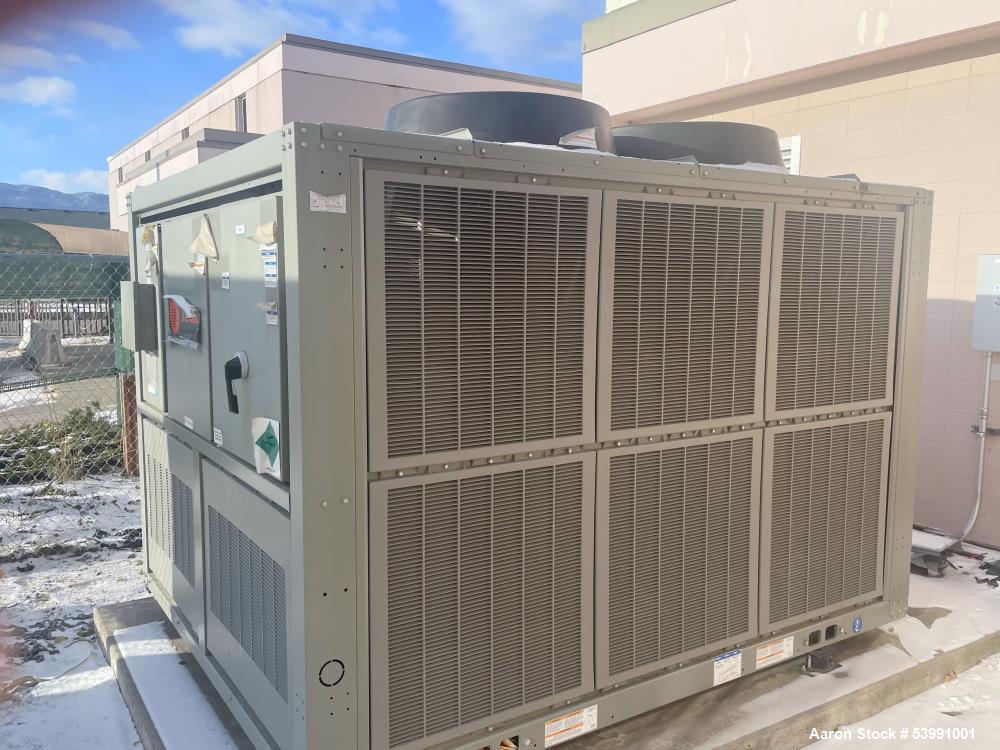

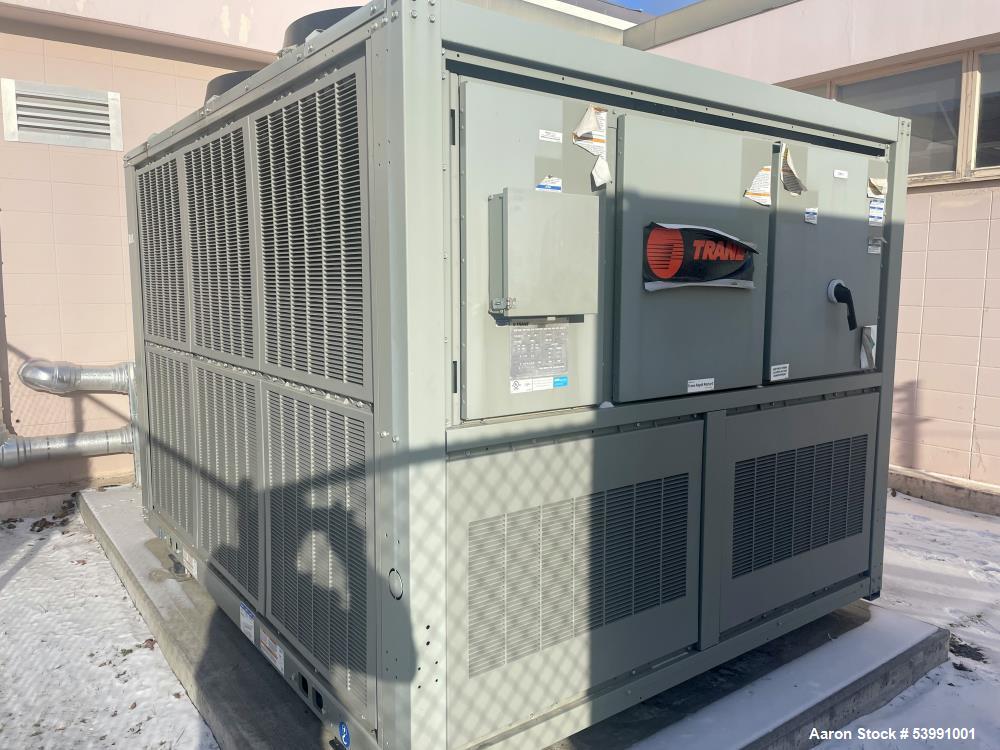

Used Trane CGAM 040G Air-Cooled Scroll Chiller – 40 Ton, R-410A, 575V, Freeze Protected

🏭 Manufacturer

Trane Technologies
A global leader in HVAC and refrigeration solutions, known for high-performance chillers, climate control systems, and industrial cooling innovations.

📝 Description

This Trane Model CGAM 040G High-Efficiency Air-Cooled Scroll Chiller is a 40 nominal ton cooling unit designed for commercial and industrial applications. It utilizes R-410A refrigerant and operates efficiently in a wide ambient temperature range from 0°F to 125°F (-18°C to 52°C). This unit is freeze protection ready, making it suitable for low-temperature and critical climate control environments.

Equipped with lanced aluminum condensing fins and four 28.8" diameter fans delivering a combined 9,413 CFM, each driven by a 1.2 HP motor, the CGAM chiller ensures powerful and reliable air circulation for consistent heat transfer. Rated for 238–650 PSI design pressure, it supports maximum water pressure up to 150 PSIG. The evaporator cooling range is 40°F to 65°F (4.4°C to 18°C), ideal for standard comfort or process cooling systems.

This unit requires 3-phase, 60 Hz, 575V power and is engineered for long-term efficiency and durability in demanding environments.

⚙️ Specifications

• Model: CGAM 040G

• Manufacturer: Trane

• Cooling Capacity: 40 nominal tons

• Refrigerant: R-410A

• Operating Temp Range: 0°F to 125°F (-18°C to 52°C)

• Design Pressure: 238–650 PSI

• Max Water Pressure: 150 PSIG

• Evaporator Temp Range: 40°F to 65°F (4.4°C to 18°C)

• Fans:

  • (4) fans, 28.8" diameter

  • 9,413 CFM total airflow

  • 1.2 HP motors per fan

• Condenser Fins: Lanced aluminum

• Power Requirements: 3-phase / 60 Hz / 575V

• Special Features:

  • Freeze protection ready

  • Scroll compressor technology

  • Air-cooled operation

🧩 Applications

Ideal for:

• Commercial building HVAC systems

• Data center and server room cooling

• Industrial process cooling

• Pharmaceutical climate control

• Brewery or food production cooling

• School, hospital, or hotel central cooling systems

• Retrofit projects for energy efficiency upgrades

• Temporary or portable chiller systems

• Municipal and government building installations

• Laboratory and cleanroom temperature control

🔧 What Might This Be Used For?

• Delivering chilled water for building-wide HVAC

• Supporting process cooling in manufacturing lines

• Maintaining stable temperatures in sensitive data environments

• Cooling equipment in energy-intensive facilities

• Temporary chillers during building renovations or repairs

• Cold water circulation for brewery fermentation or food safety compliance

• Providing a freeze-protected chiller solution in cold climates

• Energy-efficient upgrade from older air-cooled chillers

• Backup cooling system for mission-critical environments

• Constant temperature maintenance in pharma or medtech applications
