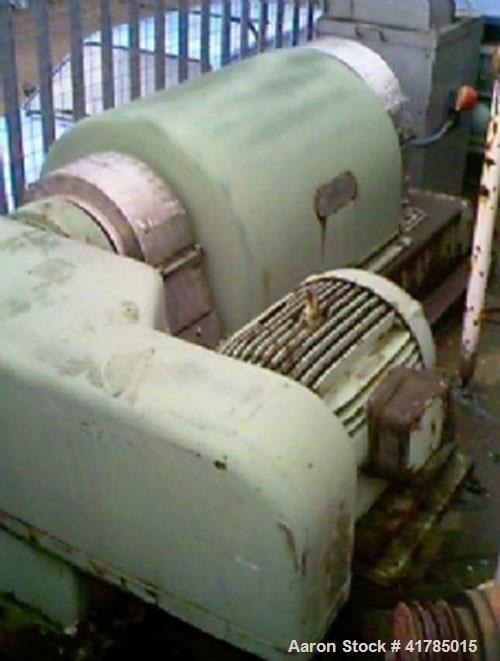

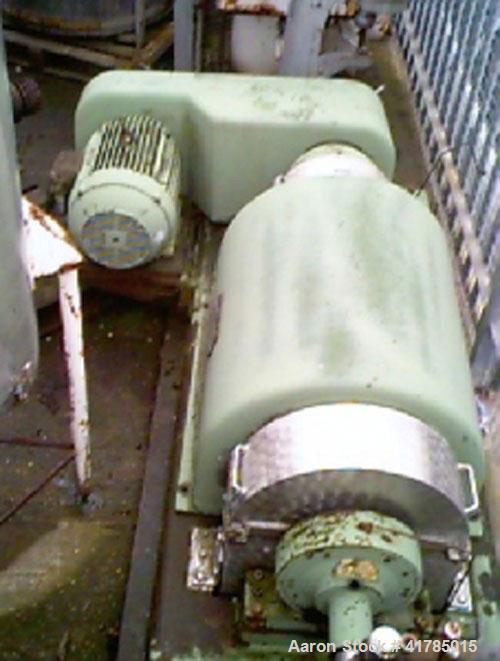

Used Flottweg Z3L Solid Bowl Decanter Centrifuge

Used- Flottweg Z3L Solid Bowl Decanter Centrifuge, Stainless Steel. Inner diameter 16.5" (420 mm), length 49.6" (1260 mm), with 26 hp/19.5 and 31 hp/23 kW drive with 2 speed 1470 and 2950 rpm, max speed 4000 rpm. With pulleys and gearbox fitted input lower speed 1470 rpm gives bowl speed 1750, 2000, 2500 rpm and scroll conveyor 5, 12, 19 rpm. Higher speed input speed 2950 rpm gives bowl speed 3500, 4000, 5000 rpm and scroll conveyor 10, 24, 38 rpm.

ManufacturerFlottweg
ModelZ3L
Serial #F761
CategoryCentrifuges
SubcategoryDecanter
Bowl MaterialStainless Steel
Main Drive Hp31 hp
Bowl Speed4000 rpm.

Product Details

Decanting Centrifuge
Decanter Centrifuge
Flottweg Decanter
Industry, Wastewater, Chemical
Industrial Waste Sludge Dewatering Centrifuge

We offer a variety of finance programs. Please contact your sales person for more information.
