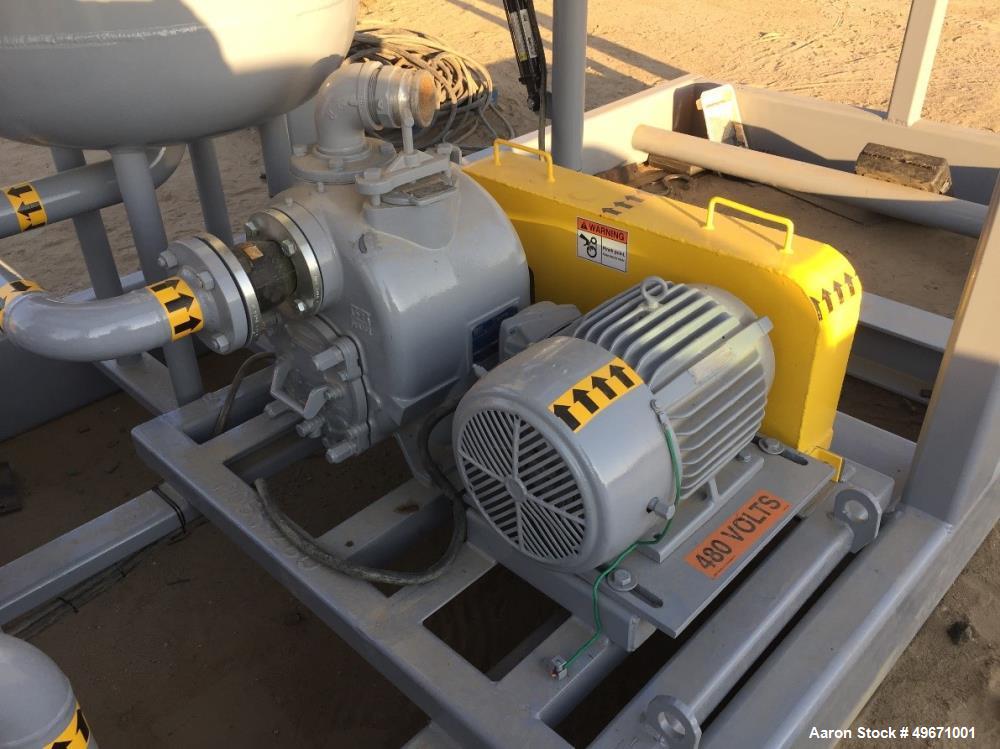

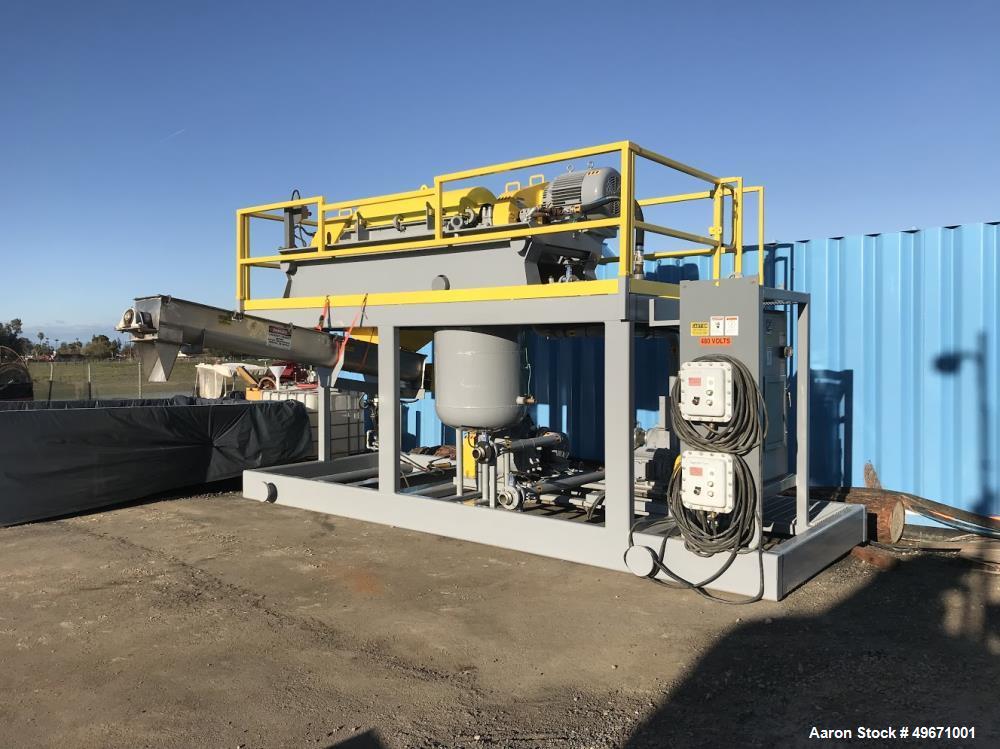

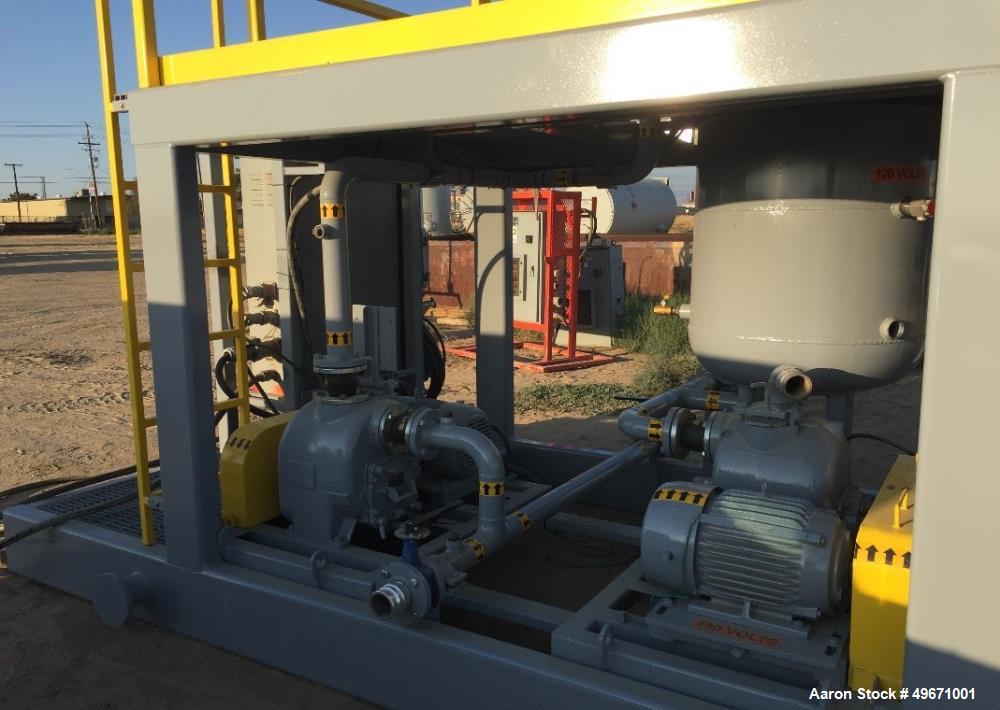

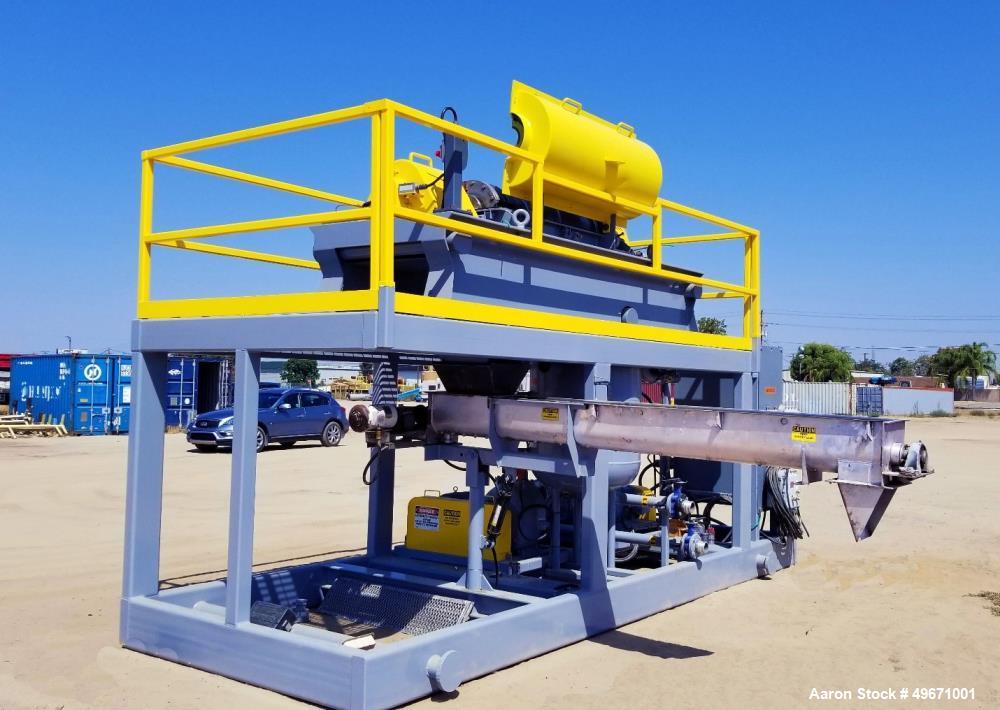

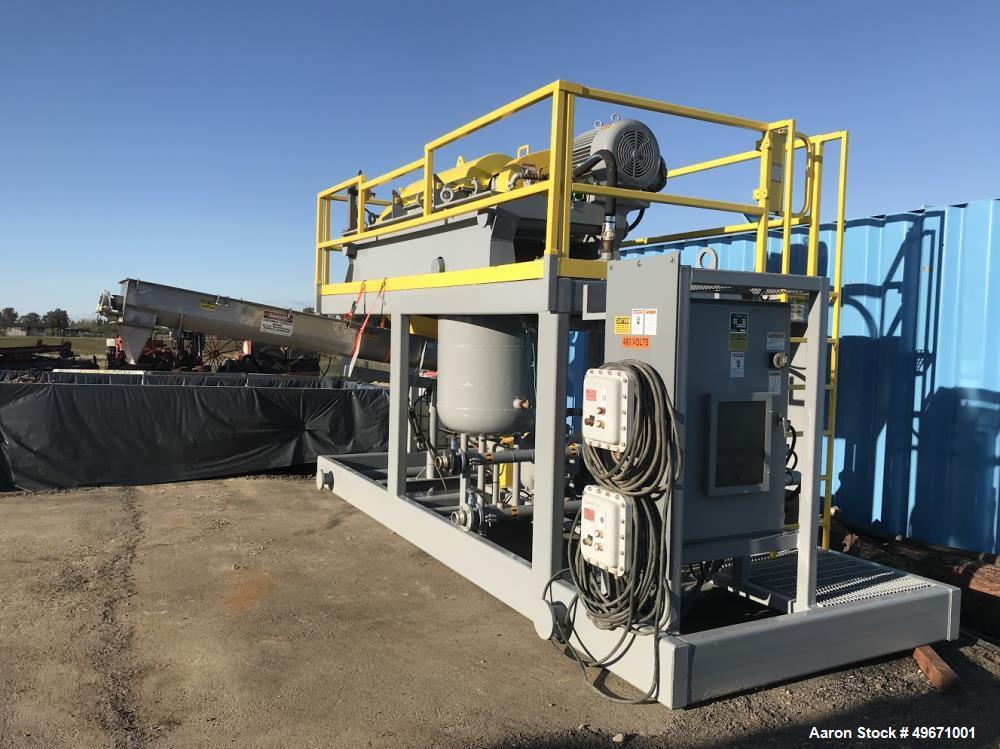

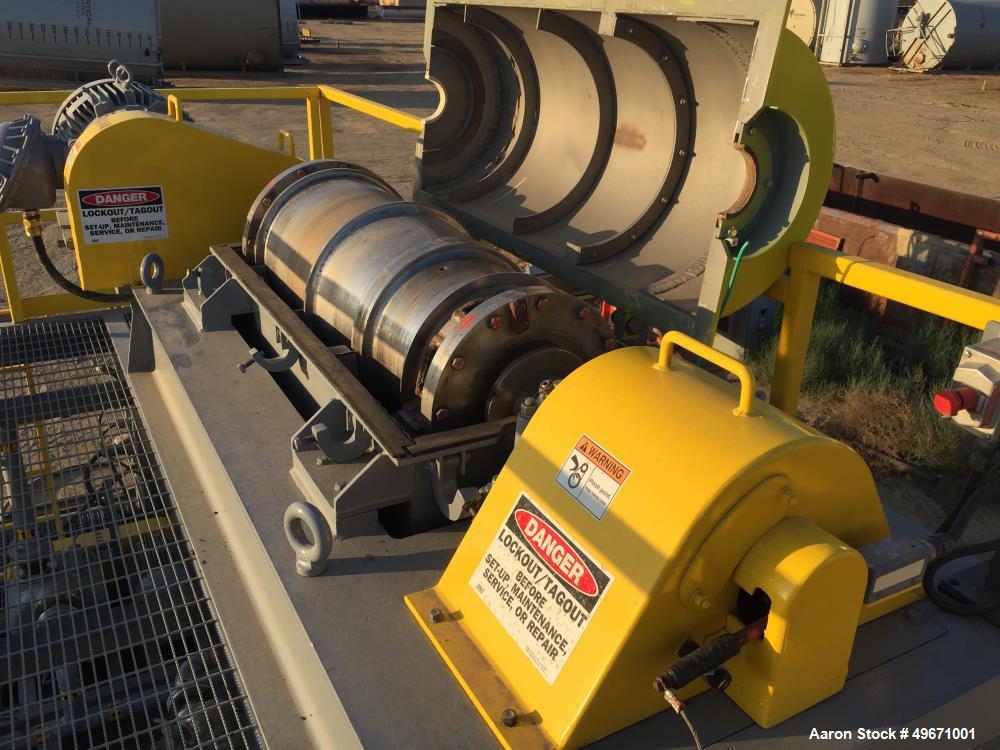

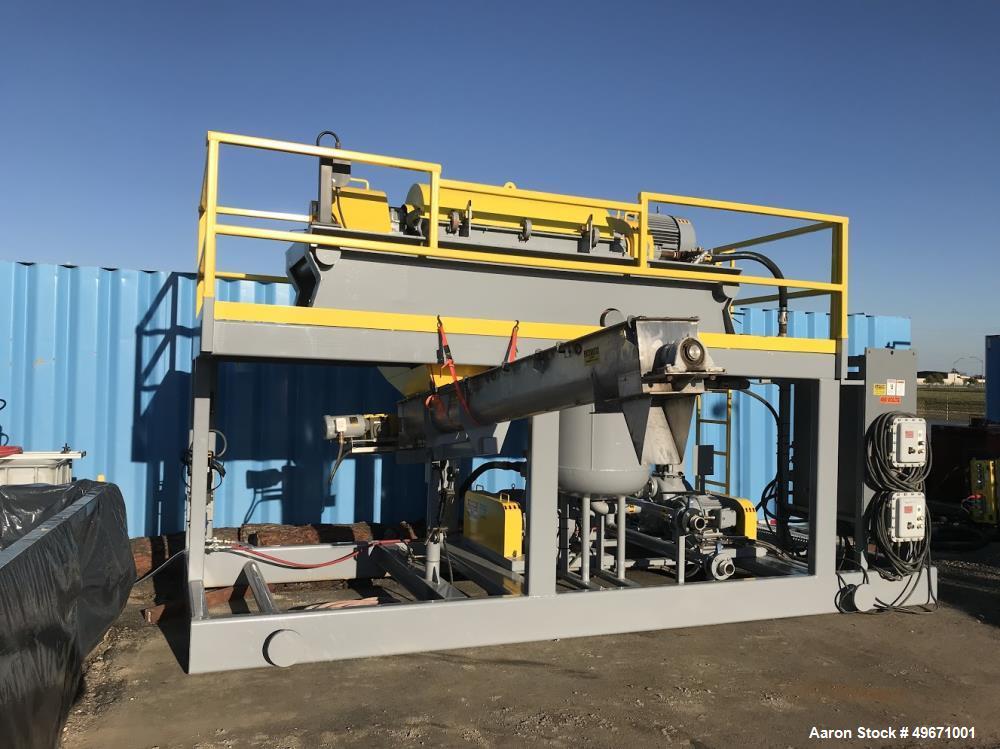

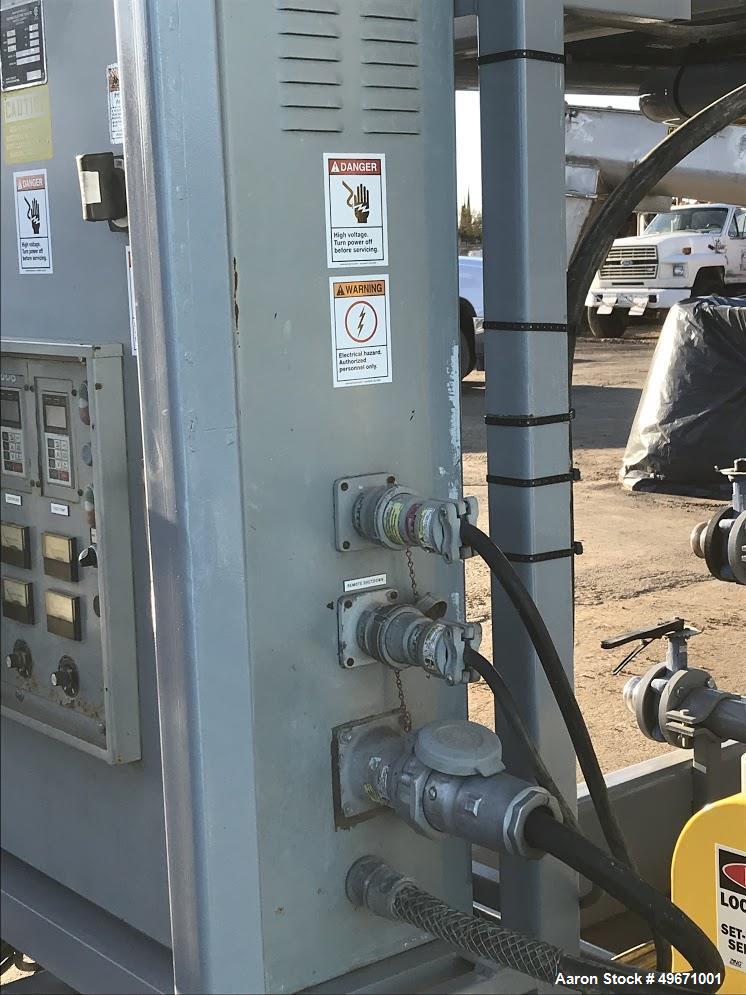

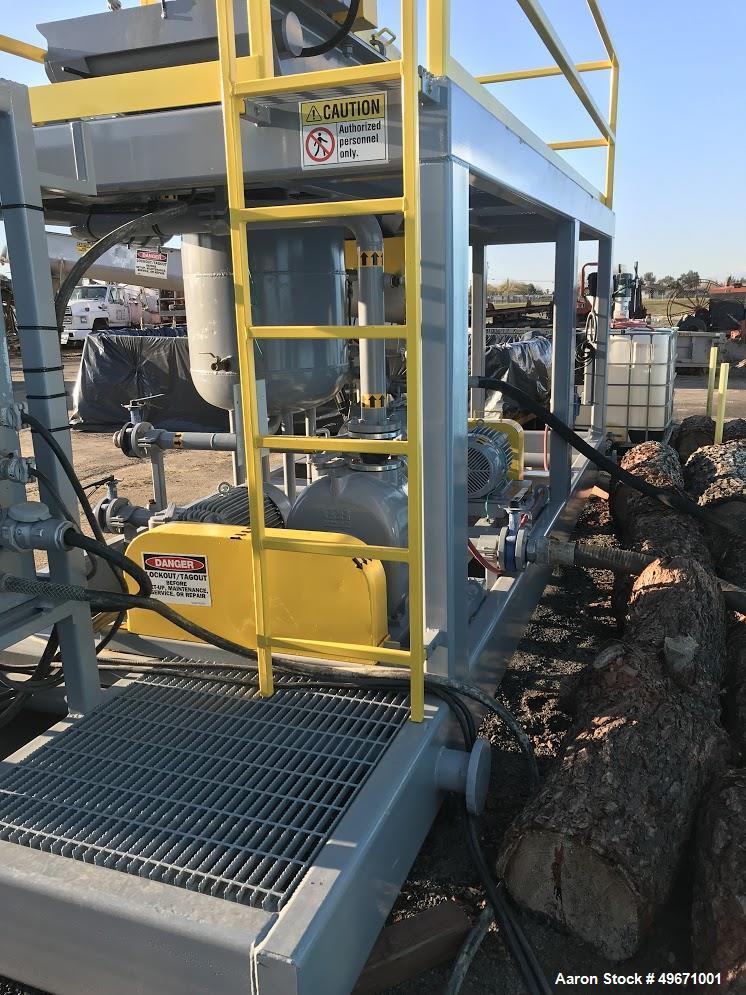

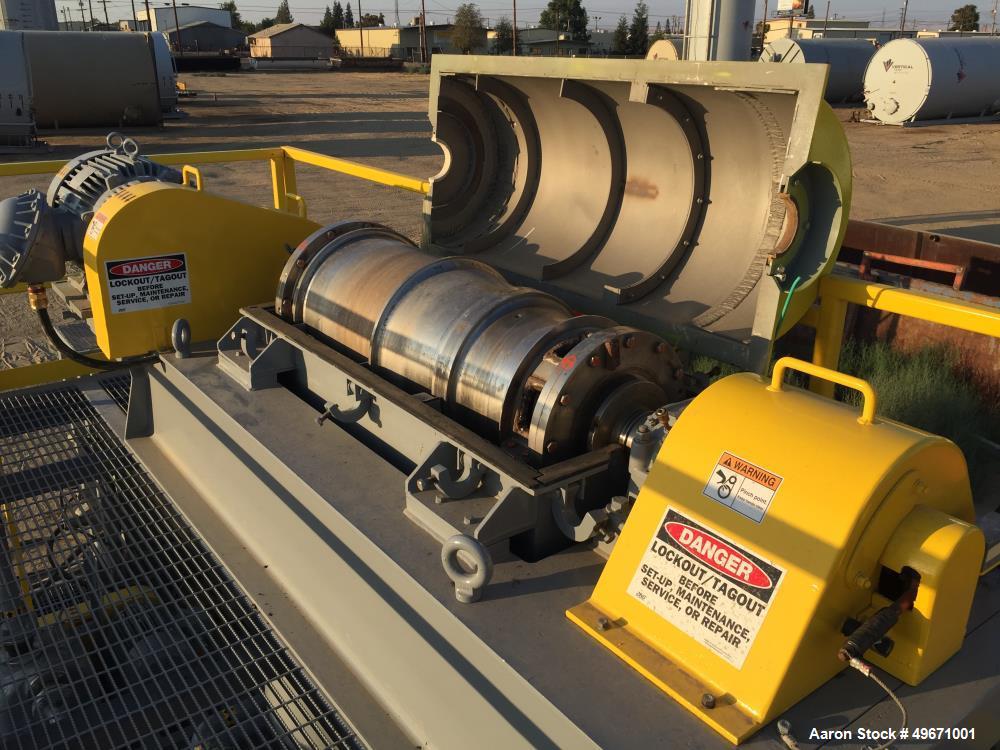

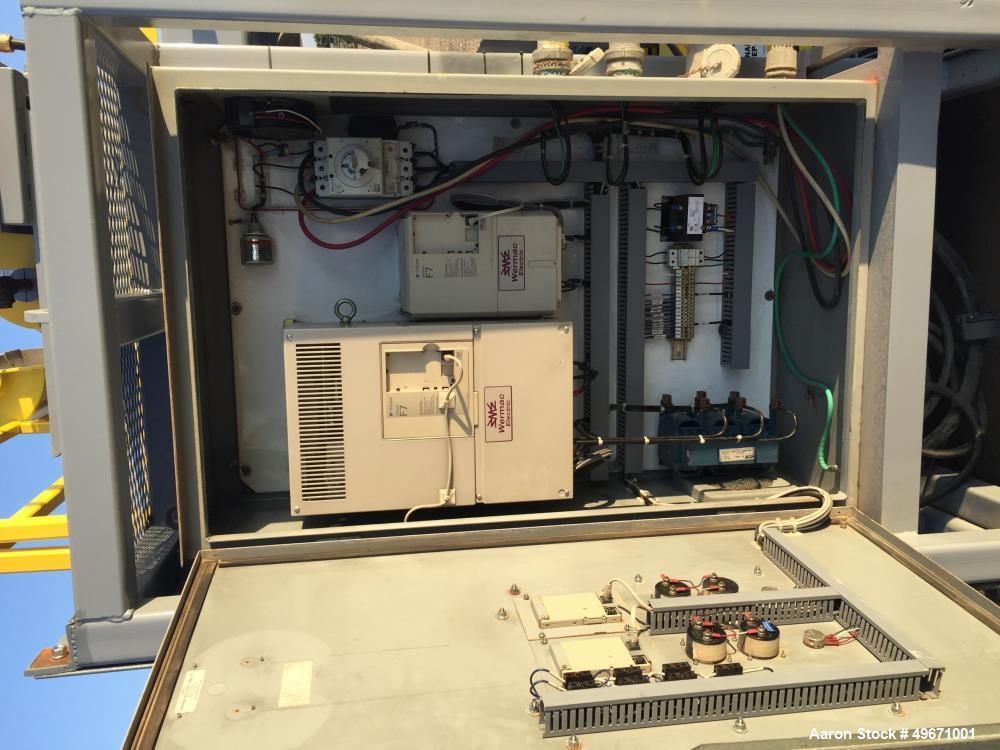

Unused- United Dewatering Skid. 304L Stainless Steel. Consisting of: United SS1000 18.5 x 50 decanter centrifuge. Max bowl speed 3200 RPM, 2617 G's, rated at 1000 LPM. Hard faced conveyor, 60hp XP motor, 480/3/60/1775 RPM with variable frequency drive. SA-44 80:1 double planetary gearbox with TA assembly, feed tube, guards and e stop. Safety yellow guards with OSHA labeling, 304L Stainless Steel lid and solids/liquid discharge case made from 1/4" plate and 1/2" plate with high wear areas and hard surface (Stainless Steel Rotating Assembly). 5 Stainless steel adjustable eccentric liquid discharge ports. Rebuilt and rebalanced RTA and gearbox. NEMA 4 weather proof control panel mounted on oilfield skid. 60HP Yaskawa F7 drive (Main Drive), 20HP Yaskawa F7 drive (Feed Pump). VFD: variable speed main drive and pump only 60 hp main 20hp pump. Both drives are Yaskawa F7 drives housed in a Wermac Electric NEMA 4 enclosure. Window kit on door protecting keypads and speed potentiometers. Start stop for centrifuge and pump installed on the door of the VFD. Independent auger controls, EXP enclosure with 480v contactors and overload protection, 120v control coil, 60hz, 3ph with start/stop and reset push buttons on enclosure door. Independent transfer pump controls. EXP enclosure with 480v contactors and overload protection, 120v control coil, 60hz, 3ph with start/stop and reset push buttons on enclosure door. Feed pump specifications: Gorman Rupp super T3 feed pump. Variable EXP 20 HP motor. 480v 60 hz 3ph, suction and discharge 3" expansion joints to reduce vibration and facilitate maintenance. Safety Yellow Belt Guards with proper OSHA safety labels. Motor bonded to skid, belt drive design to reduce pump footprint. Suction manifold Includes: Left suction option 3" male cam with 3" isolation lug style valve. Right suction option 3" male cam with 3" isolation lug style valve. Three 1" chemical injection points on suction manifold, 3" Expansion joint at pump feed to reduce vibration.
Unused- United Dewatering Skid. 304L Stainless Steel. Consisting of: United SS1000 18.5 x 50 decanter centrifuge. Max bowl speed 3200 RPM, 2617 G's, rated at 1000 LPM. Hard faced conveyor, 60hp XP motor, 480/3/60/1775 RPM with variable frequency drive. SA-44 80:1 double planetary gearbox with TA assembly, feed tube, guards and e stop. Safety yellow guards with OSHA labeling, 304L Stainless Steel lid and solids/liquid discharge case made from 1/4" plate and 1/2" plate with high wear areas and hard surface (Stainless Steel Rotating Assembly). 5 Stainless steel adjustable eccentric liquid discharge ports. Rebuilt and rebalanced RTA and gearbox. NEMA 4 weather proof control panel mounted on oilfield skid. 60HP Yaskawa F7 drive (Main Drive), 20HP Yaskawa F7 drive (Feed Pump). VFD: variable speed main drive and pump only 60 hp main 20hp pump. Both drives are Yaskawa F7 drives housed in a Wermac Electric NEMA 4 enclosure. Window kit on door protecting keypads and speed potentiometers. Start stop for centrifuge and pump installed on the door of the VFD. Independent auger controls, EXP enclosure with 480v contactors and overload protection, 120v control coil, 60hz, 3ph with start/stop and reset push buttons on enclosure door. Independent transfer pump controls. EXP enclosure with 480v contactors and overload protection, 120v control coil, 60hz, 3ph with start/stop and reset push buttons on enclosure door. Feed pump specifications: Gorman Rupp super T3 feed pump. Variable EXP 20 HP motor. 480v 60 hz 3ph, suction and discharge 3" expansion joints to reduce vibration and facilitate maintenance. Safety Yellow Belt Guards with proper OSHA safety labels. Motor bonded to skid, belt drive design to reduce pump footprint. Suction manifold Includes: Left suction option 3" male cam with 3" isolation lug style valve. Right suction option 3" male cam with 3" isolation lug style valve. Three 1" chemical injection points on suction manifold, 3" Expansion joint at pump feed to reduce vibration.
