Used Water Tube Boilers

Stock# 52778002

Used- Cleaver Brooks Heat Recovery Steam Generator (HRSG); Model MF-4/S-85; Burner Model DB-66-G-3; Capacity 90,000 lb/hr (170 psig saturated steam); O-type HRSG with mud dream and steam drum; Natcom Duct Burner System; (3) Duct Burner Elements; Burner Management System; Top exhaust to feedwater economizer. Mfg. 2015.

Stock# 53267008

Used- Cleaver Brooks D-Type Watertube Boiler, Model CW-NB-500D-110. Unit rated 150,000 lb/hr at 600 PSIG; 7,680 sq ft heating surface; NB# 5004, Serial# CW-4627. Steel drum is 22.062 inside diameter X 37'-4" long; Boiler tubes are 2" OD, 0.135 MW thickness; Waterwall Headers are (2) FR 3.826" ID Pipe, (1) BR 3.826 ID Pipe, and (1) AD 2.9" ID Pipe; Waterwall tubes are 2" OD; Economasters, LLC economizer, NB# 2809, Serial# 20020. Max rated working pressure 750 PSI; heating surface 13149 sq. ft. Equipped with Industrial Burner, Model NCB-290-G6B-003-S09-000; Fuel type #1 Natural Gas, Fuel type #2 Light Oil #2; S/N N20382. Built 2022. Unit is complete.

Stock# 52778001

Used- Foster Wheeler D-Type Water Tube Boiler, Model AG-5050; Rated @ 75 kpph; 280 PSIG; 3,454 square feet; Natural Gas & #2 Oil; MCR=75.000 lb/hr; 83.6% Efficiency (HHV); 99.5% Purity; 100% Membrane Wall; 54" diameter Steam Drum; Refractory in burner front wall; 30 ppm NO. National Board# 565, Serial# 7378

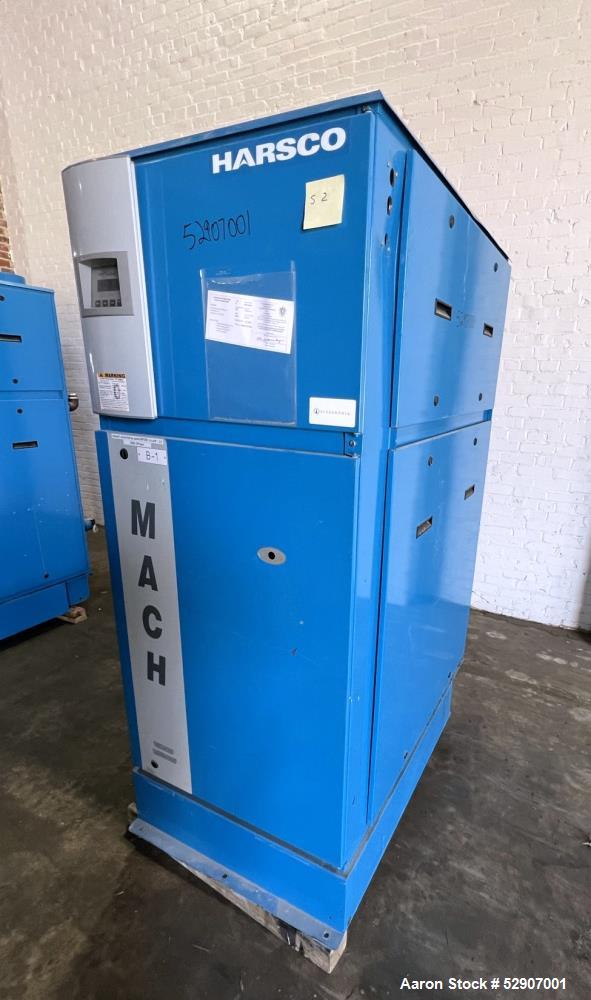

Stock# 52907001

Used- Patterson Kelley / Harsco Mach Gas-Fired Heating Boiler, Model C3000. Heating surface 225.4 feet squared. Natural Gas. Input rating Max 3,000,000 BTU/ Hr. Output rating 2,850,000 BTH/hr. Max working pressure water 125 psi at 200 degrees F. Serial# K947-10-6195. Built 2010. 3/60/208-240 Volt.

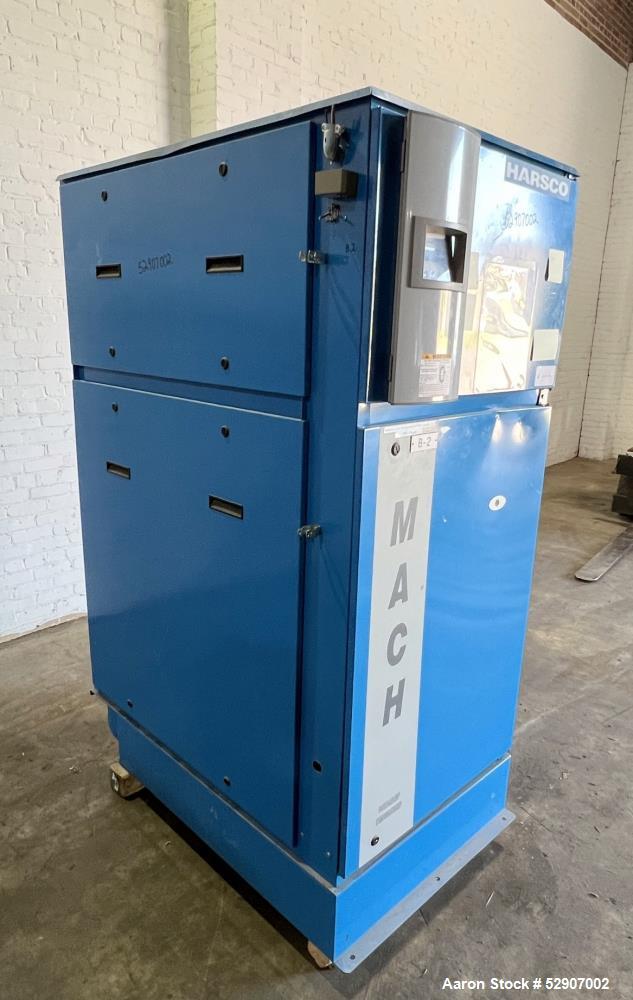

Stock# 52907002

Used- Patterson Kelley / Harsco Mach Gas-Fired Heating Boiler, Model C3000. Heating surface 225.4 feet squared. Natural Gas. Input rating Max 3,000,000 BTU/ Hr. Output rating 2,850,000 BTH/hr. Max working pressure water 125 psi at 200 degrees F. Serial# K944-10-6126. Built 2010. 3/60/208-240 Volt.

Stock# 10992051

Used- Victory Energy Voyager Series Model VS-5-78SP SH 90,000 LBS/HR PPH Natural Gas Package Boiler, Rated 90,000 lb/hr Saturated Steam. Design Pressure: 950 PSIG. Operating Pressure: 800 PSIG. Operating Temperature: 863F SH Steam at the NRV outlet. Feedwater Temperature: 227F to Economizer Inlet. Primary Fuel: Natural Gas. Complete economizer system. Furnace Radiant Heating Surface 889 Sq. Ft. Boiler Convective Heating Surface 6,455 Sq. Ft. Total Heating Surface 7,344 Sq. Ft. Superheater Surface 980 Sq. Ft. Furnace Volume 1,633 Cu. Ft. Overall Width 8- 10". Average Height 8- 6". Furnace Length 21- 11". Overall height: 50 Feet. Drums Submerged arc automatic welded and stress relieved with radiographed welded seams. Drum material is SA-516 Gr. 70. Tubes are rolled and expanded into the drum. Mud Drum is provided with a 12" x 16" hinged manway access in each drumhead. Steam Drum is provided with a 12" x 16" hinged manway access in each drumhead. All tubes enter the drum radially with full parallel bearing through the drum plate. All tubes are full diameter tubes with no swaging. Front Wall 2" O.D., 0.135" M.W., SA-178 A. Rear Wall 2" O.D., 0.135" M.W., SA-178 A. Furnace Floor, Sides & Roof 2" O.D., 0.135" M.W., SA-178 A. Convection: 2" O.D., 0.120" M.W., SA-178 A. Outer Side Wall: 2" O.D., 0.135" M.W., SA-178 A. Superheater: 2" O.D., 0.180" M.W., SA-213TP304H. NB# 589, Serial# 13288, built 2018. In operation only 1 year.
