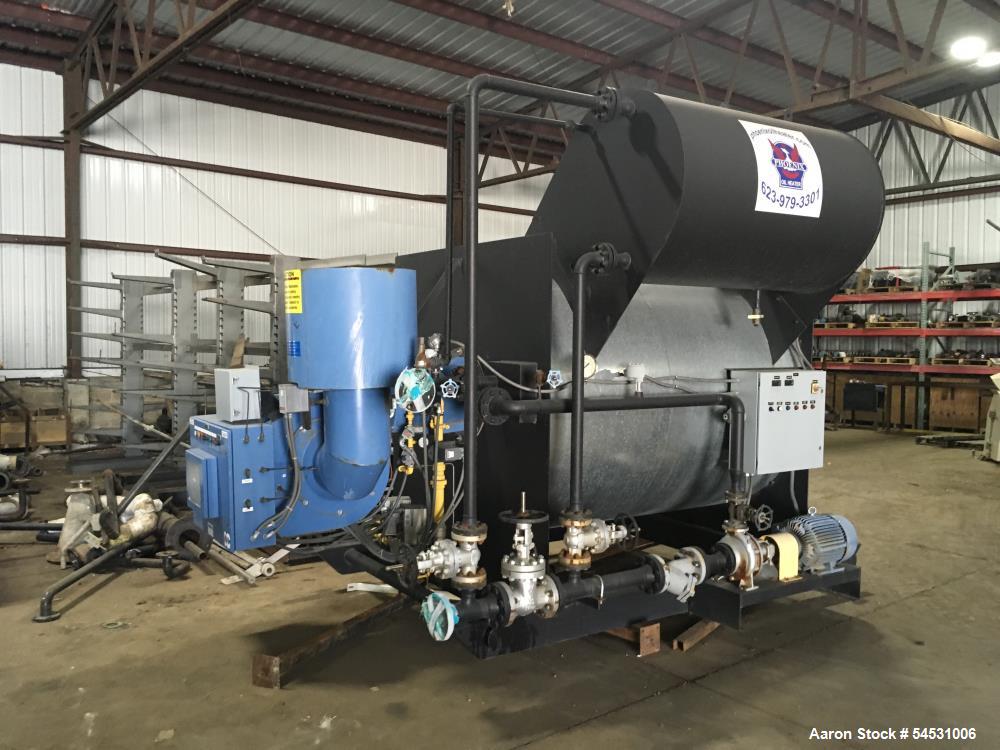

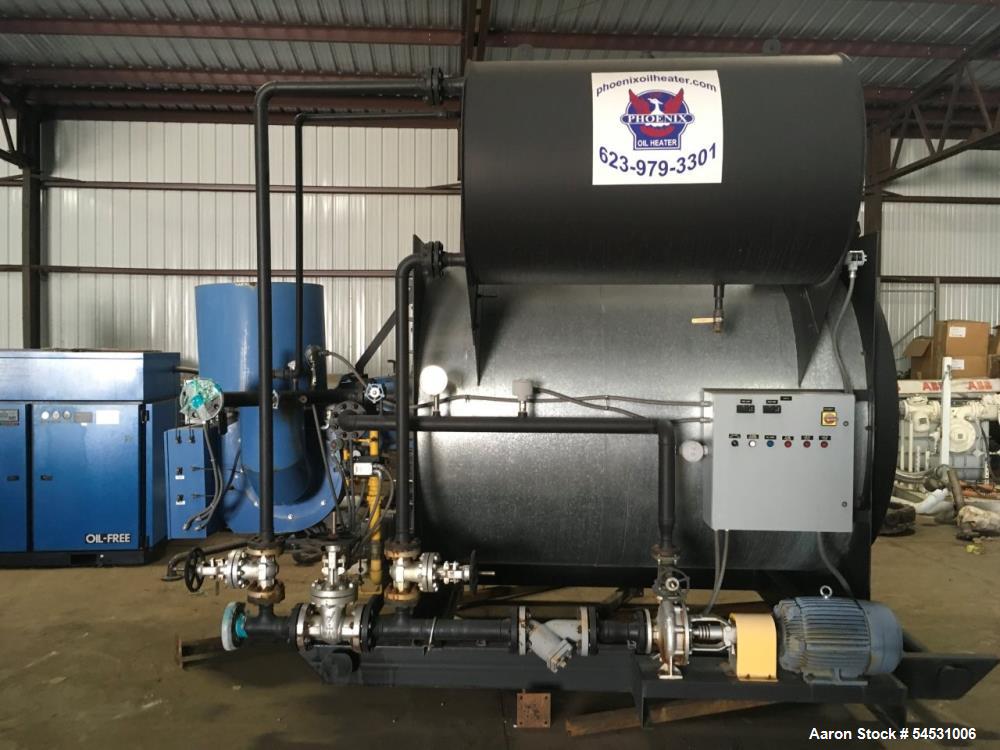

Used Phoenix Engineering PX40 Gas Fired Hot Oil Heater
Used Phoenix Model PX40 Gas Fired Oil Heater. 3.6 MM - 4.5 MM BTU Per Hour Output. Maximum Design Working Pressure 125 PSI at 650 Degrees F. 650 Degree F Maximum Design Temperature. Minimum Design Metal Temperature 33 Degrees F at 125 PSI. National Board # 95. Double Helical Coil Design With Heatmizer Fins For Improved Heat Extraction From Air Stream. Natural Gas Power Burner With Full Modulation Rated at 5.0 Mmbtu/Hr. The Unit Will Be Complete And Ready To Fire After Connecting To The Electric, Fuel, And Hot Oil Circulation Piping. The Coil is Designed And Stamped According To ASME For 125 Psi MAWP. The Coils Are SA-106 Seamless Pipe. Heater Maximum Output: 4.0 Mmbtu/Hr. Based On Supply/Return Delta T of 100 Degrees F, And A Hot Oil Flow Rate Of 200 GPM. 3 In Inlet/Outlet Nozzles. ANSI 300# WNRF Flanges. Hot Oil Rate 200 GPM. Shell To Be A36 5/16 In Carbon Steel Wrapped With 2 In Thick High Temperature Insulation Covered With a Galvanized Steel Skin. One 300 Gallon Expansion Tank. One 200 GPM Hot Oil Circulation Pump. The Burner Provided Shall Be a Webster Natural Gas Power Burner With Ultra Lonox Design (9 PPM), Burner Requires Natural Gas For Combustion, UV Flame Scanner, Ignition Transformer.
| Manufacturer | Phoenix EngineeringPhoenix Engineering |
| Model | PX40 |
| Serial # | 14119 |
| Category | BoilersBoilers |
| Subcategory | Hot OilHot Oil |
Manufacturer Information:
Phoenix Engineering is listed as the manufacturer of this Model PX40 gas fired oil heater. This Phoenix hot oil heater is designed for thermal fluid heating applications where high-temperature heat transfer oil is circulated through process equipment, jacketed vessels, dryers, reactors, heat exchangers, or other industrial systems requiring controlled indirect heat.
Main Product Description:
Used Phoenix Engineering Model PX40 gas fired oil heater, Serial #14119, National Board #95. This natural gas fired hot oil heater is listed with 3.6 MM to 4.5 MM BTU per hour output, maximum design working pressure of 125 PSI at 650°F, maximum design temperature of 650°F, and minimum design metal temperature of 33°F at 125 PSI. The unit features a double helical coil design with Heatmizer fins, SA-106 seamless pipe coils stamped according to ASME for 125 PSI MAWP, a Webster natural gas power burner with Ultra LoNOx design rated at 5.0 MMBTU/HR, one 300 gallon expansion tank, and one 200 GPM hot oil circulation pump. Heater maximum output is listed as 4.0 MMBTU/HR based on a 100°F supply/return delta T and 200 GPM hot oil flow rate.
Product Details:
- Stock #: 54531006
- Manufacturer: Phoenix Engineering
- Model: PX40
- Serial #: 14119

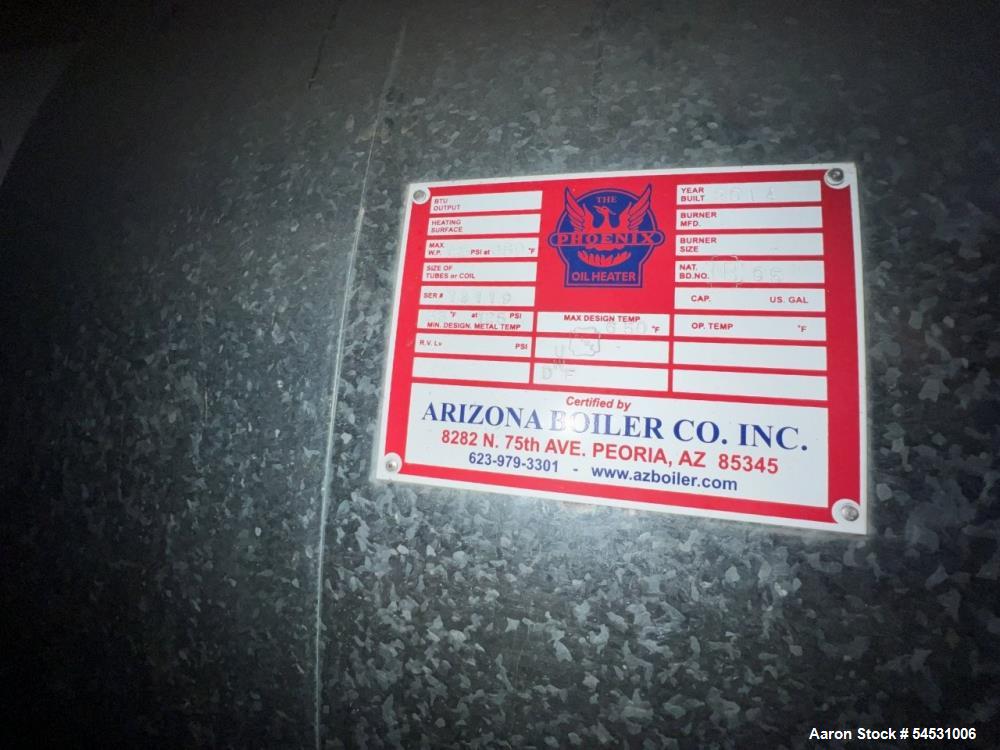

- National Board #: 95
- Equipment type: Gas fired oil heater / hot oil heater
- Category: Boilers
- Subcategory: Hot Oil
- Fuel type: Natural gas
- Output listed: 3.6 MM to 4.5 MM BTU per hour
- Heater maximum output: 4.0 MMBTU/HR
- Burner rating: 5.0 MMBTU/HR

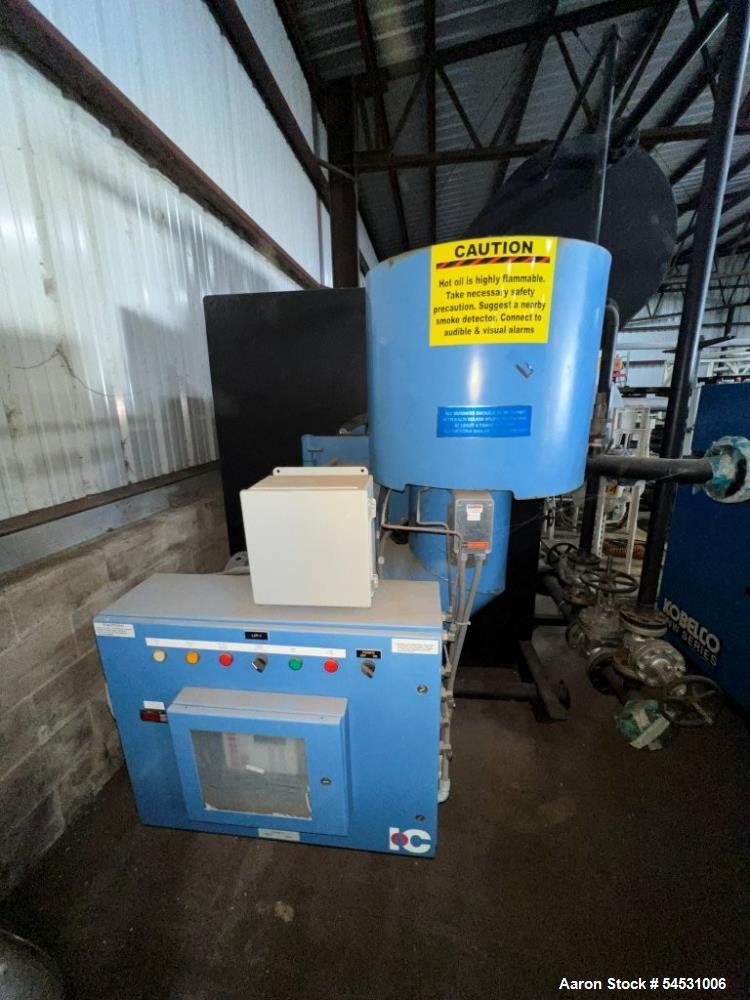

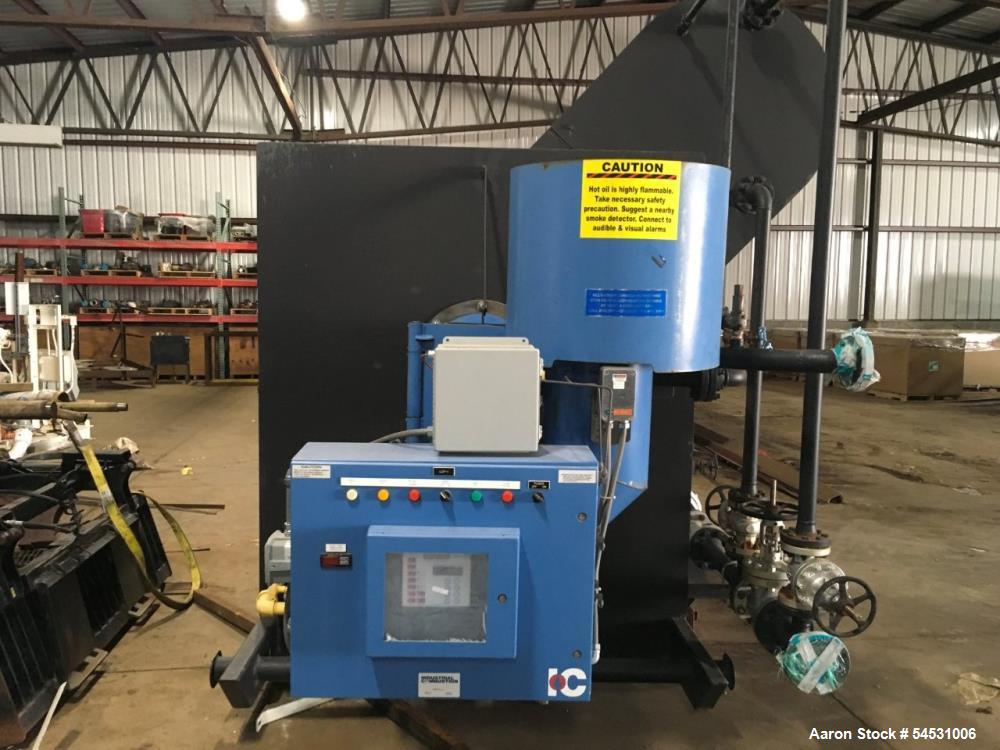

- Burner manufacturer/type: Webster natural gas power burner
- Burner design: Ultra LoNOx design, listed as 9 PPM
- Maximum design working pressure: 125 PSI at 650°F
- Maximum design temperature: 650°F
- Minimum design metal temperature: 33°F at 125 PSI
- Coil design: Double helical coil design with Heatmizer fins
- Coil material: SA-106 seamless pipe
- Coil stamp/design: ASME stamped for 125 PSI MAWP
- Shell material: A36 5/16" carbon steel
- Insulation: 2" thick high temperature insulation

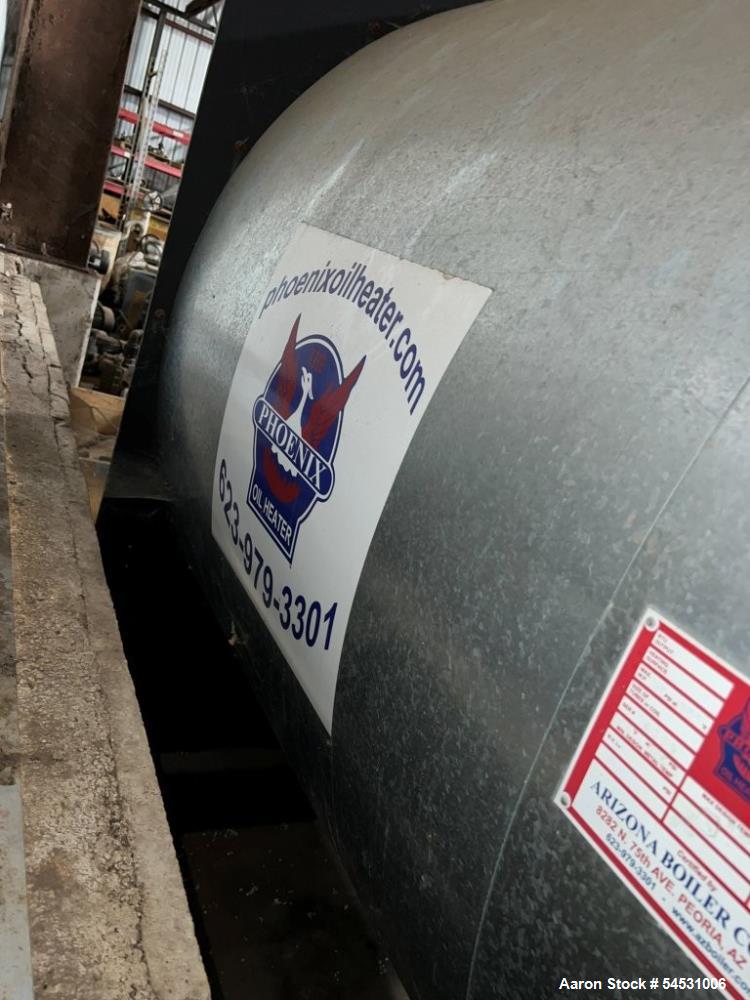

- Outer covering: Galvanized steel skin
- Inlet/outlet nozzles: 3"
- Flanges: ANSI 300# WNRF flanges
- Hot oil flow rate: 200 GPM
- Expansion tank: 300 gallon
- Hot oil circulation pump: 200 GPM

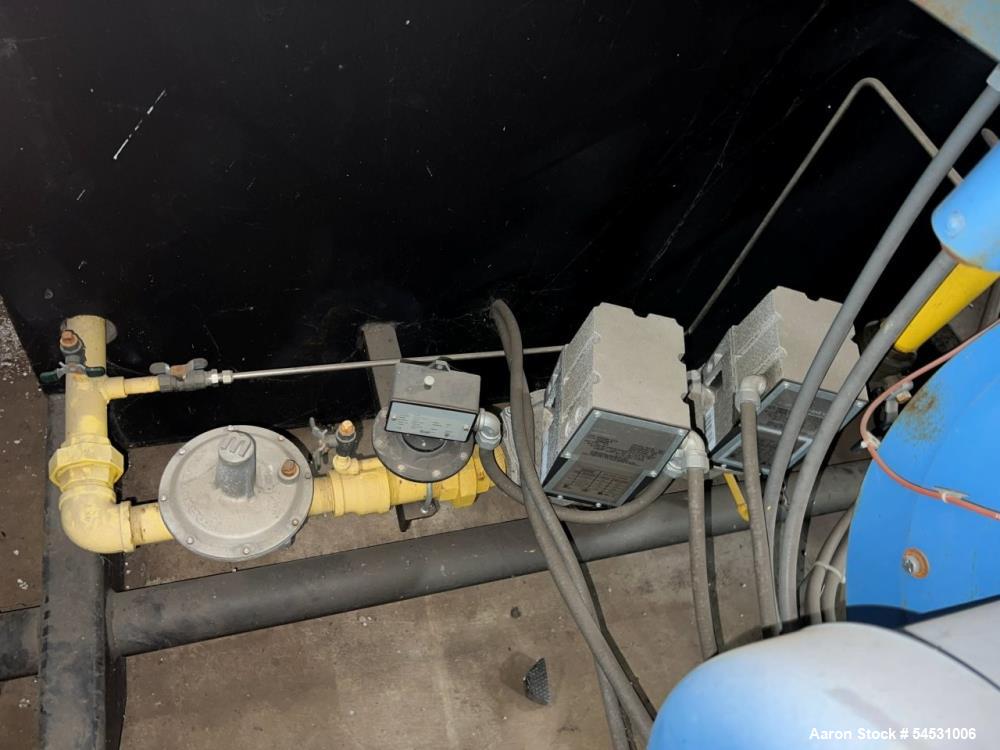

- Burner features: Natural gas combustion, UV flame scanner, ignition transformer
- Year: Not specified
- Electrical requirements: Not specified
- Overall dimensions: Not specified
- Weight: Not specified
- Condition/testing status: Not specified
Specifications:
- Manufacturer: Phoenix Engineering
- Model: PX40
- Serial #: 14119
- National Board #: 95
- Type: Gas fired hot oil heater
- Fuel: Natural gas
- Output range: 3.6 MM to 4.5 MM BTU per hour
- Maximum heater output: 4.0 MMBTU/HR
- Burner rating: 5.0 MMBTU/HR
- Maximum design working pressure: 125 PSI at 650°F
- Maximum design temperature: 650°F
- Minimum design metal temperature: 33°F at 125 PSI
- Design delta T: 100°F supply/return delta T
- Hot oil flow rate: 200 GPM
- Inlet/outlet nozzles: 3"
- Flange rating: ANSI 300# WNRF
- Coil construction: SA-106 seamless pipe
- Coil design: Double helical coil with Heatmizer fins
- Shell construction: A36 5/16" carbon steel
- Insulation: 2" high temperature insulation
- Skin: Galvanized steel
- Expansion tank: 300 gallon
- Circulation pump: 200 GPM
- Burner: Webster natural gas power burner with Ultra LoNOx design
- Burner accessories: UV flame scanner and ignition transformer
Applications:
- Thermal fluid heating systems
- Hot oil process heating
- Chemical processing
- Asphalt and bitumen heating
- Jacketed vessel heating
- Reactor heating
- Dryer heating systems
- Heat exchanger loops
- Industrial process temperature control
- Manufacturing plant utility heating
- Indirect heat transfer applications requiring high-temperature oil circulation
Suitable Products / Materials:
- Thermal fluid
- Heat transfer oil
- Hot oil circulation systems
- Process heating loops
- Jacketed process equipment
- Reactors
- Dryers
- Heat exchangers
- Asphalt or bitumen systems, depending on process compatibility
- Chemical process systems, depending on thermal fluid and operating requirements
FAQs:
- What type of equipment is this?
- This is a used Phoenix Engineering Model PX40 gas fired oil heater for hot oil or thermal fluid heating applications.
- What is the model number?
- The model number is PX40.
- What is the serial number?
- The serial number is 14119.
- What is the listed output?
- The listing states 3.6 MM to 4.5 MM BTU per hour output, with heater maximum output listed as 4.0 MMBTU/HR.
- What fuel does this hot oil heater use?
- The listing states the unit uses natural gas for combustion.
- What is the maximum design temperature?
- The maximum design temperature is listed as 650°F.
- What is the maximum design working pressure?
- The maximum design working pressure is listed as 125 PSI at 650°F.
- What burner is included?
- The listing states a Webster natural gas power burner with Ultra LoNOx design rated at 5.0 MMBTU/HR.
- Does this listing include a pump and expansion tank?
- The listing states one 300 gallon expansion tank and one 200 GPM hot oil circulation pump.
- Can Aaron Equipment help with shipping?
- Yes. Aaron Equipment can help coordinate shipping and receiving details for this Phoenix hot oil heater. Buyers should contact Aaron Equipment for freight planning, loading information, and shipment support.
- How can Aaron Equipment help with this hot oil heater?
- Aaron Equipment can provide pricing, availability, photos, inspection support, and help determine whether this Phoenix PX40 gas fired oil heater fits the buyer’s thermal fluid heating or process heat requirements.
