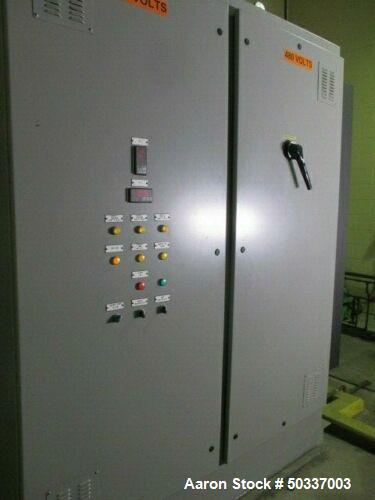

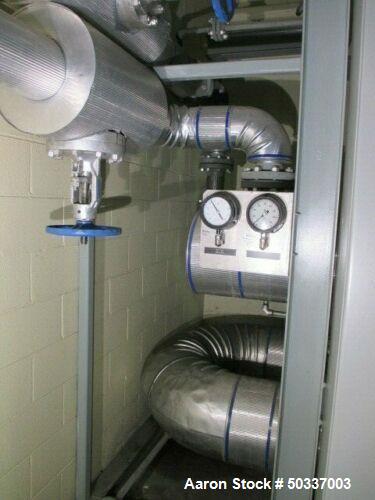

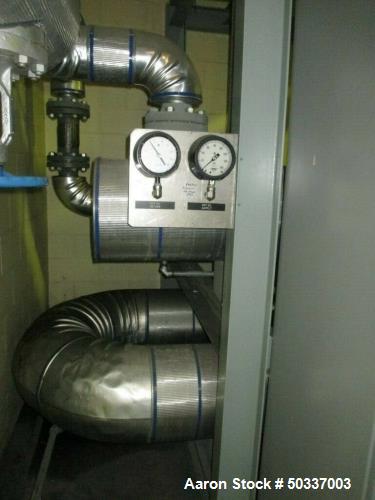

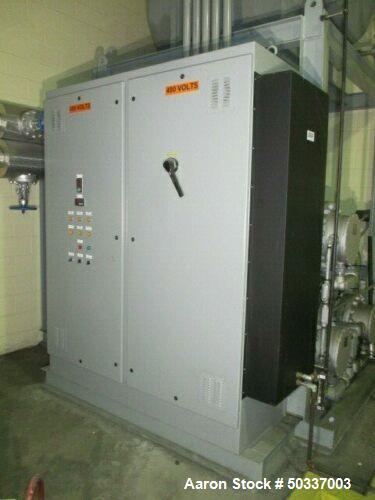

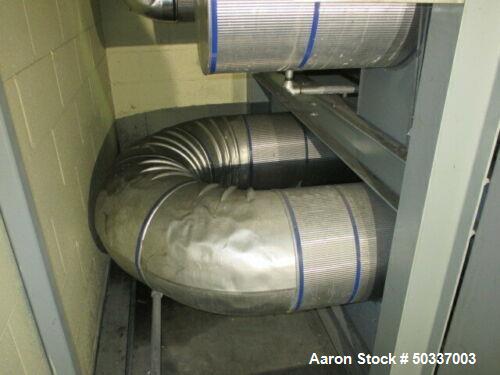

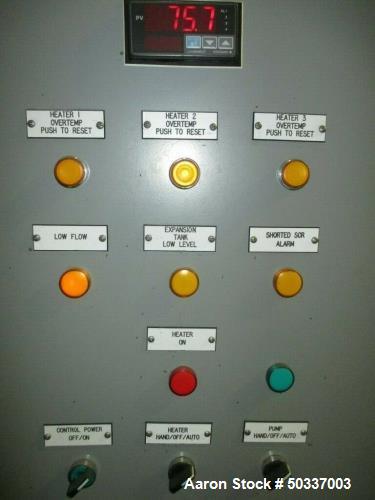

Used 2.3 MM BTU/HR Gaumer Electric Process Hot Oil Heating System, Model GHOS-667-X. 667 KW total heating capability. 15 watts/square inch. Model GHOS-667-X, Gaumer Job # 12045. Komline Sanderson PO # 41633. Skid mounted electric hot oil system. Skid shipping dimensions are 146" wide x 108" wide x 110" high (plus lifting lugs and expansion tank). Control Panel # ZPA-850-18C-1M-UL. Unit has a 30 hp Vican gear pump rated at 400 gpm at 75 psig. Unit has three heat exchangers each rated for 222.2 kW for a total of 667 kW with a design pressure rating of 300 psi at 600 degree F. Expansion tank is 450 gallons, 42" diameter x 60" long rated with ASME stamp for 300 psi at 600 degree F. Piping is 4" typical. Insulation is 1.5" calcium Silicate typical. Unit is complete skid mounted with all electrical controls in panels mounted on the skid. Skid weight is 13,100 pounds.
Used 2.3 MM BTU/HR Gaumer Electric Process Hot Oil Heating System, Model GHOS-667-X. 667 KW total heating capability. 15 watts/square inch. Model GHOS-667-X, Gaumer Job # 12045. Komline Sanderson PO # 41633. Skid mounted electric hot oil system. Skid shipping dimensions are 146" wide x 108" wide x 110" high (plus lifting lugs and expansion tank). Control Panel # ZPA-850-18C-1M-UL. Unit has a 30 hp Vican gear pump rated at 400 gpm at 75 psig. Unit has three heat exchangers each rated for 222.2 kW for a total of 667 kW with a design pressure rating of 300 psi at 600 degree F. Expansion tank is 450 gallons, 42" diameter x 60" long rated with ASME stamp for 300 psi at 600 degree F. Piping is 4" typical. Insulation is 1.5" calcium Silicate typical. Unit is complete skid mounted with all electrical controls in panels mounted on the skid. Skid weight is 13,100 pounds.
