Used Lagarde 2B E Static Retort Autoclave – 5,490 Liter Stainless Steel Sterilization Vessel (2021)

Manufacturer: Lagarde Autoclaves
Model: 2B E
Machine Type: Static Retort Autoclave / Sterilization Vessel
Chamber Type: Horizontal Cylindrical Chamber
Working Volume: Approx. 5,490 Liters
Internal Diameter: 1,300 mm
Basket Capacity: 4 Process Baskets
Operating Pressure: 0 – 5 bar (relative)
Maximum Temperature: 158 °C
Construction: AISI 304 Stainless Steel
Electrical: 400V / 50 Hz
Year Built: 2021
Condition: Used

Description

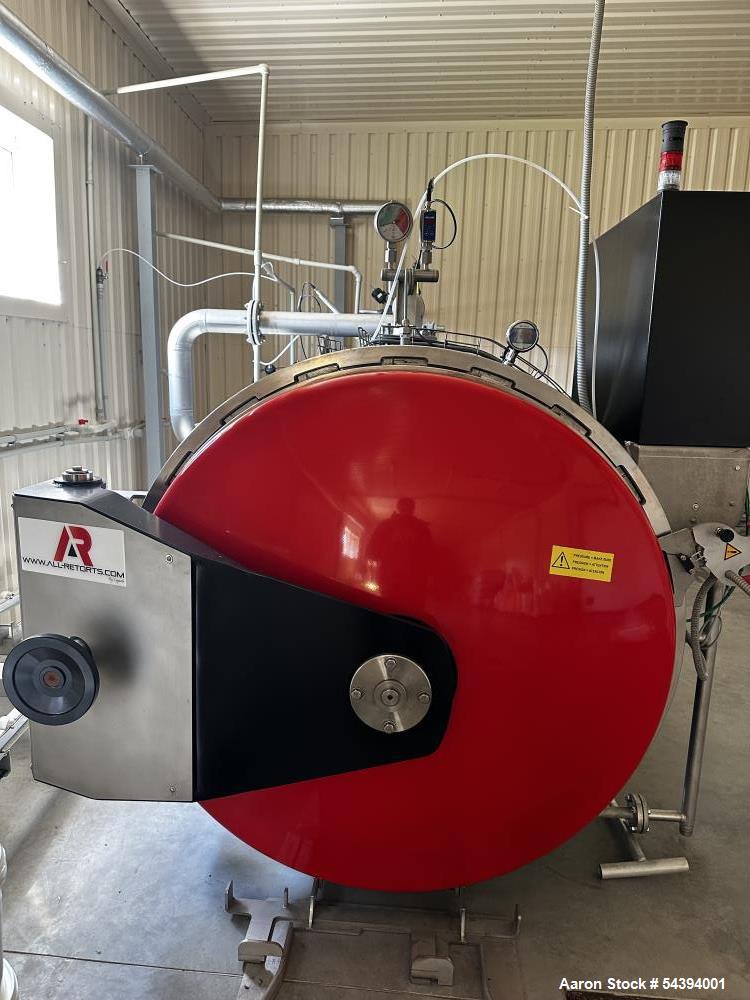

Used Lagarde Model 2B E static retort autoclave, manufactured in 2021, designed for industrial sterilization and thermal processing of packaged food and other products. This horizontal cylindrical retort vessel offers a 5,490 liter working capacity and is configured to process four baskets supported by two internal guide rails.

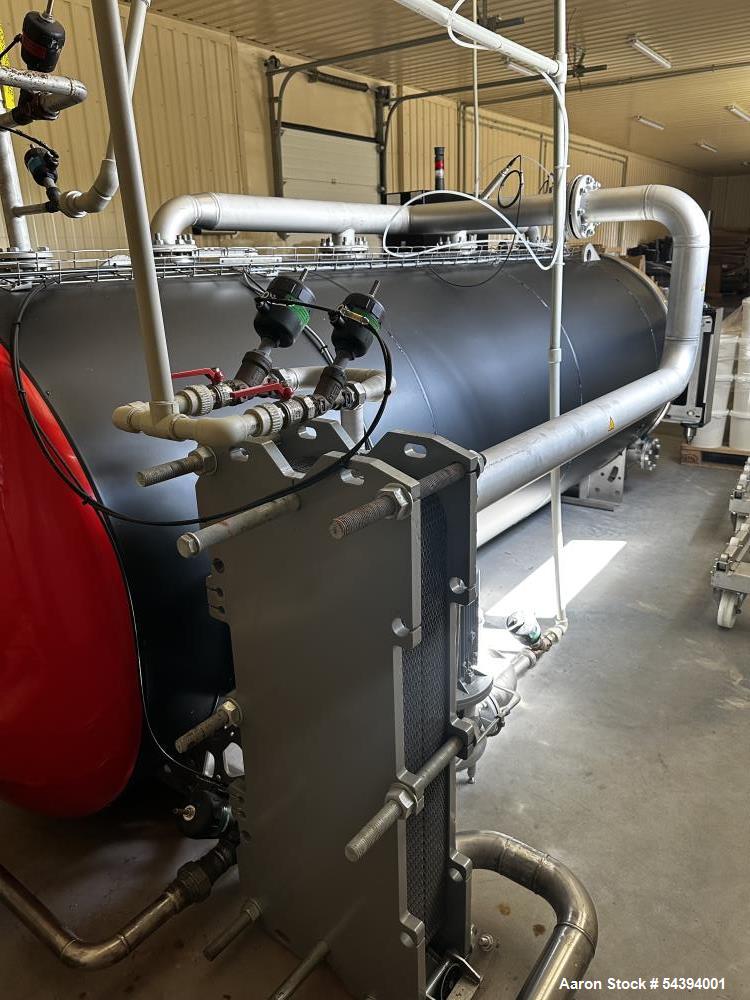

The system uses steam injection and distribution ramps to provide controlled heating throughout the chamber. A water suction system with filter plate and water distribution ramp equipped with spray nozzles positioned above the baskets allows effective cooling and process water circulation.

Process parameters including heating, cooling, pressure regulation, and draining are automatically controlled using a system of automatic valves, while pressure gauges and sensors mounted on the vessel provide monitoring and safety control.

The vessel body, internal components, rails, steam ramp, and external piping are constructed from AISI 304 stainless steel, ensuring durability and corrosion resistance for food processing environments.

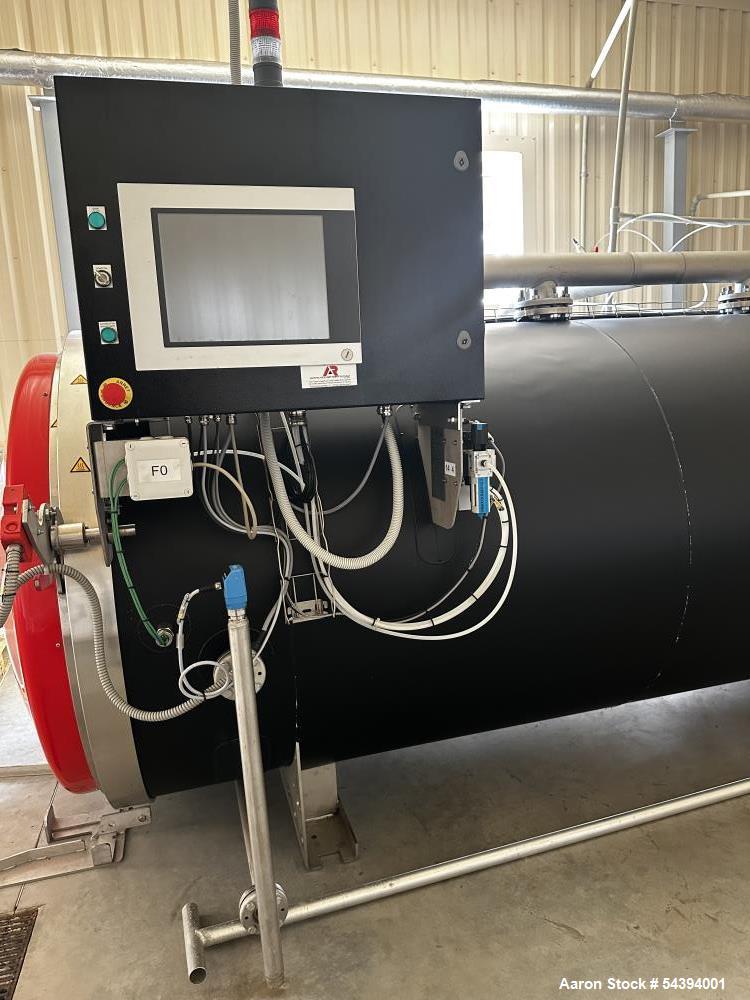

A painted steel control cabinet mounted on the right side of the vessel houses the electrical and automation systems, including a touchscreen HMI interface and emergency stop controls for operator safety and process monitoring.

This Lagarde retort autoclave operates within a pressure range of 0–5 bar and a maximum operating temperature of 158°C, making it suitable for pasteurization and sterilization of canned foods, pouches, trays, jars, and other packaged products.

Specifications

• Manufacturer: Lagarde

• Model: 2B E

• Equipment Type: Static retort autoclave

• Chamber Orientation: Horizontal cylindrical vessel

• Working Volume: Approx. 5,490 liters

• Internal Diameter: 1,300 mm

• Basket Capacity: 4 baskets

• Basket Support: Two internal guide rails

• Heating Method: Steam injection with distribution ramp

• Cooling System: Water spray distribution ramp with nozzles

• Water Circulation: Suction system with filter plate

• Process Controls: Automatic valve-controlled heating, cooling, pressure regulation, and draining

• Monitoring: Pressure gauges and sensors mounted on vessel

• Maximum Operating Temperature: 158 °C

• Service Pressure Range: 0 – 5 bar (relative)

• Construction Material: AISI 304 stainless steel

• Control Cabinet: Painted steel cabinet with touchscreen HMI and emergency stop

• Electrical Supply: 400V / 50 Hz

• Year Built: 2021

• Condition: Used

Applications

This retort autoclave is commonly used for:

• Food sterilization

• Thermal food processing

• Pasteurization of packaged foods

• Ready meal sterilization

• Canned food processing

• Pouch food sterilization

• Jar product pasteurization

• Pet food sterilization

• Pharmaceutical sterilization

• Industrial sterilization processes

What Might This Be Used For

• Sterilizing canned vegetables

• Processing ready-to-eat meals

• Pasteurizing sauces and condiments

• Retorting pet food products

• Sterilizing pouch-packaged foods

• Processing seafood products

• Sterilizing dairy-based packaged foods

• Heat treating packaged soups

• Sterilizing shelf-stable meal kits

• Pasteurizing jarred food products

Products This Machine Can Process

• Canned foods

• Retort pouches

• Glass jars

• Plastic trays

• Pet food containers

• Soup products

• Sauces and condiments

• Ready-to-eat meals

• Seafood products

• Vegetables and fruits

Manufacturer Information

Lagarde Autoclaves is a manufacturer of industrial retorts and sterilization systems used in food processing, pharmaceuticals, and research applications. Their retort autoclaves are designed to meet strict food safety and sterilization standards, providing reliable thermal processing for canned, jarred, tray-packed, and pouch-packaged products.
