Unused T&C Stainless 5,000 Liter 316L Sanitary Jacketed Reactor

Manufacturer Information
Manufacturer: T&C Stainless
Equipment Type: Jacketed ASME Sanitary Reactor
Working Capacity: 5,000 liters
Total Volume: Approximately 6,326.1 liters
Material of Construction: 316/316L stainless steel
Mixer Manufacturer: Metenova
Mixer Model: ZG9
Condition: Unused
Code Construction: ASME Section VIII, Division 1
Drawing: Available
Main Product Description

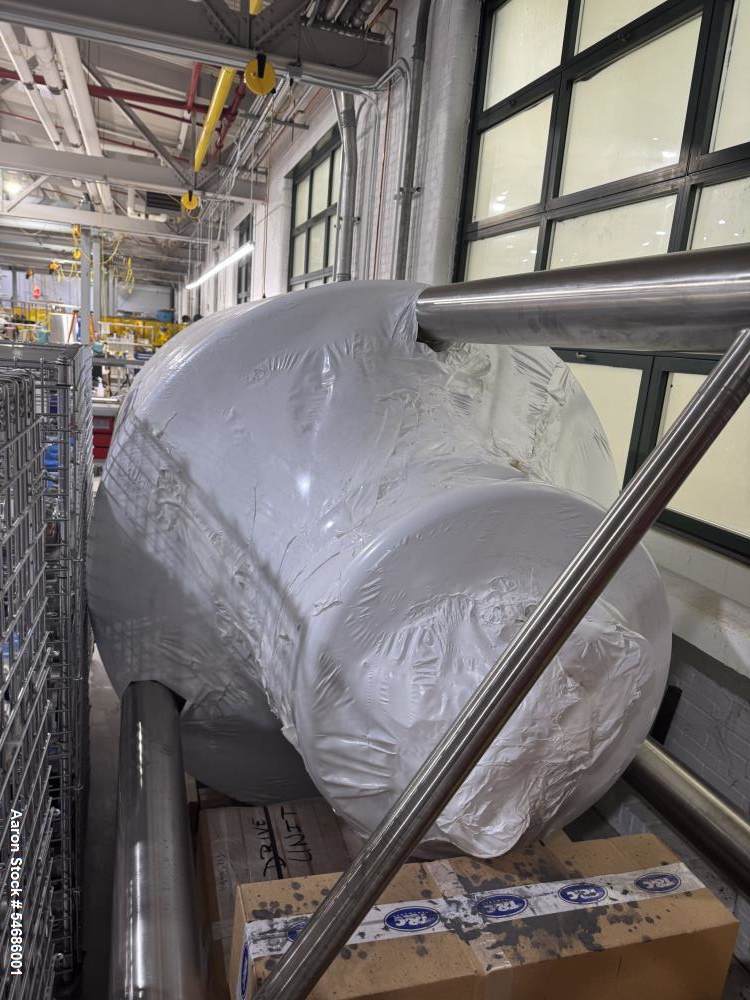

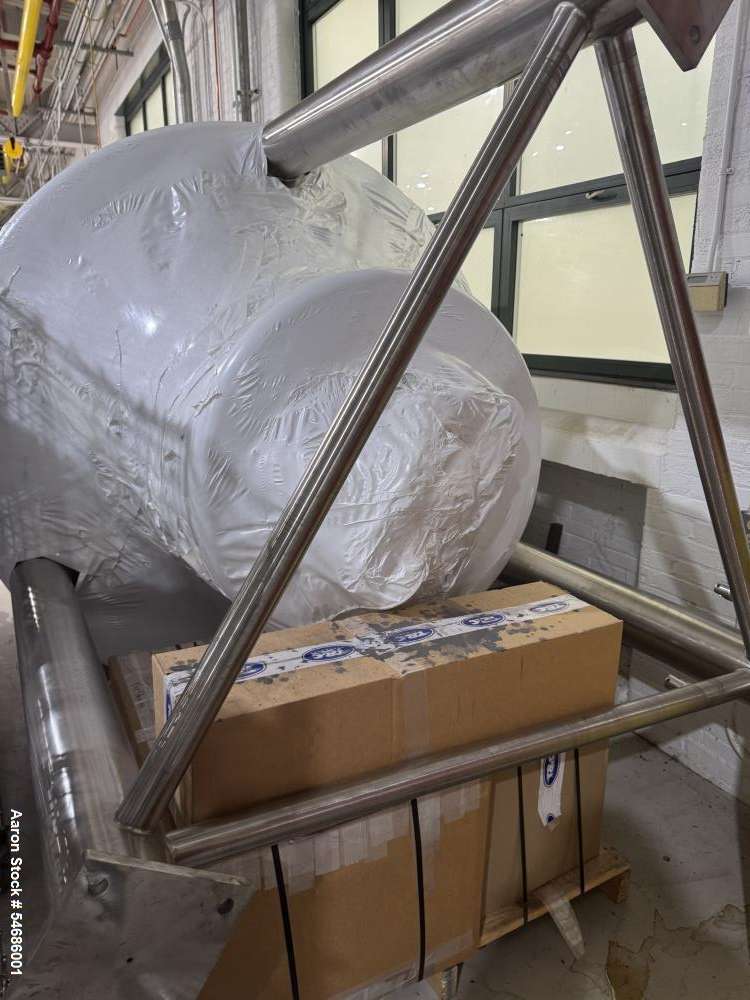

Unused T&C Stainless 5,000 liter working-capacity sanitary jacketed reactor constructed of 316/316L stainless steel and designed for sanitary mixing, blending, holding and temperature-controlled processing applications. The vessel has approximately 6,326.1 liters total volume with a 72-inch internal diameter x 72-inch straight side and 3/8-inch shell and head construction. The vessel is rated for 45 psi from -20°F to 350°F and 15 psi vacuum, while the 316/316L stainless steel dimple heat-transfer surface is rated for 150 psi from -20°F to 350°F. Product-contact surfaces are mechanically polished and electropolished to 15 Ra, with an approximately 35 Ra exterior finish. The insulated three-leg-supported vessel includes a bottom-mounted Metenova ZG9 magnetic mixer, ASEPCO flush-mounted pneumatic diaphragm outlet valve, three sanitary sprayballs, multiple instrumentation and sanitary process connections, and stainless steel sheathing. Constructed to ASME Section VIII, Division 1, this reactor may be suitable for compatible pharmaceutical, biopharmaceutical, food, beverage, cosmetic, personal-care and sanitary chemical processing applications.
Specifications
• Manufacturer: T&C Stainless
• Equipment Type: Jacketed Sanitary Reactor
• Condition: Unused
• Working Capacity: 5,000 liters
• Total Volume: Approximately 6,326.1 liters
• Material of Construction: 316/316L stainless steel
• Internal Diameter: 72"
• Straight Side: 72"
• Shell Thickness: 3/8"
• Head Thickness: 3/8"
• Vessel Pressure Rating: 45 psi
• Vessel Temperature Rating: -20°F to 350°F
• Vacuum Rating: 15 psi vacuum
• Heat-Transfer Surface Type: Dimple jacket
• Jacket Material: 316/316L stainless steel
• Jacket Pressure Rating: 150 psi
• Jacket Temperature Rating: -20°F to 350°F
• Jacket Inlet Connection: 1-1/2"
• Jacket Outlet Connection: 1-1/2"
• Product-Contact Finish: Mechanically polished and electropolished to 15 Ra
• Exterior Finish: Approximately 35 Ra
• Insulation: 2"
• Exterior Sheathing: Stainless steel
• Mixer Manufacturer: Metenova
• Mixer Model: ZG9
• Mixer Type: Bottom-mounted magnetic mixer
• Mixer RPM Sensor: Included
• Mixer Drive: Stainless steel IP66 IE3 drive
• Outlet Valve Manufacturer: ASEPCO
• Outlet Valve Model: TF40-100-2
• Outlet Valve Size: 4"
• Outlet Valve Type: Flush-mounted pneumatic diaphragm valve
• Diaphragm Material: USP Class VI EPDM
• Sprayballs: 3
• Sprayball Flow Rating: 38 GPM at 25 psi
• Vortex Breaker: Included
• Thermowell Connection: Included
• Sight/Light Connection: Included
• GWR Connection: Included
• Conductivity Connection: Included
• pH Connection: Included
• Sample Connection: Included
• Product Supply Connection: 4"
• Retentate Return Connection: 4"
• Additional Sanitary Process Connections: Multiple
• Vessel Support: Three-leg
• Code Construction: ASME Section VIII, Division 1
• Overall Height: Approximately 165-5/16"
• Empty Weight: Approximately 5,294 lb
• Drawing: Available
Applications
• Sanitary mixing
• Pharmaceutical processing
• Biopharmaceutical processing
• Buffer preparation
• Solution preparation
• Blending
• Product holding
• Temperature-controlled processing
• Food processing
• Beverage processing
• Cosmetic manufacturing
• Personal-care processing
• Sanitary chemical processing
• Hygienic liquid processing
• Compatible batch reactor applications
Suitable Products / Materials
• Pharmaceutical liquids
• Biopharmaceutical process solutions
• Buffers
• Media
• Sanitary chemical solutions
• Food liquids
• Beverage products
• Cosmetic products
• Personal-care formulations
• Compatible aqueous solutions
• Compatible liquid and low-viscosity sanitary products
• Products requiring hygienic mixing and temperature control
FAQs
• What is the working capacity of this T&C Stainless reactor?
The vessel has a 5,000 liter working capacity and approximately 6,326.1 liters of total volume.
• Is this reactor unused?
Yes. The vessel is listed as unused.
• What material is the vessel constructed from?
The vessel is constructed of 316/316L stainless steel with 3/8-inch shell and head thickness.
• What is the vessel pressure rating?
The vessel is rated for 45 psi from -20°F to 350°F and 15 psi vacuum.
• What is the jacket rating?
The 316/316L stainless steel dimple heat-transfer surface is rated for 150 psi from -20°F to 350°F.
• What is the product-contact surface finish?
Product-contact surfaces are mechanically polished and electropolished to 15 Ra.
• What type of mixer is installed?
The vessel includes a bottom-mounted Metenova ZG9 magnetic mixer with RPM sensor and stainless steel IP66 IE3 drive.
• What type of discharge valve is included?
The reactor includes a 4-inch ASEPCO TF40-100-2 flush-mounted pneumatic diaphragm outlet valve with a USP Class VI EPDM diaphragm.
• Does the vessel include a clean-in-place spray system?
The vessel includes three sprayballs, each listed at 38 GPM at 25 psi.
• What sanitary instrumentation connections are provided?
The vessel includes connections for GWR, conductivity, pH, sampling, thermowell and sight/light functions, along with multiple additional sanitary process connections.
• Is this an ASME vessel?
Yes. The vessel is constructed to ASME Section VIII, Division 1.
• What industries could use this sanitary reactor?
Possible applications include pharmaceutical, biopharmaceutical, food, beverage, cosmetic, personal-care and sanitary chemical processing involving mixing, blending, holding or temperature-controlled processing.
• Are drawings available?
Yes. A drawing is available for the vessel.
• Can Aaron Equipment help with shipping this 5,000 liter reactor?
Yes. Aaron Equipment can assist with coordinating freight and logistics for large sanitary process vessels. Shipping requirements can be reviewed based on the approximately 165-5/16-inch overall height, 5,294 lb empty weight, equipment location, destination and loading requirements.
• How can Aaron Equipment help determine whether this reactor is suitable for my process?
Aaron Equipment can provide available equipment information and drawings to help buyers evaluate the reactor based on capacity, metallurgy, surface finish, mixer configuration, pressure and temperature ratings, sanitary connections and process requirements. Final application compatibility should be confirmed for the specific product and operating conditions.
