Used Feldmeier 2,000-Gallon 316L Stainless Steel Jacketed Sanitary Reactor – 30 PSI/FV, 125 PSI Jacket

Manufacturer Information

Feldmeier Equipment

Feldmeier Equipment is a U.S. manufacturer of stainless steel tanks, reactors, pressure vessels, mixers, and sanitary processing equipment. Feldmeier vessels are widely used throughout pharmaceutical, biotechnology, food, beverage, dairy, cosmetic, personal care, and chemical processing industries.

This 2,000-gallon Feldmeier sanitary reactor combines 316L stainless steel construction, pressure and full-vacuum capability, a 125 PSI jacket, and Cleveland agitation for controlled sanitary processing applications.

Description

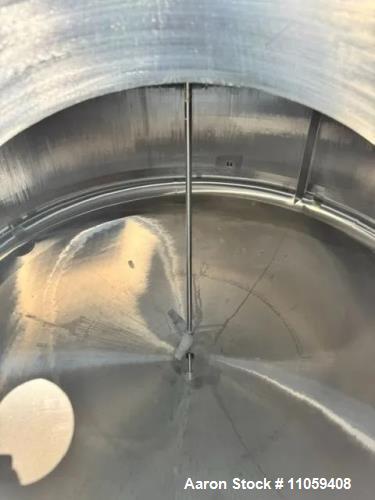

Available for sale is a used Feldmeier 2,000-gallon jacketed sanitary reactor constructed of 316L stainless steel in a vertical configuration.

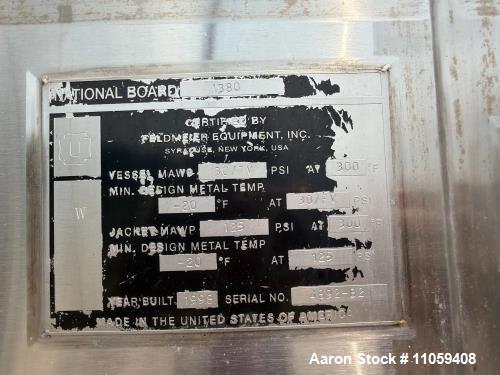

The internal vessel is rated for 30 PSI / full vacuum at 300°F, providing versatility for compatible processes requiring positive pressure, vacuum operation, or elevated temperatures. The external jacket is rated for 125 PSI at 300°F, allowing compatible heating or cooling media to provide indirect temperature control.

The vessel has a stated 5/16" wall thickness, with heavier 7/16" top and bottom heads.

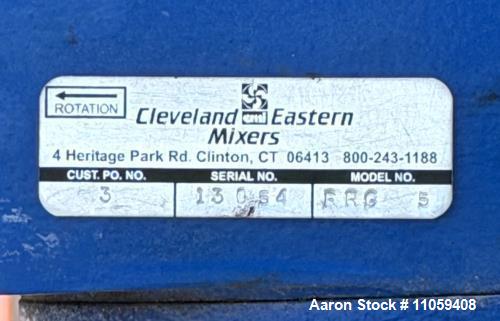

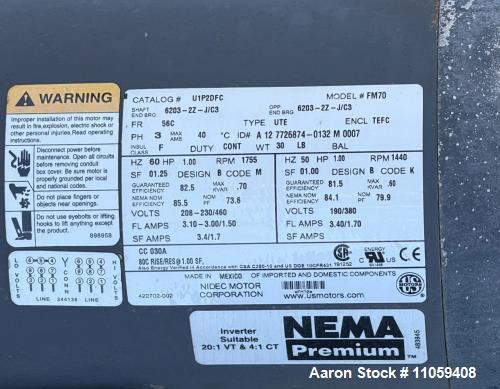

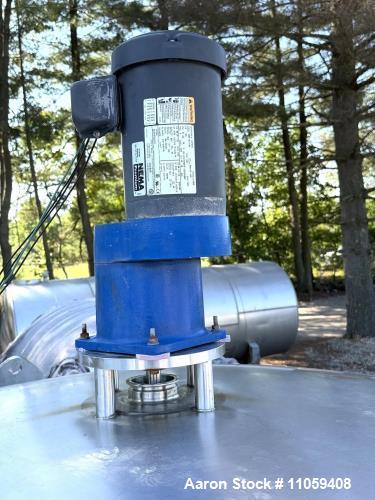

Agitation is provided by a top-mounted Cleveland Mixer driven by a 1 HP, 1,755 RPM motor, rated for 3-phase, 60 Hz, 208-230/460V electrical service.

The vertical reactor is supported on stainless steel legs, providing a sanitary and corrosion-resistant mounting configuration.

With its 2,000-gallon capacity, 316L stainless construction, full-vacuum capability, pressure rating, jacket, and integrated mixer, this Feldmeier reactor may be suitable for sanitary mixing, blending, heating, cooling, vacuum processing, formulation, and other controlled batch-processing applications.

Specifications

Typical Applications

• Sanitary batch processing
• Vacuum processing
• Pressure processing
• Heated product mixing
• Cooled product mixing
• Liquid blending
• Batch formulation
• Ingredient preparation
• Chemical reactions
• Product conditioning
• Pharmaceutical processing
• Food and sanitary processing

Products This Reactor Could Be Used For

• Pharmaceutical formulations
• Food ingredients
• Beverage formulations
• Cosmetic products
• Personal care products
• Nutraceutical liquids
• Chemical solutions
• Water-based formulations
• Liquid concentrates
• Sanitary process liquids
• Compatible vacuum-processed products
• Other materials compatible with 316L stainless steel

Actual product and process suitability depends on chemistry, viscosity, sanitary requirements, agitation needs, operating pressure and temperature, vacuum requirements, jacket utility, vessel condition, and applicable regulatory requirements.

Frequently Asked Questions

• What is the capacity of this Feldmeier reactor? The vessel has an approximate 2,000-gallon capacity and is configured as a vertical sanitary reactor.
• Can the reactor operate under vacuum? Yes. The internal vessel is rated for 30 PSI / full vacuum at 300°F, making it suitable for compatible pressure and vacuum processes within its design limits.
• Is the reactor jacketed for heating and cooling? Yes. The jacket is rated for 125 PSI at 300°F and can be used with an appropriate heating or cooling medium within the vessel's applicable design parameters.
• What mixer is included? The vessel includes a top-mounted Cleveland Mixer powered by a 1 HP, 1,755 RPM motor rated for 208-230/460V, 3-phase, 60 Hz electrical service.
• What stainless steel grade is used? The reactor is constructed of 316L stainless steel, commonly specified for sanitary applications and processes requiring enhanced corrosion resistance.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, and logistics planning for sanitary reactors, pressure vessels, tanks, and related processing equipment.
