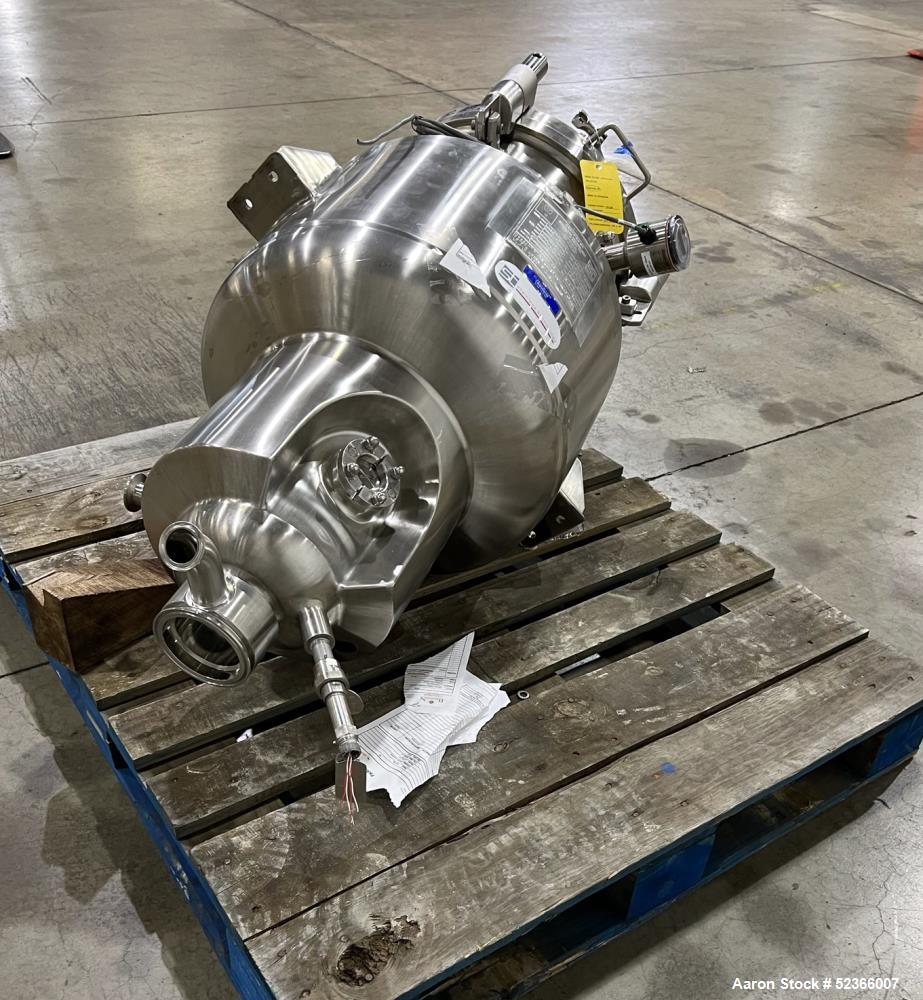

Used Precision Stainless 60 Liter Reactor – 316L SS, Vertical, Jacketed

🏭 Manufacturer & Design Info

• Manufacturer: Precision Stainless

• Design Type: Vertical, Jacketed Reactor

• Capacity: 60 Liters (Approx. 15.85 Gallons)

• Material of Construction: 316L Stainless Steel

• Orientation: Vertical, side-lug mounted

• Condition: Used (Agitator motor missing)

Description

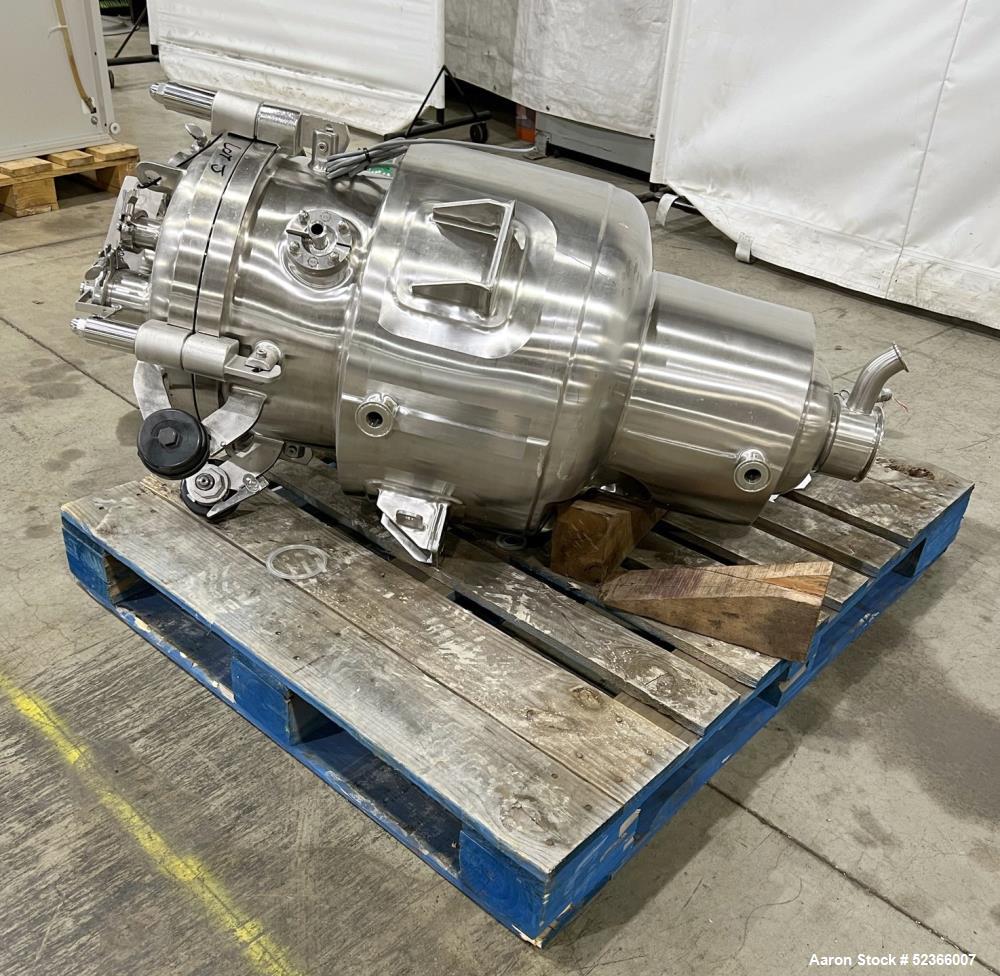

This used 60-liter reactor is engineered for small-scale processing and laboratory applications. The vertical design features a dished top and bottom for optimal mixing and heat transfer, with an upper diameter of approximately 16" and a lower diameter of about 8", along with an 18" straight side. It is internally rated at 45 psi for temperatures ranging from -20°F to 356°F, while its stainless steel jacket is rated at 90 psi under the same conditions. The reactor includes a clamp-down top cover with multiple access openings—four 3" openings and four 1-1/2" openings—for versatile connectivity. Additional discharge options are provided by a 2" center bottom outlet and a 1-1/2" side bottom outlet. A spray ball is included for cleaning or process applications, and there is a provision for a bottom agitator (motor missing). The unit is securely side lug mounted for stability.

Specifications

• Capacity: 60 Liters
• Material: 316L Stainless Steel
• Design: Vertical reactor with dished top and bottom
• Dimensions:
  • Upper Diameter: ~16"
  • Lower Diameter: ~8"
  • Straight Side: 18"
• Pressure Ratings:
  • Internal: 45 psi at -20°F to 356°F
  • Jacket: 90 psi at -20°F to 356°F

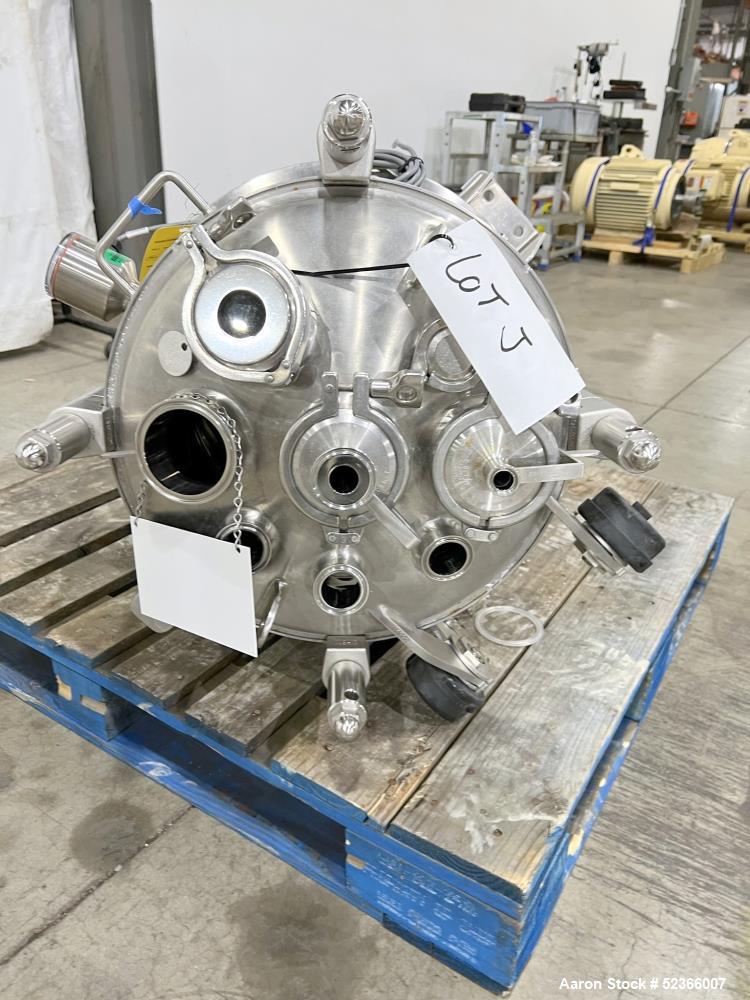

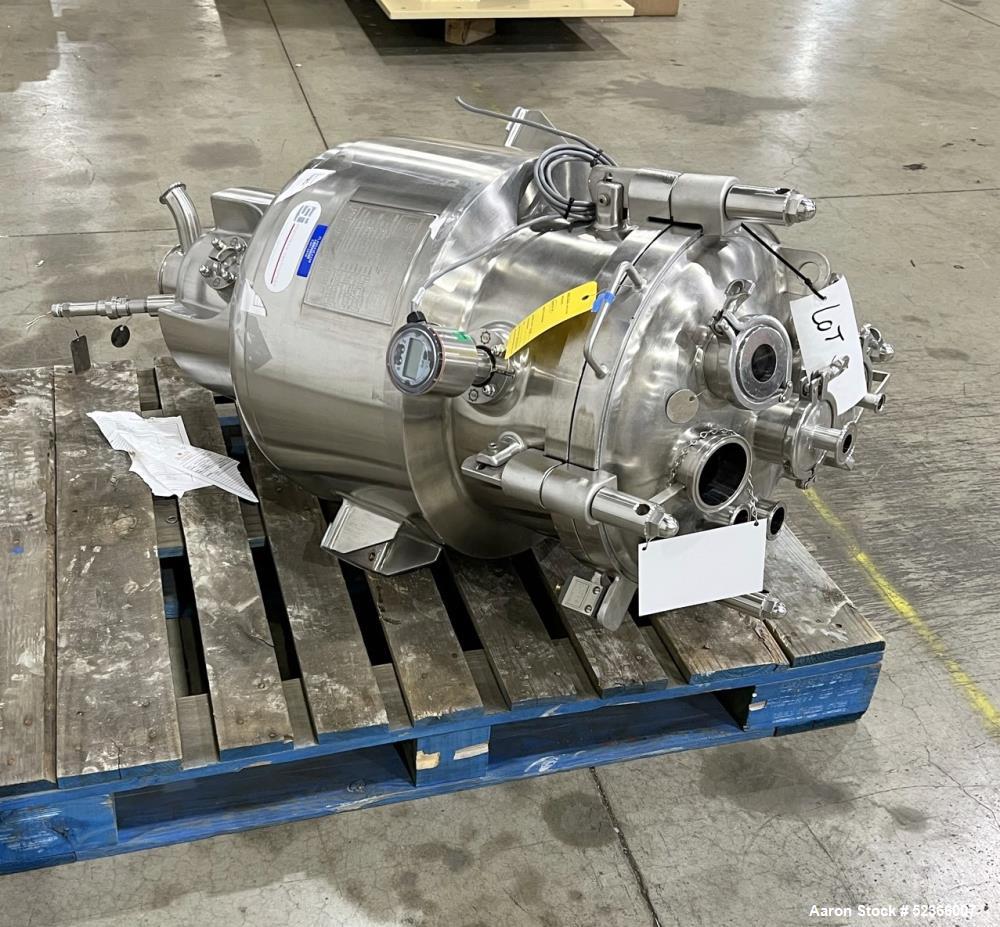

• Top Cover: Clamp-down design with:
  • (4) 3" openings
  • (4) 1-1/2" openings
• Outlets:

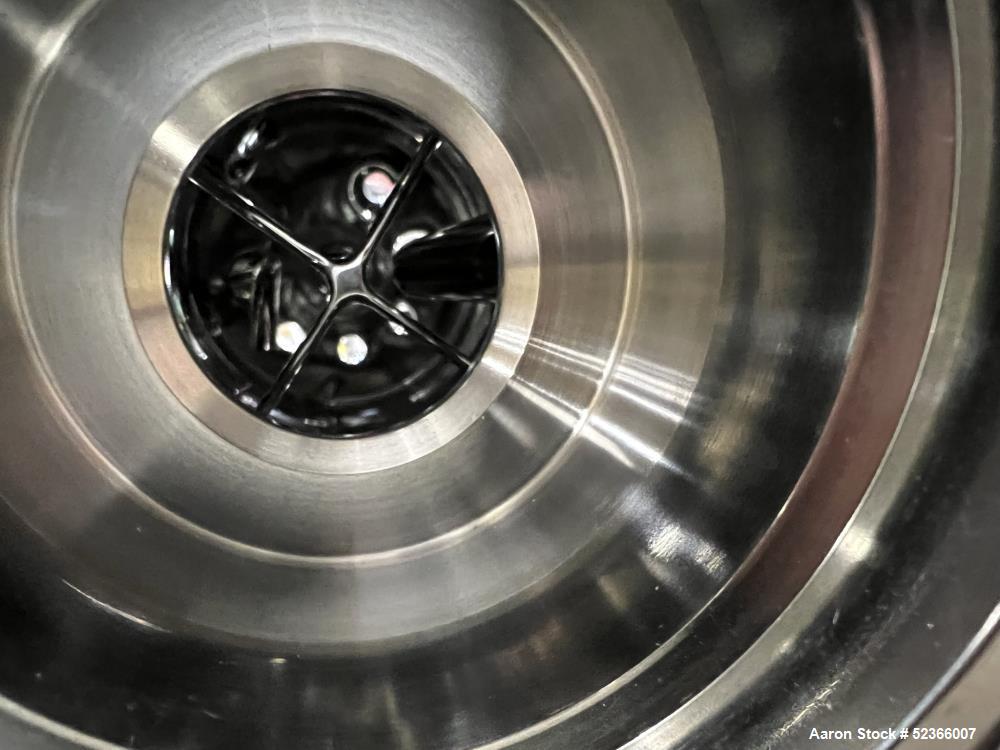

  • 2" center bottom outlet
  • 1-1/2" side bottom outlet
• Additional Features:

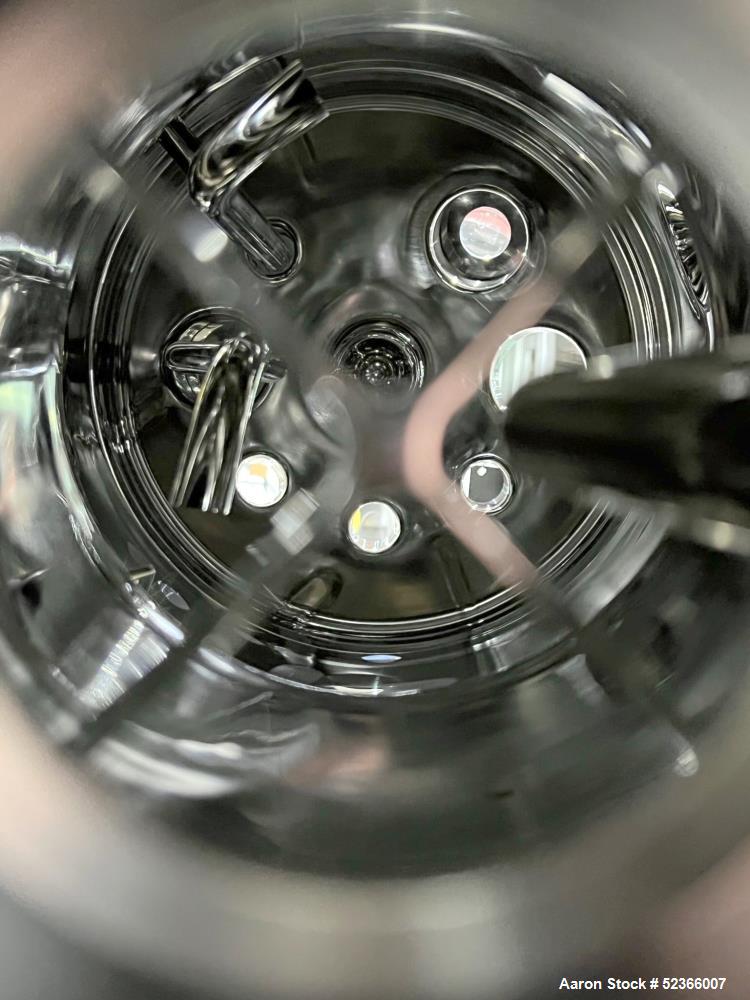

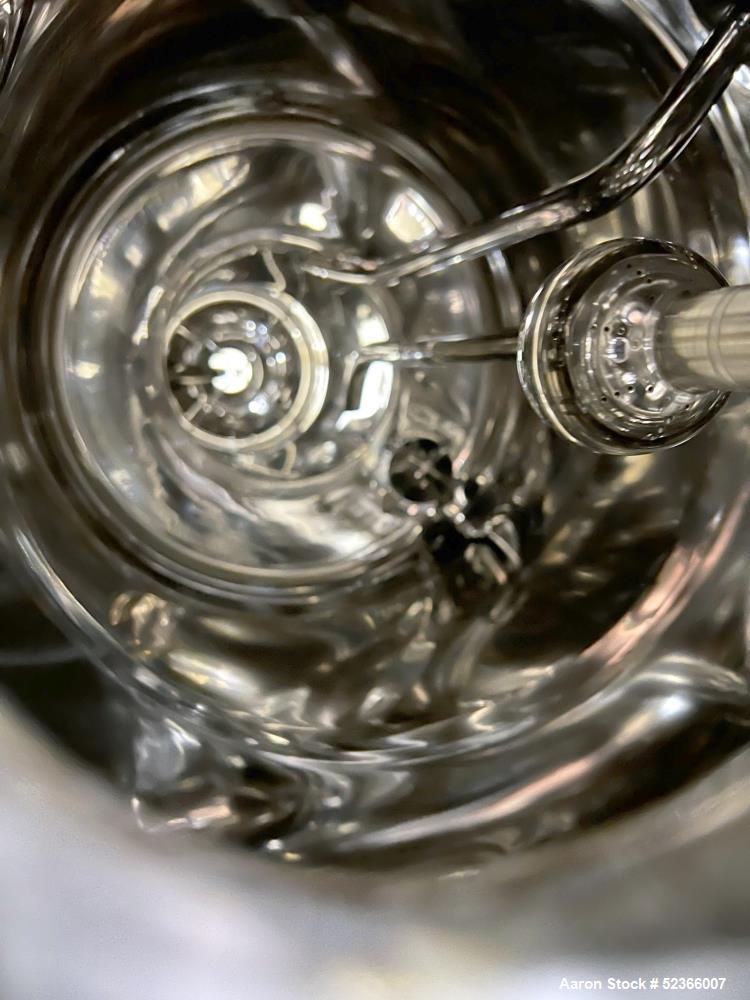

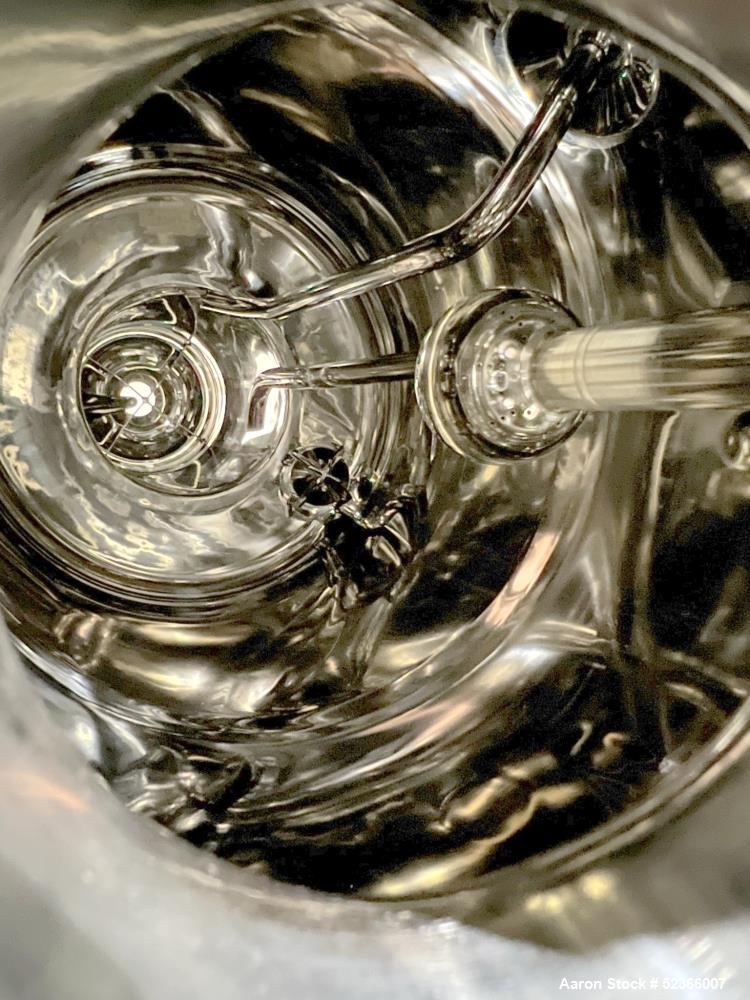

  • Includes spray ball
  • Provision for bottom agitator (motor missing)
  • Side lug mounted

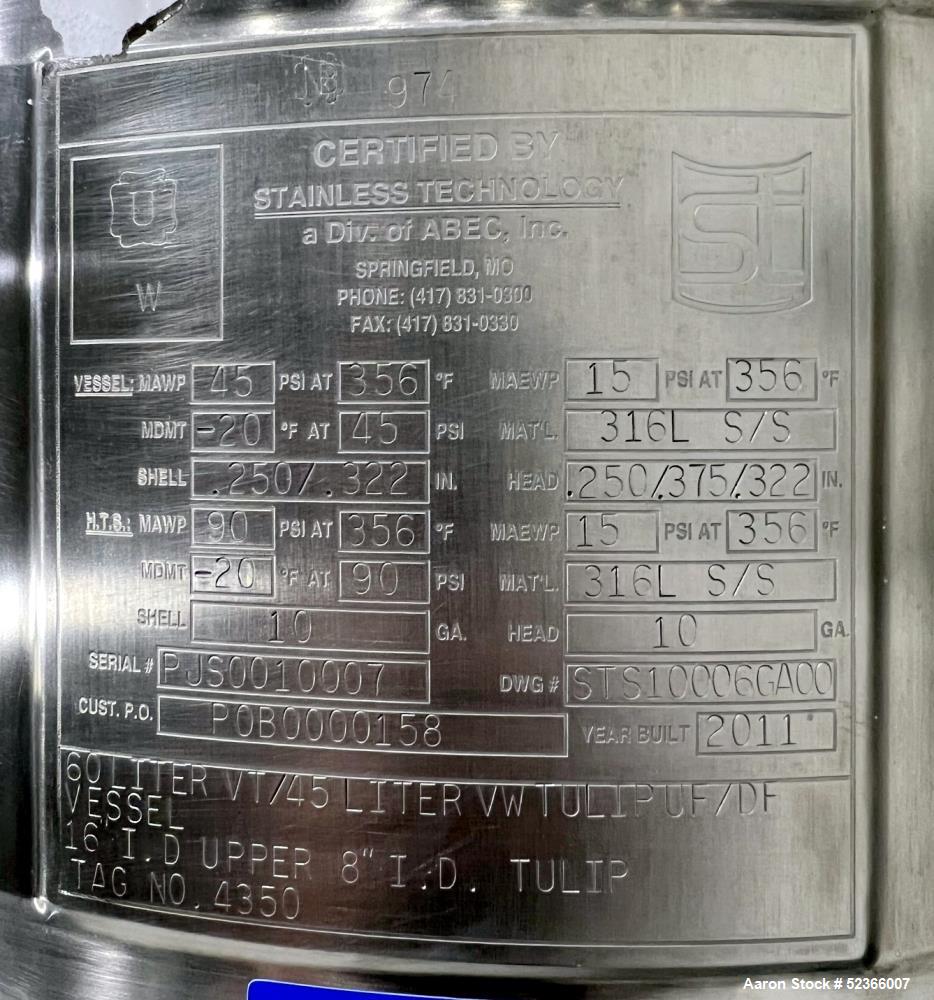

• Serial Number: PJS0010007
• National Board Number: 974
• Year Built: 2011

Applications

This reactor is ideal for:

• Laboratory-scale chemical reactions
• Pilot plant operations
• Bioprocessing and fermentation studies
• Pharmaceutical and fine chemical production
• Research and development in various industries

What Products Would This Be Used For

• Small-scale chemical synthesis
• Biopharmaceutical intermediates
• Specialty chemicals
• Fermentation and cell culture processes
• Laboratory research applications

🧪 Applications

• Pharmaceutical formulation

• Biotech culture or media prep

• Nutraceuticals blending

• Specialty chemical synthesis

• Pilot-scale R&D processing

• Cosmetic and personal care batch mixing

• Food and beverage ingredient holding

• Heating and cooling jacketed reactions

• Batch distillation setup

• CIP system integration with spray ball

🎯 Products Typically Processed

• Active pharmaceutical ingredients (APIs)

• Liquid herbal extracts

• Nutritional blends

• Microbial culture media

• Emulsions and suspensions

• Essential oil dilutions

• Cleaning chemical concentrates

• Laboratory or pilot-scale formulas

• Syrups and liquid supplements

• Bioreactor media
