Used Precision Stainless 30L Reactor – 316L Stainless Steel, Bottom Agitator, Jacketed

Manufacturer Information:

• Brand: Precision Stainless
• Type: Reactor
• Capacity: 30 Liters (7.92 Gallons)
• Material: 316L Stainless Steel (Internal), 304L Stainless Steel (Jacket)
• Serial #: 981172-15

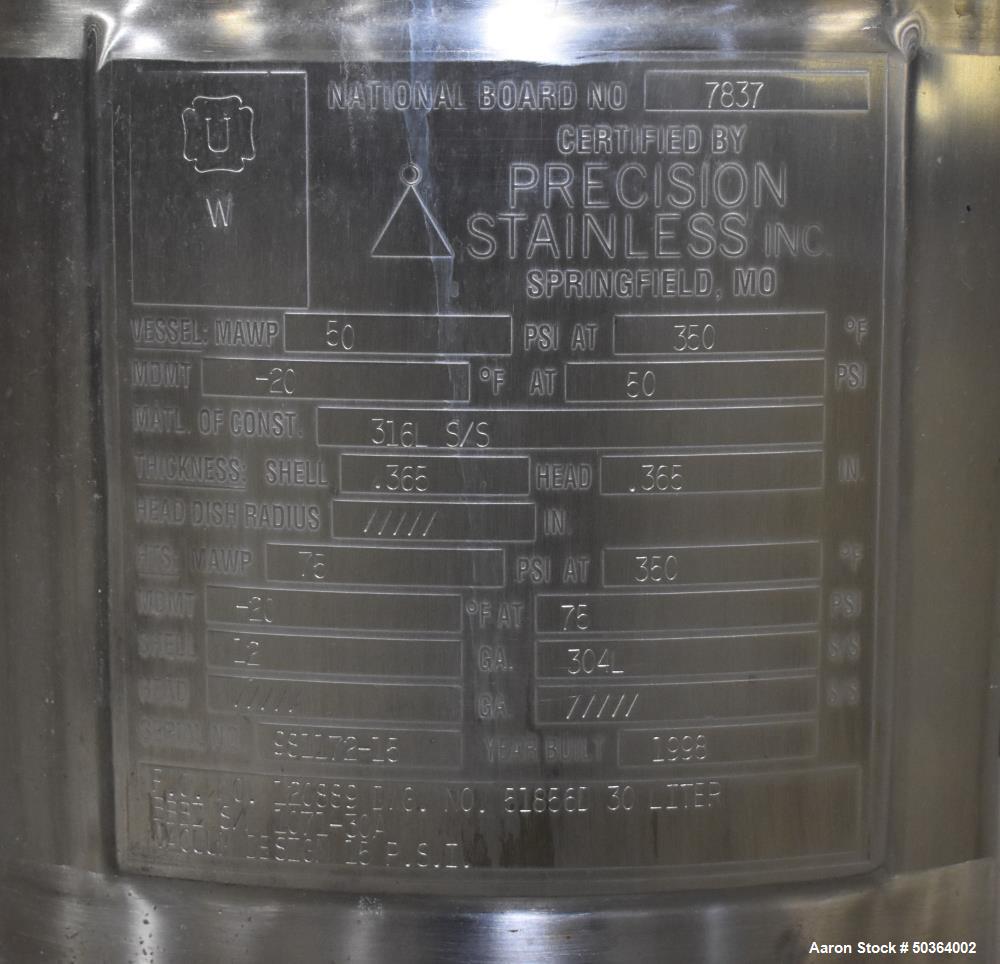

• National Board #: 7837

Description:

This used Precision Stainless Reactor is a high-quality, 30-liter (7.92-gallon) jacketed reactor, designed for chemical, pharmaceutical, and industrial processing applications.

Constructed from 316L stainless steel for the internal vessel and 304L stainless steel for the jacket, this unit provides excellent corrosion resistance and durability.

With an approximate 10-3/4” diameter x 22-1/4” straight side, this reactor features a dished top and bottom, ensuring optimal mixing and heat transfer efficiency.

The internal vessel is rated for 50 PSI at -20 to 350°F, while the jacket is rated for 75 PSI at -20 to 350°F, making it suitable for a wide range of temperature-controlled processing applications.

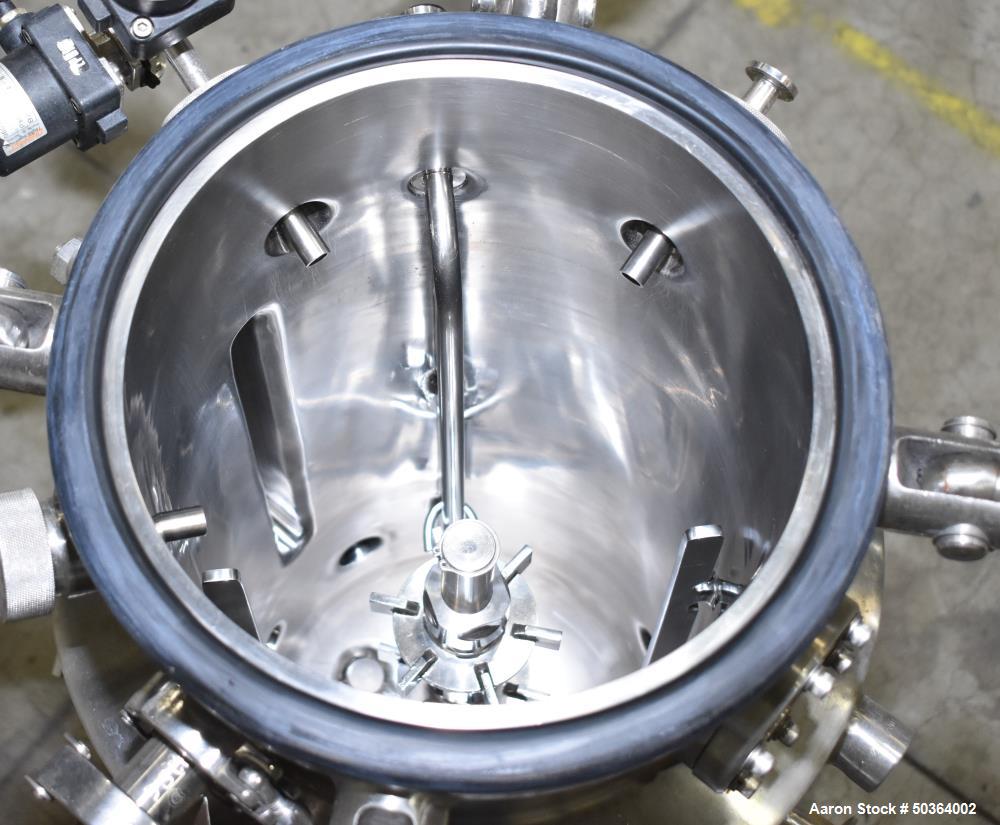

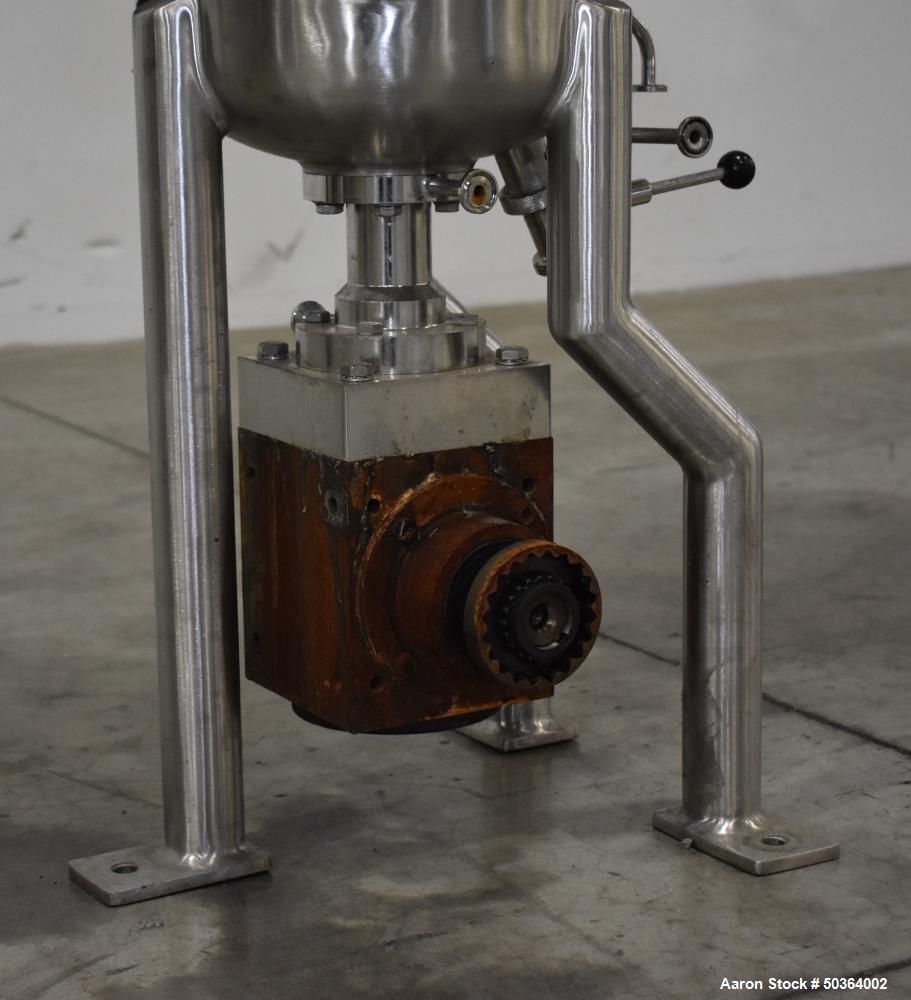

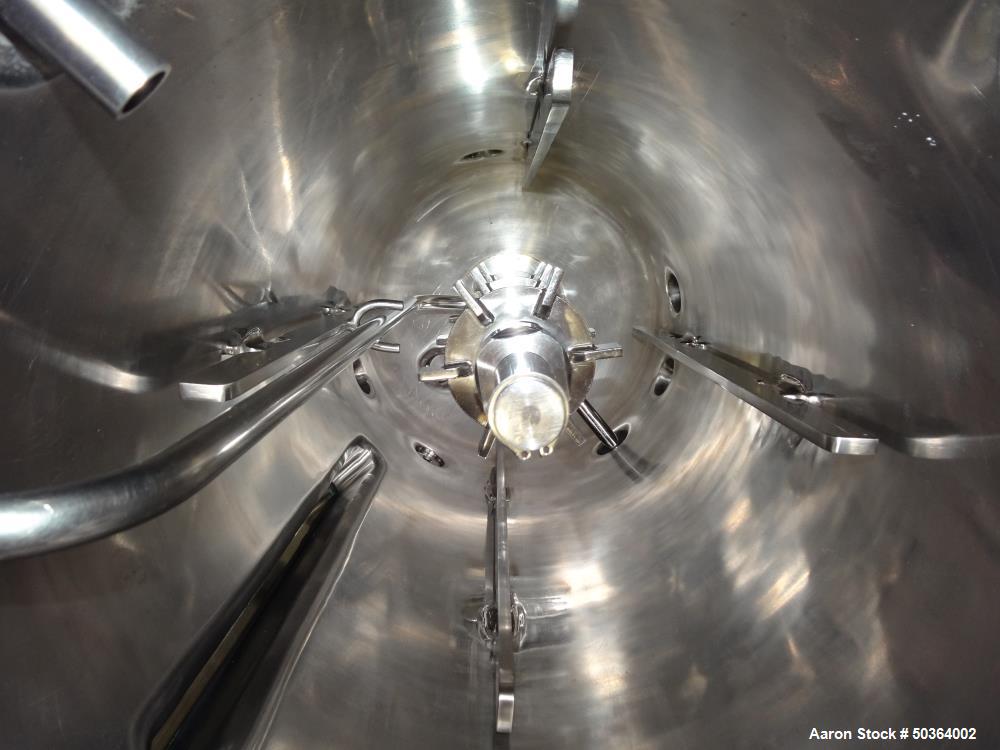

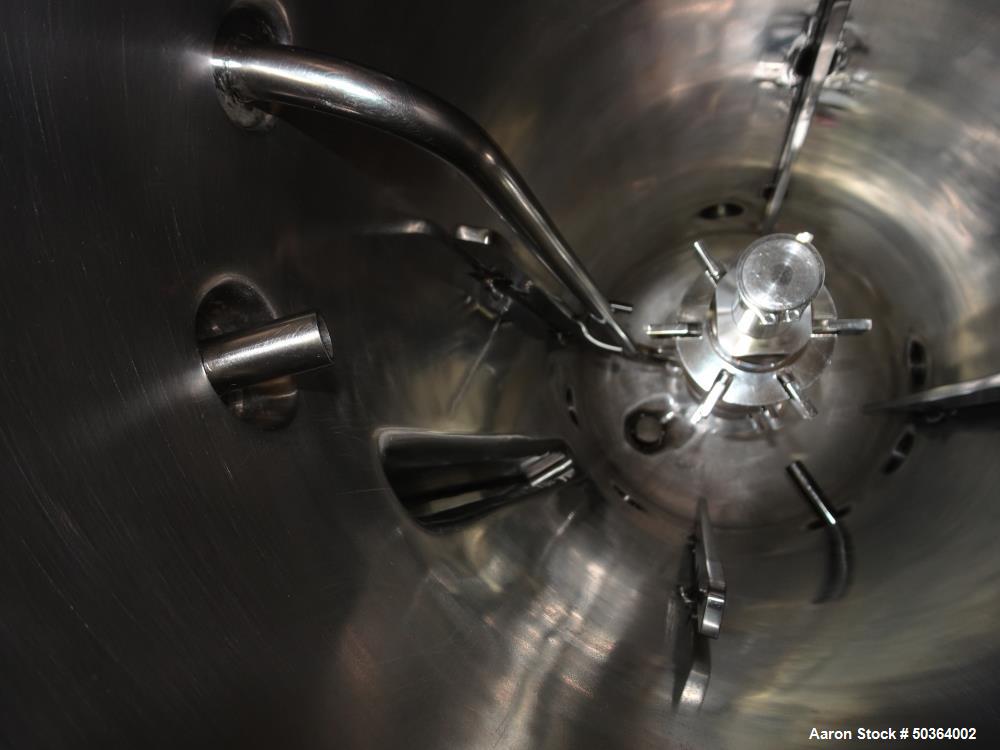

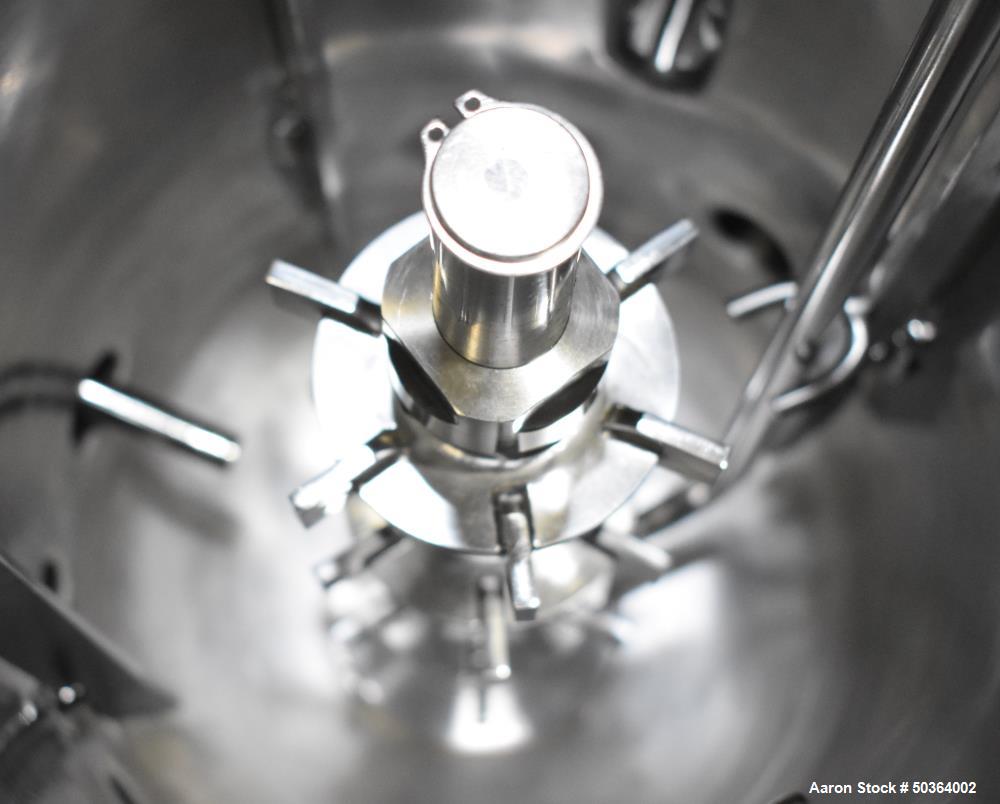

Equipped with a bottom-entering agitator with three-tier (six) blade impellers, this unit requires a 1 HP motor (not included) for efficient mixing and agitation.

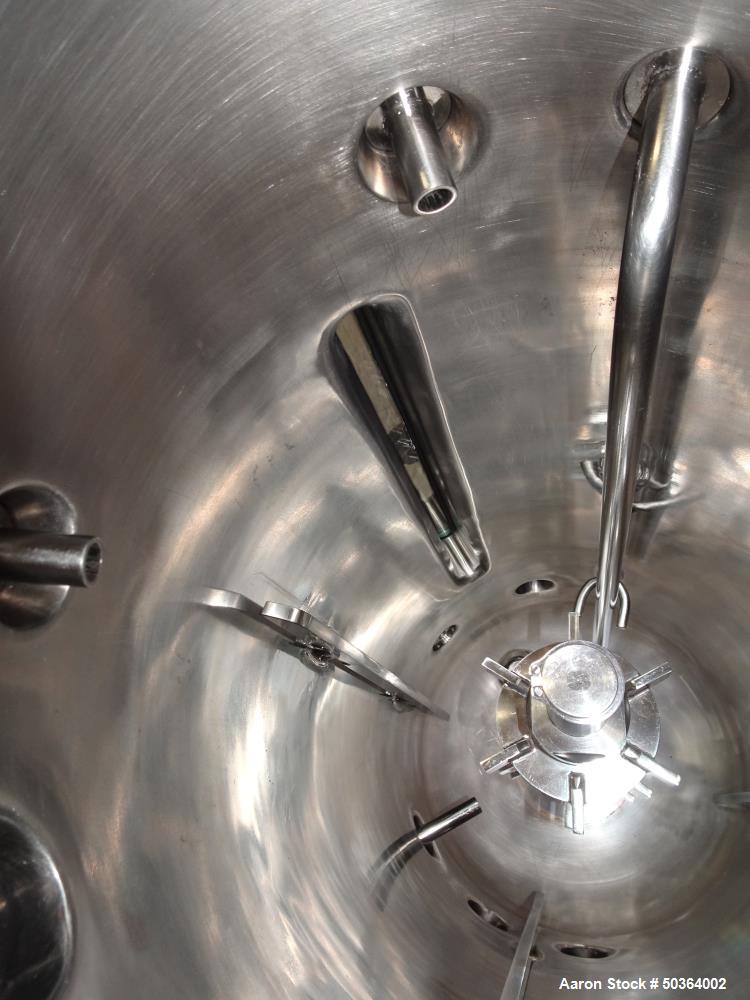

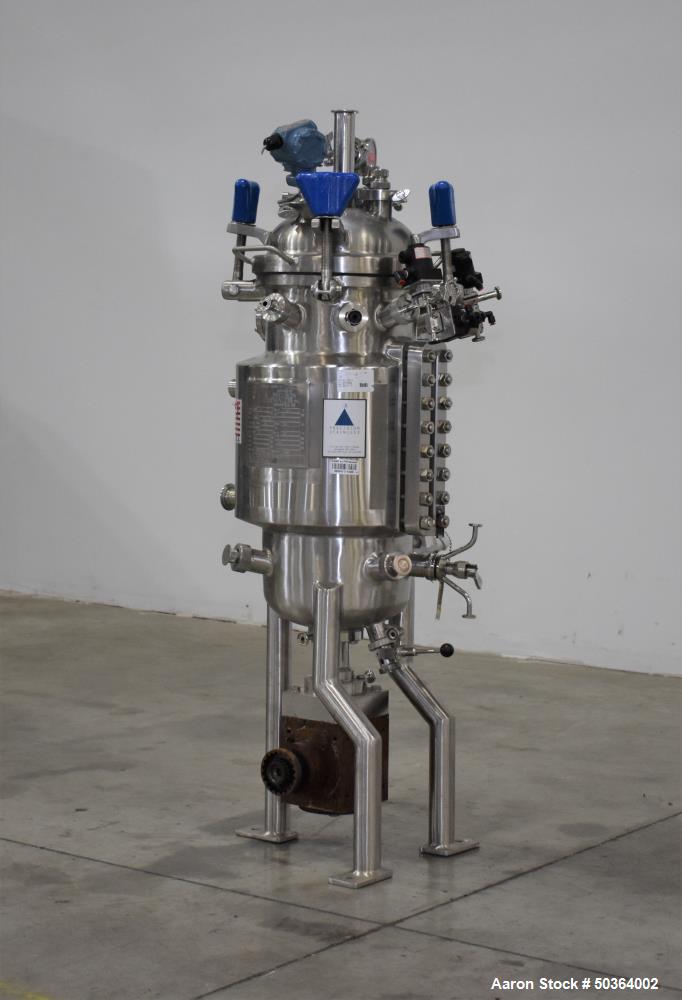

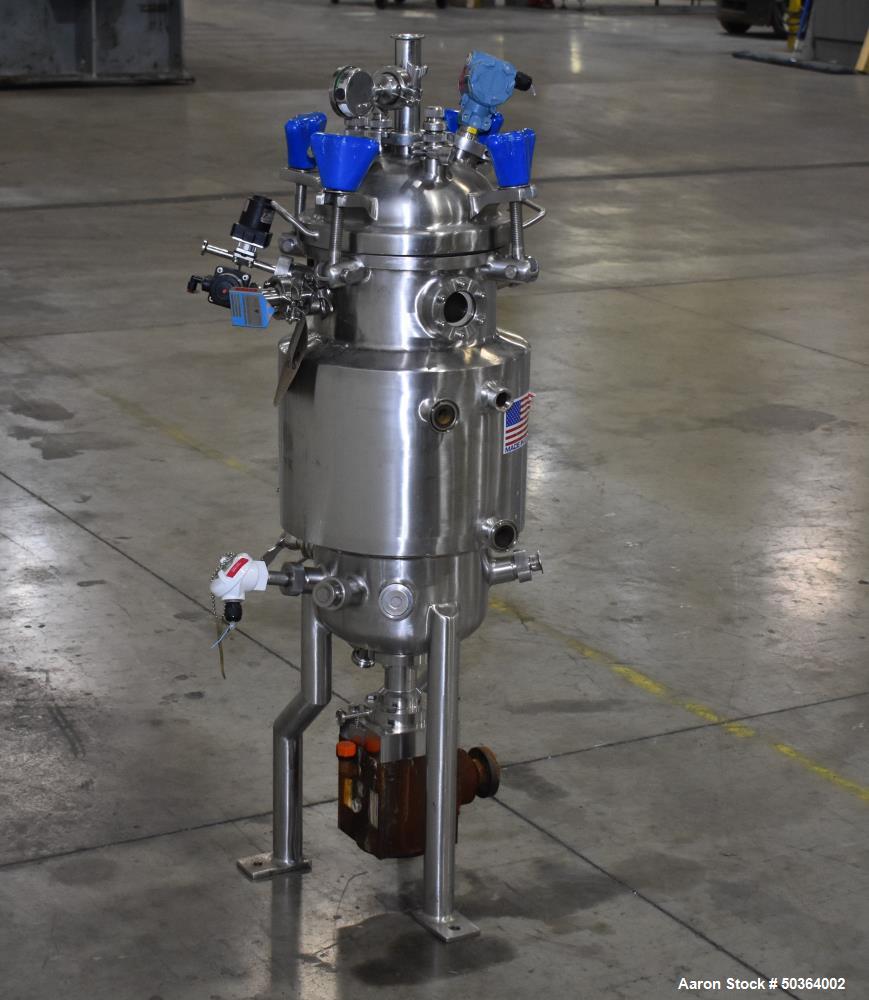

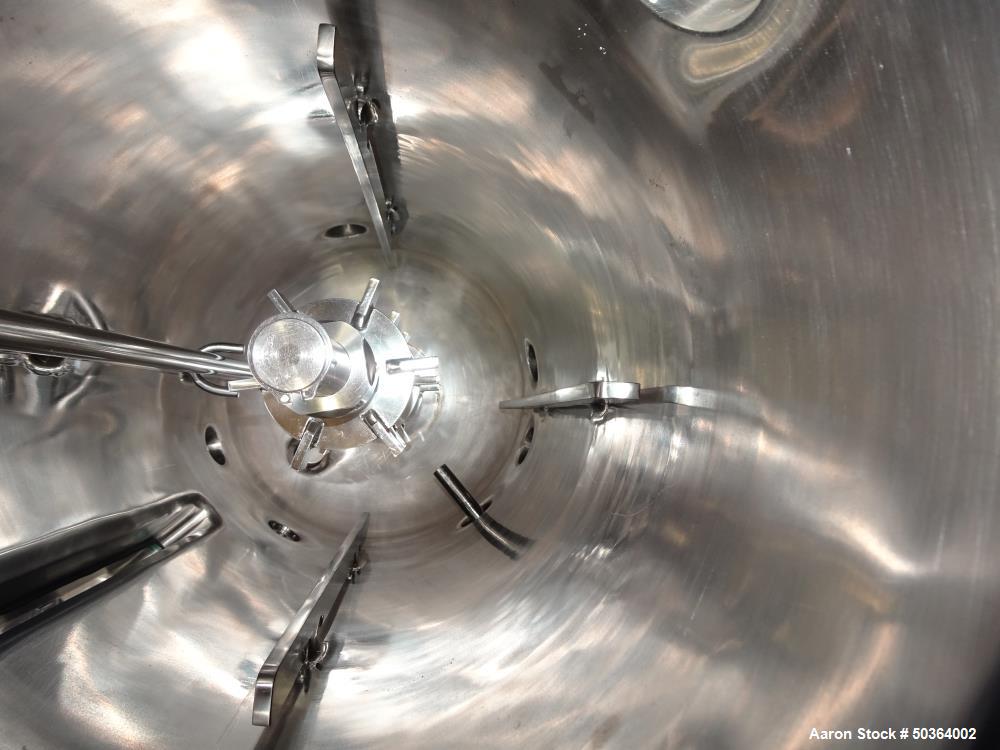

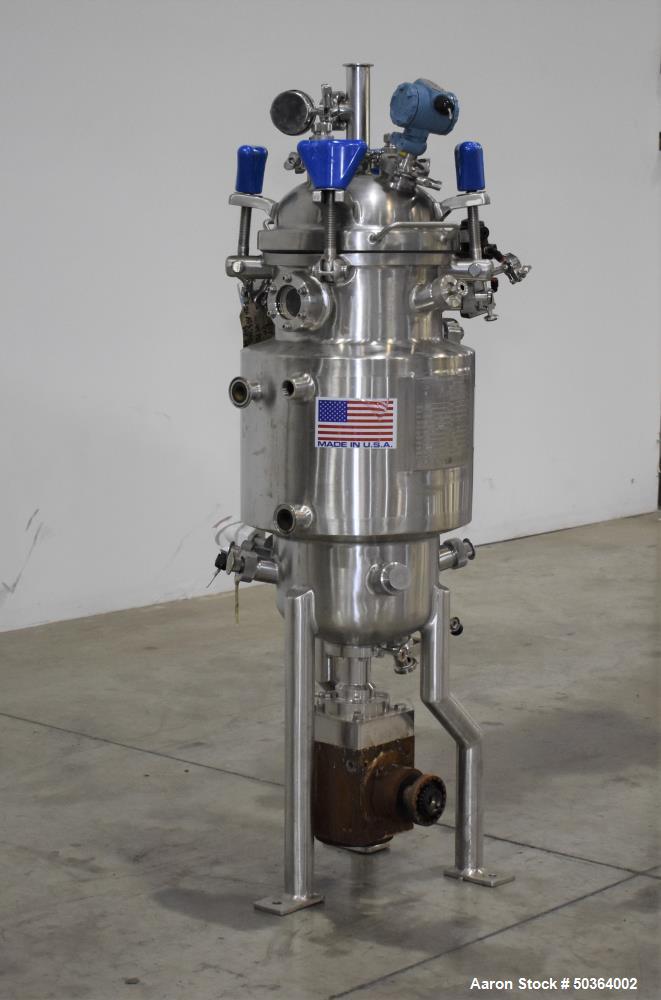

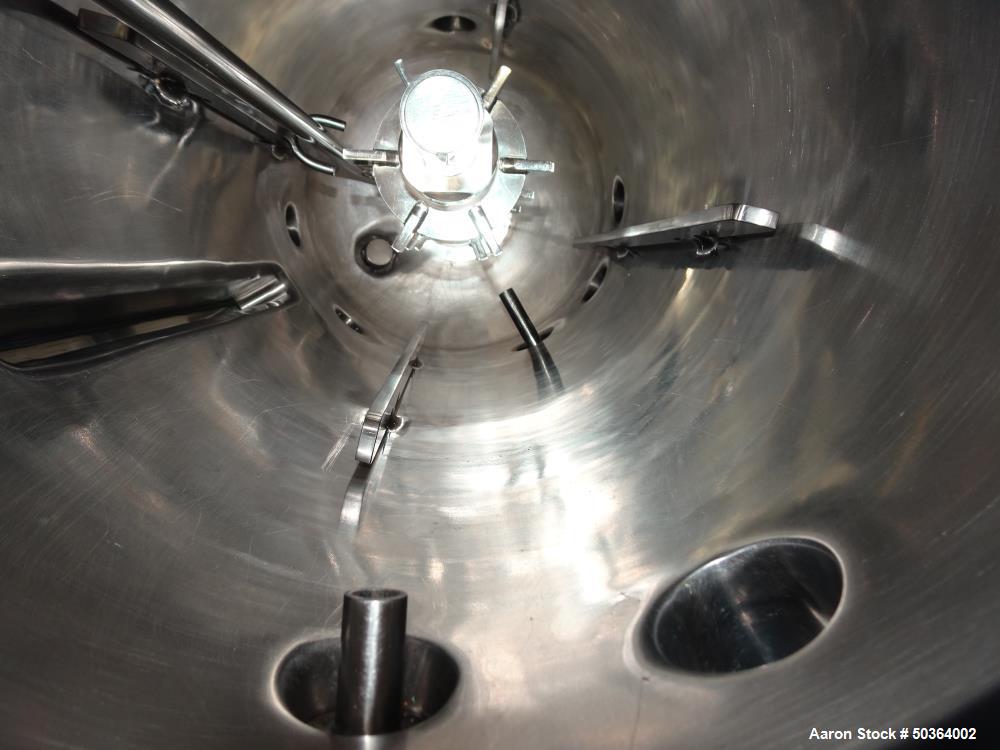

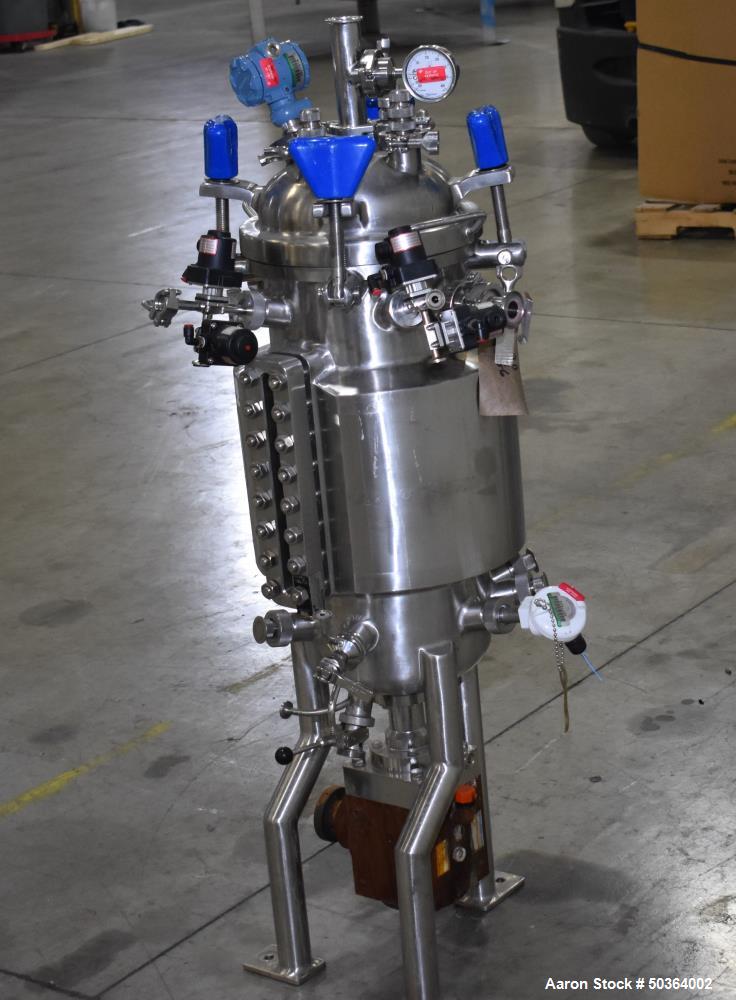

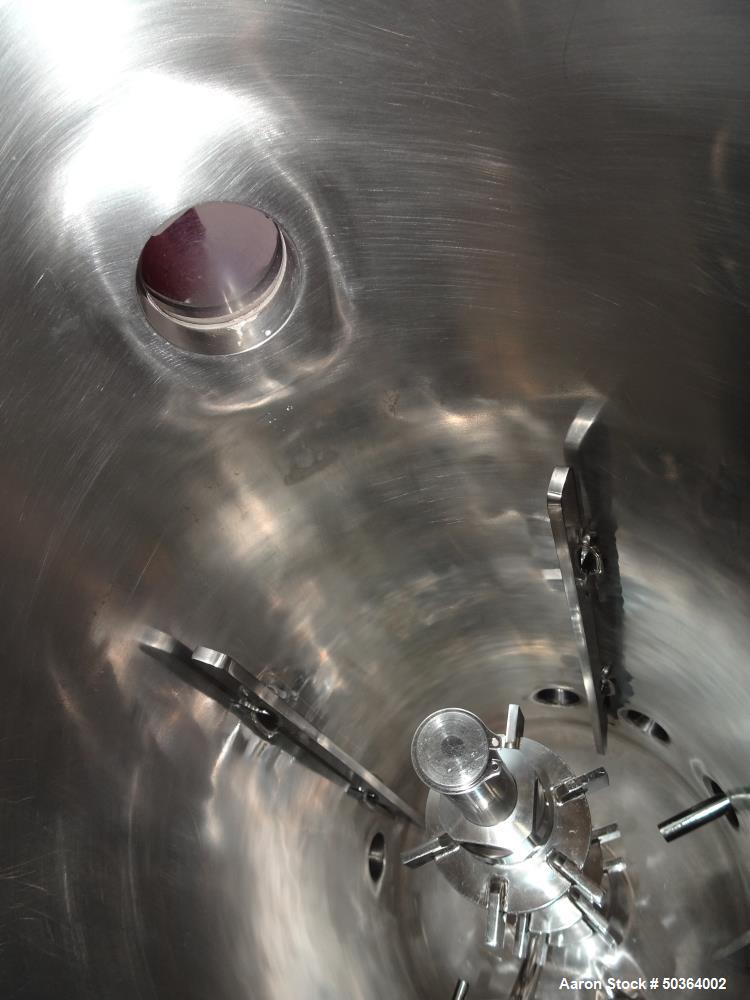

This reactor also features four sidewall baffles for enhanced mixing performance and multiple top and side openings for process integration. Mounted on a stainless steel frame with casters, it is easily portable and ideal for lab, pilot, and small-scale production.

Key Features:

• 316L Stainless Steel Reactor for Industrial & Pharmaceutical Processing
• 30L (7.92-Gallon) Capacity for Small-Scale & Lab Applications
• Dished Top & Bottom for Optimized Mixing & Heat Transfer
• Bottom-Entering Agitator with Three-Tier (Six) Blade Impellers
• Requires a 1 HP Motor for Mixing Operations
• 50 PSI Internal Rating, 75 PSI Jacket Rating (-20 to 350°F)
• Sidewall Baffles for Improved Mixing Efficiency
• Multiple Process Openings for Custom Integration
• Mounted on a Stainless Steel Frame with Casters for Mobility
• National Board #: 7837, Serial #: 981172-15

Specifications:

• Capacity: 30 Liters (7.92 Gallons)
• Material: 316L Stainless Steel (Internal), 304L Stainless Steel (Jacket)
• Internal Dimensions: 10-3/4" Diameter x 22-1/4" Straight Side
• Top & Bottom Design: Dished
• Internal Pressure Rating: 50 PSI (-20 to 350°F)
• Jacket Pressure Rating: 75 PSI (-20 to 350°F)
• Agitator: Bottom-Entering, Three-Tier (Six) Blade Impellers
• Motor Requirement: 1 HP (Not Included)
• Openings:

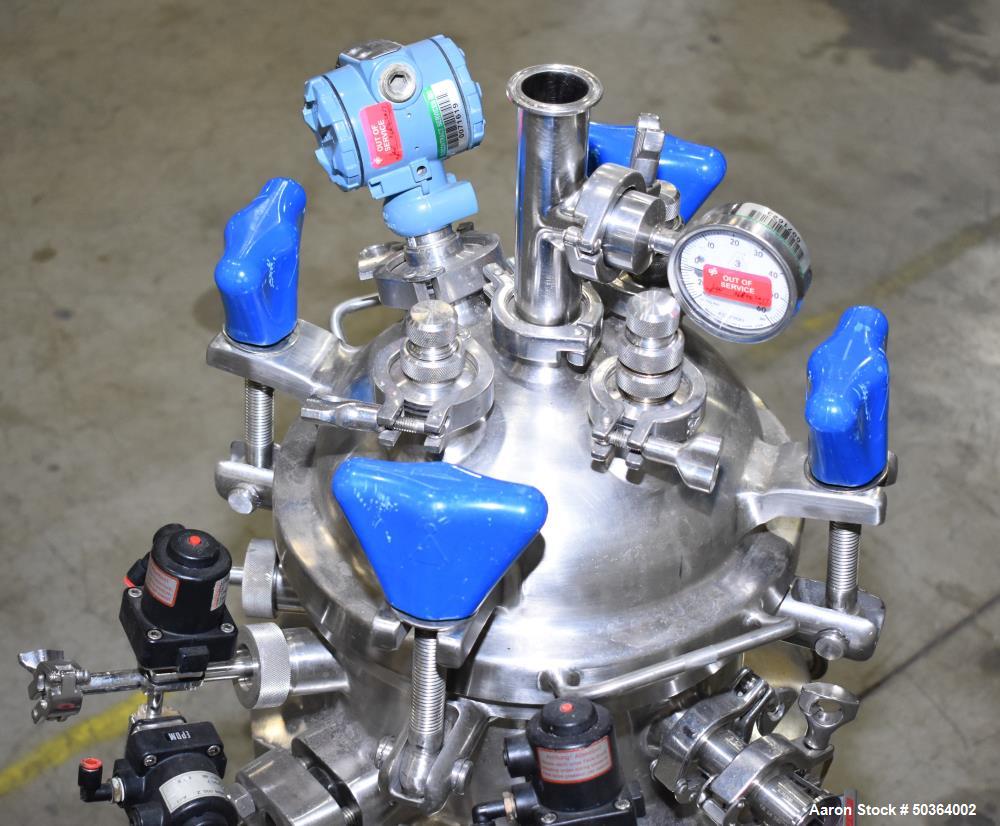

  • Top Head: (1) 2”, (4) 1-1/2” Tri-Clamp Ports
  • Side: (10) 1-5/8” Threaded Ports
  • Side Bottom Outlet: 1-5/8” Diameter
• Baffles: (4) Sidewall Baffles for Enhanced Mixing
• Mounting: Stainless Steel Frame with Casters
• National Board #: 7837
• Serial #: 981172-15

Applications:

• Pharmaceutical & Biotechnology Processing – Ideal for small-batch formulation and pilot-scale production
• Chemical Processing – Suitable for reactions, mixing, and heat-sensitive applications
• Food & Beverage Production – Used for controlled mixing of ingredients and emulsions
• Nutraceuticals & Supplements – For processing powders, liquids, and active ingredients
• Cosmetic & Personal Care – Blending and emulsification of skincare, creams, and lotions

What Products Would This Be Used For?

• Small-scale chemical reactions and blending
• Pharmaceutical formulation and batch processing
• Food and beverage ingredient mixing
• Cosmetic and personal care product manufacturing
• Specialty chemical processing
