Used Pfaudler 20-Gallon Reactor – 316 Stainless Steel, Vertical | Pressure-Rated Industrial Reactor with Anchor Agitator

Manufacturer:

Pfaudler

Description:

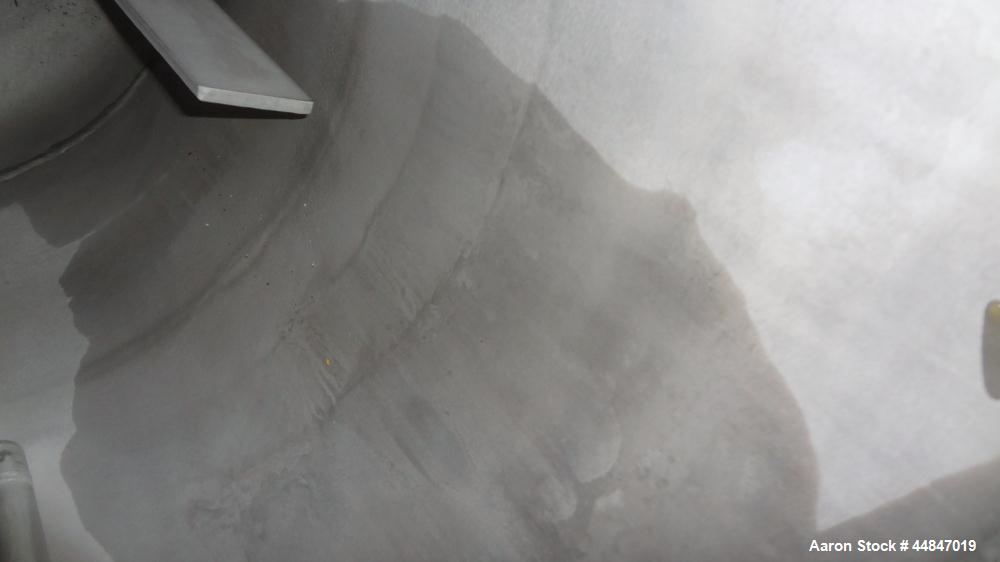

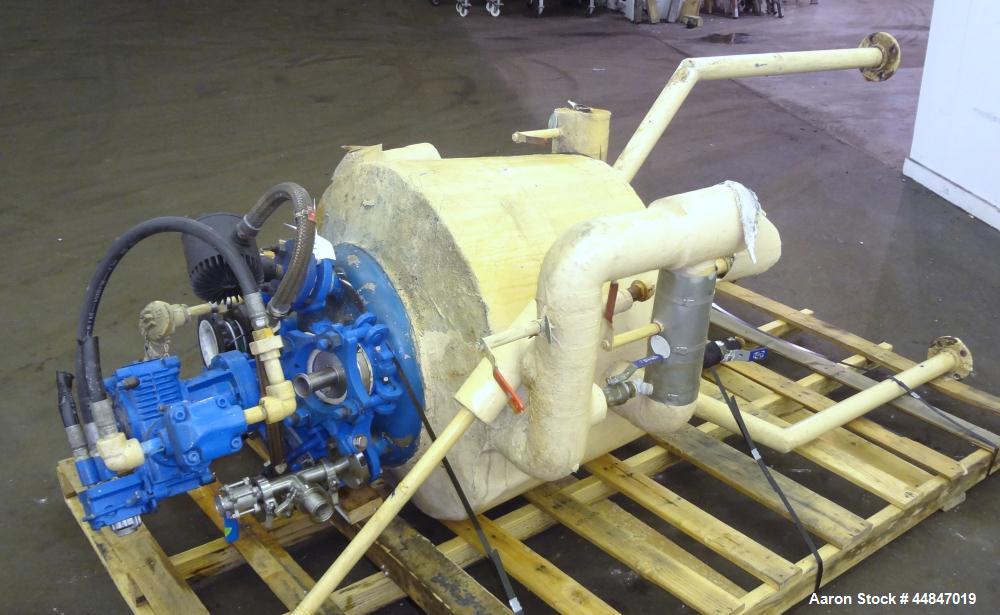

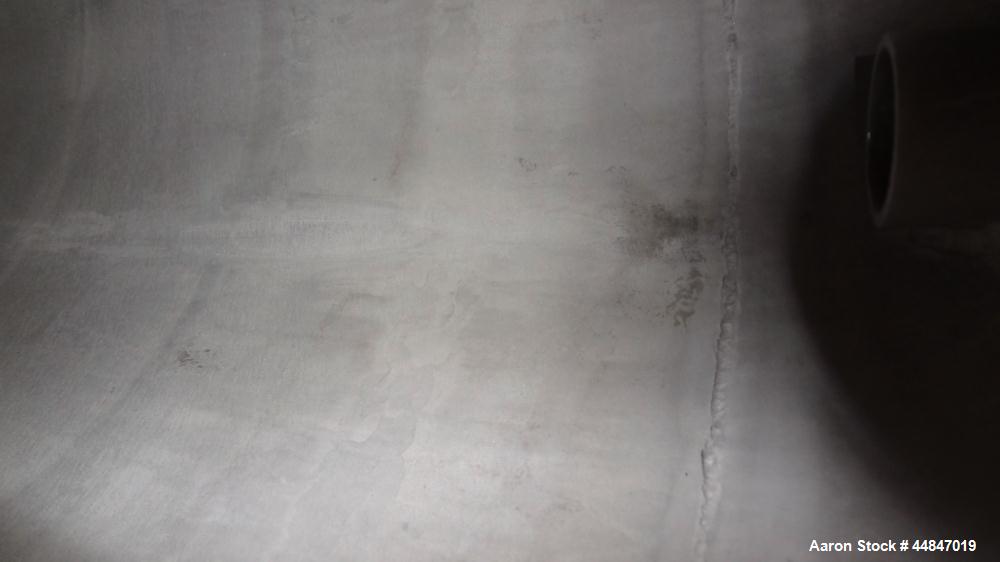

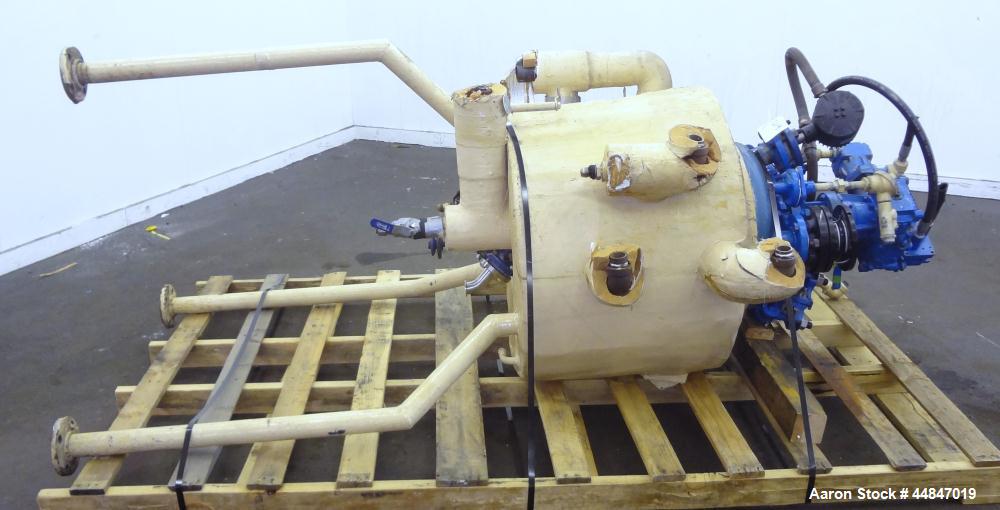

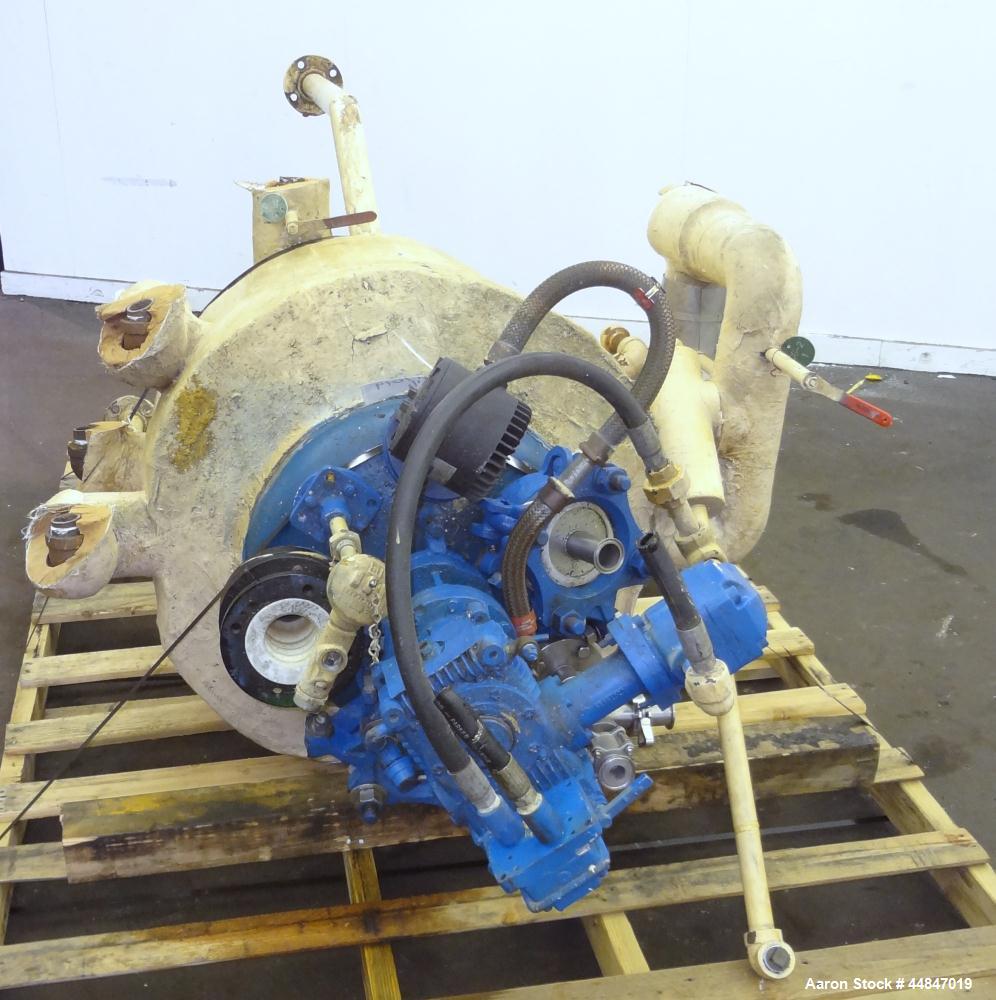

The Used Pfaudler 20-Gallon Reactor is a high-quality 316 stainless steel vertical reactor designed for industrial mixing and chemical processing. With an 18” diameter x 18” straight-side chamber, dished top, and bottom, this reactor is built for durability and high-performance processing.

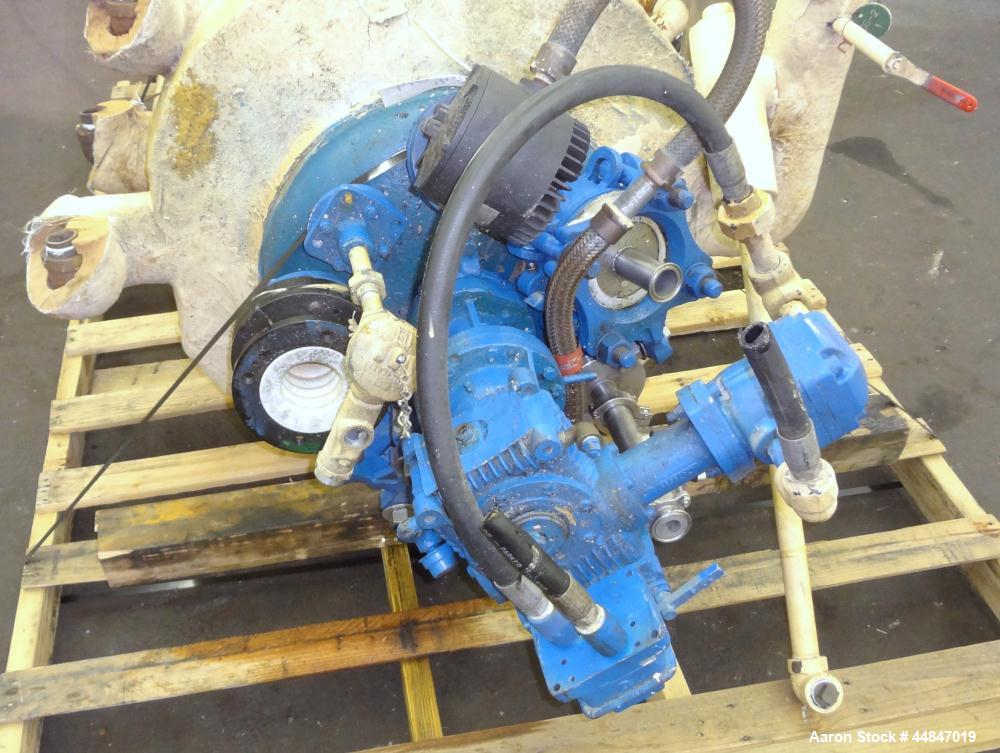

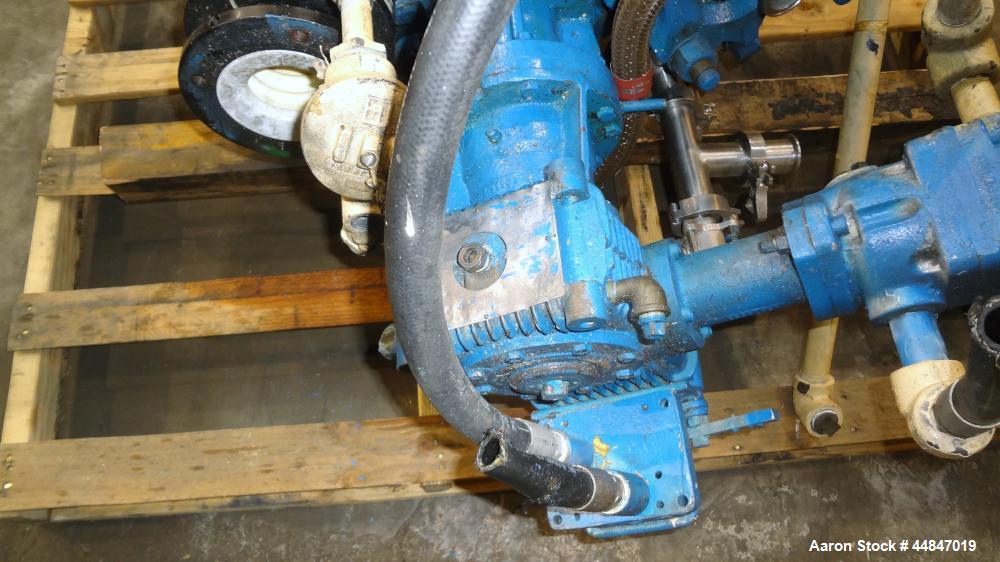

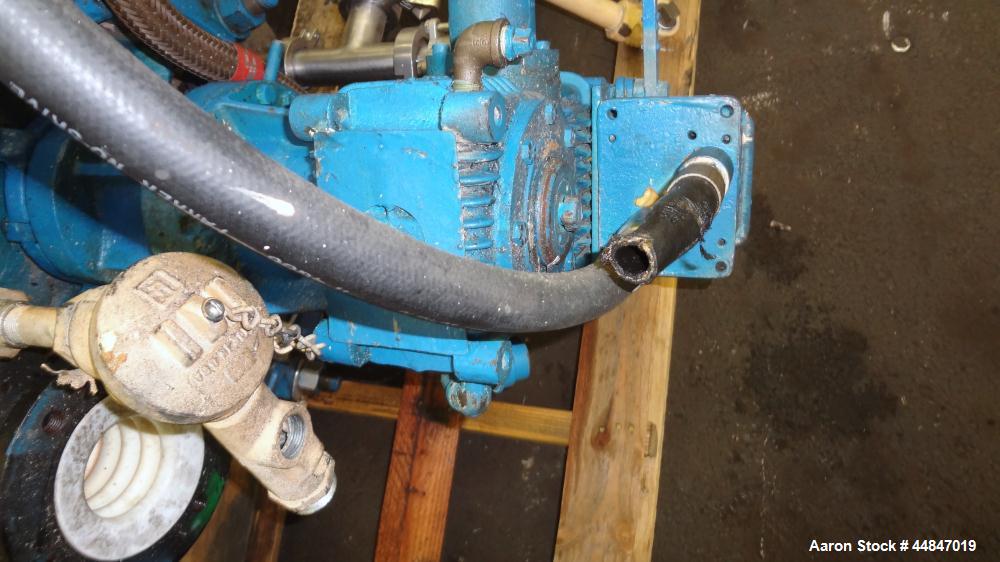

Internally rated at 60 PSI or full vacuum at 350°F, it also features a carbon steel jacket rated for 90 PSI at 350°F, ensuring precise temperature control. The unit includes an anchor-style agitator blade, driven by a Pfaudler drive (Size 2.5 TWV, Model SV-48270C-AKC, Ratio 5:1), but is set up for hydraulic drive with the connection for the drive missing and no power pack included.

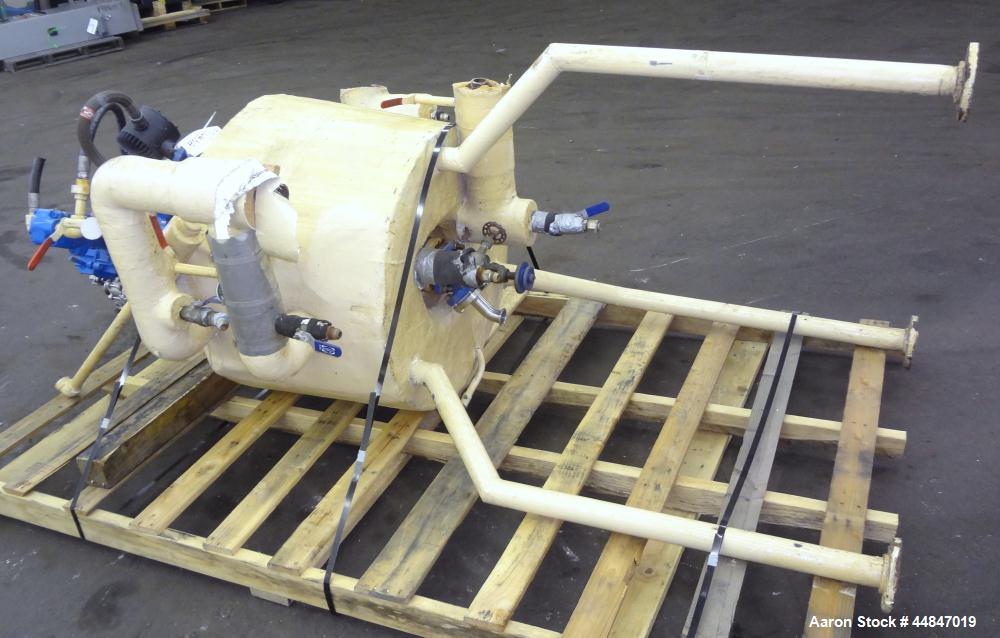

The reactor has multiple top openings for versatile processing needs and a 2” center bottom outlet for efficient discharge. Mounted on three carbon steel legs for stability.

Specifications:

• Brand: Pfaudler
• Type: Vertical Reactor
• Capacity: 20 Gallons
• Material: 316 Stainless Steel
• Chamber Dimensions: 18” Diameter x 18” Straight Side
• Internal Rating: 60 PSI or Full Vacuum at 350°F
• Jacket Rating: 90 PSI at 350°F (Carbon Steel)

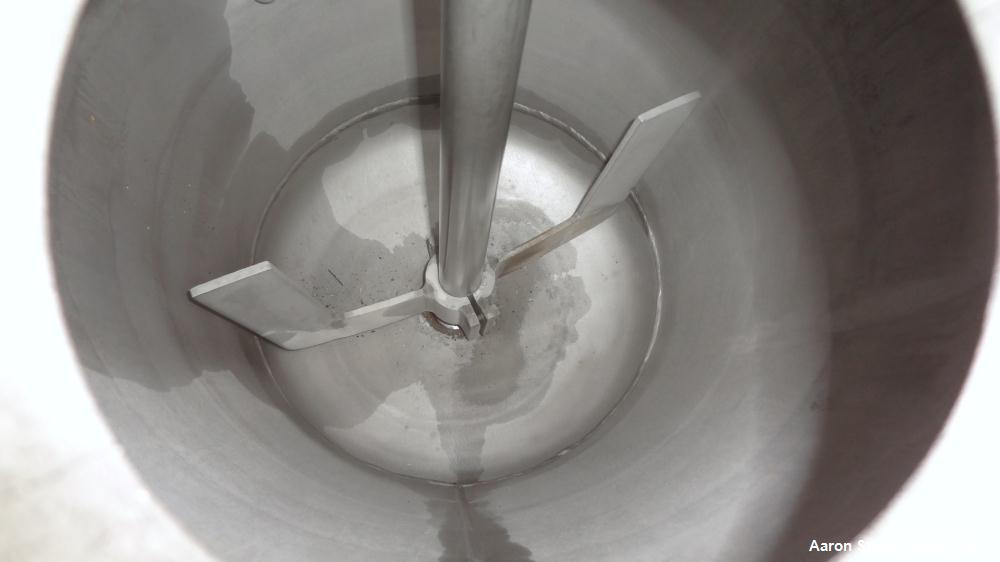

• Agitator: Anchor Style

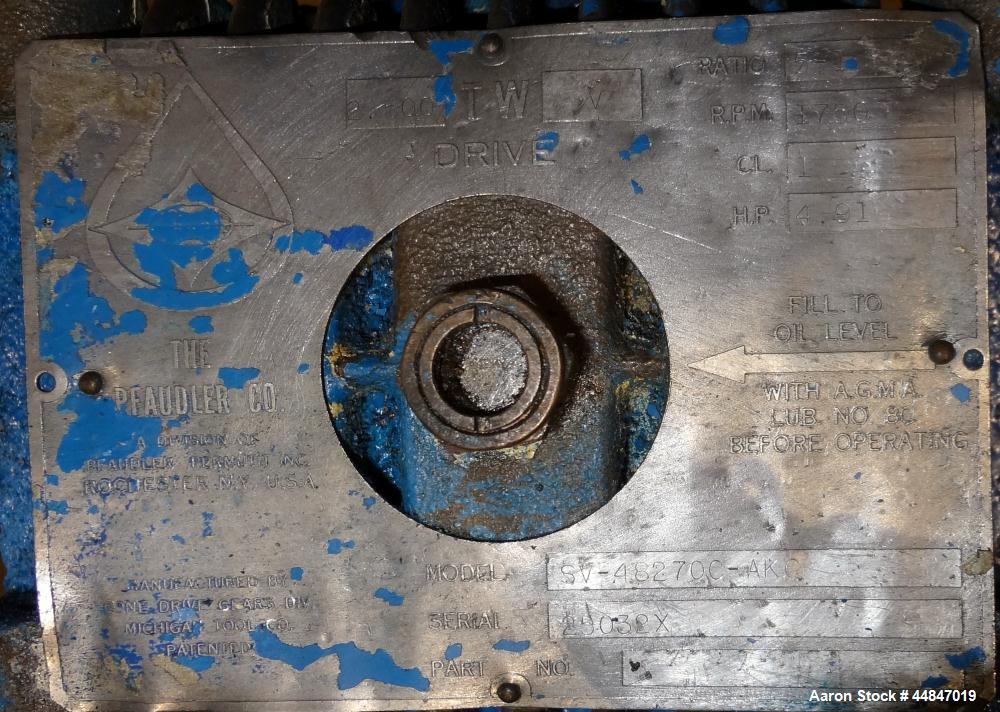

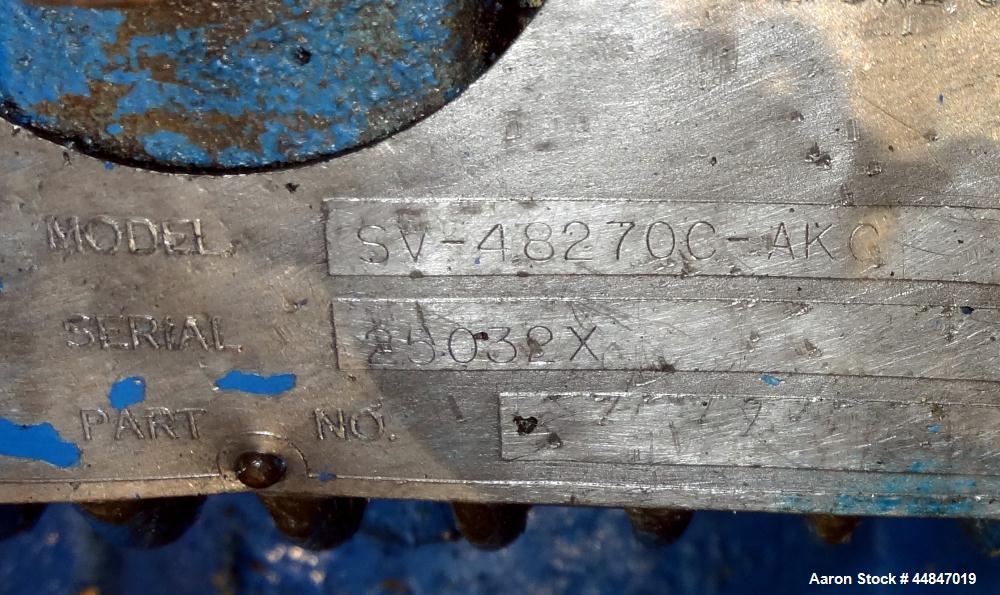

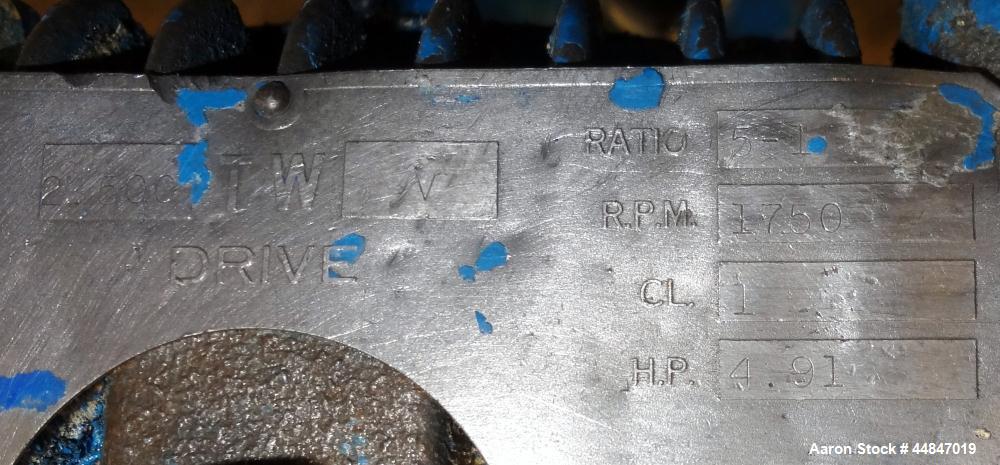

• Drive System: Pfaudler Drive, Size 2.5 TWV, Model SV-48270C-AKC, Ratio 5:1
• Drive Setup: Hydraulic (Connection Missing, No Power Pack)
• Openings:
  • Top: 1” (x1), 1.5” (x1), 2” (x3), 4” Hand Holes (x2)
  • Bottom: 2” Center Outlet

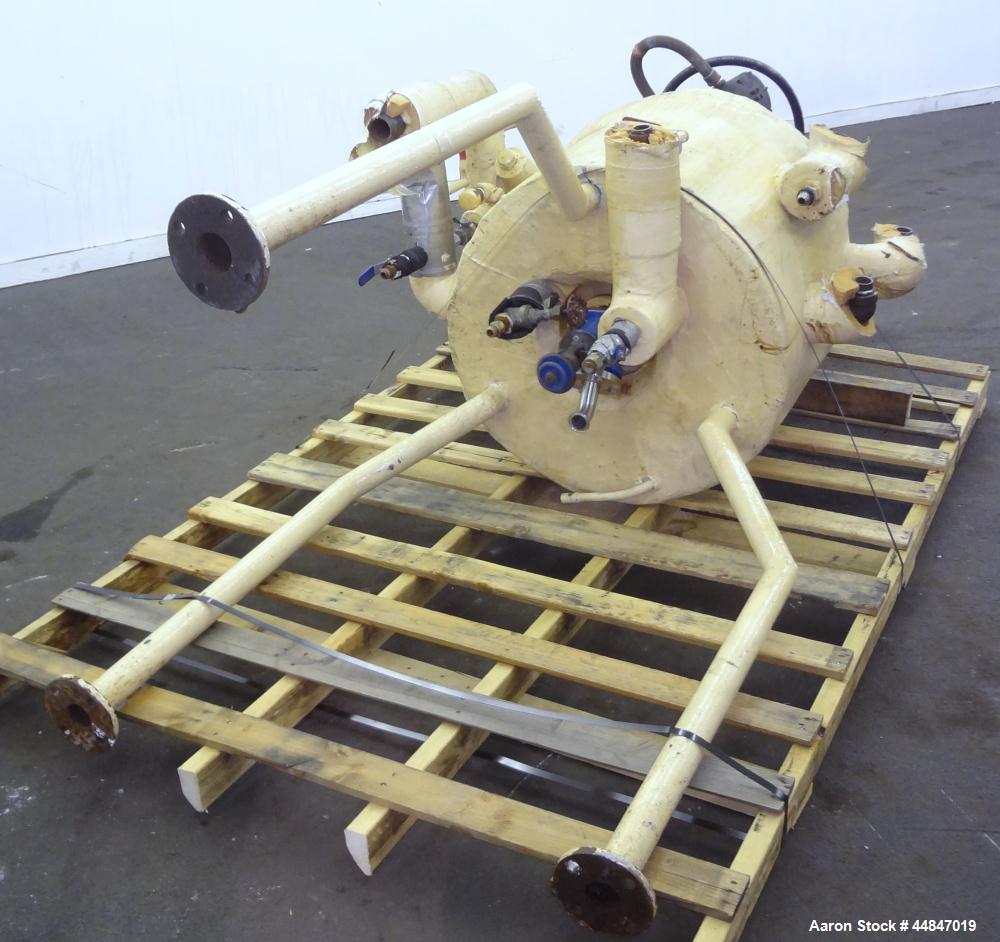

• Mounting: 3 Carbon Steel Legs

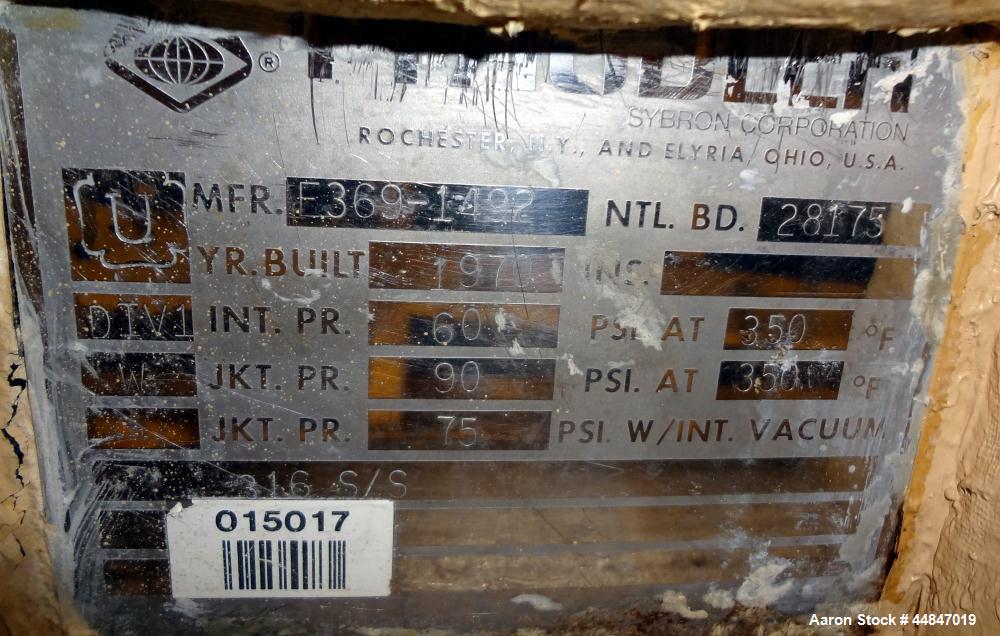

• National Board Number: 28175
• Serial Number: E369-1492

Applications:

• Chemical processing
• Pharmaceutical and biotech production
• Food and beverage mixing
• Specialty coatings and adhesives
• Pilot plant and R&D operations

Compatible Products & Industries:

• Chemical manufacturing plants
• Pharmaceutical formulation labs
• Research and development facilities
• Food and beverage production lines
• Resin and polymer processing
